The Cisco TelePresence® SX20 Quick Set (SX20 Quick Set) can transform any flat panel display into a sleek and powerful telepresence system. The SX20 Quick Set is designed to deliver high definition video and multiparty conferencing with the flexibility to accommodate various room size and configurations - all at a value price. The SX20 Quick Set supports embedded capability for multipoint support with Cisco® TelePresence MultiSite technology, enabling users to add three additional participants to a telepresence call.
SX20 Quick Set combines a powerful codec, three camera choices, and a dual-display option in an easy-to-deploy and easy-to-use solution. Whether you're a small business just getting started with telepresence or a large enterprise looking to expand your existing deployment, the SX20 Quick Set delivers the performance you would expect from more expensive systems - in a compact and feature-rich package. Cisco TelePresence SX20 Quick Set is designed to truly extend the power of in-person to everyone, everywhere.

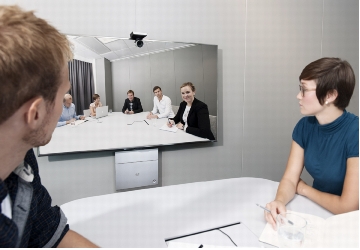

Figure 1. Cisco TelePresence SX20 Quick Set in a Small Meeting Room Environment

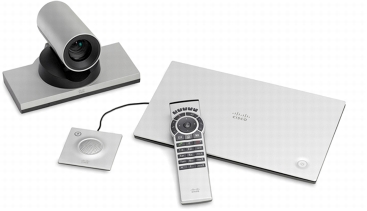

Figure 2. Cisco TelePresence SX20 Quick Set with 4x PrecisionHD Camera, Table Microphone, and Remote Control
Features and Benefits
Table 1 summarizes the primary features for the Cisco TelePresence SX20 Quick Set.
Table 1. Cisco TelePresence SX20 Quick Set Feature Summary
Feature Summary
Design Features
• Transforms a flat panel display into a 1080p high-definition meeting space
• Intuitive connections make setup as easy as connecting a DVD player
• Provides up to 1080p60 resolution - compatible with standards-based video without loss of features
• Sleek, compact design
Application Features
• Multimedia and presentations can be shared at the touch of a button
• Basic API available over IP (Telnet or Secure Shell Protocol [SSH])
• Dual-display option available
• High-definition content sharing up to 1080p15 resolution
• One button to push (OBTP) to start a meeting
Performance Features
• Optimal definition up to 1080p60
• H.323/SIP calls up to 6 Mbps
• Built-in individually transcoded multipoint conferencing offers ability to add three additional participants
• Easy provisioning and self-configuration with Cisco Unified Communications Manager (CUCM), Cisco TelePresence Video Communications Server (VCS), or Cisco WebEx TelePresence
• Takes advantage of the Cisco TelePresence Total Solution approach, including Cisco TelePresence Multiway features, recording and streaming, and firewall traversal services
• Cisco Unified Communications Manager native support (requires Cisco Unified Communications Manager Version 8.6 or higher)

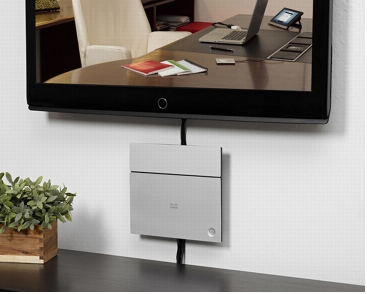

Figure 3. Cisco TelePresence SX20 Quick Set on Wall Mount
Product Specifications
Table 2 lists the product capability specifications for the Cisco TelePresence SX20 Quick Set.
Table 2. Product Specifications
Specification
Description
Default components in SX20 Quickset:
• SX20 Codec, Cisco TelePresence PrecisionHD Camera - (option of 1080p2.5, 1080p4xS2 or - 1080p12x) Cisco TelePresence Table Microphone 20, remote control, cables, and power supply
Optional components
• Cisco TelePresence Touch 8
• Wall mount kit
• Additional microphone
Bandwidth
• H.323 and SIP up to 6 Mbps
Minimum bandwidth for resolution/frame rate
• 720p30 from 768 kbps
• 720p60 from 1152 kbps
• 1080p30 from 1472 kbps
• 1080p60 from 2560 kbps
Firewall Traversal
• Cisco TelePresence Expressway Technology
• H.460.18, H.460.19 firewall traversal
Video Standards
• H.263, H.263+, H.264
Video Features
• Native 16:9 widescreen
• Advanced screen layouts
• Intelligent video management
• Local auto-layout
Video Inputs (Two Inputs)
One HDMI and One DVI-I (Analog and Digital): Supported Formats:
• Software upgrade from Cisco Unified Communications Manager
• Cisco Discovery Protocol and DHCP option 150 support
• Basic telephony features such as hold/resume/transfer and Corporate Directory lookup
IPv6 Network Support
• Single call stack support for both H323 and SIP
• Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
• Support for both Static and Automatic IP configuration (stateless address auto configuration)
Security Features
• Management using HTTPS and SSH
• IP administration password
• Menu administration password
• Disable IP services
• Network settings protection
Network Interfaces
• One LAN and Ethernet (RJ-45) 10/100/1000 Mbit
Other Interfaces
• Two USB ports for future usage
System management
• Support for the Cisco TelePresence Management Suite
• Total management using embedded SNMP, Telnet, SSH, XML, SOAP
• Remote software upload: using web server, secure copy (SCP), HTTP, HTTPS
• Cisco TelePresence Touch (optional)
• Remote control and on-screen menu system
Directory Services
• Support for local directories (My Contacts)
• Corporate directory
• Unlimited entries using server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite)
• Unlimited number for corporate directory (through Cisco TelePresence Management Suite)
• Received calls with date and time
• Placed calls with date and time
• Missed calls with date and time
Power
• Auto-sensing power supply
• 100 - 240 VAC, 50/60 Hz
• Maximum 40 watts for codec and main camera
Operating Temperature and Humidity
• 0° C to 40° C (32° F to 104° F) ambient temperature
• 10% to 90% Relative Humidity (RH)
Storage and Transport Temperature
• -20° C to 60° C (-4° F to 140° F) at RH 10% - 90% (non -condensing)
SX20 Codec Dimensions
• Width: 11.8 inches (30.0 cm)
• Height: 1.4 inches (3.4 cm)
• Depth: 7.1 inches (18.0 cm)
• Weight: 3.1 pounds (1.4 kg)
Camera Overview
2.5x optical zoom (5x with digital*)
4x optical zoom (8x with digital*)
12x optical zoom
Motorized +5°/-25° tilt, +/- 30° pan
Motorized +15°/-25° tilt, +/- 90° pan
Motorized +15°/-25° tilt, +/- 90° pan
51.5° vertical field of view
43.5° vertical field of view
43.5° vertical field of view
83° horizontal field of view
70° horizontal field of view
72° horizontal field of view
F 2.0
F 1.7
F 1.7
1920 x 1080 pixels progressive @ 60 fps
Automatic or manual focus, brightness, and white balance
Far-end camera control
Dual HDMI/Camera Control and USB output
Dual HDMI/Camera control
HDMI, HD-SDI output, and daisy chain
Upside-down mounting, picture flips automatically
Upside-down mounting, manual picture flip.
Upside-down mounting, picture flips automatically
Focus distance 0.3 m - infinity
*needs future software upgrade
Regulatory Compliance
• Directive 2006/95/EC (Low-Voltage Directive) - Standard IEC/EN 60950-1
• Directive 2004/108/EC (EMC Directive) - Standard EN 55022, Class A - Standard EN 55024 - Standard EN 61000-3-2/-3-3
• Approved according to UL 60950-1 and CAN/CSA-C22.2 No. 60950-1-07
• Complies with FCC CFR 47 Part 15 Class A
Ordering Information
To place an order, please contact your local Cisco representative and refer to Table 3.
Table 3. Ordering Information
Product Name
Part Number
Compliance Model Number
Cisco TelePresence SX20 Quick Set with Precision HD 1080p 2.5x Camera
CTS-SX20-PHD2.5X-K9
Cisco TelePresence SX20 Quick Set with Precision HD 1080p 4x Camera
CTS-SX20-PHD4X-K9
TTC7-21 (SX20 Codec)
TTC8-05 (Camera)
Cisco TelePresence SX20 Quick Set with Precision HD 1080p 12x Camera
CTS-SX20-PHD12X-K9
TTC7-21 (SX20 Codec)
TTC8-02 (Camera)
Cisco Service and Support
Cisco and our partners provide a broad portfolio of smart, personalized services and support that can help you realize the full business value of your Cisco TelePresence investment by increasing business agility and network availability. This portfolio of services accelerates business innovation by harnessing the network as a powerful business platform. For more information about these services, please visit: http://www.cisco.com/go/telepresenceservices.
For More Information
For more information about the Cisco TelePresence SX20 Quick Set, http://www.cisco.com/go/telepresence or contact your local account representative.
