The Cisco TelePresence® portfolio creates an immersive, face-to-face experience over the network, empowering you to collaborate with others as never before. Through a powerful combination of technologies and design that allows you and remote participants to feel as if you are all in the same room, the Cisco TelePresence portfolio has the potential to provide great productivity benefits and transform your business. Many organizations are already using it to control costs, make decisions faster, improve customer intimacy, scale scarce resources, and speed products to market.
Product Overview

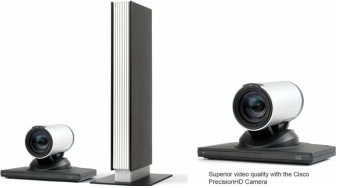

Connect team members for more productive meetings with the Cisco TelePresence Edge MXP Series (Edge MXP Series) (Figure 1). These easy-to-install units turn a meeting room with a flat screen into an interactive situation room for improved teamwork and accelerated decision making.
Cisco TelePresence Edge 95 MXP and Cisco TelePresence Edge 75 MXP Features
Table 1 summarizes the main features for the Cisco TelePresence Edge 95 MXP (Edge 95 MXP) and Cisco TelePresence Edge 75 MXP (Edge 75 MXP).
Table 1. Cisco TelePresence Edge 95 MXP and Cisco TelePresence Edge 75 MXP Features
Feature
Description
Design features
• Designed for medium-size to small meeting rooms
• Transforms a flat-panel display into a high-definition, interactive meeting space
• Uses Cisco TelePresence PrecisionHD Cameras
Application features
• Joins up to four video and three audio sites with optional embedded Cisco TelePresence MultiSite (MultiSite) and bandwidth capabilities
• Provides best possible call for each MultiSite participant with rate matching and transcoding
• Intuitively and instantly integrates multiple-party video using a Cisco TelePresence MCU multipoint control unit and Cisco TelePresence Video Communication Server (Cisco VCS)
• Enables powerful live presentations through one-step PC plug-in or LAN connection
• Lets users view presentations and the presenter simultaneously with DuoVideo and H.239 Dual Stream
• Offers Choice of network: up to 512-kbps ISDN (H.320) or 2-Mbps IP (H.323 or Session Initiation Protocol [SIP])
• Provides highest level of embedded encryption as well as H.235 and IEEE 802.1x authentication
• Provides true CD-quality audio
• Protects against network interruptions in point-to-point and multipoint calls with automatic down-speeding and Intelligent Packet Loss Recovery (IPLR)
• Provides superior video quality incorporating the H.264 standard
Product Specifications
Table 2 lists the specifications for the Edge 95 MXP and Edge 75 MXP.
• H.261, H.263, H.263+, H.263++ (natural video), and H.264
Video features
• Native 16:9 widescreen
• Advanced screen layouts
• Picture-in-picture (PIP)
• Picture-outside-picture and large picture-outside-picture
• Side by side
• PC zoom
• Intelligent video management
• Simultaneous videoconference and local PC mode
• Local autolayout
Video inputs (5 inputs)
• 1 x 9 PinDSUB: HD main camera
• 1 x MiniDin, S-video: auxiliary or document camera
• 1 x RCA/Phono, composite: auxiliary or document camera
• 1 x RCA/Phono, composite: VCR
• 1 x DVI-I: PC
• Input: 800 x 600 (at 60, 72, 75, and 85 Hz); 1024 x 768 (at 60, 70, and 75 Hz); 1280 x 720 (HD720P; at 50 and 60 Hz); 1280 x 1024 (at 60 Hz); and 1280 x 768, 1280x800, 1360x768, and 1366x768 (at 60 Hz)
• Extended display identification data (EDID)
Video outputs (4 outputs)
• 1 x MiniDin, S-video: main monitor
• 1 x RCA/Phono, composite: main monitor or VCR
• 1 x RCA/Phono, composite: dual monitor or VCR
• 1xDVI-1/XGA: main or second monitor
• XGA output
• 800 x 600 at 75 Hz, 1024 x 768 at 60 Hz, 1280 x 768 (WXGA) at 60 Hz, 1280 x 720 (HD720p) at 60 Hz, and 1280 x 800 at 60 Hz
• VESA monitor power management
Video format
• NTSC, PAL, VGA, SVGA, XGA, WXGA, SXGA, and HD720p
Live video resolutions
Native NTSC:
• 400p (528 x 400 pixels)
• 4SIF (704 x 480 pixels); Digital Clarity
• Interlaced SIF (iSIF 352 x 480 pixels); natural video
• SIF (352 x 240 pixels)
Native PAL:
• 448p (576 x 448 pixels)
• 4CIF (704 x 576 pixels); Digital Clarity
• Interlaced CIF (iCIF 352 x 576 pixels); natural video
• G.711, G.722, G.722.1, G.728, and 64-bit and 128-bit MPEG4 AAC-LD
Audio features
• CD-quality 20-kHz mono and stereo
• Telephone add-on using MultiSite
• Two separate acoustic echo cancellers
• Audio mixer
• Automatic gain control (AGC)
• Automatic noise reduction
• Audio-level meters
• VCR ducking
• Optional stereo package
• Packet loss management
• Active lip synchronization
• GSM and RIM Blackberry interference audio feature
• Assistive listening device (ALD) support with acoustic echo cancellation
Audio inputs (4 inputs)
• 2 x microphone, 24V phantom powered, XLR connector
• 1 x RCA/Phono, line level: auxiliary (or VCR stereo L)
• 1 x RCA/Phono, line level: VCR/DVD (stereo R)
Audio outputs (2 outputs)
• 1 x RCA/Phono, S/PDIF (mono and stereo) or analog line level: main audio or analog stereo L
• 1 x RCA/Phono, line level: VCR or analog stereo R
Frame rates
• 30 frames per second (fps) at 168 kbps and higher
Dual Stream
• DuoVideo
• H.239 and Binary Floor Control Protocol (BFCP) Dual Stream
• Dynamic bandwidth adjustment (H.323)
• Available on SIP, H.323, and H.320
• Available in MultiSite from any site (Cisco TelePresence Edge 95 MXP only)
Network features
• Auto H.320 and H.323 dialing
• SIP
• Downspeeding
• Programmable network profiles
• Intelligent call management
• Maximum call length timer
• Automatic service provider ID (SPID) and line number configuration (national ISDN and GR-2941-CORE)
• SoftMux
• H.331 broadcast mode
• URI dialing
• Direct Domain Name System (DNS) dialing
MultiSite features (Cisco TelePresence Edge 95 MXP only)
• H.323, H.320, SIP, telephony, and voice over IP (VoIP) in the same conference
• Audio and video transcoding
• Video rate matching from 56 kbps (maximum conference rate)
• CP4 and voice switched
• Best impression (automatic control protocol layouts)
• H.264, encryption, and Digital Clarity
• Dual Stream from any site
• ISDN and IP downspeeding and IPLR
• MultiSite (H.243) cascading on H.320 and H.323
• Unicode H.243 terminal names
• Dial in and dial out
• Chair control for host system
• Snapshot of ongoing conference (JPEG)
• Snapshot of ongoing DuoVideo or H.239 presentation (JPEG)
• Separate welcome page for encrypted conferences
• Conference rates of up to 2.3 Mbps with optional bandwidth upgrade (1.5 Mbps is standard conference rate)
• Up to 4 video and 3 audio sites
• 4 sites at 768 kbps (plus telephone calls)
• Mix ISDN Basic Rate Interface (BRI) and IP up to maximum conference rate
Embedded encryption
• H.320 and H.323 point-to-point and multipoint calls
• Standards-based: H.233, H.234, H.235 v2 and v3, Data Encryption Standard (DES), and Advanced Encryption Standard (AES)
• NIST-validated AES
• NIST-validated DES
• Automatic key generation and exchange
• Supported in Dual Stream and MultiSite
IP network features
• IEEE 802.1x and Extensible Authentication Protocol (EAP) network authentication
• H.235 gatekeeper authentication
• DNS lookup for service configuration
• Differentiated services (DiffServ)
• IP precedence
• IP type of service (ToS)
• IP adaptive bandwidth management (including flow control)
• Autogatekeeper discovery
• Dynamic playout and lip-sync buffering
• IPLR
• H.245 dual-tone multi-frequency (DTMF) tones in H.323
• Cisco® Unified Communications Manager integration through gatekeeper or SIP trunk
• IP address conflict warning
• Date and time support through Network Time Protocol (NTP)
• Call services
IPv6 network support
• Dual-stack IPv4 and IPv6 simultaneous support
• Net service support on IPv6: Telnet, SSH, HTTP, HTTPS, FTP, Simple Network Management Protocol (SNMP), DNS, NTP, and Dynamic Host Configuration Protocol (DHCP)"
• Media support on IPv6: H.323, SIP, and streaming
Security features
• Management through HTTPS and SSH
• IP administration password
• Menu administration password
• Dialing access code
• Streaming password
• H.243 MCU password
• Virtual network computing (VNC) password
• SNMP security alerts
• Disable IP services
• MD-5 challenge
• Network settings protection
• SIP authentication through NT LAN Manager (NTLM)
• SIP authentication through digest
Network interfaces
• 4 x ISDN BRI (RJ-45), S-interface
• 1 x LAN and Ethernet (RJ-45) 10/100 Mbps (LAN, DSL, and cable modem)
Note: Product specifications are estimates and subject to change without notice.
Regulatory Compliance
• Directive 73/23/EEC (low-voltage directive)
– Standard EN 60950
• Directive 89/336/EEC (EMC directive)
– Standard EN 55022, Class A
– Standard EN 55024
– Standard EN 61000-3-2/-3-3
• Directive 1999/5/EEC (R and TTE directive)
– Standard TBR3
• Approved according to UL 60950 and CAN/CSA C22.2 No.60950
• Complies with FCC15B Class A
Ordering Information
To place an order, visit the Cisco Ordering homepage. Table 3 provides ordering information.
Table 3. Ordering Information
Product Name
Part Number
Compliance Model Number
Cisco TelePresence Edge 95 MXP
CTS-EDGE95-K9
TTC7-14
Comes with: Edge MXP codec, 512 kbps ISDN/2 Mbps IP bandwidth, Natural Presenter Package, MultiSite, Cisco TelePresence PrecisionHD Camera 720p, 1 microphone, remote control
Video Standard Options - Choose One
CTS-NTSC for Edge MXP
CTS-NTSC
PAL Option for Edge MXP
CTS-PAL
Product Name
Part Number
Compliance Model Number
Cisco TelePresence Edge 75 MXP
CTS-EDGE75-K9
TTC7-14
Comes with: Edge MXP codec, 128 kbps ISDN/768 kbps IP bandwidth, Natural Presenter Package, Cisco TelePresence PrecisionHD Camera 720p, 1 microphone, remote control
Video Standard Options (Choose One)
CTS-NTSC for Edge MXP
CTS-NTSC
PAL Option for Edge MXP
CTS-PAL
Bandwidth Software Feature Options for Edge 75 MXP
512kbps ISDN 2Mbps IP Bandwidth Option (Multi Site NOT Included)
LIC-EDG75-BW2
Services and Support
Cisco and our partners provide a broad portfolio of intelligent, personalized services and support that can help you achieve the full value of your Cisco TelePresence investment by increasing business agility and network availability. This portfolio of services accelerates business innovation through a network-based collaboration platform that enables businesses to collaborate anywhere, at any time. For more information about these services, visit http://www.cisco.com/go/telepresenceservices.
For More Information
For more information about Cisco TelePresence Edge 95 and 75 MXP, visit http://www.cisco.com/go/telepresence or contact your local Cisco account representative or authorized Cisco partner.
