Product Overview
Cisco® Video Surveillance 2800 Series Standard Definition PTZ IP Cameras are feature-rich cameras designed for superior performance, image quality, and ease of deployment. These cameras use a 1/4" SONY EX12E EXmor™ CCD Sensor that allows up to a 12x optical zoom while viewing and recording at D1 resolutions.
The cameras are equipped with an integrated camera optics assembly which offers 360° continuous pan rotation, a 220° tilt range, and 16 PTZ presets. In addition, the cameras support an SD/SDHC slot for local storage that can be used to store video if network connectivity is lost.
Cisco Video Surveillance 2800 Series IP Cameras support two simultaneous video streams. The streams can be compressed in MJPEG and H.264 formats across several resolution configurations, and can be configured in a variety of frame rates and bit rates for additional bandwidth administration. The cameras feature a ¼ inch SONY EXmor CCD Sensor for increased sensitivity and low light capability that allow the cameras to compensate in scenes where minimal light is present. In addition, the cameras feature built-in motion detection and wide dynamic range (WDR) that enables the system to compensate in scenes where dramatic contrasts in lighting are present.
For unparalleled simplicity of setup and monitoring, the cameras support the Cisco Medianet interface. When connected to a Cisco switch that also supports Medianet, the switch recognizes the camera as a video endpoint and then uses SmartPort macros to set the right network parameters for the video stream on the network. In addition, the camera can be automatically discovered and configured when connected to Cisco Video Surveillance Manager 7.0, thereby minimizing installation time and cost.
Cisco Video Surveillance 2800 Series Standard Definition PTZ IP Cameras offer a variety of benefits, including:
Full Range of Motion: The camera supports a continuous 360° pan rotation, 220° tilt angle range, and 12x optical zoom. The camera operator can remotely control the camera to track subjects or reposition the camera's field of view.
Camera Presets: Operators can program up to 16 preset locations that the camera can automatically cycle through while recording.
Wide Dynamic Range: The camera employs powerful digital imaging technology, allowing it to capture high-quality images in a wide variety of lighting conditions. It uses a progressive scan image sensor with global electronic shuttering to ensure natural color rendition, zero blooming and smear and minimal motion blurring.
Outdoor Ready: The housing for the camera is IP66 rated, allowing for outdoor mounting without an additional enclosure.
Day/night operation: The camera provides true day/night functionality and includes an IR filter that automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or scheduled control.
Open API: Support for ONVIF 2.0 allows for standards based interoperability and communications with other ONVIF appliances.
Flexible power options: The camera supports Power over Ethernet (PoE+) 802.3at, High PoE, or 24 VAC power through an external power supply.
Simple Web Interface: The Cisco Video Surveillance 2800 Series supports Internet Explorer 8.0 for remote setup and administration.
Privacy Masking: Privacy masking is used to conceal user-defined privacy areas that cannot be viewed by an operator. The Cisco Video Surveillance 2800 Series supports up to four privacy masked regions. A masked area will appear on the screen as a solid, or user defined colored window.
Product Specifications
Table 1 lists the product specifications for the Cisco Video Surveillance 2800 Series.
Table 1. Product Specifications
Table 2 lists the video stream support for the Cisco Video Surveillance 2800 Series for 4:3 aspect ratios.
Table 2. Video Stream Support for 4:3 Aspect Ratios
Software
Table 3 describes the primary features of Cisco Video Surveillance 2800 Series IP Camera software.
Table 3. Primary Software Features

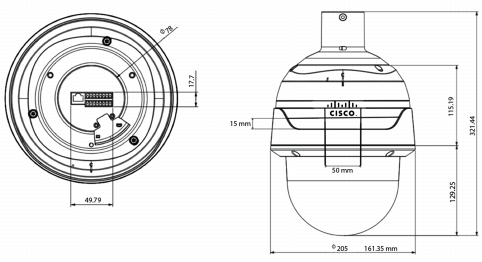

Figure 1 shows the dimensions of Cisco Video Surveillance 2800 Series IP Cameras. All dimensions are in millimeters.
Figure 1. Cisco Video Surveillance 2800 Series IP Camera Dimensions
Warranty Information
Find warranty information on Cisco.com at the Product Warranties page.
Ordering Information
Availability
Cisco Video Surveillance IP Cameras are available through Cisco Advanced Technology Provider (ATP) program partners. Table 4 lists part numbers for the Cisco Video Surveillance 2800 Series.
Table 4. Ordering Information
Cisco Services
Cisco offers a wide range of services programs to accelerate customer success. These innovative programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you to protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco Services, see Cisco Technical Support Services or Cisco Advanced Services.
For More Information
For more information about Cisco Video Surveillance IP Cameras, visit http://www.cisco.com/go/physec or contact your local account representative.
