The Cisco® Video Surveillance 3520 IP Camera is a high-definition, full-functioned video endpoint with industry-leading image quality and processing power. The camera is capable of resolutions up to 1280 x 800 at 30 frames per second (fps) while optimizing network usage with either H.264 or MJPEG compression. Contact closures allow integration with access control systems. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.
Figure 1 shows the Cisco Video Surveillance 3520 IP Camera.

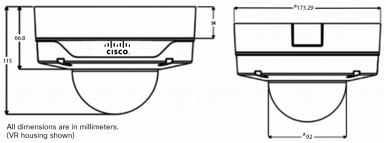

Figure 1. Cisco Video Surveillance 3520 IP Camera
The Cisco Video Surveillance 3520 IP Camera offers a variety of benefits, including:
• True high-definition video. The camera streams crisp and clear video at resolutions of up to 1280 x 800 at 30 fps while maintaining low network bandwidth.
• Dual streaming. The camera can stream H.264 and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame-rate settings.
• Day/night operation. The camera provides true day/night functionality and includes an infrared filter that automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or scheduled control.
• Privacy regions. The camera supports up to four user-defined privacy regions. Any video within a privacy region is masked in the video stream.
• Local storage. Video data can automatically be recorded to a microSD card when the camera loses network connectivity.
• Bidirectional audio. The camera supports full-duplex audio and options for half-duplex operation.
• Open API. Support for ONVIF 2.0 allows for standards based interoperability and communications with other ONVIF appliances.
• Flexible power options. The camera supports Power over Ethernet (PoE) 802.3af, 12 VDC, or 24 VAC power through an optional external power supply.
• Medianet support. The camera supports the Cisco Medianet interface. When connected to a Cisco switch that also supports Medianet, the switch recognizes the camera as a video endpoint and then uses SmartPort macros to set the right network parameters for the video stream on the network. In addition, the camera can be automatically discovered and configured when connected to Cisco Video Surveillance Manager 7.0, thereby minimizing installation time and cost.
Features
Table 1 describes the features of the Cisco Video Surveillance 3520 IP Camera.
Table 1. Cisco Video Surveillance 3520 IP Camera Features
Item
Specification
Imaging device
1/4-in. progressive-scan CMOS
Image control
Automatic white balance (AWB), automatic gain control (AGC), automatic exposure shutter (AES), and auto and manual iris
Wide dynamic range
Approximately 69 dB
Minimum illumination
• Color mode: F1.4 @ 0.4 lux
• Black and white mode: F1.2 @ 0.2 lux
Lens
3-9 mm
DC-Iris
Field of view
66.09° to 25.03° (horizontal)
40.66° to 15.77° (vertical)
78.36° to 28.83° (diagonal)
Camera angle adjustment
Pan: 350°
Tilt: 80°
Rotate: 350°
Video compression
H.264 and MJPEG
Audio compression
G.711 A-Law, G.711 U-Law, G.726
Resolution and frame rate (H.264)
Refer to Tables 2 and 3
Resolution and frame rate (MJPEG)
Refer to Tables 2 and 3
Video streaming
• Single-stream H.264 or MJPEG up to 1280 x 800 @ 30 fps
• Dual-stream H.264 and MJPEG
• Primary stream programmable up to 1280 x 800 @ 30 fps
• Secondary stream programmable up to 1024 x 576 @ 15 fps
Protocols
Dynamic Host Control Protocol (DHCP), Hypertext Transfer Protocol (HTTP), Secure HTTP (HTTPS), Network Time Protocol (NTP), Real-Time Transport Protocol (RTP), Real-Time Streaming Protocol (RTSP), Simple Mail Transfer Protocol (SMTP), Secure Sockets Layer/Transport Layer Security (SSL/TLS), Transmission Control Protocol/Internet Protocol (TCP/IP), Secure Real-Time Transport Protocol (SRTP), Cisco Discovery Protocol, Bonjour, Simple Network Management Protocol (SNMP), and Secure Shell (SSH)
Quality of service (QoS)
Differentiated services code point (DSCP) marking and class of service (CoS) marking
Power
12 VDC or 24 VAC through optional external power supply, available separately
PoE (802.3af)
Power consumption (max)
DC: 3.6W
AC: 5.1W
PoE: 5.28W
Table 2 lists the video stream support for the Cisco Video Surveillance 3520 IP Camera.
Table 2. Cisco Video Surveillance 3520 IP Camera Video Stream Support
Primary (H.264)
Maximum fps
Secondary (H.264 or MJPEG)
Maximum fps
1280 x 800
30
1024 x 576
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
1280 x 720
30
1024 x 576
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
1024 x 576
30
1024 x 576
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
960 x 544
30
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
768 x 432
30
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
704 x 400
30
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
640 x 368
30
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
352 x 208
30
352 x 208
320 x 192
192 x 112
160 x 96
15
320 x 192
30
320 x 192
192 x 112
160 x 96
15
192 x 112
30
192 x 112
160 x 96
15
160 x 96
30
160 x 96
15
Table 3 lists the video stream support for the Cisco Video Surveillance 3520 IP Camera for 4:3 aspect ratios.
Table 3. Cisco Video Surveillance 3520 IP Camera Video Stream Support for 4:3 Aspect Ratio
Primary (H.264)
Maximum fps
Secondary (H.264 or MJPEG)
Maximum fps
720 x 480/576
30/25
720 x 480/576
704 x 480/576
352 x 240/288
15
704 x 480/576
30/25
704 x 480/576
352 x 240/288
15
352 x 240/288
30/25
352 x 240/288
15
Connectors
Table 4 describes the connectivity and connectors of the Cisco Video Surveillance 3520 IP Camera.
Table 4. Cisco Video Surveillance 3520 IP Camera Connectors
Item
Specification
Network connectivity
100 BASE-TX Ethernet with RJ-45 connector
Alarm input
One logic level programmable
Alarm output*
One logic level programmable
Storage
MicroSD card slot
Audio
• 3.5-mm audio jack: Audio input for optional external microphone and audio output for optional external speaker supported through cable adapter
• Two-way (full- and half-duplex), one-way, or audio off
Power input
Terminal block
* Not supported when the camera is used with Cisco Video Surveillance Manager.
Software
Table 5 describes the primary features of the Cisco Video Surveillance 3520 IP Camera software.
Table 5. Cisco Video Surveillance 3520 IP Camera Primary Software Features
Item
Specification
Activity detection
User-definable alerts with configurable sensitivities and thresholds, e-mail alert, and HTTP notifications
Video format
NTSC and PAL
Image settings
Configurable brightness, sharpness, contrast, saturation, and white balance
Overlay capabilities
Time, date, and text
Selectable bit rate
Support for constant bit rate or variable bit rate
IP filtering
Users can enter a list of allowed or blocked IP addresses for viewing video and configuring camera settings
Cisco and our certified partners can help you accelerate success and improve the return on your investment in a Cisco Physical Security solution. The Cisco lifecycle approach to services defines the requisite activities at each phase of the solution lifecycle. This approach allows you to:
• Reduce deployment costs by identifying the features that will best meet your business requirements
• Accelerate migration by assessing the readiness of your network to support the system and by developing a sound design
• Support smooth implementation through effective planning and expert installation, configuration, and integration
• Increase operational efficiency and extend the value of your investment with award-winning technical support
For more information about the Cisco Video Surveillance 3520 IP Camera, please visit http://www.cisco.com/go/videosurveillance or contact your local account representative.
