The Cisco® Video Surveillance 6050 IP Camera (shown in Figure 1) is a ruggedized, outdoor, high-definition video endpoint with industry-leading image quality and processing power. The camera was designed to be vibration resistant and is ideal for use in transportation applications such as buses, trains, and other moving vehicles. The IK10- and IP67-rated housing combined with a low profile also make this camera suitable for discreet placement in harsh environments. High quality video can be streamed at a full 1080p resolution at 30 frames per second (fps) while optimizing network usage with either H.264 or MJPEG compression. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.
Figure 1. Cisco Video Surveillance 6050 IP Camera
The Cisco Video Surveillance 6050 IP Camera offers a variety of benefits, including:
• True high-definition video: The camera streams crisp and clear 1080p (1920 x 1080) (2.1 megapixel) video at 30 fps while maintaining low network bandwidth.
• Ruggedized construction: Vibration and vandal resistant, the IK10- and IP67-rated housing protect the camera in demanding outdoor environments.
• Dual streaming: The camera can stream H.264 and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame-rate settings.
• Privacy regions: The camera supports up to four user-defined privacy regions. Any video within a privacy region is masked in the video stream.
• Local storage: Video data can automatically be recorded to a microSD card when the camera loses network connectivity.
• Open API: Support for ONVIF 2.0 allows for standards-based interoperability and communications with other ONVIF appliances.
• Flexible power options: The camera supports Power over Ethernet (PoE) 802.3af.
• Medianet support: The camera supports the Cisco Medianet interface. When connected to a Cisco switch that also supports Medianet, the switch recognizes the camera as a video endpoint and then uses SmartPort macros to set the right network parameters for the video stream on the network. In addition, the camera can be automatically discovered and configured when connected to Cisco Video Surveillance Manager 7.0, thereby minimizing installation time and cost.
Features
Table 1 describes the features of the Cisco Video Surveillance 6050 IP Camera.
Table 1. Cisco Video Surveillance 6050 IP Camera Features
Item
Specification
Imaging device
1/2.7-in. progressive-scan CMOS
Image control
Automatic white balance (AWB), automatic gain control (AGC), automatic exposure shutter (AES)
Wide dynamic range
Approximately 69 dB
Minimum illumination
• Color: 0.5 lux
• B/W: 0.05 lux
Lens
• 2.8 mm
• Fixed Iris
Field of view
• 37.5° to 103.7° (horizontal)
• 21.6° to 71.2° (vertical)
• 42.6° to 111.21° (diagonal)
Camera angle adjustment
Tilt range: 90° (0°~90°)
Shutter speed
1/5 to 1/32,000 sec
Video compression
H.264 and MJPEG
Resolution and frame rate (H.264)
Refer to Tables 2 and 3
Resolution and frame rate (MJPEG)
• Refer to Tables 2 and 3
• MJPEG is supported as the secondary stream only
Video streaming
• Single-stream H.264 or MJPEG up to 1080p (1920 x 1080) @ 30 fps
• Dual-stream H.264 and MJPEG
• Primary stream programmable up to 1280 x 720 @ 30 fps
• Secondary stream programmable up to 960 x 544 @15 fps
Protocols
Dynamic Host Control Protocol (DHCP), Hypertext Transfer Protocol (HTTP), Secure HTTP (HTTPS), Network Time Protocol (NTP), Real-Time Transport Protocol (RTP), Real-Time Streaming Protocol (RTSP), Simple Mail Transfer Protocol (SMTP), Secure Sockets Layer/Transport Layer Security (SSL/TLS), TCP/IP, Cisco Discovery Protocol, Bonjour, Simple Network Management Protocol (SNMP), and Secure Shell (SSH) Protocol
Quality of service (QoS)
Differentiated-services-code-point (DSCP) marking and class-of-service (CoS) marking
Power
PoE (802.3af)
Power consumption (max)
TBD
Table 2 lists the video stream support for the Cisco Video Surveillance 6050 IP Camera for 16:9 aspect ratios.
Table 2. Cisco Video Surveillance 6050 IP Camera Video Stream Support for 16:9 Aspect Ratios
Primary (H.264)
Maximum fps
Secondary (H.264 or MJPEG)
Maximum fps
1920 x 1080
30
NA
-
1920 x 1080
15
1024 x 576
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
1536 x 864
30
1024 x 576
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
1472 x 832
30
1024 x 576
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
1280 x 720
30
1024 x 576
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
1024 x 576
30
1024 x 576
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
960 x 544
30
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
768 x 432
30
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
704 x 400
30
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
640 x 368
30
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
15
352 x 208
30
352 x 208
320 x 192
192 x 112
160 x 96
15
320 x 192
192 x 112
160 x 96
30
320 x 192
192 x 112
160 x 96
15
192 x 112
160 x 96
30
192 x 112
160 x 96
15
160 x 96
30
160 x 96
15
Table 3 lists the video stream support for the Cisco Video Surveillance 6050 IP Camera for 4:3 aspect ratios.
Table 3. Cisco Video Surveillance 6050 IP Camera Video Stream Support for 4:3 Aspect Ratios
Primary (H.264)
Maximum fps
Secondary (H.264 or MJPEG)
Maximum fps
1280 x 960
30
720 x 576
720 x 480
704 x 576
704 x 480
352 x 240
352 x 288
15
720 x 576
30
720 x 576
704 x 576
352 x 288
15
720 x 480
30
720 x 480
704 x 480
352 x 240
15
704 x 576
30
704 x 576
352 x 288
15
704 x 480
30
704 x 480
352 x 240
15
352 x 240
30
352 x 240
15
352 x 288
30
352 x 288
15
Connectors
Table 4 describes the connectivity and connectors of the Cisco Video Surveillance 6050 IP Camera.
Table 4. Cisco Video Surveillance 6050 IP Camera Connectors
Item
Specification
Network connectivity
100 BASE-TX Ethernet with locking M12 connector
Storage
MicroSD card slot
Power input
PoE
Table 5 describes the primary features of the Cisco Video Surveillance 6050 IP Camera software.
Table 5. Cisco Video Surveillance 6050 IP Camera Primary Software Features
Item
Specification
Activity detection
User-definable alerts with configurable sensitivities and thresholds, email alert, and HTTP notifications
Video format
NTSC and PAL
Image settings
Configurable brightness, sharpness, contrast, saturation, hue, and white balance
Overlay capabilities
Time, date, and text
Selectable bit rate
Support for constant bit rate or variable bit rate
IP filtering
Users can enter a list of allowed or blocked IP addresses for viewing video and configuring camera settings
Discovery
Cisco Discovery Protocol and Bonjour Zero-Configuration discovery
Configuration
• Browser-based using Internet Explorer 8 and later
• Two levels of user access with password protection
Security
Support for IEEE 802.1X authentication
Specifications
Table 6 provides mechanical specifications of the Cisco Video Surveillance 6050 IP Camera.
Table 6. Cisco Video Surveillance 6050 IP Camera Mechanical Specifications
Item
Specification
Housing
Aluminum
LEDs
Power and activity
Dimensions
5.1 x 4.2 x 1.9 in. (130 x 107 x 47 mm)
(D x H)
450 g
Weight
Safety:
UL60950-1 2nd edition
CSA22.2-No.60950-1
IEC/EN60950-1 2nd edition
IEC/EN60825
EMC Requirements:
CISPR22 Class B
ICES-003
EN55022
EN55024
EN61000-3-2/-3-3 Class A
EN50121-4
VCCI Class B
KN22 Class B
KN24
Operating temperature
-13 to 122°F (-25 to 50°C)

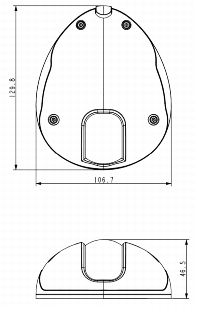

Figure 2 shows the dimensions of the Cisco Video Surveillance 6050 IP Camera.
Figure 2. Cisco Video Surveillance 6050 IP Camera Dimensions
All dimensions shown in millimeters
Package Contents
Table 7 describes the items that ship with the Cisco Video Surveillance 6050 IP Camera.
Table 7. Package Contents
Item
Cisco Video Surveillance 6050 IP Camera
Installation template and alignment sticker
Screwdriver
Screws and anchors
Desiccant pack
Documentation reference card
Regulatory documentation
Availability
The Cisco Video Surveillance 6050 IP Camera is available through Cisco Authorized Technology Provider (ATP) Partners.
Ordering Information
Table 8 lists the part numbers for the Cisco Video Surveillance 6050 IP Camera
Table 8. Ordering Information
Part Number
Description
CIVS-IPC-6050
Cisco Video Surveillance IP Camera, Outdoor VR HD Dome Body
CIVS-6KA-M12RJ45
M12 to RJ45 Adapter
Using the Camera with Cisco Video Surveillance Manager
Cisco and our certified partners can help you accelerate success and improve the return on your investment in a Cisco Physical Security solution. The Cisco lifecycle approach to services defines the requisite activities at each phase of the solution lifecycle. This approach allows you to:
• Reduce deployment costs by identifying the features that will best meet your business requirements
• Accelerate migration by assessing the readiness of your network to support the system and by developing a sound design
• Support smooth implementation through effective planning and expert installation, configuration, and integration
• Increase operational efficiency and extend the value of your investment with award-winning technical support
For more information about the Cisco Video Surveillance 6050 IP Camera, please visit http://www.cisco.com/go/physec or contact your local Cisco account representative.
