The Cisco® Video Surveillance 2611 Standard-Definition IP Dome is a feature-rich digital IP camera designed to provide superior performance in a wide variety of video surveillance applications. The camera employs H.264 compression of up to 30 frames per second (fps) at D1 NTSC resolution (720 x 480) or 25 fps at D1 PAL resolution (720 x 576), offering efficient network utilization while providing high-quality video. This flush-mount dome is designed to be deployed indoors. With its open, standards-based design, the camera provides an ideal platform for operation as an independent device or as part of a Cisco Video Surveillance network.
Figure 1 shows the Cisco Video Surveillance 2611 IP Dome.
Figure 1. Cisco Video Surveillance 2611 IP Dome
The Cisco Video Surveillance 2611 IP Dome offers a variety of benefits, including:
• Optimal imaging efficiency. The 2611 IP Dome can stream video using H.264 compression, reducing network traffic and storage requirements while providing superior image quality.
• Motorized focus and zoom. The lens on the 2611 IP Dome allows the focus and zoom to be controlled remotely, greatly simplifying installations and field of view adjustments.
• Wide dynamic range. The camera employs powerful digital imaging technology, allowing it to capture high-quality images in a wide variety of lighting conditions. It uses a progressive scan image sensor with global electronic shuttering to ensure natural color rendition, zero blooming and smear, and minimal motion blurring.
• Dual streaming. The camera can deliver two simultaneous video streams over the network. A combination of H.264, MPEG4, and MJPEG can be configured. Each video stream can be configured with individual resolution, quality, and frame rate settings.
• Flexible power options. The camera supports Power over Ethernet (PoE) 802.3af, and 12 VDC or 24 VAC power through an optional external power supply.
• Mounting options. The camera is designed for internal ceiling tile mount deployments. The camera is equipped with a varifocal motorized lens mounted to a manual pan and tilt mechanism that allows the camera to be rotated and placed at the proper angle.
• Dome options. The 2611 IP Dome comes standard with a smoked dome. A clear dome is available as an optional accessory.
• Day/night operation. The camera provides true day/night operation and includes an IR filter that switches to night mode in low-light scenes. This function can be set to manual or automatic control.
• Embedded security and networking. The camera provides 802.1X authentication and supports IP Multicast for enhanced bandwidth management.
• Event notification. The camera can examine designated areas in the video for motion activity and then notify users or other applications when it detects activity that exceeds a predefined threshold.
• Bidirectional audio.* The camera supports full-duplex audio, and options for half-duplex operation.
Note:Features with an asterisk are not supported or applicable when the camera is used with Cisco Video Surveillance Manager.
Features
Table 1 describes the features of the Cisco Video Surveillance 2611 IP Dome.
Table 1. Cisco Video Surveillance 2611 IP Dome Features
Item
Specification
Imaging Device
1/3-in. progressive-scanRGB CMOSsensor with wide dynamic range
Image Control
Automatic white balance (AWB), automatic gain control (AGC), automatic exposure (AE), auto iris
Dynamic Range
102 dBtypical/120 dB maximum
Minimum Illumination
• Color mode: F1.4 @ 0.65 lux
• Black and white mode: F1.4 @ 0.08 lux
Signal-to-Noise Ratio (SNR)
>48 dB
Shutter
Electronic shutter
Lens
Motorized DC auto-iris lens with day/night filter
3.3mm-12mm
Zoom: 3.6x
Field of view:
Horizontal: 24°-90°
Vertical: 18°-64°
Camera Angle Adjustment
Pan: 340°
Tilt: 160°
Rotation: 200°
Video Compression
H.264, MPEG-4, MJPEG
Audio Compression*
G.711 A-Law, G.711 U-Law, G.726
Resolution and Frame Rate
NTSC/PAL
• 720 x 480/576 @ 30/25 fps (D1)
• 704 x 480/576 @ 30/25 fps (4CIF)
• 352 x 240/288 @ 30/25 fps (CIF)
Video Streaming
Single and dual video streams supported. Refer to Tables 2, 3, and 4 for details.
Protocols
Dynamic Host Control Protocol (DHCP), File Transfer Protocol (FTP), Hypertext Transfer Protocol (HTTP), Secure HTTP (HTTPS), Network Time Protocol (NTP), Real-Time Transport Protocol (RTP), Real-Time Streaming Protocol (RTSP), Simple Mail Transfer Protocol (SMTP), Secure Sockets Layer/Transport Layer Security (SSL/TLS), Transmission Control Protocol/Internet Protocol (TCP/IP)
Quality of Service (QoS)
Differentiated services code point (DSCP) marking
Power
12 VDC
PoE (802.3af) @ 48V/0.3A
Power Consumption
11W (max)
*Not supported or applicable when the camera is used with Cisco Video Surveillance Manager.
Table 2 lists supported single stream configurations on the Cisco Video Surveillance 2611 IP Dome.
Table 2. Supported Single Stream Configurations
Single Streaming
Maximum Resolution and Frames Per Second (FPS)
Resolutions Supported
(NTSC & PAL)
NTSC
FPS Supported
PAL FPS Supported
H.264
D1 @ 30 fps
D1
4CIF
CIF
30, 25, 20, 15, 10, 8, 6, 5
25, 20, 15, 10, 8, 6, 5
MPEG-4
D1 @ 30 fps
D1
4CIF
CIF
30, 25, 20, 15, 10, 8, 6, 5
25, 20, 15, 10, 8, 6, 5
MJPEG
D1 @ 30 fps
D1
4CIF
CIF
30, 25, 20, 15, 10, 8, 6, 5
25, 20, 15, 10, 8, 6, 5
Table 3 lists the supported primary and secondary video stream combinations on the Cisco Video Surveillance 2611 IP Dome.
Table 3. Supported Primary and Secondary Video Stream Combinations
Primary
Secondary
H.264
H.264
H.264
MJPEG
MPEG4
MPEG4
MPEG4
MJPEG
Table 4 lists the supported primary and secondary video streams on the Cisco Video Surveillance 2611 IP Dome.
Table 4. Cisco Video Surveillance 2611 IP Dome Video Stream Support
NTSC Primary
Channel Resolutions
NTSC Primary Frame Rate
NTSC Secondary
Channel Resolutions
NTSC Secondary Frame Rate*
4 CIF, CIF
30, 25, 20, 15, 10, 8, 6, 5
CIF
15, 10, 8, 6, 5
PAL Primary
Channel Resolutions
PAL Primary Frame Rate
PAL Secondary
Channel Resolutions
PAL Secondary Frame Rate*
4 CIF, CIF
25, 20, 15, 10, 8, 6, 5
CIF
15, 10, 8, 6, 5
*If a secondary frame rate is selected in Cisco Video Surveillance Manager that is not listed in the table, the camera will automatically use the closest frame rate.
Connectors
Table 5 describes the connectors on the Cisco Video Surveillance 2611 IP Dome.
Table 5. Cisco Video Surveillance 2611 IP Dome Connectors
Item
Specification
Network Connectivity
10/100 BASE-TX Ethernet with RJ-45 connector
Video
3.5-mm service connector, provides analog video (use with optional mini cable with BNC adapter during installation)
Power Input
3-pin terminal
Audio*
• 3.5-mm audio jack: audio input for optional external microphone and audio output for optional external speaker supported through Y-cable adapter
• Two-way (full- and half-duplex), one-way, or audio off
Alarm Input
Two logic-level programmable inputs
Alarm Output*
Two logic-level programmable outputs
*Not supported or applicable when the camera is used with Cisco Video Surveillance Manager.
Software
Table 6 describes the primary features of the Cisco Video Surveillance 2611 IP Dome software.
Table 6. Cisco Video Surveillance 2611 IP Dome Primary Software Features
Item
Specification
Video Format
NTSC and PAL
Day/night Settings
Auto or manual day/night operation with user-definable thresholds
Image Settings
Configurable brightness, sharpness, saturation, and white balance
Overlay Capabilities
Time, date, and text
Selectable Bit Rate
Support for Constant Bit Rate or Variable Bit Rate
IP Filtering
Users can enter a list of allowed or blocked IP addresses for viewing video and configuring camera settings
• Browser-based using Internet Explorer 8 with SP3
• Multiple user access levels with password protection
Motion Detection
4 user-definable motion detection areas
Event Actions
• Email
• FTP upload of captured video or JPEG snapshot depending on stream configuration
• HTTP alert
• Alarm output
*Not supported or applicable when the camera is used with Cisco Video Surveillance Manager.
Specifications
Table 7 provides specifications of the Cisco Video Surveillance 2611 IP Dome.
Table 7. Cisco Video Surveillance 2611 IP Dome Mechanical Specifications
Item
Specification
Housing
Metal base and polycarbonate transparent cover
LEDs
Power and Ethernet
Dimensions
(W x H)
7.63 x 5.67 in.
194 x 144 mm
Weight
3.0 lb
1.37 kg
Standards Compliance
Safety:
UL 60950
CAN/CSA-C22.2 No. 60950
EN 60950
IEC 60950
AS/NZS 60950
EMC-Emissions:
47CFR Part 15 (CFR 47) Class B
AS/NZS CISPR22 Class B
CISPR22 Class B
EN55022 Class B
ICES003 Class B
VCCI Class B
EN61000-3-2
EN61000-3-3
KN22 Class B
CNS13438 Class B
EMC-Immunity:
EN55024
CISPR24
EN50130-4
KN24
Operating Temperature
0° to 45°C
32° to 113°F

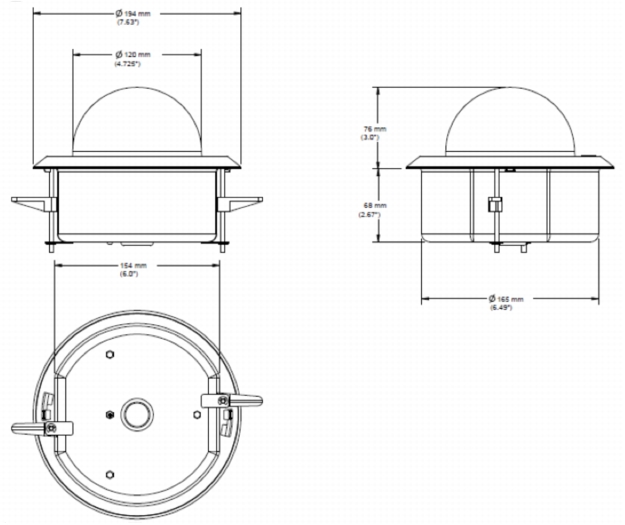

Figure 2 shows the dimensions of the Cisco Video Surveillance 2611 IP Dome.
Figure 2. Cisco Video Surveillance 2611 Series IP Dome Dimensions
Package Contents
Table 8 describes the items that ship with the Cisco Video Surveillance 2611 IP Dome.
Table 8. Cisco Video Surveillance 2611 IP Dome Package Contents
Item
Cisco Video Surveillance 2611IP Dome
Quick start guide
Regulatory compliance and safety information
• 0.9-mm Allen wrench for locking/unlocking the lens focus ring
• Security wire and screw
Availability
The Cisco Video Surveillance 2611 IP Dome is available through Cisco Authorized Distributors.
Ordering Information
Table 9 lists the part numbers for the Cisco Video Surveillance 2611 IP Dome and accessories.
Table 9. Cisco Video Surveillance 2611 IP Dome Ordering Information
Part Number
Description
CIVS-IPC-2611
Cisco Video Surveillance Standard-Definition IP Dome, 3.3-12 mm, D/N, smoked, ceiling mount
Accessories
CIVS-IPCA-1008=
Ceiling tile mount support, 2611 Series
CIVS-IPCA-1017=
Audio/video cable
CIVS-IPCA-1019=
Dome, Clear, 2611 Dome Series
CIVS-IPCA-1020=
Dome, Smoked, 2611 Dome Series
Using the Camera with Cisco Video Surveillance Manager
Features that are marked with an asterisk (*) are not supported when using the camera with Cisco Video Surveillance Manager. Please refer to the latest release notes for Cisco Video Surveillance Manager for more information.
