Cisco® Video Surveillance 5010 and 5011 Indoor Fixed Dome IP HD Cameras are 2.1-megapixel indoor fixed dome cameras designed with industry-leading image quality and high processing power. Designed to install quickly and easily, all of the post-back-box installation and setup can be done with one hand.
The 5010 and 5011 cameras deliver high-definition (HD) resolution, advanced low-light capabilities, consistent color science, and fast processing power. The H.264 compression video files are up to 20 times smaller, making HD video more affordable. With their open, standards-based design, the cameras provide an ideal platform for integration and operation as independent devices or as part of a Cisco Video Surveillance network.

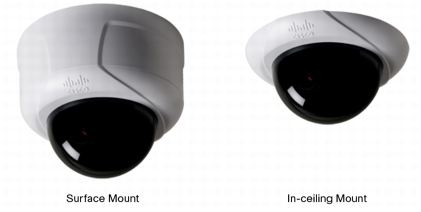

Figure 1.
Fixed Dome Camera
The cameras include a 2.8-8-mm varifocal megapixel lens and a ready-to-install indoor enclosure. All models also include advanced low-light technology and a mechanical IR cut filter for increased sensitivity in low-light installations. Additional lenses are available, and the cameras accept a wide range of varifocal megapixel CS-mount lenses.
The 5010 and 5011 cameras support two simultaneous video streams that can be compressed in MJPEG and H.264 formats across several resolution configurations. The cameras deliver real-time video (30 images per second [ips]) with full HD resolution using H.264 compression for optimized bandwidth and storage efficiency. The streams can be configured in a variety of frame rates, bit rates, and group of pictures (GOP) structures for additional bandwidth administration.
The cameras are simple to install. The automatic back focus control feature makes sharp scene focus setup easy. A convenient video setup jack eliminates the need to use a laptop for viewing video when installing the camera.
Web Interface
The cameras support the Internet Explorer 8.0 Web browser for powerful remote setup and administration. Up to 16 cameras can be viewed on the same network.
Window Blanking
Window blanking is used to conceal user-defined privacy areas that cannot be viewed by an operator. Each camera supports up to four blanked windows. A blanked area will appear on the screen as a solid gray window.
Video Management
The 5010 and 5011 cameras connect to Cisco Video Surveillance Manager Version 6.3 and later.
Product Specifications
Features and Benefits
Features include the following:
• Up to 2.1-megapixel resolution (1920 x 1080)
• Up to 30 ips at full HD 1080p
• Optional CS-mount lenses
• Auto back focus for high precision
• Easy, quick, one-handed installation
• H.264 and MJPEG compression
• Day/night capability
• Sensitivity down to 0.03 lux
• Power over Ethernet (IEEE 802.3af Class 3) or 24 VAC
• Video setup jack and focus button accessible with dome closed
• Up to two simultaneous video streams
• Motion detection
Table 1 lists product specifications for the Cisco Video Surveillance 5010 and 5011 IP Cameras.
Up to 20 simultaneous users, depending on resolution settings (2 guaranteed streams)
Security Access
Password-protected
Certifications/Ratings/Patents
CE, Class B
FCC, Class B
UL/cUL listed
C-Tick
Electrical
Port
RJ-45 connector for 100BASE-TX
Auto MDI/MDI-X
Cable Type
Cat-5 or better for 100BASE-TX
Power Input
24 VAC or PoE (IEEE 802.3af class 3)
Power Consumption
< 6W
Current Consumption
PoE: < 200 mA maximum
24 VAC: < 295 mA nominal; < 390 mA maximum
Local Storage
Micro SD
Alarm Input
10 VDC maximum, 5 mA maximum
Alarm Output
0 to 15 VDC maximum, 75 mA maximum
Service Port
External 3-connector, 2.5-mm provides NTSC/PAL video output
Accessory Port
Connects accessories
Mechanical
Lens Mount
CS-mount, adjustable
Pan/ Tilt Adjustment
Pan: 368
Tilt: 160 (10 to 170)
Rotate: 355
Environmental
Operational Temperature
32 to 122ºF (0 to 50ºC)
Operational Humidity
20% to 80%, noncondensing
Physical
Dimensions (DxWxH)
5.4 x 3.1 x 3.0 in.
(13.7 x 7.9 x 7.6 cm)
Weight (without lens)
Unit: 2.0 lb (0.9 kg)
Shipping: 6.0 lb (2.7 kg)
Video
Video Encoding
H.264 base profile and MJPEG
Video Streams
Up to 2 simultaneous streams; the second stream is variable based on the setup of the primary stream
Supported Frame Rates
30, 15, 10, 5, 1
Video Encoding
H.264 base profile and MJPEG
Video Streams
Up to 2 simultaneous streams; the second stream is variable based on the setup of the primary stream
Supported Resolutions
1080P (1920 x 1080), 720P (1280 x 720), 4CIF (640 x 352), CIF (480 x 272), and QCIF (320 x 176)

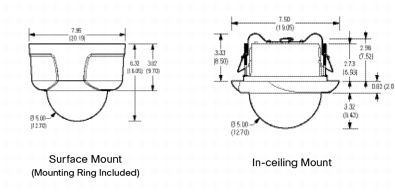

Figure 2. Mounting Options
System Requirements
Table 2 lists system requirements for the Cisco Video Surveillance 5010 and 5011 IP Cameras.
Table 2. System Requirements
Processor
Intel Core 2 Duo microprocessor, 2.6 GHz
Operating System
Microsoft Windows XP
Memory
2 GB RAM
Network Interface Card
100 megabits (or greater)
Monitor
Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution
Web Browser
Internet Explorer 8.0
Media Player*
QuickTime 7.6.5 for Windows XP
* This product is not compatible with QuickTime Version 7.6.4 for Windows XP. If you have Version 7.6.5 installed on your PC, you will need to upgrade to Version 7.6.5.
Certifications/Ratings/Patents
• CE, Class B
• FCC, Class B
• UL /cUL listed
• C-Tick
• Patents pending
Optional Lenses
CIVS-IPC-VFM28-12: Megapixel Lens, varifocal, 2.8-12 mm
CIVS-IPC-VFM15-50: Megapixel Lens, varifocal, 15-50 mm
Cisco lenses have been designed and tested to deliver optimal image quality for Cisco Video Surveillance megapixel cameras. The use of standard-definition lenses will limit the resolution of the camera, creating poor image quality. Table 3 shows the field of view that can be obtained with different lens and aspect ratio combinations
Table 3. Field of View in Degrees
Field of View in Degrees
Aspect Ratio
16:9
4:3
5:4
2.2 mm
Horizontal
109
109
109
Vertical
63
83
89
2.8 mm
Horizontal
89
89
89
Vertical
48
66
70
6.0 mm
Horizontal
42
42
42
Vertical
24
32
34
8.0 mm
Horizontal
32
32
32
Vertical
18
24
25
12.0 mm
Horizontal
21
21
21
Vertical
12
16
17
15.0 mm
Horizontal
16
16
16
Vertical
9
12
13
50.0 mm
Horizontal
5
5
5
Vertical
3
4
4
Note: For 800 x 600 (or lower) resolutions in 4:3 or 5:4 aspect ratios, the field of view is smaller than listed above. Refer to the Installation/Operation Manual for details.
Cisco Video Surveillance IP Cameras are available through Cisco Advanced Technology Provider (ATP) Partners. Table 4 lists ordering information.
Table 4. Ordering Information
Product Name
Part Number
Cisco Video Surveillance 5010 IP Camera, Indoor HD Dome, Clear Bubble
CIVS-IPC-5010
Cisco Video Surveillance 5011 IP Camera, Indoor HD Dome, Smoked Bubble
CIVS-IPC-5011
Megapixel Lens, varifocal, 2.8-12 mm
CIVS-IPC-VFM28-12
Megapixel Lens, varifocal, 15-50 mm
CIVS-IPC-VFM15-50
Cisco Services
Cisco offers a wide range of services programs to accelerate customer success. These innovative programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you to protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco services, see Cisco Technical Support Services or Cisco Advanced Services.
For More Information
For more information about the Cisco Video Surveillance IP Camera, visit http://www.cisco.com/go/physec or contact your local account representative.
