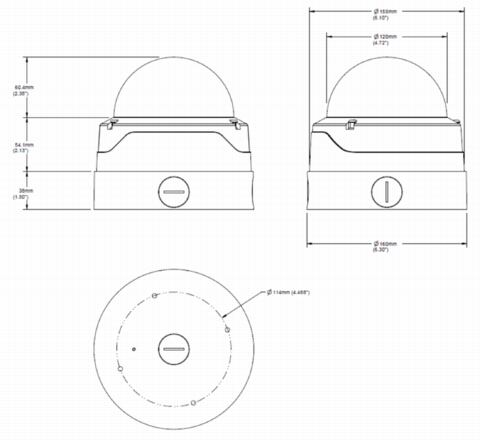

The Cisco® Video Surveillance 2530 Series IP Dome is a feature-rich digital camera designed for superior performance in a wide variety of video surveillance applications and environments. The camera employs MPEG-4 and MJPEG compression of up to 30 frames per second (fps) at D1 NTSC resolution (720 x 480) or 25 fps at D1 PAL resolution (720 x 576), offering efficient network utilization while providing high-quality video. Two-way audio and contact closures allow integration with microphones, speakers, and access control systems. This vandal-resistant dome can be deployed indoors or outdoors. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.
Figure 1 shows the Cisco Video Surveillance 2530 Series IP Dome.

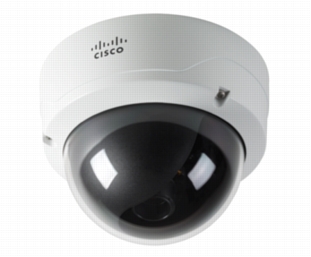

Figure 1. Cisco Video Surveillance 2530 Series IP Dome
The Cisco Video Surveillance 2530 Series IP Dome offers a variety of benefits, including:
• Wide dynamic range. The camera employs powerful digital imaging technology, allowing it to capture high-quality images in a wide variety of indoor and outdoor lighting conditions. It uses a progressive scan image sensor with global electronic shuttering to ensure natural color rendition, zero blooming and smear, and minimal motion blurring.
• Dual streaming. The camera can stream MPEG-4 and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame rate settings.
• Indoor/outdoor mounting options. The camera is designed for mounting onto surfaces by using the included conduit case or a standard electrical junction box. The camera is equipped with a varifocal lens mounted to a manual pan and tilt mechanism that allows the camera to be rotated and placed at the proper angle.
• Day/night operation. The camera provides true day/night operation and includes an IR filter that automatically switches to night mode in low-light scenes. This function can be set to manual or automatic control.
• Fan/heater operation. The camera includes a fan and heater unit that automatically maintains a desirable internal temperature, allowing the camera to operate in outdoor conditions.
• Cisco Media Application Programming Interface. The camera supports the Cisco Media API, which is an open, standards-based interface that allows integration with compatible video surveillance management systems.
• Embedded security and networking.* The camera provides 802.1X authentication and hardware-based Advanced Encryption Standard (AES). For enhanced bandwidth management, the camera supports IP Multicast.
• Event notification.* The camera can examine designated areas in the video for motion activity and then notify users or other applications when it detects activity that exceeds a predefined threshold. The camera also provides two digital inputs and two digital outputs that can initiate specific actions when an alarm is detected.
• Bidirectional audio.* The camera supports full-duplex audio and provides options for half-duplex operation.
Note: Features with an asterisk are not available when the camera is used with Cisco Video Surveillance Manager.
Features
Table 1 describes the features of the Cisco Video Surveillance 2530 Series IP Dome.
Table 1. Cisco Video Surveillance 2530 Series IP Dome Features
Item
Specification
Imaging Device
1/3-in. progressive-scan RGB CMOS sensor with wide dynamic range
Image Control
Automatic white balance (AWB), automatic back lighting, automatic gain control (AGC), automatic exposure (AE), auto iris
Dynamic Range
102 dB typical/120 dB maximum
Minimum Illumination
• Color mode: F1.4 @ 0.65 lux
• Black and white mode: F1.4 @ 0.08 lux
Signal-to-Noise Ratio (SNR)
>48 dB
Shutter
Electronic shutter
Lens
DC auto-iris lens with day/night
Zoom: 3.5x
Field of view:
• Horizontal: 22°-76°
• Vertical: 17°-56°
Camera Angle Adjustment
Pan: 340°
Tilt: 160°
Rotation: 200°
Video Compression
MPEG-4 SP level 0 to 4, ASP level 0 to 5, MJPEG
Audio Compression*
G.711 A-Law, G.711 U-Law, G.726
Resolution and Frame Rate
NTSC/PAL
• 720 x 480/576 @ 30/25 fps (D1)
• 704 x 480/576 @ 30/25 fps (4CIF)
• 352 x 240/288 @ 30/25 fps (CIF)
Video Streaming
• Single-stream MPEG-4 up to D1 720 x 480/576 @ 30/25 fps
• Single-stream MJPEG up to D1 720 x 480/576 @ 15 fps
• Dual-stream: MPEG-4 and MJPEG
• Primary stream MPEG-4 programmable up to 704 x 480/576 @ 25/20 fps
• Secondary stream MPEG-4/MJPEG (selectable) programmable up to 352 x 240/288 @ up to 15 fps
Protocols*
Dynamic Host Control Protocol (DHCP), File Transfer Protocol (FTP), Hypertext Transfer Protocol (HTTP), Secure HTTP (HTTPS), Network Time Protocol (NTP), Real-Time Transport Protocol (RTP), Real-Time Streaming Protocol (RTSP), Simple Mail Transfer Protocol (SMTP), Secure Sockets Layer/Transport Layer Security (SSL/TLS), Transmission Control Protocol/Internet Protocol (TCP/IP) 802.1x
Quality of Service (QoS)*
Differentiated services code point (DSCP) marking
Power
24 VAC, isolated external power supply
Power Consumption
15W (max)
When heater is on: 35W (max)
*Not supported when the camera is used with Cisco Video Surveillance Manager.
Connectors
Table 2 describes the connectivity and connectors of the Cisco Video Surveillance 2530 Series IP Dome.
Table 2. Cisco Video Surveillance 2530 Series IP Dome Connectors
Item
Specification
Network Connectivity
10/100 BASE-TX Ethernet with RJ-45 connector
Video
3.5-mm service connector, provides analog video (use with included mini cable with BNC adapter during installation)
Audio*
• 3.5-mm audio jack-audio input for optional external microphone and audio output for option external speaker supported through Y-cable adapter
• Two-way (full- or half-duplex), one-way, or audio off
Alarm Input*
Two logic-level programmable inputs
Alarm Output*
Two logic-level programmable outputs
Power Input
3-pin terminal
*Not supported when the camera is used with Cisco Video Surveillance Manager.
Software
Table 3 describes the primary features of the Cisco Video Surveillance 2530 Series IP Dome software.
Table 3. Cisco Video Surveillance 2530 Series IP Dome Primary Software Features
Item
Specification
Activity Detection
4 user-definable motion detection areas; e-mail alert and FTP uploading of captured video or JPEG snapshots triggered by motion alert
Video Format
NTSC and PAL
Day/night Settings
Auto or manual day/night operation with user-definable thresholds
Image Settings
Configurable brightness, sharpness, contrast, saturation, and white balance
Overlay Capabilities
Time, date, and text
Selectable Bit Rate
Support for Constant Bit Rate or Variable Bit Rate* (constant quality)
IP Filtering*
Users can enter a list of allowed or blocked IP addresses for viewing video and configuring camera settings
