The Cisco Connected Safety and Security (CSS) Unified Computing System™ (UCS®) Platform Series offers you performance and density for deploying and managing Cisco® Video Surveillance Manager. It comprises a suite of two server models and a wide array of features in a single, easy-to-use, and easy-to-deploy configuration.
• CSS UCS C220 is an enterprise-class server in a one-rack unit (1-RU) form factor with Intel Xeon E5-2600 series processor family CPUs that deliver significant performance and efficiency. In addition it supports up to four 3.5-inch drives for added density in a compact 1RU package.
• CSS UCS C240 is an enterprise-class server in a two-rack unit (2-RU) form factor with dual Intel Xeon E5-2600 series processor family CPUs that deliver significant performance and efficiency. In addition, it supports up to twelve 3.5-inch drives for storage expandability and performance.
Figures 1 and 2 show the CSS UCS C220 and CSS UCS C240, respectively. Tables 1 and 2 address the software application available on each server.

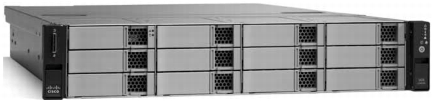

Figure 1. Cisco Connected Safety and Security UCS C220
• 2 x CPS-HDD1TI2F212 or CPS-HDD2TI2F213 or CPS-HDD3TI2F214 in RAID 1
• 6 x CPS-HDD1TI2F212 or CPS-HDD2TI2F213 or CPS-HDD3TI2F214 in RAID 5
• 6 x CPS-HDD1TI2F212 or CPS-HDD2TI2F213 or CPS-HDD3TI2F214 in RAID 6
• 12 x CPS-HDD1TI2F212 or CPS-HDD2TI2F213 or CPS-HDD3TI2F214 in RAID 5
• 12 x CPS-HDD1TI2F212 or CPS-HDD2TI2F213 or CPS-HDD3TI2F214 in RAID 6
• 2 x CPS-PSU-650W Power Supply
Supports the following option card:
• 1 × CPS-AEPCI05-Fiber Channel card
Table 3. Cisco Video Surveillance 6050 IP Camera Video Stream Support for 4:3 Aspect Ratios
Feature
Benefit
Intel Xeon processor E5-2600 product family
• Automated energy efficiency reduces energy costs by automatically putting the processor and memory in the lowest available power state while still delivering the performance required
Integrated quad-port Gigabit Ethernet (C240)
Integrated dual-port Gigabit Ethernet (C220)
• Outstanding network I/O performance and increased network efficiency and flexibility
High capacity, flexible internal storage
• 7200-RPM SAS drives for high capacity and performance
• Up to 4 SAS drives on C220 and up to 12 SAS drives on C240
RAID 1, 5, 6
• Various RAID configuration options for data protection
To place an order, visit the Cisco Ordering Homepage. To download firmware, visit the Cisco Software Center. Table 7 provides ordering information for the Cisco Connected Safety and Security UCS Platform Series.
Table 7. Cisco Connected Safety and Security UCS Platform Series Ordering Information
Item
Specification
CPS-UCS-1RU-K9
Cisco Connected Safety and Security UCS C220 1-RU chassis with motherboard, one 2.4 GHz 4 core CPU, one 8GB memory dimm, and one 650W power supply (no drives and no option cards)
CPS-UCS-2RU-K9
Cisco Connected Safety and Security UCS C240 2-RU chassis with motherboard, dual 2.0 GHz 6 core CPU, dual 8GB memory dimm, and dual 650W power supply (no drives and no option cards)
CPS-HDD1TI2F212
1 TB SAS 7.2K RPM 3.5 inch HDD
CPS-HDD2TI2F213
2 TB SAS 7.2K RPM 3.5 inch HDD
CPS-HDD3TI2F214
3 TB SAS 7.2K RPM 3.5 inch HDD
CPS-PSU-650W
650W power supply for CPS UCS servers
CPS-AECI05
Emulex Lpe 12002 Dual Port 8Gb FC HBA
Availability
Cisco Connected Safety and Security UCS Platforms are available through Cisco Authorized Technology Provider Partners.
Service and Support
Cisco and our certified partners can help you accelerate success and improve the return on your investment in a Cisco Connected Safety and Security solution. The Cisco lifecycle approach to services defines the requisite activities at each phase of the solution lifecycle:
• Reduce deployment costs by identifying the features that will best meet your business requirements
• Accelerate migration by assessing the readiness of your network to support the system and by developing a sound design
• Support smooth implementation through effective planning and expert installation, configuration, and integration
• Increase operational efficiency and extend the value of your investment with superior technical support
For more information about the Cisco Connected Safety and Security UCS Platform Series, contact your local account representative or visit http://www.cisco.com/go/physec.
