The Cisco Unified Computing System™ (Cisco UCS™) is a next-generation data center platform that unites computing, networking, storage access, and virtualization resources into a cohesive system designed to reduce total cost of ownership (TCO) and increase business agility. The system integrates a low-latency, lossless 10 Gigabit Ethernet unified network fabric with enterprise-class, x86-architecture servers. The system is an integrated, scalable, multichassis platform in which all resources participate in a unified management domain (Figure 1).

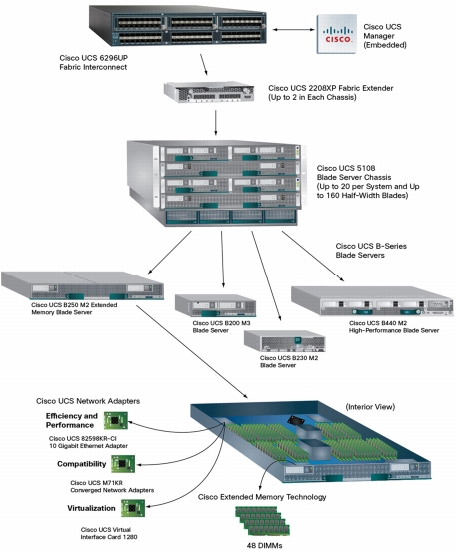

Figure 1. The Cisco Unified Computing System Is a Highly Available Cohesive Architecture
Product Overview
The Cisco UCS 6200 Series Fabric Interconnects are a core part of the Cisco Unified Computing System, providing both network connectivity and management capabilities for the system (Figure 2). The Cisco UCS 6200 Series offers line-rate, low-latency, lossless 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), and Fibre Channel functions.
The Cisco UCS 6200 Series provides the management and communication backbone for the Cisco UCS B-Series Blade Servers and 5100 Series Blade Server Chassis. All chassis, and therefore all blades, attached to the Cisco UCS 6200 Series Fabric Interconnects become part of a single, highly available management domain. In addition, by supporting unified fabric, the Cisco UCS 6200 Series provides both the LAN and SAN connectivity for all blades within its domain.
From a networking perspective, the Cisco UCS 6200 Series uses a cut-through architecture, supporting deterministic, low-latency, line-rate 10 Gigabit Ethernet on all ports, switching capacity of 2 terabits (Tb), and 320-Gbps bandwidth per chassis, independent of packet size and enabled services. The product family supports Cisco® low-latency, lossless 10 Gigabit Ethernet1 unified network fabric capabilities, which increase the reliability, efficiency, and scalability of Ethernet networks. The fabric interconnect supports multiple traffic classes over a lossless Ethernet fabric from the blade through the interconnect. Significant TCO savings come from an FCoE-optimized server design in which network interface cards (NICs), host bus adapters (HBAs), cables, and switches can be consolidated.

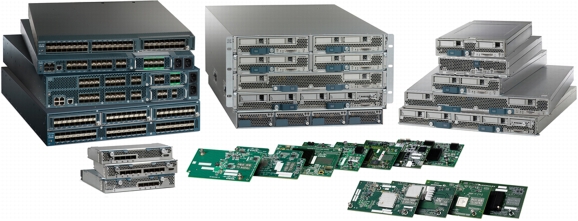

Figure 2. Cisco UCS 6200 Series Fabric Interconnects
Unified Fabric with FCoE: I/O Consolidation
The Cisco UCS 6200 Series is built to consolidate LAN and SAN traffic onto a single unified fabric, saving the capital expenditures (CapEx) and operating expenses (OpEx) associated with multiple parallel networks, different types of adapter cards, switching infrastructure, and cabling within racks. The unified ports support allows either base or expansion module ports in the interconnect to support direct connections from Cisco UCS to existing native Fibre Channel SANs. The capability to connect FCoE to native Fibre Channel protects existing storage system investments while dramatically simplifying in-rack cabling.
Cisco UCS Manager
The Cisco UCS 6200 Series hosts and runs Cisco UCS Manager in a highly available configuration, enabling the fabric interconnects to fully manage all Cisco UCS elements. Connectivity to the Cisco UCS 5100 Series blade chassis is maintained through the Cisco UCS 2100 or 2200 Series Fabric Extenders in each blade chassis. The Cisco UCS 6200 Series interconnects support out-of-band management through a dedicated 10/100/1000-Mbps Ethernet management port as well as in-band management. Cisco UCS Manager typically is deployed in a clustered active-passive configuration on redundant fabric interconnects connected through dual 10/100/1000 Ethernet clustering ports.
Optimization for Virtualization
For virtualized environments, the Cisco UCS 6200 Series supports Cisco virtualization-aware networking and Cisco Data Center Virtual Machine Fabric Extender (VM-FEX) architecture. Cisco Data Center VM-FEX allows the interconnects to provide policy-based virtual machine connectivity, with network properties moving with the virtual machine, and a consistent operational model for both physical and virtual environments.
Cisco UCS 6248UP 48-Port Fabric Interconnect
The Cisco UCS 6248UP 48-Port Fabric Interconnect (Figure 3) is a one-rack-unit (1RU) 10 Gigabit Ethernet, FCoE and Fiber Channel switch offering up to 960-Gbps throughput and up to 48 ports. The switch has 32 1/10-Gbps fixed Ethernet, FCoE and FC ports and one expansion slot.
The Cisco UCS 6296UP 96-Port Fabric Interconnect (Figure 4) is a 2RU 10 Gigabit Ethernet, FCoE and native Fibre Channel switch offering up to 1920-Gbps throughput and up to 96 ports. The switch has 48 1/10-Gbps fixed Ethernet, FCoE and Fiber Channel ports and three expansion slots.
Table 1 summarizes the characteristics of the Cisco UCS 6200 Series Fabric interconnects.
Table 1. Characteristics of Cisco UCS 6200 Series Fabric Interconnects2
Item
Cisco UCS 6248UP
Cisco UCS 6296UP
Description
48-port fabric interconnect
96-port fabric interconnect
Form factor
1RU
2RU
Number of fixed 10 Gigabit Ethernet and FCoE Enhanced Small Form-Factor Pluggable (SFP+) ports
32 fixed ports with an additional 16 ports available through expansion module
48 fixed ports with an additional 48 ports available through three expansion module
Throughput
960 Gbps
1920 Gbps
Expansion slots
1
3
Fan modules
1+1
2+2
Expansion Module Option for Cisco UCS 6200 Series Fabric Interconnects
The Cisco UCS 6200 Series supports an expansion module that can be used to increase the number of 10 Gigabit Ethernet, FCoE and FC ports (Figure 5). This unified port module provides up to 16 ports that can be configured for 10 Gigabit Ethernet, FCoE and/or 1/2/4/8-Gbps native Fibre Channel using the SFP or SFP+3 interface for transparent connectivity with existing Fibre Channel networks.
Figure 5. Unified Port 16-Port Expansion Module
Features and Benefits
Table 2 summarizes the features and benefits of the Cisco UCS 6200 Series.
Table 2. Features and Benefits
Feature
Benefit
Management by Cisco UCS Manager
• Allows all elements connected to the interconnects to participate in a single, highly available management domain
Unified fabric
• Decreases TCO by reducing the number of NICs, HBAs, switches, and cables needed
• Transparently encapsulates Fibre Channel packets into Ethernet
Fabric extender architecture
• Scales to 20 chassis without adding complexity by eliminating the need for dedicated chassis management and blade switches and by reducing the number of cables needed
• Provides deterministic latency for optimized application performance
Performance
• Provides high-speed, low-latency connectivity to the chassis
• Provides approximately 50% reduction in end-to-end system latency (latency is 3.2 microseconds)
Lossless fabric
• Provides a reliable, robust foundation for unifying LAN and SAN traffic on a single transport
Priority flow control (PFC)
• Simplifies management of multiple traffic flows over a single network link
• Supports different classes of service, helping enable both lossless and classic Ethernet on the same fabric
Systemwide bandwidth management
• Helps enable consistent and coherent quality of service (QoS) throughout the system
Cisco Data Center VM-FEX technology
• Helps enable a consistent operational model between virtual and physical environments
• Provides the same level of network visibility for virtualized and nonvirtualized environments
• Improves diagnostic and troubleshooting capabilities in a virtual environment
• Simplifies network and security policy enforcement when migrating virtual machines from one host to another
Rear ports
• Helps keep cable lengths short and efficient
Redundant hot-swappable fans and power supplies
• Helps enable high availability in multiple configurations
• Increases serviceability
• Provides uninterrupted service during maintenance
Front-to-back cooling
• Supports efficient data center hot- and cold-aisle designs
SFP+ ports
• Increases flexibility with a range of interconnect solutions, including copper Twinax cable for short runs and fiber for long runs
• Consumes less power per port than traditional solutions
• Helps enable cost-effective connections on fabric extenders with Cisco Fabric Extender Transceiver (FET) optics
SFP-compatible ports
• Allows all fixed and modular expansion ports to be configured to operate in 1 Gigabit Ethernet mode with the transceiver options specified for use with SFP-compatible ports in Table 3
Port-based licensing options
• Helps enable a pay-as-you-go model, allowing customers to add capacity as the networking needs of an individual system increase
Product Specifications
Transceivers
The Cisco UCS 6200 Series supports a wide variety of 10 Gigabit Ethernet connectivity options using Cisco 10GBASE SFP+ modules. In addition, all fixed and modular expansion ports on the Cisco UCS 6200 Series support 1 Gigabit Ethernet connectivity options using 1GBASE SFP modules. Alternatively, 2/4/8-Gbps Fibre Channel SFP+ and 1/2/4-Gbps Fibre Channel SFP interfaces are supported on all ports.
Table 3 lists the supported transceiver options.
Table 3. Cisco UCS 6200 Series Transceiver Support Matrix
Cisco SFP
Description
Cisco SFP-10G-SR
10GBASE-SR SFP+ module (multimode fiber [MMF])
Cisco SFP-10G-LR
10GBASE-LR SFP+ module (single-mode fiber [SMF])
Cisco SFP-H10GB-CU1M
10GBASE-CU SFP+ cable 1m (Twinax cable)
Cisco SFP-H10GB-CU3M
10GBASE-CU SFP+ cable 3m (Twinax cable)
Cisco SFP-H10GB-CU5M
10GBASE-CU SFP+ cable 5m (Twinax cable)
SFP-H10GB-ACU7M
10GBASE-CU SFP+ cable 7m (Twinax cable)
SFP-H10GB-ACU10M
10GBASE-CU SFP+ cable 10m (Twinax cable)
Cisco FET-10G
10GBASE-FET SFP+ module (MMF)
Cisco GLC-T
1000BASE-T SFP (for SFP-compatible ports only, as defined in Table 2)
Cisco GLC-SX-MM
GE SFP, LC connector SX transceiver (MMF) (for SFP-compatible ports only, as defined in Table 2)
Cisco GLC-LH-SM
GE SFP, LC connector LX/LH transceiver (SMF) (for SFP-compatible ports only, as defined in Table 2)
Cisco SFP-GE-T
1000BASE-T SFP, extended temperature range (for SFP-compatible ports only, as defined in Table 2)
Cisco SFP-GE-S
GE SFP, LC connector SX transceiver (MMF), extended temperature range and digital optical monitoring (DOM) (for SFP-compatible ports only, as defined in Table 2)
Cisco SFP-GE-L
GE SFP, LC connector LX/LH transceiver (SMF), extended temperature range and DOM (for SFP-compatible ports only, as defined in Table 2)
Cisco DS-SFP-FC4G-SW
4-Gbps Fibre Channel SW SFP, LC
Cisco DS-SFP-FC4G-LW
4-Gbps Fibre Channel LW SFP, LC
Cisco DS-SFP-FC8G-SW
8-Gbps Fibre Channel SW SFP+, LC
Cisco DS-SFP-FC8G-LW
8-Gbps Fibre Channel LW SFP+, LC
Cabling
Table 4 provides 10 Gigabit Ethernet cabling specifications for the Cisco UCS 6200 Series.
Table 4. Cabling Specifications
Connector (Media)
Cable
Distance
Power (Each Side)
Transceiver Latency (Link)
Standard
SFP+ copper (CU)
Twinax
1, 3, and 5m
Approximately 0.1 watt (W)
Approximately 0.1 microsecond
SFF 8431
SFP+ FET
MM OM2
MM OM3
MM OM4
25 and 100m
1W
Approximately 0 microseconds
IEEE 802.3ae
SFP+ short reach (SR) and MMF
MM OM2
MM OM3
MM OM4
82 and 300m
1W
Approximately 0 microseconds
IEEE 802.3ae
SFP+ long reach (LR)
SMF
300m over SMF
1W
Approximately 0 microseconds
IEEE 802.3ae
Performance
• Cisco UCS 6248UP: Layer 2 hardware forwarding at 960 Gbps or 714.24 million packets per second (mpps)
• Cisco UCS 6296UP: Layer 2 hardware forwarding at 1.92 Tbps or 1428.48 million packets per second (mpps)
• MAC address table entries: 32,000
• Low-latency cut-through design: Provides predictable, consistent traffic latency regardless of packet size, traffic pattern, or enabled features
Layer 2
• Layer 2 interconnect ports and VLAN trunks
• IEEE 802.1Q VLAN encapsulation
• Support for up to 1024 VLANs and virtual SANs (VSANs) per interconnect
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• Internet Group Management Protocol (IGMP) Versions 1, 2, and 3 snooping
• Cisco EtherChannel technology
• Link Aggregation Control Protocol (LACP): IEEE 802.3ad
• Advanced EtherChannel hashing based on Layer 2, 3, and 4 information
• All ports configurable as 1/10 Gigabit Ethernet or 1/2/4/8-Gbps Fibre Channel
Industry Standards
• IEEE 802.1p: CoS prioritization
• IEEE 802.1Q: VLAN tagging
• IEEE 802.1s: Multiple VLAN instances of Spanning Tree Protocol
• IEEE 802.1w: Rapid reconfiguration of Spanning Tree Protocol
• IEEE 802.3: Ethernet
• IEEE 802.3ad: LACP
• IEEE 802.3ae: 10 Gigabit Ethernet
• SFP+ support
• RMON
Physical Specifications
SFP+ Optics
Cisco UCS products support 10 Gigabit Ethernet SFP+ copper Twinax cables for short distances and SFP+ optics for longer distances. SFP+ has several advantages compared to other 10 Gigabit Ethernet connectivity options:
• Small 10 Gigabit Ethernet form factor
• Optical interoperability with XENPAK, X2, and 10 Gigabit Small Form-Factor Pluggable (XFP) interface types
• Low power consumption
• Hot-swappable device
Power Supply
Tables 5 and 6 summarize the power supply properties for the Cisco UCS 6200 Series.
Table 5. AC Power Supply
Property
Cisco UCS 6248UP
Cisco UCS 6296UP
Typical operating power
350W
750W
Maximum power
600W
950W
Input voltage
100 to 240 VAC
100 to 240 VAC
Frequency
50 to 60 Hz
50 to 60 Hz
Efficiency
95 to 98% (50 to 100% load)
95 to 98% (50 to 100% load)
RoHS compliance
Yes
Yes
Hot swappable
Yes
Yes
Heat dissipation
1998 BTU/hr
3163 BTU/hr
Table 6. DC Power Supply
Property
Cisco UCS 6248UP
Typical operating power
400W with 48-ports running 100%
Maximum output power
750W
Input voltage
-40 to -72VDC
Input current
25A maximum
Maximum input power
1000W
Efficiency
88 to 92% (50 to 100% load)
RoHS compliance
Yes
Hot swappable
Yes
Heat dissipation
75W (10% of 750W)
Cisco UCS 6200 Series Physical and Environmental Specifications
Table 7 summarizes the physical and environmental specifications for the Cisco UCS 6200 Series.
Table 7. Physical and Environmental Specifications
Property
Cisco UCS 6248UP
Cisco UCS 6296UP
Physical
(height x width x depth)
1.72 x 17.3 x 30.0 in.
(4.4 x 43.9 x 76.2 cm)
3.44 x 17.3 x 29.5 in.
(8.8 x 43.9 x 74.9 cm)
Operating temperature
32 to 104°F (0 to 40°C)
32 to 104°F (0 to 40°C)
Nonoperating temperature
-40 to 158°F (-40 to 70°C)
-40 to 158°F (-40 to 70°C)
Humidity
5 to 95% (noncondensing)
5 to 95% (noncondensing)
Altitude
0 to 10,000 ft (0 to 300m)
0 to 10,000 ft (0 to 300m)
Weight
Table 8 summarizes the weights for the Cisco UCS 6200 Series.
Table 8. Weight
Component
Weight
Cisco UCS 6248UP with two power supplies, one expansion module, and two fan modules
35 lb (15.88 kg)
Cisco UCS 6296UP with two power supplies, three expansion module, and four fan modules
50 lb (22.67 kg)
Regulatory Standards Compliance: Safety and EMC
Table 9 summarizes Cisco UCS 6200 Series regulatory compliance.
Table 9. Regulatory Standards Compliance
Specification
Description
Regulatory compliance
Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC
Safety
• UL 60950-1
• CAN/CSA-C22.2 No. 60950-1
• EN 60950-1
• IEC 60950-1
• AS/NZS 60950-1
• GB4943
EMC: Emissions
• 47CFR Part 15 (CFR 47) Class A
• AS/NZS CISPR22 Class A
• CISPR22 Class A
• EN55022 Class A
• ICES003 Class A
• VCCI Class A
• EN61000-3-2
• EN61000-3-3
• KN22 Class A
• CNS13438 Class A
EMC: Immunity
• EN50082-1
• EN61000-6-1
• EN55024
• CISPR24
• EN300386
• KN 61000-4 series
RoHS
The product is RoHS 5-compliant with exceptions for leaded ball grid array (BGA) balls and lead press-fit connectors
Warranty Information
Warranty information is provided at Cisco.com on the Product Warranties page.
Cisco Unified Computing Services
Using a unified view of data center resources, Cisco and our industry-leading partners deliver services that accelerate your transition to a unified computing environment. Cisco Unified Computing Services helps you quickly deploy your data center resources and optimize ongoing operations to better meet your business needs. For more information about these and other Cisco Data Center Services, visit http://www.cisco.com/go/dcservices.
Why Cisco?
Cisco has significant experience in listening to customer requirements and providing solid technology innovation for the enterprise data center. Cisco delivers standards-based solutions backed by a broad partner ecosystem of industry leaders to provide end-to-end customer solutions. Unified computing elevates the traditional product classification of network, server, storage, operating systems, and applications to a vision that encompasses the whole data center. Cisco, as one of the largest technology providers in the world, has the resources, expertise, and customer focus to deliver on this vision.
1All Cisco UCS 6200 Series ports can alternatively be configured for 1 Gigabit Ethernet (see Table 2).
2The Cisco UCS 6200 Series requires Cisco UCS Manager operating software Release 2.0 or later.
3Ports are fully compatible with the 8GFC standard and negotiate among 1, 2, 4, and 8 Gbps, constrained by optics compatibility. Ports support both 1/2/4-Gbps Cisco 4GFC optical transceivers using the SFP interface and 2/4/8-Gbps Cisco 8GFC optical transceivers using the SFP+ interface.
