The Cisco AC/DC Power Solution provides a scalable platform for the delivery of DC power to equipment-installation sites that have only an AC power source.
PRODUCT OVERVIEW
The Cisco® AC/DC Power Solution is a rack-mounted AC-to-DC power system that provides a compact, scalable solution for powering Cisco optical platforms at site locations with only AC power available. The system accepts AC inputs and converts them to nominal -48 VDC for DC-powered equipment. The Cisco AC/DC Power Solution is available in three configurations (Figures 1, 2, and 3) to accommodate various equipment loads up to 96 amperes (96A) at nominal -48 VDC. This compact system provides N+1 redundancy in rectifiers, automated alarm generation, and integrated DC power distribution through a GMT-type fuse panel or circuit breakers, for powering up to five DC-powered network elements with redundant feeds, complementing the resiliency of Cisco carrier-class optical products.
Figure 1
Small Configuration of Cisco AC/DC Power Solution
Figure 2
Medium Configuration of Cisco AC/DC Power Solution
Figure 3
Large Configuration of Cisco AC/DC Power Solution
The Cisco AC/DC Power Solution can be mounted in a variety of rack types including IEC, ANSI 19-inch, ANSI 23-inch, and ETSI configurations and requires only 5.25-inch (133.4 millimeters [mm]) or 7.0-inch (177.8 mm) of vertical rack space for the small and medium-to-large configurations, respectively. The systems employ rectifier modules in an N+1 load-sharing configuration, each with universal AC input capability, and are shipped with country-specific AC input cables. If user DC power requirements increase in the future, the system scales, in service, from small to medium to large by the simple addition of slide-in rectifier modules and an external distribution panel, providing an economical, simple growth path.
APPLICATIONS
The Cisco AC/DC Power Solution is designed to power equipment requiring nominal -48 VDC input. The solution has been successfully tested with Cisco optical products, including the Cisco ONS 15454 SDH/SONET Multiservice Provisioning Platform, Cisco ONS 15327 SONET Multiservice Platform, and the Cisco ONS 15302 and Cisco ONS 15305 Multiservice Customer Access Platforms. Table 1 outlines typical applications for the solution sizes of the Cisco AC/DC Power Solution.
Table 1. Typical Application Use of Cisco AC/DC Power Solution
Configuration
Typical Powering Application
Small-Up to 13.3/32A at 110/220 VAC
1 x Cisco ONS 15327, ONS 15302, ONS 15305
Medium-Up to 26.6/64A at 110/220 VAC
1 x Cisco ONS 15454 or 2 x ONS 15327, ONS 15302, ONS 15305
Large-Up to 40/96A at 110/220 VAC
2 x Cisco ONS 15454 or 3 x ONS 15327, ONS 15302, ONS 15305
The Cisco AC/DC Power Solution should also be suitable for powering other equipment with nominal -48 VDC requirements.
IMPORTANT FEATURES AND BENEFITS
The Cisco AC/DC Power Solution is designed for flexibility and ease of use. Table 2 outlines important features and benefits of the power solution.
Table 2. Features and Benefits of Cisco AC/DC Power Solution
Feature
Benefit
Compact size
Requires less room in space-constrained locations
N + 1 rectifier module redundancy
Maintains output power for attached equipment during a rectifier-module failure
Alarm contacts
Allow notification of power-solution status
110/220 VAC, 50/60 Hz operation
Supports worldwide applications
A and B DC power feeds
Support carrier-class equipment requiring redundant input power feeds
Multiple power feeds
Provide flexibility to support multiple colocated products from a single power solution
Hot-swappable rectifier modules
Simplify and speed rectifier-module replacement and capacity expansion
Flexible mounting options
Provide mounting hardware to install in popular sizes of equipment racks used around the world
PRODUCT SPECIFICATIONS
Figure 4 and Figure 5 identify the Cisco AC/DC Power Solution's major systems and subsystems.
Figure 4

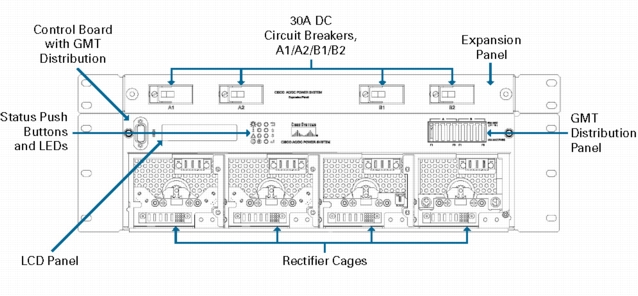

Front View of Cisco AC/DC Power Solution (Large Configuration)
Figure 5

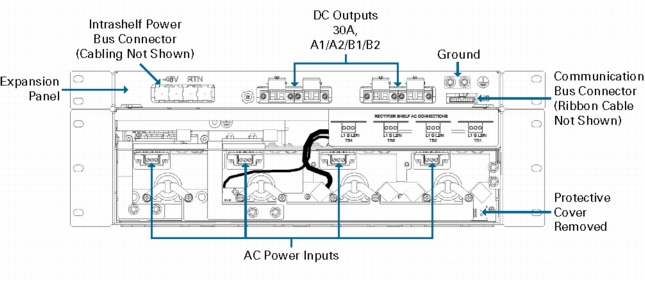

Rear View of Cisco AC/DC Power Solution (Large Configuration)
Table 3 through 9 outline the product specifications for the Cisco AC/DC Power Solution.
Table 3. Distribution Specifications
Parameter
Small Configuration
Medium Configuration
Large Configuration
Solution requires
Shelf assembly with control board with GMT-type distribution
2 rectifier modules
4 AC IEC power cables
Shelf assembly with control board with GMT-type distribution
Expansion panel with 2 circuit breakers
3 rectifier modules
4 AC IEC power cables
Shelf assembly with control board with GMT-type distribution
Expansion panel with 4 circuit breakers
4 rectifier modules
4 AC IEC power cables
Solution output power (-48 VDC)
13.3A at 110/120 VAC input
32A at 208/220 VAC input
26.6A at 110/120 VAC input
64A at 208/220 VAC input
40A at 110/120 VAC input
96A at 208/220 VAC input
DC fusing: GMT-type
10 positions (five A-side and five B-side)
15A (maximum per fuse)
50A (maximum for GMT-type distribution block)
Same
Same
DC fusing: Circuit breakers
Not applicable
Two positions (one A-side and one B-side)
30A
100A (maximum for expansion panel)
Four positions (two A-side and two B-side)
30A
100A (maximum for expansion panel)
Cabling, -48 VDC output, GMT-type (user-supplied)
20 American Wire Gauge (AWG) to 14AWG (0.8-mm to 1.6-mm) cables-15A maximum capacity
12 AWG to 8 AWG (2.1-mm to 3.3-mm) cables-30A maximum capacity
Up to 2 cables
12 AWG to 8 AWG (2.1-mm to 3.3-mm) cables-30A maximum capacity
Up to 4 cables
Table 4. AC Input Specifications
Commercial Power
AC Input Cable
AC Cable Rating
Required AC Breaker Size (user supplied)
110/120 VAC
Individual Phoenix style, 14 AWG (2.0 mm) per AC input (see Table 8 for selecting appropriate AC cable for country specific connections)
9.1A
15A per AC power feed (maximum 4)
208/220 VAC
9.1A
15A per AC power feed (maximum 4)
Table 5. Rectifier Module Specifications
Parameter
110/120 VAC Operation
208/220 VAC Operation
AC input voltage
85 to 185 VAC
185 to 250 VAC
DC output voltage
-50 VDC constant output
Maximum wattage
675W
1600W
Cooling
Fan-cooled, speed-controlled, alarmed
Table 6. Platform Specifications
Parameter
Small Configuration
Medium Configuration
Large Configuration
Dimensions (W x H x D)
19 x 5.25 x 10.8 in.
483 x 133.4 x 274 mm
19 x 7 x 10.8 in.
483 x 177.8 x 274 mm
19 x 7 x 10.8 in.
483 x 177.8 x 274 mm
Weight
32 lb (14.5 kg)
47.2 lb (21.4 kg)
52.1 lb (23.6 kg)
Mounting
ANSI 19-inch or 23-inch, ETSI, IEC
AC cable entry
Rear
DC cable entry, GMT-type
Side entry through cable trough
DC cable entry, circuit breaker
Not applicable
Rear of 1-rack unit (RU) high DC distribution expansion panel
Rear of 1-RU high DC distribution expansion panel
Operating temperature
-40 to 131°F (-40 to 55°C) (>2000m/6500 ft)
Storage temperature
-58 to 185°F (-50 to 85°C) (<2000m/6500 ft)
Humidity
10 to 90%, noncondensing
Audible noise
<60 dBA
Table 7. Alarm Specifications
Parameter
Value
Contact closure
Dry contact
Alarm 1
Low system voltage
Alarm 2
AC main failure
Alarm 3
Rectifier-module failure
Alarm 4
Fuse or circuit-breaker failure
Table 8. AC Cable Specifications
Country
Connection Type
Argentina
220 VAC
Australia
230 VAC
China
220 VAC
European Union
230 VAC
Italy
230 VAC
Japan
100 VAC
United Kingdom
230 VAC
United States (110 VAC)
110/120 VAC
United States (220 VAC)
220/240 VAC
Table 9. Regulatory Certifications
Parameter
Specification
Radiated EMC
EN 61000-6-2, EN 61000-6-3, FCC Part 15, Class B
EMC
EN 61000-6-2, EN 61000-6-4
Safety
CSA C22-2 No. 950, UL 1950 and IEC60950/EN 60950
ESD Immunity
EN61000-4-2
RF Immunity
EN61000-4-3
Surge Immunity
IEC/EN61000-4-5
Fast Transient/Burst Immunity
IEC/EN61000-4-4
NEBS
Level 3, Class B Certification
ETSI
300-386-TC
ORDERING INFORMATION
Table 10 provides ordering information for the Cisco AC/DC Power Solution. To place an order, visit the Cisco Ordering Home Page.
Table 10. Ordering Information
Product Name
Part Number
Cisco AC/DC Power Solution, assemble to order (ATO)
CSCO-ACDC-SYS
Expansion Class Options for ATO
SMALL SYSTEM - CORE
Small system includes the following equipment:
• 1 x shelf assembly including control board with GMT-type distribution (CSCO-SM-PWR-SA)
• 2 x rectifier modules (CSCO-PWR-RECT)
• 1 x ship kit type 1 (CSCO-SHP-KIT-1)
Choose one power cable type from the available option classes
• 4 x AC power cables (CSCO-PWR-CBL-xxx)
CSCO SMALL SYS OPT
MEDIUM SYSTEM
• 1 x shelf assembly including control board with GMT-type distribution (CSCO-SM-PWR-SA)
• 3 x rectifier modules (CSCO-PWR-RECT)
• 1 x ship kit type 1 (CSCO-SHP-KIT-1)
• 1 x expansion panel with two 30A circuit breakers in A1/B1 positions (CSCO-EXP-PANEL)
• 1 x ship kit type 2 (CSCO-SHP-KIT-2)
Choose one power cable type from the available option classes
• 4 x AC power cables (CSCO-PWR-CBL-xxx)
CSCO MED SYS OPT
LARGE SYSTEM
• 1 x shelf assembly including control board with GMT-type distribution (CSCO-SM-PWR-SA)
• 4 x rectifier modules (CSCO-PWR-RECT)
• 1 x ship kit type 1 (CSCO-SHP-KIT-1)
• 1 x expansion panel with two 30A circuit breakers in A1/B1 positions (CSCO-EXP-PANEL)
• 1 x ship kit type 2 (CSCO-SHP-KIT-2)
• 2 x 30A circuit breakers, one for position A2 and one for position B2 (CSCO-CKT-BRK)
Choose one power cable type from the available option classes
• 4 x AC power cables (CSCO-PWR-CBL-xxx)
CSCO LARGE SYS OPT
Spares
Shelf assembly with control board and GMT-type distribution
CSCO-SM-PWR-SA=
Rectifier module, plug-in, 13.3A at 110 VAC, 32A at 220 VAC, Cisco AC/DC Powering Solution
CSCO-PWR-RECT=
Expansion panel including two 30A circuit breakers installed in A1/B1 positions, Cisco AC/DC Power Solution
CSCO-EXP-PANEL=
Circuit breakers, 30A, x 1, includes installation document, Cisco AC/DC Power Solution
CSCO-CKT-BRK=
Control board
CSCO-CNTRL-BRD=
Ship kit type 1 for shelf assembly, includes 3 sets of mounting brackets, 19-in., 23-in., and ETSI, eight GMT-type fuses (two 15A, two 10A, two 5A, and two 2A), system documentation, Cisco AC/DC Power Solution
CSCO-SHP-KIT-1=
Ship kit type 2 for expansion panel, includes 3 sets of mounting brackets, 19-in., 23-in., and ETSI, Cisco AC/DC Power Solution
CSCO-SHP-KIT-2=
AC power cable, Argentina, Cisco AC/DC Power Solution
CSCO-PWR-CBL-ARG=
AC power cable, Australia, Cisco AC/DC Power Solution
CSCO-PWR-CBL-AUS=
AC power cable, China, Cisco AC/DC Power Solution
CSCO-PWR-CBL-CHN=
AC power cable, European Union nations, Cisco AC/DC Power Solution
CSCO-PWR-CBL-EU=
AC power cable, Italy, Cisco AC/DC Power Solution
CSCO-PWR-CBL-ITL=
AC power cable, Japan, Cisco AC/DC Power Solution
CSCO-PWR-CBL-JPN=
AC power cable, United Kingdom, Cisco AC/DC Power Solution
CSCO-PWR-CBL-UK=
AC power cable, 110 VAC North America, Cisco AC/DC Power Solution
CSCO-PWR-CBL-NA1=
AC power cable, 220 VAC North America, Cisco AC/DC Power Solution
CSCO-PWR-CBL-NA2=
SERVICE AND SUPPORT
Cisco Systems® offers a wide range of services programs to accelerate customer success. These innovative services programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you protect your network investment, optimize network operations, and prepare the network for new applications to extend network intelligence and the power of your business. For more information about Cisco services, see Cisco Technical Support Services or Cisco Advanced Services.
