The Cisco® ONS 15310-MA Multiservice Provisioning Platform (MSPP) is a carrier-class MSPP that efficiently switches Ethernet and time-division multiplexing (TDM) traffic for use in metropolitan and regional optical networks. Fiber-to-the-building (FTTB) applications represent an increasingly important opportunity for metropolitan service providers to extend their networks, reach new customers, and profitably grow their businesses. The Cisco ONS 15310-MA has enabled service providers to address the FTTB market because it delivers supercharged SONET/SDH, integrated optical networking, unprecedented multi-services on demand, and radical economic benefits. However, FTTB applications requires providers to deploy equipment to sites that may be unsecured, lacking standard equipment racks, without DC power sources, and/or controlled by outside parties. The Cisco ONS 15310-MA Wall Mount Enclosure (WME) provides a secure environment for the Cisco ONS 15310-MA network equipment, power system, and VRLA batteries (battery back-up) in locations powered by 120VAC with space limitations.
Figure 1. The Cisco ONS 15310-MA Wall Mount Enclosure (WME)
Cisco ONS 15310-MA Wall Mount Enclosure Solutions
The Cisco ONS 15310-MA can be integrated in a number of indoor and outside plant (OSP) enclosures, i.e. Wall Mount (indoors), Pad Mount and Pole Mount OSP (Pole Mount) cabinets that incorporate customer-approved third-party support components. The Indoor Wall Mount Enclosures aer available with three (3) power source options: 1) AC-WME (with Optional Battery Back-Up) for locations that have a 120VAC source, 2) -48VDC WME for locations that have a -48 VDC source, and 3) +24VDC WME for locations that have a +24 VDC source. These configurations are built and/or customized by a Cisco approved partner, Linkmont Technologies, Inc. (Linkmont). Ordering information is listed below.

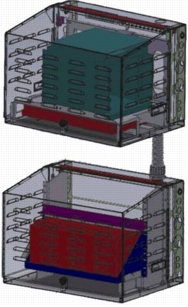

Figure 2. Cisco ONS 15310-MA Wall Mount Enclosure with Optional Battery Backup
The Cisco ONS 15310-MA AC-WME, a secure, wall-mountable enclosure, addresses those key FTTB requirements cost-effectively so that service providers can take full advantage of this opportunity at a fraction of the cost, in a fraction of the time. The Cisco ONS 15310-MA WME offers a rectifier with redundant modules, 8 hours of battery back-up capability, and a Cisco ONS 15310-MA Metro Edge Optical Transport Platform as a single, integrated solution.
The AC-WME is certified to operate indoors, not outdoors in uncontrolled environments, such as a covered facility that may be exposed to outside air and contaminants. The Cisco ONS 15310-MA is designed to house VRLA batteries used for battery back-up powering. The AC-WME provides multiple alarm inputs, which can be used to collect information at a remote location and transmit it back to a management center. The AC-WME comes with all of its components pre-installed and prewired (15310-MA DS1 and DS3 cables are not included and must be ordered separately) so that it can be installed, provisioned, and put into service in less than four (4) hours.

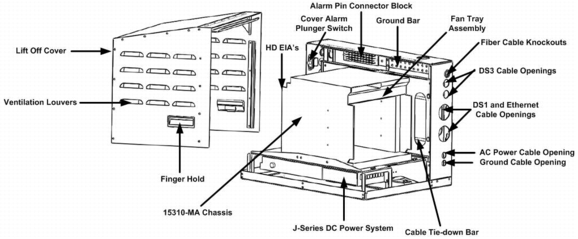

Figure 3. Cisco ONS 15310-MA AC-WME Detail
The Cisco ONS 15310-MA AC-WME is offered in the configurations outlined in Table 1.
Table 1. Cisco ONS 15310-MA WME Configurations
WME Configurations
Description
PCI-WME-AC
Standard equipped Cisco ONS 15310-MA WME. Standard equipment includes wallmount cabinet integrated with a Valere Power Plant - *1RU (front access, with redundant rectifiers), and an Alarm terminal block
PCI-15310WME-CHAS
Cisco ONS 15310-MA shelf assembly including fan tray assembly
WME Options
Description
PCI-AC-WME-EXWARR
Extended 5-Year Warranty
HE32-MX-0xx, xx=feet (10 foot min.)
DS1 Cables 32 pair, AMP ends A-side (Qty. 2)
HE32-AX-0xx, xx=feet (10 foot min.)
DS1 Cables 32 pair, AMP ends B-side (Qty. 2)
PCI-AC-WME-BATT-L1
Battery Back-Up enclosure for 15310-MA WME. Includes battery tray with pad and spacers, battery hold-down bar, and battery cable harness (Customer specifies battery manufacturer)
PCI-WME-PLUG
15310-MA DS1 Cable Direction Changer Plug
PCI-AC-BATT-ADJFT
Four (4) adjustable feet for Battery Enclosure for floor-mount
Battery Manufacturers (Suggested because size fits tray)
EnerSys #SBSB14FT 62 Ah
Approx. 8 hours of back-up (PID 310130851)
EnerSys #SBSB10FT 34 Ah
Approx. 4 hours of back-up
Northstar #NSB60FT 57.7 Ah
Approx. 8 hours of back-up
Northstar #NSB40FT 38.1 Ah
Approx. 4 hours of back-up
FIAMM #12FAT 60 60 Ah
(needs P1039-L FT adapter) Approx. 8 hours of back-up
FIAMM #12FAT30 30 Ah
(needs P1039-L FT adapter) Approx. 4 hours of backup
Marathon #12V60FT 60 Ah
Approx. 8 hours of back-up
Marathon #12V35FT 35 Ah
Approx. 4 hours of back-up
*x"RU = Rack Units 1 RU = 1.75"
Table 2. Cisco ONS 15310-MA AC-WME Specifications
WME Description
Specification
Dimensions (H x W x D)
16 x 22 x 16 in. (40.6 x 55.9 x 40.6 cm.)
Weight
71 lbs (32.2050 kg) (approx., fully configured)
Cabinet
• Open Cover Alarms
• Temperature Sensor on Battery Cabinet
• Flexible Cable Entry-Exit
Enclosure Cover
• Lockable
• Finger Holds
• Vented
Alarms
Alarm terminal block monitors:
• Power supply failure
• Cover (WME or battery) is opened
• Ambient temperature of the cabinet reaches +55 degrees C
• No AC is present
• Any module in the rectifier fails
• Fuse failure
• Circuit breaker trip
• System low voltage
Redundant Rectifier
Input voltage
110 VAC; 20 AMP
Output voltage
-48 VDC
Fusing
10 AMP Breaker
Battery Cabinet
Capacity
4-8 Hours
Dimensions (H x W x D)
16 x 22 x 16 in. (40.6 x 55.9 x 40.6 cm)
Weight
189 lbs (85.7289 kg) (approx., with batteries)
Fusing
10 AMP Breaker
Battery Dimension Requirements
Maximum dimensions (H x W x D)
10.23 x 4.1 x 11.02 in. (20.0 x 10.5 x 28.0 cm)
Voltage
12 Volts
Capacity
62A hours minimum (8 hours)
Operating Environment
Temperature
-40 to +50 degrees Celsius
Humidity
5 to 85 percent, non-condensing long term and 5 to 95 percent, non-condensing short term (up to 96 hours)
