Fiber-to-the-building (FTTB) applications represent an increasingly important opportunity for metropolitan service providers to extend their networks, reach new customers, and profitably grow their businesses. The Cisco ONS 15327 has enabled service providers to address the FTTB market because it delivers supercharged SONET/SDH, integrated optical networking, unprecedented multiservices on demand, and radical economic benefits. However, FTTB applications require service providers to deploy equipment to sites that may be unsecured, lacking standard equipment racks, without DC power sources, and/or controlled by outside parties.

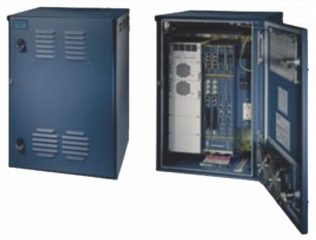

Figure 1
Cisco ONS 15327 Wall Mount Enclosure
The Cisco ONS 15327 WME, a secure, wall-mountable cabinet, addresses these key FTTB requirements cost-effectively so that service providers can take full advantage of this significant opportunity at a fraction of the cost, in a fraction of the time. The Cisco ONS 15327 WME offers a rectifier with redundant modules, 8 hours of battery backup capability, and a Cisco ONS 15327 Metro Edge Optical Transport Platform as a single, convenient solution.
The cabinet is fully NEBS Level III compliant, engineered to withstand Zone 4 seismic activity, and capable of inside plant operation. The Cisco ONS 15327 WME provides multiple alarm inputs, which can be used to collect information at a remote location and transmit it back to a management center. The Cisco ONS 15327 WME comes with all of its components premounted and prewired so that it can be installed, provisioned, and put into service in less than an hour.

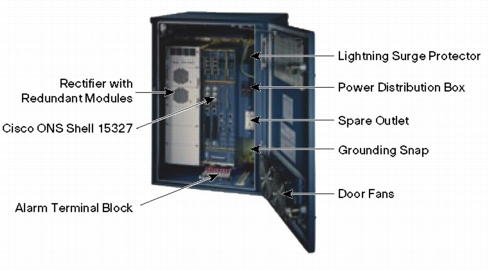

Figure 2
Cisco ONS 15327 Wall Mount Enclosure Detail
The Cisco ONS 15327 WME is offered in the configurations outlined in Table 1 below.
Table 1. Cisco ONS 15327 WME Configurations
Wall Mount Enclosure Configurations
Description
CISCO15327-WME
ONS 15327 wall mount enclosure (WME), assemble-to-order (ATO) configuring. Standard equipment includes wall mount cabinet integrated with rectifier, power distribution box, cable management, and accessories; ONS 15327 shelf assembly including fan tray assembly.
15327-WME-CHAS=
Same as CISCO15327-WME without ATO configuring. Equipment includes wall mount cabinet integrated with rectifier, power distribution box, cable management, and accessories; ONS 15327 shelf assembly including fan tray assembly.
15327-WME-BAT=
Battery backup enclosure for 15327-WME. Includes battery cabinet and battery cable harness (batteries not included).
15327-WME-FTF=
Replacement filter for door fan assembly
Table 2. Cisco ONS 15327 WME Specifications
Description
Specification
Dimensions (H x W x D)
24.1 x 17.5 x 16.5 in. (61.2 x 44.5 x 41.9 cm)
Cabinet depth is 17.5 in. (44.5 cm) with mounting bracket.
Weight
88 lbs (39.9 kg)
Operating Temperature
32° to 122°F (0° to 50°C)
Compliance/Certification
• NEMA Type 2
• NEBS Level III
• UL, C-UL to UL/CSA 60950
• FCC Class B
• ETSI
Cabinet Door
• Cam lock and other tamper-resistant features
• Fans (2)
• Air filter
Alarms
Alarm terminal block monitors:
• Cabinet over temperature
• Fan failure
• Fuse failure
• Rectifier failure
• Door open
• AC input failure
• System voltage low
• Battery breaker tripped (if applicable)
• Battery door open (if applicable)
Power Distribution Box
• 2 convenience outlets
• 1 15A breaker (convenience outlets)
• 1 10A breaker (rectifier)
• Lightning surge protector
• Grounding snap
Redundant Rectifier:
Input voltage
110V AC input
Output voltage
-48V to ONS 15327
Fusing
7A internal fuse
Battery Cabinet:
Capacity
8 hours
Dimensions (H x W x D)
24.1 x 17.5 x 16.5 in. (61.2 x 44.5 x 41.9 cm)
Weight
37 lbs (16.8 kg) empty
210 lbs (95.3 kg) with batteries
Operating Temperature
-40° to 150°F (-40° to 65°C)
Fusing
30A breaker
Recommended Batteries
(Not Included)
Max. dimensions (H x W x D)
9.5 x 7.0 x 11.5 in. (24.1 x 17.8 x 29.2 cm)
Voltage
12 volts
Capacity
50A hours minimum (8 hours)
This PID is no longer orderable due to EoL. Data sheet posted for information only.
