The Cisco® ONS 15454 Multiservice Transport Platform (MSTP) (Figure 1) provides a comprehensive, intelligent dense wavelength-division multiplexing (DWDM) solution for expanding metropolitan (metro) and regional bandwidth
Figure 1. Cisco ONS 15454 Optical Service Channel Cards
Product Overview
The Cisco ONS 15454 MSTP incorporates an optical service channel (OSC) to provide a bidirectional channel connecting all the nodes in a DWDM ring. The OSC offers support for the following functions:
• Supervisory data channel (SDC) for node-to-node communications
• Distribution of synchronous clocking
• 100-Mbps user data channel
The OSC cards provide an OC-3/STM-1 formatted, 1510-nanometer (nm) signal inserted onto the fiber of a DWDM network outside the band for transmission signals (Figure 2). In nonamplified sites, the OSC-Combiner/Splitter Module (OSC-CSM) card provides access to the OSC received signal while expressing the remaining wavelengths and its transmitted signal is optically coupled into the fiber together with the transmitted wavelengths. In amplified sites, an OSC optical add/drop multiplexer (OADM) filter is integrated within the booster amplifier, providing the OSC wavelength to the OSCM (Optical Service Channel Module) card (Figures 3, 4, and 5). The OSC card's optical interface provides extended optical reach to meet the node-to-node distances found in typical metro and regional networks. The power levels of the OSC and composite express channels are controlled via software-controlled variable optical attenuators (VOAs) by the intelligent DWDM software of the Cisco ONS 15454 MSTP.

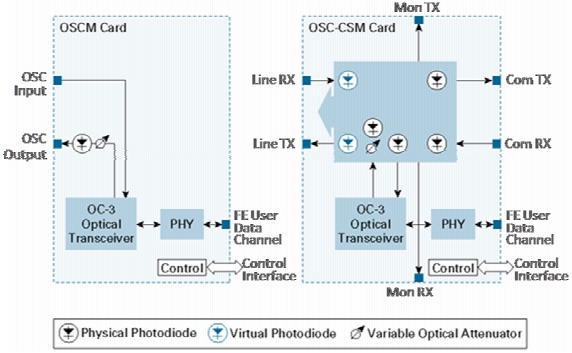

Figure 2. OSCM and OSC-CSM Card Functional Diagrams
The Cisco ONS 15454 OSC cards are plug-in modules that take advantage of the proven Cisco ONS 15454 carrier-class features to maintain management connectivity for the Cisco ONS 15454 MSTP network. Table 1 describes the deployment applications of the OSC card.
Table 1. OSC Cards with Applications
Component
Deployment Application
OSCM
This card provides an internode communications channel for management and user data, Used in nodes with the booster amplifier, this card allows network-level communications to support intelligent DWDM implementation without the use of client transponder data-communication overhead.
OSC-CSM
This card provides an internode communications channel for management and user data, allowing network-level communications to support intelligent DWDM implementation without the use of client transponder data-communication overhead. It integrates an optical add/drop filter to remove and add the OSC wavelength while passing the other wavelengths. The OSC-CSM is used in nodes without a booster amplifier or future cross-connect equipped systems.
The Cisco ONS 15454 OSC cards incorporate faceplate-mounted LEDs, providing a quick visual check of the operational status at the card. Printed on each of the faceplates is an icon, either a green cross or an orange circle, which is matched to shelf-slot icons indicating the shelf slot where the card can be physically installed. The cards are supported by the integrated Cisco ONS 15454 Cisco Transport Controller craft manager, which provides the user access for operations, administration, maintenance, and provisioning (OAM&P) for the system.

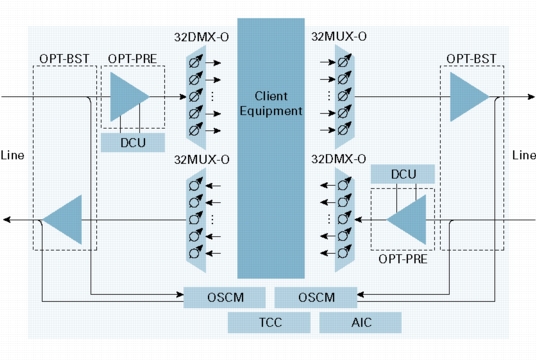

Figure 3. Cisco ONS 15454 MSTP Hub Node

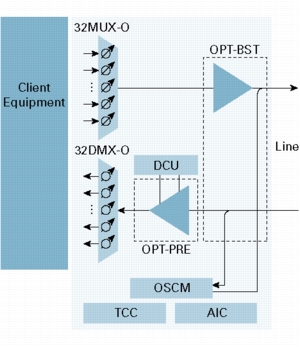

Figure 4. Terminal Node

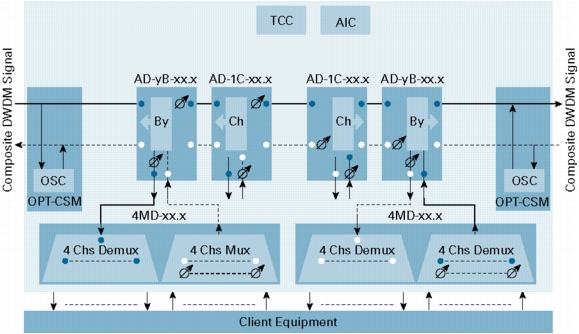

Figure 5. Passive OADM Node
OSC Card Specifications
Tables 2 through 5 give specifications for the Cisco ONS 15454 OSC card.
• TR-NWT-000332, Issue 4, Method 1 calculation for 20-year mean time between failure (MTBF)
1. All compliance testing and documentation may not be completed at release of the product. Check with your sales representative for countries outside of Canada, the United States, and the European Union.
Table 3. System Requirements
Component
Cisco ONS 15454 SONET/ANSI
Cisco ONS 15454 SDH/ETSI
Processor
TCC2 OR TCC2P
TCC2 OR TCC2P
Cross-connect
All (not required)
All (not required)
Shelf assembly
15454-SA-ANSI or 15454-SA-HD shelf assembly with FTA3 version fan-tray assembly
15454-SA-ETSI shelf assembly with SDH 48V fan-tray assembly
System software
Release 4.6.0 SONET or later
Release 4.6.0 SDH or later
Table 4. Common Amplifier Specification
Specification
Management
Card LEDs
Failure (FAIL)
Active/standby (ACT/STBY)
Signal fail (SF)
Red
Green/yellow
Yellow
Operating environment
Temperature
23 to 131°F (-5 to 55°C)
Humidity
5 to 95% noncondensing
Storage environment
Temperature
-40 to 131°F (-40 to 85°C)
Humidity
5 to 95% noncondensing
Table 5. OSC Card Specifications-Specific
Specification
OSCM
OSC-CSM
Optical parameters
Insertion loss (maximum at minimum VOA)
Express (line input to composite Output)
Express (composite input to line Output)
Monitor
-
-
-
2.2 dB
2.2 dB
~30 dB
VOA dynamic range
30 dB
30 dB
Maximum input power
300mW
300mW
Filter type
-
Interferential
Filter passband (at 0.5 dB resolution bandwidth)
Transmit filter
Receiver filter
-
-
1500 to 1520 nm
1529 to 1562 nm
OC-3/STM-1 (155 Mbps) optical transceiver
Transmit power
Transmit wavelength (nominal)
Receiver sensitivity (at 10E-10 bit error rate [BER])
3 dBm (+/-2 dBm)
1510 nm
-40 dBm
3 dBm (+/-2 dBm)
1510 nm
-40 dBm
Connectors
Input/output ports
Monitor ports
LC
LC
LC
LC
Power
Card power draw
Typical
Maximum
23W
26W
23W
27W
Physical
Size
1 slot
1 slot
Supported shelf slots
8, 10
1-6, 12-17
Ordering Information
Table 6 provides ordering information for the Cisco ONS 15454 OSC cards.
Table 6. System Ordering Information1
Part Number
Description
15454-OSCM
15454E-OSCM
Optical service channel card, 1510 nm, LC connector
15454-OSC-CSM
15454E-OSC-CSM
Optical service channel card, integrated combiner/separator, 1510 nm, LC connector
1. "E" in the Part Number (for example, 15454E-) indicates compatibility with SDH/ETSI systems.
