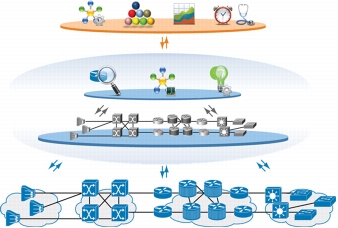

Cisco® Active Network Abstraction (ANA) provides service providers and other carrier-grade network operators with a comprehensive solution for network element and service management. Cisco ANA includes discovery, monitoring, event de-duplication, and root-cause analysis. Cisco ANA supports all major Cisco service provider network elements, as well as a wide variety of network technologies including Multiprotocol Label Switching (MPLS), Carrier Ethernet, and Cisco Unified Radio Access Network (RAN) Backhaul reference architectures. This paper provides at a glance the performance and scaling information for ANA 3.7.3. More detailed information can be obtained by contacting ask_ana_pm@cisco.com.
Cisco ANA 3.7.3 Performance and Scale Statistics at a Glance
Item Description
Release 3.7.3 Scalability Numbers
User sessions
150
Event vision sessions
20
Northbound interface (NBI) sessions
70
Maximum number of devices (virtual network elements [VNEs]) per map
4000
Maximum number of MAPs opened concurrently
600
Maximum number of graphical links per map
15,000
Maximum number of active tickets per map
3500
Maximum events per hour (burst rate)
50,000
Open tickets in database
40,000
Events per device (VNE) per second
25
Correlated traps and/or syslogs per second
210
Raw traps and/or syslogs per second
1100
Maximum number of Configuration archive jobs per day
10,000
Maximum number of Image distributions per day
4800
Maximum number of devices managed for image distribution
15,000
Single segment pseudowires - Medium aggregation network
150,000
Maximum number of devices - Carrier Ethernet network
3200
Maximum number of devices - IP RAN network
7000
Maximum number of devices - MPLS network
15,000
Maximum number of devices - EMS only
36,000
Note: To achieve the scalability numbers given above, please contact your Cisco representative for the required hardware specifications. Scalability numbers are subject to increase with new releases; please check the Cisco ANA web page to get the latest information.
Cisco ANA 3.7.3 Performance and Scale Statistics at a Glance
Scale Numbers by Network Technology
Network Technology Component
EMS
MPLS
Carrier Ethernet
IP RAN
Maximum number of devices (VNEs)
36,000
15,250
15,000
7000
Virtual Routing and Forwarding (VRF)
-
50,000
-
-
Pseudowires
-
5000
135,700
40,000
Traffic engineering (TE) tunnels
-
2700
-
3000
VPNs
-
2500
-
-
Sites
-
100,000
-
-
Ethernet Virtual Connections (EVCs)
-
-
173,160
-
Virtual forwarding instances (VFIs)
-
-
82,240
-
Virtual Private LAN Service (VPLS) domains
-
-
28,080
-
Service provider VLANs (S-VLANs)
-
-
280,000
1100
User network interfaces (UNIs)
-
-
79,560
-
Switching entities
-
-
1,170,000
-
E-LINE services
-
-
51,480
12,000
Note: To achieve the scalability numbers above, please contact your Cisco representative for the required hardware specifications. Scalability numbers are subject to increase with new releases; please check the Cisco ANA web page to get the latest information.
