Deliver superior end-user quality of experience and lower operating expenses with simplified, unified management across voice and video collaboration networks.
Enterprise networks are undergoing continuous transformation as organizations invest in next-generation collaboration technologies with integrated voice and video deployments. IT departments must be empowered to effectively manage this transformation and the lifecycle of these networks, services, endpoints, and collaboration architectures. They also must meet demands from end users for anywhere, anytime network access with consistent high quality of service. At the same time, these organizations are under increasing pressure to reduce operating expenses and optimize limited resources.
Traditional siloed, nonintegrated management tools have made it difficult for collaboration network operators to quickly and effectively troubleshoot issues, provision new users, or perform changes. The result is collaboration management operations that are complex, manual, error prone, and inefficient.
Cisco Prime™ Collaboration addresses these challenges by providing simplified, unified management for voice and video networks. The solution helps ensure a superior end-user quality of experience, lowers operating expenses, and allows enterprises to extract the full value from their unified communications and collaboration technology investment.
About Cisco Prime
The Cisco Prime portfolio of IT and service provider management offerings empowers IT organizations to more effectively manage their networks and the services they deliver. Built on a service-centered foundation, the Cisco Prime portfolio of products supports integrated lifecycle management through an intuitive workflow-oriented user experience and a set of common operational attributes.
Cisco Prime Collaboration Overview
Cisco Prime Collaboration removes management complexity and provides automated, accelerated provisioning, real-time monitoring, and proactive troubleshooting in one integrated product. The solution delivers a premier operations experience through an intuitive user interface and optimized operator methodology, including automated workflows that ease implementation and ongoing administration.
Provisioning features include automated processes for Cisco® Unified Communications initial deployments and for "day-2" moves, adds, changes, and deletions (MACDs). An intuitive user interface provides a single view of a subscriber and the subscriber's services (see Figure 1) as well as a consolidated view of subscribers across the organization. With these capabilities, Cisco Prime Collaboration significantly accelerates site rollouts and dramatically reduces the time required for ongoing changes, resulting in exceptional productivity gains and lower operating expenses. In addition, by significantly simplifying moves, adds, and changes, the solution facilitates delegation of these tasks - allowing organizations to optimize IT resources and further reduce total cost of ownership. In addition, a self-care portal (see Figure 2) allows end users to control preference settings (for example, call forwarding, speed dials, and passwords), which helps drive a greater quality of experience.
Figure 1. User/Subscriber Services View

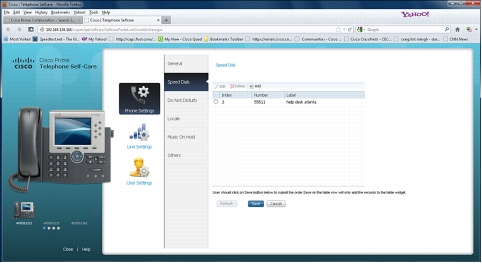

Figure 2. End-User Self-Care
Cisco Prime Collaboration provides efficient, integrated service assurance management through a single, consolidated view of the Cisco voice and video collaboration environment. This includes continuous, real-time monitoring and advanced troubleshooting tools for Cisco Unified Communications and Cisco TelePresence® systems including the underlying transport infrastructures, as seen in Figure 3.

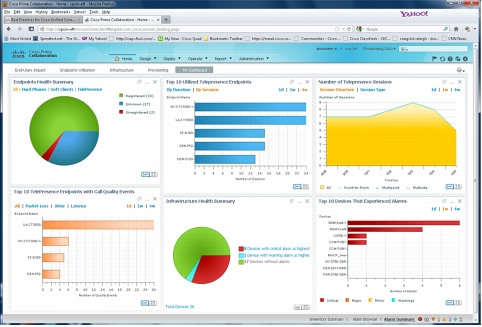

Figure 3. User-Defined Summary View
Cisco Prime Collaboration proactively notifies operators of issues and facilitates speedy resolution of problems through proactive fault detection and rapid isolation using purpose-built diagnostic tools. For video, the solution allows operators to view end-to-end session paths over Cisco and third-party devices, and on Cisco Medianet routers, jitter and packet loss statistics help pinpoint hotspots affecting session quality (see Figures 4 and 5). As a result, Cisco Prime Collaboration expedites operator resolution of service quality issues before affecting end users - for a superior end-user collaborative experience.

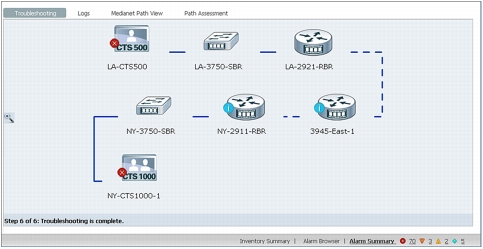

Figure 4. Video End-to-End Session Path Trace View

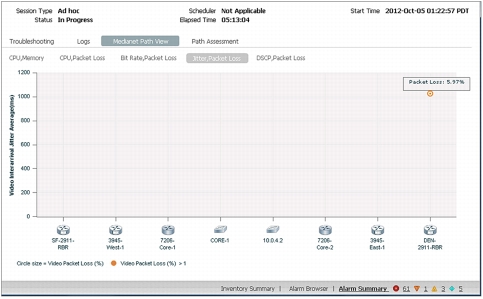

Figure 5. Medianet Path View
Features and Benefits
Table 1 gives a summary of the features and benefits of Cisco Prime Collaboration.
Table 1. Cisco Prime Collaboration Features and Benefits Summary
Feature
Benefits
Voice and Video Management on a Single Pane of Glass
Single product with an integrated view of all statistics and alarms
• Simplify management of voice and video and lower costs
• Reduce hardware expense and administration
• Reduce training expenses
Single login for all options with Lightweight Directory Access Protocol (LDAP) support
Increase operating efficiencies
Day-1 Voice Provisioning
Automated Cisco Unified Communications site setup
Reduce deployment time
Single interface for call control, messaging, and presence
Accelerate provisioning tasks
Configuration templates
• Create consistent overall network implementation by defining standard configurations that can be used in situations such as rolling out new offices, locations, remote sites, or organizational overlays
• Reduce troubleshooting time
Provisioning policy settable at several levels
Provide policy and domain control for administrators handling day-2 provisioning by automating provisioning based on preset policies for services, service areas, and subscriber types
Batch provisioning
Increase operating efficiencies and reduce costs with scheduled scripts and templates for batch provisioning that let an operator rapidly and consistently add or modify a large number of users or a large number of phones/device profiles (and the corresponding configuration settings). A single batch can act across an entire unified communications network
Day-2 Voice Provisioning
Automated processes
• Greatly reduce the time required to move, add, change, or delete voice users and their services
• Easily delegate MACD tasks for operational efficiencies and savings
Delegation of MACD tasks
• Allow MACD requests to be met without requiring an underlying knowledge of the voice applications
• Assign domain and service areas to administrators and promote greater operational control by making sure that MACD activities are limited to parameters set for each administrator
Batch operations
Perform mass user additions or changes using a consistent approach for easier system maintenance
End-user policy assignment
Promote greater operational control with policy for services and devices defined by the roles of the user
Operational Tracking for Provisioning
Order tracking
Provide greater operational control by tracking changes made to infrastructure and user services, including order number, operator placing the order, end user, and date and time
Audit trail
Promote accountability and network security and facilitate troubleshooting by tracking login, logout, IP address, time and date, time logged in, and reason for logout (as well as PIN and password changes)
End-user self-care portal
Increase customer satisfaction by allowing end user to adjust preference settings (for example, speed dials and passwords)
Summary Views
Key performance indicator (KPI) views
• Improve mean time to repair (MTTR) with statistics summary displays that focus the operator on the KPIs for the devices most affected
• Promote proactive troubleshooting and efficient operations with information tailored to each operator's preference
Direct launch into troubleshooting and diagnostic screens
• Reduce key clicks
• Reduce training requirements
Performance Monitoring
Element monitoring
Enjoy greater visibility into critical performance metrics of each managed element
Graphical views for side-by-side comparison of selected metrics with "zoom-in" capabilities
Reduce troubleshooting time and effort with statistical charts that overlay multiple KPIs for a device with up to one week's worth of data, allowing the operator to zoom in to any part of the display time frame
Export of tabular content in comma-separated value (CSV) format
Promote further data analysis and collaboration among teams
Fault Monitoring
At-a-glance and real-time status views of all faults in the voice and video collaboration network
Expedite operator resolution of issues
Event correlation that streamlines dependent events into fewer alarms
Reduce alarm notification
Direct launch of all activities, with automatic limiting of only the actions appropriate for the selected device
Promote operator efficiency
View of alarms created from any syslog, basic MIB 2 device or Linux/Windows server
Enjoy greater operator flexibility to monitor more device types
Automatic forwarding of alarms as emails (with URL links) to access assurance features directly from the email with device context
Notify operators even when they are not viewing the management system, reducing downtime and helping to ensure that critical alarms are not missed
Automatic forwarding of filtered alarms as traps to other management systems
Integrates the actionable alarms created by the Cisco Prime Collaboration Assurance module into other management systems, providing easy integration with existing operational support systems
Quality of Service Monitoring
Mean Opinion Scores (MOSs) that measure and identify jitter, packet loss, and delay that notify operators of impairments in the network
Improve quality of service by isolating quality issues in each device pool and identify site-level problems
Deployment of the Cisco 1040 Sensors or the Cisco Cisco Prime Network Analysis Module (NAM) to improve the MOS granularity, sampling and reporting every 60 seconds
Improve quality of service and sample in multiple locations to reduce the time needed to isolate problems
Video quality measurements during sessions and pre-session simulations
Help ensure that each video session is the highest quality
Diagnostics and Testing
End-to-end testing
Help ensure end-to-end service connectivity
Jitter, packet loss, differentiated services code point (DSCP), and utilization trouble spots information for Cisco IP service-level agreement (IP SLA) and Medianet-equipped Cisco devices
Quickly and efficiently isolate network impairments with testing and diagnostic features built into Cisco network devices
Scheduling and pretesting of key components and circuits
Assure service readiness and the highest quality end-user experience
Automatic display of technology-specific diagnostic views based on the device selected
Reduce time to isolate problems and training expense with guided troubleshooting workflows and smart-links to the recommended test or measurement display
KPI charts that display, in a single view, the most important information for the device or device grouping
Expedite troubleshooting by reducing the number of key clicks and open windows needed to collect enough information to identify and resolve a problem
Dynamic statistical overlay charts that allow multiple KPI charts to be overlaid, providing a single time reference
Improve diagnostic efficiency with user-selected statistical overlays that align related measurements in time to make it easier to identify cause and effect
Northbound Interfaces
Web services interface
Ease automation of provisioning workflow and query of service inventory
Northbound provisioning API
Integrate easily with custom applications, web service portals, and human resources systems for automated, consistent service provisioning. An SDK is provided with example code
Northbound alarms in Simple Network Management Protocol (SNMP) trap format based on Cisco Prime Collaboration MIB
Integrate easily with existing operational support systems, providing the same actionable collaboration alarms and events to another network management system
SNMP MIB for Cisco Prime Collaboration server that performs status queries from an external management system
Help enable a data center management application to monitor the Cisco Prime Collaboration server without adding additional client software, preventing unanticipated interference from a third-party application
Web services interface to request phone inventory
Integrate easily with existing inventory reporting tools, making the rich phone details available to other applications, reducing the need for manual information transfers
Reports
Complete collaboration inventory of infrastructure and endpoints with serial numbers, firmware versions, locations, and much more
Reduce time spent collecting inventory information by providing flexible reporting from the Cisco Prime Collaboration database
Tracking of patterns with quality history information including call quality measurements and event reports
Improve uptime by reviewing key metrics and event history across the collaboration network in a concise report format
Tracing of Cisco TelePresence usage patterns and resource loading video session utilization
Identify over- or underused endpoints for better capacity planning and to drive efficient usage practices
Provisioning details on the voice users, services, and resource configurations
Quickly generate a services summary to efficiently identify service and asset deployment across the voice part of the collaboration network
Activity details on phone moves and changes
Help manage a large phone deployment by tracking all phone movement in a networkwide report, reducing troubleshooting time and improving overall inventory management
Cisco Best Practices
Alignment with Cisco collaboration products
Help ensure high network availability and quality of service using monitoring and troubleshooting capabilities that are fine-tuned to Cisco collaboration applications
Day-1 Support
Enjoy day-1 support of new Cisco collaboration product releases to help ensure up-to-date coverage with no manageability gaps
Licensing
Cisco Prime Collaboration is a licensed software product that is secured to the MAC of the host server. Licensing is ordered based on the collaboration management options required (Assurance or Provisioning) and the endpoint type (Phone or Cisco TelePresence) and the quantity of those endpoints.
Ordering Information
Cisco Prime Collaboration manages many types of endpoints. Table 2 describes the categories into which each device type falls for ordering purposes.
Table 2. Cisco Prime Collaboration Assurance Endpoint Categories
Mass Endpoints
Midrange Endpoints
High-End Single-Codec Endpoints
Multicodec Endpoints
Cisco IP Phones
Cisco Codec EX60
Cisco TelePresence System 1000
Cisco TelePresence System 3000
Cisco Cius
Cisco Codec EX90
Cisco TelePresence System 1100
Cisco TelePresence System 3010
Cisco Jabber Video for Cisco TelePresence (Movi™)
Cisco Codec C90
Cisco TelePresence System 1300
Cisco TelePresence System 3200
Cisco IP Video Phone E20
Cisco Codec C60
Cisco TelePresence System 1400
Cisco TelePresence System 3210
Cisco Codec C40
Cisco Profile 42-C20
Cisco TelePresence System TX9000
Cisco Codec C20
Cisco Profile 42-C60
Cisco TelePresence System TX9200
Cisco TelePresence System 150 MXP
Cisco Profile 52-Dual
Cisco TelePresence System 1000 MXP
Cisco Profile 52
Cisco Tandberg 1500 MXP
Cisco Profile 65
Cisco TelePresence System 1700 MXP
Cisco Profile 65-Dual
Cisco TelePresence System Codec 3000 MXP
Cisco Profile 52-6000MXP
Cisco TelePresence System Codec 6000 MXP
Cisco TelePresence System MX200
Cisco TelePresence System MX300
Cisco TelePresence System 500
Cisco TelePresence SX20 Quick Set
Polycom
The product numbers that follow may be ordered in multiple quantities to achieve the exact endpoint count required. For complete ordering support, including pricing, contact your Cisco representative. For an overview of the product numbers for Cisco Prime Collaboration 9.0, see Tables 3 through 5.
Table 3. Cisco Prime Collaboration Mass Endpoint Assurance Product Numbers - New Installation
Product Number
Description
R-PC-9.0-ASSW-K9=
Cisco Prime Collaboration 9.0 Assurance Software
L-PC-AS-DEVICE
Cisco Prime Collaboration Assurance Dev Lic - config required
L-PC-A-500-MA-LIC
500 mass endpoint Cisco Prime Collaboration license
L-PC-A-1K-MA-LIC
1000 mass endpoint Cisco Prime Collaboration license
L-PC-A-2K-MA-LIC
2000 mass endpoint Cisco Prime Collaboration license
L-PC-A-5K-MA-LIC
5000 mass endpoint Cisco Prime Collaboration license
L-PC-A-10K-MA-LIC
10,000 mass endpoint Cisco Prime Collaboration license
L-PC-A-20K-MA-LIC
20,000 mass endpoint Cisco Prime Collaboration license
L-PC-A-30K-MA-LIC
30,000 mass endpoint Cisco Prime Collaboration license
L-PC-A-60K-MA-LIC
60,000 mass endpoint Cisco Prime Collaboration license
Table 4. Cisco Prime Collaboration Midrange, High-End, and Multicodec Endpoint Assurance Product Numbers - New Installation
Product Number
Description
R-PC-9.0-ASSW-K9=
Cisco Prime Collaboration 9.0 Assurance Software
L-PC-AS-DEVICE
Cisco Prime Collaboration Assurance Dev Lic - config required
L-PC-A-50-MID-LIC
50 midrange endpoint Cisco Prime Collaboration license
L-PC-A-100-MD-LIC
100 midrange endpoint Cisco Prime Collaboration license
L-PC-A-200-MD-LIC
200 midrange endpoint Cisco Prime Collaboration license
L-PC-A-500-MD-LIC
500 midrange endpoint Cisco Prime Collaboration license
L-PC-A-1K-MID-LIC
1000 midrange endpoint Cisco Prime Collaboration license
L-PC-A-10-HI-LIC
10 high-end, single-codec endpoint Cisco Prime Collaboration license
L-PC-A-20-HI-LIC
20 high-end, single-codec endpoint Cisco Prime Collaboration license
L-PC-A-50-HI-LIC
50 high-end, single-codec endpoint Cisco Prime Collaboration license
L-PC-A-100-HI-LIC
100 high-end, single-codec endpoint Cisco Prime Collaboration license
L-PC-A-200-HI-LIC
200 high-end, single-codec endpoint Cisco Prime Collaboration license
L-PC-A-1-MULT-LIC
1 multicodec endpoint Cisco Prime Collaboration license
L-PC-A-10-MUL-LIC
10 multicodec endpoint Cisco Prime Collaboration license
Table 5. Cisco Prime Collaboration Provisioning Product Numbers - New Installation
Product Number
Description
R-PC-9.0-PRSW-K9=
Cisco Prime Collaboration 9.0 Provisioning Software
L-PC-PR-DEVICE
Cisco Prime Collaboration Provisioning Dev Lic - config required
L-PC-A-PROV-API
Cisco Prime Collaboration Provisioning Application Program Interface Feature License
L-PC-A-500-PR-LIC
500 endpoint Cisco Prime Collaboration provisioning license
L-PC-A-1K-PR-LIC
1000 endpoint Cisco Prime Collaboration provisioning license
L-PC-A-2K-PR-LIC
2000 endpoint Cisco Prime Collaboration provisioning license
L-PC-A-5K-PR-LIC
5000 endpoint Cisco Prime Collaboration provisioning license
L-PC-A-10K-PR-LIC
10,000 endpoint Cisco Prime Collaboration provisioning license
L-PC-A-20K-PR-LIC
20,000 endpoint Cisco Prime Collaboration provisioning license
L-PC-A-30K-PR-LIC
30,000 endpoint Cisco Prime Collaboration provisioning license
L-PC-A-60K-PR-LIC
60,000 endpoint Cisco Prime Collaboration provisioning license
Upgrade Information
Cisco Prime Collaboration 9.0 is available with the new Cisco Prime Product Assured Software Subscription, which allows prepayment for major upgrades for 1-, 2-, 3-, or 5-year subscription contracts. It works in conjunction with the Cisco Essential Services (ESW) maintenance plan, whereby ESW provides Cisco Technical Assistance Center (TAC) support and access to minor updates and patches from the cisco.com software download site. Upgrades are provided from Cisco Prime Unified Communications Management Suite (UCMS) (Cisco Prime Unified Operations Manager [UOM], Cisco Prime Unified Service Monitor [USM] and Cisco Prime Unified Provisioning Manager [UPM]) through a 3- or 5-year Cisco Prime Product Assured Software Subscription purchase, depending on the UCMS version.
To upgrade from previous UCMS versions to Cisco Prime Collaboration 9.0 without purchasing a Cisco Prime Product Assured Software Subscription, the use the upgrade product numbers given in Tables 6 and 7.
Upgrade Product Numbers
Tables 6 and 7 give product numbers for upgrades without Cisco Prime Product Assured Software Subscription.
Table 6. Prime Collaboration Mass Endpoint Assurance Product Numbers - Upgrade without Cisco Prime Product Assured Software Subscription
Product Number
Description
R-PC-9.0-ASSW-K9=
Cisco Prime Collaboration 9.0 Assurance Software
L-PC-A-OMV2UPG
Cisco Prime Collaboration UOM/USM V2.X Upgrade - Configuration required
L-PC-A-500-V2-UPG
500 mass endpoint tier upgrade license - from UOM 2.x
L-PC-A-1K-V2-UPG
1000 mass endpoint tier upgrade license - from UOM 2.x
L-PC-A-2K-V2-UPG
2000 mass endpoint tier upgrade license - from UOM 2.x
L-PC-A-5K-V2-UPG
5000 mass endpoint tier upgrade license - from UOM 2.x
L-PC-A-10K-V2-UPG
10,000 mass endpoint tier upgrade license - from UOM 2.x
L-PC-A-20K-V2-UPG
20,000 mass endpoint tier upgrade license - from UOM 2.x
L-PC-A-30K-V2-UPG
30,000 mass endpoint tier upgrade license - from UOM 2.x
L-PC-A-OMV8UPG
Cisco Prime Collaboration UOM/USM V8.X Upgrade - Configuration required
L-PC-A-500-V8-UPG
500 mass endpoint tier upgrade license - from UOM 8.x or 9
L-PC-A-1K-V8-UPG
1000 mass endpoint tier upgrade license - from UOM 8.x or 9
L-PC-A-2K-V8-UPG
2000 mass endpoint tier upgrade license - from UOM 8.x or 9
L-PC-A-5K-V8-UPG
5000 mass endpoint tier upgrade license - from UOM 8.x or 9
L-PC-A-10K-V8-UPG
10,000 mass endpoint tier upgrade license - from UOM 8.x or 9
L-PC-A-20K-V8-UPG
20,000 mass endpoint tier upgrade license - from UOM 8.x or 9
L-PC-A-30K-V8-UPG
30,000 mass endpoint tier upgrade license - from UOM 8.x or 9
L-PC-A-60K-V8-UPG
60,000 mass endpoint tier upgrade license - from UOM 8.x or 9
Table 7. Prime Collaboration Provisioning Product Numbers - Upgrade without Cisco Prime Product Assured Software Subscription
Product Number
Description
R-PC-9.0-PRSW-K9=
Cisco Prime Collaboration 9.0 Provisioning Software
L-PC-A-PMV2-8UPGR
Cisco Prime Collaboration UPM V2.X-8.X Upgrade - Configuration required
L-PC-A-500-PR-UPG
500 provisioning end point tier upgrade license
L-PC-A-1K-PR-UPG
1000 provisioning end point tier upgrade license
L-PC-A-2K-PR-UPG
2000 provisioning end point tier upgrade license
L-PC-A-5K-PR-UPG
5000 provisioning end point tier upgrade license
L-PC-A-10K-PR-UPG
10,000 provisioning end point tier upgrade license
L-PC-A-20K-PR-UPG
20,000 provisioning end point tier upgrade license
L-PC-A-30K-PR-UPG
30,000 provisioning end point tier upgrade license
L-PC-A-60K-PR-UPG
60,000 provisioning endpoint tier upgrade license
System Requirements
Tables 8 and 9 list system requirements for virtual machines for Assurance and Provisioning, respectively. Table 10 lists client machine requirements.
Table 8. Virtual Machine Requirements for Assurance
Endpoints Managed in Cisco Prime Collaboration
CPU
RAM
Network Interface Card (NIC)
Disk Space
Up to 1000 endpoints
4
8 GB
1 GB
150 GB
Up to 10,000 endpoints
8
16 GB
1 GB
200 GB
Up to 100,000 endpoints
12
24 GB
1 GB
500 GB
Up to 150, 000 endpoints
18
32 GB
1 GB
750 GB
Table 9. Virtual Machine Requirements for Provisioning
Endpoints Managed in Cisco Prime Collaboration
Total Number of Endpoints
Mass Endpoints
vCPU
vRAM (GB)
vDisk (GB)
Up to 1000
Up to 1000
1
2
90
1000-10,000
1000-10,000
4
8
120
Application server
10,000-100,000
10,000-100,000
8
16
120
Database server
10,000-100,000
10,000-100,000
8
16
120
Application server
100,000-150,000
100,000-150,000
8
16
150
Database server
100,000-150,000
100,000-150,000
8
16
150
Table 10. Client Machine Requirements
Parameter
Requirement
Display resolution
1024 x 768 or higher
Supported browser
The following browsers are supported:
• Mozilla Firefox 10.0.5 ESR and 15.0
• Windows Internet Explorer 9.0
Cisco Prime Collaboration provides a self-signed certificate (HTTPS). To allow access of the Cisco Prime Collaboration client, you must ensure that security is set to either medium or low in Internet Explorer.
• Make sure you set English (United States) [en-us] as the language in the browser.
• Make sure you enable cookies in the browser.
Adobe Flash Player
You must install Adobe Flash Player on the client machine for Cisco Prime Collaboration features to work properly. We recommend that you download and install Adobe Flash Player version 10.x or later from the Adobe website.
Using the Cisco lifecycle services approach, Cisco and its partners provide a broad portfolio of end-to-end services and support that can help increase your network's business value and return on investment. This approach defines the minimum set of activities needed, by technology and by network complexity, to help you successfully deploy and operate Cisco technologies and optimize their performance throughout the lifecycle of your network.
