Cisco Unified Communications
Cisco® Unified Communications Solutions unify voice, video, data, and mobile applications on fixed and mobile networks, facilitating easy collaboration every time from any workspace. Part of a comprehensive solution that includes network infrastructure, security, wireless, management, or third-party applications and lifecycle services, Cisco Unified Communications management solutions can accelerate deployment, provide cost savings, and enhance productivity.
Product Overview
Cisco Unified Operations Manager (UOM) is the cornerstone of the Cisco Unified Communications Management Suite, designed specifically for managing the Cisco Unified Communications 8.0 Solution. The Cisco Unified Communications Management Suite offers provisioning, monitoring, diagnostics, and extensive reporting capabilities to:
• Simplify the management of your Cisco Unified Communications environment
• Reduce the total cost of ownership
• Help ensure high-quality service and end-user satisfaction
• Optimize your Cisco Unified Communications resources
Cisco Unified Operations Manager provides comprehensive voice network monitoring with diagnostics for the entire Cisco Unified Communications system, including the underlying voice transport infrastructure.
Cisco Unified Operations Manager identifies the role of every device and application in the Cisco Unified Communications network and monitors them, detecting operational faults with voice-application-aware intelligence. The resulting alerts facilitate rapid troubleshooting of outages, with context-sensitive links to the appropriate services for that device. There are no workflow rules to write, no thresholds to define, and no time-consuming management setup to budget for.
Features and Benefits
Reduces Downtime with Real-Time Visualization
Cisco Unified Operations Manager presents the current operational status of the Cisco Unified Communications system through dynamic fault and diagnostic views of the network showing the current status of monitored devices, applications, and phones. These views display detailed information for each element and provide single-screen views that group component status at a network, cluster, Communication Manager, device pool, or phone level (Figure 1).
Figure 1. Cisco Unified Operations Manager: Diagnostic View
Saves Time with Automated Discovery
Cisco Unified Operations Manager automatically discovers the network and updates its knowledge base by identifying the role of every device and application in the Cisco Unified Communications network.

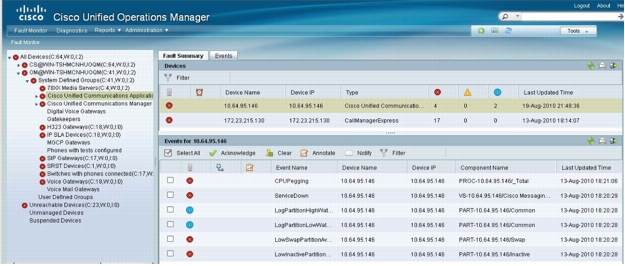

Figure 2. Cisco Unified Operations Manager Fault Monitor Dashboard
Operations Staff Monitor Faults and Take Action Using the New Unified Fault Monitor Dashboard
Cisco Unified Operations Manager monitors the discovered network elements to detect problems using its built-in intelligence to notify the network operations staff. The new Fault Monitor Dashboard (Figure 2) unifies the Alerts and Activity Display, Service Quality Alerts Display, and IP Phone Outage Display to present the most up-to-date status of monitored IP phones and IP devices. Using device- or event-specific actions, operations staff can launch context-sensitive monitoring and diagnostic tools to troubleshoot the problem. Cisco Unified Operations Manager provides a customized display for threshold-crossing alerts generated by Cisco Unified Service Monitor (USM) on voice-quality exceptions at an individual cluster device pool level or individual phone level.
Anticipates Problems Using Scheduled Tests on the Network
Cisco Unified Operations Manager comes with a powerful set of diagnostic tests that can be executed on demand or through calendar control for proactive network health monitoring and trouble isolation. The diagnostics can be used to validate that the phone's features are set up as expected, including call, call hold, call park, call transfer, message light activation, and conference calling. Operational tests simulate user activities such as getting a dial tone, making phone calls, leaving voicemail, and creating or joining conference calls; the tests also log any issues encountered. Dial-plan tests provide an easy mechanism to validate all the dial plans. Node-to-node testing uses the Cisco IOS® Software IP service-level agreement (SLA) feature in Cisco routers and switches to simulate traffic through the network. After the test, network characteristics such as status, response time, latency, jitter, packet loss, and network quality are recorded in a results report.
Table 1 lists features and benefits of Cisco Unified Operations Manager.
Table 1. Features and Benefits of Cisco Unified Operations Manager
Integration with Cisco Unified Service Monitor 8.0
Cisco Unified Service Monitor sends service quality alerts to UOM when the Mean Opinion Score (MOS) generated by Cisco IP phones and other endpoints exceeds the USM threshold. For more information on Cisco Unified Service Monitor, please visit http://www.cisco.com/go/cusm.
Integration with Cisco Unified Service Statistics Manager 1.3
Integration with Cisco Unified Service Statistics Manager provides long-term statistics analysis and reports for Cisco Unified Communications networks. Using the data collected by Cisco Unified Operations Manager and Cisco Unified Service Monitor, Cisco Unified Service Statistics Manager provides predefined and customizable reports that give visibility into critical metrics, including call volume, service availability, call quality, resource utilization, and capacity across the Cisco Unified Communications system. For more information, visit http://www.cisco.com/go/cussm.
Premium Edition Only in Cisco Unified Operations Manager 8.0
Cisco Unified Operations Manager was previously available in a Standard or Premium Edition. The Premium Edition was required to get support for diagnostic testing, video-enabled phones, and Cisco TelePresence™ endpoints. The Standard Edition has been eliminated and all users will get the Premium Edition features when they order version 8.0.
Supported Cisco Unified Communications Applications and Devices
Cisco Unified Communications Manager supports Cisco Unity® software, Cisco Unity Connection, Cisco Unified Contact Center, Cisco Unified MeetingPlace® Express, Cisco Unified Communications Manager Express, Cisco Unity Express, Cisco Unified Contact Center Express, Cisco Conference Connection, Cisco Personal Assistant, Cisco Emergency Responder, Cisco Unified Presence Server, routers, gateways, switches, and IP phones (including Cisco IP Communicator and Cisco Unified Personal Communicator).
System Requirements
VMware is supported on all Cisco Unified Communications Management products. To view the complete server requirements and supported configuration options for VMware and coresident applications, please refer to the Cisco Unified Operations Manager Installation Guide. Table 2 lists system requirements, and Table 3 lists the system capacity for a single Cisco Unified Operations Manager without VMware installed.
Table 2. Processing Platform Requirements*
* Note: VMware and co-resident system requirements are listed in the Cisco Unified Operations Manager Installation Guide.
** Note: Anytime UOM 8.0 is working with Cisco Unified Service Statistics Manager, 8 GB of RAM is highly recommended on the UOM server. In the next release, UOM 8.5 will require 8 GB of RAM for any installation.
Table 3. System Limits for Each Cisco Unified Operations Manager Server
* The 500 phone license scales to 100 IP devices. The 1000 phone license scales to 300 IP devices. The licenses for more than 1000 phones scale to 2000 IP devices.
Note: Refer to the Supported Devices table in Cisco Unified Operations Manager for the specific versions that have been certified in testing at http://www.cisco.com/en/US/products/ps6535/products_device_support_tables_list.html.
Ordering Information
UOM 8.0 is a major upgrade so all existing customers will need to purchase the upgrade part to get it to work. The base part number includes licensing for the indicated number of phones, and licenses are added to increase the number of phones supported (Table 4). Cisco Unified Operations Manager can be ordered as part of a Cisco Unified Communications Management Suite bundle or as a standalone product. To place an order, visit the Cisco Ordering Homepage. The Cisco Unified Communications Management Suite Ordering Guide, available to Cisco employees and partners, provides instructions on how to order management product bundles that deliver significant savings over the individual product pricing. Please contact your account representative for details.
Table 4. Ordering Information
Cisco Unified Communications Services
Cisco Unified Communications Services allows you to accelerate cost savings and productivity gains associated with deploying a secure, resilient Cisco Unified Communications Solution. Delivered by Cisco and our certified partners, our portfolio of services is based on proven methodologies for unifying voice, video, data, and mobile applications on fixed and mobile networks. Our unique lifecycle approach to services enhances your technology experience to accelerate true business advantage. For more information about Cisco services, visit Cisco Technical Support Services or Cisco Advanced Services.
For More Information
For more information about the Cisco Unified Communications Management Suite, please visit http://www.cisco.com/go/ucmanagement, contact your local account representative, or send email to the Cisco product marketing group at ask-ipc-management@cisco.com.
