Product Overview
• Enforce consistent security policies for information access and exchange
• Provide visibility of information flow, including monitoring and metering of information flow for both business and infrastructure purposes
• Enable disparate applications to communicate by routing information to the appropriate destination, in the format expected by that destination
• Enhance application optimization by providing application-level load-balancing, offloading, message caching, and compression services
• Embedded awareness that spans applications and computing environments
• Real-time business information that informs and enables rapid yet precise decision making
• Network-guided optimization that boosts application performance and reliability
• Cisco Catalyst® 6500 Series AON module, which is deployed primarily in the enterprise core or data centers
• Cisco 2600, 2800, 3700, and 3800 series AON module, which is deployed primarily at the branch office
• The Cisco 8340 Series AON Appliance offers both the concentrated single-source performance and ease-of-use of a standalone appliance as well as the value-add of being a network embedded device.

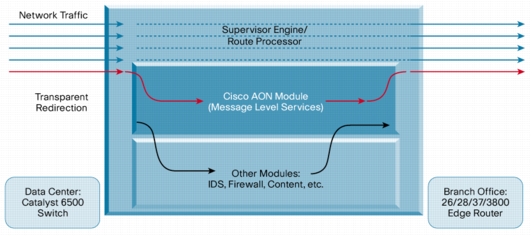

Figure 1. Traffic Re-Direction to AON
• Cisco AON Development Studio (ADS)-Cisco AON ADS is used to create message plans, which represent a set of operations (bladelets) to be applied to application messages.
• Cisco AON Management Console (AMC)-Cisco AON AMC provides centralized control for configuration, certificate management, and lifecycle management of a distributed AON network.
Usage Scenarios

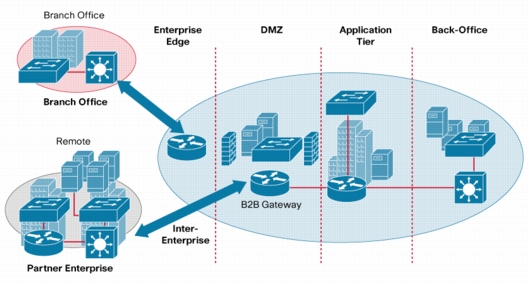

Figure 2. High-Level Network Architecture
• Cisco AON in the remote office or business-to-business (B2B) spoke-At a remote office or B2B spoke, Cisco AON devices can be deployed as an infrastructure consolidation device. A single AON device can provide all the services required by the branch to effectively communicate with the central office. Cisco AON helps enable these services by bridging disparate applications and optimizing network usage at the application level. Additionally, Cisco AON AMC provides centralized management of a distributed branch-office deployment of application policies.
• Cisco AON at the enterprise edge-At the enterprise edge, Cisco AON can act as an application-security gateway or a B2B gateway. As an application security gateway, it can intercept and analyze traffic in message formats such as Extensible Markup Language (XML). As a B2B gateway, Cisco AON helps enable a transparent interface with trading partners by providing security, protocol bridging, and message validation and transformation services.
• Cisco AON at the enterprise core-In the enterprise core, Cisco AON provides transparent interapplication communication and application delivery; it provides a network-embedded communication bridge between protocols and applications. Cisco AON optimizes application delivery by helping applications offload infrastructure functions such as message-level load balancing to the network where they can scale effectively.
Features
Security
• Authentication-Cisco AON can verify the identity of a sender's inbound message-based content (username and password, WS-Security profile, digital certificate, etc.). The solution integrates with security frameworks, such as Kerberos Protocol, and Lightweight Directory Access Protocol (LDAP) servers such as Netegrity SiteMinder, Microsoft Active Directory, OpenLDAP, and SunONE.
• Authorization-After principal credentials are obtained through message inspection, Cisco AON can determine which level of access the originator of the message should have to the services it is attempting to invoke. Specific features supported include: SAML Authorization Assertion embedded in Simple Object Access Protocol (SOAP), WSS headers, LDAP group-based authorization, and customer-defined rule-based control policies.
• Non-repudiation and data integrity-Cisco AON can digitally sign entire messages or individual message elements at any given AON device. Specific features supported include: insertion and verification of XML signatures in WSS headers; detached envelope and enveloping XML signature types; signatures based on private keys; SHA-1 digest computation, and RSA digest encryption.
• Confidentiality-Based upon policy, Cisco AON can encrypt and decrypt message elements (an entire message, the message body, individual elements, and their contents). Specific features supported include: Triple Digital Encryption Standard (3DES) and Advanced Encryption Standard (AES)-128/192/256 symmetric ciphers, RSA symmetric ciphers, destination URL-based keys, and certificates.
• Centralized key management-The key management functions provided by the Cisco AON Management Console (AMC) allows users to register, configure, bind, and provision keys and certificates from the Cisco AON AMC server to the AON device. Specific capabilities include: generate, register, and obtain Class 2 and Secure Sockets Layer (SSL) certificates using Verisign Class 3 Certificate Service; fetch, upload, and import SSL certificates; import PKCS#12 certificates; and import keys from Java keystores.
• Transport-layer security-Cisco AON supports transport-layer security mechanisms such as SSL 3.0 and Transparent LAN Services (TLS) 1.0.
Visibility
• Out-of-band message processing through promiscuous mode-Cisco AON provides an industry-first capability to receive and process messages without introducing latency in the flow of inline network traffic, helping enable out-of-band monitoring and analysis. For example, FIX and HTTP sessions are received out of band, assembled to recreate the original message, and then appended with relevant metadata such as timestamps and relevant TCP headers. These messages can then be used to analyze a variety of possible scenarios such as transaction monitoring, intrusion detection, insider threats, FIX monitoring, etc. Additionally, service-level agreement (SLA) customers can take advantage of the extensibility framework to tap and frame their proprietary message formats.
• Logging-Cisco AON provides the ability to log messages to external systems for future analysis by third-party applications or tools.
• Contextual lookup-Cisco AON can refer to external systems to obtain contextual information required to analyze the data. For example, it can call out to a customer database to look up customer priority based on a customer ID in the message.
• Notification and Alerting-AON can notify or alert other applications in case of an abnormal event. For example, if an SLA time to deliver a message has not been fulfilled, a message can be sent to operations personnel to take corrective action.
Intelligent Message Routing
• Application Quality of service (AppQoS)-Cisco AON offers an industry-first AppQoS feature that helps users set application message- and transaction-level priorities and align them with network-level QoS capabilities. For example, an enterprise SAP system can be made to process purchase orders with a higher priority over price quotes, and enforce that priority end to end, across the application infrastructure and the network. The priorities set at application and transaction levels map to network QoS functions, which in turn direct the priority of message processing both within the AON node and at the transport level in the network. The end result for the business is better alignment of IT infrastructure usage with a higher degree of automatic SLA enforcement, even in times of severe network congestion.
• Protocol support-To integrate easily into existing environments, Cisco AON understands various application access methods and provides adapters for today's most commonly used protocols, HTTP, HTTPS, Tibco Element Management Solution (EMS), WebSphere MQ, and WebSphere JMS. Additionally, a custom adapter software development kit (SDK) is available for creation of new adapters to any environment. Most of the policies and bladelets used within Cisco AON understand the semantics of these protocols natively, allowing for higher fidelity and control of the interaction.
• Protocol switching-A Cisco AON node can act as a protocol gateway between multiple applications; an example is the node receiving an application message through WebSphere MQ and sending the same message to another application as a HTTP post. Cisco AON supports protocol translation between any combination of the supported protocols, for instance between HTTP(S) and a Tibco message queue.
• Transformation-The open transformation architecture of Cisco AON supports both XML and non-XML transformation. Cisco AON achieves Extensible Style Language Transformation (XSLT)-based transformation with the built-in XSLT-based transformation engine using XSLT style sheets written or procured by the customer, allowing any combination of transformations from XML to other XML or non-XML formats, or conversely. External parsers can be plugged in to facilitate reading of the non-XML format and conversion to a format consumable by the engine. In addition, custom transformations can be carried out by adding a third-party Java transformation engine.
• Service virtualization-Based on its ability to inspect and understand the content and context of an application message, Cisco AON can act as a proxy that provides an abstraction layer for endpoint applications and apply policies across all these services without the endpoints being aware of the intermediary. This powerful capability allows centralized configuration and control with consistent, distributed enforcement everywhere in the network-a particularly relevant capability given today's highly distributed service-oriented applications.
– Content-based routing-Messages can be routed to an appropriate destination by matching content elements against pre-established policy rules. Cisco AON examines message types or fields (for example, part number, account type, employee location, zip code, etc.) and sets the destination based on rules that specify the routing decision (for example, based on source or destination URL), protocol header (for example, HTTP or JMS), content inspection of XML paths (XPaths) (value of a PO), or other states resulting from a previous operation.
– Load balancing-Based on configurable policies and rules, Cisco AON can load balance across multiple endpoints using a variety of algorithms such as Round Robin (equal distribution), Weighted Round Robin (preference for certain endpoints), and Adaptive (essentially a "best-available" service based on captured state of request or response times and latency).
– Message distribution-Cisco AON also supports "stickiness" to endpoints based on session recognition and management, and message distribution or "fan out", whereby a message is sent to multiple destinations simultaneously.
– Reliable messaging-Cisco AON provides a reliable delivery semantic across multiple protocols. Reliable delivery semantics include: Exactly Once Delivery (for queue-based or other reliable protocols) and At Least Once Delivery.
Application Optimization
• System optimization-To speed applications that require high transaction rates, Cisco AON offers performance-optimized message processing and a fast code execution path that is particularly useful in compute-intensive operations such as content-based routing (CBR) and XML schema validation. In addition, customers can plug in custom functions that take advantage of the optimized execution path to meet their high-performance needs.
• Hardware acceleration-For some performance-intensive operations such as security and XML operations, select Cisco AON devices offer hardware-based acceleration.
• Caching and compression-Cisco AON can cache the results of previous message inquiries based on the rules defined for a type of request or on indicators set in the response. Caching can be performed for entire messages or for certain elements of a message to reduce application response time and conserve network bandwidth usage. Either XML and non-XML response messages or elements of a message identified and accessed through XPath can be cached. Additionally, Cisco AON can compress messages between nodes. A message policy can be set to compress the data before sending an outbound message, while on the inbound side Cisco AON automatically recognizes the message as compressed and decompresses it before further processing.
• Availability, load balancing, and scalability-As described in the "Intelligent Message Routing" section, Cisco AON can sit in front of an application cluster to provide high-availability and load-balancing services to the applications.
Extensibility
• The adapter developer kit (ADK) supports development of plug-in custom adapters to receive and send messages from Cisco AON.
• The bladelet developer kit (BDK) supports development of custom bladelets in Java and C/C++. This capability is also available in the system optimized code execution path.
Scalability and Performance
• Hardware-based acceleration-By offloading compute-intensive tasks such as XML processing, cryptographic operations, and regular expression matching to a hardware-based accelerator, Cisco AON can achieve significant performance gains.
• Virtual cluster-As application message traffic increases, additional Cisco AON modules can easily be added to the switch or router. Thus Cisco AON can scale horizontally and transparently to match the increased traffic.
Cisco AON Design, Configuration, and Management
• Cisco AON ADS-Cisco AON ADS is a Windows-based tool for developers to configure how application messages are handled at runtime.
– Easy drag and drop GUI environment
– Set of preconfigured functions or bladelets (described in the features section previously) that can be used to create message plans
– One-button synchronization of message plans with the Cisco AON AMC
– An SDK for creation of custom bladelets and an ADK for creation of custom adapters

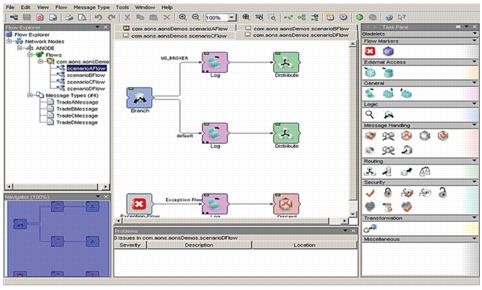

Figure 3. ADS Design-Time View
• Cisco AON AMC-Cisco AON AMC is a Linux-based Web application with full role-based access control for centralized management of the AON system. It helps ensure consistent and up-to-date configurations across all the Cisco AON devices (nodes) in a distributed infrastructure. Cisco AON AMC functions include support for:
– Configuring and managing AON nodes
– Defining and provisioning application policies
– Key and certificate management
– Monitoring of Cisco AON node events and logs to directly interface with the Cisco AON blade-Operations in a switch or router
Figure 4. AMC Console View
Table 1. ADS System Requirements
Table 2. AMC System Requirements
Table 3. AON Supported Standards
Ordering Information
Service and Support
Summary
For More Information
