The Cisco® I-Flex design combines shared port adapters (SPAs) and SPA interface processors (SIPs), using an extensible design that enables service prioritization for voice, video, and data services. Enterprise and service provider customers can use the improved slot economics resulting from modular port adapters that are interchangeable across Cisco routing platforms. The I-Flex design maximizes connectivity options and offers superior service intelligence through programmable interface processors, which deliver line-rate performance. I-Flex enhances speed-to-service revenue and provides a rich set of quality-of-service (QoS) features for premium service delivery while effectively reducing the overall cost of ownership. This data sheet contains the specifications for the Cisco 1-Port 10GE Tunable WDM-PHY Interface SPA.
Product Overview

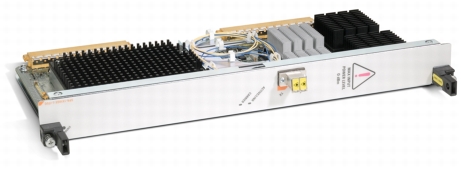

The Cisco 1-Port 10GE Tunable WDM-PHY SPA provides a tunable optical interface that can be used to connect directly to dense wavelength-division multiplexing (DWDM) transport systems, eliminating the need for an optical transponder. The Tunable WDM-PHY SPA provides full 80-channel tunability with 50-GHz spacing across the C band and meets ITU specifications. It supports G.709 framing for robust connectivity and SONET-like operations, administration, maintenance, and provisioning (OAM&P) as well as generic forward error correction (GFEC) for regional applications. For long-haul application support, the high-gain enhanced forward error correction (EFEC) functionality is provided, which can extend optical reach up to 2000 km without optical-electrical regeneration.
The 10GE Tunable WDM-PHY SPA is part of the Cisco IP-over-DWDM solution portfolio. Service providers benefit from IP-over-DWDM integration through faster service provisioning, increased reliability, and simplified network management. Integrated DWDM transponders simplify the network by reducing the number of network elements and also scale at a lower total cost to reduce bandwidth cost. Finally, IP-over-DWDM solutions allow service providers to more cost-effectively use the rich QoS and IP intelligence of Cisco routers in their transport networks.

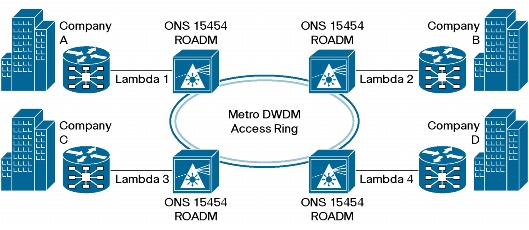

The 1-Port 10GE Tunable WDM-PHY SPA allows the router to connect directly to an optical ring using either a passive DWDM line system or reconfigurable optical add-drop multiplexers (ROADMs), allowing customer traffic to be carried separately and securely on a single DWDM wavelength. It eliminates the need for bulky and expensive optical transponders. It simplifies network operation by allowing DWDM optical functions and wavelengths to be managed as part of the IP network, reducing the number of network elements and simplifying network management.
Combined with the Cisco ONS 15454 Multiservice Transport Platform (MSTP), the 1-Port 10 Gigabit Ethernet Tunable WDM-PHY SPA provides a powerful solution for bringing IP intelligence to metropolitan and core optical transport networks.
Metro-regional DWDM and long-haul applications are both possible with this product. Long-haul applications of up to 2000 km are supported with the use of the built-in EFEC support.
Features and Benefits
The 1-Port 10GE Tunable WDM-PHY SPA is a primary element in the Cisco IP over DWDM solution, integrating an OTN-compliant (Optical Transport Network) and ITU-compliant interface directly onto the router. Furthermore, as a SPA, the customer also gains all the benefits of Cisco I-Flex modularity: improved slot economics, interface interchangeability across platforms, and investment protection. Table 1 summarizes the features and benefits of this product.
Table 1. Features and Benefits
Feature
Benefit
Hardware
80-Channel Tunability
• Superior wavelength tunability across C-band
• Superior provisioning flexibility and scalability
• ITU compliant
EFEC Support
• Superior reach; up to 2000 km without regeneration
G.709 OTN Support
• SONET-like management, administration, and performance monitoring
IP-over-DWDM Solution
Transponder Integration
• No need for external transponder shelves
• Less network elements to manage; enhanced reliability
• Reduced operating expenses as well as capital expenditures by reducing space, power, and the cost of the transponder and associated shelves and common card
Management Integration
• Single IP-over-DWDM design tool for network planning
• SONET/SDH-like OAM&P for performance monitoring
• Open architecture for third-party interoperability
Interoperability
• Fully interoperable with Cisco 15454 MSTP
• Designed to be interoperable with third-party DWDM equipment
Product Specifications
Detailed product specifications are listed in Table 2.
Bridge protocol data unit (BPDU), Cisco Discovery Protocol, and VLAN Trunking Protocol (VTP) filtering
Layer 2 Protocol (BPDU, Cisco Discovery Protocol, and VTP) tunneling
Layer 2 access list (MAC address-based filtering)
Up to 8000 VLANs per SPA and subject to a limit of 4000 VLANs per port for 802.1q
Up to 5000 MAC accounting entries per SPA (source MAC accounting on the ingress and destination MAC accounting on the egress)
Up to 2000 MAC address entries for destination MAC address filtering per SPA, and up to 1000 MAC address filtering entries per port
Per-port byte and packet counters for policy drops; oversubscription drops; cyclic-redundancy-check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
Per-VLAN byte and packet counters for policy drops; oversubscription drops; and unicast, multicast, and broadcast packets
Per-port byte counters for good bytes and dropped bytes
Protocol Support
OTN G.709 compliant, selectable
OTN disabled: no OTN (G.709) framing, line rate of 10.3125 Gbps
OTN enabled: OTN (G.709) framing, line rate of 11.0975 Gbps
Mapping of IEEE 802.3ae 10GBASE-R signal into an overclocked OTU2 running at 11.0975 Gbps
Local (internal) and line (network) loopback
Local (internal) or loop (recovered from network) timing
±100 ppm local clock accuracy over operating temperature
Alarms and Performance Monitoring
Alarm reporting:
• Loss of signal (LOF)
• Loss of OTN frame (LOF)
• Loss of OTN multiframe (LOM)
• OTU alarm indication signal (OTU-AIS)
• OTU backward defect indication (OTU-BDI)
• ODU alarm indication signal (ODU-AIS)
• ODU open connection indication (ODU-OCI)
• ODU locked (ODU-LCK)
• ODU backward defect indication (ODU-BDI)
• ODU payload type identifier mismatch (ODU-PTIM)
• OTU signal fail (OTU_SF_BER)
• OTU signal degrade (OTU_SD_BER)
OTU_SF_BER and OTU_SD_BER alarms are based on monitoring OTU BIP errors with a user-settable threshold crossing.
Error counts: OTU BIP, OTU BEI, ODU BIP, and ODU BEI.
Threshold crossing alerts (TCAs) for OTU BIP errors (SM-TCA) and ODU BIP errors (PM-TCA) with user-settable threshold.
FEC Features
No FEC: ability to turn off error correction for use with non-FEC supporting interfaces (for example, Xenpak, XFP).
GFEC: standard G.975 Reed-Soloman algorithm
EFEC: standard G.975.1 two orthogonally concatenated BCH super FEC code. This FEC scheme contains three parameterizations of the same scheme of two orthogonally interleaved block codes (BCH). The constructed code is decoded iteratively, to achieve the expected performance.
FEC statistics for pre-FEC BER, corrected errors (EC) and uncorrected words (UC).
Optical Features
Line rate 10.3125 Gbps ±100 ppm or 11.0957 Gbps ±100 ppm
Duplex LC (shuttered) faceplate optical connector
Full C-band tunable laser with 50-GHz spacing
Optical power monitoring: laser output power (+/-1.5dB), receiver signal average power (+/- 1.5dB)
Reliability and Availability
Online insertion and removal (OIR) without affecting system traffic
Single SPA software reset
Network Management
Cisco IOS® Software command-line interface (CLI)
Simple Network Management Protocol (SNMP)
CraftWorks Interface (CWI)
Physical Dimensions
Double-height, double-width SPA. Occupies four standard, single-height SPA slots or two double-height SPA slots
Weight: 2.75 lbs (1.25 kg)
Height: 1.6 in. (4.06 cm). Double-height form factor.
Depth: 7.28 in. (18.49 cm)
Width: 13.53 in. (34.36 cm). Double-wide form factor.
Power
46W
Environmental Conditions
Storage temperature: -40 to 70°C (-40 to 15°F)
Operating temperature: 5 to 40°C (41 to 104°F)·
Operating humidity: 5 to 85% RH
Storage humidity: 5 to 95% RH
DWDM Line and Optical Specifications
Table 3 shows the detailed DWDM optical and line specifications for the optical interface.
Table 3. Additional Specifications: DWDM Line Interface
Reflectance Between Far-End Tx and Near-End Rx (Maximum)
-27 dB
Receiver Reflectance (Maximum)
-14 dB
Input Wavelength Bandwidth (lambdac_rx)
1290 nm to 1605 nm
Connector Type (Tx/Rx)
LC, duplex (shuttered)
1This is not a specification. Chromatic Dispersion Tolerance is listed as an indication of the maximum chromatic dispersion that the interface can tolerate only in the specified case quoted in Table 4 with 23 dB of OSNR.
Table 4 shows optical performance, with OSNR given in 0.5-nm Res BW.
Table 4. Optical Performance
OSNR
FEC Type
Pre-FEC BER
Post-FEC BER
Input Power Sensitivity
CD Tolerance
23 dB
OFF
<10E(-12)
-
-8 to -20 dBm C band
±1200 ps/nm
19 dB
OFF
<10E(-12)
-
-8 to -20 dBm C band
±1000 ps/nm
19 dB
OFF
<10E(-12)
-
-8 to -22 dBm C band
-
10 dB
GFEC
<10E(-5)
<10E(-15)
-8 to -18 dBm
±800 ps/nm
8.5 dB
GFEC
<10E(-5)
<10E(-15)
-8 to -18 dBm
-
19 dB
EFEC
<7x10E(-4)
<10E(-15)
-8 to -26 dBm
±800 ps/nm
19 dB
EFEC
<7x10E(-4)
<10E(-15)
-8 to -27 dBm
-
7 dB
EFEC
<7x10E(-4)
<10E(-15)
-8 to -20 dBm
±800 ps/nm
5 dB
EFEC
<7x10E(-4)
<10E(-15)
-8 to -20 dBm
-
Approvals and Compliance
The Cisco 1-Port 10GE Tunable WDM-PHY SPA is tested and conforms to the international compliance specifications listed in Table 5.
EN55022: Information Technology Equipment (Emissions)
EN55024: Information Technology Equipment (Immunity)
EN50082-1/EN-61000-6-1: Generic Immunity Standard
Network Equipment Building Standards (NEBS)
This product is designed to meet the following requirements (qualification in progress):
SR-3580: NEBS Criteria Levels (Level 3)
GR-1089-CORE: NEBS EMC and Safety
GR-63-CORE: NEBS Physical Protection
Ordering Information
To place an order, contact your local Cisco representative or visit the Ordering page on the Cisco website. Use the ordering information provided in Table 6. To download software, visit the Cisco Software Center.
Table 6. Ordering Information
Product Name
Part Number
Cisco 1-Port 10GE, C-Band Tunable, WDM-PHY Shared Port Adapter (for LAN PHY Applications)
SPA-1X10GE-L-ITUC
