The Cisco® Dense Wavelength-Division Multiplexing (DWDM) Small Form Factor Pluggable (SFP) module (Figure 1) allow enterprise companies and service providers to provide scalable and easy-to-deploy Gigabit Ethernet or Fibre Channel services in their networks.

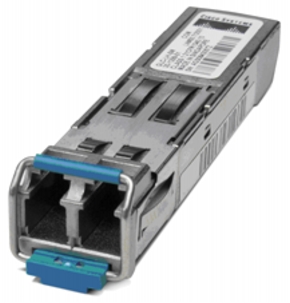

Figure 1. Cisco DWDM SFP Module
Main features of the Cisco DWDM SFP include:
• Support for International Telecommunication Union (ITU) 100-GHz wavelength grid
• Match for wavelength plan of Cisco 100-GHz ONS product family
• Fixed-wavelength SFP, with 40 different SFP models
• Hot-swappable input/output device that plugs into Gigabit Ethernet SFP ports or slots of a Cisco switch or router, linking the port with the network
• Equipment: standard SFP interface network: dual LC/PC connector
Note: Only connections with patch cords with PC or UPC connectors are supported. Patch cords with APC connectors are not supported.
All cables and cable assemblies used must be compliant with the standards specified in the standards section.
Environmental Conditions and Power Requirements
• Operating temperature range: 32 to 158°F (0 to 70°C)
• Storage temperature range: -40 to 185°F (-40 to 85°C)
Dimensions
• Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
• Cisco SFPs typically weigh less than 75 grams.
Table 1 describes the electrical power interface details, and Table 2 describes optical parameters.
Table 1. Electrical Power Interface Data
Parameter
Symbol
Minimum
Typical
Maximum
Units
Supply Current
Is
-
200
300
mA
Surge Current
ISurge
-
-
30
mA
Input Voltage
Vcc
3.1
3.3
3.5
V
Table 2. Optical Parameters
Parameter
Symbol
Minimum
Typical
Maximum
Units
Notes and Conditions
Transmitter
Spectral Width
0.2
nm
Full width, -20dB from maximum, with resolution bandwidth (RBW) = 0.01 nm
Transmitter Center Wavelength
x - 100
x
x + 100
pm
Refer to Table 4 for center wavelengths
Side-Mode Suppression Ratio
SMSR
30
dB
Transmitter Extinction Ratio
OMI
8.2
dB
Transmitter Optical Output Power
Pout
0
4.0
dBm
Average power coupled into single-mode fiber
Receiver
Receiver Optical Input Wavelength
1530
1565
nm
Receiver Damage Threshold
+5
dBm
Power-Limited Performance at OSNR of 20 dB (1 GbE or 1-Gbps FC) or 21 dB (2 Gbps FC) at 0.1-nm RBW
Optical Input Power
Pin
-28.0
-9.0
dBm
Dispersion Power Penalty < 1 GbE and 1 Gbps FC
3
dB
-800/+3600 ps/nm
Dispersion Power Penalty > 2 Gbps FC
3
dB
-800/+2400 ps/nm
Noise-Limited Performance at OSNR of 19 dB 1 GbE or 1 Gbps FC) or 20 dB (2 Gbps FC) at 0.1-nm RBW
Optical Input Power
Pin
-22.0
-9.0
dB
Dispersion OSNR Penalty < 1 GbE and 1 Gbps FC
2
dB
-800/+3600 ps/nm
Dispersion OSNR Penalty > 2 Gbps FC
3
-800/+2400 ps/nm
Note:
a) Parameters are specified over temperature and at end of life unless otherwise noted.
b) OSNR is measured at 0.1nm resolution bandwidth.
c) Receiver performance is always specified for a BER < 10e-12.
Note: When shorter distances of single-mode fiber are used, it might be necessary to insert an optical attenuator in the link. At least 1 dB of attenuation is required to prevent damaging the optical receiver, and at least 9 dB of attenuation are required to avoid receiver overloading conditions.
Warranty
• Standard warranty: 90 days
• Extended warranty (option): available under a Cisco SMARTnet® support contract for the Cisco switch or router chassis or available under separate SMARTnet Product IDs specific for DWDM SFPs.
Ordering Information
Refer to Table 3 for details on ordering Cisco DWDM SFP modules.
Table 3. Cisco DWDM SFP Product Information
Product Number
Description
ITU Channel
DWDM-SFP-6141
1000BASE-DWDM 1561.42 nm SFP (100-GHz ITU grid)
20
DWDM-SFP-6061=
1000BASE-DWDM 1560.61 nm SFP (100-GHz ITU grid)
21
DWDM-SFP-5979=
1000BASE-DWDM 1559.79 nm SFP (100-GHz ITU grid)
22
DWDM-SFP-5898=
1000BASE-DWDM 1558.98 nm SFP (100-GHz ITU grid)
23
DWDM-SFP-5817=
1000BASE-DWDM 1558.17 nm SFP (100-GHz ITU grid)
24
DWDM-SFP-5736=
1000BASE-DWDM 1557.36 nm SFP (100-GHz ITU grid)
25
DWDM-SFP-5655=
1000BASE-DWDM 1556.55 nm SFP (100-GHz ITU grid)
26
DWDM-SFP-5575=
1000BASE-DWDM 1555.75 nm SFP (100-GHz ITU grid)
27
DWDM-SFP-5494=
1000BASE-DWDM 1554.94 nm SFP (100-GHz ITU grid)
28
DWDM-SFP-5413=
1000BASE-DWDM 1554.13 nm SFP (100-GHz ITU grid)
29
DWDM-SFP-5332=
1000BASE-DWDM 1553.33 nm SFP (100-GHz ITU grid)
30
DWDM-SFP-5252=
1000BASE-DWDM 1552.52 nm SFP (100-GHz ITU grid)
31
DWDM-SFP-5172=
1000BASE-DWDM 1551.72 nm SFP (100-GHz ITU grid)
32
DWDM-SFP-5092=
1000BASE-DWDM 1550.92 nm SFP (100-GHz ITU grid)
33
DWDM-SFP-5012=
1000BASE-DWDM 1550.12 nm SFP (100-GHz ITU grid)
34
DWDM-SFP-4931=
1000BASE-DWDM 1549.32 nm SFP (100-GHz ITU grid)
35
DWDM-SFP-4851=
1000BASE-DWDM 1548.51 nm SFP (100-GHz ITU grid)
36
DWDM-SFP-4772=
1000BASE-DWDM 1547.72 nm SFP (100-GHz ITU grid)
37
DWDM-SFP-4692=
1000BASE-DWDM 1546.92 nm SFP (100-GHz ITU grid)
38
DWDM-SFP-4612=
1000BASE-DWDM 1546.12 nm SFP (100-GHz ITU grid)
39
DWDM-SFP-4532=
1000BASE-DWDM 1545.32 nm SFP (100-GHz ITU grid)
40
DWDM-SFP-4453=
1000BASE-DWDM 1544.53 nm SFP (100-GHz ITU grid)
41
DWDM-SFP-4373=
1000BASE-DWDM 1543.73 nm SFP (100-GHz ITU grid)
42
DWDM-SFP-4294=
1000BASE-DWDM 1542.94 nm SFP (100-GHz ITU grid)
43
DWDM-SFP-4214=
1000BASE-DWDM 1542.14 nm SFP (100-GHz ITU grid)
44
DWDM-SFP-4134=
1000BASE-DWDM 1541.35 nm SFP (100-GHz ITU grid)
45
DWDM-SFP-4056=
1000BASE-DWDM 1540.56 nm SFP (100-GHz ITU grid)
46
DWDM-SFP-3977=
1000BASE-DWDM 1539.77 nm SFP (100-GHz ITU grid)
47
DWDM-SFP-3898=
1000BASE-DWDM 1538.98 nm SFP (100-GHz ITU grid)
48
DWDM-SFP-3819=
1000BASE-DWDM 1538.19 nm SFP (100-GHz ITU grid)
49
DWDM-SFP-3739=
1000BASE-DWDM 1537.40 nm SFP (100-GHz ITU grid)
50
DWDM-SFP-3661=
1000BASE-DWDM 1536.61 nm SFP (100-GHz ITU grid)
51
DWDM-SFP-3582=
1000BASE-DWDM 1535.82 nm SFP (100-GHz ITU grid)
52
DWDM-SFP-3504=
1000BASE-DWDM 1535.04 nm SFP (100-GHz ITU grid)
53
DWDM-SFP-3425=
1000BASE-DWDM 1534.25 nm SFP (100-GHz ITU grid)
54
DWDM-SFP-3346=
1000BASE-DWDM 1533.47 nm SFP (100-GHz ITU grid)
55
DWDM-SFP-3268=
1000BASE-DWDM 1532.68 nm SFP (100-GHz ITU grid)
56
DWDM-SFP-3190=
1000BASE-DWDM 1531.90 nm SFP (100-GHz ITU grid)
57
DWDM-SFP-3112=
1000BASE-DWDM 1531.12 nm SFP (100-GHz ITU grid)
58
DWDM-SFP-3033=
1000BASE-DWDM 1530.33 nm SFP (100-GHz ITU grid)
59
Regulatory and Standards Compliance
• Compatible with 1000BASE-X standard as specified in IEEE 802.3z
• GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
• GR-326-CORE: Generic Requirements for Singlemode Optical Connectors and Jumper Assemblies
• GR-1435-CORE: Generic Requirements for Multi-Fiber Optical Connectors
