Data Sheet
The Cisco® ML-Series interface cards provide exceptional Ethernet switching and IP routing capabilities for multiservice provisioning platforms (MSPPs). Cisco Systems® has coupled the market-leading optical capabilities of the Cisco ONS 15454 MSPP with proven Cisco IOS® Software to deliver profitable Metro Ethernet and IP solutions over a multiservice network architecture.
BACKGROUND
Information connectivity is becoming ubiquitous as businesses and consumers look for ways to improve their productivity. Access to this information can be over a wide variety of networks, including the many forms of wire-line (DSL, T1, E1, dialup, cable modem, fiber to the premises, and so on) and wireless (cell, 802.11, WiMAX, and so on) vehicles. The main benefit of this information connectivity is user access to a wide variety of information that can be located anywhere in the world.
Ethernet technology has become the protocol of choice for the LAN environment. It is also becoming increasingly commonplace in metropolitan-area networks (MANs) with the release of Fast Ethernet and Gigabit Ethernet (GE) interfaces on DSL access multiplexers (DSLAMs), fixed wireless, and private branch exchanges (PBXs). Thus, service providers are creating tariffs to efficiently interconnect to and transport users' data traffic using Ethernet handoffs, and they must deploy metropolitan (metro) transport equipment that will permit them to deliver these services cost-effectively and with the reliability required by their service-level agreements (SLAs). Although Ethernet-based services are growing, they are still not the dominant share of the market demand. Therefore, the service provider's metro networking equipment must support both traditional time-division multiplexing (TDM) services as well as newer Ethernet services without a major upgrade - this explains why the multiservice provisioning platform has taken hold in the metro marketplace.
PRODUCT OVERVIEW
The Cisco ML-Series cards for the Cisco ONS 15454 MSPP (Figure 1) are industry-leading Ethernet and IP switching modules for integration into a SONET/SDH optical transport platform. The cards extend the multiservice capabilities and flexibility offered by the Cisco ONS 15454 platform.
Figure 1. Cisco ML-Series Cards for Cisco ONS 15454 MSPP
Through the integration of the industry's most widely deployed and tested Ethernet and IP technology, Cisco IOS Software, with the industry's most successful multiservice provisioning platform, the Cisco ONS 15454, service providers and enterprise customers are provided with a single integrated platform for delivering true carrier-class Metro Ethernet, TDM, and optical transport services and applications.
The Cisco MultiLayer-Series (ML-Series) for the Cisco ONS 15454 consists of three interface cards: the Cisco MultiLayer (ML) 100X-8, MultiLayer (ML) 100T-12, and MultiLayer (ML) 1000-2 models. The Cisco ML100X-8 is an 8-port, 100-Mbps Ethernet interface card that supports the 100BASE-FX short-reach Small Form-Factor Pluggable (SFP) and 100BASE-LX long-reach SFP. The Cisco ML100T-12 is a 12-port, 10/100-Mbps Ethernet module. The Cisco ML1000-2 is a 2-port Gigabit Ethernet module using SFP optical interface modules. The Cisco ML-Series cards use a common hardware and software base, providing the same Layer 2 and Layer 3 feature set. These single-slot cards can be installed in any of the 12 multiservice interface slots in a Cisco ONS 15454 shelf assembly and can be mixed and matched within the assembly or network to provide flexible architectures to meet the user's application needs. Each card has virtual interfaces that are mapped to SONET/SDH optical interfaces for transport with other services between network elements over 155-Mbps to 10-Gbps optical line rates. Packet transport bandwidth over the chosen optical interface is provisionable, allowing efficient matching and scalability of ingress to transport traffic requirements, based upon oversubscription requirements.
The Cisco ML-Series cards support proprietary Resilient Packet Ring (SW-RPR), which provides increased bandwidth usage over a SONET/SDH ring. SW-RPR features also include shortest-path selection and spatial reuse for bridging. The Cisco ML-Series offers standards-based 802.17b RPR. In addition to the features of SW-RPR, 802.17b RPR benefits include steering protection and standardized ring fairness.
The Cisco ML-Series cards offer an advanced set of quality-of-service (QoS) features to allow the network administrator to fine-tune the network and create and support a wide range of SLAs. Some of the features and benefits are listed in Table 1.
Table 1. Features and Benefits for QoS
The Cisco ML-Series cards offer important advantages in service provider network architectures, permitting new, profitable services as well as simplifying service activation. Some of these capabilities are outlined in Table 2.
Table 2. Features and Benefits for Service Provider Network Architectures
APPLICATIONS
The Cisco ONS 15454 ML-Series cards provide the flexibility to meet the demands of a wide variety of network applications found within many service providers' transport networks. The following figures show a few of the applications that can be cost-effectively deployed using the Cisco ONS 15454 with the Cisco ML-Series cards.
Ethernet Service Delivery
The Cisco ONS 15454 with either the Cisco ML100X-8 or ML1000-2 Cisco ML-Series cards can be used for efficient 100BASE-FX and Gigabit Ethernet service delivery over fiber to better reach customers from a central office or point of presence (POP), refer to Figure 2. In addition, when the Cisco ONS 15454 with the Cisco ML-Series cards is placed in a telco wiring closet in the basement of a customer building, fiber from the riser can be used to more efficiently deliver 100BASE-FX and Gigabit Ethernet services. Customers can use the Cisco ML-Series cards to offer a wide range of Ethernet services with Layer 2 switching, RPR, and advanced QoS capabilities.

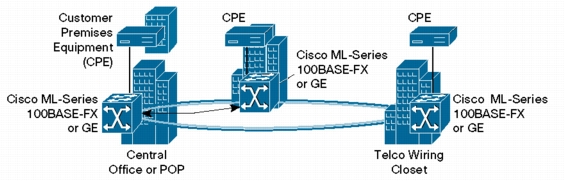

Figure 2. Ethernet Service Delivery
Interoffice Facility Networks
All traditional local exchange carriers (LEC) have used SONET/SDH technology to interconnect their central offices. With the explosion of data-related services and the growth of termination equipment with integrated Ethernet interfaces and protocols, these carriers increasingly need to transport data traffic more efficiently. Using the Cisco ML-Series cards to interconnect data traffic between the remote terminal equipment and the central core router provides transport bandwidth efficiency by statistically multiplexing and aggregating traffic for efficient router port use, reducing the quantity of core router interfaces. Management benefits are garnered through the integration of data switching into the optical platform, reducing the number of data-communication-network (DCN) ports. Figure 3 shows an interoffice facility (IOF) transport network.

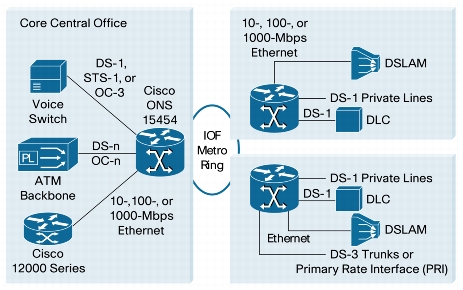

Figure 3. IOF Transport Network
Metro Data Services Network
Metropolitan networks deliver services to end-user customers. A metropolitan network that supports a wide range of service capabilities allows the service provider to offer a tariff mix to meet customer needs. The Cisco ONS 15454 provides the foundation for building an advanced multiservice network over an extremely reliable SONET/SDH infrastructure (refer to Figure 4). Data services delivery, such as transparent LAN services (TLS) or Internet access, are supported by the Cisco ONS 15454 ML-Series cards through the use of 802.1Q in the .1Q VLAN protocol, VLAN translation, input rate limiting, and advanced QoS features, including queue bandwidth control and traffic priority marking. These flexible features allow the service provider to build, control, and guarantee the delivery of the SLAs offered for each service type. To help service provider technicians manage and use the network, the Cisco ML-Series cards integrate Cisco IOS Software, the industry's best-known Layer 2 and Layer 3 technology, reducing training time and cost.

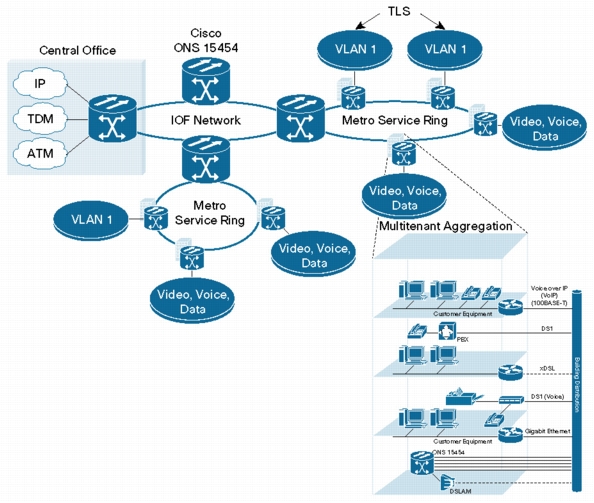

Figure 4. Metro Data Services Network TLS
Cable Television Data Transport
Cable television operators are experiencing rapid growth of subscribers to their data services. The Cisco ONS 15454 with Cisco ML-Series cards provides a solution to efficiently transport the increasing data on cable television networks. The Cisco solution allows the cable operator to aggregate data traffic, using the Cisco ML-Series cards, from multiple secondary headends and statistically multiplex it onto shared transport bandwidth for handoff to a core router at the master headend (Figure 5). Cable modem traffic is bursty, and the sharing of bandwidth allows better use of optical transport resources compared to dedicated point-to-point connections. The advanced QoS capabilities of the Cisco ML-Series cards allow the cable network engineer to design the network to support the committed information rate (CIR) necessary for the types of services being offered, such as Web browsing, VoIP, and video on demand (VoD). The Cisco ML-Series cards allow the user to build traffic queues and associate priority and bandwidth with each queue type, allowing the transport demands of each service to be met. The Cisco ONS 15454 platform supports in-service bandwidth upgrades and allows the transport network to scale from 155 Mbps to 320 Gbps using dense wavelength-division multiplexing (DWDM) so that growth demands should be easily met.

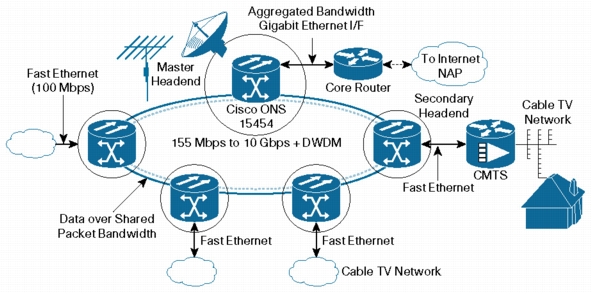

Figure 5. Cable Television Data Networking
THE CISCO ADVANTAGE
The Cisco ONS 15454 MSPP solution offers significant advantages over traditional optical network elements combined with external Layer 2 and Layer 3 devices. These advantages are summarized as follows.
Integrated Multiservice Capabilities
The Cisco ONS 15454 MSPP solution supports traditional TDM-based, private-line services (for example, DS-1/E-1, DS-3/E-3, and OC-n/STM-n) along with advanced Ethernet-based services, simplifying service provider migration to new data tariffs and interface flexibility for enterprise users.
Flexible Architectures
The Cisco ONS 15454 platform supports two- or four-fiber bidirectional line switched ring (BLSR) or multiplex section-shared protection ring (MS-SPR), unidirectional path switched ring (UPSR) or multiplex section protection (MSP), linear automatic protection switching (APS) or subnetwork connection (SNC), and path-protected mesh networking (PPMN) architectures. The Cisco ML-Series services cards can be deployed over any of these architectures and protection schemes, allowing the service provider to build a network that meets the customer's SLA requirements. The platform facilitates in-service optical bandwidth expansion using card upgrades, allowing customers to expand their networks to match demand without major replacement, and allowing network expenditures to better match revenue and bandwidth requirements.
Efficient Network Management
Management is simplified through a common DCN network connection and user access for Ethernet and optical functions.
Unified Software Load
One software load supports transport and data capabilities, eliminating unnecessary guesswork from ordering, installation, and upgrades.
Familiar, Proven Cisco IOS Software Technology
The Cisco ML-Series cards incorporate Cisco IOS Software technology, the leading Ethernet and IP delivery vehicle. Most data networking professionals are well trained on Cisco IOS Software, reducing the need for additional training and improving service deployment timelines.
The Cisco ONS 15454, the industry-leading metro optical transport platform, delivers supercharged SONET/SDH transport, integrated optical networking, outstanding multiservice interfaces, and competitive economic benefits.
CISCO ML-SERIES ETHERNET CARDS FOR CISCO ONS 15454 FEATURES AND SPECIFICATIONS
Compact Design
• Single-width card slot design for increased shelf flexibility and scalability
• Up to 12 Cisco ML-Series cards per shelf assembly
Data Architecture Options
• Hub and spoke
• Point to point
• RPR with optional Dual RPR Interconnect (DRPRI) or Redundant Interconnect for fail-safe ring-to-ring networking
• 802.17b standard RPR with optional Redundant Interconnect for fail-safe ring-to-ring and ring-to-node networking
Optical Transport Options
• UPSR or subnetwork connection protection (SNCP)
• Two-fiber and four-fiber BLSR or MS-SPR
• APS or MSP (1 + 1 unidirectional or bidirectional)
• Path-protected mesh network (PPMN)
• Unprotected (0 + 1)
Network Architecture Flexibility
• Ring
• Multiple rings
• Linear add-drop multiplexer
• Terminal
REGULATORY COMPLIANCE
Table 3 summarizes regulatory compliance for the Cisco ONS 15454 MSPP solution.
Table 3. Regulatory Compliance
SYSTEM REQUIREMENTS
Table 4 lists system requirements for the Cisco ONS 15454 MSPP solution.
Table 4. System Requirements
1. The Cisco ML100X-8 card is not compatible with the Cisco 15454 XC cross-connect.
SPECIFICATIONS
Table 5 lists the specifications for the Cisco ML-Series cards.
Table 5. Specifications for Cisco ML-Series Cards
ORDERING INFORMATION
Table 6 lists ordering information for the Cisco ONS 15454 MSPP solution.
Table 6. Ordering Information
