The Cisco® Catalyst® 6500 Supervisor Engine 2T (Figure 1) is the newest addition to the family of supervisor engines. The Supervisor Engine 2T is designed to deliver higher performance, better scalability, and enhanced hardware-enabled features. Supervisor Engine 2T integrates a high-performance 2-Terabit crossbar switch fabric that enables 80 Gbps switching capacity per slot on all Cisco Catalyst 6500 E-Series Chassis. The forwarding engine on Supervisor Engine 2T is capable of delivering high-performance forwarding for Layer 2 and Layer 3 services. Supervisor Engine 2T delivers many new hardware-enabled innovations in the areas of security, quality of service (QoS), virtualization, and manageability. The rich feature set of Supervisor Engine 2T enhances applications such as traditional IP forwarding, Layer 2 and Layer 3 Multiprotocol Label Switching (MPLS) VPNs, and VPLS. The Cisco Catalyst 6500 with Supervisor Engine 2T and all the features and the technical advancements establish product leadership in borderless networks as well as data center deployments.

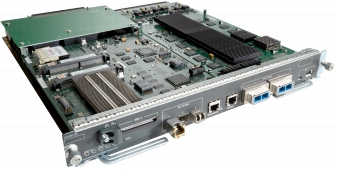

Figure 1. Supervisor Engine 2T
Features and Benefits
Supervisor Engine 2T delivers scalable performance, intelligence, and a broad set of features to address the needs of Borderless Networks, data centers, and service provider networks. Some of the primary features for Supervisor Engine 2T include:
• Platform scalability: Delivering up to 80 Gbps per slot of switching capacity on E-Series chassis; 2-Terabit aggregate bandwidth capacity using the 6513-E chassis, scaling to 4-Terabit capacity with VSS. Support for up to 1056 ports of 1Gbps and 352 ports of 10Gbps systems deployed with VSS. Providing 1Gbps/10Gbps and 40Gbps interface support to address future customer bandwidth growth requirements.
• Security: Support for Cisco TrustSec, CTS, providing MacSec encryption and Role-Based ACL. Providing control plane policing to address denial of service attacks.
• Virtualization: Native support for VPLS, as well as enhancements such as VPN-aware NAT, VPN statistics, and VPN netflow as important features needed for deployment of network virtualization.
• Netflow application monitoring: Supervisor Engine 2T supports enhanced application monitoring such as Flexible and Sampled Netflow for intelligent and scalable application monitoring.
Primary Supervisor Engine 2T Components
Policy Feature Card 4
Supervisor Engine 2T features the integrated Policy Feature Card 4 (PFC4), which improves performance and scalability and provides new and enhanced hardware features. The PFC4 is equipped with a high-performance ASIC complex that enables hardware acceleration for existing and new software features. The PFC4 supports Layer 2 and Layer 3 forwarding, QoS, Netflow and Access Control List (ACLs) and multicast packet replication and processes security policies such as access control lists (ACLs) operations all simultaneously enabled with no performance impact. The PFC4 supports all of these operations for both IPv4 and IPv6.
PFC4 also provides enhanced performance and scalability and supports many new innovations such as native VPLS, flexible NetFlow, egress NetFlow, Cisco TrustSec, distributed policers, control plane policing, and comprehensive IPv6 features.
Multilayer Switch Feature Card 5
Supervisor Engine 2T features the Multilayer Switch Feature Card 5 (MSFC5), providing high-performance, multilayer switching and routing intelligence. Equipped with a high-performance processor, the MSFC5 runs both Layer 2 protocols and Layer 3 protocols on the dual-core CPU complex. These include routing protocol support, Layer 2 protocols (for example, Spanning Tree Protocol and VLAN Trunking Protocol), and security services.
The MSFC5 builds the Cisco Express Forwarding information base (FIB) table in software and then downloads this table to the hardware application-specific-integrated circuits (ASICs) on the PFC4 and Distributed Forwarding Card 4 (DFC4), if present on a module, which make the forwarding decisions for IP unicast and multicast traffic.
Features and Benefits details
This section provides details of scalability and performance capabilities of Supervisor Engine 2T and functions supported.
Tables 1 through 4 show the scalability, virtualization and security features for Supervisor Engine 2T.
Table 1. Scalability
Name
VS-S2T-10G
VS-S2T-10G-XL
IPv4 routing
In hardware
Up to 720 Mpps**
In hardware
Up to 720 Mpps**
IPv6 routing
In hardware
Up to 390 Mpps**
In hardware
Up to 390 Mpps**
L2 bridging
In hardware
Up to 720 Mpps**
In hardware
Up to 720 Mpps**
MPLS
MPLS in hardware to enable use of Layer 3 VPNs and EoMPLS tunneling. Up to 8192 VRFs with a total of up to 256K* forwarding entries per system.
MPLS in hardware to enable use of Layer 3 VPNs and EoMPLS tunneling. Up to 8192 VRFs with a total of up to 1024K forwarding entries per system.
VLAN
4K
4K
Bridge domains
16k
16k
VPLS
In hardware (Up to 390 Mpps**)
In hardware (Up to 390 Mpps**)
GRE
In hardware (Up to 390 Mpps**)
In hardware (Up to 390 Mpps**)
NAT
Hardware assisted
Hardware assisted
MAC entries
128k
128k
Routes
256K(IPv4)
128K (IPv6)
1024K (IPv4)
512K (IPv6)
Netflow entries
512K
1024K
Multicast routes
128K (IPv4)
128K (IPv6)
128K (IPv4)
128K (IPv6)
* 1K=1024.
** Requires fully populated 6513-E chassis with DFC4/DFC4XL
Table 2. QoS Features and Scalability
Feature
VS-S2T-10G
VS-S2T-10G-XL
Layer-3 classification and marking access control entries (ACEs)
64K shared for QOS / Security
256K shared for QOS/Security
Aggregate traffic rate-limiting policers
16348
16348
Flow-based rate-limiting method; number of rates
Per source address, destination address, or full flow; 64 rates
Per source address, destination address, or full flow; 64 rates
Cisco CAT6000-VS-S2T IOS ADVANCED IP SERVICES FULL ENCRYPT
S2TAIK9N-12250S
Cisco CAT6000-VS-S2T IOS ADVANCED IP SERVICES LAN ONLY NPE
S2TIBK9-12250SY
Cisco CAT6000-VS-S2T IOS IP BASE LAN ONLY FULL ENCRYPT
S2TIBK9N-12250SY
Cisco CAT6000-VS-S2T IOS IP BASE LAN ONLY NPE
S2TISK9-12250SY
Cisco CAT6000-VS-S2T IOS IP SERV LAN ONLY FULL ENCRYPT
S2TISK9N-12250SY
Cisco CAT6000-VS-S2T IOS IP SERV LAN ONLY NPE
S2TIB-12250SY
Cisco CAT6000-VS-S2T IOS IP BASE
S2TIS-12250SY
Cisco CAT6000-VS-S2T IOS IP SERV
