DESIGN GUIDE
1. OVERVIEW
This document provides configuration guidance for users of Cisco® Dynamic Multipoint VPN (DMVPN) technology on Cisco IOS® IPSec routers. The Cisco 7600 Series platform is an exception because it does not support FVRF. The IVRF configuration described below shall work on the Cisco 7600 Series and the Cisco Catalyst® 6500 Series as well. The testing was performed on Cisco 1841 integrated services routers running Cisco IOS Software Releasae 12.3(11)T3. The objective of the testing was to configure and test interaction of DMVPN with Front VRF (FVRF) as well as internal VRF (IVRF).
Advantage: The advantage of using an FVRF is primarily to carve out a separate routing table from the global routing table (where tunnel interface exists). The advantage of using an IVRF is to define a private space to hold the DMVPN and private network information. Both these configurations provide extra security from anyone trying to attack the router from the Internet by separating out routing information. These VRF configurations can be used on both DMVPN hub and spoke.
What is the configuration difference? In case of FVRF, the tunnel destination lookup needs to be done in FVRF. Secondly, since the Internet-facing interface is in a VRF, the ISAKMP key lookup is also done in the VRF. As for using IVRF, the tunnel, private subnets, and routing protocol need to be defined in the IVRF space. The tunnel destination and ISAKMP key are looked up in global space for this scenario.
2. AUDIENCE
This configuration guide is targeted for Cisco systems engineers and customer support engineers to provide configuration guidelines and best practices for large-scale DMVPN customer deployments.
3. NETWORK TOPOLOGY

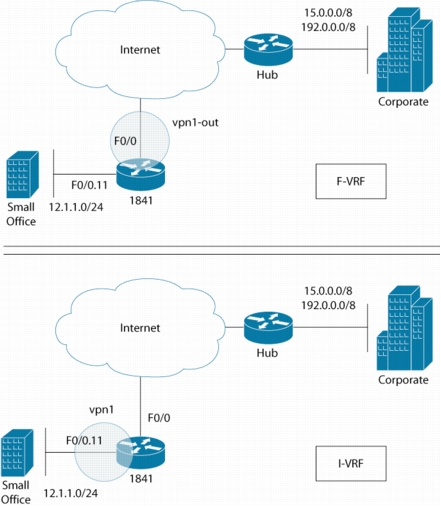

Figure 1. DMVPN VRF Topology
4. SYSTEM COMPONENTS USED IN THE TEST
4.1 1841 Hardware
• 1841 chassis
• AIM-VPN/BPII PLUS
4.2 1841 Software
• Release: 12.3(11)T3
5. FVRF CONFIGURATION
5.1 VRF Configuration
ip vrf vpn1-out
rd 100:1
!
rd 100:1
!
5.2 IPSec Configuration
5.2.1 ISAKMP Policy
crypto isakmp policy 10
encr 3des
authentication pre-share
group 2
lifetime 14400
!
encr 3des
authentication pre-share
group 2
lifetime 14400
!
5.2.2 ISAKMP Keepalive (DPD)
crypto isakmp keepalive 60
!
!
5.2.3 IPSec Transform Set
crypto ipsec transform-set gre_set esp-3des esp-sha-hmac
mode transport
!
mode transport
!
5.2.4 ISAKMP Keyrings
! Since the interface on which IPSec encrypted traffic will be sent and received in
! a VRF, we need to define a keyring in that VRF
! a VRF, we need to define a keyring in that VRF
crypto keyring vpn1 vrf vpn1-out
pre-shared-key address 0.0.0.0 0.0.0.0 key cisco
!
pre-shared-key address 0.0.0.0 0.0.0.0 key cisco
!
5.3 DMVPN Tunnel Configuration
!
! Tunnel VRF command actually forces the tunnel destination lookup to be done in the
! vrf vpn1-out.
!
interface Tunnel1
bandwidth 128
ip address 172.20.112.1 255.255.0.0
no ip redirects
ip mtu 1440
ip nhrp authentication nsite
ip nhrp map multicast 124.1.1.1
ip nhrp map 172.20.1.254 124.1.1.1
ip nhrp network-id 101
ip nhrp holdtime 900
ip nhrp nhs 172.20.1.254
load-interval 30
tunnel source FastEthernet0/0
tunnel mode gre multipoint
tunnel vrf vpn1-out
tunnel protection ipsec profile gre_prof
!
! Tunnel VRF command actually forces the tunnel destination lookup to be done in the
! vrf vpn1-out.
!
interface Tunnel1
bandwidth 128
ip address 172.20.112.1 255.255.0.0
no ip redirects
ip mtu 1440
ip nhrp authentication nsite
ip nhrp map multicast 124.1.1.1
ip nhrp map 172.20.1.254 124.1.1.1
ip nhrp network-id 101
ip nhrp holdtime 900
ip nhrp nhs 172.20.1.254
load-interval 30
tunnel source FastEthernet0/0
tunnel mode gre multipoint
tunnel vrf vpn1-out
tunnel protection ipsec profile gre_prof
!
5.4 Outbound Interface Configuration
interface FastEthernet0/0
description TO GW FOR PUBLIC IP
ip vrf forwarding vpn1-out
ip address 112.1.1.1 255.255.255.0
load-interval 30
speed 100
full-duplex
!
description TO GW FOR PUBLIC IP
ip vrf forwarding vpn1-out
ip address 112.1.1.1 255.255.255.0
load-interval 30
speed 100
full-duplex
!
5.5 Routing Protocol Configuration
!
! OSPF running in between 1841 and the gateway
!
router ospf 254 vrf vpn1-out
log-adjacency-changes
network 112.1.1.0 0.0.0.255 area 0
!
! EIGRP is running over the tunnel
!
router eigrp 10
passive-interface FastEthernet0/1.11
network 12.1.1.0 0.0.0.255
network 172.20.0.0
no auto-summary
!
! OSPF running in between 1841 and the gateway
!
router ospf 254 vrf vpn1-out
log-adjacency-changes
network 112.1.1.0 0.0.0.255 area 0
!
! EIGRP is running over the tunnel
!
router eigrp 10
passive-interface FastEthernet0/1.11
network 12.1.1.0 0.0.0.255
network 172.20.0.0
no auto-summary
!
6. FVRF CONFIGURATION VERIFICATION
6.1 Routing Tables
1841# sh ip route vrf vpn1-out
Routing Table: vpn1-out
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
1.0.0.0/30 is subnetted, 1 subnets
O 1.1.1.0 [110/2] via 112.1.1.2, 00:59:20, FastEthernet0/0
100.0.0.0/24 is subnetted, 1 subnets
O E2 100.1.1.0 [110/20] via 112.1.1.2, 00:59:20, FastEthernet0/0
112.0.0.0/24 is subnetted, 4 subnets
C 112.1.1.0 is directly connected, FastEthernet0/0
O 112.3.1.0 [110/2] via 112.1.1.2, 00:59:20, FastEthernet0/0
O 112.2.1.0 [110/2] via 112.1.1.2, 00:59:20, FastEthernet0/0
O 112.4.1.0 [110/12] via 112.1.1.2, 00:59:20, FastEthernet0/0
111.0.0.0/24 is subnetted, 3 subnets
O 111.4.1.0 [110/12] via 112.1.1.2, 00:59:20, FastEthernet0/0
O 111.2.1.0 [110/3] via 112.1.1.2, 00:59:28, FastEthernet0/0
O 111.1.1.0 [110/3] via 112.1.1.2, 00:59:28, FastEthernet0/0
125.0.0.0/24 is subnetted, 2 subnets
O 125.10.1.0 [110/2] via 112.1.1.2, 00:59:28, FastEthernet0/0
O 125.4.1.0 [110/2] via 112.1.1.2, 00:59:29, FastEthernet0/0
1841#sh ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
23.0.0.0/24 is subnetted, 1 subnets
S 23.1.1.0 [1/0] via 24.1.1.100
C 172.20.0.0/16 is directly connected, Tunnel1
24.0.0.0/24 is subnetted, 1 subnets
C 24.1.1.0 is directly connected, FastEthernet0/1.24
12.0.0.0/24 is subnetted, 1 subnets
C 12.1.1.0 is directly connected, FastEthernet0/1.11
D 15.0.0.0/8 [90/45602560] via 172.20.1.254, 01:00:21, Tunnel1
D 192.0.0.0/8 [90/32802560] via 172.20.1.254, 01:00:21, Tunnel1
Routing Table: vpn1-out
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
1.0.0.0/30 is subnetted, 1 subnets
O 1.1.1.0 [110/2] via 112.1.1.2, 00:59:20, FastEthernet0/0
100.0.0.0/24 is subnetted, 1 subnets
O E2 100.1.1.0 [110/20] via 112.1.1.2, 00:59:20, FastEthernet0/0
112.0.0.0/24 is subnetted, 4 subnets
C 112.1.1.0 is directly connected, FastEthernet0/0
O 112.3.1.0 [110/2] via 112.1.1.2, 00:59:20, FastEthernet0/0
O 112.2.1.0 [110/2] via 112.1.1.2, 00:59:20, FastEthernet0/0
O 112.4.1.0 [110/12] via 112.1.1.2, 00:59:20, FastEthernet0/0
111.0.0.0/24 is subnetted, 3 subnets
O 111.4.1.0 [110/12] via 112.1.1.2, 00:59:20, FastEthernet0/0
O 111.2.1.0 [110/3] via 112.1.1.2, 00:59:28, FastEthernet0/0
O 111.1.1.0 [110/3] via 112.1.1.2, 00:59:28, FastEthernet0/0
125.0.0.0/24 is subnetted, 2 subnets
O 125.10.1.0 [110/2] via 112.1.1.2, 00:59:28, FastEthernet0/0
O 125.4.1.0 [110/2] via 112.1.1.2, 00:59:29, FastEthernet0/0
1841#sh ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
23.0.0.0/24 is subnetted, 1 subnets
S 23.1.1.0 [1/0] via 24.1.1.100
C 172.20.0.0/16 is directly connected, Tunnel1
24.0.0.0/24 is subnetted, 1 subnets
C 24.1.1.0 is directly connected, FastEthernet0/1.24
12.0.0.0/24 is subnetted, 1 subnets
C 12.1.1.0 is directly connected, FastEthernet0/1.11
D 15.0.0.0/8 [90/45602560] via 172.20.1.254, 01:00:21, Tunnel1
D 192.0.0.0/8 [90/32802560] via 172.20.1.254, 01:00:21, Tunnel1
6.2 IKE and IPSec SAs
1841#sh crypto isakmp sa
dst src state conn-id slot status
124.1.1.1 112.1.1.1 QM_IDLE 1 0 ACTIVE
1841#sh cry isakmp sa det
Codes: C - IKE configuration mode, D - Dead Peer Detection
K - Keepalives, N - NAT-traversal
X - IKE Extended Authentication
psk - Preshared key, rsig - RSA signature
renc - RSA encryption
C-id Local Remote I-VRF Status Encr Hash Auth DH Lifetime Cap.
1 112.1.1.1 124.1.1.1 vpn1-out ACTIVE 3des sha psk 2 02:57:28 D
Connection-id:Engine-id = 1:2(hardware)
1841#sh cry ipsec sa
interface: Tunnel1
Crypto map tag: Tunnel1-head-0, local addr 112.1.1.1
protected vrf: vpn1-out
local ident (addr/mask/prot/port): (112.1.1.1/255.255.255.255/47/0)
remote ident (addr/mask/prot/port): (124.1.1.1/255.255.255.255/47/0)
current_peer 124.1.1.1 port 500
PERMIT, flags={origin_is_acl,}
#pkts encaps: 828, #pkts encrypt: 828, #pkts digest: 828
#pkts decaps: 826, #pkts decrypt: 826, #pkts verify: 826
#pkts compressed: 0, #pkts decompressed: 0
#pkts not compressed: 0, #pkts compr. failed: 0
#pkts not decompressed: 0, #pkts decompress failed: 0
#send errors 2, #recv errors 0
local crypto endpt.: 112.1.1.1, remote crypto endpt.: 124.1.1.1
path mtu 1500, ip mtu 1500
current outbound spi: 0x95E8732E(2515039022)
inbound esp sas:
spi: 0xACA16F64(2896260964)
transform: esp-3des esp-sha-hmac ,
in use settings ={Transport, }
conn id: 2003, flow_id: AIM-VPN/BPII-PL, crypto map: Tunnel1-head-0
sa timing: remaining key lifetime (k/sec): (4398156/3306)
IV size: 8 bytes
replay detection support: Y
Status: ACTIVE
inbound ah sas:
inbound pcp sas:
outbound esp sas:
spi: 0x95E8732E(2515039022)
transform: esp-3des esp-sha-hmac ,
in use settings ={Transport, }
conn id: 2004, flow_id: AIM-VPN/BPII-PL, crypto map: Tunnel1-head-0
sa timing: remaining key lifetime (k/sec): (4398156/3305)
IV size: 8 bytes
replay detection support: Y
Status: ACTIVE
outbound ah sas:
outbound pcp sas:
dst src state conn-id slot status
124.1.1.1 112.1.1.1 QM_IDLE 1 0 ACTIVE
1841#sh cry isakmp sa det
Codes: C - IKE configuration mode, D - Dead Peer Detection
K - Keepalives, N - NAT-traversal
X - IKE Extended Authentication
psk - Preshared key, rsig - RSA signature
renc - RSA encryption
C-id Local Remote I-VRF Status Encr Hash Auth DH Lifetime Cap.
1 112.1.1.1 124.1.1.1 vpn1-out ACTIVE 3des sha psk 2 02:57:28 D
Connection-id:Engine-id = 1:2(hardware)
1841#sh cry ipsec sa
interface: Tunnel1
Crypto map tag: Tunnel1-head-0, local addr 112.1.1.1
protected vrf: vpn1-out
local ident (addr/mask/prot/port): (112.1.1.1/255.255.255.255/47/0)
remote ident (addr/mask/prot/port): (124.1.1.1/255.255.255.255/47/0)
current_peer 124.1.1.1 port 500
PERMIT, flags={origin_is_acl,}
#pkts encaps: 828, #pkts encrypt: 828, #pkts digest: 828
#pkts decaps: 826, #pkts decrypt: 826, #pkts verify: 826
#pkts compressed: 0, #pkts decompressed: 0
#pkts not compressed: 0, #pkts compr. failed: 0
#pkts not decompressed: 0, #pkts decompress failed: 0
#send errors 2, #recv errors 0
local crypto endpt.: 112.1.1.1, remote crypto endpt.: 124.1.1.1
path mtu 1500, ip mtu 1500
current outbound spi: 0x95E8732E(2515039022)
inbound esp sas:
spi: 0xACA16F64(2896260964)
transform: esp-3des esp-sha-hmac ,
in use settings ={Transport, }
conn id: 2003, flow_id: AIM-VPN/BPII-PL, crypto map: Tunnel1-head-0
sa timing: remaining key lifetime (k/sec): (4398156/3306)
IV size: 8 bytes
replay detection support: Y
Status: ACTIVE
inbound ah sas:
inbound pcp sas:
outbound esp sas:
spi: 0x95E8732E(2515039022)
transform: esp-3des esp-sha-hmac ,
in use settings ={Transport, }
conn id: 2004, flow_id: AIM-VPN/BPII-PL, crypto map: Tunnel1-head-0
sa timing: remaining key lifetime (k/sec): (4398156/3305)
IV size: 8 bytes
replay detection support: Y
Status: ACTIVE
outbound ah sas:
outbound pcp sas:
6.3 Encryption Module
1841#sh cry eng conf
crypto engine name: Virtual Private Network (VPN) Module
crypto engine type: hardware
State: Enabled
VPN Module in slot: 0
Product Name: AIM-VPN/BPII-PLUS
Software Serial #: 55AA
Device ID: 001E - revision 0000
Vendor ID: 13A3
Revision No: 0x001E0000
VSK revision: 0
Boot version: 255
DPU version: 0
HSP version: 2.3(1) (PRODUCTION PATCH)
Time running: 00:00:00
Compression: Yes
DES: Yes
3 DES: Yes
AES CBC: Yes (128,192,256)
AES CNTR: No
Maximum buffer length: 4096
Maximum DH index: 1000
Maximum SA index: 1000
Maximum Flow index: 2000
Maximum RSA key size: 2048
crypto engine name: Virtual Private Network (VPN) Module
crypto engine type: hardware
State: Enabled
VPN Module in slot: 0
Product Name: AIM-VPN/BPII-PLUS
Software Serial #: 55AA
Device ID: 001E - revision 0000
Vendor ID: 13A3
Revision No: 0x001E0000
VSK revision: 0
Boot version: 255
DPU version: 0
HSP version: 2.3(1) (PRODUCTION PATCH)
Time running: 00:00:00
Compression: Yes
DES: Yes
3 DES: Yes
AES CBC: Yes (128,192,256)
AES CNTR: No
Maximum buffer length: 4096
Maximum DH index: 1000
Maximum SA index: 1000
Maximum Flow index: 2000
Maximum RSA key size: 2048
7. IVRF CONFIGURATION
7.1 VRF Configuration
ip vrf vpn1
rd 100:1
!
rd 100:1
!
7.2 IPSec Configuration
7.2.1 ISAKMP Policy
crypto isakmp policy 10
encr 3des
authentication pre-share
group 2
lifetime 14400
!
encr 3des
authentication pre-share
group 2
lifetime 14400
!
7.2.2 ISAKMP Keepalive (DPD)
crypto isakmp keepalive 60
!
!
7.2.3 IPSec Transform Set
crypto ipsec transform-set gre_set esp-3des esp-sha-hmac
mode transport
!
mode transport
!
7.2.4 ISAKMP Keyrings
! Since the interface on which IPSec-encrypted traffic will be sent and received is
! global, we do NOT need to define a keyring in the VRF.
crypto keyring vpn1
pre-shared-key address 0.0.0.0 0.0.0.0 key cisco
!
! global, we do NOT need to define a keyring in the VRF.
crypto keyring vpn1
pre-shared-key address 0.0.0.0 0.0.0.0 key cisco
!
7.3 DMVPN Tunnel Configuration
!
! IP VRF forwarding command actually puts the decapsulated traffic in the tunnel
!
interface Tunnel1
bandwidth 128
ip vrf forwarding vpn1
ip address 172.20.112.1 255.255.0.0
no ip redirects
ip mtu 1440
ip nhrp authentication nsite
ip nhrp map multicast 124.1.1.1
ip nhrp map 172.20.1.254 124.1.1.1
ip nhrp network-id 101
ip nhrp holdtime 900
ip nhrp nhs 172.20.1.254
load-interval 30
tunnel source FastEthernet0/0
tunnel mode gre multipoint
tunnel protection ipsec profile gre_prof
!
! IP VRF forwarding command actually puts the decapsulated traffic in the tunnel
!
interface Tunnel1
bandwidth 128
ip vrf forwarding vpn1
ip address 172.20.112.1 255.255.0.0
no ip redirects
ip mtu 1440
ip nhrp authentication nsite
ip nhrp map multicast 124.1.1.1
ip nhrp map 172.20.1.254 124.1.1.1
ip nhrp network-id 101
ip nhrp holdtime 900
ip nhrp nhs 172.20.1.254
load-interval 30
tunnel source FastEthernet0/0
tunnel mode gre multipoint
tunnel protection ipsec profile gre_prof
!
7.4 Inside Interface Configuration
interface FastEthernet0/1.11
description traffic interface
encapsulation dot1Q 11
ip vrf forwarding vpn1
ip address 12.1.1.1 255.255.255.0!
description traffic interface
encapsulation dot1Q 11
ip vrf forwarding vpn1
ip address 12.1.1.1 255.255.255.0!
7.5 Routing Protocol Configuration
!
! OSPF running in between 1841 and the gateway
!
router ospf 10
log-adjacency-changes
network 112.1.1.0 0.0.0.255 area 0
!
! EIGRP is running over the tunnel in a VRF
!
router eigrp 10
auto-summary
!
address-family ipv4 vrf vpn1
network 12.1.1.0 0.0.0.255
network 172.20.0.0
no auto-summary
autonomous-system 10
exit-address-family
!
! OSPF running in between 1841 and the gateway
!
router ospf 10
log-adjacency-changes
network 112.1.1.0 0.0.0.255 area 0
!
! EIGRP is running over the tunnel in a VRF
!
router eigrp 10
auto-summary
!
address-family ipv4 vrf vpn1
network 12.1.1.0 0.0.0.255
network 172.20.0.0
no auto-summary
autonomous-system 10
exit-address-family
!
8. IVRF CONFIGURATION VERIFICATION
8.1 Routing Tables
1841# sh ip route vrf vpn1
Routing Table: vpn1
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
C 172.20.0.0/16 is directly connected, Tunnel1
12.0.0.0/24 is subnetted, 1 subnets
C 12.1.1.0 is directly connected, FastEthernet0/1.11
D 15.0.0.0/8 [90/45602560] via 172.20.1.254, 00:06:18, Tunnel1
D 192.0.0.0/8 [90/32802560] via 172.20.1.254, 00:06:18, Tunnel1
1841#sh ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
1.0.0.0/30 is subnetted, 1 subnets
O 1.1.1.0 [110/2] via 112.1.1.2, 00:08:38, FastEthernet0/0
100.0.0.0/24 is subnetted, 1 subnets
O E2 100.1.1.0 [110/20] via 112.1.1.2, 00:08:38, FastEthernet0/0
23.0.0.0/24 is subnetted, 1 subnets
S 23.1.1.0 [1/0] via 24.1.1.100
112.0.0.0/24 is subnetted, 4 subnets
C 112.1.1.0 is directly connected, FastEthernet0/0
O 112.3.1.0 [110/2] via 112.1.1.2, 00:08:38, FastEthernet0/0
O 112.2.1.0 [110/2] via 112.1.1.2, 00:08:38, FastEthernet0/0
O 112.4.1.0 [110/12] via 112.1.1.2, 00:08:38, FastEthernet0/0
24.0.0.0/24 is subnetted, 1 subnets
C 24.1.1.0 is directly connected, FastEthernet0/1.24
111.0.0.0/24 is subnetted, 3 subnets
O 111.4.1.0 [110/12] via 112.1.1.2, 00:08:40, FastEthernet0/0
O 111.2.1.0 [110/3] via 112.1.1.2, 00:08:40, FastEthernet0/0
O 111.1.1.0 [110/3] via 112.1.1.2, 00:08:40, FastEthernet0/0
125.0.0.0/24 is subnetted, 2 subnets
O 125.10.1.0 [110/2] via 112.1.1.2, 00:08:40, FastEthernet0/0
O 125.4.1.0 [110/2] via 112.1.1.2, 00:08:40, FastEthernet0/0
124.0.0.0/8 is variably subnetted, 7 subnets, 2 masks
O E2 124.8.0.0/16 [110/100] via 112.1.1.2, 00:08:40, FastEthernet0/0
O 124.11.1.0/24 [110/3] via 112.1.1.2, 00:08:40, FastEthernet0/0
O E2 124.6.0.0/16 [110/100] via 112.1.1.2, 00:08:40, FastEthernet0/0
O E2 124.7.0.0/16 [110/100] via 112.1.1.2, 00:08:40, FastEthernet0/0
Routing Table: vpn1
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
C 172.20.0.0/16 is directly connected, Tunnel1
12.0.0.0/24 is subnetted, 1 subnets
C 12.1.1.0 is directly connected, FastEthernet0/1.11
D 15.0.0.0/8 [90/45602560] via 172.20.1.254, 00:06:18, Tunnel1
D 192.0.0.0/8 [90/32802560] via 172.20.1.254, 00:06:18, Tunnel1
1841#sh ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
1.0.0.0/30 is subnetted, 1 subnets
O 1.1.1.0 [110/2] via 112.1.1.2, 00:08:38, FastEthernet0/0
100.0.0.0/24 is subnetted, 1 subnets
O E2 100.1.1.0 [110/20] via 112.1.1.2, 00:08:38, FastEthernet0/0
23.0.0.0/24 is subnetted, 1 subnets
S 23.1.1.0 [1/0] via 24.1.1.100
112.0.0.0/24 is subnetted, 4 subnets
C 112.1.1.0 is directly connected, FastEthernet0/0
O 112.3.1.0 [110/2] via 112.1.1.2, 00:08:38, FastEthernet0/0
O 112.2.1.0 [110/2] via 112.1.1.2, 00:08:38, FastEthernet0/0
O 112.4.1.0 [110/12] via 112.1.1.2, 00:08:38, FastEthernet0/0
24.0.0.0/24 is subnetted, 1 subnets
C 24.1.1.0 is directly connected, FastEthernet0/1.24
111.0.0.0/24 is subnetted, 3 subnets
O 111.4.1.0 [110/12] via 112.1.1.2, 00:08:40, FastEthernet0/0
O 111.2.1.0 [110/3] via 112.1.1.2, 00:08:40, FastEthernet0/0
O 111.1.1.0 [110/3] via 112.1.1.2, 00:08:40, FastEthernet0/0
125.0.0.0/24 is subnetted, 2 subnets
O 125.10.1.0 [110/2] via 112.1.1.2, 00:08:40, FastEthernet0/0
O 125.4.1.0 [110/2] via 112.1.1.2, 00:08:40, FastEthernet0/0
124.0.0.0/8 is variably subnetted, 7 subnets, 2 masks
O E2 124.8.0.0/16 [110/100] via 112.1.1.2, 00:08:40, FastEthernet0/0
O 124.11.1.0/24 [110/3] via 112.1.1.2, 00:08:40, FastEthernet0/0
O E2 124.6.0.0/16 [110/100] via 112.1.1.2, 00:08:40, FastEthernet0/0
O E2 124.7.0.0/16 [110/100] via 112.1.1.2, 00:08:40, FastEthernet0/0
8.2 IKE and IPSec SAs
1841#sh crypto isakmp sa
dst src state conn-id slot status
124.1.1.1 112.1.1.1 QM_IDLE 2 0 ACTIVE
1841#sh cry isakmp sa det
Codes: C - IKE configuration mode, D - Dead Peer Detection
K - Keepalives, N - NAT-traversal
X - IKE Extended Authentication
psk - Preshared key, rsig - RSA signature
renc - RSA encryption
C-id Local Remote I-VRF Status Encr Hash Auth DH Lifetime Cap.
2 112.1.1.1 124.1.1.1 ACTIVE 3des sha psk 2 03:50:40 D
Connection-id:Engine-id = 2:2(hardware)
1841#sh cry ipsec sa
interface: Tunnel1
Crypto map tag: Tunnel1-head-0, local addr 112.1.1.1
protected vrf: (none)
local ident (addr/mask/prot/port): (112.1.1.1/255.255.255.255/47/0)
remote ident (addr/mask/prot/port): (124.1.1.1/255.255.255.255/47/0)
current_peer 124.1.1.1 port 500
PERMIT, flags={origin_is_acl,}
#pkts encaps: 137, #pkts encrypt: 137, #pkts digest: 137
#pkts decaps: 153, #pkts decrypt: 153, #pkts verify: 153
#pkts compressed: 0, #pkts decompressed: 0
#pkts not compressed: 0, #pkts compr. failed: 0
#pkts not decompressed: 0, #pkts decompress failed: 0
#send errors 1, #recv errors 0
local crypto endpt.: 112.1.1.1, remote crypto endpt.: 124.1.1.1
path mtu 1500, ip mtu 1500
current outbound spi: 0x586839F4(1483225588)
inbound esp sas:
spi: 0x7427980B(1948751883)
transform: esp-3des esp-sha-hmac ,
in use settings ={Transport, }
conn id: 2004, flow_id: AIM-VPN/BPII-PL, crypto map: Tunnel1-head-0
sa timing: remaining key lifetime (k/sec): (4448783/3005)
IV size: 8 bytes
replay detection support: Y
Status: ACTIVE
inbound ah sas:
inbound pcp sas:
outbound esp sas:
spi: 0x586839F4(1483225588)
transform: esp-3des esp-sha-hmac ,
in use settings ={Transport, }
conn id: 2003, flow_id: AIM-VPN/BPII-PL, crypto map: Tunnel1-head-0
sa timing: remaining key lifetime (k/sec): (4448784/3004)
IV size: 8 bytes
replay detection support: Y
Status: ACTIVE
outbound ah sas:
outbound pcp sas:
dst src state conn-id slot status
124.1.1.1 112.1.1.1 QM_IDLE 2 0 ACTIVE
1841#sh cry isakmp sa det
Codes: C - IKE configuration mode, D - Dead Peer Detection
K - Keepalives, N - NAT-traversal
X - IKE Extended Authentication
psk - Preshared key, rsig - RSA signature
renc - RSA encryption
C-id Local Remote I-VRF Status Encr Hash Auth DH Lifetime Cap.
2 112.1.1.1 124.1.1.1 ACTIVE 3des sha psk 2 03:50:40 D
Connection-id:Engine-id = 2:2(hardware)
1841#sh cry ipsec sa
interface: Tunnel1
Crypto map tag: Tunnel1-head-0, local addr 112.1.1.1
protected vrf: (none)
local ident (addr/mask/prot/port): (112.1.1.1/255.255.255.255/47/0)
remote ident (addr/mask/prot/port): (124.1.1.1/255.255.255.255/47/0)
current_peer 124.1.1.1 port 500
PERMIT, flags={origin_is_acl,}
#pkts encaps: 137, #pkts encrypt: 137, #pkts digest: 137
#pkts decaps: 153, #pkts decrypt: 153, #pkts verify: 153
#pkts compressed: 0, #pkts decompressed: 0
#pkts not compressed: 0, #pkts compr. failed: 0
#pkts not decompressed: 0, #pkts decompress failed: 0
#send errors 1, #recv errors 0
local crypto endpt.: 112.1.1.1, remote crypto endpt.: 124.1.1.1
path mtu 1500, ip mtu 1500
current outbound spi: 0x586839F4(1483225588)
inbound esp sas:
spi: 0x7427980B(1948751883)
transform: esp-3des esp-sha-hmac ,
in use settings ={Transport, }
conn id: 2004, flow_id: AIM-VPN/BPII-PL, crypto map: Tunnel1-head-0
sa timing: remaining key lifetime (k/sec): (4448783/3005)
IV size: 8 bytes
replay detection support: Y
Status: ACTIVE
inbound ah sas:
inbound pcp sas:
outbound esp sas:
spi: 0x586839F4(1483225588)
transform: esp-3des esp-sha-hmac ,
in use settings ={Transport, }
conn id: 2003, flow_id: AIM-VPN/BPII-PL, crypto map: Tunnel1-head-0
sa timing: remaining key lifetime (k/sec): (4448784/3004)
IV size: 8 bytes
replay detection support: Y
Status: ACTIVE
outbound ah sas:
outbound pcp sas:
8.3 Encryption Module
1841#sh cry eng conf
crypto engine name: Virtual Private Network (VPN) Module
crypto engine type: hardware
State: Enabled
VPN Module in slot: 0
Product Name: AIM-VPN/BPII-PLUS
Software Serial #: 55AA
Device ID: 001E - revision 0000
Vendor ID: 13A3
Revision No: 0x001E0000
VSK revision: 0
Boot version: 255
DPU version: 0
HSP version: 2.3(1) (PRODUCTION PATCH)
Time running: 00:00:00
Compression: Yes
DES: Yes
3 DES: Yes
AES CBC: Yes (128,192,256)
AES CNTR: No
Maximum buffer length: 4096
Maximum DH index: 1000
Maximum SA index: 1000
Maximum Flow index: 2000
Maximum RSA key size: 2048
crypto engine name: Virtual Private Network (VPN) Module
crypto engine type: hardware
State: Enabled
VPN Module in slot: 0
Product Name: AIM-VPN/BPII-PLUS
Software Serial #: 55AA
Device ID: 001E - revision 0000
Vendor ID: 13A3
Revision No: 0x001E0000
VSK revision: 0
Boot version: 255
DPU version: 0
HSP version: 2.3(1) (PRODUCTION PATCH)
Time running: 00:00:00
Compression: Yes
DES: Yes
3 DES: Yes
AES CBC: Yes (128,192,256)
AES CNTR: No
Maximum buffer length: 4096
Maximum DH index: 1000
Maximum SA index: 1000
Maximum Flow index: 2000
Maximum RSA key size: 2048
9. LIMITATIONS/CAVEATS/INTEGRATION ISSUES/GUIDELINES
There is a known DDTS at the time of writing this configuration guide in Cisco IOS Software Release 12.3(14)T3, where configuring FVRF will cause tracebacks. The issue is not seen in Release 12.3(11)T3. The DDTS ID is: CSCei63568.
10. RELATED DOCUMENTS
Cisco.com documentation: http://www.cisco.com/warp/public/732/Tech/security/ipsec/dmvpn/
11. APPENDIX A
11.1 FVRF Configuration
version 12.3
service timestamps debug datetime msec localtime
service timestamps log datetime msec localtime
no service password-encryption
!
hostname 1841
!
boot-start-marker
boot system flash:c1841-advipservicesk9-mz.123-11.T3
boot-end-marker
!
enable password lab
!
clock timezone EST -5
clock summer-time edt recurring
no aaa new-model
ip subnet-zero
ip cef
!
ip vrf vpn1-out
rd 100:1
!
no ip domain lookup
!
crypto keyring vpn1 vrf vpn1-out
pre-shared-key address 0.0.0.0 0.0.0.0 key cisco
!
crypto isakmp policy 10
encr 3des
authentication pre-share
group 2
lifetime 14400
crypto isakmp keepalive 60
!
!
crypto ipsec transform-set gre_set esp-3des esp-sha-hmac
mode transport
!
crypto ipsec profile gre_prof
set transform-set gre_set
!
interface Tunnel1
bandwidth 128
ip address 172.20.112.1 255.255.0.0
no ip redirects
ip mtu 1440
ip nhrp authentication nsite
ip nhrp map multicast 124.1.1.1
ip nhrp map 172.20.1.254 124.1.1.1
ip nhrp network-id 101
ip nhrp holdtime 900
ip nhrp nhs 172.20.1.254
load-interval 30
tunnel source FastEthernet0/0
tunnel mode gre multipoint
tunnel vrf vpn1-out
tunnel protection ipsec profile gre_prof
!
interface FastEthernet0/0
description TO DMVPNGW FOR PUBLIC IP
ip vrf forwarding vpn1-out
ip address 112.1.1.1 255.255.255.0
load-interval 30
speed 100
full-duplex
!
interface FastEthernet0/1
description Private Interface
no ip address
load-interval 30
duplex auto
speed auto
!
interface FastEthernet0/1.11
description traffic interface
encapsulation dot1Q 11
ip address 12.1.1.1 255.255.255.0
!
interface FastEthernet0/1.24
description mgmt net
encapsulation dot1Q 24
ip address 24.1.1.161 255.255.255.0
!
router eigrp 10
passive-interface FastEthernet0/1.11
network 12.1.1.0 0.0.0.255
network 172.20.0.0
no auto-summary
!
router ospf 254 vrf vpn1-out
log-adjacency-changes
network 112.1.1.0 0.0.0.255 area 0
!
ip classless
!
line con 0
exec-timeout 0 0
stopbits 1
line aux 0
stopbits 1
line vty 0 4
exec-timeout 0 0
password lab
login
!
end
service timestamps debug datetime msec localtime
service timestamps log datetime msec localtime
no service password-encryption
!
hostname 1841
!
boot-start-marker
boot system flash:c1841-advipservicesk9-mz.123-11.T3
boot-end-marker
!
enable password lab
!
clock timezone EST -5
clock summer-time edt recurring
no aaa new-model
ip subnet-zero
ip cef
!
ip vrf vpn1-out
rd 100:1
!
no ip domain lookup
!
crypto keyring vpn1 vrf vpn1-out
pre-shared-key address 0.0.0.0 0.0.0.0 key cisco
!
crypto isakmp policy 10
encr 3des
authentication pre-share
group 2
lifetime 14400
crypto isakmp keepalive 60
!
!
crypto ipsec transform-set gre_set esp-3des esp-sha-hmac
mode transport
!
crypto ipsec profile gre_prof
set transform-set gre_set
!
interface Tunnel1
bandwidth 128
ip address 172.20.112.1 255.255.0.0
no ip redirects
ip mtu 1440
ip nhrp authentication nsite
ip nhrp map multicast 124.1.1.1
ip nhrp map 172.20.1.254 124.1.1.1
ip nhrp network-id 101
ip nhrp holdtime 900
ip nhrp nhs 172.20.1.254
load-interval 30
tunnel source FastEthernet0/0
tunnel mode gre multipoint
tunnel vrf vpn1-out
tunnel protection ipsec profile gre_prof
!
interface FastEthernet0/0
description TO DMVPNGW FOR PUBLIC IP
ip vrf forwarding vpn1-out
ip address 112.1.1.1 255.255.255.0
load-interval 30
speed 100
full-duplex
!
interface FastEthernet0/1
description Private Interface
no ip address
load-interval 30
duplex auto
speed auto
!
interface FastEthernet0/1.11
description traffic interface
encapsulation dot1Q 11
ip address 12.1.1.1 255.255.255.0
!
interface FastEthernet0/1.24
description mgmt net
encapsulation dot1Q 24
ip address 24.1.1.161 255.255.255.0
!
router eigrp 10
passive-interface FastEthernet0/1.11
network 12.1.1.0 0.0.0.255
network 172.20.0.0
no auto-summary
!
router ospf 254 vrf vpn1-out
log-adjacency-changes
network 112.1.1.0 0.0.0.255 area 0
!
ip classless
!
line con 0
exec-timeout 0 0
stopbits 1
line aux 0
stopbits 1
line vty 0 4
exec-timeout 0 0
password lab
login
!
end
12. APPENDIX B
12.1 IVRF Configuration
version 12.3
service timestamps debug datetime msec localtime
service timestamps log datetime msec localtime
no service password-encryption
!
hostname 1841
!
enable password lab
!
clock timezone EST -5
clock summer-time edt recurring
no aaa new-model
ip subnet-zero
ip cef
!
ip vrf vpn1
rd 100:1
!
no ip domain lookup
!
crypto keyring vpn1
pre-shared-key address 0.0.0.0 0.0.0.0 key cisco
!
crypto isakmp policy 10
encr 3des
authentication pre-share
group 2
lifetime 14400
crypto isakmp keepalive 60
!
crypto ipsec transform-set gre_set esp-3des esp-sha-hmac
mode transport
!
crypto ipsec profile gre_prof
set transform-set gre_set
!
interface Tunnel1
bandwidth 128
ip vrf forwarding vpn1
ip address 172.20.112.1 255.255.0.0
no ip redirects
ip mtu 1440
ip nhrp authentication nsite
ip nhrp map multicast 124.1.1.1
ip nhrp map 172.20.1.254 124.1.1.1
ip nhrp network-id 101
ip nhrp holdtime 900
ip nhrp nhs 172.20.1.254
load-interval 30
tunnel source FastEthernet0/0
tunnel mode gre multipoint
tunnel protection ipsec profile gre_prof
!
interface FastEthernet0/0
description TO DMVPN-GSR2 FAS 2/1 FOR PUBLIC IP
ip address 112.1.1.1 255.255.255.0
load-interval 30
speed 100
full-duplex
!
interface FastEthernet0/1
description dmvpn interface
no ip address
load-interval 30
duplex auto
speed auto
!
interface FastEthernet0/1.11
description traffic interface
encapsulation dot1Q 11
ip vrf forwarding vpn1
ip address 12.1.1.1 255.255.255.0
!
interface FastEthernet0/1.24
description mgmt net
encapsulation dot1Q 24
ip address 24.1.1.161 255.255.255.0
!
router eigrp 10
auto-summary
!
address-family ipv4 vrf vpn1
network 12.1.1.0 0.0.0.255
network 172.20.0.0
no auto-summary
autonomous-system 10
exit-address-family
!
router ospf 10
log-adjacency-changes
network 112.1.1.0 0.0.0.255 area 0
!
ip classless
!
line con 0
exec-timeout 0 0
stopbits 1
line aux 0
stopbits 1
line vty 0 4
exec-timeout 0 0
password lab
login
end
service timestamps debug datetime msec localtime
service timestamps log datetime msec localtime
no service password-encryption
!
hostname 1841
!
enable password lab
!
clock timezone EST -5
clock summer-time edt recurring
no aaa new-model
ip subnet-zero
ip cef
!
ip vrf vpn1
rd 100:1
!
no ip domain lookup
!
crypto keyring vpn1
pre-shared-key address 0.0.0.0 0.0.0.0 key cisco
!
crypto isakmp policy 10
encr 3des
authentication pre-share
group 2
lifetime 14400
crypto isakmp keepalive 60
!
crypto ipsec transform-set gre_set esp-3des esp-sha-hmac
mode transport
!
crypto ipsec profile gre_prof
set transform-set gre_set
!
interface Tunnel1
bandwidth 128
ip vrf forwarding vpn1
ip address 172.20.112.1 255.255.0.0
no ip redirects
ip mtu 1440
ip nhrp authentication nsite
ip nhrp map multicast 124.1.1.1
ip nhrp map 172.20.1.254 124.1.1.1
ip nhrp network-id 101
ip nhrp holdtime 900
ip nhrp nhs 172.20.1.254
load-interval 30
tunnel source FastEthernet0/0
tunnel mode gre multipoint
tunnel protection ipsec profile gre_prof
!
interface FastEthernet0/0
description TO DMVPN-GSR2 FAS 2/1 FOR PUBLIC IP
ip address 112.1.1.1 255.255.255.0
load-interval 30
speed 100
full-duplex
!
interface FastEthernet0/1
description dmvpn interface
no ip address
load-interval 30
duplex auto
speed auto
!
interface FastEthernet0/1.11
description traffic interface
encapsulation dot1Q 11
ip vrf forwarding vpn1
ip address 12.1.1.1 255.255.255.0
!
interface FastEthernet0/1.24
description mgmt net
encapsulation dot1Q 24
ip address 24.1.1.161 255.255.255.0
!
router eigrp 10
auto-summary
!
address-family ipv4 vrf vpn1
network 12.1.1.0 0.0.0.255
network 172.20.0.0
no auto-summary
autonomous-system 10
exit-address-family
!
router ospf 10
log-adjacency-changes
network 112.1.1.0 0.0.0.255 area 0
!
ip classless
!
line con 0
exec-timeout 0 0
stopbits 1
line aux 0
stopbits 1
line vty 0 4
exec-timeout 0 0
password lab
login
end
