Power Cord Specifications
This appendix provides supported power cable specifications.
Supported Power Cords and Plugs
Each power supply has a separate power cord. Standard power cords or jumper power cords are available for connection to the server. The jumper power cords, for use in racks, are available as an optional alternative to the standard power cords.
Note
Only the approved power cords or jumper power cords provided with the server are supported.
Table B-1 lists the power cords for the server power supplies.
Table B-1 Supported Power Cords for the Server
Description
|
Length
|
Power Cord Reference Illustration
|
Feet
|
Meters
|
SFS-250V-10A-AR
Power Cord, 250 VAC 10 A IRAM 2073 Plug
Argentina
|
8.2
|
2.5
|
Figure B-1
|
CAB-9K10A-AU
250 VAC 10 A 3112 Plug,
Australia
|
8.2
|
2.5
|
Figure B-2
|
SFS-250V-10A-CN
Power Cord, 250 VAC 10 A GB 2009 Plug
China
|
8.2
|
2.5
|
Figure B-3
|
CAB-9K10A-EU
Power Cord, 250 VAC 10 A M 2511 Plug
Europe
|
8.2
|
2.5
|
Figure B-4
|
SFS-250V-10A-ID
Power Cord, 250 VAC 16A EL-208 Plug
South Africa, United Arab Emirates, India
|
8.2
|
2.5
|
Figure B-5
|
SFS-250V-10A-IS
Power Cord, 250 VAC 10 A SI32 Plug
Israel
|
8.2
|
2.5
|
Figure B-6
|
CAB-9K10A-IT
Power Cord, 250 VAC 10 A CEI 23-16 Plug
Italy
|
8.2
|
2.5
|
Figure B-7
|
CAB-9K10A-SW
Power Cord, 250 VAC 10 A MP232 Plug
Switzerland
|
8.2
|
2.5
|
Figure B-8
|
CAB-9K10A-UK
Power Cord, 250 VAC 10 A BS1363 Plug (13 A fuse)
United Kingdom
|
8.2
|
2.5
|
Figure B-9
|
CAB-AC-250V/13A
Power Cord, 250 VAC 13 A IEC60320 Plug
North America
|
6.6
|
2.0
|
Figure B-10
|
CAB-N5K6A-NA
Power Cord, 250 VAC 13 A NEMA 6-15 Plug,
North America
|
8.2
|
2.5
|
Figure B-11
|
CAB-9K12A-NA
Power cord, 125 VAC, 13 A, NEMA 5-15 Plug
North America
|
8.2
|
2.5
|
Figure B-12
|
CAB-C13-CBN
Cabinet Jumper Power Cord, 250 VAC 10 A, C13-C14 Connectors
|
2.2
|
0.68
|
Figure B-13
|
CAB-C13-C14-2M
Cabinet Jumper Power Cord, 250 VAC 10 A, C13-C14 Connectors
|
6.6
|
2.0
|
Figure B-14
|
CAB-C13-C14-AC
Cabinet Jumper Power Cord, 250 VAC 10 A, C13-C14 Connectors
|
9.8
|
3.0
|
Figure B-15
|
AC Power Cord Illustrations
This section includes the AC power cord illustrations. See Figure B-1 through Figure B-15.

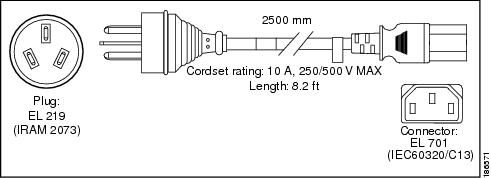

Figure B-1 SFS-250V-10A-AR

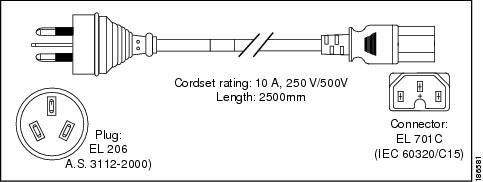

Figure B-2 CAB-9K10A-AU

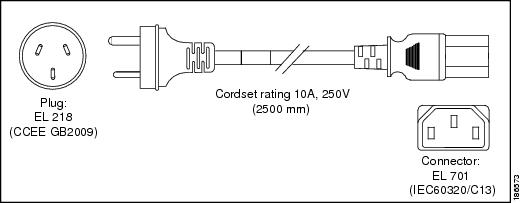

Figure B-3 SFS-250V-10A-CN

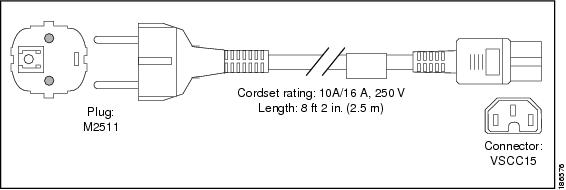

Figure B-4 CAB-9K10A-EU

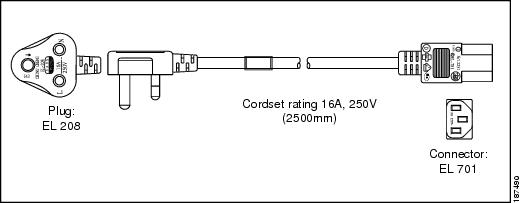

Figure B-5 SFS-250V-10A-ID

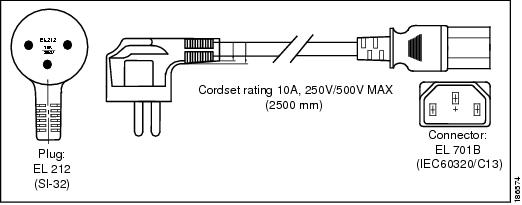

Figure B-6 SFS-250V-10A-IS

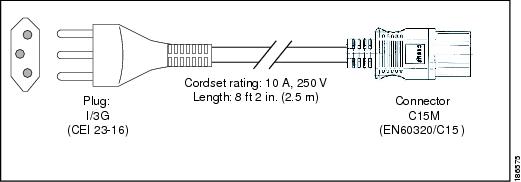

Figure B-7 CAB-9K10A-IT

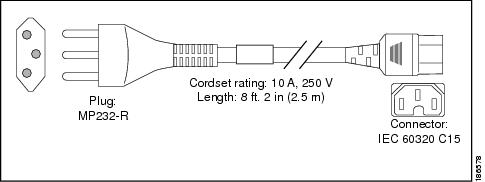

Figure B-8 CAB-9K10A-SW

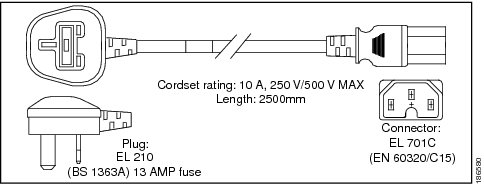

Figure B-9 CAB-9K10A-UK

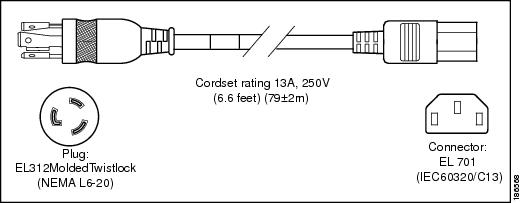

Figure B-10 CAB-AC-250V/13A

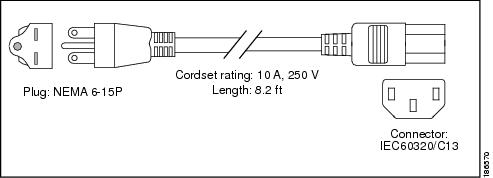

Figure B-11 CAB-N5K6A-NA

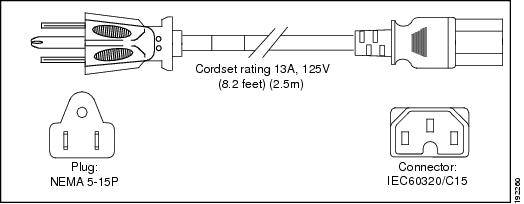

Figure B-12 CAB-9K12A-NA
Figure B-13 CAB-C13-CBN, Jumper Power Cord (0.68 m)

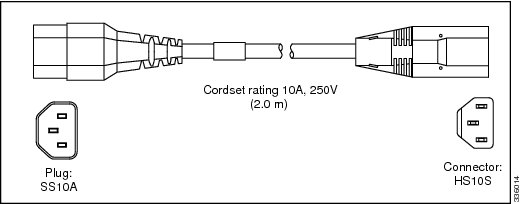

Figure B-14 CAB-C13-C14-2M, Jumper Power Cord (2 m)
Figure B-15 CAB-C13-C14-AC, Jumper Power Cord (3 m)
