Monitoring CTRS System Processes
Monitoring CTRS System Processes
September 2010The Monitoring page contains tools that enable you to monitor the overall CTRS system state and the running state of individual processes. The following sections describe the monitoring tools:
System Status

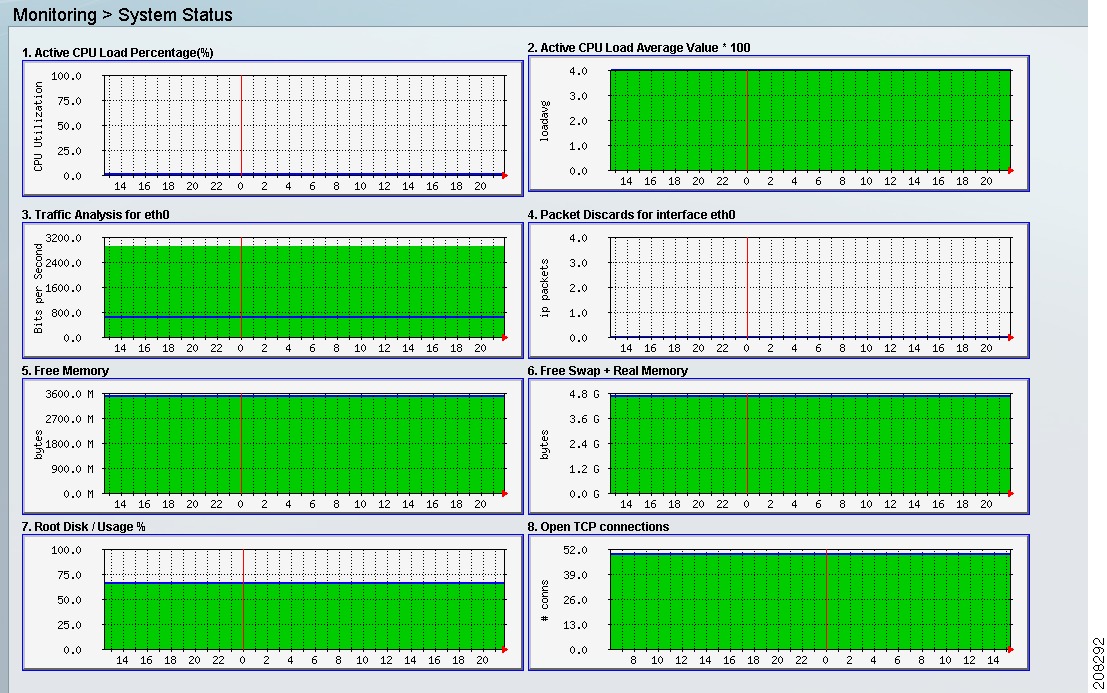

Click System Status in the left navigation to display statistics that are related to system status (see Figure 7-1).
Figure 7-1 Monitoring > System Status
The System Status page provides snapshots of the following:
•
Active CPU Load Percentage
•
•
•
•
•
•
•
Click each snapshot to reveal daily, weekly, monthly and yearly averages.
Process Status

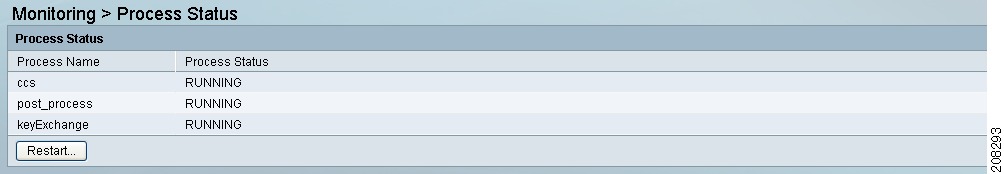

Click Process Status in the left navigation to display processes that are currently running (see Figure 7-2).
Figure 7-2 Monitoring > Process Status
The Process Status page displays a table that provides the following information:
Table 7-1 Process Status Table Field Descriptions
Process Name
Process name
Process Status
Status of this particular process.
•
•
Caution
Hardware Status

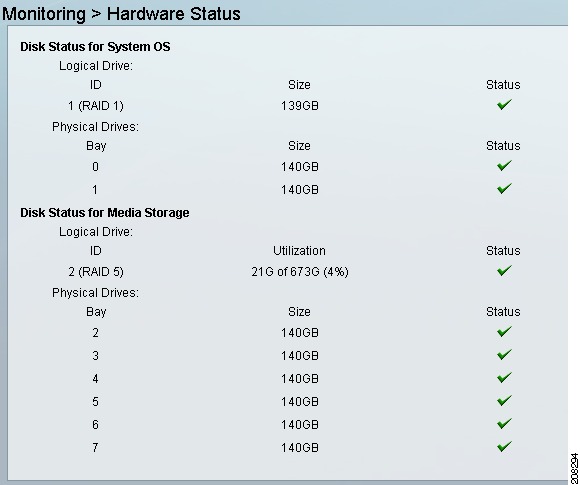

Click Hardware Status in the left menu to display hardware-related information (see Figure 7-3).
Figure 7-3 Monitoring > Hardware Status
The Hardware Status page lists the status of CTRS hardware. The information in this page automatically refreshes every 10 seconds.
