Configuring IGMP Snooping and MVR
This chapter describes how to configure Internet Group Management Protocol (IGMP) snooping on your switch, including an application of local IGMP snooping, Multicast VLAN Registration (MVR). It also includes procedures for controlling multicast group membership by using IGMP filtering.
Note
For complete syntax and usage information for the commands used in this chapter, refer to the Catalyst 2950 Desktop Switch Command Reference for this release and the Cisco IOS Release Network Protocols Command Reference, Part 1, for Release 12.1.
This chapter consists of these sections:
•
•
•
Note
Understanding IGMP Snooping
Internet Group Management Protocol (IGMP) snooping constrains the flooding of multicast traffic by dynamically configuring the interfaces so that multicast traffic is forwarded only to those interfaces associated with IP multicast devices. The LAN switch snoops on the IGMP traffic between the host and the router and keeps track of multicast groups and member ports. When the switch receives an IGMP join report from a host for a particular multicast group, the switch adds the host port number to the associated multicast forwarding table entry. When it receives an IGMP Leave Group message from a host, it removes the host port from the table entry. After it relays the IGMP queries from the multicast router, it deletes entries periodically if it does not receive any IGMP membership reports from the multicast clients.
When IGMP snooping is enabled, the multicast router sends out periodic IGMP general queries to all VLANs. The switch responds to the router queries with only one join request per MAC multicast group, and the switch creates one entry per VLAN in the Layer 2 forwarding table for each MAC group from which it receives an IGMP join request. All hosts interested in this multicast traffic send join requests and are added to the forwarding table entry.
Layer 2 multicast groups learned through IGMP snooping are dynamic. However, you can statically configure MAC multicast groups by using the ip igmp snooping vlan static command. If you specify group membership for a multicast group address statically, your setting supersedes any automatic manipulation by IGMP snooping. Multicast group membership lists can consist of both user-defined and IGMP snooping-learned settings.
Catalyst 2950 switches support a maximum of 255 IP multicast groups and support both IGMP version 1 and IGMP version 2.
If a port spanning-tree, a port group, or a VLAN ID change occurs, the IGMP snooping-learned multicast groups from this port on the VLAN are deleted.
In the IP multicast-source-only environment, the switch learns the IP multicast group from the IP multicast data stream and only forwards traffic to the multicast router ports.
Joining a Multicast Group
When a host connected to the switch wants to join an IP multicast group, it sends an IGMP join message, specifying the IP multicast group it wants to join. When the switch receives this message, it adds the port to the IP multicast group port address entry in the forwarding table.
See Figure 16-1. Host 1 wants to join multicast group 224.1.2.3 and multicasts an unsolicited IGMP membership report (IGMP join message) to the group with the equivalent MAC destination address of 0100.5E01.0203. The switch recognizes IGMP packets and forwards them to the CPU. When the CPU receives the IGMP report multicast by Host 1, the CPU uses the information to set up a multicast forwarding table entry as shown in Table 16-1 that includes the port numbers of Host 1 and the router.

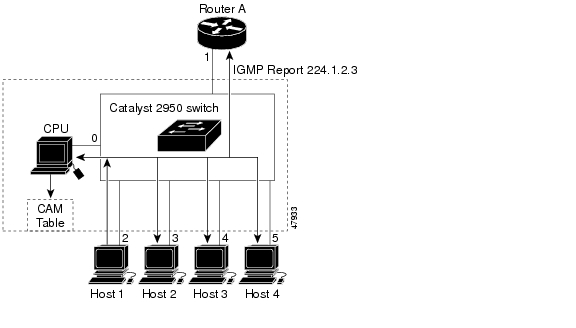

Figure 16-1 Initial IGMP Join Message
Table 16-1 IP Multicast Forwarding Table
0100.5e01.0203
!IGMP
1, 2
Note that the switch architecture allows the CPU to distinguish IGMP information packets from other packets for the multicast group. The switch recognizes the IGMP packets through its filter engine. This prevents the CPU from becoming overloaded with multicast frames.
The entry in the multicast forwarding table tells the switching engine to send frames addressed to the 0100.5E01.0203 multicast MAC address that are not IGMP packets (!IGMP) to the router and to the host that has joined the group.
If another host (for example, Host 4) sends an IGMP join message for the same group (Figure 16-2), the CPU receives that message and adds the port number of Host 4 to the multicast forwarding table as shown in Table 16-2.
Figure 16-2 Second Host Joining a Multicast Group
Table 16-2 Updated Multicast Forwarding Table
0100.5e01.0203
!IGMP
1, 2, 5
Leaving a Multicast Group
The router sends periodic IP multicast general queries, and the switch responds to these queries with one join response per MAC multicast group. As long as at least one host in the VLAN needs multicast traffic, the switch responds to the router queries, and the router continues forwarding the multicast traffic to the VLAN. The switch only forwards IP multicast group traffic to those hosts listed in the forwarding table for that IP multicast group.
When hosts need to leave a multicast group, they can either ignore the periodic general-query requests sent by the router, or they can send a leave message. When the switch receives a leave message from a host, it sends out a group-specific query to determine if any devices behind that interface are interested in traffic for the specific multicast group. If, after a number of queries, the router processor receives no reports from a VLAN, it removes the group for the VLAN from its multicast forwarding table.
Immediate-Leave Processing
IGMP snooping Immediate-Leave processing allows the switch to remove an interface that sends a leave message from the forwarding table without first sending out MAC-based general queries to the interface. The VLAN interface is pruned from the multicast tree for the multicast group specified in the original leave message. Immediate-Leave processing ensures optimal bandwidth management for all hosts on a switched network, even when multiple multicast groups are in use simultaneously.
Note
Configuring IGMP Snooping
IGMP snooping allows switches to examine IGMP packets and make forwarding decisions based on their content. To enable IGMP snooping on the switch to discover external multicast routers, the Layer 3 interfaces on the routers in the VLAN must already have been configured for multicast routing.
These sections describe how to configure IGMP snooping:
•
•
•
•
•
Default IGMP Snooping Configuration
Table 16-3 shows the default IGMP snooping configuration.
Enabling or Disabling IGMP Snooping
By default, IGMP snooping is globally enabled on the switch. When globally enabled or disabled, it is also enabled or disabled in all existing VLAN interfaces. By default, IGMP snooping is enabled on all VLANs, but it can be enabled and disabled on a per-VLAN basis.
Global IGMP snooping overrides the VLAN IGMP snooping. If global snooping is disabled, you cannot enable VLAN snooping. If global snooping is enabled, you can enable or disable VLAN snooping.
Beginning in privileged EXEC mode, follow these steps to globally enable IGMP snooping on the switch:
To globally disable IGMP snooping on all VLAN interfaces, use the no ip igmp snooping global configuration command.
Beginning in privileged EXEC mode, follow these steps to enable IGMP snooping on a VLAN interface:
To disable IGMP snooping on a VLAN interface, use the no ip igmp snooping vlan vlan-id global configuration command for the specified VLAN number (for example, vlan1).
Setting the Snooping Method
Multicast-capable router ports are added to the forwarding table for every IP multicast entry. The switch learns of such ports through one of these methods:
•
•
•
You can configure the switch to either snoop on PIM/DVMRP packets or to listen to CGMP self-join packets. By default, the switch snoops on PIM/DVMRP packets on all VLANs. To learn of multicast router ports through only CGMP self-join packets, use the ip igmp snooping vlan vlan-id mrouter learn cgmp global configuration command. When this command is used, the router listens only to CGMP self-join packets and no other CGMP packets. To learn of multicast router ports through only PIM-DVMRP packets, use the ip igmp snooping vlan vlan-id mrouter learn pim-dvmrp global configuration command.
Beginning in privileged EXEC mode, follow these steps to configure the multicast router learning method:
This example shows how to configure IGMP snooping to use CGMP packets as the learning method:
Switch# configure terminalSwitch(config)# ip igmp snooping vlan 1 mrouter learn cgmpSwitch(config)# endSwitch# show ip igmp snooping vlan 1vlan 1----------IGMP snooping is globally enabledIGMP snooping is enabled on this VlanIGMP snooping immediate-leave is disabled on this VlanIGMP snooping mrouter learn mode is cgmp on this VlanTo return to the default learning method, use the no ip igmp snooping vlan vlan-id mrouter learn cgmp global configuration command.
Configuring a Multicast Router Port
To add a multicast router port (add a static connection to a multicast router), use the ip igmp snooping vlan mrouter global configuration command on the switch.
Beginning in privileged EXEC mode, follow these steps to enable a static connection to a multicast router:
To remove a multicast router port from the VLAN, use the no ip igmp snooping vlan vlan-id mrouter interface interface-id global configuration command.
This example shows how to enable a static connection to a multicast router and verify the configuration:
Switch# configure terminalSwitch(config)# ip igmp snooping vlan 200 mrouter interface gigabitethernet0/2Switch(config)# endSwitch# show ip igmp snooping mrouter vlan 200vlan ports-----+----------------------------------------200 Gi0/2(static)Configuring a Host Statically to Join a Group
Ports normally join multicast groups through the IGMP report message, but you can also statically configure a host on an interface.
Beginning in privileged EXEC mode, follow these steps to add a port as a member of a multicast group:
To remove the port from the multicast group, use the no ip igmp snooping vlan vlan-id static mac-address interface interface-id global configuration command.
This example shows how to statically configure a host on an interface and verify the configuration:
Switch# configure terminalSwitch(config)# ip igmp snooping vlan 1 static 0100.5e00.0203 interface gigabitethernet0/1Switch(config)# endSwitch# show mac-address-table multicast vlan 1Vlan Mac Address Type Ports---- ----------- ---- -----1 0100.5e00.0203 USER Gi0/1Enabling IGMP Immediate-Leave Processing
When you enable IGMP Immediate-Leave processing, the switch immediately removes a port from the IP multicast group when it detects an IGMP version 2 leave message on that port. Immediate-Leave processing allows the switch to remove an interface that sends a leave message from the forwarding table without first sending out group-specific queries to the interface. You should use the Immediate-Leave feature only when there is only a single receiver present on every port in the VLAN.
Immediate-Leave is supported only with IGMP version 2 hosts.
Beginning in privileged EXEC mode, follow these steps to enable IGMP Immediate-Leave processing:
To disable Immediate-Leave processing, use the no ip igmp snooping vlan vlan-id immediate-leave global configuration command.
This example shows how to enable IGMP immediate-leave processing on VLAN 130 and verify the configuration:
Switch# configure terminalSwitch(config)# ip igmp snooping vlan 130 immediate-leaveSwitch(config)# endSwitch# show ip igmp snooping vlan 130vlan 130----------IGMP snooping is globally enabledIGMP snooping is enabled on this VlanIGMP snooping immediate-leave is enabled on this VlanIGMP snooping mrouter learn mode is pim-dvmrp on this VlanDisplaying IGMP Snooping Information
You can display IGMP snooping information for dynamically learned and statically configured router ports and VLAN interfaces. You can also display MAC address multicast entries for a VLAN configured for IGMP snooping.
To display IGMP snooping information, use one or more of the privileged EXEC commands in Table 16-4.
Understanding Multicast VLAN Registration
Multicast VLAN Registration (MVR) is designed for applications using wide-scale deployment of multicast traffic across an Ethernet ring-based service provider network (for example, the broadcast of multiple television channels over a service-provider network). MVR allows a subscriber on a port to subscribe and unsubscribe to a multicast stream on the network-wide multicast VLAN. It allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. MVR provides the ability to continuously send multicast streams in the multicast VLAN, but to isolate the streams from the subscriber VLANs for bandwidth and security reasons.
MVR assumes that subscriber ports subscribe and unsubscribe (join and leave) these multicast streams by sending out IGMP join and leave messages. These messages can originate from an IGMP version-2-compatible host with an Ethernet connection. Although MVR operates on the underlying mechanism of IGMP snooping, the two features operate independently of each other. One can be enabled or disabled without affecting the behavior of the other feature. However, if IGMP snooping and MVR are both enabled, MVR only reacts to join and leave messages from multicast groups configured under MVR. Join and leave messages from all other multicast groups are managed by IGMP snooping.
The switch CPU identifies the MVR IP multicast streams and their associated MAC addresses in the switch forwarding table, intercepts the IGMP messages, and modifies the forwarding table to include or remove the subscriber as a receiver of the multicast stream, even though the receivers might be in a different VLAN from the source. This forwarding behavior selectively allows traffic to cross between different VLANs.
The Catalyst 2950 switch has dynamic and compatible modes of MVR operation:
•
•
Using MVR in a Multicast Television Application
In a multicast television application, a PC or a television with a set-top box can receive the multicast stream. Multiple set-top boxes or PCs can be connected to one subscriber port, which is a switch port configured as an MVR receiver port. Refer to Figure 16-3. DHCP assigns an IP address to the set-top box or the PC. When a subscriber selects a channel, the set-top box or PC sends an IGMP report to the S1 switch to join the appropriate multicast. If the IGMP report matches one of the configured multicast MAC addresses, the switch CPU modifies the hardware address table to include this receiver port and VLAN as a forwarding destination of the specified multicast stream when it is received from the multicast VLAN. Uplink ports that send and receive multicast data to and from the multicast VLAN are called MVR source ports.
When a subscriber changes channels or turns off the television, the set-top box sends an IGMP leave message for the multicast stream. The switch CPU sends an IGMP group-specific query through the receiver port VLAN. If there is another set-top box in the VLAN still subscribing to this group, that set-top box must respond within the maximum response time. If the CPU does not receive a response, it eliminates the receiver port as a forwarding destination for this group.
If the Immediate-Leave feature is enabled on a receiver port, the port leaves a multicast group more quickly. Without Immediate Leave, when the switch receives an IGMP leave message from a subscriber on a receiver port, it sends out an IGMP query on that port and waits for IGMP group membership reports. If no reports are received in a configured time period, the receiver port is removed from multicast group membership. With Immediate Leave, an IGMP query is not sent from the receiver port on which the IGMP leave was received. As soon as the leave message is received, the receiver port is removed from multicast group membership, which speeds up leave latency. Only enable the Immediate Leave feature on receiver ports to which a single receiver device is connected.

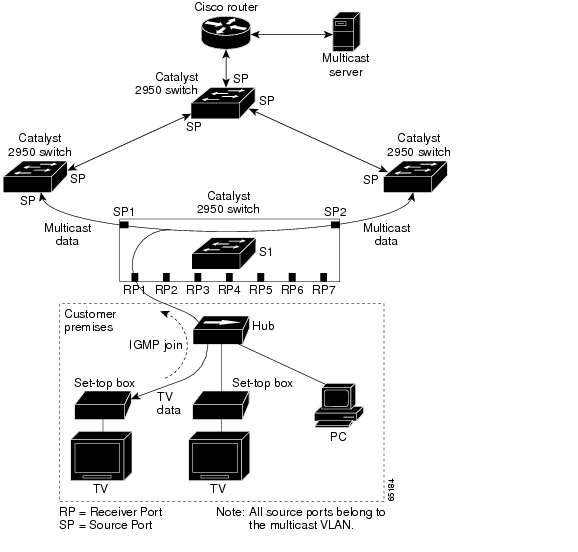

Figure 16-3 Multicast VLAN Registration Example
MVR eliminates the need to duplicate television-channel multicast traffic for subscribers in each VLAN. Multicast traffic for all channels is sent only once around the VLAN trunk—only on the multicast VLAN. Although the IGMP leave and join messages originate with a subscriber, they appear to be initiated by a port in the multicast VLAN rather than in the VLAN to which the subscriber port is assigned. These messages dynamically register for streams of multicast traffic in the multicast VLAN on the Layer 3 device. The access layer switch (S1 switch) modifies the forwarding behavior to allow the traffic to be forwarded from the multicast VLAN to the subscriber port in a different VLAN, selectively allowing traffic to cross between two VLANs.
IGMP reports are sent to the same MAC addresses as the multicast data. The S1 CPU must capture all IGMP join and leave messages from receiver ports and forward them to the multicast VLAN of the source (uplink) port.
Configuring MVR
These sections include basic MVR configuration information:
•
•
Configuration Guidelines and Limitations
Follow these guidelines when configuring MVR:
•
•
•
Note
Default MVR Configuration
Table 16-5 shows the default MVR configuration.
Configuring MVR Global Parameters
You do not need to set the optional MVR parameters if you choose to use the default settings. If you do want to change the default parameters (except for the MVR VLAN), you must first enable MVR.
Beginning in privileged EXEC mode, follow these steps to configure MVR parameters:
This example shows how to enable MVR, configure the MVR group address, set the query time to 1 second (10 tenths), specify the MVR multicast VLAN as VLAN 22, set the MVR mode as dynamic, and verify the results:
Switch(config)# mvrSwitch(config)# mvr group 228.1.23.4Switch(config)# mvr querytime 10Switch(config)# mvr vlan 22Switch(config)# mvr mode dynamicSwitch(config)# endSwitch# show mvrMVR Running: TRUEMVR multicast vlan: 22MVR Max Multicast Groups: 256MVR Current multicast groups: 256MVR Global query response time: 10 (tenths of sec)MVR Mode: dynamicYou can use the show mvr members privileged EXEC command to verify the MVR multicast group addresses on the switch.
Configuring MVR Interfaces
Beginning in privileged EXEC mode, follow these steps to configure MVR interfaces:
This example shows how to configure Gigabit Ethernet port 0/2 as a receiver port, statically configure the port to receive multicast traffic sent to the multicast group address, configure Immediate Leave on the interface, and verify the results:
Switch(config)# mvrSwitch(config)# interface gigabitethernet0/2Switch(config-if)# mvr type receiverSwitch(config-if)# mvr vlan 22 group 228.1.23.4Switch(config-if)# mvr immediateSwitch(config)# endSwitch# show mvr interface gigabitethernet0/2Type: RECEIVER Status: ACTIVE Immediate Leave: ENABLEDThis example shows the results of the show mvr interface privileged EXEC command when the members keyword is included:
Switch# show mvr interface gigabitethernet0/6 members239.255.0.0 DYNAMIC ACTIVE239.255.0.1 DYNAMIC ACTIVE239.255.0.2 DYNAMIC ACTIVE239.255.0.3 DYNAMIC ACTIVE239.255.0.4 DYNAMIC ACTIVE239.255.0.5 DYNAMIC ACTIVE239.255.0.6 DYNAMIC ACTIVE239.255.0.7 DYNAMIC ACTIVE239.255.0.8 DYNAMIC ACTIVE239.255.0.9 DYNAMIC ACTIVEDisplaying MVR Information
You can display MVR information for the switch or for a specified interface.
Beginning in privileged EXEC mode, use the commands in Table 16-6 to display MVR configuration:
This example shows the results of the show mvr privileged EXEC command:
Switch# show mvrMVR Running: TRUEMVR multicast vlan: 1MVR Max Multicast Groups: 256MVR Current multicast groups: 256MVR Global query response time: 5 (tenths of sec)MVR Mode: compatibleThis example shows the results of the show mvr interface privileged EXEC command:
Switch# show mvr interfacePort Type Status Immediate Leave---- ---- ------- ---------------Gi0/1 SOURCE ACTIVE/UP DISABLEDGi0/2 SOURCE ACTIVE/UP DISABLEDGi0/3 RECEIVER ACTIVE/UP DISABLEDGi0/4 RECEIVER ACTIVE/UP DISABLEDGi0/5 RECEIVER ACTIVE/UP ENABLEDGi0/6 RECEIVER ACTIVE/UP DISABLEDGi0/7 RECEIVER ACTIVE/UP ENABLEDGi0/8 RECEIVER ACTIVE/UP DISABLEDThis example shows the results of the show mvr interface privileged EXEC command for a specified interface:
Switch# show mvr interface gigabitethernet0/2Type: RECEIVER Status: ACTIVE Immediate Leave: DISABLEDThis example shows the results of the show mvr interface privileged EXEC command when the members keyword is included:
Switch# show mvr interface gigabitethernet0/1 members239.255.0.0 DYNAMIC ACTIVE239.255.0.1 DYNAMIC ACTIVE239.255.0.2 DYNAMIC ACTIVE239.255.0.3 DYNAMIC ACTIVE239.255.0.4 DYNAMIC ACTIVE239.255.0.5 DYNAMIC ACTIVE239.255.0.6 DYNAMIC ACTIVE239.255.0.7 DYNAMIC ACTIVE239.255.0.8 DYNAMIC ACTIVE239.255.0.9 DYNAMIC ACTIVEThis example shows the results of the show mvr members privileged EXEC command:
Switch# show mvr membersMVR Group IP Status Members------------ ------ -------239.255.0.1 ACTIVE Gi0/1(d), Gi0/5(s)239.255.0.2 INACTIVE None239.255.0.3 INACTIVE None239.255.0.4 INACTIVE None239.255.0.5 INACTIVE None239.255.0.6 INACTIVE None239.255.0.7 INACTIVE None239.255.0.8 INACTIVE None239.255.0.9 INACTIVE None239.255.0.10 INACTIVE None<output truncated>239.255.0.255 INACTIVE None239.255.1.0 INACTIVE NoneConfiguring IGMP Filtering
In some environments, for example metropolitan or multiple-dwelling unit (MDU) installations, an administrator might want to control the set of multicast groups to which a user on a switch port can belong. This allows the administrator to control the distribution of multicast services, such as IP/TV, based on some type of subscription or service plan. With the IGMP filtering feature, you can filter multicast joins on a per-port basis by configuring IP multicast profiles and associating them with individual switch ports. An IGMP profile can contain one or more multicast groups and specifies whether access to the group is permitted or denied. If an IGMP profile denying access to a multicast group is applied to a switch port, the IGMP join report requesting the stream of IP multicast traffic is dropped, and the port is not allowed to receive IP multicast traffic from that group. If the filtering action permits access to the multicast group, the IGMP report from the port is forwarded for normal processing.
IGMP filtering controls only IGMP queries and membership join reports and has no relationship with the function that directs the forwarding of IP multicast traffic. The filtering feature operates in the same manner whether CGMP or MVR is used to forward the multicast traffic.
You can also set the maximum number of IGMP groups that an interface can join.
Default IGMP Filtering Configuration
Table 16-5 shows the default IGMP filtering configuration.
Configuring IGMP Profiles
To configure an IGMP profile, use the ip igmp profile global configuration command with a profile number to create an IGMP profile and to enter IGMP profile configuration mode. From this mode, you can specify the parameters of the IGMP profile to be used for filtering IGMP join requests from a port. When you are in IGMP profile configuration mode, you can create the profile by using these commands:
•
•
•
•
•
The default is for the switch to have no IGMP profiles configured. When a profile is configured, if neither the permit nor deny keyword is included, the default is to deny access to the range of IP addresses.
Beginning in privileged EXEC mode, follow these steps to create an IGMP profile:
To delete a profile, use the no ip igmp profile profile number global configuration command.
To delete an IP multicast address or range of IP multicast addresses, use the no range ip multicast address IGMP profile configuration command.
This example shows how to create IGMP profile 4 allowing access to the single IP multicast address and how to verify the configuration. If the action was to deny (the default), it would not appear in the show ip igmp profile output display.
Switch # configure terminalSwitch(config) # ip igmp profile 4Switch(config-igmp-profile)# permitSwitch(config-igmp-profile)# range 229.9.9.0Switch(config-igmp-profile)# endSwitch# show ip igmp profile 4IGMP Profile 4permitrange 229.9.9.0 229.9.9.0Applying IGMP Profiles
To control access as defined in an IGMP profile, use the ip igmp filter interface configuration command to apply the profile to the appropriate interfaces. You can apply IGMP profiles to Layer 2 ports only; you cannot apply IGMP profiles to SVIs.You can apply a profile to multiple interfaces, but each interface can only have one profile applied to it.
Beginning in privileged EXEC mode, follow these steps to apply an IGMP profile to a switch port:
To remove a profile from an interface, use the no ip igmp filter profile number interface configuration command.
This example shows how to apply IGMP profile 4 to an interface and verify the configuration.
Switch # configure terminalSwitch(config)# interface fastethernet0/12Switch(config-if)# ip igmp filter 4Switch(config-if)# endSwitch# show running-config interface fastethernet0/12Building configuration...Current configuration : 123 bytes!interface FastEthernet0/12no ip addressshutdownsnmp trap link-statusip igmp max-groups 25ip igmp filter 4endSetting the Maximum Number of IGMP Groups
You can set the maximum number of IGMP groups that an interface can join. Use the no form of this command to set the maximum back to the default, which is no limit.
Beginning in privileged EXEC mode, follow these steps to apply an IGMP profile to a switch port:
To remove the maximum group limitation and return to the default of no maximum, use the no ip igmp max-groups interface configuration command.
This example shows how to limit the number of IGMP groups that an interface can join to 25.
Switch# configure terminalSwitch(config)# interface fastethernet0/12Switch(config-if)# ip igmp max-groups 25Switch(config-if)# endSwitch# show running-config interface fastethernet0/12Building configuration...Current configuration : 123 bytes!interface FastEthernet0/12no ip addressshutdownsnmp trap link-statusip igmp max-groups 25ip igmp filter 4endDisplaying IGMP Filtering Configuration
You can display IGMP profile characteristics, and you can display the IGMP profile and maximum group configuration for all interfaces on the switch or for a specified interface.
Beginning in privileged EXEC mode, use the commands in Table 16-8 to display IGMP filtering configuration:
This is an example of output from the show ip igmp profile privileged EXEC command when no profile number is entered. All profiles defined on the switch appear.
Switch# show ip igmp profileIGMP Profile 3range 230.9.9.0 230.9.9.0IGMP Profile 4permitrange 229.9.9.0 229.255.255.255This is an example of the output from the show running-config privileged EXEC command when an interface is specified with IGMP maximum groups configured and IGMP profile 4 has been applied to the interface.
Switch# show running-config interface fastethernet0/12Building configuration...Current configuration : 123 bytes!interface FastEthernet0/12no ip addressshutdownsnmp trap link-statusip igmp max-groups 25ip igmp filter 4end
