Quick Start and Documentation Guide for the Cisco 2200 Series NAM Appliance
Revised: November 6, 2008, 78-18440-01This guide contains the following:
•
Information about the user documentation for the NAM appliance and NAM 4.0 software
•
•
CDC Date: January 2009
Contents
This document contains the following sections:
•
•
Introduction
The Cisco 2200 Series NAM appliance comes preloaded with Cisco Network Analysis Module (NAM), 4.0 software. NAM 4.0 software enables network managers to understand, manage, and improve how applications and services are delivered to end-users.
The NAM offers flow-based traffic analysis of applications, hosts, and conversations, performance-based measurements on application, server, and network latency, quality of experience metrics for network-based services such as voice over IP (VoIP) and video, and problem analysis using deep, insightful packet captures.
The Cisco NAM includes an embedded, web-based Traffic Analyzer GUI that provides quick access to the configuration menus and presents easy-to-read performance reports on web for different types of services and traffic including voice and video, response time, and network flow-based reports.
Product Documentation Set
This section provides a list of the Cisco 2200 Series NAM appliance documentation and the related Cisco NAM 4.0 software documentation. You can find links to all NAM software at the following URL:
http://www.cisco.com/en/US/products/sw/cscowork/ps5401/tsd_products
_support_series_home.htmlCisco 2200 Series NAM Appliance Documentation
The following documents are specific to the Cisco 2200 Series NAM appliances:
•
•
•
•
Quick Start and Documentation Guide for the Cisco 2200 Series NAM Appliance
78-18440-01
The Quick Start and Documentation Guide for the Cisco 2200 Series NAM Appliance (this document), contains a description of the documentation for the NAM appliance and NAM 4.0 software and information about how to get started with the NAM appliance.
The Quick Start and Documentation Guide for the Cisco 2200 Series NAM Appliance is a printed document that ships with the NAM appliance and is also available online at the following URLs:
Installation and Configuration Guide for the Cisco 2204 NAM Appliance
OL-14943-01
The Installation and Configuration Guide for the Cisco 2204 NAM Appliance provides information to help you install and configure the NAM 2204 appliance. This guide includes overview information and details about how to install the appliance, connect the appliance to power and the device it monitors, configure the appliance, log in, and get started setting up the appliance to monitor the device.
The Installation and Configuration Guide for the Cisco 2204 NAM Appliance is an online only document you can find at the following URL:
Installation and Configuration Guide for the Cisco 2220 NAM Appliance
OL-16692-01
The Installation and Configuration Guide for the Cisco 2220 NAM Appliance provides information to help you install and configure the NAM 2220 appliance. This guide includes overview information and details about how to install the appliance, connect the appliance to power and the device it monitors, configure the appliance, log in, and get started setting up the appliance to monitor the device.
The Installation and Configuration Guide for the Cisco 2220 NAM Appliance is an online only document you can find at the following URL:
Regulatory Compliance and Safety Information for the Cisco 2200 Series NAM Appliances
78-18308-01
The Regulatory Compliance and Safety Information for the Cisco 2200 Series NAM Appliances is a printed document that ships with the NAM appliance and is also available online at the following URLs:
The Regulatory Compliance and Safety Information for the Cisco 2200 Series NAM Appliances contains regulatory compliance and safety information for the Cisco 2200 Series NAM appliances.
Cisco NAM 4.0 Software Documentation
The following is a list of the documentation for Cisco Network Analysis Module, Release 4.0.
Note
•
•
•
•
You can access the URLs listed for each document on the Documentation CD-ROM and at www.cisco.com on the World Wide Web. You can access all product documentation at the following URL:
http://www.cisco.com/en/US/products/sw/cscowork/ps5401/tsd_products
_support_series_home.htmlRelease Notes for the Cisco Network Analysis Module, Release 4.0
OL-14944-01
The Release Notes for the Cisco Network Analysis Module provide a collection of information including software and hardware compatibility and information about new features, requirements, and anomalies that might exist.
User Guide for the Cisco Network Analysis Module Traffic Analyzer, Release 4.0
OL-14964-01
The User Guide for the Cisco Network Analysis Module Traffic Analyzer describes how to use the Network Analysis Module Traffic Analyzer and NAM 4.0 user software.
http://cisco.com/en/US/docs/net_mgmt/network_analysis_module_software/4.0/user/guide/users.html
Cisco NAM Command Reference, Release 4.0
OL-14941-01
The Cisco NAM Command Reference, Release 4.0 provides information about how to use the NAM command-line interface to manage the NAM devices supported by NAM 4.0 software including:
•
•
•
•
•
•
•
•
•
•
•
Copyright Notices for the Cisco Network Analysis Module, Release 4.0
OL-14961-01
The Copyright Notices for the Cisco Network Analysis Module, Release 4.0 provides a listing of all copyright notices for the open source third-party software used in NAM 4.0.
Getting Started with the NAM Appliance
This section provides a brief description of how to get started with the Cisco 2200 Series NAM appliance and includes links to other documentation for more detailed information.
This section contains the following topics:
•
•
•
•
•
•
Review Safety Information
Before you begin the installation, make sure you review the safety information in the following documents:
•
or
•
•
Install the NAM Appliance In a Rack
For safety and stability, we recommend that you install your Cisco 2200 Series NAM appliance in a rack. A 4-post rack-mount kit was shipped with your appliance. For more detailed information, see the following sections in Chapter 4 of your appliance's installation and configuration guide:
•
•
•
or
Connect the Appliance AC Power
When installing the appliance, use the provided AC power cord.
The AC power cord is considered the primary disconnect for the appliance and must be readily accessible when installed. If the appliance power cord is not readily accessible for disconnection then you must install an AC power disconnect for the entire rack. This disconnect must be readily accessible, and it must be properly labeled as the controlling power to the entire rack, not just to the appliance.
For more detailed information see the section, Cisco 2204 NAM Appliance Power, in Chapter 4 of the Installation and Configuration Guide for the Cisco 2204 NAM Appliance:
Or see the section, Cisco 2220 NAM Appliance Power, in Chapter 4 of the Installation and Configuration Guide for the Cisco 2220 NAM Appliance.
Connect the NAM Appliance to a Device
After you install it in a rack, connect the NAM appliance to a switch or router, the device to be managed or monitored. See Chapter 4 of the Installation and Configuration Guide for the Cisco 2204 NAM Appliance, Connecting the Network and Management Cables:
Or see the Installation and Configuration Guide for the Cisco 2220 NAM Appliance, Connecting the Network and Management Cables:
Turning On Power
Do not turn on power until you have completed all cable connections for the Cisco 2200 Series NAM appliance.
Figure 1 shows the front panel buttons and LED indicators of the Cisco 2204 NAM appliance. Location 2 is the power button.
Figure 1 Cisco 2204 NAM Appliance Buttons and LED Indicators
USB Port
Hard Disk Activity Indicator
Appliance Power Button
NIC 1 LED
Appliance power Indicator
NIC 2 LED
Figure 2 shows the front panel buttons and LED indicators of the Cisco 2220 NAM appliance. Location 9 is the power button.
Figure 2 Cisco 2220 NAM Appliance Buttons and LED Indicators
Logging In For the First Time
After you turn power on and boot the Cisco 2200 Series NAM appliance for the first time, the login prompt displays on an attached console or remote device. When shipped from the factory, the root user is preconfigured on the Cisco 2200 Series NAM appliance. The default password for the root user is root.
Note
To log in to the Cisco 2200 Series NAM appliance for the first time, open a console session or a serial session with the NAM appliance:
Note
Step 1
nam.localdomain login: root
Step 2
After you enter the ID and password, you will be prompted to change the root password.
Cisco NAM 2220 Appliance (NAM2220)nam.localdomain login: rootPassword: rootCisco NAM 2220 Appliance (NAM2220) Console, 4.0Copyright (c) 1999-2008 by Cisco Systems, Inc.System Alert! Default password has not been changed!Please enter a new root user password.Enter new UNIX password:Step 3
Retype new UNIX password:passwd: password updated successfullyroot@nam.localdomain#We recommend that you make a record of the password, and store this information in a secure location. You should change this password regularly in accordance with your site's password security policies.
Initial Configuration of the NAM Appliance
After you first log in to the Cisco 2200 Series NAM appliance from the management console, enter the following CLI commands with the appropriate information for your site.
Step 1
ip address ip-address subnet-mask
Step 2
ip broadcast broadcast-address
Step 3
ip gateway ip-address
Step 4
exsession on (for Telnet)
or
exsession on ssh (for SSH)
To configure the NAM appliance to enable SSH access:
root@localhost# exsession on ssh
Note
Step 5
ip domain name
Step 6
The syntax for this command is as follows:
ip host name
Step 7
The syntax for this command is as follows:
ip nameserver ip-address [ip-address] [ip-address}
Check Your Configuration
After you finish configuring the NAM appliance for network connectivity, it is a good idea to check your connectivity and verify the IP parameters you have just configured for the NAM appliance.
Step 1
Step 2
Enable the NAM Traffic Analyzer Web Server
Perform the following to enable the NAM Traffic Analyzer web server and browser-based access to the NAM Traffic Analyzer graphical user interface (GUI).
Note
If you plan to use the HTTP secure server (HTTPs), you must first download and install the NAM software K9 cryptographic patch. For detailed information, see the following URL:
http://www.cisco.com/en/US/products/products_security
_advisory09186a00801c110e.shtmlTo enable the NAM web server:
Step 1
Step 2
a.
ip http server enable
b.
ip http secure server enable
Step 3
Step 4
Note
Using the NAM GUI
You use a web browser such as Internet Explorer or Firefox to access the NAM graphical user interface (GUI). Launch your browser and enter the IP address or full hostname of the Cisco 2200 Series NAM appliance in the browser's address field, if configured, as in the following:
http://209.165.202.130
or
http://machine_name.domain
When the login window appears, enter your administrator username and password, then click Login.

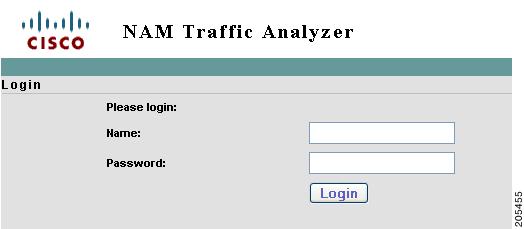

Figure 3 NAM Login Window
After you log in through the NAM Traffic Analyzer login window, you have access to the NAM graphical user interface (GUI). The NAM GUI is a browser-based interface that uses six main windows for you to set up and use the NAM. The six main windows are:
•
•
•
•
•
•
For detailed information about how to use the NAM GUI, see the User Guide for the Network Analysis Module Traffic Analyzer for your NAM software release.
http://cisco.com/en/US/docs/net_mgmt/network_analysis_module_software/4.0/user/guide/users.html
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS Version 2.0.
