To display information about Simple Network Time Protocol (SNTP) clock adjustments, use the debugsntpadjust command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsntpadjust
nodebugsntpadjust
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Examples
The following is sample output from the debugsntpadjust command when an offset to the time reported by the configured NTP server is calculated. The offset indicates the difference between the router time and the actual time (as kept by the server) and is displayed in milliseconds. The clock time is then successfully changed to the accurate time by adding the offset to the current router time.
The following is sample output from the debugsntpadjust command when an offset to the time reported by a broadcast server is calculated. Because the packet is a broadcast packet, no transmission delay can be calculated. However, in this case, the offset is too large, so the clock is reset to the correct time.
To display information about Simple Network Time Protocol (SNTP) packets sent and received, use the
debugsntppackets command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugsntppackets
nodebugsntppackets
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Examples
The following is sample output from the
debugsntppackets command when a message is received:
Router# debug sntp packets
Received SNTP packet from 172.16.186.66, length 48
leap 0, mode 1, version 3, stratum 4, ppoll 1024
rtdel 00002B00, rtdsp 00003F18, refid AC101801 (172.16.24.1)
ref B7237786.ABF9CDE5 (23:28:06.671 UTC Tue May 13 1997)
org 00000000.00000000 (00:00:00.000 UTC Mon Jan 1 1900)
rec 00000000.00000000 (00:00:00.000 UTC Mon Jan 1 1900)
xmt B7237B5C.A7DE94F2 (23:44:28.655 UTC Tue May 13 1997)
inp AF3BD529.810B66BC (00:19:53.504 UTC Mon Mar 1 1993)
The following is sample output from the
debugsntppackets command when a message is sent:
Router# debug sntp packets
Sending SNTP packet to 172.16.25.1
xmt AF3BD455.FBBE3E64 (00:16:21.983 UTC Mon Mar 1 1993)
The table below describes the significant fields shown in the display.
Table 1 debug sntp packets Field Descriptions
Field
Description
length
Length of the SNTP packet.
leap
Indicates if a leap second will be added or subtracted.
mode
Indicates the mode of the router relative to the server sending the packet.
version
SNTP version number of the packet.
stratum
Stratum of the server.
ppoll
Peer polling interval.
rtdel
Total delay along the path to the root clock.
rtdsp
Dispersion of the root path.
refid
Address of the server that the router is currently using for synchronization.
ref
Reference time stamp.
org
Originate time stamp. This value indicates the time the request was sent by the router.
rec
Receive time stamp. This value indicates the time the request was received by the SNTP server.
xmt
Transmit time stamp. This value indicates the time the reply was sent by the SNTP server.
inp
Destination time stamp. This value indicates the time the reply was received by the router.
debug sntp select
To display information about Simple Network Time Protocol (SNTP) server selection, use the debugsntpselect command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsntpselect
nodebugsntpselect
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Examples
The following is sample output from the debugsntpselect command. In this example, the router will synchronize its time to the server at 172.16.186.66.
To debug software authenticity events, use the
debugsoftwareauthenticity command in priveleged EXEC mode. To disable debugging, use the
no form of this command.
Enables the display of all debugging output related to software authentication envelope events.
errors
Enables the display of all debugging output related to software authentication errors.
key
Enables the display of all debugging output related to software authentication key events.
revocation
Enables the display of all debugging output related to software authentication revocation events.
show
Enables the display of all debugging output related to the show software authenticity file, show software authenticity keys, and show software authenticity running commands.
verbose
Enables the display of all debugging output related to software authentication errors and events.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
15.0(1)M
This command was introduced for the Cisco 1941, 2900, and 3900 routers.
15.0(1)M2
This command was modified. The revocation keyword was added.
15.1(1)T
This command was integrated into Cisco IOS Release 15.1(1)T.
Usage Guidelines
Use the debug software authenticity command to enable debugging related to software authentication events.
Use the command in conjunction with the show software authenticity file, show software authenticity keys, show software authenticity running, and show software authenticity upgrade-status commands in order to display the debugging-related messages. For further information on these commands, see the
Cisco IOS Master Command List, All Releases.
Examples
The following example enables the display of debugging output related to software authentication errors:
Router# debug software authenticity errors
Software Authenticity Errors debugging is on
The following example enables the display of debugging output related to software authentication key errors, and the output from the show software authenticity keys command displays the key information related to software authentication debugging:
Router# debug software authenticity key
Software Authenticity Key debugging is on
Router# show software authenticity keys
Public Key #1 Information
-------------------------
Key Type : Release (Primary)
Public Key Algorithm : RSA
Modulus :
CC:CA:40:55:8C:71:E2:4A:3A:B6:9D:5C:94:1D:02:BA:
.....
26:04:6B:33:EB:70:2B:18:24:C7:D9:31:3E:77:24:85
Exponent : xxx
Key
*May 14 23:23:13.988: code_sign_parse_key_record: START. list offset:(0), tlv tag: 0xAE, tlv len: 281
*May 14 23:23:13.988: code_sign_parse_key_record: Tag (0xAE) found at offset: 0, list_offset: 0
*May 14 23:23:13.988: code_sign_parse_key_record: key_rec_len: 281, pub key size: 288, offset: 3
*May 14 23:23:13.988: code_sign_parse_key_record: Key Start magic: 0xxxxxxxD, at offset: 3
*May 14 23:23:13.988: code_sign_validate_key_end_magic: End Magic (0xBEEFCAFE) found at the end of the key record (292)
*May 14 23:23:13.988: code_sign_parse_key_record: Tlv start offset: 7, pub key size: 288
*May 14 23:23:13.988: code_sign_parse_key_record: Tag (Key Type:(0x1) found at offset: 7
*May 14 23:23:13.988: code_sign_parse_key_record: We increment offset by sizeof tlv: 3, size of len: 2
*May 14 23:23:13.988: code_sign_parse_key_record: Key Type: 0x1, offset: 11
*May 14 23:23:13.988: code_sign_parse_key_record: Tag (Signature Algorithm:(0x2) found at offset: 11
*May 14 23:23:13.988: code_sign_parse_key_record: We increment offset by sizeof tlv: 3, size of len: 2
*May 14 23:23:13.988: code_sign_parse_key_record: Signature Algo: 0x1, offset: 15
*May 14 23:23:13.988: code_sign_parse_key_record: Tag (Key Info Length:(0x3) found at offset: 15
*May 14 23:23:13.988: code_sign_parse_key_record: We increment offset by sizeof tlv: 3, size of len: 2
*May 14 23:23:13.988: code_sign_parse_key_record:Length (266) for type (Key Info Length), offset: 18
*May 14 23:23:13.988: code_sign_parse_key_record: Key Info Len: 266, offset: 18
*May 14 23:23:13.988: code_sign_parse_key_record: Tag (Modulus:(xxx) found at offset: 18
*May 14 23:23:13.988: code_sign_parse_key_record: We increment offset by sizeof tlv: 3, size of len: 2
*May 14 23:23:13.988: code_sign_parse_key_record: offset: 277, Modulus size: (xxx)
CCCA40558C71E24A3AB69D5C941D02BA63CDF0202FC6CBC1D73E8F27E3DA6DC615EB2FD0A66643D82BE17F3CE8.....
47AE5135955C58B164320B925608DA4002B75FB01EFEC2691B188D6FB2E3AFE8F453888FE063B4304DDC2EB25B
*May 14 23:23:13.988: code_sign_parse_key_record: Tag (Public Exponent:(xxx) found at offset: 277
*May 14 23:23:13.988: code_sign_parse_key_record: We increment offset by sizeof tlv: 3, size of len: 2
*May 14 23:23:13.988: code_sign_parse_key_record: offset: 284, Public Exponent size: (xxx), public exponent: xxx
*May 14 23:23:13.988: code_sign_parse_key_record: Tag (Key Version:(0x6) found at offset: 284
*May 14 23:23:13.988: code_sign_parse_key_record: We increment offset by sizeof tlv: 3, size of len: 2
*May 14 23:23:13.988: code_sign_parse_key_record: Key Version: 0x41, offset: 288
*May 14 23:23:13.988: code_sign_parse_key_record: END. offset (292), bitlist: (0x3F)Version : A
The following example enables the display of debugging output related to software authentication errors and events (the full range of messages), and the output from the show software authenticity file command displays the file information related to software authentication debugging:
Router# debug software authenticity verbose
Software Authenticity Verbose debugging is on
Router# show software authenticity file flash0:c3900-universalk9-mz.SSA
##################
Signature Envelope
Version 1.xxx
hdr_length xxx
signer_id_len xxx
signer_name CN=CiscoSystems;OU=C3900;O=CiscoSystems
ca serial num len xxx
ca_serial_num xxx
ca_name CN=CiscoSystems;OU=C3900;O=CiscoSystems
digest_algo xxx
sign_algo xxx
mod_size xxx
key_type xxx
key_version 0xx1
signature length xxx
signature TLV offset xxx
signature 4F94AC7EAA7B9B9EAE66EFA8BF426C3BFE622D7C651A35F686F7DD7FBF329317B269CAEADB5679834B93BF2C91.....
F160EF79B82AB41176975D024D1DA9EB75499BC139BFED9AF8D3F4DFAE35BFC0CDA1519F7CD9C8EB08D8D09D18
--More--
*May 28 08:05:44.487: code_sign_get_image_type: filename:flash0:c3900-universalk9-mz.SSA
*May 28 08:05:44.487: cs_open: Opened file flash0:c3900-universalk9-mz.SSA with fd=13
*May 28 08:05:44.491: code_sign_get_image_type: image type found: image (elf) (3)
*May 28 08:05:44.491: code_sign_get_image_envelope Start, fd(13)
*May 28 08:05:44.491: code_sign_get_number_of_sections num_sections: 7
*May 28 08:05:44.547: code_sign_get_image_envelope:SHA2 Note Section found at iter: 6
*May 28 08:05:44.547: code_sign_get_image_envelope: Note name len(n_namesz): 13, Signature Env Len(n_descz): 388
*May 28 08:05:44.547: code_sign_get_image_envelope: sizeof elf_note_hdr: 12, size of Elf32_Nhdr: 12
*May 28 08:05:44.547: code_sign_get_image_envelope: Note Name:(CISCO SYSTEMS) fo ##################
File Name : flash0:c3900-universalk9-mz.SSA
Image type : Development
Signer Information
Common Name : xxx
Organization Unit : xxx
Organization Name : xxx
Certificate Serial Number : xxx
Hash Algorithm : SHA512
Signature Algorithm : 2048-bit RSA
Key Version : A
Related Commands
Command
Description
showsoftwareauthenticityfile
Displays information related to software authentication for the loaded image file.
showsoftwareauthenticitykeys
Displays the software public keys that are in the storage with the key types.
showsoftwareauthenticityrunning
Displays software authenticity information for the current ROMmon and Cisco IOS image used for booting.
showsoftwareauthenticityupgrade-status
Displays software authenticity information indicating if the digitally signed software has been signed with a new production key after a production key revocation.
debug source bridge
To
display information about packets and frames transferred across a source-route bridge, use the debugsourcebridge
command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsourcebridge
nodebugsourcebridge
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Examples
The following is sample output from the debugsourcebridgecommand for peer bridges using
TCP as a transport mechanism. The
remote source-route bridging (RSRB) network configuration has ring 2 and ring 1 bridged together through remote peer bridges. The remote peer bridges are connected via a serial line and use TCP as the transport mechanism.
Router# debug source bridge
RSRB: remote explorer to 5/192.108.250.1/1996 srn 2 [C840.0021.0050.0000]
RSRB: Version/Ring XReq sent to peer 5/192.108.250.1/1996
RSRB: Received version reply from 5/192.108.250.1/1996 (version 2)
RSRB: DATA: 5/192.108.250.1/1996 Ring Xchg Rep, trn 2, vrn 5, off 18, len 10
RSRB: added bridge 1, ring 1 for 5/192.108.240.1/1996
RSRB: DATA: 5/192.108.250.1/1996 Explorer trn 2, vrn 5, off 18, len 69
RSRB: DATA: 5/192.108.250.1/1996 Forward trn 2, vrn 5, off 0, len 92
RSRB: DATA: forward Forward srn 2, br 1, vrn 5 to peer 5/192.108.250.1/1996
The following line indicates that a remote explorer frame has been sent to IP address 192.108.250.1 and, like all RSRB TCP connections, has been assigned port 1996. The bridge belongs to ring group 5. The explorer frame originated from ring 2. The routing information field (RIF) descriptor has been generated by the local station and indicates that the frame was sent out via bridge 1 onto virtual ring 5.
RSRB: remote explorer to 5/192.108.250.1/1996 srn 2 [C840.0021.0050.0000]
The following line indicates that a request for remote peer information has been sent to IP address 192.108.250.1, TCP port 1996. The bridge belongs to ring group 5.
RSRB: Version/Ring XReq sent to peer 5/192.108.250.1/1996
The following line is the response to the version request previously sent. The response is sent from IP address 192.108.250.1, TCP port 1996. The bridge belongs to ring group 5.
RSRB: Received version reply from 5/192.108.250.1/1996 (version 2)
The following line is the response to the ring request previously sent. The response is sent from IP address 192.108.250.1, TCP port 1996. The target ring number is 2, virtual ring number is 5, the offset is 18, and the length of the frame is 10 bytes.
RSRB: DATA: 5/192.108.250.1/1996 Ring Xchg Rep, trn 2, vrn 5, off 0, len 10
The following line indicates that bridge 1 and ring 1 were added to the source-bridge table for IP address 192.108.250.1, TCP port 1996:
RSRB: added bridge 1, ring 1 for 5/192.108.250.1/1996
The following line indicates that a packet containing an
explorer
frame came across virtual ring 5 from IP address 192.108.250.1, TCP port 1996. The packet is 69 bytes in length. This packet is received after the Ring Exchange information was received and updated on both sides.
RSRB: DATA: 5/192.108.250.1/1996 Explorer trn 2, vrn 5, off 18, len 69
The following line indicates that a packet containing data came across virtual ring 5 from IP address 192.108.250.1 over TCP port 1996. The packet is being placed on the local target ring 2. The packet is 92 bytes in length.
RSRB: DATA: 5/192.108.250.1/1996 Forward trn 2, vrn 5, off 0, len 92
The following line indicates that a packet containing data is being forwarded to the peer that has IP address 192.108.250.1 address belonging to local ring 2 and bridge 1. The packet is forwarded via virtual ring 5. This packet is sent after the Ring Exchange information was received and updated on both sides.
The following is sample output from the debugsourcebridgecommand for
peer
bridges using direct encapsulation as a transport mechanism. The RSRB network configuration has ring 1 and ring 2 bridged together through peer bridges. The peer bridges are connected via a serial line and use TCP as the transport mechanism.
Router# debug source bridge
RSRB: remote explorer to 5/Serial1 srn 1 [C840.0011.0050.0000]
RSRB: Version/Ring XReq sent to peer 5/Serial1
RSRB: Received version reply from 5/Serial1 (version 2)
RSRB: IFin: 5/Serial1 Ring Xchg, Rep trn 0, vrn 5, off 0, len 10
RSRB: added bridge 1, ring 1 for 5/Serial1
The following line indicates that a remote explorer frame was sent to remote peer Serial1, which belongs to ring group 5. The explorer frame originated from ring 1. The RIF descriptor 0011.0050 was generated by the local station and indicates that the frame was sent out via bridge 1 onto virtual ring 5.
RSRB: remote explorer to 5/Serial1 srn 1 [C840.0011.0050.0000]
The following line indicates that a request for remote peer information was sent to Serial1. The bridge belongs to ring group 5.
RSRB: Version/Ring XReq sent to peer 5/Serial1
The following line is the response to the version request previously sent. The response is sent from Serial 1. The bridge belongs to ring group 5 and the version is 2.
RSRB: Received version reply from 5/Serial1 (version 2)
The following line is the response to the ring request previously sent. The response is sent from Serial1. The target ring number is 2, virtual ring number is 5, the offset is 0, and the length of the frame is 39 bytes.
RSRB: IFin: 5/Serial1 Ring Xchg Rep, trn 2, vrn 5, off 0, len 39
The following line indicates that bridge 1 and ring 1 were added to the source-bridge table for Serial1:
RSRB: added bridge 1, ring 1 for 5/Serial1
debug source error
To display source-route bridging (SRB) errors, use the debugsourceerror command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsourceerror
nodebugsourceerror
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
The debug source error command displays some output also found in the debugsourcebridge output. See the debugsourcebridge command for other possible output.
Examples
In all of the following examples of debugsourceerror command messages, the variable number is the Token Ring interface. For example, if the line of output starts with SRB1, the output relates to the Token Ring 1 interface. SRB indicates a source-route bridging message. RSRB indicates a remote source-route bridging message. SRTLB indicates a source-route translational bridging (SR/TLB) message.
In the following example, a packet of protocol protocol-type was dropped:
SRB
number
drop: Routed protocol
protocol-type
In the following example, an Address Resolution Protocol (ARP) packet was dropped. ARP is defined in RFC 826.
SRB
number
drop:TYPE_RFC826_ARP
In the following example, the current Cisco IOS version does not support Qualified Logical Link Control (QLLC). Reconfigure the router with an image that has the IBM feature set.
RSRB: QLLC not supported in version version
Please reconfigure.
In the following example, the packet was dropped because the outgoing interface of the router was down:
RSRB IF: outgoing interface not up, dropping packet
In the following example, the router received an out-of-sequence IP sequence number in a Fast Sequenced Transport (FST) packet. FST has no recovery for this problem like TCP encapsulation does.
RSRB FST: bad sequence number dropping.
In the following example, the router was unable to locate the virtual interface:
RSRB: couldn't find virtual interface
In the following example, the TCP queue of the peer router is full. TCPD indicates that this is a TCP debug.
RSRB TCPD: tcp queue full for peer
In the following example, the router was unable to send data to the peer router. A result of 1 indicates that the TCP queue is full. A result of --1 indicates that the RSRB peer is closed.
RSRB TCPD: tcp send failed for peer result
In the following example, the routing information identifier (RII) was not set in the explorer packet going forward. The packet will not support SRB, so it is dropped.
vrforward_explorer - RII not set
In the following example, a packet sent to a virtual bridge in the router did not include a routing information field (RIF) to tell the router which route to use:
RSRB: no RIF on packet sent to virtual bridge
The following example indicates that the RIF did not contain any information or the length field was set to zero:
RSRB: RIF length of zero sent to virtual bridge
The following message occurs when the local service access point (LSAP) is out of range. The variable lsap-outis the value, type is the type of RSRB peer, and state is the state of the RSRB peer.
VRP: rsrb_lsap_out = lsap-out, type = type, state = state
In the following message, the router is unable to find another router with which to exchange bridge protocol data units (BPDUs). BPDUs are exchanged to set up the spanning tree and determine the forwarding path.
RSRB(span): BPDU's peer not found
Related Commands
Command
Description
debugsourcebridge
Displays information about packets and frames transferred across a source-route bridge.
debugsourceevent
Displays information on SRB activity.
debug source event
To display information on source-route bridging (SRB) activity, use the
debugsourceevent command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugsourceevent
nodebugsourceevent
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Some of the output from the
debugsourcebridge anddebugsourceerror commands is identical to the output of this command.
Note
In order to use the
debugsourceevent command to display traffic source-routed through an interface, you first must disable fast switching of SRB frames with the
nosourcebridgeroute-cache interface configuration command.
Examples
The following is sample output from the
debugsourceevent command:
The table below describes the significant fields shown in the display.
Table 2 debug source event Field Descriptions
Field
Description
RSRB0:
Indication that this routing information field (RIF) cache entry is for the Token Ring interface 0, which has been configured for remote source-route bridging (SRB). (SRB1, in contrast, would indicate that this RIF cache entry is for Token Ring 1, configured for SRB.)
forward
Forward (normal data) packet, in contrast to a control packet containing proprietary Cisco bridging information.
srn 5
Ring number of the source ring of the packet.
bn 1
Bridge number of the bridge this packet traverses.
trn 10
Ring number of the target ring of the packet.
src: 8110.2222.33c1
Source address of the route in this RIF cache entry.
dst: 1000.5a59.04f9
Destination address of the route in this RIF cache entry.
[0800.3201.00A1.0050]
RIF string in this RIF cache entry.
In the following example messages, SRBnumber or RSRBnumberdenotes a message associated with interface Token Ring
number. A
numberof 99 denotes the remote side of the network.
SRB
number
: no path, s:
source-MAC-addr
d:
dst-MAC-addr
rif:
rif
In the preceding example, a bridgeable packet came in on interface Token Ring
numberbut there was nowhere to send it. This is most likely a configuration error. For example, an interface has source bridging turned on, but it is not connected to another source bridging interface or a ring group.
In the following example, a bridgeable packet has been forwarded from Token Ring
number to the target ring. The two interfaces are directly linked.
SRB
number
: direct forward (srn
ring
bn
bridge
trn
ring
)
In the following examples, a proxy explorer reply was not generated because the address could not be reached from this interface. The packet came from the node with the first
address.
SRB
number
: br dropped proxy XID,
address
for
address
, wrong vring (rem)
SRB
number
: br dropped proxy TEST,
address
for
address
, wrong vring (rem)
SRB
number
: br dropped proxy XID,
address
for
address
, wrong vring (local)
SRB
number
: br dropped proxy TEST,
address
for
address
, wrong vring (local)
SRB
number
: br dropped proxy XID,
address
for
address
, no path
SRB
number
: br dropped proxy TEST,
address
for
address
, no path
In the following example, an appropriate proxy explorer reply was generated on behalf of the second
address. It is sent to the first
address.
SRB
number
: br sent proxy XID,
address
for
address
[
rif
]
SRB
number
: br sent proxy TEST,
address
for
address
[
rif
]
The following example indicates that the broadcast bits were not set, or that the routing information indicator on the packet was not set:
The following example indicates that the direction bit in the RIF field was set, or that an odd packet length was encountered. Such packets are dropped.
SRB
number
: bad explorer control, D set or odd
The following example indicates that a spanning explorer was dropped because the spanning option was not configured on the interface:
The following example indicates that an explorer was dropped because the maximum hop count limit was reached on that interface:
SRB
number
: max hops reached -
hop-cnt
, s:
source-MAC-addr
d:
dst-MAC-addr
rif:
rif
The following example indicates that the ring exchange request was sent to the indicated peer. This request tells the remote side which rings this node has and asks for a reply indicating which rings that side has.
RSRB: sent RingXreq to
ring-group
/
ip-addr
The following example indicates that a message was sent to the remote peer. The
label variable can be AHDR (active header), PHDR (passive header), HDR (normal header), or DATA (data exchange), and
op can be Forward, Explorer, Ring Xchg, Req, Ring Xchg, Rep, Unknown Ring Group, Unknown Peer, or Unknown Target Ring.
RSRB:
label
: sent
op
to
ring-group
/
ip-addr
The following example indicates that the remote bridge and ring pair were removed from or added to the local ring group table because the remote peer changed:
RSRB: removing bn
bridge
rn
ring
from
ring-group
/
ip-addr
RSRB: added bridge
bridge
, ring
ring
for
ring-group
/
ip-addr
The following example shows miscellaneous remote peer connection establishment messages:
RSRB: peer
ring-group
/
ip-addr
closed [last state
n
]
RSRB: passive open
ip-addr
(remote port) ->
local port
RSRB: CONN: opening peer
ring-group
/
ip-addr
, attempt
n
RSRB: CONN: Remote closed
ring-group
/
ip-addr
on open
RSRB: CONN: peer
ring-group
/
ip-addr
open failed,
reason
[
code
]
The following example shows that an explorer packet was propagated onto the local ring from the remote ring group:
RSRBn: sent local explorer, bridge
bridge
trn
ring
, [
rif
]
The following messages indicate that the RSRB code found that the packet was in error:
RSRBn: ring group
ring-group
not found
RSRBn: explorer rif [
rif
] not long enough
The following example indicates that a buffer could not be obtained for a ring exchange packet (this is an internal error):
RSRB: couldn’t get pak for ringXchg
The following example indicates that a ring exchange packet was received that had an incorrect length (this is an internal error):
The following example indicates that a ring entry was removed for the peer; the ring was possibly disconnected from the network, causing the remote router to send an update to all its peers.
RSRB: removing bridge
bridge
ring
ring
from
peer-id
ring-type
The following example indicates that a ring entry was added for the specified peer; the ring was possibly added to the network, causing the other router to send an update to all its peers.
RSRB: added bridge
bridge
, ring
ring
for
peer-id
The following example indicates that no memory was available to add a ring number to the ring group specified (this is an internal error):
RSRB: no memory for ring element
ring-group
The following example indicates that memory was corrupted for a connection block (this is an internal error):
RSRB: CONN: corrupt connection block
The following example indicates that a connector process started, but that there was no packet to process (this is an internal error):
RSRB: CONN: warning, no initial packet, peer:
ip-addr peer-pointer
The following example indicates that a packet was received with a version number different from the one pre-sent on the router:
RSRB: IF New version. local=
local-version
, remote=
remote-version
,
pak-op-code
peer-id
The following example indicates that a packet with a bad op code was received for a direct encapsulation peer (this is an internal error):
RSRB: IFin: bad op
op-code
(op code
string
) from
peer-id
The following example indicates that the virtual ring header will not fit on the packet to be sent to the peer (this is an internal error):
RSRB: vrif_sender, hdr won't fit
The following example indicates that the specified peer is being opened. The retry count specifies the number of times the opening operation is attempted.
RSRB: CONN: opening peer
peer-id
retry-count
The following example indicates that the router, configured for FST encapsulation, received a version reply to the version request packet it had sent previously:
RSRB: FST Rcvd version reply from
peer-id
(version
version-number
)
The following example indicates that the router, configured for FST encapsulation, sent a version request packet to the specified peer:
RSRB: FST Version Request. op =
opcode
,
peer-id
The following example indicates that the router received a packet with a bad op code from the specified peer (this is an internal error):
RSRB: FSTin: bad op
opcode
(op code
string
) from
peer-id
The following example indicates that the TCP connection between the router and the specified peer is being aborted:
The following example indicates that an attempt to establish a TCP connection to a remote peer timed out:
RSRB: CONN: attempt timed out
The following example indicates that a packet was dropped because the ring group number in the packet did not correlate with the ring groups configured on the router:
RSRB
number
: ring group
ring-group
not found
debug span
To display information on changes in the spanning-tree topology when debugging a transparent bridge, use the
debugspan command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugspan
nodebugspan
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
This command is useful for tracking and verifying that the spanning-tree protocol is operating correctly.
Examples
The following is sample output from the
debugspan command for an IEEE bridge protocol data unit (BPDU) packet:
The following is sample output from the
debugspan command:
E1 19 01 00 0002 00000C01A2C9 0064 0080 00000C0106CE 0A 01 05 0F 1E 6A
A B C D E F G H I J K L M N O
The table below describes the significant fields shown in the display.
Table 4 debug span Field Descriptions for a DEC BPDU Packet
Field
Description
ST:
Indication that this is a spanning tree packet.
Ethernet4
Interface receiving the packet.
(A) E1
Indication that this is a DEC BPDU packet.
(B) 19
Indication that this is a DEC hello packet. Possible values are as follows:
0x19--DEC Hello
0x02--TCN
(C) 01
DEC version.
(D) 00
Flag that is a bit field with the following mapping:
1--TCN
2--TCN acknowledgment
8--Use short timers
(E) 0002
Root priority.
(F) 00000C01A2C9
Root ID ( MAC address).
(G) 0064
Root path cost (translated as 100 in decimal notation).
(H) 0080
Bridge priority.
(I) 00000C0106CE
Bridge ID.
(J) 0A
Port ID (in contrast to interface number).
(K) 01
Message age (in seconds).
(L) 05
Hello time (in seconds).
(M) 0F
Maximum age (in seconds).
(N) 1E
Forward delay (in seconds).
(O) 6A
Not applicable.
debug spanning-tree
To debug spanning-tree activities, use the debugspanning-treecommand in privilegedEXECmode. To disable debugging output, use the no form of this command.
Displays debugging messages for BackboneFast events.
bpdu
Displays debugging messages for spanning-tree Bridge Protocol Data Units (BPDUs).
bpdu-opt
Displays debugging messages for optimized BPDU handling.
config
Displays debugging messages for spanning-tree configuration changes.
etherchannel
Displays debugging messages for EtherChannel support.
events
Displays debugging messages for spanning-tree topology events.
exceptions
Displays debugging messages for spanning-tree exceptions.
general
Displays debugging messages for general spanning-tree activity.
pvst+
Displays debugging messages for per-VLAN Spanning Tree Plus (PVST+) events.
root
Displays debugging messages for spanning-tree root events.
snmp
Displays debugging messages for spanning-tree Simple Network Management Protocol (SNMP) handling.
uplinkfast
Displays debugging messages for UplinkFast events.
Command Default
Debugging is disabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.1(6)EA2
This command was introduced.
12.2(15)ZJ
This command was implemented on the following platforms: Cisco 2600 series, Cisco 3600 series, and Cisco 3700 series routers.
12.3(4)T
This command was integrated into Cisco IOS Release 12.3(4)T on the following platforms: Cisco 2600 series, Cisco 3600 series, and Cisco 3700 series routers.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
Usage Guidelines
This command is supported only by the Supervisor Engine and can be entered only from the switch console.
The undebugspanning-tree command is the same as the nodebugspanning-tree command.
Related Commands
Command
Description
showdebugging
Displays information about the types of debugging that are enabled.
showspanning-tree
Displays spanning-tree state information.
debug ss7 mtp1
Note
Use this command only if told to do so by your Cisco representative.
To initiate Signaling System 7 (SS7) Message Transfer Part Level 1 (MTP1) debugging, enter the debugss7mtp1command in global configuration mode during a low-traffic period. To disable debugging output, use the no form of this command.
(Optional) Initiates SS7 MTP1 debugging for receive events. Not used in Release 12.2(11)T.
scc-regs
(Optional) Initiates SS7 MTP1 debugging for SCC registers. Not used in Release 12.2(11)T.
siram
(Optional) Initiates SS7 MTP1 debugging for siram values. Not used in Release 12.2(11)T.
tdm-info
(Optional) Initiates SS7 MTP1 debugging for time-division multiplexing (TDM) information.
tx
(Optional) Initiates SS7 MTP1 debugging for transmission events. Not used in Release 12.2(11)T.
Command Default
Debug is disabled.
Command Modes
Global configuration
Command History
Release
Modification
12.2(11)T
This command was introduced on the Cisco AS5350 and Cisco AS5400 Signaling Link Terminal (SLT).
Usage Guidelines
The following debug commands are not used in this release:
debugss7mtp1rx
debugss7mtp1tx
debugss7mtp1scc-regs
debugss7mtp1siram
Examples
To turn on message tracing between the host processor and the trunk firmware for each trunk card inserted, use the debugss7mtp1ipc command.
For example, there is a digital link in slot 7, trunk 0, channel-group 0 (therefore, timeslot 1). When you enter showss7mtp1links, the following output is displayed:
Router# show ss7 mtp1 links
SS7 MTP1 Links [num = 1, platform max = 4]:
session
interface type SCC state channel
--------- ----- --- ------- -------
7/0:0 digital 7/3 STOPPED 0
Notice that the link is stopped in this example. Enter the following commands:
Router# debug ss7 mtp1 ipc
Router# configure terminal
Router(config)# interface serial 7/0:0
Router(config-if)# no shutdown
Router(config-if)# end
You would see trace output similar to the following:
In this case, the output means that for the SS7 link that is using SCC3 on the trunk card in slot 7 (link 7/0:0), the host processor has told the board firmware to STOP then START.
To show low-level (MTP1) state changes for the internal state-machine implemented for each SS7 link, use the debugss7mtp1link-state command. The following output shows the different MTP1 states link Serial 7/0:0 goes through during shutdown, no shutdown, and debug.
For example, if you stopped the SS7 link 7/0:0 (shutdown), then restarted it (no shutdown), you could see MTP1 state changes by enabling debugging, as follows:
Router# debug ss7 mtp1 link-state
Router# configure terminal
Router(config)# interface serial 7/0:0
Router(config-if)# shutdown
01:02:20:%TRUNK_SERIAL-3-STATE_GENERIC:
At ../src-7k-as5400/as5400_ss7_link.c:511 [Serial7/0:0]:STOP:
STARTED -> STOP_PENDING
ss7_link_ll_stop 7/0:0:Tx shadow ring has
0 unsent buffers
01:02:20:%TRUNK_SERIAL-3-STATE_GENERIC:
At ../src-7k-as5400/as5400_ss7_link.c:1010 [Serial7/0:0]: FW_STOPPED:
STOP_PENDING -> STOPPED
Now restart the link:
Router(config-if)# no shutdown
01:02:26:ss7_link_start:slot=7/SCCport=3 current state is STOPPED
01:02:26:%TRUNK_SERIAL-3-STATE_GENERIC:
At ../src-7k-as5400/as5400_ss7_link.c:1417 [Serial7/0:0]: START:
STOPPED -> START_PENDING
01:02:26:%TRUNK_SERIAL-3-STATE_GENERIC:
At ../src-7k-as5400/as5400_ss7_link.c:1164 [Serial7/0:0]: STOP_START:
START_PENDING -> STOP_START_PENDING
ss7_link_ll_stop 7/0:0:Tx shadow ring has 0 unsent buffers
01:02:26:%TRUNK_SERIAL-3-STATE_GENERIC:
At ../src-7k-as5400/as5400_ss7_link.c:1010 [Serial7/0:0]: FW_STOPPED:
STOP_START_PENDING -> START_PENDING
01:02:26:%TRUNK_SERIAL-3-STATE_GENERIC:
At ../src-7k-as5400/as5400_ss7_link.c:1234 [Serial7/0:0]: FW_STARTED:
START_PENDING -> STARTED
To show detailed information about how TDM timeslots on the DFC trunk card on the host backplane are allocated and deallocated based on link configuration activity, use the debugss7mtp1tdm-info command.
For example, if you wanted to create a digital SS7 link on timeslot 1 of trunk 0 for an 8PRI board in slot 7, and you would like to see traces of the TDM resources allocated, you would enable TDM debugging using the debugss7mtp1tdm-info command then create the new SS7 link as described above, as in the following example:
Due to the debug flag, the following information is displayed:
05:26:55: ss7_link_flink_tdm_setup:card type for slot 7 is T1 8PRI
05:26:55: ds0-side BEFORE call to tdm_allocate_bp_ts()
slot = 7
unit = 0 (trunk)
channel = 4
stream = 0
group = 0
05:26:55: scc-side BEFORE call to tdm_allocate_bp_ts()
slot = 7
unit = 29
channel = 3 (SCC-port)
stream = 3
group = 0
05:26:55:
05:26:55:TDM(PRI:0x28002000):Close PRI framer st0 ch4
05:26:55:<<< tdm_allocate_bp_ts(ss7_ch) SUCCEEDED >>>
05:26:55:scc-side AFTER call to tdm_allocate_bp_ts()
bp_channel = 4
bp_stream = 0
bp_ts->bp_stream = 0
bp_ts->bp_channel = 4
bp_ts->vdev_slot = 7
bp_ts->vdev_channel = 3
bp_ts->vdev_slot = 7 should be same as the CLI slot, and bp_ts->vdev_channel = 3should be *->channel.
When you later remove the SS7 link, other information is displayed showing how resources are cleaned up.
Related Commands
Command
Description
debugss7sm
Displays debugging messages for an SS7 Session Manager.
debug ss7 mtp2
To trace backhaul Signaling System 7 (SS7) Message Transfer Part Level 2 (MTP2 ) message signaling units (MSUs), enter the debugss7mtp2command in global configuration mode during a low-traffic period. To disable debugging output, use the no form of this command.
(Optional) Initiates low-level MTP2 packet tracing. If you do not specify a channel number or enter the all keyword, the command displays information for channel 0.
rcv
(Optional) Displays information about SS7 MTP2 receiver state machine events and transitions.
suerm
(Optional) Displays information about SS7 MTP2 Signal Unit Error Rate Monitor (SUERM) state machine events and transitions.
timer
(Optional) Displays information about SS7 MTP2 timer starts and stops.
txc
(Optional) Displays information about SS7 MTP2 transmit state machine events and transitions.
channel
(Optional) The channelargument represents a logical channel number. Valid values are from 0 to 3.
Command Default
Debug is disabled.
Command Modes
Global configuration
Command History
Release
Modification
12.0(7)XR
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(11)T
This command was implemented on the Cisco AS5350 and Cisco AS5400 Cisco Signaling Link Terminal (SLT).
Usage Guidelines
If you do not specify a channel number with each keyword, the command displays information for channel 0.
Examples
The following is sample output from the debugss7mtp2aerm command. See the MTP2 specification tables for details:
The following is an example of debugss7mtp2msu command output for channel 2. The output for this command can slow traffic under busy conditions, so enter it when there is low traffic. See the MTP2 specification tables for details about the command output:
Use this command only for testing problems in a controlled environment. This command can generate significant amounts of output. If there is any significant amount of traffic flow when you issue the command, the processor may slow down so much that RUDP connections fail. This command is recommended for field support personnel only, and is not recommended for use without prior recommendation from Cisco.
The following is an example of debugss7mtp2packet command output for channel 0:
Use this command only for testing problems in a controlled environment. This command can generate significant amounts of output. If there is any significant amount of traffic flow when you issue the command, the processor may slow down so much that RUDP connections fail. This command is recommended for field support personnel only, and is not recommended for use without prior recommendation from Cisco.
The following is an example of debugss7mtp2timer command output for channel 0:
Router# debug ss7 mtp2 timer 0
*Mar 1 01:08:13.738: Timer T7 (ex delay) Start chnl=0
*Mar 1 01:08:13.762: Timer T7 (ex delay) Stop chnl=0
*Mar 1 01:08:13.786: Timer T7 (ex delay) Start chnl=0
*Mar 1 01:08:13.810: Timer T7 (ex delay) Stop chnl=0
*Mar 1 01:08:43.819: Timer T7 (ex delay) Start chnl=0
*Mar 1 01:08:43.843: Timer T7 (ex delay) Stop chnl=0
*Mar 1 01:08:48.603: Timer T7 (ex delay) Start chnl=0
*Mar 1 01:08:48.627: Timer T7 (ex delay) Stop chnl=0
*Mar 1 01:09:13.784: Timer T7 (ex delay) Start chnl=0
*Mar 1 01:09:13.808: Timer T7 (ex delay) Stop chnl=0
*Mar 1 01:09:13.885: Timer T7 (ex delay) Start chnl=0
*Mar 1 01:09:13.909: Timer T7 (ex delay) Stop chnl=0
Caution
Use this command only for testing problems in a controlled environment. This command can generate significant amounts of output. If there is any significant amount of traffic flow when you issue the command, the processor may slow down so much that RUDP connections fail. This command is recommended for field support personnel only, and is not recommended for use without prior recommendation from Cisco.
The following is an example of debugss7mtp2txc command output for channel 2. The transmission control is functioning and updating backward sequence numbers (BSNs). See the MTP2 specification for details:
The following MTP2 specification tables explain codes that appear in the command output.
Backhaul Debug Event Codes
Description
0x0
Local processor outage
0x1
Local processor outage recovered
0x2
Entered a congested state
0x3
Exited a congested state
0x4
Physical layer up
0x5
Physical layer down
0x7
Protocol error (see cause code)
0x8
Link alignment lost
0x9
Retransmit buffer full
0xa
Retransmit buffer no longer full
0xc
Remote entered congestion
0xd
Remote exited congestion
0xe
Remote entered processor outage
0xf
Remote exited processor outage
Backhaul Debug Cause Codes
Description
0x0
Cause unknown--default
0x1
Management initiated
0x2
Abnormal BSN (backward sequence number)
0x3
Abnormal FIB (Forward Indicator Bit)
0x4
Congestion discard
Backhaul Debug Reason Codes
Description
0x0
Layer management request
0x1
SUERM (Signal Unit Error Monitor) failure
0x2
Excessively long alignment period
0x3
T7 timer expired
0x4
Physical interface failure
0x5
Two or three invalid BSNs
0x6
Two or three invalid FIBs
0x7
LSSU (Link Status Signal Unit) condition
0x13
SIOs (Service Information Octets) received in Link State Control (LSC)
0x14
Timer T2 expired waiting for SIO
0x15
Timer T3 expired waiting for SIE/SIN
0x16
SIO received in initial alignment control (IAC)
0x17
Proving period failure
0x18
Timer T1 expired waiting for FISU (Fill-In Signal Unit)
0x19
SIN received in the in-service state
0x20
CTS lost
0x25
No resources
Related Commands
Command
Description
debugss7sm
Displays debugging messages for an SS7 Session Manager.
debug ss7 sm
To display debugging messages for an Signaling System 7 (SS7) Session Manager, use the debugss7smcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugss7sm
[ sessionsession-id | set | timer ]
nodebugss7smsession
Syntax Description
session
(Optional) Sets Session Manager session debug.
session-id
(Optional) Specifies a session ID number from 0 to 3.
set
(Optional) Sets Session Manager debug.
timer
(Optional) Sets Session Manager timer debug.
Command Default
Debug is disabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(7)XR and 12.1(1)T
This command was introduced.
12.1(1)T
This command was integrated into Cisco IOS Release 12.1(1)T.
12.2(11)T
This command replaces the debugss7smsession command. This command was modified with the session, set, and timer keywords. This command was also modified to support up to four Session Manager sessions.
Usage Guidelines
Use this command to watch the Session Manager and Reliable User Data Protocol (RUDP) sessions. The Session Manager is responsible for establishing the RUDP connectivity to the Virtual Switch Controller (VSC).
Support for up to four Session Manager sessions was added. Session Manager sessions are now numbered 0 to 3. This feature changes the CLI syntax, and adds sessions 2 and 3.
Examples
The following is an example of debugss7sm command output using the session keyword. The Session Manager has established the connection (RUDP_CONN_OPEN_SIG) for session 3.
Router# debug ss7 sm session 3
*Mar 8 09:37:52.119:SM:rudp signal RUDP_SOFT_RESET_SIG, session = 3
*Mar 8 09:37:58.129:SM:rudp signal RUDP_CONN_RESET_SIG, session = 3
*Mar 8 09:37:58.129:SM:Opening session[0] to 10.5.0.4:8060
*Mar 8 09:37:58.137:SM:rudp signal RUDP_CONN_OPEN_SIG, session = 3
The following is an example of debugss7smsessioncommand output for session 0. The Session Manager has established the connection (RUDP_CONN_OPEN_SIG):
Router# debug ss7 sm session 0
*Mar 8 09:37:52.119:SM:rudp signal RUDP_SOFT_RESET_SIG, session = 0
*Mar 8 09:37:58.129:SM:rudp signal RUDP_CONN_RESET_SIG, session = 0
*Mar 8 09:37:58.129:SM:Opening session[0] to 10.5.0.4:8060
*Mar 8 09:37:58.137:SM:rudp signal RUDP_CONN_OPEN_SIG, session = 0
Related Commands
Command
Description
encapsulationss7
Assigns a channel group and selects the DS0 time slots desired for SS7 links.
debug sse
To display information for the
silicon switching engine (SSE) processor, use the debugsse
command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsse
nodebugsse
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Use the debugsse command to display statistics and counters maintained by the SSE.
Examples
The following is sample output from thedebugsse command:
Router# debug sse
SSE: IP number of cache entries changed 273 274
SSE: bridging enabled
SSE: interface Ethernet0/0 icb 0x30 addr 0x29 status 0x21A040 protos 0x11
SSE: interface Ethernet0/1 icb 0x33 addr 0x29 status 0x21A040 protos 0x11
SSE: interface Ethernet0/2 icb 0x36 addr 0x29 status 0x21A040 protos 0x10
SSE: interface Ethernet0/3 icb 0x39 addr 0x29 status 0x21A040 protos 0x11
SSE: interface Ethernet0/4 icb 0x3C addr 0x29 status 0x21A040 protos 0x10
SSE: interface Ethernet0/5 icb 0x3F addr 0x29 status 0x21A040 protos 0x11
SSE: interface Hssi1/0 icb 0x48 addr 0x122 status 0x421E080 protos 0x11
SSE: cache update took 316ms, elapsed 320ms
The following line indicates that the SSE cache is being updated due to a change in the IP fast-switching cache:
SSE: IP number of cache entries changed 273 274
The following line indicates that bridging functions were enabled on the SSE:
SSE: bridging enabled
The following lines indicate that the SSE is now loaded with information about the interfaces:
The following line indicates that the SSE took 316 ms of processor time to update the SSE cache. The value of 320 ms represents the total time elapsed while the cache updates were performed.
SSE: cache update took 316ms, elapsed 320ms
debug ssg ctrl-errors
To display all error messages for control modules, use the debugssgctrl-errors command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugssgctrl-errors
nodebugssgctrl-errors
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(3)DC
This command was introduced on the Cisco 6400 node route processor.
12.2(4)B
This command was integrated into Cisco IOS Release 12.2(4)B.
12.2(8)T
This command was integrated into Cisco IOS Release 12.2(8)T.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
Use this command to show error messages for the control modules. These modules include all those that manage the user authentication and service login and logout (RADIUS, PPP, Subblock, and Accounting). An error message is the result of an error detected during normal execution.
Examples
The following output is generated by using the debugssgctrl-errorscommand when a host logs in to and logs out of a service:
Router# debug ssg ctrl-errors
Mar 29 13:51:30 [192.168.5.1.15.21] 59:00:15:38:%VPDN-6-AUTHORERR:L2F NAS
LowSlot6 cannot locate a AAA server for Vi6 user User1
Mar 29 13:51:31 [192.168.5.1.15.21] 60:00:15:39:%LINEPROTO-5-UPDOWN:Line
protocol on Interface Virtual-Access6, changed state to down
Related Commands
Command
Description
debugssgctrl-events
Displays all event messages for control modules.
debugssgctrl-packets
Displays packet contents handled by control modules.
debug ssg ctrl-events
To display all event messages for control modules, use the debugssgctrl-events command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugssgctrl-events
nodebugssgctrl-events
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(3)DC
This command was introduced on the Cisco 6400 node route processor.
12.2(4)B
This command was integrated into Cisco IOS Release 12.2(4)B.
12.2(8)T
This command was integrated into Cisco IOS Release 12.2(8)T.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
This command displays event messages for the control modules, which include all modules that manage the user authentication and service login and logout (RADIUS, PPP, Subblock, and Accounting). An event message is an informational message generated during normal execution.
Examples
The following output is generated by the debugssgctrl-eventscommand when a host logs in to a service:
Router# debug ssg ctrl-events
Mar 16 16:20:30 [192.168.6.1.7.141] 799:02:26:51:SSG-CTL-EVN:Service logon is accepted.
Mar 16 16:20:30 [192.168.6.1.7.141] 800:02:26:51:SSG-CTL-EVN:Send cmd 11 to host 172.16.6.13. dst=192.168.100.24:36613
Related Commands
Command
Description
debugssgctrl-packets
Displays packet contents handled by control modules.
ssglocal-forwarding
Displays all error messages for control modules.
debug ssg ctrl-packets
To display packet contents handled by control modules, use the debugssgctrl-packets command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugssgctrl-packets
nodebugssgctrl-packets
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(3)DC
This command was introduced on the Cisco 6400 node route processor.
12.2(4)B
This command was integrated into Cisco IOS Release 12.2(4)B.
12.2(8)T
This command was integrated into Cisco IOS Release 12.2(8)T.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
Use this command to show packet messages for the control modules. These modules include all those that manage the user authentication and service login and logout (RADIUS, PPP, Subblock, and Accounting). A packet message displays the contents of a package.
Examples
The following output is generated by using the debugssgctrl-packetscommand when a host logs out of a service:
Router# debug ssg ctrl-packets
Mar 16 16:23:38 [192.168.6.1.7.141] 968:02:30:00:SSG-CTL-PAK:Received Packet:
Mar 16 16:23:38 [192.168.6.1.7.141] 980:02:30:00:SSG-CTL-PAK:Sent packet:
Mar 16 16:23:39 [192.168.6.1.7.141] 991:02:30:00:SSG-CTL-PAK:
Mar 16 16:23:39 [192.168.6.1.7.141] 992:Received Packet:
Related Commands
Command
Description
debugssgctrl-events
Displays all event messages for control modules.
ssglocal-forwarding
Enables NRP-SSG to forward packets locally.
debug ssg data
To display all data-path packets, use the debugssgdatacommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugssgdata
nodebugssgdata
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(3)DC
This command was introduced on the Cisco 6400 node route processor.
12.2(4)B
This command was integrated into Cisco IOS Release 12.2(4)B.
12.2(8)T
This command was integrated into Cisco IOS Release 12.2(8)T.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
The debugssgdata command shows packets for the data modules. These modules include all those that forward data packets (Dynamic Host Configuration Protocol (DHCP), Domain Name System (DNS), tunneling, fast switching, IP stream, and multicast).
Examples
The following output is generated by using the debugssgdatacommand when a host logs in to and out of a service:
Router# debug ssg data
Mar 29 13:45:16 [192.168.5.1.15.21] 45:00:09:24:
SSG-DATA:PS-UP-SetPakOutput=1(Vi6:172.16.5.50->199.199.199.199)
Mar 29 13:45:16 [192.168.5.1.15.21] 46:00:09:24:
SSG-DATA:PS-DN-SetPakOutput=1(Fa0/0/0:171.69.2.132->172.16.5.50)
Mar 29 13:45:16 [192.168.5.1.15.21] 47:00:09:24:
SSG-DATA:FS-UP-SetPakOutput=1(Vi6:172.16.5.50->171.69.43.34)
Mar 29 13:45:16 [192.168.5.1.15.21] 48:00:09:24:
Related Commands
Command
Description
debugssgdata-nat
Displays all data-path packets for NAT processing.
debug ssg data-nat
To display all data-path packets for Network Address Translation (NAT) processing, use the debugssgdata-natcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugssgdata-nat
nodebugssgdata-nat
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(3)DC
This command was introduced on the Cisco 6400 node route processor.
12.2(4)B
This command was integrated into Cisco IOS Release 12.2(4)B.
12.2(8)T
This command was integrated into Cisco IOS Release 12.2(8)T.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
Thedebugssgdata-nat command displays packets for the data modules. These modules include all those that forward NAT data packets.
Examples
The following output is generated by using the debugssgdata-natcommand when a host logs in to and out of a service:
Router# debug ssg data-nat
Mar 29 13:43:14 [192.168.5.1.15.21] 35:00:07:21:SSG-DATA:TranslateIP Dst
199.199.199.199->171.69.2.132
Mar 29 13:43:14 [192.168.5.1.15.21] 36:00:07:21:SSG-DATA:TranslateIP Src
171.69.2.132->199.199.199.199
Mar 29 13:43:30 [192.168.5.1.15.21] 39:00:07:38:SSG-DATA:TranslateIP Dst
199.199.199.199->171.69.2.132
Mar 29 13:43:30 [192.168.5.1.15.21] 40:00:07:38:SSG-DATA:TranslateIP Src
171.69.2.132->199.199.199.199
Related Commands
Command
Description
debugssgdata
Displays all data-path packets.
debug ssg dhcp
To enable the display of control errors and events related to Service Selection Gateway (SSG) Dynamic Host Configuration Protocol (DHCP), use the debug ssg dhcpcommand in privilegedEXECmode. To stop debugging, use the no form of this command.
debugssgdhcp
{ error | event }
[ip-address]
nodebugssgdhcp
{ error | event }
[ip-address]
Syntax Description
error
Enables the display of SSG-DHCP control error information.
event
Enables the display of SSG-DHCP control events information.
ip-address
(Optional) Limits the display of information to the specified IP address.
Command Default
Displays SSG-DHCP information for all IP addresses.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(14)T
This command was introduced.
Examples
Examples
The following example shows user login events when DHCP intercept is enabled using the ssginterceptdhcp command.
debug ssg dhcp
01:01:03: DHCPD: remote id 020a000005010101100000000000
01:01:03: DHCPD: circuit id 00000000
01:01:03: SSG-DHCP-EVN: DHCP-DISCOVER event received. SSG-dhcp awareness feature enabled
01:01:03: DHCPD: DHCPDISCOVER received from client 0063.6973.636f.2d30.3030.632e.3331.6561.2e61.3963.312d.4661.302f.31 on interface FastEthernet1/0.
01:01:03: DHCPD: Seeing if there is an internally specified pool class:
01:01:03: DHCPD: htype 1 chaddr 000c.31ea.a9c1
01:01:03: DHCPD: remote id 020a000005010101100000000000
01:01:03: DHCPD: circuit id 00000000
01:01:03: SSG-DHCP-EVN: Get pool name called for 000c.31ea.a9c1. No hostobject
01:01:03: SSG-DHCP-EVN: Get pool class called, class name =
01:01:03: DHCPD: No internally specified class returned
01:01:03: DHCPD: Sending DHCPOFFER to client 0063.6973.636f.2d30.3030.632e.3331.6561.2e61.3963.312d.4661.302f.31 (5.1.1.2).
01:01:03: DHCPD: child pool: 5.1.1.0 / 255.255.255.0 (Default-pool)
01:01:03: DHCPD: pool Default-pool has no parent.
01:01:03: DHCPD: child pool: 5.1.1.0 / 255.255.255.0 (Default-pool)
01:01:03: DHCPD: pool Default-pool has no parent.
01:01:03: DHCPD: child pool: 5.1.1.0 / 255.255.255.0 (Default-pool)
01:01:03: DHCPD: pool Default-pool has no parent.
01:01:03: DHCPD: broadcasting BOOTREPLY to client 000c.31ea.a9c1.
01:01:03: DHCPD: DHCPREQUEST received from client 0063.6973.636f.2d30.3030.632e.3331.6561.2e61.3963.312d.4661.302f.31.
01:01:03: DHCPD: Sending notification of ASSIGNMENT:
01:01:03: DHCPD: address 5.1.1.2 mask 255.255.255.0
01:01:03: DHCPD: htype 1 chaddr 000c.31ea.a9c1
01:01:03: DHCPD: lease time remaining (secs) = 180
01:01:03: SSG-DHCP-EVN:5.1.1.2: IP address notification received.
01:01:03: SSG-DHCP-EVN:5.1.1.2: HostObject not present
01:01:03: DHCPD: No default domain to append - abort update
01:01:03: DHCPD: Sending DHCPACK to client 0063.6973.636f.2d30.3030.632e.3331.6561.2e61.3963.312d.4661.302f.31 (5.1.1.2).
01:01:03: DHCPD: child pool: 5.1.1.0 / 255.255.255.0 (Default-pool)
01:01:03: DHCPD: pool Default-pool has no parent.
01:01:03: DHCPD: child pool: 5.1.1.0 / 255.255.255.0 (Default-pool)
01:01:03: DHCPD: pool Default-pool has no parent.
01:01:03: DHCPD: child pool: 5.1.1.0 / 255.255.255.0 (Default-pool)
01:01:03: DHCPD: pool Default-pool has no parent.
01:01:03: DHCPD: broadcasting BOOTREPLY to client 000c.31ea.a9c1.
Examples
The following example shows user login errors when a user tries to log into two different services that require IP addresses to be assigned from different pools.
debug ssg dhcp error
01:21:58: SSG-CTL-EVN: Checking maximum service count.
01:21:58: SSG-CTL-EVN: Service logon is accepted.
01:21:58: SSG-CTL-EVN: Activating the ConnectionObject.
01:21:58: SSG-DHCP-ERR:6.2.1.2: DHCP pool name of this service is different from, users already logged in service DHCP pool name
01:21:58: SSG-CTL-EVN: Connection Activation Failed for host 6.2.1.2
01:21:58: SSG-CTL-EVN: Send cmd 11 to host S6.2.1.2. dst=10.76.86.90:42412
01:21:58: SSG-CTL-PAK: Sent packet:
01:21:58: RADIUS: id= 0, code= Access-Reject, len= 79
Related Commands
Command
Description
ssginterceptdhcp
Configures SSG to assign IP addresses from a user’s ISP.
debug ssg errors
To display all error messages for the system modules, use the debugssgerrors command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugssgerrors
nodebugssgerrors
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(3)DC
This command was introduced on the Cisco 6400 node route processor.
12.2(4)B
This command was integrated into Cisco IOS Release 12.2(4)B.
12.2(8)T
This command was integrated into Cisco IOS Release 12.2(8)T.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
The debugssgerrors command displays error messages for the system modules, which include the basic Cisco IOS and other support modules (such as Object Model, Timeout, and Initialization). An error message is the result of an error detected during normal execution.
Examples
The following output is generated by using the debugssgerrors command when a PPP over Ethernet (PPPoE) client logs in with an incorrect password:
Displays packet contents handled by system modules.
debug ssg events
To display event messages for system modules, use the debugssgevents command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugssgevents
nodebugssgevents
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(3)DC
This command was introduced on the Cisco 6400 node route processor.
12.2(4)B
This command was integrated into Cisco IOS Release 12.2(4)B.
12.2(8)T
This command was integrated into Cisco IOS Release 12.2(8)T.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
Thedebugssgeventscommand displays event messages for the system modules, which include the basic Cisco IOS modules and other support modules (such as Object Model, Timeout, and Initialization). An event message is an informational message that appears during normal execution.
Examples
The following output is generated by using the debugssgevents command when a PPP over Ethernet (PPPoE) client logs in with the username “username” and the password “cisco”:
Router# debug ssg events
Mar 16 08:39:39 [192.168.6.1.7.141] 167:00:09:24:%LINK-3-UPDOWN:
Interface Virtual-Access3, changed state to up
Mar 16 08:39:39 [192.168.6.1.7.141] 168:00:09:25:%LINEPROTO-5-UPDOWN:
Line protocol on Interface Virtual-Access3, changed state to up
Mar 16 08:39:40 [192.168.6.1.7.141] 169:00:09:26:%VPDN-6-AUTHORERR:L2F
NAS LowSlot7 cannot locate a AAA server for Vi3 user username
Mar 16 08:39:40 [192.168.6.1.7.141] 170:HostObject::HostObject:size = 256
Mar 16 08:39:40 [192.168.6.1.7.141] 171:HostObject::Reset
Mar 16 08:39:40 [192.168.6.1.7.141] 172:Service List:
Mar 16 08:39:40 [192.168.6.1.7.141] 175:Service = isp-1
Related Commands
Command
Description
debugssgerror
Displays all error messages for the system modules.
debugssgpackets
Displays packet contents handled by system modules.
debug ssg packets
Note
Effective with Release 12.2(13)T, the debugssgpackets command is replaced by the debugssgtcp-redirect command. See the debugssgtcp-redirect command for more information.
To display packet contents handled by system modules, use the debugssgpackets command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugssgpackets
nodebugssgpackets
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(3)DC
This command was introduced on the Cisco 6400 node route processor.
12.2(4)B
This command was integrated into Cisco IOS Release 12.2(4)B.
12.2(8)T
This command was integrated into Cisco IOS Release 12.2(8)T.
12.2(13)T
This command was replaced by the debugssgtcp-redirect command.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
The debugssgpackets command displays packet messages for the system modules, which include the basic Cisco IOS and other support modules (such as Object Model, Timeout, Initialization). A packet message displays the contents of a package.
Examples
The following output is generated by using the debugssgpackets command when a user is running a Telnet session to 192.168.250.12 and pinging 192.168.250.11:
Displays all error messages for the system modules.
debugssgevents
Displays event messages for system modules.
debug ssg port-map
To display debugging messages for port-mapping, use the debugssgport-map command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugssgport-map
{ events | packets }
nodebugssgport-map
{ events | packets }
Syntax Description
events
Displays messages for port-map events: create and remove.
packets
Displays port-map packet contents and port address translations.
Command Default
This command is disabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(2)B
This command was introduced on the Cisco 6400 series.
12.2(2)XB
This command was integrated into Cisco IOS Release 12.2(2)XB.
12.2(13)T
This command was integrated into Cisco IOS Release 12.2(13)T.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
This command displays debugging messages for the creation of port maps.
Examples
Using the debugssgport-map command generates the following output when a subscriber logs in to a service:
Router# debug ssg port-map events
SSG port-map events debugging is on
Router# show debug
SSG:
SSG port-map events debugging is on
Router#
00:46:09:SSG-PMAP:Changing state of port-bundle 70.13.60.3:65 from FREE to RESERVED
00:46:09:SSG-PMAP:Changing state of port-bundle 70.13.60.3:65 from RESERVED to INUSE
00:46:10:%LINEPROTO-5-UPDOWN:Line protocol on Interface Virtual-Access2, changed state to up
Router#
00:46:25:SSG-PMAP:Allocating new port-mapping:[4148<->1040] for port-bundle 70.13.60.3:65
00:46:29:SSG-PMAP:Allocating new port-mapping:[4149<->1041] for port-bundle 70.13.60.3:65
00:46:31:SSG-PMAP:Allocating new port-mapping:[4150<->1042] for port-bundle 70.13.60.3:65
00:46:31:SSG-PMAP:Allocating new port-mapping:[4151<->1043] for port-bundle 70.13.60.3:65
00:46:31:SSG-PMAP:Allocating new port-mapping:[4152<->1044] for port-bundle 70.13.60.3:65
Router# debug ssg port-map packets
SSG port-map packets debugging is on
Router#
00:51:55:SSG-PMAP:forwarding non-TCP packet
00:51:55:SSG-PMAP:forwarding packet
00:51:55:SSG-PMAP:forwarding non-TCP packet
00:51:55:SSG-PMAP:forwarding packet
00:51:55:SSG-PMAP:forwarding non-TCP packet
00:52:06:SSG-PMAP:srcip:70.13.6.100 srcport:8080 dstip:70.13.60.3 dstport:1044
00:52:06:SSG-PMAP:TCP flags:5011 Seq no:1162897784 Ack no:-1232234715
00:52:06:SSG-PMAP:received TCP-FIN packet
00:52:10:SSG-PMAP:cef:packet bound for default n/w
00:52:10:SSG-PMAP:Checking port-map ACLs
00:52:10:SSG-PMAP:Port-map ACL check passed
00:52:10:SSG-PMAP:cef:punting TCP-SYN packet to process
00:52:10:SSG-PMAP:packet bound for default n/w
00:52:10:SSG-PMAP:fast:punting TCP-SYN packet to process
00:52:10:SSG-PMAP:packet bound for default n/w
00:52:10:SSG-PMAP:translating source address from 10.3.6.1 to 70.13.60.3
00:52:10:SSG-PMAP:translating source port from 4158 to 1040
00:52:10:SSG-PMAP:srcip:70.13.6.100 srcport:8080 dstip:70.13.60.3 dstport:1040
00:52:10:SSG-PMAP:TCP flags:6012 Seq no:1186352744 Ack no:-1232047701
00:52:10:SSG-PMAP:translating destination address from 70.13.60.3 to 10.3.6.1
00:52:10:SSG-PMAP:translating destination port from 1040 to 4158
Related Commands
Command
Description
showssgport-mapip
Displays information on a particular port bundle.
showssgport-mapstatus
Displays information on port bundles.
debug ssg tcp-redirect
To turn on debug information for the Service Selection Gateway (SSG) Transport Control Protocol (TCP) Redirect for Services feature, use the debugssgtcp-redirect command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugssgtcp-redirect
{ packet | error | event }
nodebugssgtcp-redirect
{ packet | error | event }
Syntax Description
packet
Displays redirection information and any changes made to a packet when it is due for redirection.
error
Displays any SSG TCP redirect errors.
event
Displays any major SSG TCP redirect events or state changes.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(4)B
This command was introduced.
12.2(2)XB
This command was integrated in Cisco IOS Release 12.2(2)XB.
12.2(13)T
This command was integrated into Cisco IOS Release 12.2(13)T. This command replaces the debugssgpackets command.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
Use this command to turn on debug information for the SSG TCP Redirect for Services feature. Use the packet keyword to display redirection information and any changes made to a packet when it is due for redirection. Use the error keyword to display any SSG TCP redirect errors. Use the event keyword to display any major SSG TCP redirect events or state changes.
Examples
The following example shows how to display redirection information and any changes made to a packet when it is due for redirection:
Router#debug ssg tcp-redirect packet
Direction of the packet “-Up” indicates upstream packets from an SSG user, while “-Down” indicates downstream packets sent to a user:
07:13:15:SSG-REDIR-PKT:-Up:unauthorised user at 111.0.0.2 redirected to 9.2.36.253,8080
07:13:15:SSG-REDIR-PKT:-Down:TCP-RST Rxd for user at 111.0.0.2, port 11114
07:13:15:SSG-REDIR-PKT:-Down:return remap for user at 111.0.0.2 redirected from 9.2.36.25
The following example shows how to display any SSG TCP redirect errors:
Router#debug ssg tcp-redirect error
07:15:20:SSG-REDIR-ERR:-Up:Packet from 172.0.0.2:11114 has different destination from stored connection
The following example shows how to display any major SSG TCP redirect events or state changes:
Router#debug ssg tcp-redirect event
Upstream packets from users are redirected:
06:45:51:SSG-TCP-REDIR:-Up:created new remap entry for unauthorised user at 172.16.0.2
06:45:51: Redirect server set to 10.2.36.253,8080
06:45:51: Initial src/dest port mapping 11094<->23
06:45:51:SSG-REDIR-EVT: Freeing tcp-remap connections
06:46:21:SSG-REDIR-EVT:Host at 111.0.0.2, connection port 11094 timed out
06:46:21:SSG-REDIR-EVT: Unauthenticated user remapping for 172.16.0.2 removed
A host is being activated:
06:54:09:SSG-REDIR-EVT:- New Host at 172.16.0.2 set for default initial captivation
06:54:09:SSG-REDIR-EVT:- New Host at 172.16.0.2 set for default advertising captivation
Initial captivation begins:
06:59:32:SSG-REDIR-EVT:-Up:initial captivate got packet at start of connection (from 111.0.0.2)
06:59:32:SSG-REDIR-EVT:-Up:user at 111.0.0.2 starting initial captivation
06:59:32:SSG-REDIR-EVT:- Up:created new redirect connection and server for user at 111.0.0.2
06:59:32: Redirect server set to 10.64.131.20,8000
06:59:32: Initial src/dest port mapping 11109<->80
06:59:48:SSG-REDIR-EVT:-Up:initial captivate got packet at start of connection (from 111.0.0.2)
06:59:48:SSG-REDIR-EVT:-Up:initial captivate timed out for user at 172.16.0.2
06:59:48:SSG-REDIR-EVT:Removing server 10.64.131.20:8000 for host 172.16.0.2
Advertising captivation begins:
06:59:48:SSG-REDIR-EVT:Removing redirect map for host 172.16.0.2
06:59:48:SSG-REDIR-EVT:-Up:advert captivate got packet at start of connection (from 111.0.0.2)
06:59:48:SSG-REDIR-EVT:-Up:user at 111.0.0.2 starting advertisement captivation
06:59:48:SSG-REDIR-EVT:- Up:created new redirect connection and server for user at 111.0.0.2
06:59:48: Redirect server set to 10.64.131.20,8000
06:59:48: Initial src/dest port mapping 11110<->80
Related Commands
Command
Description
showssgtcp-redirectgroup
Displays information about the captive portal groups and the networks associated with the captive portal groups.
showtcp-redirectmappings
Displays information about the TCP redirect mappings for hosts within your system.
ssgenable
Enables SSG.
ssgtcp-redirect
Enables SSG TCP redirect and enters SSG-redirect mode.
debug ssg transparent login
To display all the Service Selection Gateway (SSG) transparent login control events or errors, use the debugssgtransparentlogincommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
Displays significant SSG transparent login events or state changes.
ip-address
(Optional) Displays events or errors for a specified IP address.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.3(1a)BW
This command was introduced.
12.3(3)B
This command was integrated into Cisco IOS Release 12.3(3)B.
12.3(7)T
This command was integrated into Cisco IOS Release 12.3(7)T.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
Usage Guidelines
Use this command when troubleshooting SSG for problems related to transparent autologon users.
Examples
The following examples show sample output from the debugssgtransparentlogincommand.
The output is self-explanatory.
Examples
*Jan 15 12:34:47.847:SSG-TAL-EVN:100.0.0.2 :Added entry successfully
*Jan 15 12:34:47.847:SSG-TAL-EVN:100.0.0.2 :Attempting authorization
*Jan 15 12:34:47.847:SSG-TAL-EVN:100.0.0.2 :Attempting to send authorization request
*Jan 15 12:35:09.711:SSG-TAL-EVN:100.0.0.2 :Authorization response received
*Jan 15 12:35:09.711:SSG-TAL-EVN:100.0.0.2 :Authorization timedout. User statechanged to unidentified
*Jan 15 12:35:09.711:%SSG-5-SSG_TAL_NR:SSG TAL :No response from AAA server. AAA server might be down or overloaded.
*Jan 15 12:35:09.711:SSG-TAL-EVN:100.0.0.2 :Start SP/NR entry timeout timer for 10 mins
Examples
*Jan 15 12:40:39.875:SSG-TAL-EVN:100.0.0.2 :Added entry successfully
*Jan 15 12:40:39.875:SSG-TAL-EVN:100.0.0.2 :Attempting authorization
*Jan 15 12:40:39.875:SSG-TAL-EVN:100.0.0.2 :Attempting to send authorization request
*Jan 15 12:40:39.879:SSG-TAL-EVN:100.0.0.2 :Authorization response received
*Jan 15 12:40:39.879:SSG-TAL-EVN:100.0.0.2 :Parsing profile for TP attribute
*Jan 15 12:40:39.879:SSG-TAL-EVN:100.0.0.2 :TP attribute found - Transparent user
*Jan 15 12:40:39.879:SSG-TAL-EVN:100.0.0.2 :Stop SP/NR timer
*Jan 15 12:40:39.879:SSG-TAL-EVN:100.0.0.2 :Idle timer started for 0 secs
*Jan 15 12:40:39.879:SSG-TAL-EVN:100.0.0.2 :Session timer started for 0 secs
Examples
*Jan 15 12:43:25.363:SSG-TAL-EVN:10.10.10.10 :Added entry successfully
*Jan 15 12:43:25.363:SSG-TAL-EVN:10.10.10.10 :Attempting authorization
*Jan 15 12:43:25.363:SSG-TAL-EVN:10.10.10.10 :Attempting to send authorization request
*Jan 15 12:43:25.939:SSG-TAL-EVN:10.10.10.10 :Authorization response received
*Jan 15 12:43:25.939:SSG-TAL-EVN:10.10.10.10 :Access reject from AAA server. Userstate changed to suspect
*Jan 15 12:43:25.939:SSG-TAL-EVN:10.10.10.10 :Start SP/NR entry timeout timer for 60 mins
Examples
The following is sample output for thedebugssgtransparentlogin command when used after all transparent autologon users have been cleared by using the clearssgusertransparentallcommand.
To display information about Secure Socket Layer (SSL) and Transport Layer Security (TLS) applications, use the debugsslcommand in privileged EXEC mode. To turn off debugging, use the no form of this command.
Displays any errors during control (negotiation) and data phases.
event
Displays SSL negotiation events.
hdshake
Displays SSL HandShake protocol information.
traffic
Displays SSL traffic messages.
openssl
Displays TLS/SSL debugging of the OpenSSL toolkit.
errors
Displays protocol errors, such as a bad packet or authentication failure.
msg
Displays hex dumps of the protocol packets.
states
Displays protocol state transitions.
Command Default
Debugging is not turned on.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.0(5)T
This command was introduced.
12.4(6)T
The openssl keyword was added.
12.4(22)T
The error, event, hdshake, and traffic keywords were removed.
Usage Guidelines
To display information about SSL and TLS applications, you should first try the debugsslopensslerrors command because it will display any obvious failures that are reported by the protocol layer. Next, try the debugsslopensslstates command to display problems that are caused by system flow issues that do not produce an error message. If you need more information, you should try the debugsslopensslmsg command. This output will be verbose and is rarely useful, but in some circumstances, it can provide a binary dump of the protocol packets. If the problem requires debugging at the level of the packet dumps, it is usually better to use a protocol analyzer (for example, Wireshark).
Note
The options available for the debugssl command depend on the version of Cisco IOS software release. See the Command History table for the supported Cisco IOS software releases.
Note
It is suggested that when setting debugging, you first enable the debugsslopensslerrorscommand, debugsslopensslstatescommand, and a subset of one of the debugcryptopki commands. If you still do not see the problem, you might use a protocol analyzer. The debugsslopensslmsg command should probably be used only if you cannot get a packet trace off the wire or if you suspect that the problem is between the wire and the protocol stack.
Examples
The following example shows that the debugsslopensslerrors command has been configured:
Router# debug ssl openssl errors
Related Commands
Command
Description
debugcryptopkimessages
Displays debugging messages for the details of the interaction (message dump) between the CA and the router.
debugcryptopkiserver
Enables debugging for a crypto PKI certificate server.
debugcryptopkitransactions
Displays debugging messages for the trace of interaction (message type) between the CA and the router.
debug ssl openssl
To display information about Secure Socket Layer (SSL) and Transport Layer Security (TLS) applications, use the
debugsslopenssl command in privileged EXEC mode. To turn off debugging, use the
no form of the command.
debugsslopenssl
{ errors | msg | states }
nodebugsslopenssl
{ errors | msg | states }
Syntax Description
errors
Displays protocol errors, such as a bad packet or authentication failure.
msg
Displays hex dumps of the protocol packets.
states
Displays protocol state transitions.
Command Default
Debugging is not turned on.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.4(22)T
This command was introduced.
Usage Guidelines
To display information about SSL and TLS applications, you must use the
debug ssl openssl errors command, because it will display any obvious failures that are reported by the protocol layer. Next, you must use the
debug ssl openssl states command to display problems that are caused by system flow issues that do not produce an error message. If you need more information, you must use the
debug ssl openssl msg command. This output will be verbose and is rarely useful, but in some circumstances, it can provide a binary dump of the protocol packets. If the problem requires debugging at the level of the packet dumps, it is usually recommended to use a protocol analyzer (for example, Wireshark).
Examples
The following example shows how to enable the
debugsslopensslerrors command :
Router# debug ssl openssl errors
TLS errors debugging is on
Related Commands
Command
Description
debugcryptopkimessages
Displays debugging messages for the details of the interaction (message dump) between the CA and the router.
debug crypto pki server
Enables debugging for a crypto PKI certificate server.
debug crypto pki transactions
Displays debugging messages for the trace of interaction (message type) between the CA and the router.
debug ssm
To display diagnostic information about the Segment Switching Manager (SSM) for switched Layer 2 segments, use the debugssm command in privileged EXEC mode. To disable debugging, use the no form of this command.
Displays external data representation (XDR) messages related to traffic sent across the backplane between Router Processors and line cards.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(26)S
This command was introduced.
12.2(25)S
This command was integrated to Cisco IOS Release 12.2(25)S.
12.2(28)SB
This command was integrated into Cisco IOS Release 12.2(28)SB.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
12.4(11)T
This command was integrated into Cisco IOS Release 12.4(11)T.
12.2(33)SXH
This command was integrated into Cisco IOS Release 12.2(33)SXH.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
Usage Guidelines
The SSM manages the data-plane component of the Layer 2 Virtual Private Network (L2VPN) configuration. The CM tracks the connection-level errors and events that occur on an xconnect. The SM tracks the per-segment events and errors on the xconnect.
Use thedebugssm command to troubleshoot problems in bringing up the data plane.
This command is generally used only by Cisco engineers for internal debugging of SSM processes.
Examples
The following example shows sample output for the debugssmxdr command:
Router# debug ssm xdr
SSM xdr debugging is on
2w5d: SSM XDR: [4096] deallocate segment, len 16
2w5d: SSM XDR: [8193] deallocate segment, len 16
2w5d: %LINK-3-UPDOWN: Interface FastEthernet2/1, changed state to down
2w5d: %LINK-3-UPDOWN: Interface FastEthernet2/1, changed state to up
2w5d: SSM XDR: [4102] provision segment, switch 4101, len 106
2w5d: SSM XDR: [4102] update segment status, len 17
2w5d: SSM XDR: [8199] provision segment, switch 4101, len 206
2w5d: SSM XDR: [4102] update segment status, len 17
2w5d: %SYS-5-CONFIG_I: Configured from console by console
2w5d: %LINK-3-UPDOWN: Interface FastEthernet2/1, changed state to down
2w5d: SSM XDR: [4102] update segment status, len 17
2w5d: %LINK-3-UPDOWN: Interface FastEthernet2/1, changed state to up
2w5d: SSM XDR: [4102] deallocate segment, len 16
2w5d: SSM XDR: [8199] deallocate segment, len 16
2w5d: SSM XDR: [4104] provision segment, switch 4102, len 106
2w5d: SSM XDR: [4104] update segment status, len 17
2w5d: SSM XDR: [8201] provision segment, switch 4102, len 206
2w5d: SSM XDR: [4104] update segment status, len 17
2w5d: SSM XDR: [4104] update segment status, len 17
2w5d: %SYS-5-CONFIG_I: Configured from console by console
The following example shows the events that occur on the segment manager when an Any Transport over MPLS (AToM) virtual circuit (VC) configured for Ethernet over MPLS is shut down and then enabled:
The following example shows the events that occur on the CM when an AToM VC configured for Ethernet over MPLS is shut down and then enabled:
Router(config)# interface fastethernet 0/1/0.1
Router(config-subif)# shutdown
09:17:20.179: SSM CM: [AToM] unprovision segment, id 36929
09:17:20.179: SSM CM: CM FSM: state Open - event Free segment
09:17:20.179: SSM CM: [SSS:AToM:36929] unprovision segment 1
09:17:20.179: SSM CM: [SSS:AToM] shQ request send unprovision complete event
09:17:20.179: SSM CM: [SSS:Ethernet Vlan:4146] unbind segment 2
09:17:20.179: SSM CM: [SSS:Ethernet Vlan] shQ request send ready event
09:17:20.179: SSM CM: SM msg event send unprovision complete event
09:17:20.179: SSM CM: SM msg event send ready event
Router(config-subif)# no shutdown
09:17:35.879: SSM CM: Query AToM to Ethernet Vlan switching, enabled
09:17:35.879: SSM CM: [AToM] provision second segment, id 36930
09:17:35.879: SSM CM: CM FSM: state Down - event Provision segment
09:17:35.879: SSM CM: [SSS:AToM:36930] provision segment 2
09:17:35.879: SSM CM: [AToM] send client event 6, id 36930
09:17:35.879: SSM CM: [SSS:AToM] shQ request send ready event
09:17:35.883: SSM CM: SM msg event send ready event
09:17:35.883: SSM CM: [AToM] send client event 3, id 36930
The following example shows the events that occur on the CM and SM when an AToM VC is provisioned and then unprovisioned:
Router# debug ssm cm events
SSM Connection Manager events debugging is on
Router# debug ssm sm events
SSM Segment Manager events debugging is on
Router# configure terminal
Router(config)# interface ethernet1/0
Router(config-if)# xconnect 10.55.55.2 101 pw-class mpls
16:57:34: SSM CM: provision switch event, switch id 86040
16:57:34: SSM CM: [Ethernet] provision first segment, id 12313
16:57:34: SSM CM: CM FSM: state Idle - event Provision segment
16:57:34: SSM CM: [SSS:Ethernet:12313] provision segment 1
16:57:34: SSM SM: [SSS:Ethernet:12313] event Provison segment
16:57:34: SSM CM: [SSS:Ethernet] shQ request send ready event
16:57:34: SSM CM: SM msg event send ready event
16:57:34: SSM SM: [SSS:Ethernet:12313] segment ready
16:57:34: SSM SM: [SSS:Ethernet:12313] event Found segment data
16:57:34: SSM CM: Query AToM to Ethernet switching, enabled
16:57:34: SSM CM: [AToM] provision second segment, id 16410
16:57:34: SSM CM: CM FSM: state Down - event Provision segment
16:57:34: SSM CM: [SSS:AToM:16410] provision segment 2
16:57:34: SSM SM: [SSS:AToM:16410] event Provison segment
16:57:34: SSM CM: [AToM] send client event 6, id 16410
16:57:34: label_oce_get_label_bundle: flags 14 label 19
16:57:34: SSM CM: [SSS:AToM] shQ request send ready event
16:57:34: SSM CM: SM msg event send ready event
16:57:34: SSM SM: [SSS:AToM:16410] segment ready
16:57:34: SSM SM: [SSS:AToM:16410] event Found segment data
16:57:34: SSM SM: [SSS:AToM:16410] event Bind segment
16:57:34: SSM SM: [SSS:Ethernet:12313] event Bind segment
16:57:34: SSM CM: [AToM] send client event 3, id 16410
Router# configure terminal
Router(config)# interface e1/0
Router(config-if)# no xconnect
16:57:26: SSM CM: [Ethernet] unprovision segment, id 16387
16:57:26: SSM CM: CM FSM: state Open - event Free segment
16:57:26: SSM CM: [SSS:Ethernet:16387] unprovision segment 1
16:57:26: SSM SM: [SSS:Ethernet:16387] event Unprovison segment
16:57:26: SSM CM: [SSS:Ethernet] shQ request send unprovision complete event
16:57:26: SSM CM: [SSS:AToM:86036] unbind segment 2
16:57:26: SSM SM: [SSS:AToM:86036] event Unbind segment
16:57:26: SSM CM: SM msg event send unprovision complete event
16:57:26: SSM SM: [SSS:Ethernet:16387] free segment class
16:57:26: SSM SM: [SSS:Ethernet:16387] free segment
16:57:26: SSM SM: [SSS:Ethernet:16387] event Free segment
16:57:26: SSM SM: last segment class freed
16:57:26: SSM CM: unprovision switch event, switch id 12290
16:57:26: SSM CM: [SSS:AToM] shQ request send unready event
16:57:26: SSM CM: SM msg event send unready event
16:57:26: SSM SM: [SSS:AToM:86036] event Unbind segment
16:57:26: SSM CM: [AToM] unprovision segment, id 86036
16:57:26: SSM CM: CM FSM: state Down - event Free segment
16:57:26: SSM CM: [SSS:AToM:86036] unprovision segment 2
16:57:26: SSM SM: [SSS:AToM:86036] event Unprovison segment
16:57:26: SSM CM: [SSS:AToM] shQ request send unprovision complete event
16:57:26: SSM CM: SM msg event send unprovision complete event
16:57:26: SSM SM: [SSS:AToM:86036] free segment class
16:57:26: SSM SM: [SSS:AToM:86036] free segment
16:57:26: SSM SM: [SSS:AToM:86036] event Free segment
16:57:26: SSM SM: last segment class freed
Related Commands
Command
Description
showssm
Displays SSM information for switched Layer 2 segments.
debug sss aaa authorization event
Note
Effective with Cisco IOS Release 15.0(1)S, the debugsssaaaauthorizationevent command is replaced by the debugsubscriberaaaauthorizationevent command. See the debugsubscriberaaaauthorizationeventcommand for more information.
To display messages about authentication, authorization, and accounting (AAA) authorization events that are part of normal call establishment, use the debugsssaaaauthorizationeventcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsssaaaauthorizationevent
nodebugsssaaaauthorizationevent
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.2(13)T
This command was introduced.
12.2(28)SB
This command was integrated into Cisco IOS Release 12.2(28)SB.
15.0(1)S
This command was replaced by the debugsubscriberaaaauthorizationevent command.
Examples
The following is sample output of several Subscriber Service Switch (SSS) debug commands including the debugsssaaaauthorizationevent command. The reports from these commands should be sent to technical personnel at Cisco Systems for evaluation.
Router# debug sss event
Router# debug sss error
Router# debug sss state
Router# debug sss aaa authorization event
Router# debug sss aaa authorization fsm
SSS:
SSS events debugging is on
SSS error debugging is on
SSS fsm debugging is on
SSS AAA authorization event debugging is on
SSS AAA authorization FSM debugging is on
*Mar 4 21:33:18.248: SSS INFO: Element type is Access-Type, long value is 3
*Mar 4 21:33:18.248: SSS INFO: Element type is Switch-Id, long value is -1509949436
*Mar 4 21:33:18.248: SSS INFO: Element type is Nasport, ptr value is 6396882C
*Mar 4 21:33:18.248: SSS INFO: Element type is AAA-Id, long value is 7
*Mar 4 21:33:18.248: SSS INFO: Element type is AAA-ACCT_ENBL, long value is 1
*Mar 4 21:33:18.248: SSS INFO: Element type is AccIe-Hdl, ptr value is 78000006
*Mar 4 21:33:18.248: SSS MGR [uid:7]: Event service-request, state changed from wait-for-req to wait-for-auth
*Mar 4 21:33:18.248: SSS MGR [uid:7]: Handling Policy Authorize (1 pending sessions)
*Mar 4 21:33:18.248: SSS PM [uid:7]: Need the following key: Unauth-User
*Mar 4 21:33:18.248: SSS PM [uid:7]: Received Service Request
*Mar 4 21:33:18.248: SSS PM [uid:7]: Event <need keys>, State: initial-req to need-init-keys
*Mar 4 21:33:18.248: SSS PM [uid:7]: Policy reply - Need more keys
*Mar 4 21:33:18.248: SSS MGR [uid:7]: Got reply Need-More-Keys from PM
*Mar 4 21:33:18.248: SSS MGR [uid:7]: Event policy-or-mgr-more-keys, state changed from wait-for-auth to wait-for-req
*Mar 4 21:33:18.248: SSS MGR [uid:7]: Handling More-Keys event
*Mar 4 21:33:20.256: SSS INFO: Element type is Unauth-User, string value is nobody@example.com
*Mar 4 21:33:20.256: SSS INFO: Element type is AccIe-Hdl, ptr value is 78000006
*Mar 4 21:33:20.256: SSS INFO: Element type is AAA-Id, long value is 7
*Mar 4 21:33:20.256: SSS INFO: Element type is Access-Type, long value is 0
*Mar 4 21:33:20.256: SSS MGR [uid:7]: Event service-request, state changed from wait-for-req to wait-for-auth
*Mar 4 21:33:20.256: SSS MGR [uid:7]: Handling Policy Authorize (1 pending sessions)
*Mar 4 21:33:20.256: SSS PM [uid:7]: Received More Initial Keys
*Mar 4 21:33:20.256: SSS PM [uid:7]: Event <rcvd keys>, State: need-init-keys to check-auth-needed
*Mar 4 21:33:20.256: SSS PM [uid:7]: Handling Authorization Check
*Mar 4 21:33:20.256: SSS PM [uid:7]: Event <send auth>, State: check-auth-needed to authorizing
*Mar 4 21:33:20.256: SSS PM [uid:7]: Handling AAA service Authorization
*Mar 4 21:33:20.256: SSS PM [uid:7]: Sending authorization request for 'example.com'
*Mar 4 21:33:20.256: SSS AAA AUTHOR [uid:7]:Event <make request>, state changed from idle to authorizing
*Mar 4 21:33:20.256: SSS AAA AUTHOR [uid:7]:Authorizing key xyz.com
*Mar 4 21:33:20.260: SSS AAA AUTHOR [uid:7]:AAA request sent for key example.com
*Mar 4 21:33:20.260: SSS AAA AUTHOR [uid:7]:Received an AAA pass
*Mar 4 21:33:20.260: SSS AAA AUTHOR [uid:7]:Event <found service>, state changed from authorizing to complete
*Mar 4 21:33:20.260: SSS AAA AUTHOR [uid:7]:Found service info for key example.com
*Mar 4 21:33:20.260: SSS AAA AUTHOR [uid:7]:Event <free request>, state changed from complete to terminal
*Mar 4 21:33:20.260: SSS AAA AUTHOR [uid:7]:Free request
*Mar 4 21:33:20.264: SSS PM [uid:7]: Event <found>, State: authorizing to end
*Mar 4 21:33:20.264: SSS PM [uid:7]: Handling Service Direction
*Mar 4 21:33:20.264: SSS PM [uid:7]: Policy reply - Forwarding
*Mar 4 21:33:20.264: SSS MGR [uid:7]: Got reply Forwarding from PM
*Mar 4 21:33:20.264: SSS MGR [uid:7]: Event policy-start-service-fsp, state changed from wait-for-auth to wait-for-service
*Mar 4 21:33:20.264: SSS MGR [uid:7]: Handling Connect-Forwarding-Service event
*Mar 4 21:33:20.272: SSS MGR [uid:7]: Event service-fsp-connected, state changed from wait-for-service to connected
*Mar 4 21:33:20.272: SSS MGR [uid:7]: Handling Forwarding-Service-Connected event
Related Commands
Command
Description
debugsssaaaauthorizationfsm
Displays information about AAA authorization state changes.
debugssserror
Displays diagnostic information about errors that may occur during Subscriber Service Switch call setup.
debugsssevent
Displays diagnostic information about Subscriber Service Switch call setup events.
debugsssfsm
Displays diagnostic information about the Subscriber Service Switch call setup state.
debug sss aaa authorization fsm
Note
Effective with Cisco IOS Release 15.0(1)S, the debugsssaaaauthorizationfsm command is replaced by the debugsubscriberaaaauthorizationfsm command. See the debugsubscriberaaaauthorizationfsm command for more information.
To display information about authentication, authorization, and accounting (AAA) authorization state changes, use the debugsssaaaauthorizationfsmcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsssaaaauthorizationfsm
nodebugsssaaaauthorizationfsm
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.2(13)T
This command was introduced.
12.2(28)SB
This command was integrated into Cisco IOS Release 12.2(28)SB.
15.0(1)S
This command was replaced by the debugsubscriberaaaauthorizationfsm command.
Examples
The following example shows how to enter this command. See the “Examples” section of the debugsssaaaauthorizationevent command page for an example of output.
Router# debug sss aaa authorization fsm
Related Commands
Command
Description
debugsssaaaauthorizationevent
Displays messages about AAA authorization events that are part of normal call establishment.
debugssserror
Displays diagnostic information about errors that may occur during Subscriber Service Switch call setup.
debugsssevent
Displays diagnostic information about Subscriber Service Switch call setup events.
debugsssfsm
Displays diagnostic information about the Subscriber Service Switch call setup state.
debug sss error
Note
Effective with Cisco IOS Release 15.0(1)S, the
debugssserror command is replaced by the
debugsubscribererror command. See the
debugsubscribererror command for more information.
To display diagnostic information about errors that may occur during
Subscriber Service Switch (SSS) call setup, use the
debugssserrorcommand in privileged EXEC mode. To disable debugging output,
use the
no form of this command.
debugssserror
nodebugssserror
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.2(13)T
This command was introduced.
12.2(28)SB
This command was integrated into Cisco IOS Release
12.2(28)SB.
15.0(1)S
This command was replaced by the
debugsubscribererror command.
Examples
The following example shows how to enter this command. See the
“Examples” section of the
debug sss aaa authorization event command
page for an example of output.
Router# debug sss error
Related Commands
Command
Description
debugsssaaaauthorizationevent
Displays messages about AAA authorization events that are
part of normal call establishment.
debugsssaaaauthorizationfsm
Displays information about AAA authorization state changes.
debugsssevent
Displays diagnostic information about Subscriber Service
Switch call setup events.
debugsssfsm
Displays diagnostic information about the Subscriber
Service Switch call setup state.
debug sss event
Note
Effective with Cisco IOS Release 15.0(1)S, the debugsssevent command is replaced by the debugsubscriberevent command. See the debugsubscriberevent command for more information.
To display diagnostic information about Subscriber Service Switch (SSS) call setup events, use the debugssseventcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsssevent
nodebugsssevent
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.2(13)T
This command was introduced.
12.2(28)SB
This command was integrated into Cisco IOS Release 12.2(28)SB.
15.0(1)S
This command was replaced by the debugsubscriberevent command.
Examples
The following example shows how to enter this command. See the “Examples” section of the debugsssaaaauthorizationeventcommand page for an example of output.
Router# debug sss event
Related Commands
Command
Description
debugsssaaaauthorizationevent
Displays messages about AAA authorization events that are part of normal call establishment.
debugsssaaaauthorizationfsm
Displays information about AAA authorization state changes.
debugssserror
Displays diagnostic information about errors that may occur during Subscriber Service Switch call setup.
debugsssfsm
Displays diagnostic information about the Subscriber Service Switch call setup state.
debug sss fsm
Note
Effective with Cisco IOS Release 15.0(1)S, the debugsssfsm command is replaced by the debugsubscriberfsm command. See the debugsubscriberfsm command for more information.
To display diagnostic information about the Subscriber Service Switch (SSS) call setup state, use the debugsssfsmcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsssfsm
nodebugsssfsm
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.2(13)T
This command was introduced.
12.2(28)SB
This command was integrated into Cisco IOS Release 12.2(28)SB.
15.0(1)S
This command was replaced by the debugsubscriberfsm command.
Examples
The following example shows how to enter this command. See the “Examples” section of the debugsssaaaauthorizationeventcommand page for an example of output.
Router# debug sss fsm
Related Commands
Command
Description
debugsssaaaauthorizationevent
Displays messages about AAA authorization events that are part of normal call establishment.
debugsssaaaauthorizationfsm
Displays information about AAA authorization state changes.
debugssserror
Displays diagnostic information about errors that may occur during Subscriber Service Switch call setup.
debugsssevent
Displays diagnostic information about the Subscriber Service Switch call setup events.
debug standby
To display Hot Standby Router Protocol (HSRP) state changes, use the
debugstandby command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugstandby [terse]
nodebugstandby [terse]
Syntax Description
terse
(Optional) Displays a limited range of HSRP errors, events, and packets.
Command Modes
Privileged EXEC
Command History
Release
Modification
10.0
This command was introduced.
Usage Guidelines
The
debugstandby command displays Hot Standby Protocol state changes and debugging information regarding transmission and receipt of Hot Standby Protocol packets. Use this command to determine whether hot standby routers recognize one another and take the proper actions.
Examples
The following is sample output from the
debugstandby command:
Router# debug standby
SB: Ethernet0 state Virgin -> Listen
SB: Starting up hot standby process
SB:Ethernet0 Hello in 192.168.72.21 Active pri 90 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello in 192.168.72.21 Active pri 90 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello in 192.168.72.21 Active pri 90 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello in 192.168.72.21 Active pri 90 hel 3 hol 10 ip 192.168.72.29
SB: Ethernet0 state Listen -> Speak
SB:Ethernet0 Hello out 192.168.72.20 Speak pri 100 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello in 192.168.72.21 Active pri 90 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello out 192.168.72.20 Speak pri 100 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello in 192.168.72.21 Active pri 90 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello out 192.168.72.20 Speak pri 100 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello in 192.168.72.21 Active pri 90 hel 3 hol 10 ip 192.168.72.29
SB: Ethernet0 state Speak -> Standby
SB:Ethernet0 Hello out 192.168.72.20 Standby pri 100 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello in 192.168.72.21 Active pri 90 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello out 192.168.72.20 Standby pri 100 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello in 192.168.72.21 Active pri 90 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello out 192.168.72.20 Standby pri 100 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello in 192.168.72.21 Active pri 90 hel 3 hol 10 ip 192.168.72.29
SB: Ethernet0 Coup out 192.168.72.20 Standby pri 100 hel 3 hol 10 ip 192.168.72.29
SB: Ethernet0 state Standby -> Active
SB:Ethernet0 Hello out 192.168.72.20 Active pri 100 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello in 192.168.72.21 Speak pri 90 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello out 192.168.72.20 Active pri 100 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello in 192.168.72.21 Speak pri 90 hel 3 hol 10 ip 192.168.72.29
SB:Ethernet0 Hello out 192.168.72.20 Active pri 100 hel 3 hol 10 ip 192.168.72.29
The table below describes the significant fields shown in the display.
Table 5 debug standby Field Descriptions
Field
Description
SB
Abbreviation for “standby.”
Ethernet0
Interface on which a Hot Standby packet was sent or received.
Hello in
Hello packet received from the specified IP address.
Hello out
Hello packet sent from the specified IP address.
pri
Priority advertised in the hello packet.
hel
Hello interval advertised in the hello packet.
hol
Hold-down interval advertised in the hello packet.
ip
address
Hot Standby group IP address advertised in the hello packet.
state
Transition from one state to another.
Coup out
address
Coup packet sent by the router from the specified IP address.
The following line indicates that the router is initiating the Hot Standby Protocol. The
standbyip interface configuration command enables Hot Standby.
SB: Starting up hot standby process
The following line indicates that a state transition occurred on the interface:
SB: Ethernet0 state Listen -> Speak
Related Commands
Command
Description
debugconditionstandby
Filters the output of the
debugstandbycommand on the basis of HSRP group number.
debugstandbyerrors
Displays error messages related to HSRP.
debugstandbyevents
Displays events related to HSRP.
debugstandbyeventsicmp
Displays debugging messages for the HSRP ICMP redirects filter.
debugstandbypackets
Displays debugging information for packets related to HSRP.
debug standby errors
To display error messages related to Host Standby Router Protocol (HSRP), use the debugstandbyerrorscommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugstandbyerrors
nodebugstandbyerrors
Syntax Description
This command has no arguments or keywords.
Command Default
Debugging is not enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.1
This command was introduced.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
You can filter the debug output using interface and HSRP group conditional debugging. To enable interface conditional debugging, use the debug condition interface command. To enable HSRP conditional debugging, use the debug condition standby command.
Examples
The following example enables the display of HSRP errors:
Router# debug standby errors
HSRP Errors debugging is on.
Related Commands
Command
Description
debugconditionstandby
Filters the output of the debugstandbycommand on the basis of HSRP group number.
debugstandby
Displays HSRP state changes.
debugstandbyevents
Displays events related to HSRP.
debugstandbyeventsicmp
Displays debugging messages for the HSRP ICMP redirects filter.
debugstandbypackets
Displays debugging information for packets related to HSRP.
debug standby events
To display events related to Hot Standby Router Protocol (HSRP), use the debug standby events command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugstandbyevents
[ all | api | arp | ha | internal
{ data | init | state | timer } | protocol | redundancy | terse | track ]
[detail]
nodebugstandbyevents
[ all | arp | ha | internal
{ api | data | init | state | timer } | protocol | redundancy | terse | track ]
[detail]
This command was integrated into Cisco IOS Release 12.2(25)S.
12.2(28)SB
This command was integrated into Cisco IOS Release 12.2(28)SB.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
12.2(33)SXH
This command was integrated into Cisco IOS Release 12.2(33)SXH.
12.2(33)SXI
The
arp keyword was added.
12.4(24)T
This command was modified. The
init keyword was added.
12.2(33)SXI1
This command was modified. The
init keyword was added.
Cisco IOS XE Release 2.1
This command was integrated into Cisco IOS XE Release 2.1.
Usage Guidelines
You can filter the debug output using interface and HSRP group conditional debugging. To enable interface conditional debugging, use the debug condition interface command. To enable HSRP conditional debugging, use the debug condition standby command.
Examples
The following example shows how to enable the debugging of the active and standby Route Processors (RPs) on an active RP console. The HSRP group is configured on the active RP, and the HSRP state is active.
Router# debug standby events ha
!Active RP
*Apr 27 04:13:47.755: HSRP: Gi0/0/1 Grp 101 RF Encode state Listen into sync buffer
*Apr 27 04:13:47.855: HSRP: CF Sync send ok
*Apr 27 04:13:57.755: HSRP: Gi0/0/1 Grp 101 RF Encode state Speak into sync buffer
*Apr 27 04:13:57.855: HSRP: CF Sync send ok
*Apr 27 04:14:07.755: HSRP: Gi0/0/1 Grp 101 RF Encode state Standby into sync buffer
*Apr 27 04:14:07.755: HSRP: Gi0/0/1 Grp 101 RF Encode state Active into sync buffer
*Apr 27 04:14:07.863: HSRP: CF Sync send ok
*Apr 27 04:14:07.867: HSRP: CF Sync send ok
!Standby RP
*Apr 27 04:11:21.011: HSRP: RF CF client 32, entity 0 got msg len 24
*Apr 27 04:11:21.011: HSRP: Gi0/0/1 Grp 101 RF sync state Init -> Listen
*Apr 27 04:11:31.011: HSRP: RF CF client 32, entity 0 got msg len 24
*Apr 27 04:11:31.011: HSRP: Gi0/0/1 Grp 101 RF sync state Listen -> Speak
*Apr 27 04:11:41.071: HSRP: RF CF client 32, entity 0 got msg len 24
*Apr 27 04:11:41.071: HSRP: RF CF client 32, entity 0 got msg len 24
*Apr 27 04:11:41.071: HSRP: Gi0/0/1 Grp 101 RF sync state Speak -> Standby
*Apr 27 04:11:41.071: HSRP: Gi0/0/1 Grp 101 RF sync state Standby -> Active
The table below describes the significant fields shown in the display.
Table 6 debug standby events Field Descriptions
Field
Description
RF
Redundancy facility--Internal mechanism that makes Stateful Switchover (SSO) work.
CF
Checkpoint facility--Internal mechanism that makes SSO work.
The following sample shows HSRP debug information when HSRP is configured to send gratuitous ARP packets every four seconds:
Debug messages for gratuitous ARP packets are seen only if the
detailkeyword is entered.
The table below describes the significant fields shown in the display.
Table 7 debug standby events detail Field Descriptions
Field
Description
Send grat ARP 10.0.0.1
IP address to which HSRP sends gratuitous ARP packets.
mac
MAC address of the host router to which HSRP sends gratuitous ARP packets.
The following examples show the output of the
debugstandbyeventinternalinitcommand when the IP address of an interface is changed and HSRP makes an internal evaluation to see if the added address permits the currently configured standby address to remain valid.
Limits output for some debug commands on the basis of the interface, VC, or VLAN.
debugconditionstandby
Filters the output of the
debugstandbycommand on the basis of HSRP group number.
debugstandby
Displays HSRP state changes.
debugstandbyerrors
Displays error messages related to HSRP.
debugstandbyeventsicmp
Displays debugging messages for the HSRP ICMP redirects filter.
debugstandbypackets
Displays debugging information for packets related to HSRP.
debug standby events icmp
To display debugging messages for the Hot Standby Router Protocol (HSRP) Internet Control Message Protocol (ICMP) redirects filter, use the debugstandbyeventsicmp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugstandbyeventsicmp
nodebugstandbyeventsicmp
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.1(3)T
This command was introduced.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Cisco IOS XE Release 2.1
This command was integrated into Cisco IOS XE Release 2.1.
Usage Guidelines
This command helps you determine whether HSRP is filtering an outgoing ICMP redirect message.
Examples
The following is sample output from the debugstandbyeventsicmp command:
Router# debug standby events icmp
10:35:20: SB: changing ICMP redirect sent to 20.0.0.4 for dest 30.0.0.2
10:35:20: SB: gw 20.0.0.2 -> 20.0.0.12, src 20.0.0.11
10:35:20: SB: Use HSRP virtual address 20.0.0.11 as ICMP src
If the router being redirected to is passive (HSRP enabled but no active groups), the following debugging message is displayed:
10:41:22: SB: ICMP redirect not sent to 20.0.0.4 for dest 40.0.0.3
10:41:22: SB: 20.0.0.3 does not contain an active HSRP group
If HSRP could not uniquely determine the gateway used by the host, then the following message is displayed:
10:43:08: SB: ICMP redirect not sent to 20.0.0.4 for dest 30.0.0.2
10:43:08: SB: could not uniquely determine IP address for mac 00d0.bbd3.bc22
The following messages are also displayed if the debugipicmpcommandis enabled, in which case the message prefix is changed:
10:39:09: ICMP: HSRP changing redirect sent to 20.0.0.4 for dest 30.0.0.2
10:39:09: ICMP: gw 20.0.0.2 -> 20.0.0.12, src 20.0.0.11
10:39:09: ICMP: Use HSRP virtual address 20.0.0.11 as ICMP src
10:39:09: ICMP: redirect sent to 20.0.0.4 for dest 30.0.0.2, use gw 20.0.0.12
Related Commands
Command
Description
debugipicmp
Displays information on ICMP transactions.
debug standby events neighbor
To display Hot Standby Router Protocol (HSRP) Bidirectional Forwarding Detection (BFD) peering events, use the debugstandbyeventsneighbor command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugstandbyeventsneighbor
nodebugstandbyeventsneighbor
Syntax Description
This command has no arguments or keywords.
Command Default
HSRP neighbor debugging output is not displayed.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.4(11)T
This command was introduced.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
Usage Guidelines
You can filter the debug output using interface and HSRP group conditional debugging. To enable interface conditional debugging, use the debugcondition interface command. To enable HSRP conditional debugging, use the debugconditionstandbycommand.
Examples
In this example, two HSRP routers are configured as neighbors, supporting BFD peering with the debugstandbyeventsneighborcommand configured. The following example shows the debug output that appears when an additional HSRP group is added to Router A:
Examples
RouterA# debug standby event neighbor
HSRP Events debugging is on
(neighbor)
*Oct 3 02:57:48.587: HSRP: Fa2/0 Grp 2 Standby router is local
01:03:49: %HSRP-5-STATECHANGE: FastEthernet2/0 Grp 2 state Speak -> Standby
*Oct 3 02:57:49.087: HSRP: Fa2/0 Grp 2 Active router is local
*Oct 3 02:57:49.087: HSRP: Fa2/0 Grp 2 Standby router is unknown, was local
01:03:50: %HSRP-5-STATECHANGE: FastEthernet2/0 Grp 2 state Standby -> Active
Examples
RouterB# debug standby event neighbor
HSRP Events debugging is on
(neighbor)
*Oct 3 10:00:28.503: HSRP: Fa2/0 Grp 2 Active router is 10.0.0.1 (no local config)
*Oct 3 10:00:28.503: HSRP: Fa2/0 Nbr 10.0.0.1 active for group 2
The following example shows the debug output when an additional HSRP group is added to Router B:
Examples
*Oct 3 10:02:28.067: HSRP: Fa2/0 Nbr 10.0.0.1 no longer active for group 2 (Disabled)
*Oct 3 10:02:28.503: HSRP: Fa2/0 Grp 2 Active router is 10.0.0.1
*Oct 3 10:02:28.503: HSRP: Fa2/0 Nbr 10.0.0.1 active for group 2
*Oct 3 10:02:48.071: HSRP: Fa2/0 Grp 2 Standby router is local
00:44:28: %HSRP-5-STATECHANGE: FastEthernet2/0 Grp 2 state Speak -> Standby
Examples
*Oct 3 03:00:08.655: HSRP: Fa2/0 Grp 2 Standby router is 10.0.0.2
*Oct 3 03:00:08.655: HSRP: Fa2/0 Nbr 10.0.0.2 standby for group 2
The following is sample debug output showing a possible network outage (the loss of signal between the ports of Router A and B):
Examples
*Oct 3 10:09:07.651: HSRP: Fa2/0 Grp 1 Active router is local, was 10.0.0.1
*Oct 3 10:09:07.651: HSRP: Fa2/0 Nbr 10.0.0.1 no longer active for group 1 (Standby)
*Oct 3 10:09:07.651: HSRP: Fa2/0 Grp 1 Standby router is unknown, was local
00:50:48: %HSRP-5-STATECHANGE: FastEthernet2/0 Grp 1 state Standby -> Active
*Oct 3 10:09:08.959: HSRP: Fa2/0 Grp 2 Active router is local, was 10.0.0.1
*Oct 3 10:09:08.959: HSRP: Fa2/0 Nbr 10.0.0.1 no longer active for group 2 (Standby)
*Oct 3 10:09:08.959: HSRP: Fa2/0 Nbr 10.0.0.1 Was active or standby - start passive holddown
*Oct 3 10:09:08.959: HSRP: Fa2/0 Grp 2 Standby router is unknown, was local
00:50:49: %HSRP-5-STATECHANGE: FastEthernet2/0 Grp 2 state Standby -> Active
Related Commands
Command
Description
debugbfd
Displays debugging messages about BFD.
debugcondition
Limits the output for some debug commands based on specified conditions.
debugconditionstandby
Limits the debugging output of HSRP state changes.
showbfdneighbor
Displays a line-by-line listing of existing BFD adjacencies.
showstandby
Displays HSRP information.
showstandbyneighbors
Displays information about HSRP neighbors.
standbybfdall-interfaces
Reenables HSRP BFD peering on all interfaces if it has been disabled.
standbyip
Activates HSRP.
debug standby packets
To display debugging information for packets related to Hot Standby Router Protocol (HSRP), use the debugstandbypacketscommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
(Optional) Specifies all HSRP packets, except hellos and advertisements.
coup
(Optional) Specifies HSRP coup packets.
hello
(Optional) Specifies HSRP hello packets.
resign
(Optional) Specifies HSRP resign packets.
detail
(Optional) Specifies HSRP packets in detail.
Command Default
Debugging is not enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.1
This command was introduced.
12.2
The advertise keyword was added.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
You can filter the debug output using interface and HSRP group conditional debugging. To enable interface conditional debugging, use the debugconditioninterface command. To enable HSRP conditional debugging, use the debugconditionstandby command.
Note
HSRP advertisement packets are packets that are related to HSRP interfaces. Other packet types, including, hello, coup, and resign packets relate to an HSRP group.
Examples
The following example show how to enable the display of all HSRP packets:
Router# debug standby packets all
HSRP Packets debugging is on.
Related Commands
Command
Description
debugconditioninterface
Limits output for some debugging commands based on the interfaces.
debugconditionstandby
Filters the output of the debugstandbycommand on the basis of HSRP group number.
debugstandby
Displays HSRP state changes.
debugstandbyerrors
Displays error messages related to HSRP.
debugstandbyevents
Displays events related to HSRP.
debugstandbyeventsicmp
Displays debugging messages for the HSRP ICMP redirects filter.
debug stun packet
To display information on packets traveling through the serial tunnel (STUN) links, use the
debugstunpacket command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugstunpacket [group] [address]
nodebugstunpacket [group] [address]
Syntax Description
group
(Optional) A decimal integer assigned to a group. Using this option limits output to packets associated with the specified STUN group.
address
(Optional) The output is further limited to only those packets containing the specified STUN address. The
address argument is in the appropriate format for the STUN protocol running for the specified group.
Command Modes
Privileged EXEC
Usage Guidelines
Because using this command is processor intensive, it is best to use it after regular business hours, rather than in a production environment. It is also best to turn this command on by itself, rather than use it in conjunction with other
debug commands.
Examples
The following is sample output from the
debugstunpacket command:

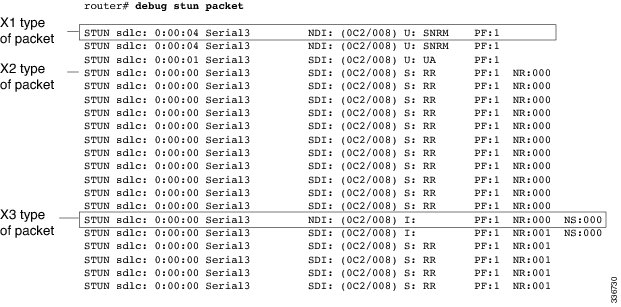

The following line describes an X1 type of packet:
The table below describes the significant fields in this line of
debugstunpacket output.
Table 8 debug stun packet Field Descriptions
Field
Description
STUN sdlc:
Indication that the STUN feature is providing the information.
0:00:04
Time elapsed since receipt of the previous packet.
Serial3
Interface type and unit number reporting the event.
NDI:
Type of cloud separating the Synchronous Data Link Control (SDL) end nodes. Possible values are as follows:
NDI--Network input
SDI--Serial link
0C2
SDLC address of the SDLC connection.
008
Modulo value of 8.
U: SNRM
Frame type followed by the command or response type. In this case it is an Unnumbered frame that contains a Set Normal Response Mode (SNRM) command. The possible frame types are as follows:
I--Information frame
S--Supervisory frame. The possible commands and responses are: RR (Receive Ready), RNR (Receive Not Ready), and REJ (Reject).
U--Unnumbered frame. The possible commands are: UI (Unnumbered Information), SNRM, DISC/RD (Disconnect/Request Disconnect), SIM/RIM, XID Exchange Identification), TEST. The possible responses are UA (unnumbered acknowledgment), DM (Disconnected Mode), and FRMR (Frame Reject Mode)
PF:1
Poll/Final bit. Possible values are as follows:
0--Off
1--On
The following line of output describes an X2 type of packet:
All the fields in the previous line of output match those for an X1 type of packet, except the last field, which is additional. NR:000 indicates a receive count of 0; the range for the receive count is 0 to 7.
The following line of output describes an X3 type of packet:
All fields in the previous line of output match those for an X2 type of packet, except the last field, which is additional. NS:000 indicates a send count of 0; the range for the send count is 0 to 7.
debug subscriber aaa authorization
To display diagnostic information about authentication, authorization, and accounting (AAA) authorization of Intelligent Services Gateway (ISG) subscriber sessions, use the debugsubscriberaaaauthorizationcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsubscriberaaaauthorization
{ event | fsm }
nodebugsssaaaauthorization
{ event | fsm }
Syntax Description
event
Display information about AAA authorization events that occur during ISG session establishment.
fsm
Display information about AAA authorization state changes for ISG subscriber sessions.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(28)SB
This command was introduced.
Examples
The following is sample output of several debugsubscribercommands, including the debugsubscriberaaaauthorizationcommand. The reports from these commands should be sent to technical personnel at Cisco Systems for evaluation.
Router# debug subscriber event
Router# debug subscriber error
Router# debug subscriber state
Router# debug subscriber aaa authorization event
Router# debug subscriber aaa authorization fsm
SSS:
SSS events debugging is on
SSS error debugging is on
SSS fsm debugging is on
SSS AAA authorization event debugging is on
SSS AAA authorization FSM debugging is on
*Mar 4 21:33:18.248: SSS INFO: Element type is Access-Type, long value is 3
*Mar 4 21:33:18.248: SSS INFO: Element type is Switch-Id, long value is -1509949436
*Mar 4 21:33:18.248: SSS INFO: Element type is Nasport, ptr value is 6396882C
*Mar 4 21:33:18.248: SSS INFO: Element type is AAA-Id, long value is 7
*Mar 4 21:33:18.248: SSS INFO: Element type is AAA-ACCT_ENBL, long value is 1
*Mar 4 21:33:18.248: SSS INFO: Element type is AccIe-Hdl, ptr value is 78000006
*Mar 4 21:33:18.248: SSS MGR [uid:7]: Event service-request, state changed from wait-for-req to wait-for-auth
*Mar 4 21:33:18.248: SSS MGR [uid:7]: Handling Policy Authorize (1 pending sessions)
*Mar 4 21:33:18.248: SSS PM [uid:7]: Need the following key: Unauth-User
*Mar 4 21:33:18.248: SSS PM [uid:7]: Received Service Request
*Mar 4 21:33:18.248: SSS PM [uid:7]: Event <need keys>, State: initial-req to need-init-keys
*Mar 4 21:33:18.248: SSS PM [uid:7]: Policy reply - Need more keys
*Mar 4 21:33:18.248: SSS MGR [uid:7]: Got reply Need-More-Keys from PM
*Mar 4 21:33:18.248: SSS MGR [uid:7]: Event policy-or-mgr-more-keys, state changed from wait-for-auth to wait-for-req
*Mar 4 21:33:18.248: SSS MGR [uid:7]: Handling More-Keys event
*Mar 4 21:33:20.256: SSS INFO: Element type is Unauth-User, string value is nobody2@xyz.com
*Mar 4 21:33:20.256: SSS INFO: Element type is AccIe-Hdl, ptr value is 78000006
*Mar 4 21:33:20.256: SSS INFO: Element type is AAA-Id, long value is 7
*Mar 4 21:33:20.256: SSS INFO: Element type is Access-Type, long value is 0
*Mar 4 21:33:20.256: SSS MGR [uid:7]: Event service-request, state changed from wait-for-req to wait-for-auth
*Mar 4 21:33:20.256: SSS MGR [uid:7]: Handling Policy Authorize (1 pending sessions)
*Mar 4 21:33:20.256: SSS PM [uid:7]: Received More Initial Keys
*Mar 4 21:33:20.256: SSS PM [uid:7]: Event <rcvd keys>, State: need-init-keys to check-auth-needed
*Mar 4 21:33:20.256: SSS PM [uid:7]: Handling Authorization Check
*Mar 4 21:33:20.256: SSS PM [uid:7]: Event <send auth>, State: check-auth-needed to authorizing
*Mar 4 21:33:20.256: SSS PM [uid:7]: Handling AAA service Authorization
*Mar 4 21:33:20.256: SSS PM [uid:7]: Sending authorization request for 'xyz.com'
*Mar 4 21:33:20.256: SSS AAA AUTHOR [uid:7]:Event <make request>, state changed from idle to authorizing
*Mar 4 21:33:20.256: SSS AAA AUTHOR [uid:7]:Authorizing key xyz.com
*Mar 4 21:33:20.260: SSS AAA AUTHOR [uid:7]:AAA request sent for key xyz.com
*Mar 4 21:33:20.260: SSS AAA AUTHOR [uid:7]:Received an AAA pass
*Mar 4 21:33:20.260: SSS AAA AUTHOR [uid:7]:Event <found service>, state changed from authorizing to complete
*Mar 4 21:33:20.260: SSS AAA AUTHOR [uid:7]:Found service info for key xyz.com
*Mar 4 21:33:20.260: SSS AAA AUTHOR [uid:7]:Event <free request>, state changed from complete to terminal
*Mar 4 21:33:20.260: SSS AAA AUTHOR [uid:7]:Free request
*Mar 4 21:33:20.264: SSS PM [uid:7]: Event <found>, State: authorizing to end
*Mar 4 21:33:20.264: SSS PM [uid:7]: Handling Service Direction
*Mar 4 21:33:20.264: SSS PM [uid:7]: Policy reply - Forwarding
*Mar 4 21:33:20.264: SSS MGR [uid:7]: Got reply Forwarding from PM
*Mar 4 21:33:20.264: SSS MGR [uid:7]: Event policy-start-service-fsp, state changed from wait-for-auth to wait-for-service
*Mar 4 21:33:20.264: SSS MGR [uid:7]: Handling Connect-Forwarding-Service event
*Mar 4 21:33:20.272: SSS MGR [uid:7]: Event service-fsp-connected, state changed from wait-for-service to connected
*Mar 4 21:33:20.272: SSS MGR [uid:7]: Handling Forwarding-Service-Connected event
Related Commands
Command
Description
debugssserror
Displays diagnostic information about errors that may occur during Subscriber Service Switch call setup.
debugsssevent
Displays diagnostic information about Subscriber Service Switch call setup events.
debugsssfsm
Displays diagnostic information about the Subscriber Service Switch call setup state.
debug subscriber error
To display diagnostic information about errors that may occur during Intelligent Services Gateway (ISG) subscriber session setup, use the debugsubscribererrorcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsubscribererror
nodebugsubscribererror
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(28)SB
This command was introduced.
Examples
The following sample output for the debugsubscribererror command indicates that the session is stale since the session handle has already been destroyed.
Displays messages about AAA authorization events that are part of normal call establishment.
debugsssevent
Displays diagnostic information about Subscriber Service Switch call setup events.
debugsssfsm
Displays diagnostic information about the Subscriber Service Switch call setup state.
debug subscriber event
To display diagnostic information about Intelligent Services Gateway (ISG) subscriber session setup events, use the debugsubscribereventcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsubscriberevent
nodebugsubscriberevent
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(28)SB
This command was introduced.
Examples
The following sample output for the debugsubscriberevent commands indicates that the system has determined that the session should be locally terminated. The local termination module determines that an interface description block (IDB) is not required for this session, and it sets up the data plane for packet switching.
Router# debug subscriber event
*Sep 20 22:21:08.223: SSS MGR [uid:2]: Handling Connect Local Service action
*Sep 20 22:21:08.223: SSS LTERM [uid:2]: Processing Local termination request
*Sep 20 22:21:08.223: SSS LTERM [uid:2]: L3 session - IDB not required for setting up service
*Sep 20 22:21:08.223: SSS LTERM [uid:2]: Interface already present or not required for service
*Sep 20 22:21:08.223: SSS LTERM [uid:2]: Segment provision successful
Related Commands
Command
Description
debugsssaaaauthorizationevent
Displays messages about AAA authorization events that are part of normal call establishment.
debugssserror
Displays diagnostic information about errors that may occur during Subscriber Service Switch call setup.
debugsssfsm
Displays diagnostic information about the Subscriber Service Switch call setup state.
debug subscriber feature
To display diagnostic information about the installation and removal of Intelligent Services Gateway (ISG) features on ISG subscriber sessions, use the
debug subscriber feature command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
The
detail keyword can be used in one of the following three ways:
If used with no other keywords, displays detailed information about all features
If a feature name is specified with the
namefeature-name keyword and argument, displays detailed information about the specific feature. The
detail keyword can be used with the followingfeature-name values:
accounting
compression
modem-on-hold
policing
traffic-classification
If used with the
packet keyword, displays a partial dump of packets as ISG features are being applied to the packets.
error
Displays information about errors for all features or a specified feature.
event
Displays information about events for all features or a specified feature.
name
Displays information specific to feature.
feature-name
Name of the ISG feature. Possible values are the following:
access-list
accounting
compression
filter
idle-timer
interface-config
ip-config
l4redirect
modem-on-hold
policing
portbundle
prepaid-idle
session-timer
static-routes
time-monitor
volume-monitor
issu
Displays information about events and errors for all features or a specified feature as they occur.
ccm
Displays information about a specific feature checkpointing activity. If the
ccm keyword is not specified, event and error logging is specific to the feature’s interaction with the cluster control manager (CCM).
packet
Displays information about packets as ISG features are being applied to the packets. If a feature name is specified with the
namefeature-name keyword and argument, packet information about the specific feature is displayed. The
packet keyword can be used with the followingfeature-name values:
access-list
l4redirect
policing
portbundle
full
(Optional) Displays a full dump of a packet as ISG features are being applied to it.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.2(28)SB
This command was introduced.
12.2(33)SRC
This command was integrated into Cisco IOS Release12.2(33)SRC.
Cisco IOS XE Release 3.5S
This command was modified. The
traffic-classification keyword was removed as a choice for the
feature-name argument.
Examples
The following sample output from the
debug subscriber feature command indicates that the idle timeout feature has been successfully installed on the inbound segment.
To display diagnostic information about Intelligent Services Gateway (ISG) subscriber session state change, use the debugsubscriberfsmcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsubscriberfsm
nodebugsubscriberfsm
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(28)SB
This command was introduced.
Examples
The following sample output for thedebugsubscriberfsm command indicates that the session has been disconnected by the client, and the system is cleaning up the session by disconnecting the network service and removing any installed features.
Router# debug subscriber fsm
*Sep 20 22:35:10.495: SSS MGR [uid:5]: Event client-disconnect, state changed from connected to disconnecting-fsp-feat
debug subscriber packet
To display information about packets as they traverse the subscriber service switch (SSS) path, use the debugsubscriberpacket command in privileged EXEC mode. To disable debugging, use the no form of this command.
debugsubscriberpacket
{ detail | error | event | full }
nodebugsubscriberpacket
{ detail | error | event | full }
Syntax Description
detail
Displays a partial dump of packets as they traverse the SSS path.
error
Displays any packet-switching errors that occur when a packet traverses the SSS path.
event
Displays packet-switching events that occur when a packet traverses the SSS path.
full
Displays a full dump of packets as they traverse the SSS path.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(28)SB
This command was introduced.
Examples
The following example show sample output for the debugsubscriberpacketcommand with the fullkeyword. This output is for a PPPoE session configured with forwarding.
Displays diagnostic information about the installation and removal of ISG features on subscriber sessions.
debug subscriber policy
To display diagnostic information about policy execution related to Intelligent Services Gateway (ISG) subscriber sessions, use the
debugsubscriberpolicy command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
Displays detailed information about all policies or the specified type of policy.
error
Displays policy execution errors for all policies or the specified type of policy.
event
Displays policy execution events for all policies or the specified type of policy.
fsm
Displays information about state changes during policy execution.
prepaid
Displays information about ISG prepaid policy execution.
condition
Displays information related to the evaluation of ISG control class maps.
idmgr
Displays information about policy execution related to identity.
profile
Displays information about the policy manager subscriber profile database.
push
Displays policy information about dynamic updates to subscriber profiles from policy servers.
rule
Displays information about control policy rules.
service
Displays policy information about service profile database events for subscriber sessions.
dpm
Displays information about Dynamic Host Configuration Protocol (DHCP) in relation to subscriber sessions.
webportal
Displays policy information about the web portal in relation to subscriber sessions.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(28)SB
This command was introduced.
Examples
The following example shows sample output for the
debugsubscriberpolicy command with the
events keyword. This output indicates the creation of a new session. “Updated key list” indicates important attributes and information associated with the session.
To display diagnostic information about the service profile database in an Intelligent Services Gateway (ISG), use the debugsubscriberservice command in privileged EXEC mode. To disable debugging, use the no form of this command.
debugsubscriberservice
nodebugsubscriberservice
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(28)SB
This command was introduced.
Usage Guidelines
Use the debugsubscriberservice command to diagnose problems with service profiles or service policy maps.
Examples
The following example shows sample output for the debugsubscriberservice command. This output indicates that a service logon has occurred for the service “prep_service”.
To display diagnostic information for Intelligent Services Gateway (ISG) simulator testing, use the debugsubscribertesting command in privileged EXEC mode. To disable debugging, use the no form of this command.
debugsubscribertesting
nodebugsubscribertesting
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(28)SB
This command was introduced.
Examples
The following example shows the configuration of the debugsubscribertesting command:
Router# debug subscriber testing
debug sw56
To display debugging information for switched 56K services, use the debugsw56 command in privileged EXEC mode.
To disable debugging output, use the no form of this command.
debugsw56
nodebugsw56
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
11.3T
This command was introduced.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
debug syscon perfdata
To display messages related to performance data collection, use the debugsysconperfdata command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsysconperfdata
nodebugsysconperfdata
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
This command is primarily useful to your technical support representative.
Examples
The following is sample output from the debugsysconperfdata command. In this example, the CallFail poll group is configured and applied to shelf 1111. The system determines when the next polling cycle should occur and polls the shelf at the appropriate time. The data is stored in the file CallFail.891645120, and an older file is deleted.
Router# debug syscon perfdata
PERF: Applying 'CallFail' to shelf 1111
PERF: Setting up objects for SNMP polling: 'CallFail', shelf 1111
PERF: year hours mins secs msecs = 1998 15 11 1 5
PERF: Start 'CallFail' timer, next cycle in 0 mins, 59 secs
PERF: Timer event: CallFail, 4 minutes
PERF: Polling 'CallFail', shelf 1111, pc 60AEFDF0
PERF: SNMP resp: Type 6, 'CallFail', shelf 1111, error_st 0
PERF: Logged polled data to disk0:/performance/shelf-1111/CallFail.891645120
PERF: Deleted disk0:/performance/shelf-1111/CallFail.891637469
debug syscon sdp
To display messages related to the Shelf Discovery Protocol (SDP), use the debugsysconsdp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugsysconsdp
nodebugsysconsdp
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Use this command to display information about SDP packets exchanged between the shelf and the system controller.
Examples
The following sample output from the debugsysconsdp command shows the system controller discovering a managed shelf. In the first few lines, the system controller receives a hello packet from shelf 99 at 172.23.66.106. The system controller responds with a hello packet. When the shelf sends another hello packet, the system controller resets the timer and sends another packet.
Syscon# debug syscon sdp
SYSCTLR: Hello packet received via UDP from 172.23.66.106
%SYSCTLR-6-SHELF_ADD: Shelf 99 discovered located at address 172.23.66.106
Hello packet sent to the RS located at 172.23.66.106
SYSCTLR: Hello packet received via UDP from 172.23.66.106
Timer for shelf 99 updated, shelf is alive
Hello packet sent to the RS located at 172.23.66.106
The following sample output from the debugsysconsdp command shows the shelf contacting the system controller. The shelf sends a hello packet to the system controller at 172.23.66.111. The system controller responds with the autoconfiguration commands. The remaining lines show the Hello packets were exchanged between the shelf and the system controller.
Shelf# debug syscon sdp
SYSCTLR: Hello packet sent to the SYSCTLR at 172.23.66.111
SYSCTLR: Command packet received from SYSCTLR
Feb 24 17:24:16.713: %SHELF-6-SYSCTLR_ESTABLISHED: Configured via system controller located at 172.23.66.111
SYSCTLR: Rcvd HELLO from SYSCTLR at 172.23.66.111
SYSCTLR: Hello packet sent to the SYSCTLR at 172.23.66.111
SYSCTLR: Rcvd HELLO from SYSCTLR at 172.23.66.111
debug syslog-server
To display information about the syslog server process, use the
debugsyslog-server command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugsyslog-server
nodebugsyslog-server
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
This command outputs a message every time the syslog server receives a message. It also displays information about subfile creation, removal, and renaming.
Use this command when subfiles are not being created as configured or data is not being written to subfiles. This command is also useful for detecting syslog file size mismatches.
Examples
The following is sample output from the
debugsyslog-server command. The sample output shows when the following command has been added to the configuration:
logging syslog-server 10 3 syslogs
This example shows the files being created. Use the
dirdisk0:/syslogs.dir command to display the contents of the newly created directory.
When a syslog message is received, the router checks to determine if the current file will be too large when the new data is added. In this example, two messages are added to the file.
SYSLOG_SERVER: Configured size : 10240 bytes
Current size : 0 bytes
Data size : 68 bytes
New size : 68 bytes
SYSLOG_SERVER: Wrote 68 bytes successfully.
SYSLOG_SERVER: Configured size : 10240 bytes
Current size : 68 bytes
Data size : 61 bytes
New size : 129 bytes
SYSLOG_SERVER: Wrote 61 bytes successfully.
The table below describes the significant fields shown in the display.
Table 9 debug syslog-server Field Descriptions
Field
Description
Configured size
Maximum subfile size, as set in the
loggingsyslog-server command.
Current size
Size of the current subfile before the new message is added.
Data size
Size of the syslog message.
New size
Size of the current subfile after the syslog message is added.
The following output indicates that the current file is too full to fit the next syslog message. The oldest subfile is removed, and the remaining files are renamed. A new file is created and opened for writing syslog messages.
SYSLOG_SERVER:Last archive subfile disk0:/syslogs.dir/syslogs.2 removed.
SYSLOG_SERVER: Subfile disk0:/syslogs.dir/syslogs.1 renamed as disk0:/syslogs.dir/syslogs.2.
SYSLOG_SERVER:subfile disk0:/syslogs.dir/syslogs.cur renamed as disk0:/syslogs.dir/syslogs.1.
SYSLOG_SERVER:Current subfile disk0:/syslogs.dir/syslogs.cur has been opened.
debug tacacs
To display
information associated with TACACS, use the debugtacacscommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugtacacs
nodebugtacacs
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
TACACS is a distributed security system that secures networks against unauthorized access. Cisco supports TACACS under the authentication, authorization, and accounting (AAA) security system.
Use the debugaaaauthentication command to get a high-level view of login activity. When TACACS is used on the router, you can use the debugtacacscommand for more detailed debugging information.
Examples
The following is sample output from the debugaaaauthentication command for a TACACS login attempt that was successful. The information indicates that TACACS+ is the authentication method used.
Router# debug aaa authentication
14:01:17: AAA/AUTHEN (567936829): Method=TACACS+
14:01:17: TAC+: send AUTHEN/CONT packet
14:01:17: TAC+ (567936829): received authen response status = PASS
14:01:17: AAA/AUTHEN (567936829): status = PASS
The following is sample output from the debugtacacscommand for a
TACACS login attempt that was successful, as indicated by the status PASS:
Router# debug tacacs
14:00:09: TAC+: Opening TCP/IP connection to 192.168.60.15 using source 10.116.0.79
14:00:09: TAC+: Sending TCP/IP packet number 383258052-1 to 192.168.60.15 (AUTHEN/START)
14:00:09: TAC+: Receiving TCP/IP packet number 383258052-2 from 192.168.60.15
14:00:09: TAC+ (383258052): received authen response status = GETUSER
14:00:10: TAC+: send AUTHEN/CONT packet
14:00:10: TAC+: Sending TCP/IP packet number 383258052-3 to 192.168.60.15 (AUTHEN/CONT)
14:00:10: TAC+: Receiving TCP/IP packet number 383258052-4 from 192.168.60.15
14:00:10: TAC+ (383258052): received authen response status = GETPASS
14:00:14: TAC+: send AUTHEN/CONT packet
14:00:14: TAC+: Sending TCP/IP packet number 383258052-5 to 192.168.60.15 (AUTHEN/CONT)
14:00:14: TAC+: Receiving TCP/IP packet number 383258052-6 from 192.168.60.15
14:00:14: TAC+ (383258052): received authen response status = PASS
14:00:14: TAC+: Closing TCP/IP connection to 192.168.60.15
The following is sample output from the debugtacacscommand for a TACACS login attempt that was unsuccessful, as indicated by the status FAIL:
Router# debug tacacs
13:53:35: TAC+: Opening TCP/IP connection to 192.168.60.15 using source
192.48.0.79
13:53:35: TAC+: Sending TCP/IP packet number 416942312-1 to 192.168.60.15
(AUTHEN/START)
13:53:35: TAC+: Receiving TCP/IP packet number 416942312-2 from 192.168.60.15
13:53:35: TAC+ (416942312): received authen response status = GETUSER
13:53:37: TAC+: send AUTHEN/CONT packet
13:53:37: TAC+: Sending TCP/IP packet number 416942312-3 to 192.168.60.15
(AUTHEN/CONT)
13:53:37: TAC+: Receiving TCP/IP packet number 416942312-4 from 192.168.60.15
13:53:37: TAC+ (416942312): received authen response status = GETPASS
13:53:38: TAC+: send AUTHEN/CONT packet
13:53:38: TAC+: Sending TCP/IP packet number 416942312-5 to 192.168.60.15
(AUTHEN/CONT)
13:53:38: TAC+: Receiving TCP/IP packet number 416942312-6 from 192.168.60.15
13:53:38: TAC+ (416942312): received authen response status = FAIL
13:53:40: TAC+: Closing TCP/IP connection to 192.168.60.15
Related Commands
Command
Description
debugaaaaccounting
Displays information on accountable events as they occur.
debugaaaauthentication
Displays information on AAA/TACACS+ authentication.
debug tacacs events
To display information from the TACACS+ helper process, use the
debugtacacseventscommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugtacacsevents
nodebugtacacsevents
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Use the debugtacacseventscommand only in response to a request from service personnel to collect data when a problem has been reported.
Caution
Use the debugtacacseventscommand with caution because it can generate a substantial amount of output.
The TACACS protocol is used on routers to assist in managing user accounts. TACACS+ enhances the TACACS functionality by adding security features and cleanly separating out the authentication, authorization, and accounting (AAA) functionality.
Examples
The following is sample output from the debugtacacseventscommand. In this example, the opening and closing of a TCP connection to a TACACS+ server are shown, and the bytes read and written over the connection and the TCP status of the connection:
Router# debug tacacs events
%LINK-3-UPDOWN: Interface Async2, changed state to up
00:03:16: TAC+: Opening TCP/IP to 192.168.58.104/1049 timeout=15
00:03:16: TAC+: Opened TCP/IP handle 0x48A87C to 192.168.58.104/1049
00:03:16: TAC+: periodic timer started
00:03:16: TAC+: 192.168.58.104 req=3BD868 id=-1242409656 ver=193 handle=0x48A87C (ESTAB)
expire=14 AUTHEN/START/SENDAUTH/CHAP queued
00:03:17: TAC+: 192.168.58.104 ESTAB 3BD868 wrote 46 of 46 bytes
00:03:22: TAC+: 192.168.58.104 CLOSEWAIT read=12 wanted=12 alloc=12 got=12
00:03:22: TAC+: 192.168.58.104 CLOSEWAIT read=61 wanted=61 alloc=61 got=49
00:03:22: TAC+: 192.168.58.104 received 61 byte reply for 3BD868
00:03:22: TAC+: req=3BD868 id=-1242409656 ver=193 handle=0x48A87C (CLOSEWAIT) expire=9
AUTHEN/START/SENDAUTH/CHAP processed
00:03:22: TAC+: periodic timer stopped (queue empty)
00:03:22: TAC+: Closing TCP/IP 0x48A87C connection to 192.168.58.104/1049
00:03:22: TAC+: Opening TCP/IP to 192.168.58.104/1049 timeout=15
00:03:22: TAC+: Opened TCP/IP handle 0x489F08 to 192.168.58.104/1049
00:03:22: TAC+: periodic timer started
00:03:22: TAC+: 192.168.58.104 req=3BD868 id=299214410 ver=192 handle=0x489F08 (ESTAB)
expire=14 AUTHEN/START/SENDPASS/CHAP queued
00:03:23: TAC+: 192.168.58.104 ESTAB 3BD868 wrote 41 of 41 bytes
00:03:23: TAC+: 192.168.58.104 CLOSEWAIT read=12 wanted=12 alloc=12 got=12
00:03:23: TAC+: 192.168.58.104 CLOSEWAIT read=21 wanted=21 alloc=21 got=9
00:03:23: TAC+: 192.168.58.104 received 21 byte reply for 3BD868
00:03:23: TAC+: req=3BD868 id=299214410 ver=192 handle=0x489F08 (CLOSEWAIT) expire=13
AUTHEN/START/SENDPASS/CHAP processed
00:03:23: TAC+: periodic timer stopped (queue empty)
The TACACS messages are intended to be self-explanatory or for consumption by service personnel only. However, the messages shown are briefly explained in the following text.
The following message indicates that a TCP open request to host 192.168.58.104 on port 1049 will time out in 15 seconds if it gets no response:
00:03:16: TAC+: Opening TCP/IP to 192.168.58.104/1049 timeout=15
The following message indicates a successful open operation and provides the address of the internal TCP “handle” for this connection:
00:03:16: TAC+: Opened TCP/IP handle 0x48A87C to 192.168.58.104/1049
The following message indicates that a TACACS+ request has been queued:
Displays information on accountable events as they occur.
debugaaaauthentication
Displays information on AAA/TACACS+ authentication.
debugaaaauthorization
Displays information on AAA/TACACS+ authorization.
debugsw56
Displays debugging information for switched 56K services.
debug tag-switching atm-cos
The debugtag-switchingatm-cos command is replaced by the debugmplsatm-cos command. See the debugmplsatm-cos command for more information.
debug tag-switching atm-tdp api
The debugtag-switchingatm-tdpapi command is replaced by the debugmplsatm-ldpapicommand. See the debugmplsatm-ldpapi command for more information.
debug tag-switching atm-tdp routes
The debugtag-switchingatm-tdproutes command is replaced by the debugmplsatm-ldproutes command. See the debugmplsatm-ldproutes command for more information.
debug tag-switching atm-tdp states
The debugtag-switchingatm-tdpstates command is replaced by the debugmplsatm-ldpstates command. See the debugmplsatm-ldpstates command for more information.
debug tag-switching tdp advertisements
The debugtag-switchingtdpadvertisements command is replaced by the debugmplsldpadvertisements command. See the debugmplsldpadvertisements command for more information.
debug tag-switching tdp bindings
The debugtag-switchingtdpbindingscommand is replaced by the debugmplsldpbindings command. See the debugmplsldpbindings command for more information.
debug tag-switching tdp directed-neighbors
The debugtag-switchingtdpdirected-neighborscommand is replaced by the debugmplsldptargeted-neighborscommand. See the debugmplsldptargeted-neighbors command for more information.
debug tag-switching tdp peer state-machine
The debugtag-switchingtdppeerstate-machinecommand is replaced by the debugmplsldppeerstate-machinecommand. See the debugmplsldppeerstate-machine command for more information.
debug tag-switching tdp pies received
The
debugtag-switchingtdppiesreceived command is replaced by the
debugmplsldpsessionio command. See the
debugmplsldpsessionio command for more information.
debug tag-switching tdp pies sent
The debugtag-switchingtdppiessent command is replaced by the debugmplsldpmessagescommand. See the debugmplsldpmessages command for more information.
debug tag-switching tdp session io
The debugtag-switchingtdpsessioniocommand is replaced by the debugmplsldpsessioniocommand. See the debugmplsldpsessionio command for more information
debug tag-switching tdp session state-machine
The debugtag-switchingtdpsessionstate-machine command is replaced by the debugmplsldpsessionstate-machine command. See the debugmplsldpsessionstate-machine command for more information.
debug tag-switching tdp transport connections
The debugtag-switchingtdptransportconnectionscommand is replaced by the debugmplsldptranportconnectionscommand. See the debugmplsldptransportconnections command for more information.
debug tag-switching tdp transport events
The debugtag-switchingtdptransporteventscommand is replaced by the debugmplsldptranporteventscommand. See the debugmplsldptransportevents command for more information.
debug tag-switching tdp transport timers
To print information about events that restart the “hold” timers that are part of the TDP discovery mechanism, use the
debugtag-switchingtdptransporttimerscommand in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugtag-switchingtdptransporttimers
nodebugtag-switchingtdptransporttimers
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(5)T
This command was introduced.
12.2(13)T
This command is no longer supported in Cisco IOS Mainline or Technology-based (T) releases. It may continue to appear in Cisco IOS 12.2S-family releases.
Usage Guidelines
TDP sessions are supported by data structures and state machines at three levels:
Transport --The transport level establishes and maintains TCP connections used to support TDP sessions.
Protocol --The protocol level implements the TDP session setup protocol. The construction and parsing of TDP PDUs and PIEs occur at this level.
Tag distribution --The tag distribution level uses TDP sessions to exchange tags with TDP peer devices.
The
debugtag-switchingtdptransport command provides visibility of activity at the transport level, the
debugtag-switchingtdpsession command at the protocol level, and the
debugtag-switchingtdppeercommand at the tag distribution level.
Examples
The following is sample output from the
debugtag-switchingtdptransporttimerscommand:
The table below describes the significant fields shown in the display.
Table 10 debug tag-switching tdp transport timers Field Descriptions
Field
Description
tdp
Identifies the source of the message as TDP.
adj 0xnnnnnnnn
Identifies the data structure used to represent the peer device at the transport level.
a.b.c.d
Network address of the peer device.
Related Commands
Command
Description
debug tag-switching tdp transport events
Prints information about the events related to the TDP peer discovery mechanism, which is used to determine the devices with which to establish TDP sessions.
debug tag-switching xtagatm cross-connect
The debugtag-switchingxtagatmcross-connectcommand is replaced by the debugmplsxtagatmcross-connectcommand. See the debugmplsxtagatmcross-connect command for more information.
debug tag-switching xtagatm errors
The debugtag-switchingxtagatmerrorscommand is replaced by the debugmplsxtagatmerrorscommand. See the debugmplsxtagatmerrors command for more information.
debug tag-switching xtagatm events
The debugtag-switchingxtagatmeventscommand is replaced by the debugmplsxtagatmeventscommand. See the debugmplsxtagatmevents command for more information.
debug tag-switching xtagatm vc
The debugtag-switchingxtagatmvccommand is replaced by the debugmplsxtagatmvccommand. See the debugmplsxtagatmvc command for more information.
