To enable stateless Network Address Translation 64 (NAT64) debugging, use the debugnat64 command in privileged EXEC mode. To disable NAT64 debugging, use the no form of this command.
debugnat64
{ all | { aliases | ha
{ all | info | trace | warn } } | id-manager | info | intf-address | issu
{ all | message | trace } | memory | pool-routes | statistics | trace | warn }
nodebugnat64
{ all | { aliases | ha
{ all | info | trace | warn } } | id-manager | info | intf-address | issu
{ all | message | trace } | memory | pool-routes | statistics | trace | warn }
Syntax Description
all
Enables information, trace, and warning level debugging.
aliases
Enables debugging of IP aliases created by NAT64.
ha
Enables high availability (HA) debugging.
all
Enables HA information, trace, and warning level debugging.
Enables the debugging of routes attached to a a pool address range.
statistics
Enables statistics debugging.
trace
Enables trace level debugging.
warn
Enables warning level debugging.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
Cisco IOS XE Release 3.2S
This command was introduced.
Cisco IOS XE Release 3.4S
This command was modified. The aliases, intf-address, and pool-routes keywords were added.
Usage Guidelines
The general debugging levels are information, trace, and warning. The debugnat64memory and debugnat64id-manager commands provide detailed traces related to resources and memory allocation. The debugnat64issu command provides traces specific to the ISSU messages exchanged.
Examples
The following is sample output from the debugnat64statistics command. The output fields are self-explanatory.
Router# debug nat64 statistics
NAT64 statistics debugging is on
Sep 16 18:26:24.537 IST: NAT64 (stats): Received stats update for IDB(FastEthernet0/3/5)
Sep 16 18:26:24.537 IST: NAT64 (stats): Updating pkts_translated_v4v6 from 94368894 to 95856998 (is_delta(TRUE) value(1488104))
Sep 16 18:26:24.537 IST: NAT64 (stats): Received stats update for IDB(FastEthernet0/3/4)
Sep 16 18:26:24.537 IST: NAT64 (stats): Updating pkts_translated_v6v4 from 7771538 to 7894088 (is_delta(TRUE) value(122550))
Sep 16 18:26:24.537 IST: NAT64 (stats): Received global stats update
Sep 16 18:26:24.537 IST: NAT64 (stats): Updating pkts_translated_v4v6 from 1718650332 to 1720138437 (is_delta(TRUE) value(1488105))
Sep 16 18:26:24.537 IST: NAT64 (stats): Updating pkts_translated_v6v4 from 1604459283 to 1604581833 (is_delta(TRUE) value(122550))
The following is sample output from the debugnat64memory command. The output fields are self-explanatory.
To display circuit-related information between the native client interface architecture (NCIA) server and client, use the
debugnciacircuitcommand in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugnciacircuit
[ error | event | flow-control | state ]
nodebugnciacircuit
[ error | event | flow-control | state ]
Syntax Description
error
(Optional) Displays the error situation for each circuit.
event
(Optional) Displays the packets received and sent for each circuit.
flow-control
(Optional) Displays the flow control information for each circuit.
state
(Optional) Displays the state changes for each circuit.
Command Modes
Privileged EXEC
Usage Guidelines
NCIA is an architecture developed by Cisco for accessing Systems Network Architecture (SNA) applications. This architecture allows native SNA interfaces on hosts and clients to access TCP/IP backbones.
You cannot enable debugging output for a particular client or particular circuit.
Caution
Do not enable the
debugnciacircuit command during normal operation because this command generates a substantial amount of output messages and could slow down the router.
Examples
The following is sample output from thedebugnciacircuiterror command. In this example, the possible errors are displayed. The first error message indicates that the router is out of memory. The second message indicates that the router has an invalid circuit control block. The third message indicates that the router is out of memory. The remaining messages identify errors related to the finite state machine.
The next two messages indicate that an NDLC_DL_STARTED message is sent to a client. The server informs the client that a data-the link session is started.
NCIA: send NDLC_DL_STARTED to client 10.2.20.3 for ckt: 8B09A8
NCIA(OUT): Ver_Id: 0x81, MsgType: NDLC_DL_STARTED, Len: 2,4 tmac: 4000.1060.1000,
tsap: 4, csap 8, oid: 8A91E8, tid 8B09A8, lfs 16, ws 1
In the following two messages, an NDLC_XID_FRAME message is received from a client, and the client starts an XID exchange:
NCIA(IN): Ver_Id: 0x81, MsgType: NDLC_XID_FRAME, Len: 12, sid: 8B09A8, FC 0x81
NCIA: send NDLC_XID_FRAME to client 10.2.20.3 for ckt: 8B09A8
In the following two messages, an NDLC_XID_FRAME message is sent from a client, and an DLC_XID_FRAME message is received from a client:
In the last two messages, an NDLC_INFO_FRAME is sent to a client, and the server sends data to the client:
NCIA: send NDLC_INFO_FRAME to client 10.2.20.3 for ckt: 8B09A8
NCIA(OUT): Ver_Id: 0x81, MsgType: NDLC_INFO_FRAME, Len: 30, sid: 8A91E8, FC 0xC1
The following is sample output from the
debugnciacircuitflow-control command. In this example, the flow control in a session startup sequence is displayed:
Router# debug ncia circuit flow-control
NCIA: no flow control in NDLC_DL_STARTED frame
NCIA: receive Increment Window Op for circuit 8ADE00
NCIA: ncia_flow_control_in FC 0x81, IW 1 GP 2 CW 2, Client IW 1 GP 0 CW 1
NCIA: grant client more packet by sending Repeat Window Op
NCIA: ncia_flow_control_out FC: 0xC1, IW 1 GP 2 CW 2, Client IW 1 GP 2 CW 2
NCIA: receive FCA for circuit 8ADE00
NCIA: receive Increment Window Op for circuit 8ADE00
NCIA: ncia_flow_control_in FC 0xC1, IW 1 GP 5 CW 3, Client IW 1 GP 2 CW 2
NCIA: grant client more packet by sending Repeat Window Op
NCIA: ncia_flow_control_out FC: 0xC1, IW 1 GP 5 CW 3, Client IW 1 GP 5 CW 3
NCIA: receive FCA for circuit 8ADE00
NCIA: receive Increment Window Op for circuit 8ADE00
NCIA: ncia_flow_control_in FC 0xC1, IW 1 GP 9 CW 4, Client IW 1 GP 5 CW 3
NCIA: grant client more packet by sending Repeat Window Op
NCIA: ncia_flow_control_out FC: 0xC1, IW 1 GP 8 CW 4, Client IW 1 GP 9 CW 4
NCIA: reduce ClientGrantPacket by 1 (Granted: 8)
NCIA: receive FCA for circuit 8ADE00
NCIA: receive Increment Window Op for circuit 8ADE00
The following table describes the significant fields shown in the display.
Table 2 debug ncia circuit flow-control Field Descriptions
Field
Description
IW
Initial window size.
GP
Granted packet number.
CW
Current window size.
The following is sample output from the
debugnciacircuitstatecommand. In this example, a session startup sequence is displayed:
Router# debug ncia circuit state
NCIA: pre-server fsm: event CONN_OPENED
NCIA: pre-server fsm: event NDLC_PRIMITIVES
NCIA: server event: WAN - STDL state: CLSOED
NCIA: ncia server fsm action 32
NCIA: circuit state: CLOSED -> START_DL_RCVD
NCIA: server event: DLU - TestStn.Rsp state: START_DL_RCVD
NCIA: ncia server fsm action 17
NCIA: circuit state: START_DL_RCVD -> DL_STARTED_SND
NCIA: pre-server fsm: event NDLC_PRIMITIVES
NCIA: server event: WAN - XID state: DL_STARTED_SND
NCIA: ncia server fsm action 33
NCIA: circuit state: DL_STARTED_SND -> DL_STARTED_SND
NCIA: server event: DLU - ReqOpnStn.Req state: DL_STARTED_SND
NCIA: ncia server fsm action 33
NCIA: circuit state: DL_STARTED_SND -> OPENED
NCIA: server event: DLU - Id.Rsp state: OPENED
NCIA: ncia server fsm action 11
NCIA: circuit state: OPENED -> OPENED
NCIA: pre-server fsm: event NDLC_PRIMITIVES
NCIA: server event: WAN - XID state: OPENED
NCIA: ncia server fsm action 33
NCIA: circuit state: OPENED -> OPENED
NCIA: server event: DLU - Connect.Req state: OPENED
NCIA: ncia server fsm action 6
NCIA: circuit state: OPENED -> CONNECT_PENDING
NCIA: pre-server fsm: event NDLC_PRIMITIVES
NCIA: server event: WAN - CONR state: CONNECT_PENDING
NCIA: ncia server fsm action 33 --> CLS_CONNECT_CNF sets NciaClsBusy
NCIA: circuit state: CONNECT_PENDING -> CONNECTED
NCIA: server event: DLU - Flow.Req (START) state: CONNECTED
NCIA: ncia server fsm action 25 --> unset NciaClsBusy
NCIA: circuit state: CONNECTED -> CONNECTED
NCIA: server event: DLU - Data.Rsp state: CONNECTED
NCIA: ncia server fsm action 8
NCIA: circuit state: CONNECTED -> CONNECTED
The following table describes the significant fields shown in the display.
Table 3 debug ncia circuit state Field Descriptions
Field
Description
WAN
Event from WAN (client).
DLU
Event from upstream module--dependent logical unit (DLU).
ADMIN
Administrative event.
TIMER
Timer event.
Related Commands
Command
Description
debugdmspfax-to-doc
Enables debugging of DLSw+.
debugnciaclient
Displays debug information for all NCIA client processing that occurs in the router.
debugnciaserver
Displays debug information for the NCIA server and its upstream software modules.
debug ncia client
To display debug information for all native client interface architecture (NCIA) client processing that occurs in the router, use the debugnciaclientcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
(Optional) Triggers the recording of messages only when errors occur. The current state and event of an NCIA client are normally included in the message. If you do not specify an IP address, the error messages are logged for all active clients.
event
(Optional) Triggers the recording of messages that describe the current state and event--and sometimes the action that just completed--for the NCIA client. If you do not specify an IP address, the messages are logged for all active clients.
message
(Optional) Triggers the recording of messages that contain up to the first 32 bytes of data in a TCP packet sent to or received from an NCIA client. If you do not specify an IP address, the messages are logged for all active clients.
Command Modes
Privileged EXEC
Usage Guidelines
NCIA is an architecture developed by Cisco for accessing Systems Network Architecture (SNA) applications. This architecture allows native SNA interfaces on hosts and clients to access TCP/IP backbones.
Use the debugnciaclienterror command to see only certain error conditions that occur.
Use the debugnciaclientevent command to determine the sequences of activities that occur while an NCIA client is in different processing states.
Use the debugnciaclientmessage command to see only the first 32 bytes of data in a TCP packet sent to or received from an NCIA client.
The debugnciaclientcommand can be used in conjunction with the debugnciaserver and debugnciacircuit commands to get a complete picture of NCIA activity.
Examples
The following is sample output from the debugnciaclient command. Following the example is a description of each sample output message.
Router# debug ncia client
NCIA: Passive open 10.2.20.123(1088) -> 1973
NCIA: index for client hash queue is 27
NCIA: number of element in client hash queue 27 is 1
NCIA: event PASSIVE_OPEN, state NCIA_CLOSED for client 10.2.20.123
NCIA: Rcvd msg type NDLC_CAP_XCHG in tcp packet for client 10.2.20.123
NCIA: First 17 byte of data rcvd: 811200110000000000000400050104080C
NCIA: Sent msg type NDLC_CAP_XCHG in tcp packet to client 10.2.20.123
NCIA: First 17 byte of data sent: 811200111000000010000400050104080C
NCIA: event CAP_CMD_RCVD, state NCIA_CAP_WAIT, for client 10.2.20.123, cap xchg cmd sent
NCIA: Rcvd msg type NDLC_CAP_XCHG in tcp packet for client 10.2.20.123
NCIA: First 17 byte of data rcvd: 811200111000000010000000050104080C
NCIA: event CAP_RSP_RCVD, state NCIA_CAP_NEG for client 10.2.20.123
NCIA: Rcvd msg type NDLC_PEER_TEST_REQ in tcp packet for client 10.2.20.123
NCIA: First 4 byte of data rcvd: 811D0004
NCIA: event KEEPALIVE_RCVD, state NCIA_OPENED for client 10.2.20.123
NCIA: Sent msg type NDLC_PEER_TEST_RSP in tcp packet to client 10.2.20.123
NCIA: First 4 byte of data sent: 811E0004IA
NCIA: event TIME_OUT, state NCIA_OPENED, for client 10.2.20.123, keepalive_count = 0
NCIA: Sent msg type NDLC_PEER_TEST_REQ, in tcp packet to client 10.2.20.123
NCIA: First 4 byte of data sent: 811D0004
NCIA: Rcvd msg type NDLC_PEER_TEST_RSP in tcp packet for client 10.2.20.123
NCIA: First 4 byte of data rcvd: 811E0004
NCIA: event KEEPALIVE_RSP_RCVD, state NCIA_OPENED for client 10.2.20.123
NCIA: Error, event PASIVE_OPEN, state NCIA_OPENED, for client 10.2.20.123, should not have occurred.
NCIA: Error, active_open for pre_client_fsm while client 10.2.20.123 is active or not configured, registered.
Messages in lines 1 through 12 show the events that occur when a client connects to the router (the NCIA server). These messages show a passive_open process.
Messages in lines 13 to 17 show the events that occur when a TIME_OUT event is detected by a client PC workstation. The workstation sends an NDLC_PEER_TEST_REQ message to the NCIA server, and the router responds with an NDLC_PEER_TEST_RSP message.
Messages in lines 18 to 23 show the events that occur when a TIME_OUT event is detected by the router (the NCIA server). The router sends an NDLC_PEER_TEST_REQ message to the client PC workstation, and the PC responds with an NDLC_PEER_TEST_RSP message.
When you use the debugnciaclientmessage command, the messages shown on lines 6, 8, 11, 14, 17, 20, and 22 are output in addition to other messages not shown in this example.
When you use the debugnciaclienterror command, the messages shown on lines 24 and 25 are output in addition to other messages not shown in this example.
Related Commands
Command
Description
debugnciacircuit
Displays debug information for all NCIA client processing that occurs in the router.
debugnciaserver
Displays debug information for the NCIA server and its upstream software modules.
debug ncia server
To display debug information for the native client interface architecture (NCIA) server and its upstream software modules, use the debugnciaservercommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugnciaserver
nodebugnciaserver
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
NCIA is an architecture developed by Cisco for accessing Systems Network Architecture (SNA) applications. This architecture allows native SNA interfaces on hosts and clients to access TCP/IP backbones.
The debugnciaserver command displays all Cisco Link Services (CLS) messages between the NCIA server and its upstream modules, such as data-link switching (DLSw) and downstream physical units (DSPUs). Use this command when a problem exists between the NCIA server and other software modules within the router.
You cannot enable debugging output for a particular client or particular circuit.
Examples
The following is sample output from the debugnciaserver command. In this example, a session startup sequence is displayed. Following the example is a description of each group of sample output messages.
Router# debug ncia server
NCIA: send CLS_TEST_STN_IND to DLU
NCIA: Receive TestStn.Rsp
NCIA: send CLS_ID_STN_IND to DLU
NCIA: Receive ReqOpnStn.Req
NCIA: send CLS_REQ_OPNSTN_CNF to DLU
NCIA: Receive Id.Rsp
NCIA: send CLS_ID_IND to DLU
NCIA: Receive Connect.Req
NCIA: send CLS_CONNECT_CNF to DLU
NCIA: Receive Flow.Req
NCIA: Receive Data.Req
NCIA: send CLS_DATA_IND to DLU
NCIA: send CLS_DISC_IND to DLU
NCIA: Receive Disconnect.Rsp
In the following messages, the client is sending a test message to the host and the test message is received by the host:
NCIA: send CLS_TEST_STN_IND to DLU
NCIA: Receive TestStn.Rsp
In the next message, the server is sending an exchange identification (XID) message to the host:
NCIA: send CLS_ID_STN_IND to DLU
In the next two messages, the host opens the station and the server responds:
NCIA: Receive ReqOpnStn.Req
NCIA: send CLS_REQ_OPNSTN_CNF to DLU
In the following two messages, the client is performing an XID exchange with the host:
NCIA: Receive Id.Rsp
NCIA: send CLS_ID_IND to DLU
In the next group of messages, the host attempts to establish a session with the client:
In the next two messages, the host sends data to the client:
NCIA: Receive Data.Req
NCIA: send CLS_DATA_IND to DLU
In the last two messages, the client closes the session:
NCIA: send CLS_DISC_IND to DLU
NCIA: Receive Disconnect.Rsp
Related Commands
Command
Description
debugdmspfax-to-doc
Enables debugging of DLSw+.
debigmcoacircuit
Displays circuit-related information between the NCIA server and client.
debugnciaclient
Displays debug information for all NCIA client processing that occurs in the router.
debug netbios error
To display information about Network Basic Input/Output System (NetBIOS) protocol errors, use the debugnetbioserrorcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugnetbioserror
nodebugnetbioserror
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
For complete information on the NetBIOS process, use the debugnetbiospacket command along with the debugnetbioserror command.
Examples
The following is sample output from the debugnetbioserrorcommand. This example shows that an illegal packet has been received on the asynchronous interface.
Router# debug netbios error
Async1 nbf Bad packet
Related Commands
Command
Description
debugnetbios-name-cache
Displays
name caching activities on a router.
debugnetbiospacket
Displays general information about NetBIOS packets.
debug netbios packet
To display general information about Network Basic Input/Output System (NetBIOS) packets, use the debugnetbiospacketcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugnetbiospacket
nodebugnetbiospacket
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
For complete information on the NetBIOS process, use the debugnetbioserror command along with the debugnetbiospacket command.
Examples
The following is sample output from the debugnetbiospacketand debugnetbioserror commands. This example shows the Logical Link Control (LLC) header for an asynchronous interface followed by the NetBIOS information. For additional information on the NetBIOS fields, refer to IBM LAN Technical Reference IEEE 802.2
.
Displays information about NetBIOS protocol errors.
debugnetbios-name-cache
Displays
name caching activities on a router.
debug netbios-name-cache
To display name caching activities on a router, use the
debugnetbios-name-cachecommand in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugnetbios-name-cache
nodebugnetbios-name-cache
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Examine the display to diagnose problems in Network Basic Input/Output System ( NetBIOS) name caching.
Examples
The following is sample output from the
debugnetbios-name-cachecommand:
Router# debug netbios-name-cache
NETBIOS: L checking name ORINDA, vrn=0
NetBIOS name cache table corrupted at offset 13
NetBIOS name cache table corrupted at later offset, at location 13
NETBIOS: U chk name=ORINDA, addr=1000.4444.5555, idb=TR1, vrn=0, type=1
NETBIOS: U upd name=ORINDA,addr=1000.4444.5555,idb=TR1,vrn=0,type=1
NETBIOS: U add name=ORINDA,addr=1000.4444.5555,idb=TR1,vrn=0,type=1
NETBIOS: U no memory to add cache entry. name=ORINDA,addr=1000.4444.5555
NETBIOS: Invalid structure detected in netbios_name_cache_ager
NETBIOS: flushed name=ORINDA, addr=1000.4444.5555
NETBIOS: expired name=ORINDA, addr=1000.4444.5555
NETBIOS: removing entry. name=ORINDA,addr=1000.4444.5555,idb=TR1,vrn=0
NETBIOS: Tossing ADD_NAME/STATUS/NAME/ADD_GROUP frame
NETBIOS: Lookup Failed -- not in cache
NETBIOS: Lookup Worked, but split horizon failed
NETBIOS: Could not find RIF entry
NETBIOS: Cannot duplicate packet in netbios_name_cache_proxy
Note
The sample display is a composite output. Debugging output that you actually see would not necessarily occur in this sequence.
The following table describes the significant fields shown in the display.
Table 4 debug netbios-name-cache Field Descriptions
Field
Description
NETBIOS
NetBIOS name caching debugging output.
L, U
L means lookup; U means update.
addr=1000.4444.5555
MAC address of machine being looked up in NetBIOS name cache.
idb=TR1
Indicates that the name of machine was learned from Token Ring interface number 1; idb is into interface data block.
vrn=0
Packet comes from virtual ring number 0. This packet actually comes from a real Token Ring interface, because virtual ring number 0 is not valid.
type=1
Indicates the way that the router learned about the specified machine. The possible values are as follows:
1--Learned from traffic
2--Learned from a remote peer
4--Statically entered via the configuration of the router
With the first line of output, the router declares that it has examined the NetBIOS name cache table for the machine name ORINDA and that the packet that prompted the lookup came from virtual ring 0. In this case, this packet comes from a real interface--virtual ring number 0 is not valid.
NETBIOS: L checking name ORINDA, vrn=0
The following two lines indicate that an invalid NetBIOS entry exists and that the corrupted memory was detected. The invalid memory will be removed from the table; no action is needed.
NetBIOS name cache table corrupted at offset 13
NetBIOS name cache table corrupted at later offset, at location 13
The following line indicates that the router attempted to check the NetBIOS cache table for the name ORINDA with MAC address 1000.4444.5555. This name was obtained from Token Ring interface 1. The type field indicates that the name was learned from traffic.
NETBIOS: U chk name=ORINDA, addr=1000.4444.5555, idb=TR1, vrn=0, type=1
The following line indicates that the NetBIOS name ORINDA is in the name cache table and was updated to the current value:
NETBIOS: U upd name=ORINDA,addr=1000.4444.5555,idb=TR1,vrn=0,type=1
The following line indicates that the NetBIOS name ORINDA is not in the table and must be added to the table:
NETBIOS: U add name=ORINDA,addr=1000.4444.5555,idb=TR1,vrn=0,type=1
The following line indicates that there was insufficient cache buffer space when the router tried to add this name:
NETBIOS: U no memory to add cache entry. name=ORINDA,addr=1000.4444.5555
The following line indicates that the NetBIOS ager detects an invalid memory in the cache. The router clears the entry; no action is needed.
NETBIOS: Invalid structure detected in netbios_name_cache_ager
The following line indicates that the entry for ORINDA was flushed from the cache table:
NETBIOS: flushed name=ORINDA, addr=1000.4444.5555
The following line indicates that the entry for ORINDA timed out and was flushed from the cache table:
NETBIOS: expired name=ORINDA, addr=1000.4444.5555
The following line indicates that the router removed the ORINDA entry from its cache table:
The following line indicates that the router discarded a NetBIOS packet of type ADD_NAME, STATUS, NAME_QUERY, or ADD_GROUP. These packets are discarded when multiple copies of one of these packet types are detected during a certain period of time.
The following line indicates that the system could not find a NetBIOS name in the cache:
NETBIOS: Lookup Failed -- not in cache
The following line indicates that the system found the destination NetBIOS name in the cache, but located on the same ring from which the packet came. The router will drop this packet because the packet should not leave this ring.
NETBIOS: Lookup Worked, but split horizon failed
The following line indicates that the system found the NetBIOS name in the cache, but the router could not find the corresponding RIF. The packet will be sent as a broadcast frame.
NETBIOS: Could not find RIF entry
The following line indicates that no buffer was available to create a NetBIOS name cache proxy. A proxy will not be created for the packet, which will be forwarded as a broadcast frame.
NETBIOS: Cannot duplicate packet in netbios_name_cache_proxy
Related Commands
Command
Description
debugnetbioserror
Displays information about NetBIOS protocol errors.
debugnetbiospacket
Displays general information about NetBIOS packets.
debug netconf
To enable debugging of network configuration protocol (NETCONF) sessions, use the
debugnetconf command in privileged EXEC mode. To turn off NETCONF debugging, use the
no form of this command.
debugnetconf
{ all | error }
nodebugnetconf
{ all | error }
Syntax Description
all
Enables debugging of NETCONF sessions, including NETCONF errors.
error
Enables debugging of NETCONF errors.
Command Default
NETCONF debugging is not enabled.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.2(33)SRA
This command was introduced.
12.4(9)T
This command was integrated into Cisco IOS Release 12.4(9)T.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
12.2(33)SB
This command was integrated into Cisco IOS Release 12.2(33)SB.
12.2(33)SXI
This command was integrated into Cisco IOS Release 12.2(33)SXI.
Usage Guidelines
The
debugnetconfcommand issues debug information only when an operational error has happened. In most situations, the NETCONF notifications sent between the NETCONF Network Manager and the client are sufficient to diagnose most NETCONF problems.
To view Extensible Markup Language (XML) parsing errors when using NETCONF over SSHv2, you must also configure the
debugcnsxmlall command.
Examples
The following example shows how to enable debugging of all NETCONF sessions:
Router# debug netconf
00:14:03: NETCONF-ERROR: could not find user1
00:14:03: NETCONF-ERROR: could not find tftp://samplelocation/samplefile
00:14:03: NETCONF: locking 1 by session 646B7038
00:14:03: NETCONF: locking 2 by session 646B7038
00:14:03: NETCONF: locking 1 by session 646B7038
00:14:03: NETCONF-ERROR: invalid session unlock attempt
00:14:03: NETCONF: locking 1 by session 646B7038
00:14:03: NETCONF-ERROR: lock already active
00:14:13: NETCONF-ERROR: lock time 1 expired closing session 646B7038
The following table describes the significant fields shown in the display.
Table 5 debug netconf Field Descriptions
Field
Description
NETCONF-ERROR: could not find user1
NETCONF could not find the specified username.
NETCONF-ERROR: could not find tftp://samplelocation/samplefile
NETCONF could not find the specified file path.
NETCONF: locking 1 by session 646B7038
This user is locking NETCONF.
NETCONF-ERROR: invalid session unlock attempt
Another user is trying to unlock NETCONF without first acquiring the lock.
NETCONF-ERROR: lock already active
Another user is trying to lock NETCONF while it is currently locked.
NETCONF-ERROR: lock time 1 expired closing session 646B7038
A locked NETCONF session has been idle longer than the time configured by the
netconflock-time command. The locked NETCONF session is closed.
Related Commands
Command
Description
clearnetconf
Clears NETCONF statistics counters, NETCONF sessions, and frees associated resources and locks.
debugcnsxml
Turns on debugging messages related to the CNS XML parser.
netconf lock-time
Specifies the maximum time a NETCONF configuration lock is in place without an intermediate operation.
netconf max-sessions
Specifies the maximum number of concurrent NETCONF sessions allowed.
netconf ssh
Enables NETCONF over SSHv2.
show netconf
Displays NETCONF statistics counters and session information.
debug nextport vsmgr detail
To turn on debugging for NextPort voice services, use the debugnextportvsmgrdetailcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugnextportvsmgrdetail
nodebugnextportvsmgrdetail
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(2)XB
This command was introduced.
12.3(4)T
This command was integrated into Cisco IOS Release 12.3(4)T.
12.3(14)T
T.38 fax relay call statistics were made available to Call Detail Records (CDRs) through Vendor-Specific Attributes (VSAs) and added to the call log.
Usage Guidelines
This command debugs digital signal processor (DSP) message exchanges between applications and the DSP.
Examples
The following examples turn on debugging for NextPort voice services:
Examples
Router# debug nextport vsmgr detail
NextPort Voice Service Manager:
NP Voice Service Manager Detail debugging is on
.
.
.
May 7 21:09:49.135 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE
May 7 21:09:49.195 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE
May 7 21:09:49.291 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE
May 7 21:09:51.191 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE
May 7 21:09:51.331 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE
May 7 21:09:51.803 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF Received
May 7 21:09:51.803 UTC: request_id = 0x01, request_type = 0x0F
May 7 21:09:51.803 UTC: VOICE_TRANSMIT_STATS(1/2): num_voice_packets 4 num_sig_packets 0 num_cn_packets 1 transmit_duration 8FC end_point_detection 0
May 7 21:09:51.803 UTC: VOICE_RECEIVE_STATS(1/2): num_voice_packets 4 num_sig_packets 0 num_cn_packets 1 receive_duration 8FC voice_receive_duration 0 num_pos_packets 0 num_bph_packets 0 num_late_packets 0 num_early_packets 0
May 7 21:09:51.803 UTC: VOICE_PLAYOUT_DELAY_STATS(1/2): curr_playout_delay 0 min_playout_delay 0 max_playout_delay 0 clock offset 0
May 7 21:09:51.803 UTC: VOICE_PLAYOUT_ERROR(1/2): pred_conceal 0x0 inter_conceal 0x0 silence_conceal 0x0 buffer_overflow 0x0 endpt_det_error 0x0
May 7 21:09:53.231 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF Received
May 7 21:09:53.231 UTC: request_id = 0x01, request_type = 0x0F
May 7 21:09:53.231 UTC: VOICE_TRANSMIT_STATS(1/2): num_voice_packets 1E num_sig_packets 0 num_cn_packets 1 transmit_duration E92 end_point_detection 0
May 7 21:09:53.231 UTC: VOICE_RECEIVE_STATS(1/2): num_voice_packets 4 num_sig_packets 0 num_cn_packets 1 receive_duration E92 voice_receive_duration 0 num_pos_packets 0 num_bph_packets 0 num_late_packets 0 num_early_packets 0
May 7 21:09:53.231 UTC: VOICE_PLAYOUT_DELAY_STATS(1/2): curr_playout_delay 5A min_playout_delay 5A max_playout_delay 5A clock offset 19778906
May 7 21:09:53.231 UTC: VOICE_PLAYOUT_ERROR(1/2): pred_conceal 0x0 inter_conceal 0x0 silence_conceal 0x0 buffer_overflow 0x0 endpt_det_error 0x0
May 7 21:09:56.055 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF Received
May 7 21:09:56.055 UTC: request_id = 0x01, request_type = 0x0F
May 7 21:09:56.055 UTC: VOICE_TRANSMIT_STATS(1/2): num_voice_packets 23 num_sig_packets 0 num_cn_packets 2 transmit_duration 19A0 end_point_detection BB8
May 7 21:09:56.055 UTC: VOICE_RECEIVE_STATS(1/2): num_voice_packets 8A num_sig_packets 0 num_cn_packets 1 receive_duration 19A0 voice_receive_duration 0 num_pos_packets 0 num_bph_packets 0 num_late_packets 0 num_early_packets 1
May 7 21:09:56.055 UTC: VOICE_PLAYOUT_DELAY_STATS(1/2): curr_playout_delay 3C min_playout_delay 3C max_playout_delay 64 clock offset 197788E4
May 7 21:09:56.055 UTC: VOICE_PLAYOUT_ERROR(1/2): pred_conceal 0x0 inter_conceal 0x0 silence_conceal 0x0 buffer_overflow 0x1 endpt_det_error 0x0
May 7 21:09:56.855 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE
May 7 21:09:57.907 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE
May 7 21:09:57.907 UTC: FAX_RELAY_LINK_INFO_RSP_NTF: slot 1 port 2 timestamp 68137565 fr-entered (20ms)
May 7 21:09:57.907 UTC: chan_id [3/1:D] np_vsmgr_fax_relay_link_info_response:
May 7 21:10:15.047 UTC: np_fax_relay_t30_decode : Tx Direction
May 7 21:10:15.067 UTC: FARELAY_INIT_HS_MOD : 0xC
May 7 21:10:51.579 UTC: FAX_RELAY_DATA_PUMP_STATS(1/2) - valid:0x3FFC1F55 state_code:0x0 level:0x18 phase_jitter:0x5 freq_offset:0x0 eqm:0x7FFE jit_depth:0x230 jit_buf_ov:0x0 tx_paks:0x626 rx_pkts:0x5A inv_pkts:0x0 oos_pkts:0x0 hs_mod:0x8 init_hs_mod:0xC tx_pgs:0x1 rx_pgs:0x0 ecm:0x1 nsf_country:0x0 nsf_manuf_len:0x20 nsf_manuf:0031B8EE80C48511DD0D0000DDDD0000DDDD000000000000000022ED00B0A400 encap:0x1 pkt_loss_con:0x0
May 7 21:10:52.463 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE
May 7 21:10:52.463 UTC: vsm(1/2): np_vsmgr_voice_state_change - NULL DSP Interface Handle
Examples
Router# debug nextport vsmgr detail
NextPort Voice Service Manager:
NP Voice Service Manager Detail debugging is on
.
.
Router#
May 7 21:09:51.179 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE
May 7 21:09:51.263 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE
May 7 21:09:51.303 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE
May 7 21:09:51.443 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE
May 7 21:09:51.467 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF Received
May 7 21:09:51.467 UTC: request_id = 0x01, request_type = 0x0F
May 7 21:09:51.467 UTC: VOICE_TRANSMIT_STATS(1/2): num_voice_packets 0 num_sig_packets 0 num_cn_packets 0 transmit_duration 0 end_point_detection 0
May 7 21:09:51.467 UTC: VOICE_RECEIVE_STATS(1/2): num_voice_packets 0 num_sig_packets 0 num_cn_packets 0 receive_duration 0 voice_receive_duration 0 num_pos_packets 0 num_bph_packets 0 num_late_packets 0 num_early_packets 0
May 7 21:09:51.467 UTC: VOICE_PLAYOUT_DELAY_STATS(1/2): curr_playout_delay 0 min_playout_delay 0 max_playout_delay 0 clock offset 0
May 7 21:09:51.467 UTC: VOICE_PLAYOUT_ERROR(1/2): pred_conceal 0x0 inter_conceal 0x0 silence_conceal 0x0 buffer_overflow 0x0 endpt_det_error 0x0
May 7 21:09:53.787 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF Received
May 7 21:09:53.787 UTC: request_id = 0x01, request_type = 0x0F
May 7 21:09:53.787 UTC: VOICE_TRANSMIT_STATS(1/2): num_voice_packets 19 num_sig_packets 0 num_cn_packets 1 transmit_duration 910 end_point_detection 0
May 7 21:09:53.787 UTC: VOICE_RECEIVE_STATS(1/2): num_voice_packets 1F num_sig_packets 0 num_cn_packets 2 receive_duration 910 voice_receive_duration 0 num_pos_packets 0 num_bph_packets 0 num_late_packets 0 num_early_packets 0
May 7 21:09:53.787 UTC: VOICE_PLAYOUT_DELAY_STATS(1/2): curr_playout_delay 5A min_playout_delay 5A max_playout_delay 5A clock offset 68877C4
May 7 21:09:53.787 UTC: VOICE_PLAYOUT_ERROR(1/2): pred_conceal 0x0 inter_conceal 0x0 silence_conceal 0x0 buffer_overflow 0x0 endpt_det_error 0x0
May 7 21:09:56.571 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF Received
May 7 21:09:56.571 UTC: request_id = 0x01, request_type = 0x0F
May 7 21:09:56.571 UTC: VOICE_TRANSMIT_STATS(1/2): num_voice_packets A5 num_sig_packets 0 num_cn_packets 1 transmit_duration 13F6 end_point_detection 0
May 7 21:09:56.571 UTC: VOICE_RECEIVE_STATS(1/2): num_voice_packets 30 num_sig_packets 0 num_cn_packets 2 receive_duration 13F6 voice_receive_duration 7D0 num_pos_packets 0 num_bph_packets 0 num_late_packets 0 num_early_packets 0
May 7 21:09:56.571 UTC: VOICE_PLAYOUT_DELAY_STATS(1/2): curr_playout_delay 64 min_playout_delay 5A max_playout_delay 64 clock offset 68877D4
May 7 21:09:56.571 UTC: VOICE_PLAYOUT_ERROR(1/2): pred_conceal 0x0 inter_conceal 0x0 silence_conceal 0x0 buffer_overflow 0x0 endpt_det_error 0x0
May 7 21:09:56.807 UTC: VOICE_DET_STATUS_CHANGE_NTF(1/2): detector mask: 1 timestamp 791687D5
May 7 21:09:56.855 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE
May 7 21:09:57.911 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE
May 7 21:09:57.911 UTC: FAX_RELAY_LINK_INFO_RSP_NTF: slot 1 port 2 timestamp 65325022 fr-entered (20ms)
May 7 21:09:57.911 UTC: chan_id [3/1:D (6)] np_vsmgr_fax_relay_link_info_response:
May 7 21:10:15.043 UTC: np_fax_relay_t30_decode : Rx Direction
May 7 21:10:15.107 UTC: FARELAY_INIT_HS_MOD : 0x8
May 7 21:10:51.376 UTC: FAX_RELAY_DET_STATUS_CHANGE: slot: 1 port: 2 detector mask 0x2
May 7 21:10:51.404 UTC: FAX_RELAY_DATA_PUMP_STATS(1/2) - valid:0x3FFC1F55 state_code:0x1 level:0x18 phase_jitter:0x0 freq_offset:0x0 eqm:0x7FFE jit_depth:0x39E jit_buf_ov:0x0 tx_paks:0x5A rx_pkts:0x626 inv_pkts:0x0 oos_pkts:0x0 hs_mod:0x8 init_hs_mod:0x8 tx_pgs:0x0 rx_pgs:0x1 ecm:0x1 nsf_country:0x0 nsf_manuf_len:0x20 nsf_manuf:0031B8EE80C48511DD0D0000DDDD0000DDDD000000000000000022ED00B0A400 encap:0x1 pkt_loss_con:0x0
May 7 21:10:52.288 UTC: FAX_RELAY_LINK_INFO_RSP_NTF: slot 1 port 2 timestamp 65760060 fr-end
May 7 21:10:52.304 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE
May 7 21:10:52.388 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state ACTIVE
May 7 21:10:52.416 UTC: np_vsmgr_dispatch_voice_rsp(1/2): VOICE_LINK_INFO_RSP_NTF Received
May 7 21:10:52.416 UTC: request_id = 0x05, request_type = 0x30
May 7 21:10:52.416 UTC: VOICE_LEVELS_STATS(1/2): tx_power FF7E tx_mean FF7F rx_power FDBD rx_mean FB48 bnl FD81 erl FD acom 1EA tx_act 1 rx_act 0
May 7 21:10:52.440 UTC: vsm(1/2): np_vsmgr_voice_state_change() - state IDLE
May 7 21:10:52.440 UTC: vsm(1/2): np_vsmgr_voice_state_change - NULL DSP Interface Handle
Related Commands
Command
Description
debugdspapidetail
Displays details of the DSP API message events with debugging enabled.
voicecapentry
Creates a voicecap on NextPort platforms.
voicecapconfigure
Applies a voicecap on NextPort platforms.
debug nhrp
To enable Next Hop Resolution Protocol (NHRP) debugging, use the debug nhrp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
This command was modified. The detail keyword was added and the command output was enhanced to display more NHRP debugging information. The Virtual-Accessnumber keyword-argument pair was added.
Usage Guidelines
Use the debug nhrp detail
command to view the NHRP attribute logs.
The Virtual-Accessnumber
keyword-argument pair is visible only if the virtual access interface is available on the device.
Examples
The following example shows NHRP debugging output for IPv6:
Router# debug nhrp
Aug 9 13:13:41.486: NHRP: Attempting to send packet via DEST
- 2001:0db8:3c4d:0015:0000:0000:1a2f:3d2c/32
Aug 9 13:13:41.486: NHRP: Encapsulation succeeded.
Aug 9 13:13:41.486: NHRP: Tunnel NBMA addr 11.11.11.99
Aug 9 13:13:41.486: NHRP: Send Registration Request via Tunnel0 vrf 0, packet size: 105
Aug 9 13:13:41.486: src: 2001:0db8:3c4d:0015:0000:0000:1a2f:3d2c/32,
dst: 2001:0db8:3c4d:0015:0000:0000:1a2f:3d2c/32
Aug 9 13:13:41.486: NHRP: 105 bytes out Tunnel0
Aug 9 13:13:41.486: NHRP: Receive Registration Reply via Tunnel0 vrf 0, packet size: 125
The following example shows NHRP debugging output for IPv4:
Router# debug nhrp
Aug 9 13:13:41.486: NHRP: Attempting to send packet via DEST 10.1.1.99
Aug 9 13:13:41.486: NHRP: Encapsulation succeeded. Tunnel IP addr 10.11.11.99
Aug 9 13:13:41.486: NHRP: Send Registration Request via Tunnel0 vrf 0, packet size: 105
Aug 9 13:13:41.486: src: 10.1.1.11, dst: 10.1.1.99
Aug 9 13:13:41.486: NHRP: 105 bytes out Tunnel0
Aug 9 13:13:41.486: NHRP: Receive Registration Reply via Tunnel0 vrf 0, packet size: 125
Aug 9 13:13:41.486: NHRP: netid_in = 0, to_us = 1
The following example shows NHRP debugging output for the detail keyword:
To enable Next Hop Resolution Protocol (NHRP) conditional debugging, use the debugnhrpconditioncommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
To display Next Hop Resolution Protocol (NHRP) error-level debugging information, use the debugnhrperrorcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugnhrp
{ ipv4 | ipv6 }
error
nodebugnhrp
{ ipv4 | ipv6 }
error
Syntax Description
ipv4
Specifies the IPv6 overlay network.
ipv6
Specifies the IPv6 overlay network.
Note
Cisco IOS XE Release 2.5 does not support the ipv6 keyword.
Command Default
NHRP error-level debugging is not enabled.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.4(9)T
This command was introduced.
12.4(20)T
The ipv4 and ipv6 keywords were added.
Cisco IOS XE Release 2.5
This command was modified. It was integrated into Cisco IOS XE Release 2.5.
Examples
The following example shows how to enable error level debugging for IPv4 NHRP:
Router# debug nhrp ipv4 error
NHRP errors debugging is on
Related Commands
Command
Description
debugdmvpn
Displays DMVPN session debugging information.
debugnhrpcondition
Enables NHRP conditional debugging.
debug nhrp extension
To display the extensions portion of a NHRP packet, use the debugnhrpextensionprivileged EXEC command. The no form of this command disables debugging output.
This command is no longer supported in Cisco IOS Mainline or Technology-based (T) releases. It may continue to appear in Cisco IOS 12.2S-family releases.
Examples
The following is sample output from the debugnhrpextensioncommand:
To display information about NHRP option processing, use the
debugnhrpoptionsprivileged EXEC command. The
no form of this command disables debugging output.
debugnhrpoptions
nodebugnhrpoptions
Syntax Description
This command has no arguments or keywords.
Command History
Release
Modification
10.0
This command was introduced.
12.2(13)T
This command is no longer supported in Cisco IOS Mainline or Technology-based (T) releases. It may continue to appear in Cisco IOS 12.2S-family releases.
Usage Guidelines
Use this command to show you whether there are problems or error situations with NHRP option processing (for example, unknown options).
Examples
The following is sample output from the
debugnhrpoptionscommand:
This command is no longer supported in Cisco IOS Mainline or Technology-based (T) releases. It may continue to appear in Cisco IOS 12.2S-family releases.
Examples
The following is sample output from the debugnhrppacketcommand:
To display information about NHRP traffic rate limits, use the
debugnhrprateprivileged EXEC command. The
no form of this command disables debugging output.
debugnhrprate
nodebugnhrprate
Syntax Description
This command has no arguments or keywords.
Command History
Release
Modification
10.0
This command was introduced.
12.2(13)T
This command is no longer supported in Cisco IOS Mainline or Technology-based (T) releases. It may continue to appear in Cisco IOS 12.2S-family releases.
Usage Guidelines
Use this command to verify that the traffic is consistent with the setting of the NHRP commands (such as
ipnhrpuse andipmax-send commands).
Examples
The following is sample output from the
debugnhrpratecommand:
The following table describes the significant fields shown in the display.
Table 7 debug nhrp rate Field Descriptions
Field
Descriptions
NHRP-RATE
NHRP rate debugging output.
Sending initial request
First time an attempt was made to send an NHRP packet to a particular destination.
Retransmitting request
Indicates that the NHRP packet was re-sent, and shows the time interval (in seconds) to wait before the NHRP packet is re-sent again.
Ethernet1:
Used 3
Interface over which the NHRP packet was sent.
Number of packets sent out of the default maximum five (in this case, three were sent).
Related Commands
Command
Description
debug nhrp
Displays information about NHRP activity.
debug nhrp options
Displays information about NHRP option processing
debug ntp
To display debugging messages for Network Time Protocol (NTP) features, use the
debugntpcommand in prvileged EXEC mode. To disable debugging output, use the
no form of this command.
Displays debugging information on NTP clock adjustments.
all
Displays all debugging information on NTP.
authentication
Displays debugging information on NTP authentication.
core
Displays debugging information on NTP core messages.
events
Displays debugging information on NTP events.
loopfilter
Displays debugging information on NTP loop filters.
packet
Displays debugging information on NTP packets.
params
Displays debugging information on NTP clock parameters.
refclock
Displays debugging information on NTP reference clocks.
select
Displays debugging information on NTP clock selection.
sync
Displays debugging information on NTP clock synchronization.
validity
Displays debugging information on NTP peer clock validity.
Command Default
Debugging is not enabled.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.1
This command was introduced in a release prior to Cisco IOS Release 12.1.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
12.4(20)T
Support for IPv6 and NTP version 4 was added. The
all and
core keywords were added. The
authentication,
loopfilter,
params,
select,
sync and
validity keywords were removed. The
packets keyword was modified as
packet.
Cisco IOS XE Release 3.5S
This command was integrated into Cisco IOS XE Release 3.5S.
Cisco IOS Release 15.2(1)S
This command was integrated into Cisco IOS Release 15.2(1)S.
Usage Guidelines
Starting from Cisco IOS Release 12.4(20)T, NTP version 4 is supported. In NTP version 4 the debugging options available are
adjust,
all,
core,
events,
packet, and
refclock. In NTP version 3 the debugging options available were
events,
authentication,
loopfilter,
packets,
params,
select,
sync and
validity.
Examples
The following example shows how to enable all debugging options for NTP:
Router# debug ntp all
NTP events debugging is on
NTP core messages debugging is on
NTP clock adjustments debugging is on
NTP reference clocks debugging is on
NTP packets debugging is on
Related Commands
Command
Description
ntprefclock
Configures an external clock source for use with NTP services.
debug oam
To display operation and maintenance (OAM) events, use the
debugoam command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugoam
nodebugoam
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Examples
The following is sample output from the
debugoam command:
The following table describes the significant fields shown in the display.
Table 8 debug oam Field Descriptions
Field
Description
0000
Virtual circuit designator (VCD) Special OAM indicator.
0300
Descriptor MODE bits for the ATM Interface Processor (AIP).
0
GFC (4 bits).
07
Virtual path identifier (VPI) (8 bits).
0007
Virtual channel identifier (VCI )(16 bits).
A
Payload type field (PTI) (4 bits).
00
Header Error Correction (8 bits).
1
OAM Fault mangement cell (4 bits).
8
OAM LOOPBACK indicator (4 bits).
01
Loopback indicator value, always 1 (8 bits).
00000005
Loopback unique ID, sequence number (32 bits).
FF6A
Fs and 6A required in the remaining cell, per UNI3.0.
debug object-group event
To enable debug messages for object-group events, use the
debug object-group event command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debug object-group event
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
15.2(1)S
This command was introduced in Cisco IOS Release 15.2(1)S.
Cisco IOS XE Release 3.5
This command was introduced in Cisco IOS XE Release 3.5.
Usage Guidelines
When an object group is created to identify traffic coming from a specific user or endpoint, object-group identity mode is entered where a security group can be specified for the object group with a security group tag (SGT) ID. The SGT ID is used by a Security Group Access (SGA) Zone-Based Policy firewall (ZBPF) to apply an enforcement policy by filtering on this SGT ID. The
debug object-group event command is used to view messages for object-group events while configuring the class map part of the SGA ZBPF.
Note
A policy map must also be configured for the SGA ZBPF.
Examples
The following is sample output from the
debug object-group event command:
Router# debug object-group event
Router# configure terminal
Router(config)# object-group security objsgt1
Router(config-security-group)# GLO INFO conf_objectgroup_cmd type(3) name(objsgt1)
Router(config-security-group)# security-group tag 120
Router(config-security-group)#
*Nov 21 16:23:02.041: INFO og_security_create_fn
*Nov 21 16:23:02.041: og_security_sgt_copy_fn:1633: object_group 'objsgt1' sgt name '' id 120
*Nov 21 16:23:02.041: og_classes_update:1373: walking class-maps in object_group 'objsgt1'
Router(config-security-group)#exit
Router(config)#
Router(config)# object-group security objsgt2
Router(config-security-group)# GLO INFO conf_objectgroup_cmd type(3) name(objsgt2)gr
Router(config-security-group)# group-object objsgt1
Router(config-security-group)#
*Nov 21 16:23:44.891: INFO og_security_create_fn
*Nov 21 16:23:44.891: og_classes_update:1373: walking class-maps in object_group 'objsgt2'
Router(config-security-group)#exit
Related Commands
Command
Description
group-object
Specifies a nested reference to a type of user group.
match group-object security
Matches traffic from a user in the security group.
object-group security
Creates an object group to identify traffic coming from a specific user or endpoint.
security-group
Specifies the membership of security group for an object group.
show object-group
Displays the content of all user groups.
debug oer api
Note
Effective with Cisco IOS Release 15.0(1)SY, the
debugoerapi command is hidden. Although this command is still available in Cisco IOS software, the CLI interactive Help does not display it if you attempt to view it by entering a question mark at the command line. This command will be completely removed in a future release.
To display Optimized Edge Routing (OER) application interface debugging information, use the
debugoerapicommand in privileged EXEC mode. To stop the display of OER application interface debugging information, use the
no form of this command.
This command was modified. This command was hidden.
Usage Guidelines
The
debugoerapicommand is used to display messages about any configured OER application interface providers or host devices. The OER application interface defines the mode of communication and messaging between applications and the network for the purpose of optimizing the traffic associated with the applications. A provider is defined as an entity outside the network in which the router configured as an OER master controller exists, for example, an ISP, or a branch office of the same company. The provider has one or more host devices running one or more applications that use the OER application interface to communicate with an OER master controller. A provider must be registered with an OER master controller before an application on a host device can interface with OER. Use the
apiprovider command to register the provider, and use the
host-addresscommand to configure a host device. After registration, a host device in the provider network can initiate a session with an OER master controller. The application interface provides an automated method for networks to be aware of applications and provides application-aware performance routing.
Caution
When the
detail keyword is entered, the amount of detailed output to be displayed can utilize a considerable amount of system resources. Use the
detailkeyword with caution in a production network.
Examples
The following example enables the display of OER application interface debugging messages and the output shows that an OER policy failed due to a prefix that is not found:
Router# debug oer api
OER api debugging is on
*May 26 01:04:07.278: OER API: Data set id received 5, data set len 9, host ip 10.3.3.3,
session id 1, requies2
*May 26 01:04:07.278: OER API: Received get current policy, session id 1 request id 22
*May 26 01:04:07.278: OER API: Recvd Appl with Prot 256 DSCP 0 SrcPrefix 0.0.0.0/0
SrcMask 0.0.0.0
*May 26 01:04:07.278: OER API: DstPrefix 10.2.0.0/24 DstMask 255.255.255.0 Sport_min 0
Sport_max 0 Dport_mi0
*May 26 01:04:07.278: OER API: get prefix policy failed - prefix not found
*May 26 01:04:07.278: OER API: Get curr policy cmd received. rc 0
*May 26 01:04:07.278: OER API: Received send status response, status 0, session id 1,
request id 22, sequence0
*May 26 01:04:07.278: OER API: rc for data set 0
The table below describes the significant fields shown in the display. The content of the debugging messages depends on the commands that are subsequently entered at the router prompt.
Table 9 debug oer api Field Descriptions
Field
Description
OER api debugging is on
Shows that application interface debugging is enabled.
OER API
Displays an OER application interface message.
Related Commands
Command
Description
apiprovider
Registers an application interface provider with an OER master controller and enters OER master controller application interface provider configuration mode.
host-address
Configures information about a host device used by an application interface provider to communicate with an OER master controller.
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
showoerapiprovider
Displays information about application interface providers registered with OER.
debug oer api client
Note
Effective with Cisco IOS Release 15.0(1)SY, the
debugoerapi command is hidden. Although this command is still available in Cisco IOS software, the CLI interactive Help does not display it if you attempt to view it by entering a question mark at the command line. This command will be completely removed in a future release.
Note
Effective with Cisco IOS Release 12.4(15)T, the
debugoerapiclient command is replaced by the
debugoerapi command. See the
debugoerapi command for more information.
To display Optimized Edge Routing (OER) application interface client debugging information for master controller and border router communication, use the
debugoerapiclient command in privileged EXEC mode. To stop the display of OER application interface debugging information, use the
no form of this command.
debugoerapiclient [detail]
nodebugoerapiclient [detail]
Syntax Description
detail
(Optional) Displays detailed information.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.4(6)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.4(15)T
The
debugoerapiclient command is replaced by the
debugoerapi command.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
15.0(1)SY
This command was modified. This command was hidden.
Usage Guidelines
The
debugoerapiclient command can be entered on a master controller. This command is used to display messages about a configured OER application interface client. When the
detail keyword is entered, the amount of detailed output to be displayed can utilize a considerable amount of system resources. Use the
detailkeyword with caution in a production network.
Cisco IOS Release 12.4(15)T
In Cisco IOS Release 12.4(15)T and later releases, the
debugoerapiclient command is replaced by the
debugoerapi command. The
debugoerapiclient command is currently supported for backwards compatibility, but support may be removed in a future Cisco IOS software release.
Examples
The following example enables the display of OER application interface client debugging messages:
Router# debug oer api client
API Client debugging enabled
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer border
Note
Effective with Cisco IOS Release 15.0(1)SY, the
debugoerborder command is hidden. Although this command is still available in Cisco IOS software, the CLI interactive Help does not display it if you attempt to view it by entering a question mark at the command line. This command will be completely removed in a future release.
To display general OER border router debugging information, use the
debugoerbordercommand in privileged EXEC mode. To stop the display of OER debugging information, use the
no form of this command.
debugoerborder
nodebugoerborder
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(8)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
15.0(1)SY
This command was modified. This command was hidden.
Usage Guidelines
The
debugoerborder command is entered on a border router. This command is used to display debugging information about the OER border process, controlled routes and monitored prefixes.
Examples
The following example displays general OER debugging information:
Router# debug oer border
*May 4 22:32:33.695: OER BR: Process Message, msg 4, ptr 33272128, value 140
*May 4 22:32:34.455: OER BR: Timer event, 0
The table below describes the significant fields shown in the display.
Table 10 debug oer border Field Descriptions
Field
Description
OER BR:
Indicates debugging information for OER Border process.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer border active-probe
Note
Effective with Cisco IOS Release 15.0(1)SY, the
debugoerborderactive-probe command is hidden. Although this command is still available in Cisco IOS software, the CLI interactive Help does not display it if you attempt to view it by entering a question mark at the command line. This command will be completely removed in a future release.
To display debugging information for active probes configured on the local border router, use the
debugoerborderactive-probecommand in privileged EXEC mode. To stop the display of debug event information, use the
no form of this command.
debugoerborderactive-probe
nodebugoerborderactive-probe
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(8)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
15.0(1)SY
This command was modified. This command was hidden.
Usage Guidelines
The
debugoerborderactive-probe command is entered on a master controller. This command is used to display the status and results of active probes that are configured on the local border router.
Examples
The following example enables the display of active-probe debug information on a border router:
Router# debug oer border active-probe
*May 4 23:47:45.633: OER BR ACTIVE PROBE: Attempting to retrieve Probe
Statistics.
probeType = echo, probeTarget = 10.1.5.1, probeTargetPort = 0
probeSource = Default, probeSourcePort = 0, probeNextHop = Default
probeIfIndex = 13
*May 4 23:47:45.633: OER BR ACTIVE PROBE: Completed retrieving Probe
Statistics.
probeType = echo, probeTarget = 10.1.5.1, probeTargetPort = 0
probeSource = Default, probeSourcePort = 0, probeNextHop = 10.30.30.2
probeIfIndex = 13, SAA index = 15
*May 4 23:47:45.633: OER BR ACTIVE PROBE: Completions 11, Sum of rtt 172,
Max rtt 36, Min rtt 12
*May 4 23:47:45.693: OER BR ACTIVE PROBE: Attempting to retrieve Probe
Statistics.
probeType = echo, probeTarget = 10.1.4.1, probeTargetPort = 0
probeSource = Default, probeSourcePort = 0, probeNextHop = Default
probeIfIndex = 13
*May 4 23:47:45.693: OER BR ACTIVE PROBE: Completed retrieving Probe
Statistics.
probeType = echo, probeTarget = 10.1.4.1, probeTargetPort = 0
probeSource = Default, probeSourcePort = 0, probeNextHop = 10.30.30.2
probeIfIndex = 13, SAA index = 14
The table below describes the significant fields shown in the display.
Table 11 debug oer border active-probe Field Descriptions
Field
Description
OER BR ACTIVE PROBE:
Indicates debugging information for OER active probes on a border router.
Statistics
The heading for OER active probe statistics.
probeType
The active probe type. The active probe types that can be displayed are ICMP, TCP, and UDP.
probeTarget
The target IP address of the active probe.
probeTargetPort
The target port of the active probe.
probeSource
The source IP address of the active probe. Default is displayed for a locally generated active probe.
probeSourcePort
The source port of the active probe.
probeNextHop
The next hop for the active probe.
probeIfIndex
The active probe source interface index.
SAA index
The IP SLAs collection index number.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer border learn
Note
Effective with Cisco IOS Release 15.0(1)SY, the
debugoerborderlearn command is hidden. Although this command is still available in Cisco IOS software, the CLI interactive Help does not display it if you attempt to view it by entering a question mark at the command line. This command will be completely removed in a future release.
To display debugging information about learned prefixes on the local border router, use the
debugoerborderlearncommand in privileged EXEC mode. To stop the display of debug event information, use the
no form of this command.
debugoerborderlearn
[ topnumber ]
nodebugoerborderlearn
[ topnumber ]
Syntax Description
topnumber
(Optional) Displays debugging information about the top delay or top throughput prefixes. The number of top delay or throughput prefixes can be specified. The range of prefixes that can be specified is a number from 1 to 65535.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.3(8)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
15.0(1)SY
This command was modified. This command was hidden.
Usage Guidelines
The
debugoerborderlearn command is entered on a border router. This command is used to display debugging information about prefixes learned on the local border router.
Examples
The following example enables the display of active-probe debug information on a border router:
Router# debug oer border learn
*May 4 22:51:31.971: OER BR LEARN: Reporting prefix 1: 10.1.5.0, throughput 201
*May 4 22:51:31.971: OER BR LEARN: Reporting 1 throughput learned prefixes
*May 4 22:51:31.971: OER BR LEARN: State change, new STOPPED, old STARTED, reason Stop Learn
The table below describes the significant fields shown in the display.
Table 12 debug oer border learn Field Descriptions
Field
Description
OER BR LEARN:
Indicates debugging information for the OER border router learning process.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer border routes
Note
Effective with Cisco IOS Release 15.0(1)SY, the
debugoerborderroutes command is hidden. Although this command is still available in Cisco IOS software, the CLI interactive Help does not display it if you attempt to view it by entering a question mark at the command line. This command will be completely removed in a future release.
To display debugging information for OER-controlled or monitored routes on the local border router, use the
debugoerborderroutes command in privileged EXEC mode. To stop the display of debug event information, use the
no form of this command.
(Optional) Displays detailed debugging information. This keyword applies only to EIGRP or PIRO routes.
static
Displays debugging information for static routes.
piro
Displays debugging information for Protocol Independent Route Optimization (PIRO) routes.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.3(8)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2(33)SXH
This command was integrated into Cisco IOS Release 12.2(33)SXH.
12.4(24)T
This command was modified. The
piro keyword was added to support the Protocol Independent Route Optimization (PIRO) feature.
15.0(1)M
This command was modified. The
eigrp keyword was added to support EIGRP route control.
12.2(33)SRE
This command was modified. The
eigrp keyword was added to support EIGRP route control and the
piro keyword was added to support the PIRO feature.
15.0(1)SY
This command was modified. This command was hidden.
Usage Guidelines
The
debugoerborderroutes command is entered on a border router. This command is used to display the debugging information about OER-controlled or monitored routes on the local border router.
In Cisco IOS Release 12.4(24)T, 12.2(33)SRE, and later releases, PIRO introduced the ability for OER to search for a parent route--an exact matching route, or a less specific route--in any IP Routing Information Base (RIB). If a parent route for the traffic class exists in the RIB, policy-based routing is used to control the prefix.
In Cisco IOS Release 15.0(1)M, 12.2(33)SRE, and later releases, EIGRP route control introduced the ability for OER to search for a parent route--an exact matching route, or a less specific route--in the EIGRP routing table. If a parent route for the traffic class exists in the EIGRP routing table, temporary EIGRP routes are injected and identified by adding a configurable extended community tag value.
Examples
The following example enables the display of active-probe debug information on a border router:
Router# debug oer border routes bgp
*May 4 22:35:53.239: OER BGP: Control exact prefix 10.1.5.0/24
*May 4 22:35:53.239: OER BGP: Walking the BGP table for 10.1.5.0/24
*May 4 22:35:53.239: OER BGP: Path for 10.1.5.0/24 is now under OER control
*May 4 22:35:53.239: OER BGP: Setting prefix 10.1.5.0/24 as OER net#
The table below describes the significant fields shown in the display.
Table 13 debug oer border routes Field Descriptions
Field
Description
OER BGP:
Indicates debugging information for OER-controlled BGP routes.
OER STATIC:
Indicates debugging information for OER-controlled Static routes. (Not displayed in the example output.)
The following example enables the display of detailed debugging information for PIRO routes and shows that the parent route for the prefix 10.1.1.0 is found in the RIB and a route map is created to control the application. Note that detailed border PBR debugging is also active. This example requires Cisco IOS Release 12.4(24)T, 12.2(33)SRE, or a later release.
Router# debug oer border routes piro detail
Feb 21 00:20:44.431: PIRO: Now calling ip_get_route
Feb 21 00:20:44.431: PFR PIRO: Parent lookup found parent 10.1.1.0, mask 255.255.255.0,
nexthop 10.1.1.0 for network 10.1.1.0/24
...
Feb 21 00:22:46.771: PFR PIRO: Parent lookup found parent 10.1.1.0, mask 255.255.255.0,
nexthop 10.1.1.0 for network 10.1.1.0/24
Feb 21 00:22:46.771: PFR PIRO: Control Route, 10.1.1.0/24, NH 0.0.0.0, IF Ethernet4/2
Feb 21 00:22:46.771: PIRO: Now calling ip_get_route
Feb 21 00:22:46.771: PIRO: Now calling ip_get_route
Feb 21 00:22:46.771: PFR PIRO: Parent lookup found parent 10.1.1.0, mask 255.255.255.0,
nexthop 10.1.1.0 for network 10.1.1.0/24
Feb 21 00:22:46.771: OER BR PBR(det): control app: 10.1.1.0/24, nh 0.0.0.0, if
Ethernet4/2,ip prot 256, dst opr 0, src opr 0, 0 0 0 0, src net 0.0.0.0/0, dscp 0/0
Feb 21 00:22:46.771: OER BR PBR(det): Create rmap 6468E488
Feb 21 00:22:46.775: PfR-RIB RIB_RWATCH: (default:ipv4:base) T 10.1.1.0/24 EVENT Track
start
Feb 21 00:22:46.775: PfR-RIB RIB_RWATCH: (default:ipv4:base) N 10.1.1.0/24 Adding track
Feb 21 00:22:46.775: PfR-RIB RIB_RWATCH: (default:ipv4:base) N 10.1.1.0/24 QP Schedule
query
Feb 21 00:22:46.775: PfR-RIB RIB_RWATCH: (default:ipv4:base) T 10.1.1.0/24 EVENT Query
found route
Feb 21 00:22:46.775: PfR-RIB RIB_RWATCH: (default:ipv4:base) N 10.1.1.0/24 Adding route
Feb 21 00:22:46.775: PfR-RIB RIB_RWATCH: (default:ipv4:base) R 10.1.1.0/24 d=0 p=0 ->
Updating
Feb 21 00:22:46.775: PfR-RIB RIB_RWATCH: (default:ipv4:base) R 10.1.1.0/24 d=110 p=1 ->
Et4/2 40.40.40.2 40 Notifying
Feb 21 00:22:46.775: PfR-RIB RIB_RWATCH: Adding to client notification queue
Feb 21 00:22:46.775: PfR-RIB RIB_RWATCH: (default:ipv4:base) W 10.1.1.0/24 c=0x15 Client
notified reachable
Feb 21 00:22:46.779: PFR PIRO: Route update rwinfo 680C8E14, network 10.1.1.0, mask_len 24
event Route Up
Feb 21 00:22:46.779: OER BR PBR(det): PIRO Path change notify for prefix:10.1.1.0,
masklen:24, reason:1
The table below describes the significant fields shown in the display.
Table 14 debug oer border routes Field Descriptions
Field
Description
PFR PIRO
Indicates debugging information for Performance Routing-controlled PIRO activities.
OER BR PBR
Indicates debugging information about policy-based routing activities on the border router.
PfR-RIB RIB_RWATCH
Indicates debugging information about RIB activities.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer border traceroute reporting
Note
Effective with Cisco IOS Release 15.0(1)SY, the
debugoerbordertraceroutereporting command is hidden. Although this command is still available in Cisco IOS software, the CLI interactive Help does not display it if you attempt to view it by entering a question mark at the command line. This command will be completely removed in a future release.
To display debugging information for traceroute probes on the local border router, use the
debugoerbordertraceroutereporting command in privileged EXEC mode. To stop the display of debug event information, use the
no form of this command.
This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
15.0(1)SY
This command was modified. This command was hidden.
Usage Guidelines
The
debugoerbordertraceroutereportingcommand is entered on a border router. This command is used to display the debugging information about traceroute probes sourced on the local border router.
Examples
The following example enables the display of active-probe debug information on a border router:
Router# debug oer border traceroute reporting
May 19 03:46:23.807: OER BR TRACE(det): Received start message: msg1 458776,
msg2 1677787648, if index 19, host addr 100.1.2.1, flags 1, max ttl 30,
protocol 17, probe delay 0
May 19 03:46:26.811: OER BR TRACE(det): Result msg1 458776,
msg2 1677787648 num hops 30 sent May 19 03:47:20.919: OER BR TRACE(det):
Received start message: msg1 524312, msg2 1677787648, if index 2,
host addr 100.1.2.1, flags 1, max ttl 30, protocol 17, probe delay 0
May 19 03:47:23.923: OER BR TRACE(det): Result msg1 524312,
msg2 1677787648 num hops 3 sent
The table below describes the significant fields shown in the display.
Table 15 debug oer border traceroute reporting Field Descriptions
Field
Description
OER BR TRACE:
Indicates border router debugging information for traceroute probes.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer cc
Note
Effective with Cisco IOS Release 15.0(1)SY, the
debugoercc command is hidden. Although this command is still available in Cisco IOS software, the CLI interactive Help does not display it if you attempt to view it by entering a question mark at the command line. This command will be completely removed in a future release.
To display OER communication control debugging information for master controller and border router communication, use the
debugoercc command in privileged EXEC mode. To stop the display of OER debugging information, use the
no form of this command.
debugoercc [detail]
nodebugoercc [detail]
Syntax Description
detail
(Optional) Displays detailed information.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(8)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
15.0(1)SY
This command was modified. This command was hidden.
Usage Guidelines
The
debugoercc command can be entered on a master controller on a border router. This command is used to display messages exchanged between the master controller and the border router. These messages include control commands, configuration commands, and monitoring information. Enabling this command will cause very detailed output to be displayed and can utilize a considerable amount of system resources. This command should be enabled with caution in a production network.
Examples
The following example enables the display of OER communication control debugging messages:
Router# debug oer cc
*May 4 23:03:22.527: OER CC: ipflow prefix reset received: 10.1.5.0/24
The table below describes the significant fields shown in the display.
Table 16 debug oer cc Field Descriptions
Field
Description
OER CC:
Indicates debugging information for OER communication messages.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer master border
To display debugging information for OER border router events on an OER master controller, use the
debugoermasterbordercommand in privileged EXEC mode. To stop border router event debugging, use the
no form of this command.
debugoermasterborder [ip-address]
nodebugoermasterborder
Syntax Description
ip-address
(Optional) Specifies the IP address of a border router.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(8)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
Usage Guidelines
The
debugoermasterborder command is entered on a master controller. The output displays information related to the events or updates from one or more border routers.
Examples
The following example shows the status of 2 border routers. Both routers are up and operating normally.
Router# debug oer master border
OER Master Border Router debugging is on
Router#
1d05h: OER MC BR 10.4.9.7: BR I/F update, status UP, line 1 index 1, tx bw 10000
0, rx bw 100000, time, tx ld 0, rx ld 0, rx rate 0 rx bytes 3496553, tx rate 0,
tx bytes 5016033
1d05h: OER MC BR 10.4.9.7: BR I/F update, status UP, line 1 index 2, tx bw 10000
0, rx bw 100000, time, tx ld 0, rx ld 0, rx rate 0 rx bytes 710149, tx rate 0, t
x bytes 1028907
1d05h: OER MC BR 10.4.9.6: BR I/F update, status UP, line 1 index 2, tx bw 10000
0, rx bw 100000, time, tx ld 0, rx ld 0, rx rate 0 rx bytes 743298, tx rate 0, t
x bytes 1027912
1d05h: OER MC BR 10.4.9.6: BR I/F update, status UP, line 1 index 1, tx bw 10000
0, rx bw 100000, time, tx ld 0, rx ld 0, rx rate 0 rx bytes 3491383, tx rate 0,
tx bytes 5013993
The table below describes the significant fields shown in the display.
Table 17 debug oer master border Field Descriptions
Field
Description
OER MC BR ip-address:
Indicates debugging information for a border router process. The ip-address identifies the border router.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer master collector
To display data collection debugging information for OER monitored prefixes, use the
debugoermastercollectorcommand in privileged EXEC mode. To disable the display of this debugging information, use the
no form of this command.
Displays aggregate active probe results for a given prefix on all border routers that are executing the active probe.
detail
(Optional) Displays the active probe results from each target for a given prefix on all border routers that are executing the active probe.
trace
(Optional) Displays aggregate active probe results and historical statistics for a given prefix on all border routers that are executing the active probe.
netflow
Displays information about the passive (NetFlow) measurements received by the master controller for prefixes monitored from the border router.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(8)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
Usage Guidelines
The
debugoermastercollector command is entered on a master controller. The output displays data collection information for monitored prefixes.
Examples
Examples
The following example displays aggregate active probe results for the 10.1.0.0/16 prefix on all border routers that are configured to execute this active probe:
Router# debug oer master collector active-probes
*May 4 22:34:58.221: OER MC APC: Probe Statistics Gathered for prefix 10.1.0.0/16 on all
exits,notifying the PDP
*May 4 22:34:58.221: OER MC APC: Summary Exit Data (pfx 10.1.0.0/16, bdr 10.2.2.2, if 13,
nxtHop Default):savg delay 13, lavg delay 14, sinits 25, scompletes 25
*May 4 22:34:58.221: OER MC APC: Summary Prefix Data: (pfx 10.1.0.0/16) sloss 0, lloss 0,
sunreach 25, lunreach 25, savg raw delay 15, lavg raw delay 15, sinits 6561,
scompletes 6536, linits 6561, lcompletes 6536
*May 4 22:34:58.221: OER MC APC: Active OOP check done
The table below describes the significant fields shown in the display.
Table 18 debug oer master collector active-probes Field Descriptions
Field
Description
OER MC APC:
Indicates debugging information for active probes from the r OER master collector.
Examples
The following example displays aggregate active probe results from each target for the 10.1.0.0/16 prefix on all border routers that are configured to execute this active probe:
Router# debug oer master collector active-probes detail
*May 4 22:36:21.945: OER MC APC: Rtrv Probe Stats: BR 10.2.2.2, Type echo,
Tgt 10.1.1.1,TgtPt 0, Src Default, SrcPt 0, NxtHp Default, Ndx 13
*May 4 22:36:22.001: OER MC APC: Remote stats received: BR 10.2.2.2, Type
echo, Tgt 10.15.1, TgtPt 0, Src Default, SrcPt 0, NxtHp Default, Ndx 13
*May 4 22:36:22.313: OER MC APC: Perf data point (pfx 10.1.0.0/16, bdr
10.2.2.2, if 13, xtHop Default): avg delay 20, loss 0, unreach 0,
initiations 2, completions 2, delay sum40, ldelay max 20, ldelay min 12
*May 4 22:36:22.313: OER MC APC: Perf data point (pfx 10.1.0.0/16, bdr
10.2.2.2, if 13, xtHop Default): avg delay 20, loss 0, unreach 0,
initiations 2, completions 2, delay sum40, ldelay max 20, ldelay min 12
*May 4 22:36:22.313: OER MC APC: Probe Statistics Gathered for prefix
10.1.0.0/16 on al exits, notifying the PDP
*May 4 22:36:22.313: OER MC APC: Active OOP check done
The table below describes the significant fields shown in the display.
Table 19 debug oer master collector active-probes detail Field Descriptions
Field
Description
OER MC APC:
Indicates debugging information for active probes from the r OER master collector.
Examples
The following example displays aggregate active probe results and historical statistics from each target for the 10.1.0.0/16 prefix on all border routers that are configured to execute this active probe:
Router# debug oer master collector active-probes detail trace
*May 4 22:40:33.845: OER MC APC: Rtrv Probe Stats: BR 10.2.2.2, Type echo,
Tgt 10.1.5.1, TgtPt 0, Src Default, SrcPt 0, NxtHp Default, Ndx 13
*May 4 22:40:33.885: OER MC APC: Remote stats received: BR 10.2.2.2, Type
echo, Tgt 10.1.5.1, TgtPt 0, Src Default, SrcPt 0, NxtHp Default, Ndx 13
*May 4 22:40:34.197: OER MC APC: Remote stats received: BR 10.2.2.2, Type
echo, Tgt 10.1.2.1, TgtPt 0, Src Default, SrcPt 0, NxtHp Default, Ndx 13
*May 4 22:40:34.197: OER MC APC: Updating Probe (Type echo Tgt 10.1.2.1
TgtPt 0) Total Completes 1306, Total Attempts 1318
*May 4 22:40:34.197: OER MC APC: All stats gathered for pfx 10.1.0.0/16
Accumulating Stats
*May 4 22:40:34.197: OER MC APC: Updating Curr Exit Ref (pfx 10.1.0.0/16,
bdr 10.2.2.2, if 13, nxtHop Default) savg delay 17, lavg delay 14, savg loss
0, lavg loss 0, savg unreach 0, lavg unreach 0
*May 4 22:40:34.197: OER MC APC: Probe Statistics Gathered for prefix
10.1.0.0/16 on all exits, notifying the PDP
*May 4 22:40:34.197: OER MC APC: Active OOP check done
The table below describes the significant fields shown in the display.
Table 20 debug oer master collector active-probes detail trace Field Descriptions
Field
Description
OER MC APC:
Indicates debugging information for active probes from the r OER master collector.
Examples
The following example displays passive monitoring results for the 10.1.5.0/24 prefix:
Router# debug oer master collector netflow
*May 4 22:31:45.739: OER MC NFC: Rcvd egress update from BR 10.1.1.2
prefix 10.1.5.0/24 Interval 75688 delay_sum 0 samples 0 bytes 20362 pkts 505
flows 359 pktloss 1 unreach 0
*May 4 22:31:45.739: OER MC NFC: Updating exit_ref; BR 10.1.1.2 i/f Et1/0,
s_avg_delay 655, l_avg_delay 655, s_avg_pkt_loss 328, l_avg_pkt_loss 328,
s_avg_flow_unreach 513, l_avg_flow_unreach 513
*May 4 22:32:07.007: OER MC NFC: Rcvd ingress update from BR 10.1.1.3
prefix 10.1.5.0/24 Interval 75172 delay_sum 42328 samples 77 bytes 22040
pkts 551 flows 310 pktloss 0 unreach 0
The table below describes the significant fields shown in the display.
Table 21 debug oer master collector netflow Field Descriptions
Field
Description
OER MC NFC:
Indicates debugging information for the OER master collector from passive monitoring (NetFlow).
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer master cost-minimization
To display debugging information for cost-based optimization policies, use the
debugoermastercost-minimization command in privileged EXEC mode. To disable the display of this debugging information, use the
no form of this command.
debugoermastercost-minimization [detail]
nodebugoermastercost-minimization [detail]
Syntax Description
detail
(Optional) Displays detailed information.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(14)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
Usage Guidelines
The
debugoermastercost-minimization command is entered on a master controller. The output displays debugging information for cost-minimization policies.
Examples
The following example displays detailed cost optimization policy debug information:
Router# debug oer master cost-minimization detail
OER Master cost-minimization Detail debugging is on
*May 14 00:38:48.839: OER MC COST: Momentary target utilization for exit 10.1.1.2 i/f
Ethernet1/0 nickname ISP1 is 7500 kbps, time_left 52889 secs, cumulative 16 kb, rollup
period 84000 secs, rollup target 6000 kbps, bw_capacity 10000 kbps
*May 14 00:38:48.839: OER MC COST: Cost OOP check for border 10.1.1.2, current util: 0
target util: 7500 kbps
*May 14 00:39:00.199: OER MC COST: ISP1 calc separate rollup ended at 55 ingress Kbps
*May 14 00:39:00.199: OER MC COST: ISP1 calc separate rollup ended at 55 egress bytes
*May 14 00:39:00.199: OER MC COST: Target utilization for nickname ISP1 set to 6000,
rollups elapsed 4, rollups left 24
*May 14 00:39:00.271: OER MC COST: Momentary target utilization for exit 10.1.1.2 i/f
Ethernet1/0 nickname ISP1 is 7500 kbps, time_left 52878 secs, cumulative 0 kb, rollup
period 84000 secs, rollup target 6000 kbps, bw_capacity 10000 kbps
*May 14 00:39:00.271: OER MC COST: Cost OOP check for border 10.1.1.2, current util: 0
target util: 7500 kbps
The table below describes the significant fields shown in the display.
Table 22 debug oer master cost-minimization detail Field Descriptions
Field
Description
OER MC COST:
Indicates debugging information for cost-based optimization on the master controller.
Related Commands
Command
Description
cost-minimization
Configures cost-based optimization policies on a master controller.
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
showoermastercost-minimization
Displays the status of cost-based optimization policies.
debug oer master exit
To display debug event information for OER managed exits, use the
debugoermasterexitcommand in privileged EXEC mode. To stop the display of debug event information, use the
no form of this command.
debugoermasterexit [detail]
nodebugoermasterexit [detail]
Syntax Description
detail
Displays detailed OER managed exit information.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(8)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
Usage Guidelines
The
debugoermasterexit command is entered on a master controller. This command is used to display debugging information for master controller exit selection processes.
Examples
The following example shows output form the
debugoermasterexit command, entered with the
detailkeyword:
Router# debug oer master exit
detail
*May 4 11:26:51.539: OER MC EXIT: 10.1.1.1, intf Fa4/0 INPOLICY
*May 4 11:26:52.195: OER MC EXIT: 10.2.2.3, intf Se2/0 INPOLICY
*May 4 11:26:55.515: OER MC EXIT: 10.1.1.2, intf Se5/0 INPOLICY
*May 4 11:29:14.987: OER MC EXIT: 7 kbps should be moved from 10.1.1.1, intf Fa4/0
*May 4 11:29:35.467: OER MC EXIT: 10.1.1.1, intf Fa4/0 in holddown state so skip OOP check
*May 4 11:29:35.831: OER MC EXIT: 10.2.2.3, intf Se2/0 in holddown state so skip OOP check
*May 4 11:29:39.455: OER MC EXIT: 10.1.1.2, intf Se5/0 in holddown state so skip OOP check
The table below describes the significant fields shown in the display.
Table 23 debug oer master exit detail Field Descriptions
Field
Description
OER MC EXIT:
Indicates OER master controller exit event.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer master learn
To display debug information for OER master controller learning events, use thedebugoermasterlearn command in privileged EXEC mode. To stop the display of debug information, use the
no form of this command.
debugoermasterlearn
nodebugoermasterlearn
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(8)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
Usage Guidelines
The
debugoermasterlearn command is entered on a master controller. This command is used to display debugging information for master controller learning events.
Examples
The following example shows output from the
debugoermasterlearn command. The output an shows OER Top Talker debug events. The master controller is enabling prefix learning for new border router process:
Router# debug oer master learn
06:13:43: OER MC LEARN: Enable type 3, state 0
06:13:43: OER MC LEARN: OER TTC: State change, new RETRY, old DISABLED, reason TT start
06:13:43: OER MC LEARN: OER TTC: State change, new RETRY, old DISABLED, reason TT start request
06:13:43: OER MC LEARN: OER TTC: State change, new RETRY, old DISABLED, reason T
T start request
06:14:13: OER MC LEARN: TTC Retry timer expired
06:14:13: OER MC LEARN: OER TTC: State change, new STARTED, old RETRY, reason At
least one BR started
06:14:13: %OER_MC-5-NOTICE: Prefix Learning STARTED
06:14:13: OER MC LEARN: MC received BR TT status as enabled
06:14:13: OER MC LEARN: MC received BR TT status as enabled
06:19:14: OER MC LEARN: OER TTC: State change, new WRITING DATA, old STARTED, reason
Updating DB
06:19:14: OER MC LEARN: OER TTC: State change, new SLEEP, old WRITING DATA, reason
Sleep state
The table below describes the significant fields shown in the display.
Table 24 debug oer master learn Field Descriptions
Field
Description
OER MC LEARN:
Indicates OER master controller learning events.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer master prefix
To display debug events related to prefix processing on an OER master controller, use the
debugoermasterprefixcommand in privileged EXEC mode. To disable the display of debug information, use the
no form of this command.
debugoermasterprefix
[ prefix | appl ]
[detail]
nodebugoermasterprefix
[ prefix | appl ]
[detail]
Syntax Description
prefix
(Optional) Specifies a single prefix or prefix range. The prefix address and mask are entered with this argument.
appl
(Optional) Displays information about prefixes used by applications monitored and controlled by an OER master controller.
detail
(Optional) Displays detailed OER prefix processing information.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(8)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
Usage Guidelines
The
debugoermasterprefix command is entered on a master controller. This command displays debugging information related to prefix monitoring and processing.
Examples
The following example shows the master controller searching for the target of an active probe after the target has become unreachable.
Router# debug oer master prefix
OER Master Prefix debugging is on
06:01:28: OER MC PFX 10.4.9.0/24: APC last target deleted for prefix, no targets
left assigned and running
06:01:38: OER MC PFX 10.4.9.0/24: APC Attempting to probe all exits
06:02:59: OER MC PFX 10.4.9.0/24: APC last target deleted for prefix, no targets
left assigned and running
06:03:08: OER MC PFX 10.4.9.0/24: APC Attempting to probe all exits
06:04:29: OER MC PFX 10.4.9.0/24: APC last target deleted for prefix, no targets
left assigned and running
06:04:39: OER MC PFX 10.4.9.0/24: APC Attempting to probe all exits
06:05:59: OER MC PFX 10.4.9.0/24: APC last target deleted for prefix, no targets
left assigned and running
06:06:09: OER MC PFX 10.4.9.0/24: APC Attempting to probe all exits
The table below describes the significant fields shown in the display.
Table 25 debug oer master prefix Field Descriptions
Field
Description
OER MC PFX ip-address:
Indicates debugging information for OER monitored prefixes. The ip-address identifies the prefix.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer master prefix-list
To display debug events related to prefix-list processing on an OER master controller, use the
debugoermasterprefix-listcommand in privileged EXEC mode. To disable the display of debug information, use theno form of this command.
debugoermasterprefix-listlist-name [detail]
nodebugoermasterprefix-listlist-name
Syntax Description
list-name
Specifies a single prefix or prefix range. The prefix address and mask are entered with this argument.
detail
(Optional) Displays detailed OER prefix-list processing information.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(11)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
Usage Guidelines
The
debugoermasterprefix-listcommand is entered on a master controller. This command displays debugging information related to prefix-list processing.
Examples
The following example shows output from the
debugoermasterprefix-listcommand.
Router# debug oer master prefix-list
23:02:16.283: OER MC PFX 10.1.5.0/24: Check PASS REL loss: loss 0, policy 10%, notify TRUE
23:02:16.283: OER MC PFX 10.1.5.0/24: Passive REL loss in-policy
23:02:16.283: OER MC PFX 10.1.5.0/24: Check PASS REL delay: delay 124, policy 50%, notify
TRUE
23:02:16.283: OER MC PFX 10.1.5.0/24: Passive REL delay in policy
23:02:16.283: OER MC PFX 10.1.5.0/24: Prefix not OOP
23:02:16.283: OER MC PFX 10.1.5.0/24: Check PASS REL unreachable: unreachable 0, policy
50%, notify TRUE
23:02:16.283: OER MC PFX 10.1.5.0/24: Passive REL unreachable in-policy
23:02:16.283: OER MC PFX 10.1.5.0/24: Check PASS REL loss: loss 0, policy 10%, notify TRUE
23:02:16.283: OER MC PFX 10.1.5.0/24: Passive REL loss in policy
The table below describes the significant fields shown in the display.
Table 26 debug oer master prefix-list Field Descriptions
Field
Description
OER MC PFX ip-address:
Indicates debugging information for OER monitored prefixes. The ip-address identifies the prefix.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer master process
To display debug information about the OER master controller process, use thedebugoermasterprocess command in privileged EXEC mode. To stop displaying debug information, use the
no form of this command.
debugoermasterprocess
nodebugoermasterprocess
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.3(8)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
Usage Guidelines
The
debugoermasterprocess command is entered on a master controller.
Examples
The following sample debug output for a master controller process:
Router# debug oer master process
01:12:00: OER MC PROCESS: Main msg type 15, ptr 0, value 0
The table below describes the significant fields shown in the display.
Table 27 debug oer master process Field Descriptions
Field
Description
OER MC PROCESS:
Indicates a master controller master process debugging message.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug oer master traceroute reporting
To display debug information about traceroute probes, use the
debugoermastertraceroutereporting command in privileged EXEC mode. To stop displaying debug information, use the
no form of this command.
debugoermastertraceroutereporting [detail]
nodebugoermastertraceroutereporting [detail]
Syntax Description
detail
(Optional) Displays detailed information.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(14)T
This command was introduced.
12.2(33)SRB
This command was integrated into Cisco IOS Release 12.2(33)SRB.
Usage Guidelines
The
debugoermastertraceroutereporting command is entered on a master controller. This command is used to display traceroute events on a master controller.
Examples
The following sample debug output for a master controller process:
Router# debug oer master traceroute reporting detail
*May 12 18:55:14.239: OER MC TRACE: sent start message msg1 327704, msg2 167838976,
if index 2, host add 10.1.5.2, flags 1, max ttl 30, protocol 17
*May 12 18:55:16.003: OER MC TRACE: sent start message msg1 393240, msg2 167838976,
if index 2, host add 10.1.5.2, flags 1, max ttl 30, protocol 17
master#
*May 12 18:55:17.303: OER MC TRACE: Received result: msg_id1 327704, prefix 10.1.5.0/24,
hops 4, flags 1
*May 12 18:55:19.059: OER MC TRACE: Received result: msg_id1 393240, prefix 10.1.5.0/24,
hops 4, flags 1
The table below describes the significant fields shown in the display.
Table 28 debug oer master traceroute reporting detail Field Descriptions
Field
Description
OER MC PROCESS:
Indicates master controller debugging information for traceroute probes.
Related Commands
Command
Description
oer
Enables an OER process and configures a router as an OER border router or as an OER master controller.
debug ospfv3
To display debugging information for Open Shortest Path First version 3 (OSPF) for IPv4 and IPv6, use the
debugospfv3command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
(Optional) Internal identification. The number used here is the number assigned administratively when enabling the OSPFv3 routing process and can be a value from 1 through 65535.
address-family
(Optional) Enter
ipv6 for the IPv6 address family or
ipv4 for the IPv4 address family.
adj
(Optional) Displays adjacency information.
ipsec
(Optional) Displays the interaction between OSPFv3 and IPSec, including creation and removal of policy definitions.
database-timer
(Optional) Displays database-timer information.
flood
(Optional) Displays flooding information.
hello
(Optional) Displays hello packet information.
l2api
(Optional) Enables layer 2 and layer 3 application program interface (API) debugging.
lsa-generation
(Optional) Displays link-state advertisement (LSA) generation information for all LSA types.
retransmission
(Optional) Displays retransmission information.
Command Default
Debugging of OSPFv3 is not enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
15.1(3)S
This command was introduced.
Cisco IOS XE Release 3.4S
This command was integrated into Cisco IOS XE Release 3.4S.
15.2(1)T
This command was integrated into Cisco IOS Release 15.2(1)T.
15.1(1)SY
This command was integrated into Cisco IOS Release 15.1(1)SY.
Usage Guidelines
Consult Cisco technical support before using this command.
Examples
The following example displays adjacency information for OSPFv3:
Device# debug ospfv3 adj
debug ospfv3 database-timer rate-limit
To display debugging information about the current wait-time used for shortest path first (SPF) scheduling, use the
debugospfv3database-timerrate-limitcommand in privileged EXEC mode. To disable debugging output, use the
no form of this command.
(Optional) Internal identification. The number used here is the number assigned administratively when enabling the OSPFv3 routing process and can be a value from 1 through 65535.
address-family
(Optional) Enter
ipv6 for the IPv6 address family or
ipv4 for the IPv4 address family.
acl-number
(Optional) Access list number.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
15.1(3)S
This command was introduced.
Cisco IOS XE Release 3.4S
This command was integrated into Cisco IOS XE Release 3.4S.
15.2(1)T
This command was integrated into Cisco IOS Release 15.2(1)T.
15.1(1)SY
This command was integrated into Cisco IOS Release 15.1(1)SY.
Usage Guidelines
Consult Cisco technical support before using this command.
Examples
The following example shows how to turn on debugging for SPF scheduling in OSPFv3 process 1:
Device# debug ospfv3 1 database-timer rate-limit
debug ospfv3 events
To display information on Open Shortest Path First version 3 (OSPFv3)-related events, such as designated router selection and shortest path first (SPF) calculation, use the
debugospfv3events command in privileged EXEC com mand. To disable debugging output, use the
no form of this command.
(Optional) Internal identification. The number used here is the number assigned administratively when enabling the OSPFv3 routing process and can be a value from 1 through 65535.
address-family
(Optional) Enter
ipv6 for the IPv6 address family or
ipv4 for the IPv4 address family.
Command Modes
Privileged EXEC
Command History
Release
Modification
15.1(3)S
This command was introduced.
Cisco IOS XE Release 3.4S
This command was integrated into Cisco IOS XE Release 3.4S.
15.2(1)T
This command was integrated into Cisco IOS Release 15.2(1)T.
15.1(1)SY
This command was integrated into Cisco IOS Release 15.1(1)SY.
Usage Guidelines
Consult Cisco technical support before using this command.
Examples
The following example displays information on OSPFv3-related events:
Device#
debug ospfv3 events
debug ospfv3 lsdb
To display database modifications for Open Shortest Path First version 3 (OSPFv3), use the
debugospfv3lsdb command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugospfv3 [process-id] [address-family] lsdb
nodebugospfv3 [process-id] [address-family] lsdb
Syntax Description
process-id
(Optional) Internal identification. The number used here is the number assigned administratively when enabling the OSPFv3 routing process and can be a value from 1 through 65535.
address-family
(Optional) Enter
ipv6 for the IPv6 address family or
ipv4 for the IPv4 address family.
Command Modes
Privileged EXEC
Command History
Release
Modification
15.1(3)S
This command was introduced.
Cisco IOS XE Release 3.4S
This command was integrated into Cisco IOS XE Release 3.4S.
15.2(1)T
This command was integrated into Cisco IOS Release 15.2(1)T.
15.1(1)SY
This command was integrated into Cisco IOS Release 15.1(1)SY.
Usage Guidelines
Consult Cisco technical support before using this command.
Examples
The following example displays database modification information for OSPFv3:
Device# debug ospfv3 lsdb
debug ospfv3 packet
To display information about each Open Shortest Path First version 3 (OSPFv3) packet received, use the
debugospfv3packet command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
(Optional) Internal identification. The number used here is the number assigned administratively when enabling the OSPFv3 routing process and can be a value from 1 through 65535.
address-family
(Optional) Enter
ipv6 for the IPv6 address family or
ipv4 for the IPv4 address family.
Command Modes
Privileged EXEC
Command History
Release
Modification
15.1(3)S
This command was introduced.
Cisco IOS XE Release 3.4S
This command was integrated into Cisco IOS XE Release 3.4S.
15.2(1)T
This command was integrated into Cisco IOS Release 15.2(1)T.
15.1(1)SY
This command was integrated into Cisco IOS Release 15.1(1)SY.
Usage Guidelines
Consult Cisco technical support before using this command.
Examples
The following example displays information about each OSPFv3 packet received:
Router# debug ospfv3 packet
debug ospfv3 spf statistic
To display statistical information while running the shortest path first (SPF) algorithm, use thedebugospfv3spfstatisticcommand in privileged EXEC mode. To disable the debugging output, use the
no form of this command.
debugospfv3 [address-family] spfstatistic
nodebugospfv3 [address-family] spfstatistic
Syntax Description
address-family
(Optional) Enter
ipv6 for the IPv6 address family or
ipv4 for the IPv4 address family.
Command Modes
Privileged EXEC
Command History
Release
Modification
15.1(3)S
This command was introduced.
Cisco IOS XE Release 3.4S
This command was integrated into Cisco IOS XE Release 3.4S.
15.2(1)T
This command was integrated into Cisco IOS Release 15.2(1)T.
15.1(1)SY
This command was integrated into Cisco IOS Release 15.1(1)SY.
Usage Guidelines
The
debugospfv3spfstatistic command displays the SPF calculation times in milliseconds, the node count, and a time stamp. Consult Cisco technical support before using this command.
Examples
The following example displays statistical information while running the SPF algorithm:
Router# debug ospfv3 spf statistics
Related Commands
Command
Description
debugospfv3
Displays debugging information for the OSPFv3 feature.
debugospfv3events
Displays information on OSPFv3-related events.
debugospfv3packet
Displays information about each OSPFv3 packet received.
debug otv
To enable debugging of Overlay Transport Virtualization (OTV) and Intermediate System-to-Intermediate System (IS-IS) activities, use the
debug otv command in privileged EXEC mode. To disable the debugging, use the
no form of this command.
Enables logging of OTV database-related operations.
database
Enables logging of the Address Routing Protocol (ARP) suppression feature.
error
Enables logging of error debug messages.
evc
Enables logging of Ethernet Virtual Connections (EVC) interactions.
event
Enables logging of the event dispatcher.
ha
Enables logging of high availability (HA) events.
igp
Enables logging of OTV IS-IS events.
isis
Enables logging of IS-IS information.
l2rib
Enables logging of Layer 2 Routing Information Base (L2RIB) interactions.
l2rtgvpn
Enables logging of Layer 2 routing VPN manager.
misc
Enables logging of miscellaneous OTV debug messages.
multicast
Enables logging of multicast-related events.
overlay
Enables logging of overlay interface events.
packet
Enables logging of OTV packet forwarding activities.
pim
Enables logging of Protocol Independent Multicast (PIM) messages.
state
Enables logging of OTV state change events.
tunnel
Enables logging of tunnel interactions.
ui
Enables logging of OTV user interface (UI) events.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
Cisco IOS XE Release 3.5S
This command was introduced.
Examples
The following example shows how to enable logging of OTV activities:
Router# debug otv all
OTV APP all debugging is on
Router#
*Oct 27 13:53:45.155: OTV-APP-PKT-RX: Received packet on Overlay1 L3 dest 224.1.1.2 source 209.165.201.20, L2 dest 0100.0cdf.dfdf source 0023.33cc.ebbc, linktype 25
*Oct 27 13:53:46.241: OTV-APP-PKT-RX: Received packet on Overlay1 L3 dest 224.1.1.2 source 209.165.201.20, L2 dest 0100.0cdf.dfdf source 0015.17b9.c479, linktype 25
*Oct 27 13:53:46.824: OTV-APP-PKT-RX: Received packet on Overlay1 L3 dest 224.1.1.2 source 209.165.201.20, L2 dest 0100.0cdf.dfdf source 0023.33cc.ebbc, linktype 25
*Oct 27 13:53:49.166: OTV-APP-PKT-RX: Received packet on Overlay1 L3 dest 224.1.1.2 source 209.165.201.20, L2 dest 0100.0cdf.dfdf source 0015.17b9.c479, linktype 25
*Oct 27 13:53:50.055: OTV-APP-PKT-RX: Received packet on Overlay1 L3 dest 224.1.1.2 source 209.165.201.20, L2 dest 0100.0cdf.dfdf source 0023.33cc.ebbc, linktype 25
*Oct 27 13:53:50.085: OTV-APP-PKT-TX: Overlay 1 process switching packet to 224.1.1.2
Related Commands
Command
Description
interface overlay
Creates an OTV overlay interface.
show otv
Displays OTV information.
debug otv isis
To enable debugging of Overlay Transport Virtualization (OTV) Intermediate System-to-Intermediate System (IS-IS) activities, use the
debug otv isis command in privileged EXEC mode. To disable the debugging, use the
no form of this command.
(Optional) Enables debugging of the specified overlay interface. The range is from 0 to 512.
site
(Optional) Enables logging of the IS-IS Layer 2 site process.
adj-packets
Enables logging of adjacency packets.
interface-type
Type of interface.
interface-number
Port, connector, or interface card number. The numbers are assigned at the factory at the time of installation or when added to a system; they can be displayed with the
show interfaces command.
aed
Enables logging of authoritative edge device (AED) information.
authentication information
Enables logging of packet authentication information.
checksum-errors
Enables logging of link-state packet (LSP) checksum errors.
common event
Enables logging of common IS-IS events.
local-updates
Enables logging of local update packets.
nsf
Enables logging of IS-IS nonstop forwarding (NSF) information.
cisco
(Optional) Enables logging of only Cisco NSF information.
detail
(Optional) Enables logging of detailed NSF information.
ietf
(Optional) Enables logging of only IETF NSF information.
protocol-errors
Enables logging of LSP protocol errors.
rib
Enables logging of local Routing Information Base (RIB) events.
redistribution
(Optional) Enables logging of redistribution RIB events.
mac
(Optional) Enables logging of Layer 2 MAC RIB events.
multicast
(Optional) Enables logging of Layer 2 multicast RIB events.
mapping
(Optional) Enables logging of Layer 2 multicast mapping RIB events.
snp-packets
Enables logging of complete sequence number protocol data units (PDUs) (CSNP)/partial sequence number PDUs (PSNPs).
update-packets
Enables logging of update packets.
vlan-database
Enables logging of information about the VLAN database.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
Cisco IOS XE Release 3.5S
This command was introduced.
Examples
The following is sample output from the
debug otv isis aed command:
Router# debug otv isis aed
*Nov 11 22:16:21.309: ISIS-AEDInfo (Overlay1): Neighbor AABB.CC00.0300 not found in osn list
*Nov 11 22:16:21.309: ISIS-AEDInfo (Overlay1): Neighbor AABB.CC00.0300 not found in osn list
*Nov 11 22:16:21.309: ISIS-AEDInfo (Overlay1): Found overlay neighbor AABB.CC00.0300 in site 0000.0000.0013
*Nov 11 22:16:21.309: ISIS-AEDInfo (Overlay1): Local AED enabled for isis
*Nov 11 22:16:21.309: ISIS-AEDInfo (Overlay1): adding neighbor AABB.CC00.0100 to osn list
*Nov 11 22:16:21.309: ISIS-AEDInfo (Overlay1): Adding site neighbor AABB.CC00.0100 to osn
*Nov 11 22:16:22.309: ISIS-AEDInfo (Overlay1): Neighbor AABB.CC00.0300 not found in osn list
*Nov 11 22:16:43.182: ISIS-AEDInfo (Overlay1): Found overlay neighbor AABB.CC00.0300 in site 0000.0000.0013
*Nov 11 22:16:43.182: ISIS-AEDInfo (Overlay1): Found overlay neighbor AABB.CC00.0300 in site 0000.0000.0013
*Nov 11 22:16:43.182: ISIS-AEDInfo (Overlay1): Found overlay neighbor AABB.CC00.0300 in site 0000.0000.0013
*Nov 11 22:16:45.327: ISIS-AEDInfo (Overlay1): adding neighbor AABB.CC00.0200 to osn list
*Nov 11 22:16:45.327: ISIS-AEDInfo (Overlay1): Adding site neighbor AABB.CC00.0200 to osn
*Nov 11 22:16:45.327: ISIS-AEDInfo (Overlay1): Found overlay neighbor AABB.CC00.0200 in site 0000.0000.0000
*Nov 11 22:16:45.327: ISIS-AEDInfo (Overlay1): Removing overlay/all neighbor AABB.CC00.0200 from osn
*Nov 11 22:16:45.327: ISIS-AEDInfo (Overlay1): removed neighbor AABB.CC00.0200 from osn list
*Nov 11 22:16:45.327: ISIS-AEDInfo (Overlay1): Found overlay neighbor AABB.CC00.0300 in site 0000.0000.0013
*Nov 11 22:16:45.327: ISIS-AEDInfo (Overlay1): Found overlay neighbor AABB.CC00.0300 in site 0000.0000.0013
*Nov 11 22:16:45.327: ISIS-AEDInfo (Overlay1): adding neighbor AABB.CC00.0200 to osn list
*Nov 11 22:16:45.327: ISIS-AEDInfo (Overlay1): Adding overlay neighbor AABB.CC00.0200 to osn
*Nov 11 22:16:48.144: ISIS-AEDInfo (Overlay1): Neighbor AABB.CC00.0200 already in osn list
*Nov 11 22:16:48.144: ISIS-AEDInfo (Overlay1): Adding site neighbor AABB.CC00.0200 to osn
Related Commands
Command
Description
show otv isis
Displays the IS-IS status and configuration.
debug packet
To display per-packet debugging output, use the
debugpacketcommand in privileged EXEC mode. To disable debugging output, use the
no form of this command.
(Optional) Number of the virtual circuit designator (VCD).
vcvpi/vci
(Optional) Virtual path identifier (VPI) and virtual channel identifier (VCI) numbers of the VC.
vc-name
(Optional) Name of the PVC or SVC.
Command Default
Debugging for packets is disabled by default.
Command Modes
Privileged EXEC
Command History
Release
Modification
9.21
This command was introduced.
12.2(13)T
Support for Apollo Domain and Banyan VINES was removed.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Usage Guidelines
The
debugpacket command displays all process-level packets for both outbound and inbound packets. This command is useful for determining whether packets are being received and sent correctly. The output reports information online when a packet is received or a transmission is attempted.
For sent packets, the information is displayed only after the protocol data unit (PDU) is entirely encapsulated and a next hop VC is found. If information is not displayed, the address translation probably failed during encapsulation. When a next hop VC is found, the packet is displayed exactly as it will be presented on the wire. Having a display indicates that the packets are properly encapsulated for transmission.
For received packets, information is displayed for all incoming frames. The display can show whether the sending station properly encapsulates the frames. Because all incoming frames are displayed, this information is useful when performing back-to-back testing and corrupted frames cannot be dropped by an intermediary switch.
The
debugpacket command also displays the initial bytes of the actual PDU in hexadecimal. This information can be decoded only by qualified support or engineering personnel.
Caution
Because the
debugpacket command generates a substantial amount of output for every packet processed, use it only when traffic on the network is low so other activity on the system is not adversely affected.
Examples
The following is sample output from the
debugpacket command:
The following is sample output from the
debugpacket command:
Router# debug packet
Ethernet0: Unknown ARPA, src 0000.0c00.6fa4, dst ffff.ffff.ffff, type 0x0a0
data 00000c00f23a00000c00ab45, len 60
Serial3: Unknown HDLC, size 64, type 0xaaaa, flags 0x0F00
Serial2: Unknown PPP, size 128
Serial7: Unknown FRAME-RELAY, size 174, type 0x5865, DLCI 7a
Serial0: compressed TCP/IP packet dropped
The following table describes the significant fields shown in the display.
Table 30 debug packet Field Descriptions
Field
Description
Ethernet0
Name of the Ethernet interface that received the packet.
Unknown
Network could not classify this packet. Examples include packets with unknown link types.
ARPA
Packet uses ARPA-style encapsulation. Possible encapsulation styles vary depending on the media command mode (MCM) and encapsulation style.
Ethernet(MCM)--EncapsulationStyle:
ARP
ETHERTALK
ISO1
ISO3
LLC2
NOVELL-ETHER
SNAP
FDDI(MCM)--EncapsulationStyle:
ISO1
ISO3
LLC2
SNAP
FrameRelay--EncapsulationStyle:
BRIDGE
FRAME-RELAY
ARPA (continued)
Serial(MCM)--EncapsulationStyle:
BFEX25
BRIDGE
DDN-X25
DDNX25-DCE
ETHERTALK
FRAME-RELAY
HDLC
HDH
LAPB
LAPBDCE
MULTI-LAPB
PPP
SDLC-PRIMARY
SDLC-SECONDARY
SLIP
SMDS
STUN
X25
X25-DCE
TokenRing(MCM)--EncapsulationStyle:
3COM-TR
ISO1
ISO3
MAC
LLC2
NOVELL-TR
SNAP
VINES-TR
src 0000.0c00.6fa4
MAC address of the node generating the packet.
dst.ffff.ffff.ffff
MAC address of the destination node for the packet.
type 0x0a0
Packet type.
data...
First 12 bytes of the datagram following the MAC header.
len 60
Length of the message (in bytes) that the interface received from the wire.
size 64
Length of the message (in bytes) that the interface received from the wire. Equivalent to the len field.
flags 0x0F00
HDLC or PP flags field.
DLCI 7a
The DLCI number on Frame Relay.
compressed TCP/IP packet dropped
TCP header compression is enabled on an interface and the packet is not HDLC or X25.
debug packet-capture
To enable packet capture debugs, use the debugpacket-capture command in privileged EXEC mode. To disable debugging packet capture, use the no form of this command.
debugpacket-capture
nodebugpacket-capture
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.4(20)T
This command was introduced.
12.2(33)SRE
This command was integrated into Cisco IOS 12.2(33)SRE.
Examples
The following example shows output from a successful request when using the debugpacket-capture command:
Router# debug packet-capture
Buffer Capture Infrastructure debugging is on
Related Commands
Command
Description
showmonitorcapture
Displays the contents of a capture buffer or a capture point.
debug pad
To display debugging messages for all packet assembler/disassembler (PAD) connections, use the debugpad command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugpad
nodebugpad
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0
This command was introduced in a release prior to Cisco IOS Release 12.0.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
Examples
Use the debugpad command to gather information to forward to the Cisco Technical Assistance Center (TAC) to assist in troubleshooting a problem that involves PAD connections.
The following example shows output of the debugpad and debugx25event commands for an incoming PAD call destined for a terminal line. The incoming PAD call is rejected by the terminal line because the selected network closed user group (CUG) has not been subscribed to by the caller:
Router# debug pad
Router# debug x25 event
Serial1/1:X.25 I R1 Call (16) 8 lci 8
From (7):2001534 To (9):200261150
Facilities:(2)
Closed User Group (basic):99
Call User Data (4):0x01000000 (pad)
pad_svc_announce:destination matched 1
PAD:incoming call to 200261150 on line 130 CUD length 4
!PAD130:Incoming Call packet, Closed User Group (CUG) service protection, selected network CUG not subscribed
PAD:CUG service protection Cause:11 Diag:65
Serial1/1:X.25 O R1 Clear (5) 8 lci 8
Cause 0, Diag 65 (DTE originated/Facility code not allowed)
Serial1/1:X.25 I R1 Clear Confirm (3) 8 lci 8
The following example shows the output of the debugpad command for an outgoing PAD call initiated from a terminal line with a subscribed CUG that bars outgoing access:
!PAD130:Outgoing Call packet, Closed User Group - CUG service validation, selected CUG !bars outgoing access
PAD130:Closing connection to . In 0/0, out 0/0
debug piafs events
To check the debugging messages for Personal Handyphone Internet Access Forum Standard (PIAFS) calls, use the
debugpiafsevents command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugpiafsevents
nodebugpiafsevents
Syntax Description
This command has no arguments or keywords.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(8)T
This command was introduced on Cisco 803, Cisco 804, and Cisco 813 routers.
Usage Guidelines
The
debugpiafseventscommand provides debugging information for the PIAFS calls on the router, including the inband negotiation process.
Examples
The
debugpiafsevents command was configured to provide the following information for PIAFS calls:
Router# debug piafs events
02:16:39:PIAFS events debugging is on
02:16:167516180371:PIAFS: RX <- CDAPI :cdapi_route_call Request
02:16:167517398148:PIAFS: RX <- CDAPI :CDAPI_MSG_CONNECT_IND
02:16:171798691839:PIAFS: TX -> CDAPI :CDAPI_MSG_SUBTYPE_ALERT_REQ
02:16:167503724545:PIAFS: TX -> CDAPI :CDAPI_MSG_CONNECT_RESP
02:16:167503765504:PIAFS: TX -> CDAPI :CDAPI_MSG_CONN_ACTIVE_REQ
02:16:167503724544:PIAFS: RX <- CDAPI :CDAPI_MSG_CONN_ACTIVE_IND
02:16:171798691839:PIAFS:Network allotted Channel :B1
02:16:167503765504:PIAFS:Enabling QMC in PIAFS mode for B1
02:16:171798691839:PIAFS:piafs_driver_enable_settings()
02:16:167503765504:PIAFS:The speed is :64
02:16:167503724544:PIAFS:Starting 64 kbps PIAFS Incoming
02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:13 RSN:1 CRSN:1 SISN:
255]
02:16:39:PIAFS:Updating conf resp num
02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:1 RSN:1 CRSN:13 SISN:
255]
02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:14 RSN:1 CRSN:1 SISN:
255]
02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:2 RSN:2 CRSN:13 SISN:
255]
02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:15 RSN:1 CRSN:1 SISN:
255]
02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:3 RSN:3 CRSN:13 SISN:
255]
02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:16 RSN:1 CRSN:1 SISN:
255]
02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:4 RSN:4 CRSN:13 SISN:
255]
02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:17 RSN:1 CRSN:1 SISN:
255]
02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:5 RSN:5 CRSN:13 SISN:
255]
02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:18 RSN:1 CRSN:1 SISN:
255]
02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:6 RSN:6 CRSN:13 SISN:
255]
02:16:39:PIAFS:RX <- NEGO_SYNC_REQUEST[GSN:19 RSN:1 CRSN:1 SISN:
255]
02:16:39:PIAFS:TX -> NEGO_SYNC_RECEPTION[GSN:7 RSN:7 CRSN:13 SISN:
255]
02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]
02:16:39:PIAFS:Rx Parameters:
02:16:39:PIAFS: Data Protocol:Version 1
02:16:39:PIAFS: Control Protocol:Version 1
02:16:39:PIAFS: RTF value:9
02:16:39:PIAFS: Compression:V.42bis
02:16:39:PIAFS: Frame Length:80
02:16:39:PIAFS: Frame Number:63
02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]
02:16:39:PIAFS:ACKed all the Rx control parameters
02:16:39:PIAFS:Piafs layer up & Main FSM set to DATA
02:16:39:PIAFS:Compression v42bis enabled
02:16:39:PIAFS:V42BIS:v42bis_init()
02:16:39:PIAFS:V42BIS:v42bis_init()
02:16:39:PIAFS:V42BIS:Negotiated Values for P1, P2 are - 4096 , 250
02:16:39:PIAFS:Incoming call invoking ISDN_CALL_CONNECT
02:16:39:%LINK-3-UPDOWN:Interface BRI0:1, changed state to up
02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]
02:16:39:PIAFS:Rx Parameters:
02:16:39:PIAFS: Data Protocol:Version 1
02:16:39:PIAFS: Control Protocol:Version 1
02:16:39:PIAFS: RTF value:9
02:16:39:PIAFS: Compression:V.42bis
02:16:39:PIAFS: Frame Length:80
02:16:39:PIAFS: Frame Number:63
02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]
02:16:39:PIAFS:ACKed all the Rx control parameters
02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]
02:16:39:PIAFS:Rx Parameters:
02:16:39:PIAFS: Data Protocol:Version 1
02:16:39:PIAFS: Control Protocol:Version 1
02:16:39:PIAFS: RTF value:9
02:16:39:PIAFS: Compression:V.42bis
02:16:39:PIAFS: Frame Length:80
02:16:39:PIAFS: Frame Number:63
02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]
02:16:39:PIAFS:ACKed all the Rx control parameters
02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]
02:16:39:PIAFS:Rx Parameters:
02:16:39:PIAFS: Data Protocol:Version 1
02:16:39:PIAFS: Control Protocol:Version 1
02:16:39:PIAFS: RTF value:9
02:16:39:PIAFS: Compression:V.42bis
02:16:39:PIAFS: Frame Length:80
02:16:39:PIAFS: Frame Number:63
02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]
02:16:39:PIAFS:ACKed all the Rx control parameters
02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]
02:16:39:PIAFS:Rx Parameters:
02:16:39:PIAFS: Data Protocol:Version 1
02:16:39:PIAFS: Control Protocol:Version 1
02:16:39:PIAFS: RTF value:9
02:16:39:PIAFS: Compression:V.42bis
02:16:39:PIAFS: Frame Length:80
02:16:39:PIAFS: Frame Number:63
02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]
02:16:39:PIAFS:ACKed all the Rx control parameters
02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]
02:16:39:PIAFS:Rx Parameters:
02:16:39:PIAFS: Data Protocol:Version 1
02:16:39:PIAFS: Control Protocol:Version 1
02:16:39:PIAFS: RTF value:9
02:16:39:PIAFS: Compression:V.42bis
02:16:39:PIAFS: Frame Length:80
02:16:39:PIAFS: Frame Number:63
02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]
02:16:39:PIAFS:ACKed all the Rx control parameters
02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]
02:16:39:PIAFS:Rx Parameters:
02:16:39:PIAFS: Data Protocol:Version 1
02:16:39:PIAFS: Control Protocol:Version 1
02:16:39:PIAFS: RTF value:9
02:16:39:PIAFS: Compression:V.42bis
02:16:39:PIAFS: Frame Length:80
02:16:39:PIAFS: Frame Number:63
02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]
02:16:39:PIAFS:ACKed all the Rx control parameters
02:16:39:PIAFS:RX <- CONTROL_REQUEST(comm parameter)[Seq No:0]
02:16:39:PIAFS:Rx Parameters:
02:16:39:PIAFS: Data Protocol:Version 1
02:16:39:PIAFS: Control Protocol:Version 1
02:16:39:PIAFS: RTF value:9
02:16:39:PIAFS: Compression:V.42bis
02:16:39:PIAFS: Frame Length:80
02:16:39:PIAFS: Frame Number:63
02:16:39:PIAFS:TX -> CONTROL_RECEPTION[0]
02:16:39:PIAFS:ACKed all the Rx control parameters
02:16:39:PIAFS:piafs_setmap() tx_map FFFFFFFF
02:16:39:PIAFS:piafs_setmap() rx_map 0
02:16:41:PIAFS:PPP:Autoselect sample 7E
02:16:41:PIAFS:PPP:Autoselect sample 7EFF
02:16:41:PIAFS:PPP:Autoselect sample 7EFF7D
02:16:41:PIAFS:PPP:Autoselect sample 7EFF7D23
02:16:41:PIAFS:piafs_setmap() tx_map FFFFFFFF
02:16:41:PIAFS:piafs_setmap() rx_map 0
02:16:42:PIAFS:piafs_setmap() tx_map A0000
02:16:42:PIAFS:piafs_setmap() rx_map 0
The following table describes the significant fields shown in the display.
Table 31 debug piafs events Field Descriptions
Field
Description
RX <- CDAPI :cdapi_route_call Request
The call distributor application programming interface (CDAPI) in the router receives an ISDN call request from the switch.
RX <- CDAPI :CDAPI_MSG_CONNECT_IND
The CDAPI in the router receives a connection indicator message from the switch.
TX -> CDAPI :CDAPI_MSG_SUBTYPE_ALERT_REQ
The CDAPI in the router transmits an alert request to the switch.
TX -> CDAPI :CDAPI_MSG_CONNECT_RESP
The CDAPI in the router transmits a connect response message to the switch.
TX -> CDAPI :CDAPI_MSG_CONN_ACTIVE_REQ
The CDAPI in the router transmits a connection active request to the switch.
RX <-CDAPI:CDAPI_MSG_CONN_ACTIVE_IND
The CDAPI in the router receives a connection active indicator from the switch.
Enabling QMC in PIAFS mode for B1
QMC (global multichannel parameters) are being enabled in PIAFS mode for the B1 channel.
piafs_driver_enable_settings()
The PIAFS driver is enabling the settings.
Starting 64 kbps PIAFS Incoming
The speed of the transmission in kbps. In this case, the speed is 64 kbps.
RX <- NEGO_SYNC_REQUEST[GSN: RSN: CRSN: SISN:]
The router receives a PIAFS negotiation synchronization request frame from the peer PIAFS device. The frame contains the following: general sequence number (GSN), reception sequence number (RSN), confirmation response sequence number (CRSN), and synchronization initiation sequence number (SISN).
Updating conf resp num
The confirmation response number is being updated.
TX -> NEGO_SYNC_RECEPTION[GSN: RSN: CRSN: SISN: ]
The router transmits a PIAFS negotiation synchronization reception message to the peer PIAFS device. The message includes the GSN, RSN, CRSN, and SISN.
RX <- CONTROL_REQUEST
The router receives a PIAFS control request frame that includes communication parameters.
Rx Parameters
The communication parameters are as follows.
Data Protocol
The version of the data protocol.
Control Protocol
The version of the control protocol.
RTF value
Round-trip frame value.
Compression
The compression standard.
Frame Length
The length of the frame, in bytes.
Frame Number
The number of packets per frame.
TX -> CONTROL_RECEPTION
The router transmits a PIAFS control reception frame.
ACKed all the Rx control parameters
The control reception frame acknowledges all the communication parameters that were received from the peer.
Piafs layer up & Main FSM set to DATA
The PIAFS protocol is active on the router. The router is ready to receive data from the peer device.
Compression v42bis enabled
The compression protocol v42bis is enabled.
V42BIS:v42bis_init()
The v42bis compression protocol has been initiated.
V42BIS:Negotiated Values for P1, P2 are - 4096 , 250
In this example, P1 is the total count of encoded words when v42bis compression is enabled. P2 is the maximum letter line length for the V42bis compression.
Incoming call invoking ISDN_CALL_CONNECT
An incoming ISDN call connection message is received.
PPP
The PPP layer on the router becomes active and starts to process the PPP frame from the peer PIAFS device.
debug platform 6rd
To enable debugging for all IPv6 rapid deployment related occurrences on the Cisco 7600 router, and report on errors that occur for IPv6 rapid deployment, use the debug platform 6rd command in the privileged EXEC configuration mode. To disable the debugging, use the no form of the command .
debugplatform6rd
{ events | errors }
nodebugplatform6rd
{ events | errors }
Syntax Description
events
Displays the debugging output for all IPv6 rapid deployment related occurrences on the router such as the creation of adjacencies, or the setting of the tunnel end-point.
errors
Displays the debugging output for problems related to IPv6 rapid deployment tunnel of RP.
Command Default
None
Command Modes
Privileged EXEC
Command History
Release
Modification
15.3.(2)S
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Use the debug command only to troubleshoot specific problems, or during troubleshooting sessions with Cisco technical support staff.
Examples
The following shows sample output for events debugging:
CE1#debug platform 6rd events
6rd Events debugging is on
CE1#conf t
Enter configuration commands, one per line. End with CNTL/Z.
CE1(config)#int tunn56
CE1(config-if)#sh
CE1(config-if)#^Z
CE1#
*Mar 1 00:14:39.825 IST: cwan_release_6rd_tunnel_endpt: Released tunnel endpt 55
*Mar 1 00:14:41.041 IST: %SYS-5-CONFIG_I: Configured from console by console
CE1#
CE1#conf t
Enter configuration commands, one per line. End with CNTL/Z.
CE1(config)#int tunn56
CE1(config-if)#no sh
CE1(config-if)#^Z
CE1#
*Mar 1 00:14:59.013 IST: %SYS-5-CONFIG_I: Configured from console by console
*Mar 1 00:14:59.645 IST: cwan_6rd_tun_adj_attach_info: event for prefix [::]
*Mar 1 00:14:59.645 IST: cwan_adjacency_set_6rd_tunnel_endpoint: dest ip is
[0.0.0.0]
*Mar 1 00:14:59.645 IST: cwan_6rd_tun_adj_attach_info: final results:
Tunnel56 tunnel adj update, , ltl = 0x83 set, adj_handle [0x50201CD0]
*Mar 1 00:14:59.645 IST: Tunnel end point ID[0] Active flag[1]
Source IP[100.0.56.1] Destination IP[0.0.0.0] Tunnel Vlan[1069]
Tunnel I/f no[102] Physical Vlan[1192]
Source MAC[0000.0000.0000] Dest MAC[0013.80b4.1c40]
*Mar 1 00:14:59.665 IST: cwan_6rd_tun_adj_attach_info: event for prefix
[2001:B000:6438::1]
*Mar 1 00:14:59.665 IST: cwan_adjacency_set_6rd_tunnel_endpoint: dest ip is
[100.100.56.1]
*Mar 1 00:14:59.665 IST: cwan_get_6rd_tunnel_endpt: Allocated tunne endpt 111
*Mar 1 00:14:59.665 IST: cwan_6rd_tun_adj_attach_info Cleared pending flag
tun_endpt->tunnel endpt 111
*Mar 1 00:14:59.665 IST: cwan_6rd_tun_adj_attach_info: final results: Tunnel56
tunnel adj update, GigabitEthernet3/4, ltl = 0x83 set, adj_handle [0x50201B10]
*Mar 1 00:14:59.665 IST: Tunnel end point ID[111] Active flag[1]
Source IP[100.0.56.1] Destination IP[100.100.56.1] Tunnel Vlan[1069]
Tunnel I/f no[102] Physical Vlan[1310]
Source MAC[0013.80b4.1c40] Dest MAC[001c.b0ca.2240]
Examples
The following shows sample output for errors debugging:
CE1#debug platform 6rd errors
6rd Errors debugging is on
CE1#conf t
Enter configuration commands, one per line. End with CNTL/Z.
CE1(config)#int tunn56
CE1(config-if)#sh
CE1(config-if)#^Z
CE1#
*Mar 1 09:49:17.963 IST: cwan_release_6rd_tunnel_endpt: tunnel endpt 0 out of
range(1,8000)
*Mar 1 09:49:18.707 IST: %SYS-5-CONFIG_I: Configured from console by console
CE1#conf t
Enter configuration commands, one per line. End with CNTL/Z.
CE1(config)#int tunn56
CE1(config-if)#no sh
CE1(config-if)#^Z
CE1#
*Mar 1 09:49:45.603 IST: %SYS-5-CONFIG_I: Configured from console by console
debug platform hardware qfp active feature evtmon
To debug the event monitoring features in the Cisco QuantumFlow Processor (QFP), use the debugplatformhardwareqfpfeatureevtmon command in Privileged EXEC mode. To disable this form of debugging, use the no form of this command.
Displays the event monitoring information pertaining to the processor.
client
Specifies the event monitoring QFP client information for one of the following debug-level options:
all
error
info
trace
warning
datapath
Specifies the event monitoring datapath for one of the following protocols:
ip
--ipv4 protocol
ipv6
--ipv6 protocol
Command Default
No default behavior or values.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
Cisco IOS XE Release 3.2S
This command was introduced on the Cisco ASR 1000 Series Routers.
Examples
The following example shows how to debug the event monitoring datapath for an IPv4 protocol: :
Router# debug platform hardware qfp active feature evtmon datapath ip
The selected EVTMON Datapath debugging is on
debug platform hardware qfp active feature ipsec
To display debugging information for IPsec events and counters in the Cisco Quantum Flow Processor (QFP) client, use the
debug platform hardware qfp active feature ipsec command in privileged EXEC mode. To disable the display of this debugging information, use the
no form of this command.
Enables debugging of IPsec events in the QFP client.
error
Enables debugging of errors.
info
Enables debugging of information.
trace
Enables debugging of packet tracing.
warning
Enables debugging of warnings.
counter
Enables debugging of IPsec counter settings in the QFP client.
read-only
Sets the debugging level of IPsec counter settings to read-only.
datapath
Enables debugging of IPsec events in the QFP datapath.
cce
Enables debugging of the IPsec common classification engine (CCE) in IPsec events.
droptypedrop-type-number
Enables debugging of packet drop types in IPsec events. The range is from 1 to 69.
pktcorruptmaximum-number
Enables debugging of corrupt packets in QFP datapath IPsec events. The range for the maximum number of corrupt packets that are dumped is from 1 to 255.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
Cisco IOS XE Release 3.7S
This command was introduced.
Usage Guidelines
If you enter the
no debug all command, debugging of the IPsec platforms is disabled.
Examples
The following example shows how to enable debugging for the IPsec datapath in QFP:
Device# debug platform hardware qfp active feature ipsec datapath cce
CPP IPSEC DATAPATH debugging is on
debug platform hardware qfp active feature wccp
To enable debug logging for the Web Cache Communication Protocol (WCCP) client in the Cisco Quantum Flow Processor (QFP), use the debugplatformhardwareqfpactivefeaturewccp command in privileged EXEC mode. To disable WCCP QFP debug logging, use the no form of this command.
When the debugplatformhardwareqfpactivefeaturewccpcommand is configured, QFP client debugs are enabled and can be collected from the forwarding processor (FP) from the file cpp_cp_F0-0.log.
When the debugplatformhardwareqfpactivefeaturewccplib-clientall command is configured,QFP lib-client debugs are enabled and can be collected from the FP from the file fman-fp_F0-0.log.
When thedebugplatformhardwareqfpactivefeaturewccpdatapathallcommand is configured, QFP datapath debugs are enabled and can be collected from the FP from the file cpp_cp-F0-0.log.
Examples
The following is sample output from the debugplatformhardwareqfpactivefeaturewccp command:
Router# debug platform hardware qfp active feature wccp
Removes WCCP statistics (counts) maintained on the router for a particular service.
ipwccp
Enables support of the specified WCCP service for participation in a service group.
ipwccpcheckservicesall
Enables enable all WCCP services.
ipwccpoutbound-acl-check
Enables execution of ACL applied on the actual outgoing interface of a packet before a decision is taken to redirect a packet.
ipwccpredirect
Enables packet redirection on an outbound or inbound interface using WCCP.
debug platform hardware qfp feature
To debug features in the Cisco QuantumFlow Processor (QFP), use the debug platform hardware qfp feature command in Privileged EXEC mode. To disable this form of debugging, use the no form of this command.
Displays the Application Level Gateway (ALG) information of the processor.
client
Specifies the ALG QFP client information.
debug-level
One of the following debug level options:
all
error
info
trace
warning
Note
The debug level options are not supported in the following protocols:
dns
ftp
h323
ldap
sip
skinny
rtsp
rcmd
tftp
netbios
datapath
Specifies the ALG datapath.
protocol
One of the following protocols:
dns
ftp
h323
http
imap
ldap
netbios
pop3
rcmd
rtsp
sip
skinny
smtp
sunrpc
tftp
detail
(Optional) Specifies the QFP datapath ALG in detail.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
Cisco IOS XE Release 2.2
This command was introduced.
Cisco IOS XE Release 3.1S
This command was modified. Support for the Network Basic Input Output System (NetBIOS) protocol. The following keywords were added: netbios-dgm,netbios-ns,netbios-ssn.
15.1(1)S
This command was integrated into Cisco IOS XE Release 15.1(1)S
Examples
The following example shows how to debug the ALG datapath for a dns protocol:
Router# debug platform hardware qfp active feature alg datapath dns
CPP ALG datapath event debugging is on
Related Commands
Command
Description
showplatformhardwareqfpfeature
Displays feature specific information in QFP.
debug platform hardware qfp feature otv client
To enable Overlay Transport Virtualization (OTV) debugging on the Quantum Flow Processor (QFP) client, use the
debug platform hardware qfp feature otv client command in privileged EXEC mode. To disable logging of the debug messages, use the
no form of this command.
debug platform hardware qfp { active | standby } feature otv client
{ all | error | info | trace | warning }
no debug platform hardware qfp { active | standby } feature otv client
{ all | error | info | trace | warning }
Syntax Description
active
Enables debug of the active instance of the processor.
standby
Enables debug of the standby instance of the processor.
all
Enables all debugging.
error
Enables error debugging.
info
Enables info debugging.
trace
Enables trace debugging.
warning
Enables warning debugging.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
Cisco IOS XE Release 3.5S
This command was introduced.
Examples
The following is sample output from the
debug platform hardware qfp feature otv client command:
Router# debug platform hardware qfp feature otv client all
The output of the debug is saved on the tracelog file for cpp_cp_F0-0.log(or cpp_cp_F1-0.log):
[cpp_otv_ea_decap_unprovision:844] Entering
11/02 17:12:39.383 [(null)]: (debug):
[cpp_otv_ea_decap_unprovision:865] received decap unprovision message, is_async==1
11/02 17:12:39.383 [(null)]: (debug):
[cpp_otv_ea_decap_unprovision_cmn:434] cpp_ifhandle=741
11/02 17:12:39.383 [(null)]: (debug):
[cpp_otv_ea_decap_dp_unprovision:192] ifhandle=741 clear output subblock
11/02 17:12:39.383 [(null)]: (debug):
[cpp_otv_ea_decap_dp_unprovision:230] disable Overlay EFP feature cpp_ifhandle=7741
11/02 17:12:39.383 [(null)]: (debug):
[cpp_otv_ea_decap_unprovision_cmn:474] OTV decap chain unprovision success, cpp__ifhandle=741
11/02 17:12:39.383 [(null)]: (debug):
[cpp_otv_ea_msg_send_cb:47] Entering cpp_otv_ea_msg_send_cb
11/02 17:12:39.383 [(null)]: (debug):
[cpp_otv_ea_msg_send:104] send reply back to API LIB, async=1
11/02 17:12:39.384 [(null)]: (debug): m
[cpp_otv_ea_decap_unprovision:888] cpp_otv_ea_decap_unprovision retval=Success
Related Commands
Command
Description
show platform hardware qfp feature otv client interface
Displays OTV feature-specific information for the specified overlay interface
debug platform link-dc
To display debugging messages for the link daughter card, use the debugplatformlink-dccommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
Physical layer (PHY) and SerDes debug information.
transceiver
Pluggable optics module information.
wanphy
WAN PHY driver debug information.
Command Default
Debugging is not enabled.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.2(33)SRD
This command was introduced.
Note
This command applies only to the Cisco 7600 Series Ethernet Services Plus (ES+) line card on the Cisco 7600 series router.
12.2(33)SRD1
This command added the dwdm and wanphy keywords.
Usage Guidelines
Use this command with the remote command command or the attach command in privileged EXEC mode.
Examples
The following examples show the output for both the debug platform link-dc tranceiver command and the debug platform link-dc interrupt command. Notice that the show platform hardware transceiver command shows the status for the port.
Router# remote command module 1 debug platform link-dc tranceiver
Link-DC transceiver debugging is on
Router# remote command module 1 debug platform link-dc interrupt
Link-DC interrupt debugging is on
Router# remote command module 1 show debug
x40g subsystem:
Link-DC transceiver debugging is on
Link-DC interrupt debugging is on
Router# remote command module 1 show platform hardware transceiver status 1
Show status info for port 1:
TenGigabitEthernet1/1:
State: Enabled
Environmental Information - raw values
Temperature: 7616
Tx voltage: 0 in units of 100uVolt
Tx bias: 28722 uA
Tx power: -2 dBm (5441 in units of 0.1 uW)
Rx power: 0 dBm (7712 in units of 0.1 uW)
(AUX1) Laser Temperature: 8704
(AUX2) +3.3V Supply Voltage: 32928
XFP TX is enabled.
XFP TX is soft enabled.
XFP is ready.
XFP is not power down.
XFP is not soft power down.
XFP doesn't have interrupt(s).
XFP is not LOS.
XFP data is ready.
XFP TX path is ready.
XFP TX laser is not in fault condition.
XFP TX path CDR is locked.
XFP RX path is ready.
XFP RX path CDR is locked.
No active alarms
No active warning
Router-dfc1#
*Aug 15 11:20:26.436 PDT: DFC1: TenGigabitEthernet1/1 XFP: show status
*Aug 15 11:20:26.436 PDT: DFC1: TenGigabitEthernet1/1 XFP: show environmental monitoring
*Aug 15 11:20:26.436 PDT: DFC1: pluggable optics read - addr: 50, offset: 60, len: 14, dataptr: 2377A668
*Aug 15 11:20:26.448 PDT: DFC1: pluggable optics read - addr: 50, offset: 6E, len: 2, dataptr: 21AA028E
*Aug 15 11:20:26.452 PDT: DFC1: pluggable optics read - addr: 50, offset: 50, len: 2, dataptr: 2377A6A0
*Aug 15 11:20:26.456 PDT: DFC1: pluggable optics read - addr: 50, offset: 52, len: 2, dataptr: 2377A6A2
Note
The following console log is seen when both the debug platform link-dc tranceiver command and the debug platform link-dc interrupt command are entered (as in the preceding example), and there is a transceiver Rx loss of signal (LOS) event.
Router-dfc1#
*Aug 15 11:23:52.127 PDT: DFC1: x40g_link_dc_interrupt_handler: intr_status 0x8000
*Aug 15 11:23:52.127 PDT: DFC1: x40g_link_xphy_isr: xphy intr intr_st 0x80000
*Aug 15 11:23:52.127 PDT: DFC1: x40g_link_xphy_isr: xphy intr port 1
*Aug 15 11:23:52.127 PDT: DFC1: x40g_xphy_link_status_callout: port 1 link status 0
*Aug 15 11:23:52.131 PDT: DFC1: x40g_link_dc_interrupt_handler: intr_status 0x8000
*Aug 15 11:23:52.131 PDT: DFC1: x40g_link_xphy_isr: xphy intr intr_st 0x80000
*Aug 15 11:23:52.131 PDT: DFC1: x40g_link_xphy_isr: xphy intr port 1
*Aug 15 11:23:52.131 PDT: DFC1: x40g_xphy_link_status_callout: port 1 link status 1
*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_dc_process: interrupt msg_id 6, msg_num 1
*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_dc_interrupt_handler: intr_status 0x8000
*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_xphy_isr: xphy intr intr_st 0x80000
*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_xphy_isr: xphy intr port 1
*Aug 15 11:23:52.135 PDT: DFC1: x40g_xphy_link_status_callout: port 1 link status 0
*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_dc_interrupt_handler: intr_status 0x4000
*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_xcvr_isr: intr_st 0x2, start 0, end 4, type 2,port_offset 0x0
*Aug 15 11:23:52.135 PDT: DFC1: Link xcvr port 1: Rx LOS interrupt
*Aug 15 11:23:52.135 PDT: DFC1: x40g_link_dc_process: interrupt msg_id 2, msg_num 1
*Aug 15 11:23:52.135 PDT: DFC1: Port 2: transceiver Rx LOS event
*Aug 15 11:23:52.147 PDT: DFC1: x40g_link_dc_process: xcvr oir timer timeout
00:12:37: %LINEPROTO-DFC1-5-UPDOWN: Line protocol on Interface TenGigabitEthernet1/2, changed state to down
*Aug 15 11:24:46.576 PDT: DFC1: x40g_link_dc_interrupt_handler: intr_status 0x4000
*Aug 15 11:24:46.576 PDT: DFC1: x40g_link_xcvr_isr: intr_st 0x2, start 0, end 4, type 2,port_offset 0x0
*Aug 15 11:24:46.576 PDT: DFC1: Link xcvr port 1: Rx LOS interrupt
*Aug 15 11:24:46.576 PDT: DFC1: x40g_link_dc_process: interrupt msg_id 2, msg_num 1
*Aug 15 11:24:46.576 PDT: DFC1: Port 2: transceiver Rx LOS recovered
*Aug 15 11:24:46.580 PDT: DFC1: x40g_link_dc_interrupt_handler: intr_status 0x8000
*Aug 15 11:24:46.580 PDT: DFC1: x40g_link_xphy_isr: xphy intr intr_st 0x80000
*Aug 15 11:24:46.580 PDT: DFC1: x40g_link_xphy_isr: xphy intr port 1
*Aug 15 11:24:46.580 PDT: DFC1: x40g_xphy_link_status_callout: port 1 link status 0
*Aug 15 11:24:46.584 PDT: DFC1: x40g_link_dc_interrupt_handler: intr_status 0x8000
*Aug 15 11:24:46.584 PDT: DFC1: x40g_link_xphy_isr: xphy intr intr_st 0x80000
*Aug 15 11:24:46.584 PDT: DFC1: x40g_link_xphy_isr: xphy intr port 1
*Aug 15 11:24:46.584 PDT: DFC1: x40g_xphy_link_status_callout: port 1 link status 1
*Aug 15 11:24:46.584 PDT: DFC1: x40g_link_dc_process: interrupt msg_id 6, msg_num 1
*Aug 15 11:24:46.600 PDT: DFC1: x40g_link_dc_process: xcvr oir timer timeout
00:13:31: %LINEPROTO-DFC1-5-UPDOWN: Line protocol on Interface TenGigabitEthernet1/2, changed state to up
The following example shows the output for the debug platform link-dc dwdm command.
The following example shows the output for the debug platform link-dc wanphy command.
Router-dfc1# debug platform link-dc wanphy
Link-DC WAN PHY debugging is on
*Jan 28 11:59:16.184 PDT: DFC1: Port 1 WIS alarms:
ser 0, plm_p_far 0, ais_p_far 0, lof 0, los 0
rdi 0, ais_l 0, lcd_p 0, plm_p 0, ais_p 0, lop 0
*Jan 28 11:59:17.184 PDT: DFC1: Port 1 WIS alarms:
ser 0, plm_p_far 0, ais_p_far 0, lof 0, los 0
rdi 0, ais_l 0, lcd_p 0, plm_p 0, ais_p 0, lop 0
*Jan 28 11:59:17.184 PDT: DFC1: Port 1 WIS counters: b1 0, b2 0, b3 0, fe_b2 0, fe_b3 0
*Jan 28 11:59:17.184 PDT: DFC1: Port 1 WIS J1RX: 0x0000000000000089.0x302E302E302E3000
...
*Jan 28 11:59:22.288 PDT: DFC1: Port 1 WIS alarms:
ser 0, plm_p_far 0, ais_p_far 0, lof 0, los 0
rdi 0, ais_l 0, lcd_p 0, plm_p 0, ais_p 0, lop 0
*Jan 28 11:59:22.288 PDT: DFC1: Port 1 WIS counters: b1 0, b2 0, b3 0, fe_b2 0, fe_b3 0
*Jan 28 11:59:22.288 PDT: DFC1: Port 1 WIS J1RX: 0x0000000000000089.0x302E302E302E3000
Related Commands
Command
Description
showplatformhardwaretransceiver
Displays transceiver information on a port.
debug platform software evtmon
To debug the event monitoring features in the Cisco QuantumFlow Processor (QFP), use the debugplatformsoftwareevtmon command in Privileged EXEC mode. To disable this form of debugging, use the no form of this command.
debugplatformsoftwareevtmonconfiguration
nodebugplatformsoftwareevtmonconfiguration
Syntax Description
configuration
Enablesconfiguration-relateddebugs.
Command Default
No default behavior or values.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
Cisco IOS XE Release 3.2S
This command was introduced on the Cisco ASR 1000 Series Routers.
Examples
The following example shows how to debug the event monitoring configurations:
Router# debug platform software evtmon configuration
evtmon configuration messages debugging is on
debug platform software l2fib
To enable Overlay Transport Virtualization (OTV) debugging on the Cisco IOS daemon (IOSd) for the Layer 2 Forwarding Information Base (L2FIB) object, use the
debug platform software l2fib command in privileged EXEC mode. To disable logging of the debug messages, use the
no form of this command.
Displays the global bridge domain table for MAC and Layer 2 multicast on the FMAN on the FP.
show platform software l2fib rp
Displays the global bridge domain table for MAC and multicast on the FMAN on the RP.
debug platform software multicast
To display information about log events, packet information, and assert events, use the debugplatformsoftwaremulticastcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
Displays all multicast hardware switching debugging information, including errors, events, and packets for the specified group.
assert
Specifies the assert events.
Command Default
Debugging is enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(33)SRE
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Only one of the keywords is required.
Examples
The following example shows output from thedebug platform software multicastcommand using the all keyword:
PE-3-sp#debug platform software multicast all
Global enable but not the periodic debugging is on
PE-3-sp#
*Oct 30 09:17:26.150 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035
*Oct 30 09:17:26.770 EDT: SP: hal_timer_event: NRPF-AG
*Oct 30 09:17:27.151 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035
*Oct 30 09:17:28.151 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035
*Oct 30 09:17:28.395 EDT: SP: hal_timer_event: NRPF-AG
*Oct 30 09:17:29.152 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035
*Oct 30 09:17:30.152 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035
*Oct 30 09:17:30.248 EDT: SP: hal_timer_event: NRPF-AGun al
*Oct 30 09:17:31.153 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035
The following example shows output from the debug platform software multicastcommand using the assert keyword:
PE-3-sp#debug platform software multicast assert
Assertion for Layer 2 multicast debugging is on
PE-3-sp#
PE-3-sp#debug platform software multicast ha l2-sso all
Debug for mcast SSO all debugging is on
PE-3-sp#debug platform software multicast ha l2-sso err
PE-3-sp#debug platform software multicast ha l2-sso error
Debug for mcast SSO error debugging is on
PE-3-sp#debug platform software multicast ha l2-sso eve
PE-3-sp#debug platform software multicast ha l2-sso event
Debug for mcast SSO events debugging is on
PE-3-sp#debug platform software multicast ha l2-sso pak
PE-3-sp#debug platform software multicast ha l2-sso pak
Debug for mcast SSO packets debugging is on
PE-3-sp#
Related Commands
Command
Description
debugplatformsoftwaremulticast
Displays the multicast debugging information.
debug platform software multicast cgmp
To display information about cgmp debugging events and packet information use the debugplatformsoftwaremulticastcgmpcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Only one of the keywords is required.
Examples
The following example shows output from the debugplatformsoftwaremulticastcgmp
command using the event keyword:
PE-3-sp#debug platform software multicast cgmp event
Router Discovery (CGMP Protocol) event log debugging is on
The following example shows output from the debugplatformsoftwaremulticastcgmp
command using the pak keyword:
PE-3-sp#debug platform software multicast cgmp pak
Router Discovery (CGMP Protocol) packet log debugging is on
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast igmp
To display information about igmp debugging events and packet information use the debugplatformsoftwaremulticastigmpcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
The following example shows output from the debugplatformsoftwaremulticastigmp
command using the pak keyword:
PE-3-sp#debug platform software multicast igmp pak
PE-3-sp#debug platform software multicast igmp pak
IGMP snooping packet log debugging is on
PE-3-sp#
*Oct 30 09:26:22.143 EDT: SP: RELAYED PAK to index 0x0008440B, vlan 1035
*Oct 30 09:26:22.143 EDT: SP: Packet dump:
18000070: 0100 5E000016 00000E00 ..^.......
18000080: 02000800 45000028 00000000 400254BC ....E..(....@.T<
18000090: 46000002 E0000016 2200CBF6 00000001 F...`...".Kv....
180000A0: 01000001 E8000104 28000002 00010203 ....h...(.......
180000B0: 04058C
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast ip cmfib
To display information about multicast ip cmfib errors, shortcut events, and export the hardware statistics command, use the debugplatformsoftwaremulticastipcmfibcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
Specifies the IPV4 hardware statistic information for export.
Command Default
Debugging is enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(33)SRE
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Only one of the keywords is required.
Examples
The following example shows output from the debugplatformsoftwaremulticastipcmfib
command using the error keyword:
PE-3-sp#debug platform software multicast ip cmfib cmfib error
CMFIB-LC IPv6 error debugging enabled
The following example shows output from the debugplatformsoftwaremulticastipcmfib
command using the event keyword:
PE-3-sp#debug platform software multicast ip cmfib cmfib eve
CMFIB-LC IPv6 event debugging enabled
The following example shows output from the debugplatformsoftwaremulticastipcmfib
command using the stats keyword:
PE-3-sp#debug platform software multicast ip cmfib cmfib stats
CMFIB-LC IPv6 stats debugging enabled
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast ip cmfib error
To display information about source or group IP address and the mfib IPv4 pending entry , use the debugplatformsoftwaremulticastipcmfiberrorcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugplatformsoftwaremulticastipcmfiberror
{ A .B .C .D | pending }
nodebugplatformsoftwaremulticastipcmfiberror
{ A .B .C .D | pending }
Syntax Description
A.B.C.D
Specifies the source or group IP address information.
pending
Specifies the mfib IPv4 pending entry error information.
Command Default
Debugging is enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(33)SRE
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Only one of the keywords is required.
Examples
The following example shows output from the debugplatformsoftwaremulticastipcmfiberror
command:
PE-3-sp#debug platform software multicast ip cmfib error 232.0.1.4 ver
PE-3-sp#debug platform software multicast ip cmfib error 232.0.1.4 verbose
CMFIB-LC IPv4 verbose error debugging enabled for group 232.0.1.4
PE-3-sp#debug platform software multicast ip cmfib error pending ?
<cr>
PE-3-sp#debug platform software multicast ip cmfib error pending
CMFIB-LC IPv4 error pending debugging enabled
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast ip cmfib event
To display information about source or group IP address, mfib IPv4 ctrl entries events, mfib hw-api events, mfib IPv4 table events, mfib IPv4 pending entry events, and mfib IPv4 table events, use the debugplatformsoftwaremulticastipcmfibeventcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
Specifies the source or group IP address information.
pending
Specifies the mfib IPv4 pending entry information.
ctrl
Specifies the mfib IPv4 ctrl entry events.
hwapi
Specifies the mfib hardware API events.
mdt
Specifies the mfib IPv4 table events.
table
Specifies the mfib IPv4 table events.
Command Default
Debugging is enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(33)SRE
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Only one of the keywords is required.
Examples
The following example shows output from the debugplatformsoftwaremulticastipcmfibevent
command:
PE-3-sp#debug platform software multicast ip cmfib event ctrl
CMFIB-LC IPv4 event control debugging enabled
PE-3-sp#debug platform software multicast ip cmfib event hwapi
CMFIB-LC IPv4 event hwapi debugging enabled
PE-3-sp#debug platform software multicast ip cmfib event mdt
CMFIB-LC IPv4 event mdt debugging enabled
PE-3-sp#debug platform software multicast ip cmfib event pending
CMFIB-LC IPv4 event pending debugging enabled
PE-3-sp#debug platform software multicast ip cmfib event table
CMFIB-LC IPv4 event table debugging enabled
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast ip hal
To display information about the the multicast hal error, event, timer and packet information, use the debugplatformsoftwaremulticastiphalcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugplatformsoftwaremulticastiphal
{ errorevents | eventevents | pak | timer }
nodebugplatformsoftwaremulticasthal
{ errorevents | eventevents | pak | timer }
Syntax Description
event
Specifies the events for the selected group.
error
Specifies the debugging errors.
pak
Specifies the packet information.
timer
Specifies the timer information.
Command Default
Debugging is enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(33)SRE
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Only one of the keywords is required.
Examples
The following example shows output from the debugplatformsoftwaremulticastiphalcommand using the event keyword:
PE-3-sp#debug platform software multicast ip hal eve
PE-3-sp#debug platform software multicast ip hal event
Multicast HAL event log debugging is on
PE-3-sp#
*Oct 30 09:24:48.078 EDT: SP: hal_timer_event: NRPF-AG
*Oct 30 09:24:48.790 EDT: SP: hal_timer_event: S-CHECK
*Oct 30 09:24:49.754 EDT: SP: hal_timer_event: NRPF-AG
*Oct 30 09:24:51.530 EDT: SP: hal_timer_event: NRPF-AG
*Oct 30 09:24:53.298 EDT: SP: hal_timer_event: NRPF-AG
*Oct 30 09:24:55.154 EDT: SP: hal_timer_event: NRPF-AG
The following example shows output from the debugplatformsoftwaremulticastiphalcommand using the error keyword:
PE-3-sp#debug platform software multicast ip hal error
Multicast HAL error log debugging is on
The following example shows output from the debugplatformsoftwaremulticastiphalcommand using the pak keyword:
PE-3-sp#debug platform software multicast ip hal pak
PE-3-sp#debug platform software multicast ip hal pak
Multicast HAL packet log debugging is on
The following example shows output from the debugplatformsoftwaremulticastiphalcommand using the timer keyword:
PE-3-sp#debug platform software multicast ip hal tim
PE-3-sp#debug platform software multicast ip hal timer
Multicast HAL timer log debugging is on
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast ipv6
To display information about multicast IPv6 hardware switching, use the debugplatformsoftwaremulticastipv6command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugplatformsoftwaremulticastipv6
{ control | errorgroup-address | eventgroup-address }
nodebugplatformsoftwaremulticastipv6
{ control | errorgroup-address | eventgroup-address }
Syntax Description
control
Displays all multicast hardware switching debugging information, including errors, events, and packets.
errorgroup-address
Displays error messages related to multicast hardware switching for the specified group-address.
eventgroup-address
Displays the run-time sequence of events for multicast hardware switching.
Command Default
Debugging is not enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(33)SRE
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Only one of the keywords is required.
Examples
The following example shows output from the debugplatformsoftwaremulticastipv6command using the control keyword:
Router# debug platform software multicast ipv6 control
The following example shows output from the debugplatformsoftwaremulticastipv6command using the error keyword:
Router# debug mls rp ip multicast error
The following example shows output from the debugplatformsoftwaremulticastipv6command using the event keyword:
Router# debug mls rp ip multicast event
Related Commands
Command
Description
ipv6multicasthardware-switchingconnected
Downloads the interface and mask entry for IPv6 multicast packet.
Configures the ingress hardware replication mode for IPv6 multicast packets.
debug platform software multicast ipv6 cmfib
To display information about multicast ipv6 mfib errors, shortcut events, and hardware statistics export information, use the debugplatformsoftwaremulticastipv6cmfibcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast ipv6
To display information about multicast IPv6 hardware switching, use the debugplatformsoftwaremulticastipv6command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugplatformsoftwaremulticastipv6
{ control | errorgroup-address | eventgroup-address }
nodebugplatformsoftwaremulticastipv6
{ control | errorgroup-address | eventgroup-address }
Syntax Description
control
Displays all multicast hardware switching debugging information, including errors, events, and packets.
errorgroup-address
Displays error messages related to multicast hardware switching for the specified group-address.
eventgroup-address
Displays the run-time sequence of events for multicast hardware switching.
Command Default
Debugging is not enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(33)SRE
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Only one of the keywords is required.
Examples
The following example shows output from the debugplatformsoftwaremulticastipv6command using the control keyword:
Router# debug platform software multicast ipv6 control
The following example shows output from the debugplatformsoftwaremulticastipv6command using the error keyword:
Router# debug mls rp ip multicast error
The following example shows output from the debugplatformsoftwaremulticastipv6command using the event keyword:
Router# debug mls rp ip multicast event
Related Commands
Command
Description
ipv6multicasthardware-switchingconnected
Downloads the interface and mask entry for IPv6 multicast packet.
Configures the ingress hardware replication mode for IPv6 multicast packets.
debug platform software multicast ipv6 hal
To display information about multicast ipv6 hal errors and event information, use the debugplatformsoftwaremulticastipv6halcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
Specifies the mfib IPv4 pending entry information.
Command Default
Debugging is enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(33)SRE
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Only one of the keyword is required.
Examples
The following example shows output from the debugplatformsoftwaremulticastipv6hal
command:
PE-3-sp#debug platform software multicast ipv6 hal error
CMFIB-LC IPv6 debugging enabled
PE-3-sp#debug platform software multicast ipv6 hal event
CMFIB-LC IPv6 IPv6 HAL error debugging enabled
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast lc
To display the layer 2 line card multicast events, use the debugplatformsoftwaremulticastlccommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugplatformsoftwaremulticastlc
nodebugplatformsoftwaremulticastlc
Syntax Description
lc
Specifies the line card for which the multicast events are to be displayed.
Command Default
Debugging is enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(33)SRE
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Only one of the keywords is required.
Examples
The following example shows output from the debugplatformsoftwaremulticastlc
command:
PE-3-sp#debug platform software multicast lc
Debug from mls_mcast_lc library debugging is on
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast mld
To display information about the events and packet information for mld debugging, use the debugplatformsoftwaremulticastmldcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Only one of the keywords is required.
Examples
The following example shows output from the debugplatformsoftwaremulticastmld
command using the event keyword:
PE-3-sp#debug platform software multicast igmp event
multicast snooping event log debugging is on
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast mrouter
To display the multicast router events and packet information, use the debugplatformsoftwaremulticastmroutercommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
This command was introduced on Cisco 7600 series routers.
Usage Guidelines
Only one of the keywords is required.
Examples
The following example shows output from the debugplatformsoftwaremulticastmrouter
command using the event keyword:
PE-3-sp#debug platform software multicast mrouter event
Router Discovery (MLD MROUTER Protocol) event log debugging is on
The following example shows output from the debugplatformsoftwaremulticastmrouter
command using the pak keyword:
PE-3-sp#debug platform software multicast mrouter pak
Router Discovery (MLD MROUTER Protocol) packet log debugging is on
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast msc
To display information about multicast shortcut debugging, use the debugplatformsoftwaremulticastmsccommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
The following example shows output from the debugplatformsoftwaremulticastmsc
command using the event keyword:
PE-3-sp#debug platform software multicast msc eve
Multicast Shortcuts event log debugging is on
The following example shows output from the debugplatformsoftwaremulticastmsc
command using the pak keyword:
PE-3-sp#debugplatformsoftwaremulticastmscpak
MulticastShortcutspacketlogdebuggingison
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast rgmp
To display information about multicast shortcut debugging, use the debugplatformsoftwaremulticastrgmpcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
The following example shows output from the debugplatformsoftwaremulticastrgmp
command using the pak keyword:
PE-3-sp#debug platform software multicast rgmp pak
RGMP packet log debugging is on
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast rpdf
To display information about multicast bidirectional df debugging, use the debugplatformsoftwaremulticastrpdfcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
The following example shows output from the debugplatformsoftwaremulticastrpdf
command using the event keyword:
PE-3-sp#debug platform software multicast rpdf eve
Multicast Shortcuts event log debugging is on
The following example shows output from the debugplatformsoftwaremulticastrpdf
command using the pak keyword:
PE-3-sp#debugplatformsoftwaremulticastrpdfpak
MulticastShortcutspacketlogdebuggingison
Related Commands
Command
Description
debugplatformsoftwaremulticastha
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software multicast titan
To display information about multicast titan debugging, use the debugplatformsoftwaremulticasttitancommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
Displays the high availability multicast shortcuts debugging errors and events.
debug platform software otv
To enable Overlay Transport Virtualization (OTV) debugging on the Cisco IOS daemon (IOSd) Shim layer for OTV-specific forwarding object, use the
debug platform software otv command in privileged EXEC mode. To disable logging of the debug messages, use the
no form of this command.
Displays the overlay configuration on an OTV edge device on the FMAN on the FP.
debug platform software wccp
To enable Web Cache Control Protocol (WCCP) platform debug messages, use the debugplatformsoftwarewccp command in privileged EXEC mode. To disable WCCP platform debug messages, use the no form of this command.
*Jun 17 15:45:17.083: FMANRP-WCCP: Config Service Group (0, 0, 0) to interface GigabitEthernet0/3/1, direction = IN
*Jun 17 15:45:17.084: FMANRP-WCCP: Attach GigabitEthernet0/3/1 interface info for Service group (0, 0, 0) if_handle 20, direction Input(0x2)
A WCCP service is removed from an interface:
*Jun 17 15:46:29.815: FMANRP-WCCP: Unconfig Service Group (0, 0, 0) to interface GigabitEthernet0/3/1, direction = IN
*Jun 17 15:46:29.815: FMANRP-WCCP: Detach GigabitEthernet0/3/1 interface info for Service group (0, 0, 0) if_handle 20, direction Input(0x2)
A WCCP service group is unconfigured:
*Jun 17 15:48:17.224: FMANRP-WCCP: (0 0 0) Delete ce = 90.20.1.2
*Jun 17 15:48:17.225: Failed to retrieve service group params while removing ce
*Jun 17 15:48:17.241: FMANRP-WCCP: Unconfig Service Group (0, 0, 0)
The following is sample output from debugplatformsoftwarewccpmessagescommand:
Removes WCCP statistics (counts) maintained on the router for a particular service.
ipwccp
Enables support of the specified WCCP service for participation in a service group.
ipwccpcheckservicesall
Enables all WCCP services.
ipwccpoutbound-acl-check
Enables execution of ACL applied on the actual outgoing interface of a packet before a decision is taken to redirect a packet.
ipwccpredirect
Enables packet redirection on an outbound or inbound interface using WCCP.
showplatformsoftwarewccp
Displays global statistics related to WCCP on Cisco ASR 1000 Series Routers.
debug policy-firewall
Note
Effective with Cisco IOS Release 12.4(20)T, the
debug policy-firewall command replaces the
debugipinspect command.
To display messages about Cisco software firewall events, including details about the packets of the protocol, use the
debug policy-firewall command in priviliged EXEC mode. To disable the display of debugging output, use the
no form of this command.
Displays messages about software functions called by the firewall.
object-creation
Displays messages about software objects being created by the firewall. Object creation corresponds to the beginning of firewall-inspected sessions.
object-deletion
Displays messages about software objects being deleted by the firewall. Object deletion corresponds to the closing of firewall-inspected sessions.
list
Displays messages about policy firewall conditional debugging.
access-list
Filters the basic list of policy firewall conditional debugging messages. The valid range is from 1 to 199.
extended-access-list
Filters the extended range of policy firewall conditional debugging messages. The valid range is from 1300 to 2699.
events
Displays messages about firewall software events, including information about firewall packet processing or MIB special events.
timers
Displays messages about firewall timer events such as when the firewall idle timeout is reached.
packet-path
Displays messages about the packet-path functions.
protocolprotocol-name
Displays firewall-inspected protocol events. Displays messages about firewall-inspected protocol events, including details about the packets of the protocol.
L2-transparent
Displays messages about Layer 2 transparent (firewall) bridge mode events.
control-plane
Displays messages about the control plane routines.
detailed
Detailed information is displayed for all the other enabled firewall debug commands. Use this form of the command in conjunction with the other firewall
debug commands.
ha
Displays firewall high availability (HA) log messages.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.4(20)T
This command was introduced. This command replaces the
debug ip inspect command.
15.0(1)M
This command was modified. The
list
and
packet-path keywords were added.
15.2(3)T
This command was modified. The
ha keyword was added.
Usage Guidelines
The
debug policy-firewall command is used to troubleshoot firewall problems. You can use the output of this command to analyze the behavior of the firewall and to diagnose the root cause of the problem.
Examples
The following is sample output from the
debugpolicy-firewallfunction-trace command:
Device# debug policy-firewall function-trace
Feb 13 08:13:43: FIREWALL: fw_dp_tcp_init_sis():
Feb 13 08:13:43: FIREWALL: fw_dp_insp_init_sis():
Feb 13 08:13:43: FIREWALL: fw_dp_tcp_inspect(): , i2r = 1
Feb 13 08:13:43: FIREWALL: fw_dp_insp_listen_state():
Feb 13 08:13:43: FIREWALL: fw_dp_insp_ensure_return_traffic():
Feb 13 08:13:43: FIREWALL: fw_dp_insp_process_syn_packet():
Feb 13 08:13:43: FIREWALL: fw_dp_insp_create_tcp_host_entry():
Feb 13 08:13:43: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 0
Feb 13 08:13:43: FIREWALL*: fw_dp_insp_synsent_state():
Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 1
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_synrcvd_state():
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_remove_sis_from_host_entry():
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_remove_host_entry():
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_delete_host_entry():
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_handle_icq_control_stream():
Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 0
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_estab_state():
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_handle_icq_control_stream():
Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 1
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_estab_state():
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_handle_icq_control_stream():
Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 0
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_estab_state():
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_handle_icq_control_stream():
Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 1
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_estab_state():
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_handle_icq_control_stream():
Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 0
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_estab_state():
Feb 13 08:13:44: FIREWALL*: fw_dp_tcp_inspect(): , i2r = 1
Feb 13 08:13:44: FIREWALL*: fw_dp_insp_estab_state():
Feb 13 08:13:44: %APPFW-6-IM_ICQ_SESSION: im-icq text-chat service session initiator sends 77 bytes session 192.168.3.3:36091 192.168.103.3:5190 on zone-pair zp_test_in class test_im appl-class test_icq_1
The date in each line of the output is the time stamp. This output shows the functions called by the Cisco IOS firewall as a session is inspected. Entries with an asterisk (*) after the word “FIREWALL” are entries when the fast path is used; otherwise, the process path is used.
The following is sample output from the
debug policy-firewall object-creation,
debug policy-firewall object-deletion,
debug policy-firewall timers, and
debug policy-firewall events commands:
Log Buffer (600000 bytes):
Feb 13 08:16:17: FIREWALL: FW CCE got packet 0x66030694 in process path
Feb 13 08:16:17: FIREWALL: Router gen or router destined pak 0x66030694, let it pass
Feb 13 08:16:17: FIREWALL: FW CCE got packet 0x660311F8 in process path
Feb 13 08:16:17: FIREWALL: Router gen or router destined pak 0x660311F8, let it pass
Feb 13 08:16:17: FIREWALL: FW CCE got packet 0x66030A60 in process path
Feb 13 08:16:17: FIREWALL: Router gen or router destined pak 0x66030A60, let it pass
Feb 13 08:16:19: FIREWALL: FW CCE got packet 0x660328C0 in process path
Feb 13 08:16:19: FIREWALL: Router gen or router destined pak 0x660328C0, let it pass
Feb 13 08:16:21: FIREWALL: FW CCE got packet 0x66031D5C in process path
Feb 13 08:16:21: FIREWALL: Router gen or router destined pak 0x66031D5C, let it pass
Feb 13 08:16:22: FIREWALL: FW CCE got packet 0x66032128 in process path
Feb 13 08:16:22: FIREWALL: Router gen or router destined pak 0x66032128, let it pass
Feb 13 08:16:22: FIREWALL: FW CCE got packet 0x660324F4 in process path
Feb 13 08:16:22: FIREWALL: Router gen or router destined pak 0x660324F4, let it pass
Feb 13 08:16:24: FIREWALL: FW CCE got packet 0x66033424 in process path
Feb 13 08:16:24: FIREWALL: Router gen or router destined pak 0x66033424, let it pass
Feb 13 08:16:25: FIREWALL: fw_dp_insp_handle_timer_event
Feb 13 08:16:25: FIREWALL: fw_dp_insp_sample_session_rate
Feb 13 08:16:26: FIREWALL: FW CCE got packet 0x66032C8C in process path
Feb 13 08:16:26: FIREWALL: Router gen or router destined pak 0x66032C8C, let it pass
Feb 13 08:16:26: FIREWALL: FW CCE got packet 0x6602DCD0 in process path
Feb 13 08:16:26: FIREWALL: Router gen or router destined pak 0x6602DCD0, let it pass
Feb 13 08:16:26: FIREWALL: FW CCE got packet 0x5011DDB4 in process path
Feb 13 08:16:26: FIREWALL: Router gen or router destined pak 0x5011DDB4, let it pass
Feb 13 08:16:28: FIREWALL: FW CCE got packet 0x5011D9E8 in process path
Feb 13 08:16:28: FIREWALL: sis 20491840 : Timer Start: Timer: 20491964 Time: 30000 milisecs
Feb 13 08:16:28: FIREWALL: sis 20491840 : Timer Init Leaf
Feb 13 08:16:28: FIREWALL: sis 20491840 : Allocating L7 sis extensionL4 protocol = 1, L7 protocol = 62, granular = 5
Feb 13 08:16:28: FIREWALL: sis 20491840 : create host entry 669F3180 addr 192.168.103.3 bucket 12 (vrf 0:0) fwfo 0x507E39C0
Feb 13 08:16:29: FIREWALL*: sis 20491840 : Timer Start: Timer: 20491964 Time: 3600000 milisecs
Feb 13 08:16:29: %APPFW-6-IM_ICQ_SESSION: im-icq text-chat service session initiator sends 77 bytes session 192.168.3.3:36091 192.168.103.3:5190 on zone-pair zp_test_in class test_im appl-class test_icq_1
Feb 13 08:16:29: %APPFW-6-IM_ICQ_SESSION: im-icq text-chat service session initiator gets 198 bytes session 192.168.103.3:5190 192.168.3.3:36091 on zone-pair zp_test_in class test_im appl-class test_icq_1
Feb 13 08:16:29: FIREWALL: FW CCE got packet 0x20159864 in process path
Feb 13 08:16:29: FIREWALL: Router gen or router destined pak 0x20159864, let it pass
Feb 13 08:16:29: FIREWALL: fw_dp_insp_handle_timer_event
Feb 13 08:16:29: FIREWALL: delete host entry 669F3180 addr 192.168.103.3
Feb 13 08:16:30: FIREWALL: FW CCE got packet 0x66033058 in process path
Feb 13 08:16:30: FIREWALL: Router gen or router destined pak 0x66033058, let it pass
Feb 13 08:16:31: FIREWALL: FW CCE got packet 0x660337F0 in process path
Feb 13 08:16:31: FIREWALL: Router gen or router destined pak 0x660337F0, let it pass
Feb 13 08:16:31: FIREWALL: FW CCE got packet 0x20159C30 in process path
Feb 13 08:16:31: FIREWALL: Router gen or router destined pak 0x20159C30, let it pass
Feb 13 08:16:34: FIREWALL: FW CCE got packet 0x20159FFC in process path
Feb 13 08:16:34: FIREWALL: Router gen or router destined pak 0x20159FFC, let it pass
Feb 13 08:16:35: FIREWALL: FW CCE got packet 0x5011E54C in process path
Feb 13 08:16:35: FIREWALL: Router gen or router destined pak 0x5011E54C, let it pass
Feb 13 08:16:36: FIREWALL: FW CCE got packet 0x665E6304 in process path
Feb 13 08:16:36: FIREWALL: Router gen or router destined pak 0x665E6304, let it pass
Feb 13 08:16:36: FIREWALL: FW CCE got packet 0x5011E180 in process path
Feb 13 08:16:36: FIREWALL: Router gen or router destined pak 0x5011E180, let it pass
Feb 13 08:16:38: FIREWALL: fw_dp_insp_handle_timer_event
Feb 13 08:16:38: FIREWALL: fw_dp_insp_sample_session_rate
Feb 13 08:16:38: FIREWALL: FW CCE got packet 0x2015A3C8 in process path
Feb 13 08:16:38: FIREWALL: Router gen or router destined pak 0x2015A3C8, let it pass
Feb 13 08:16:39: FIREWALL: FW CCE got packet 0x5011E918 in process path
Feb 13 08:16:39: FIREWALL: Router gen or router destined pak 0x5011E918, let it pass
Feb 13 08:16:40: FIREWALL: FW CCE got packet 0x665E6E68 in process path
Feb 13 08:16:40: FIREWALL: Router gen or router destined pak 0x665E6E68, let it pass
Feb 13 08:16:40: FIREWALL: FW CCE got packet 0x2015A794 in process path
Feb 13 08:16:40: FIREWALL: Router gen or router destined pak 0x2015A794, let it pass
Feb 13 08:16:43: FIREWALL: FW CCE got packet 0x665E7234 in process path
Feb 13 08:16:43: FIREWALL: Router gen or router destined pak 0x665E7234, let it pass
Feb 13 08:16:44: FIREWALL: FW CCE got packet 0x5011ECE4 in process path
Feb 13 08:16:44: FIREWALL: Router gen or router destined pak 0x5011ECE4, let it pass
Feb 13 08:16:44: FIREWALL: FW CCE got packet 0x2015AB60 in process path
Feb 13 08:16:44: FIREWALL: Router gen or router destined pak 0x2015AB60, let it pass
Feb 13 08:16:45: FIREWALL: FW CCE got packet 0x665E7600 in process path
Feb 13 08:16:45: FIREWALL: Router gen or router destined pak 0x665E7600, let it pass
Feb 13 08:16:48: FIREWALL: FW CCE got packet 0x665E79CC in process path
Feb 13 08:16:48: FIREWALL: Router gen or router destined pak 0x665E79CC, let it pass
Feb 13 08:16:48: FIREWALL: FW CCE got packet 0x5011F47C in process path
Feb 13 08:16:48: FIREWALL: Router gen or router destined pak 0x5011F47C, let it pass
Feb 13 08:16:49: FIREWALL: FW CCE got packet 0x6602E468 in process path
Feb 13 08:16:49: FIREWALL: Router gen or router destined pak 0x6602E468, let it pass
Feb 13 08:16:50: FIREWALL: fw_dp_insp_handle_timer_event
Feb 13 08:16:50: FIREWALL: fw_dp_insp_sample_session_rate
Feb 13 08:16:50: FIREWALL: FW CCE got packet 0x2015B2F8 in process path
Feb 13 08:16:50: FIREWALL: Router gen or router destined pak 0x2015B2F8, let it pass
Feb 13 08:16:52: FIREWALL: FW CCE got packet 0x6602E09C in process path
Feb 13 08:16:52: FIREWALL: Router gen or router destined pak 0x6602E09C, let it pass
Feb 13 08:16:53: FIREWALL: FW CCE got packet 0x6602EC00 in process path
Feb 13 08:16:53: FIREWALL: Router gen or router destined pak 0x6602EC00, let it pass
Feb 13 08:16:54: FIREWALL: FW CCE got packet 0x6602EFCC in process path
Feb 13 08:16:54: FIREWALL: Router gen or router destined pak 0x6602EFCC, let it pass
Feb 13 08:16:55: FIREWALL: FW CCE got packet 0x6602F764 in process path
Feb 13 08:16:55: FIREWALL: Router gen or router destined pak 0x6602F764, let it pass
Feb 13 08:16:57: FIREWALL: FW CCE got packet 0x6602F398 in process path
Feb 13 08:16:57: FIREWALL: Router gen or router destined pak 0x6602F398, let it pass
Feb 13 08:16:57: FIREWALL: FW CCE got packet 0x6602FB30 in process path
Feb 13 08:16:57: FIREWALL: Router gen or router destined pak 0x6602FB30, let it pass
Feb 13 08:16:59: FIREWALL: FW CCE got packet 0x66030E2C in process path
Feb 13 08:16:59: FIREWALL: Router gen or router destined pak 0x66030E2C, let it pass
Feb 13 08:16:59: FIREWALL: FW CCE got packet 0x66030694 in process path
Feb 13 08:16:59: FIREWALL: Router gen or router destined pak 0x66030694, let it pass
Feb 13 08:17:00: FIREWALL*: sis 20491840 : Timer Start: Timer: 20491964 Time: 5000 milisecs
Feb 13 08:17:00: FIREWALL*: sis 20491840 : Timer Start: Timer: 20491964 Time: 1000 milisecs
Feb 13 08:17:01: FIREWALL: fw_dp_insp_handle_timer_event
Feb 13 08:17:01: FIREWALL: sis 20491840 : Idle Timer Expires: Timer: 20491964
Feb 13 08:17:01: FIREWALL: sis 20491840 : Delete sis half_open 0
Feb 13 08:17:01: FIREWALL: sis 20491840 : Timer Stop: Timer: 20491964
Feb 13 08:17:01: FIREWALL: sis 20491840 : Delete sis
Feb 13 08:17:01: FIREWALL: sis 20491840 : session on temporary delete list
Feb 13 08:17:01: FIREWALL: sis 20491840 : Calling l4 cleanup
Feb 13 08:17:01: FIREWALL: FW CCE got packet 0x660311F8 in process path
Feb 13 08:17:01: FIREWALL: Router gen or router destined pak 0x660311F8, let it pass
Feb 13 08:17:02: FIREWALL: FW CCE got packet 0x66030A60 in process path
Feb 13 08:17:02: FIREWALL: Router gen or router destined pak 0x66030A60, let it pass
Feb 13 08:17:02: FIREWALL: fw_dp_insp_handle_timer_event
Feb 13 08:17:02: FIREWALL: fw_dp_insp_sample_session_rate
Feb 13 08:17:04: FIREWALL: FW CCE got packet 0x66031990 in process path
Feb 13 08:17:04: FIREWALL: Router gen or router destined pak 0x66031990, let it pass
Feb 13 08:17:04: FIREWALL: FW CCE got packet 0x660315C4 in process path
Feb 13 08:17:04: FIREWALL: Router gen or router destined pak 0x660315C4, let it pass
Feb 13 08:17:06: FIREWALL: FW CCE got packet 0x660328C0 in process path
Feb 13 08:17:06: FIREWALL: Router gen or router destined pak 0x660328C0, let it pass
Feb 13 08:17:07: FIREWALL: FW CCE got packet 0x66031D5C in process path
Feb 13 08:17:07: FIREWALL: Router gen or router destined pak 0x66031D5C, let it pass
Feb 13 08:17:08: FIREWALL: FW CCE got packet 0x66033424 in process path
Feb 13 08:17:08: FIREWALL: Router gen or router destined pak 0x66033424, let it pass
Feb 13 08:17:09: FIREWALL: FW CCE got packet 0x66032C8C in process path
Feb 13 08:17:09: FIREWALL: Router gen or router destined pak 0x66032C8C, let it pass
Feb 13 08:17:11: FIREWALL: FW CCE got packet 0x6602DCD0 in process path
Feb 13 08:17:11: FIREWALL: Router gen or router destined pak 0x6602DCD0, let it pass
Feb 13 08:17:11: FIREWALL: FW CCE got packet 0x5011DDB4 in process path
Feb 13 08:17:11: FIREWALL: Router gen or router destined pak 0x5011DDB4, let it pass
Feb 13 08:17:13: FIREWALL: FW CCE got packet 0x20159498 in process path
Feb 13 08:17:13: FIREWALL: Router gen or router destined pak 0x20159498, let it pass
Feb 13 08:17:13: FIREWALL: FW CCE got packet 0x665E5F38 in process path
Feb 13 08:17:13: FIREWALL: Router gen or router destined pak 0x665E5F38, let it pass
Feb 13 08:17:14: FIREWALL: fw_dp_insp_handle_timer_event
Feb 13 08:17:14: FIREWALL: fw_dp_insp_sample_session_rate
Feb 13 08:17:16: FIREWALL: FW CCE got packet 0x5011D9E8 in process path
Feb 13 08:17:16: FIREWALL: Router gen or router destined pak 0x5011D9E8, let it pass
Feb 13 08:17:16: FIREWALL: FW CCE got packet 0x20159864 in process path
Feb 13 08:17:16: FIREWALL: Router gen or router destined pak 0x20159864, let it pass
The following is sample output from the
debug policy-firewall protocol icq command:
The event debug output declares the packet path from which the firewall got the packet. The packet path can be either Cisco Express Forwarding or the process path. The
debugpolicy-firewall command is used when the firewall sends out a packet that acts like a proxy.
The timer debug output specifies timer-related events. Timers are used to close the sessions created by the firewall. Whenever a timeout happens, the timer debugging output specifies whether it needs to close the session or keep it open for longer.
The sample output from the
debugpolicy-firewallprotocolwinmsgr command includes information about the instant messenger (IM) service. For example, the following lines declare that the type of IM service the user is running is Windows Messenger (WINMSGR):
The debug output details the different states that the state machine sees while parsing the Layer 7 I Seek You (ICQ) payload.
Apr 3 00:21:46: CCE*: WINMSGR:service found = 2
Apr 3 00:21:46: CCE*: WINMSGR: Found IM default service
The following is sample output from the
debug policy-firewall protocol winmsgr command:
The following is sample output from the
debugpolicy-firewallcontrol-plane command:
Device# debug policy-firewall control-plane
policy_fw:
Policy-Firewall control-plane debugging is on
voice-gw-118.03#
Syslog logging: enabled (0 messages dropped, 0 messages rate-limited,
0 flushes, 0 overruns, xml disabled, filtering disabled)
No Active Message Discriminator.
No Inactive Message Discriminator.
Console logging: disabled
Monitor logging: level debugging, 0 messages logged, xml disabled,
filtering disabled
Buffer logging: level debugging, 247 messages logged, xml disabled,
filtering disabled
Logging Exception size (4096 bytes)
Count and timestamp logging messages: disabled
Persistent logging: disabled
Trap logging: level informational, 44 message lines logged
Log Buffer (60000000 bytes):
FIREWALL CP: fw_cp_prot_num_to_name() l4 1, l7 5, gran 0
FIREWALL CP: fw_cp_get_flow_policy_and_class() Flow policy does not exist
FIREWALL CP: fw_cp_check_create_default_l7_policy() Could not retrieve flow policy for L4 policy l4-pmap L4 class l4-cmap
FIREWALL CP: fw_classmap_filter_update_in_policymap() Adding filter 0x650187F0 to class l4-cmap in policy l4-pmap
FIREWALL CP: fw_policy_action_cmd() PPM create action inspect with params 0x64CAF8E8
FIREWALL CP: fw_inspect_class_params() inspect config-plane CLASS-ADD action 0x66315C5C,params 0x64CAF8E8
FIREWALL CP: fw_validate_class_for_matchprot() Validating protocols in class l4-cmap
FIREWALL CP: fw_validate_class_for_matchprot() protocol filter found
FIREWALL CP: fw_inspect_class_params() Attached config-plane action_params 0x663BD280
FIREWALL CP: fw_cp_create_attach_flow_policy()
FIREWALL CP: fw_cp_get_string_from_random_num() Random number generated is 2697258553
FIREWALL CP: fw_cp_generate_random_string() Allocated random str 2697258553 for policy l4-pmap class l4-cmap
FIREWALL CP: fw_cp_get_random_string() Found random string for policy l4-pmap class l4-cmap
FIREWALL CP: fw_cp_get_random_string() Found random string for policy l4-pmap class l4-cmap
FIREWALL CP: fw_cp_get_random_string() Found random string for policy l4-pmap class l4-cmap
FIREWALL CP: fw_cp_prot_num_to_name() l4 2, l7 5, gran 0
FIREWALL CP: fw_inspect_int_class_params()
FIREWALL CP: fw_create_attach_template_class()
FIREWALL CP: fw_create_attach_template_class() Creating template class for trigger 15udp_2697258553 in 15_2697258553
FIREWALL CP: fw_create_attach_template_class() Trying to create a PPM filter with id 0x64CA73EC
FIREWALL CP: fw_cp_prot_num_to_name() l4 4, l7 5, gran 0
FIREWALL CP: fw_inspect_int_class_params()
FIREWALL CP: fw_create_attach_template_class()
FIREWALL CP: fw_create_attach_template_class() Creating template class for trigger 15icmp_2697258553 in 15_2697258553
FIREWALL CP: fw_create_attach_template_class() Trying to create a PPM filter with id 0x64CA73EC
FIREWALL CP: fw_cp_create_attach_vtcp_classes() Create policy 15
FIREWALL CP: fw_cp_create_tcp_15()
FIREWALL CP: fw_cp_vtcp_support_get_tcp_init_class() Creating TCP Class with Pure SYN filter
FIREWALL CP: fw_inspect_int_class_params()
FIREWALL CP: fw_create_attach_template_class()
FIREWALL CP: fw_create_attach_template_class() Creating template class for trigger 15tcp_2697258553 in 15_2697258553
FIREWALL CP: fw_create_attach_template_class() Trying to create a PPM filter with id 0x64CA73A4
FIREWALL CP: fw_cp_create_attach_flow_policy() Success-creating flow policy
FIREWALL CP: fw_cp_create_attach_flow_policy() Attach flow policy to trigger class as child policy
FIREWALL CP: fw_cp_create_attach_flow_policy() Success- Attached flow policy to trigger class
FIREWALL CP: fw_cp_create_attach_flow_policy() Creating P20 & P21 for vtcp
FIREWALL CP: fw_cp_generate_random_string() Found random string for policy l4-pmap class l4-cmap
FIREWALL CP: fw_cp_get_flow_policy_and_class() Found flow policy 0x64FFC838
FIREWALL CP: fw_cp_get_random_string() Found random string for policy l4-pmap class l4-cmap
FIREWALL CP: fw_cp_get_random_string() Found random string for policy l4-pmap class l4-cmap
FIREWALL CP: fw_cp_get_flow_policy_and_class() Found flow TCP 0x6585718C and UDP 0x645D1794 classes
FIREWALL CP: fw_cp_check_create_default_l7_class() Checking the class l4-cmap
FIREWALL CP: fw_reverse_policy_handle_zp_event()
FIREWALL CP: fw_reverse_policy_handle_zp_event() Reverse_policy Zone pair add event
FIREWALL CP: fw_get_ppm_policy_on_zp() Did not find ppm policy on zp zp p_type 0x7
FIREWALL CP: fw_get_name_type_and_client_of_first_class_in_policy()
FIREWALL CP: fw_create_cp_dynamic_class()
FIREWALL CP: fw_create_cp_dynamic_class() Trying to create a PPM filter with id 0x10000000
FIREWALL CP: fw_create_cp_dynamic_class() Success
FIREWALL CP: fw_drop_class_params() action 0x6637A5C0, cmd_params 0x64CA7550, event 0x21
FIREWALL CP: fw_create_noop_feature_object()
FIREWALL CP: fw_create_inspect_feature_object()
FIREWALL CP: fw_create_fo_internal() Create FO for class 0xC0000002 target_class 0xA0000000 action CCE_INSPECT_CONFIGURED
FIREWALL CP: fw_cp_get_inspect_params()
FIREWALL CP: fw_cp_get_inspect_params() Creating the FO with default parameters
FIREWALL CP: fw_create_fo_internal() Created FO with id 0xAAAA0006 action CCE_INSPECT_CONFIGURED
FIREWALL CP: fw_cp_store_fo_id() Enqueue 0xAAAA0006 to fo_param_list
FIREWALL CP: fw_create_noop_feature_object()
FIREWALL CP: fw_create_inspect_int_feature_object()
FIREWALL CP: fw_create_fo_internal() Create FO for class 0xC0000005 target_class 0xA0000000 action CCE_INSPECT
FIREWALL CP: fw_cp_get_inspect_params()
FIREWALL CP: fw_cp_get_inspect_params() Creating the FO with default parameters
FIREWALL CP: fw_create_fo_internal() Created FO with id 0xAAAA0007 action CCE_INSPECT
FIREWALL CP: fw_cp_store_fo_id() Enqueue 0xAAAA0007 to fo_param_list
FIREWALL CP: fw_create_noop_feature_object()
FIREWALL CP: fw_create_inspect_int_feature_object()
FIREWALL CP: fw_create_fo_internal() Create FO for class 0xC0000007 target_class 0xA0000000 action CCE_INSPECT
FIREWALL CP: fw_cp_get_inspect_params()
FIREWALL CP: fw_cp_get_inspect_params() Creating the FO with default parameters
FIREWALL CP: fw_create_fo_internal() Created FO with id 0xAAAA0008 action CCE_INSPECT
FIREWALL CP: fw_cp_store_fo_id() Enqueue 0xAAAA0008 to fo_param_list
FIREWALL CP: fw_create_noop_feature_object()
FIREWALL CP: fw_create_inspect_int_feature_object()
FIREWALL CP: fw_create_fo_internal() Create FO for class 0xC0000009 target_class 0xA0000000 action CCE_INSPECT
FIREWALL CP: fw_cp_get_inspect_params()
FIREWALL CP: fw_cp_get_inspect_params() Creating the FO with default parameters
FIREWALL CP: fw_create_fo_internal() Created FO with id 0xAAAA0009 action CCE_INSPECT
FIREWALL CP: fw_cp_store_fo_id() Enqueue 0xAAAA0009 to fo_param_list
FIREWALL CP: fw_create_drop_feature_object()
FIREWALL CP: fw_create_fo_internal() Create FO for class 0xC0000003 target_class 0xA0000000 action CCE_FW_DROP
FIREWALL CP: fw_create_fo_internal() Created FO with id 0xAAAA000A action CCE_FW_DROP
FIREWALL CP: fw_create_internal_reverse_policy()
FIREWALL CP: fw_create_ppm_reverse_policy()
FIREWALL CP: fw_get_name_type_and_client_of_first_class_in_policy()
FIREWALL CP: fw_create_cp_dynamic_class()
FIREWALL CP: fw_create_noop_feature_object()
FIREWALL CP: fw_create_noop_feature_object()
%SYS-5-CONFIG_I: Configured from console by console
FIREWALL CP: fw_cp_prot_num_to_name() l4 1, l7 5, gran 0
FIREWALL CP: fw_drop_class_params() action 0x6637A5C0, cmd_params 0x00000000, event 0x40
FIREWALL CP: fw_get_ppm_policy_on_zp() Found ppm policy l4-pmap on zp zp p_type 0x7
The following is sample output from the
debugpolicy-firewallL2-transparent command:
Device# debug policy-firewall L2-transparent
*Apr 4 08:28:23.554: L2FW*:insp_l2_fast_inspection: pak 673DBD90, input-interface FastEthernet1/1, output-interface FastEthernet1/0
*Apr 4 08:28:23.554: L2FW*:Src 17.3.39.1 dst 17.3.39.3 protocol tcp
*Apr 4 08:28:23.554: TBAP: Check AuthProxy is configured on idb=FastEthernet1/1 path=1 linktype=38
*Apr 4 08:28:23.554: L2FW:Input ACL not configured or the ACL is bypassed
*Apr 4 08:28:23.554: L2FW:Output ACL is not configured or ACL is bypassed
*Apr 4 08:28:23.554: L2FW*:IP inspect firewall is not cfged on input or output interface.PASS
*Apr 4 08:28:23.554: L2FW* 2:insp_l2_fast_inspection: pak 673DBD90, input-interface FastEthernet1/1, output-interface FastEthernet1/0
*Apr 4 08:28:23.554: CCE L2 FW
*Apr 4 08:28:23.554: L2FW* -3:insp_l2_fast_inspection: pak 673DBD90, input-interface FastEthernet1/1, output-interface FastEthernet1/0
The following is sample output from the
debug policy-firewall detailed command:
Device# debug policy-firewall detailed
Log Buffer (600000 bytes):
Feb 13 08:40:01: FIREWALL: ret_val 0 is not FW_DP_INSP_PASS_PAK
<snip>
Feb 13 08:41:22: FIREWALL: ret_val 0 is not FW_DP_INSP_PASS_PAK
Feb 13 08:41:24: FIREWALL: ret_val 0 is not FW_DP_INSP_PASS_PAK
Feb 13 08:41:25: FIREWALL*: Searching for FSO in class 0x50793C20class group 0x10000000,
target 0x1, cce class type 0x2B
Feb 13 08:41:25: FIREWALL*: not found
Feb 13 08:41:25: FIREWALL*: Try to create session in fastpath
Feb 13 08:41:25: FIREWALL: Searching for FSO in class 0x50793C20class group 0x10000000,
target 0x1, cce class type 0x2B
Feb 13 08:41:25: FIREWALL: not found
Feb 13 08:41:25: FIREWALL: Create FSO
Feb 13 08:41:25: FIREWALL: sis 204925C0 : fw_dp_state_object_link
Feb 13 08:41:25: FIREWALL: sis 204925C0 : FO class 0x50793C20 class group 0x10000000, target 0x1, FO 0x20255D80
Feb 13 08:41:25: FIREWALL: sis 204925C0 : alert = 1, audit_trail = 0
Feb 13 08:41:25: FIREWALL: sis 204925C0 : l7 protocol 62, granular = 5
Feb 13 08:41:25: FIREWALL: sis 204925C0 : fw_dp_state_object_attach_forward
Feb 13 08:41:25: FIREWALL: sis 204925C0 : fw_dp_state_object_create_and_attach_reverse
Feb 13 08:41:25: FIREWALL: sis 204925C0 : FSO bind success for reverse class 0x50793C80class group 0x10000000, target 0x1
Feb 13 08:41:25: FIREWALL: sis 204925C0 :Session Info :
Feb 13 08:41:25: session->fwfo 0x507E39C0
Feb 13 08:41:25: class type 0x2B, target 0x1, policy id 0x10000000, class id 0x50793C20
Feb 13 08:41:25: class type 0x2B, reverse target 0x1, reverse policy id 0x10000000, reverse class id 0x50793C80
Feb 13 08:41:25: src addr 192.168.3.3, port 36091, vrf id 0
Feb 13 08:41:25: dst addr 192.168.103.3, port 5190, vrf id 0
Feb 13 08:41:25: L4 Protocol : TCP
Feb 13 08:41:25: FIREWALL: sis 204925C0 : L4 inspection returned 3
Feb 13 08:41:25: FIREWALL*: FSO feature object 0x204925C0 found
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : L4 inspection returned 3
Feb 13 08:41:25: FIREWALL*: FSO feature object 0x204925C0 found
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : max_sessions 2147483647; current sessions 0
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : IM : Token set for L7 named-db
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : cce_sb 0x66A5BA00, pak 0x50028974, data_len 0 in_fast_path 1, dir = 1
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : p_app_data = C174268, p_data_len = 6p_offset = 0
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : Found particle offset token, data1 = 0
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : Opening 0 channels for icq
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : icq L7 inspect result: PASS packet
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : L4 inspection returned 3
Feb 13 08:41:25: FIREWALL*: FSO feature object 0x204925C0 found
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : cce_sb 0x66A5BA00, pak 0x5004CAC8, data_len 10 in_fast_path 1, dir = 2
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : p_app_data = C210848, p_data_len = Ap_offset = 0
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : Found particle offset token, data1 = 0
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : Opening 0 channels for icq
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : icq L7 inspect result: PASS packet
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : L4 inspection returned 3
Feb 13 08:41:25: FIREWALL*: FSO feature object 0x204925C0 found
Feb 13 08:41:25: FIREWALL*: sis 204925C0 : cce_sb 0x66A5BA00, pak 0x50028974, data_len 270 in_fast_path 1, dir = 1
The following is sample output from the
debug policy-firewall ha command
Device# debug policy-firewall ha
*May 19 14:17:19.991: FIREWALL: IOS FW RF stat event: status: RF_STATUS_PEER_COMM
my state: STANDBY HOT peer state: ACTIVE
*May 19 14:17:19.995: FIREWALL: IOS FW RF stat event: status: RF_STATUS_PEER_PRESENCE
my state: STANDBY HOT peer state: DISABLED
*May 19 14:17:19.995: FIREWALL: RG with ID:1 state STANDBY: found
*May 19 14:17:19.995: FIREWALL: Event for RG-1: RF_PROG_ACTIVE_FAST
*May 19 14:17:19.995: FIREWALL: RG with ID:1 state ACTIVE: found
*May 19 14:17:19.995: FIREWALL: Standbyhot to Active transition for RG 1
*May 19 14:17:19.995: FIREWALL sis 30CEEF40: Timer Start: Timer: 30CEEFD4 Time: 30000 ms
*May 19 14:17:19.995: FIREWALL: RG 1 trasitioned to Active
*May 19 14:17:19.995: FIREWALL: RG with ID:1 state ACTIVE: found
*May 19 14:17:19.995: FIREWALL: RG with ID:1 state ACTIVE: found
*May 19 14:17:19.995: FIREWALL: RG with ID:1 state ACTIVE: found
May 19 14:17:30.003: FIREWALL: Event for RG-1: RF_PROG_STANDBY_BULK Configuring Zone Based Firewall Redundancy Draft Copy Cisco systems, Inc. Company Confidential
*May 19 14:17:30.003: FIREWALL: ret_val 0 is not PASS_PAK
*May 19 14:17:30.003: FIREWALL: RG with ID:1 state ACTIVE: found
*May 19 14:17:30.003: FIREWALL: Starting BulkSync for RG 1
*May 19 14:17:30.003: FIREWALL sis 30CEEF40: Bulk sync session 30CEEF40 needs to be failed over(add)
*May 19 14:17:30.003: FIREWALL: ret_val 0 is not PASS_PAK
*May 19 14:17:30.003: FIREWALL sis 30CEEF40: Send add session message (192.168.7.205:32424:0)=>(192.168.107.1:23:0) l4_prot tcp
*May 19 14:17:30.003: FIREWALL: BulkSync done; Send BulkEnd
debug policy-firewall mib
To toggle on or off the support for MIBs in a zone-based policy firewall, use the debugpolicy-firewallmib command in privileged EXEC mode. To disable the MIB support, use the no form of this command.
Turns on debugging for a firewall MIB object creation.
object-deletion
Turns on debugging for a firewall MIB object deletion.
object-retrieval
Turns on debugging for a firewall MIB object retrieval.
Command Default
Privileged EXEC (#)
Command History
Release
Modification
15.1(1)T
This command was introduced.
Usage Guidelines
This command provides debug support for MIBs in zone-based policy firewall similar to the Cisco IOS firewall.
Examples
The following is a sample output from the debugpolicy-firewallmibobject-retrieval command:
Router# debug policy-firewall mib object-retrieval
Firewall MIB object retrieval debugging is on
debug port-channel load-balance
To enable debug output for port-channel load balancing, use the debugport-channelload-balance command in privileged EXEC mode. To turn off debugging, use the no form of this command.
debugport-channelload-balance
{ all | manual | weighted }
nodebugport-channelload-balance
{ all | manual | weighted }
Syntax Description
all
Turns on debugging for all load-balancing operations.
manual
Turns on debugging for only manual load-balancing operations.
weighted
Turns on debugging for only weighted load-balancing operations.
Command Default
Port-channel debugging is turned off.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
15.0(1)S
This command was introduced.
Usage Guidelines
Use this command to help troubleshoot load balancing of service instances over port-channel member links.
Examples
The following example shows how to enable debugging for only weighted load-balancing operations:
Router# debug port-channel load-balance weighted
Port-channel Load-Balance Weighted debugging is on
debug pots
To display information on the telephone interfaces, use the
debugpotscommand in privileged EXEC mode. To disable debugging output, use the
no form of this command.
(Optional) Displays information for telephone port 1 only.
2
(Optional) Displays information for telephone port 2 only.
Command Modes
Privileged EXEC
Usage Guidelines
The
debugpots command displays driver and CSM debug information for telephone ports 1 and 2.
Examples
The following is sample output from the
debugpotsdriver1 command. This sample display indicates that the telephone port driver is not receiving caller ID information from the ISDN line. Therefore, the analog caller ID device attached to the telephone port does not display caller ID information.
The following is sample output from the
debugpotscsm1 command. This sample display indicates that a dial peer contains an invalid destination pattern (555-1111).
To activate events from which an application can determine and display the status and progress of calls to and from plain old telephone service (POTS) ports, use the
debugpotscsmcommand in privileged EXEC mode.
debugpotscsm
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.1.(2)XF
This command was introduced on the Cisco 800 series routers.
Examples
To see debugging messages, enter the
loggingconsoleglobal configuration mode command as follows:
The following table describes the significant fields shown in the display.
Table 32 debug pots csm Field Descriptions
Command Elements
Description
hh:mm:ss
Timestamp (in hours, minutes, and seconds).
CSM_STATE
One of the call CSM states listed in the field description table.
CSM_EVENT
One of the CSM events listed in the field description table.
call id
Hexadecimal value from 0x00 to 0xFF.
port
Telephone port 1 or 2.
EVENT_FROM_ISDN
A CSM event. The table shows a list of CSM events.
dchan_idb
Internal data structure address.
ces
Connection end point suffix used by ISDN.
bchan
Channel used by the call. A value of 0xFFFFFFFF indicates that a channel is not assigned.
event
A hexadecimal value that is translated into a CSM event. The field description table shows a list of events and the corresponding CSM events.
cause
A hexadecimal value that is given to call-progressing events. The field description table shows a list of cause values and definitions.
The following table shows the values for CSM states.
Table 33 CSM States
CSM State
Description
CSM_IDLE_STATE
Telephone on the hook.
CSM_RINGING
Telephone ringing.
CSM_SETUP
Setup for outgoing call in progress.
CSM_DIALING
Dialing number of outgoing call.
CSM_IVR_DIALING
Interactive voice response (IVR) for Japanese telephone dialing.
CSM_CONNECTING
Waiting for carrier to connect the call.
CSM_CONNECTED
Call connected.
CSM_DISCONNECTING
Waiting for carrier to disconnect the call.
CSM_NEAR_END_DISCONNECTING
Waiting for carrier to disconnect the call.
CSM_HARD_HOLD
Call on hard hold.
CSM_CONSULTATION_HOLD
Call on consultation hold.
CSM_WAIT_FOR_HOLD
Waiting for carrier to put call on hard hold.
CSM_WAIT_FOR_CONSULTATION_HOLD
Waiting for carrier to put call on consultation hold.
CSM_CONFERENCE
Waiting for carrier to complete call conference.
CSM_TRANSFER
Waiting for carrier to transfer call.
CSM_APPLIC_DIALING
Call initiated from Cisco IOS command-line interface (CLI).
The following table shows the values for CSM events.
Table 34 CSM Events
CSM Events
Description
CSM_EVENT_INTER_DIGIT_TIMEOUT
Time waiting for dial digits has expired.
CSM_EVENT_TIMEOUT
Near- or far-end disconnect timeout.
CSM_EVENT_ISDN_CALL
Incoming call.
CSM_EVENT_ISDN_CONNECTED
Call connected.
CSM_EVENT_ISDN_DISCONNECT
Far end disconnected.
CSM_EVENT_ISDN_DISCONNECTED
Call disconnected.
CSM_EVENT_ISDN_SETUP
Outgoing call requested.
CSM_EVENT_ISDN_SETUP_ACK
Outgoing call accepted.
CSM_EVENT_ISDN_PROC
Call proceeding and dialing completed.
CSM_EVENT_ISDN_CALL_PROGRESSING
Call being received in band tone.
CSM_EVENT_ISDN_HARD_HOLD
Call on hard hold.
CSM_EVENT_ISDN_HARD_HOLD_REJ
Hold attempt rejected.
CSM_EVENT_ISDN_CHOLD
Call on consultation hold.
CSM_EVENT_ISDN_CHOLD_REJ
Consultation hold attempt rejected.
CSM_EVENT_ISDN_RETRIEVED
Call retrieved.
CSM_EVENT_ISDN_RETRIEVE_REJ
Call retrieval attempt rejected.
CSM_EVENT_ISDN_TRANSFERRED
Call transferred.
CSM_EVENT_ISDN_TRANSFER_REJ
Call transfer attempt rejected.
CSM_EVENT_ISDN_CONFERENCE
Call conference started.
CSM_EVENT_ISDN_CONFERENCE_REJ
Call conference attempt rejected.
CSM_EVENT_ISDN_IF_DOWN
ISDN interface down.
CSM_EVENT_ISDN_INFORMATION
ISDN information element received (used by NTT IVR application).
CSM_EVENT_VDEV_OFFHOOK
Telephone off the hook.
CSM_EVENT_VDEV_ONHOOK
Telephone on the hook.
CSM_EVENT_VDEV_FLASHHOOK
Telephone hook switch has flashed.
CSM_EVENT_VDEV_DIGIT
DTMF digit has been detected.
CSM_EVENT_VDEV_APPLICATION_CALL
Call initiated from Cisco IOS CLI.
The following table shows the values for events that are translated into CSM events.
Table 35 Event Values
Hexadecimal Value
Event
CSM Event
0x0
DEV_IDLE
CSM_EVENT_ISDN_DISCONNECTED
0x1
DEV_INCALL
CSM_EVENT_ISDN_CALL
0x2
DEV_SETUP_ACK
CSM_EVENT_ISDN_SETUP_ACK
0x3
DEV_CALL_PROC
CSM_EVENT_ISDN_PROC
0x4
DEV_CONNECTED
CSM_EVENT_ISDN_CONNECTED
0x5
DEV_CALL_PROGRESSING
CSM_EVENT_ISDN_CALL_PROGRESSING
0x6
DEV_HOLD_ACK
CSM_EVENT_ISDN_HARD_HOLD
0x7
DEV_HOLD_REJECT
CSM_EVENT_ISDN_HARD_HOLD_REJ
0x8
DEV_CHOLD_ACK
CSM_EVENT_ISDN_CHOLD
0x9
DEV_CHOLD_REJECT
CSM_EVENT_ISDN_CHOLD_REJ
0xa
DEV_RETRIEVE_ACK
CSM_EVENT_ISDN_RETRIEVED
0xb
DEV_RETRIEVE_REJECT
CSM_EVENT_ISDN_RETRIEVE_REJ
0xc
DEV_CONFR_ACK
CSM_EVENT_ISDN_CONFERENCE
0xd
DEV_CONFR_REJECT
CSM_EVENT_ISDN_CONFERENCE_REJ
0xe
DEV_TRANS_ACK
CSM_EVENT_ISDN_TRANSFERRED
0xf
DEV_TRANS_REJECT
CSM_EVENT_ISDN_TRANSFER_REJ
The following table shows cause values that are assigned only to call-progressing events.
Table 36 Cause Values
Hexadecimal Value
Cause Definitions
0x01
UNASSIGNED_NUMBER
0x02
NO_ROUTE
0x03
NO_ROUTE_DEST
0x04
NO_PREFIX
0x06
CHANNEL_UNACCEPTABLE
0x07
CALL_AWARDED
0x08
CALL_PROC_OR_ERROR
0x09
PREFIX_DIALED_ERROR
0x0a
PREFIX_NOT_DIALED
0x0b
EXCESSIVE_DIGITS
0x0d
SERVICE_DENIED
0x10
NORMAL_CLEARING
0x11
USER_BUSY
0x12
NO_USER_RESPONDING
0x13
NO_USER_ANSWER
0x15
CALL_REJECTED
0x16
NUMBER_CHANGED
0x1a
NON_SELECTED_CLEARING
0x1b
DEST_OUT_OF_ORDER
0x1c
INVALID_NUMBER_FORMAT
0x1d
FACILITY_REJECTED
0x1e
RESP_TO_STAT_ENQ
0x1f
UNSPECIFIED_CAUSE
0x22
NO_CIRCUIT_AVAILABLE
0x26
NETWORK_OUT_OF_ORDER
0x29
TEMPORARY_FAILURE
0x2a
NETWORK_CONGESTION
0x2b
ACCESS_INFO_DISCARDED
0x2c
REQ_CHANNEL_NOT_AVAIL
0x2d
PRE_EMPTED
0x2f
RESOURCES_UNAVAILABLE
0x32
FACILITY_NOT_SUBSCRIBED
0x33
BEARER_CAP_INCOMPAT
0x34
OUTGOING_CALL_BARRED
0x36
INCOMING_CALL_BARRED
0x39
BEARER_CAP_NOT_AUTH
0x3a
BEAR_CAP_NOT_AVAIL
0x3b
CALL_RESTRICTION
0x3c
REJECTED_TERMINAL
0x3e
SERVICE_NOT_ALLOWED
0x3f
SERVICE_NOT_AVAIL
0x41
CAP_NOT_IMPLEMENTED
0x42
CHAN_NOT_IMPLEMENTED
0x45
FACILITY_NOT_IMPLEMENT
0x46
BEARER_CAP_RESTRICTED
0x4f
SERV_OPT_NOT_IMPLEMENT
0x51
INVALID_CALL_REF
0x52
CHAN_DOES_NOT_EXIST
0x53
SUSPENDED_CALL_EXISTS
0x54
NO_CALL_SUSPENDED
0x55
CALL_ID_IN_USE
0x56
CALL_ID_CLEARED
0x58
INCOMPATIBLE_DEST
0x5a
SEGMENTATION_ERROR
0x5b
INVALID_TRANSIT_NETWORK
0x5c
CS_PARAMETER_NOT_VALID
0x5f
INVALID_MSG_UNSPEC
0x60
MANDATORY_IE_MISSING
0x61
NONEXISTENT_MSG
0x62
WRONG_MESSAGE
0x63
BAD_INFO_ELEM
0x64
INVALID_ELEM_CONTENTS
0x65
WRONG_MSG_FOR_STATE
0x66
TIMER_EXPIRY
0x67
MANDATORY_IE_LEN_ERR
0x6f
PROTOCOL_ERROR
0x7f
INTERWORKING_UNSPEC
Examples
This section provides debug output examples for three call scenarios, displaying the sequence of events that occur during a POTS dial call or POTS disconnect call.
Examples
In this example call scenario, port 1 is on the hook, the application dial is set to call 4085552221, and the far-end successfully connects.
The following output shows an event indicating that port 1 is being used by the dial application:
01:58:27: CSM_PROC_IDLE: CSM_EVENT_VDEV_APPLICATION_CALL, call id = 0x0, port = 1
The following output shows events indicating that the CSM is receiving the application digits of the number to dial:
01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:58:27: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
The following output shows that the telephone connected to port 1 is off the hook:
01:58:39: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_OFFHOOK, call id = 0x0, port = 1
The following output shows a call-proceeding event pair indicating that the router ISDN software has sent the dialed digits to the ISDN switch:
01:58:40: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8004, ces=0x1 bchan=0x0, event=0x3, cause=0x0
01:58:40: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_ISDN_PROC, call id =
0x8004, port = 1
The following output shows the call-progressing event pair indicating that the telephone at the far end is ringing:
01:58:40: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8004, ces=0x1 bchan=0xFFFFFFFF, event=0x5, cause=0x0
01:58:40: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_ISDN_CALL_PROGRESSING, call id = 0x8004, port = 1
The following output shows a call-connecting event pair indicating that the telephone at the far end has answered:
01:58:48: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8004, ces=0x1 bchan=0xFFFFFFFF, event=0x4, cause=0x0
01:58:48: CSM_PROC_CONNECTING: CSM_EVENT_ISDN_CONNECTED, call id = 0x8004, port = 1
The following output shows a call-progressing event pair indicating that the telephone at the far end has hung up and that the calling telephone is receiving an in-band tone from the ISDN switch:
01:58:55: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8004, ces=0x1 bchan=0xFFFFFFFF, event=0x5, cause=0x10
01:58:55: CSM_PROC_CONNECTED: CSM_EVENT_ISDN_CALL_PROGRESSING, call id = 0x8004, port = 1
The following output shows that the telephone connected to port 1 has hung up:
01:58:57: CSM_PROC_CONNECTED: CSM_EVENT_VDEV_ONHOOK, call id = 0x8004, port = 1
The following output shows an event pair indicating that the call has been terminated:
01:58:57: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8004, ces=0x1 bchan=0xFFFFFFFF, event=0x0, cause=0x0
01:58:57: CSM_PROC_NEAR_END_DISCONNECT: CSM_EVENT_ISDN_DISCONNECTED, call id = 0x8004, port = 1
813_local#
Examples
In this example scenario, port 1 is on the hook, the application dial is set to call 4085552221, and the destination number is busy.
The following output shows that port 1 is used by the dial application:
01:59:42: CSM_PROC_IDLE: CSM_EVENT_VDEV_APPLICATION_CALL, call id = 0x0, port = 1
The following output shows the events indicating that the CSM is receiving the application digits of the number to call:
01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
01:59:42: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
The following output shows an event indicating that the telephone connected to port 1 is off the hook:
01:59:52: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_OFFHOOK, call id = 0x0, port = 1
The following output shows a call-proceeding event pair indicating that the telephone at the far end is busy:
01:59:52: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8005, ces=0x1 bchan=0x0, event=0x3, cause=0x11
01:59:52: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_ISDN_PROC, call id = 0x8005, port = 1
The following output shows a call-progressing event pair indicating that the calling telephone is receiving an in-band busy tone from the ISDN switch:
01:59:58: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8005, ces=0x1 bchan=0xFFFFFFFF, event=0x5, cause=0x0
01:59:58: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_ISDN_CALL_PROGRESSING, call id = 0x8005, port = 1
The following output shows an event indicating that the calling telephone has hung up:
02:00:05: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_VDEV_ONHOOK, call id = 0x8005, port = 1
The following output shows an event pair indicating that the call has been terminated:
02:00:05: EVENT_FROM_ISDN:dchan_idb=0x280AF38, call_id=0x8005, ces=0x1 bchan=0xFFFFFFFF, event=0x0, cause=0x0
02:00:05: CSM_PROC_NEAR_END_DISCONNECT: CSM_EVENT_ISDN_DISCONNECTED, call id = 0x8005, port = 1
Examples
In this example call scenario, port 1 is on the hook, the application dial is set to call 4086661112, the far end successfully connects, and the command
testpotsdisconnect terminates the call:
The following output follows the same sequence of events as shown in Call Scenario 1:
1d03h: CSM_PROC_IDLE: CSM_EVENT_VDEV_APPLICATION_CALL, call id = 0x0, port = 1
1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_DIGIT, call id = 0x0, port = 1
1d03h: CSM_PROC_APPLIC_DIALING: CSM_EVENT_VDEV_OFFHOOK, call id = 0x0, port = 1
1d03h: EVENT_FROM_ISDN:dchan_idb=0x2821F38, call_id=0x8039, ces=0x1
bchan=0x0, event=0x3, cause=0x0
1d03h: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_ISDN_PROC, call id = 0x8039, port = 1
1d03h: EVENT_FROM_ISDN:dchan_idb=0x2821F38, call_id=0x8039, ces=0x1
bchan=0xFFFFFFFF, event=0x5, cause=0x0
1d03h: CSM_PROC_ENBLOC_DIALING: CSM_EVENT_ISDN_CALL_PROGRESSING, call id = 0x8039, port = 1
Router# test pots 1 disconnect
The
testpotsdisconnect command disconnects the call before you physically need to put the telephone back on the hook:
1d03h: CSM_PROC_CONNECTING: CSM_EVENT_VDEV_APPLICATION_HANGUP_CALL, call id = 0x8039, port = 1
1d03h: EVENT_FROM_ISDN:dchan_idb=0x2821F38, call_id=0x8039, ces=0x1
bchan=0xFFFFFFFF, event=0x0, cause=0x0
1d03h: CSM_PROC_DISCONNECTING: CSM_EVENT_ISDN_DISCONNECTED, call id = 0x8039,
port = 1
1d03h: CSM_PROC_DISCONNECTING: CSM_EVENT_TIMEOUT, call id = 0x8039, port = 1
debug ppp
To display information on traffic and exchanges in an internetwork implementing the Point-to-Point Protocol (PPP), use the
debugppp command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
Displays PPP packets being sent and received. (This command displays low-level packet dumps.)
negotiation
Displays PPP packets sent during PPP startup, where PPP options are negotiated.
error
Displays protocol errors and error statistics associated with PPP connection negotiation and operation.
authentication
Displays authentication protocol messages, including Challenge Authentication Protocol (CHAP) packet exchanges and Password Authentication Protocol (PAP) exchanges.
compression
Displays information specific to the exchange of PPP connections using Microsoft Point-to-Point Compression (MPPC). This command is useful for obtaining incorrect packet sequence number information where MPPC compression is enabled.
cbcp
Displays protocol errors and statistics associated with PPP connection negotiations using Microsoft Callback (MSCB).
Command Modes
Privileged EXEC
Usage Guidelines
Use the
debugppp command when trying to find the following:
The Network Control Protocols (NCPs) that are supported on either end of a PPP connection
Any loops that might exist in a PPP internetwork
Nodes that are (or are not) properly negotiating PPP connections
Errors that have occurred over the PPP connection
Causes for CHAP session failures
Causes for PAP session failures
Information specific to the exchange of PPP connections using the Callback Control Protocol (CBCP), used by Microsoft clients
Incorrect packet sequence number information where MPPC compression is enabled
Refer to Internet RFCs 1331, 1332, and 1333 for details concerning PPP-related nomenclature and protocol information.
Caution
The
debugpppcompressioncommand is CPU-intensive and should be used with caution. This command should be disabled immediately after debugging.
Examples
The following is sample output from thedebugppppacketcommand as seen from the Link Quality Monitor (LQM) side of the connection. This example depicts packet exchanges under normal PPP operation.
Router# debug ppp packet
PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48
PPP Serial4(i): pkt type 0xC025, datagramsize 52
PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48
PPP Serial4(i): pkt type 0xC021, datagramsize 16
PPP Serial4: I LCP ECHOREQ(9) id 3 (C) magic D3454
PPP Serial4: input(C021) state = OPEN code = ECHOREQ(9) id = 3 len = 12
PPP Serial4: O LCP ECHOREP(A) id 3 (C) magic D21B4
PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48
PPP Serial4(i): pkt type 0xC025, datagramsize 52
PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48
PPP Serial4(i): pkt type 0xC021, datagramsize 16
PPP Serial4: I LCP ECHOREQ(9) id 4 (C) magic D3454
PPP Serial4: input(C021) state = OPEN code = ECHOREQ(9) id = 4 len = 12
PPP Serial4: O LCP ECHOREP(A) id 4 (C) magic D21B4
PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48
PPP Serial4(i): pkt type 0xC025, datagramsize 52
PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48
PPP Serial4(i): pkt type 0xC021, datagramsize 16
PPP Serial4: I LCP ECHOREQ(9) id 5 (C) magic D3454
PPP Serial4: input(C021) state = OPEN code = ECHOREQ(9) id = 5 len = 12
PPP Serial4: O LCP ECHOREP(A) id 5 (C) magic D21B4
PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48
PPP Serial4(i): pkt type 0xC025, datagramsize 52
PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48
PPP Serial4(i): pkt type 0xC021, datagramsize 16
PPP Serial4: I LCP ECHOREQ(9) id 6 (C) magic D3454
PPP Serial4: input(C021) state = OPEN code = ECHOREQ(9) id = 6 len = 12
PPP Serial4: O LCP ECHOREP(A) id 6 (C) magic D21B4
PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48
PPP Serial4(i): pkt type 0xC025, datagramsize 52
PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48
PPP Serial4(i): pkt type 0xC021, datagramsize 16
PPP Serial4: I LCP ECHOREQ(9) id 7 (C) magic D3454
PPP Serial4: input(C021) state = OPEN code = ECHOREQ(9) id = 7 len = 12
PPP Serial4: O LCP ECHOREP(A) id 7 (C) magic D21B4
PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48
The following table describes the significant fields shown in the display.
Table 37 debug ppp packet Field Descriptions
Field
Description
PPP
PPP debugging output.
Serial4
Interface number associated with this debugging information.
(o), O
Packet was detected as an output packet.
(i), I
Packet was detected as an input packet.
lcp_slqr()
Procedure name; running LQM, send a Link Quality Report (LQR).
lcp_rlqr()
Procedure name; running LQM, received an LQR.
input (C021)
Router received a packet of the specified packet type (in hexadecimal notation). A value of C025 indicates packet of type LQM.
state = OPEN
PPP state; normal state is OPEN.
magic = D21B4
Magic Number for indicated node; when output is indicated, this is the Magic Number of the node on which debugging is enabled. The actual Magic Number depends on whether the packet detected is indicated as I or O.
datagramsize 52
Packet length including header.
code = ECHOREQ(9)
Identifies the type of packet received. Both forms of the packet, string and hexadecimal, are presented.
len = 48
Packet length without header.
id = 3
ID number per Link Control Protocol (LCP) packet format.
pkt type 0xC025
Packet type in hexadecimal notation; typical packet types are C025 for LQM and C021 for LCP.
LCP ECHOREQ(9)
Echo Request; value in parentheses is the hexadecimal representation of the LCP type.
LCP ECHOREP(A)
Echo Reply; value in parentheses is the hexadecimal representation of the LCP type.
To elaborate on the displayed output, consider the partial exchange. This sequence shows that one side is using ECHO for its keepalives and the other side is using LQRs.
Router# debug ppp packet
PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48
PPP Serial4(i): pkt type 0xC025, datagramsize 52
PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48
PPP Serial4(i): pkt type 0xC021, datagramsize 16
PPP Serial4: I LCP ECHOREQ(9) id 3 (C) magic D3454
PPP Serial4: input(C021) state = OPEN code = ECHOREQ(9) id = 3 len = 12
PPP Serial4: O LCP ECHOREP(A) id 3 (C) magic D21B4
PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48
The first line states that the router with debugging enabled has sent an LQR to the other side of the PPP connection:
PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48
The next two lines indicate that the router has received a packet of type C025 (LQM) and provides details about the packet:
PPP Serial4(i): pkt type 0xC025, datagramsize 52
PPP Serial4(i): lcp_rlqr() state = OPEN magic = D3454, len = 48
The next two lines indicate that the router received an ECHOREQ of type C021 (LCP). The other side is sending ECHOs. The router on which debugging is configured for LQM but also responds to ECHOs.
PPP Serial4(i): pkt type 0xC021, datagramsize 16
PPP Serial4: I LCP ECHOREQ(9) id 3 (C) magic D3454
Next, the router is detected to have responded to the ECHOREQ with an ECHOREP and is preparing to send out an LQR:
PPP Serial4: O LCP ECHOREP(A) id 3 (C) magic D21B4
PPP Serial4(o): lcp_slqr() state = OPEN magic = D21B4, len = 48
The following is sample output from the
debugpppnegotiationcommand. This is a normal negotiation, where both sides agree on Network Control Program (NCP) parameters. In this case, protocol type IP is proposed and acknowledged.
Router# debug ppp negotiation
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 3D56CAC
ppp: received config for type = 4 (QUALITYTYPE) acked
ppp: received config for type = 5 (MAGICNUMBER) value = 3D567F8 acked (ok)
PPP Serial4: state = ACKSENT fsm_rconfack(C021): rcvd id 5
ppp: config ACK received, type = 4 (CI_QUALITYTYPE), value = C025
ppp: config ACK received, type = 5 (CI_MAGICNUMBER), value = 3D56CAC
ppp: ipcp_reqci: returning CONFACK.
(ok)
PPP Serial4: state = ACKSENT fsm_rconfack(8021): rcvd id 4
The following table describes significant fields shown in the display.
Table 38 debug ppp negotiation Field Descriptions
Field
Description
ppp
PPP debugging output.
sending CONFREQ
Router sent a configuration request.
type = 4 (CI_QUALITYTYPE)
Type of LCP configuration option that is being negotiated and a descriptor. A type value of 4 indicates Quality Protocol negotiation; a type value of 5 indicates Magic Number negotiation.
value = C025/3E8
For Quality Protocol negotiation, indicates NCP type and reporting period. In the example, C025 indicates LQM; 3E8 is a hexadecimal value translating to about 10 seconds (in hundredths of a second).
value = 3D56CAC
For Magic Number negotiation, indicates the Magic Number being negotiated.
received config
Receiving node has received the proposed option negotiation for the indicated option type.
acked
Acknowledgment and acceptance of options.
state = ACKSENT
Specific PPP state in the negotiation process.
ipcp_reqci
IPCP notification message; sending CONFACK.
fsm_rconfack (8021)
Procedure fsm_rconfack processes received CONFACKs, and the protocol (8021) is IP.
The first two lines indicate that the router is trying to bring up LCP and will use the indicated negotiation options (Quality Protocol and Magic Number). The value fields are the values of the options themselves. C025/3E8 translates to Quality Protocol LQM. 3E8 is the reporting period (in hundredths of a second). 3D56CAC is the value of the Magic Number for the router.
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 3D56CAC
The next two lines indicate that the other side negotiated for options 4 and 5 as requested and acknowledged both. If the responding end does not support the options, a CONFREJ is sent by the responding node. If the responding end does not accept the value of the option, a Configure-Negative-Acknowledge (CONFNAK) is sent with the value field modified.
ppp: received config for type = 4 (QUALITYTYPE) acked
ppp: received config for type = 5 (MAGICNUMBER) value = 3D567F8 acked (ok)
The next three lines indicate that the router received a CONFAK from the responding side and displays accepted option values. Use the rcvd id field to verify that the CONFREQ and CONFACK have the same ID field.
PPP Serial4: state = ACKSENT fsm_rconfack(C021): rcvd id 5
ppp: config ACK received, type = 4 (CI_QUALITYTYPE), value = C025
ppp: config ACK received, type = 5 (CI_MAGICNUMBER), value = 3D56CAC
The next line indicates that the router has IP routing enabled on this interface and that the IPCP NCP negotiated successfully:
ppp: ipcp_reqci: returning CONFACK.
In the last line, the state of the router is listed as ACKSENT.
PPP Serial4: state = ACKSENT fsm_rconfack(C021): rcvd id 5\
The following is sample output from when the
debugppppacket and
debugpppnegotiationcommands are enabled at the same time.

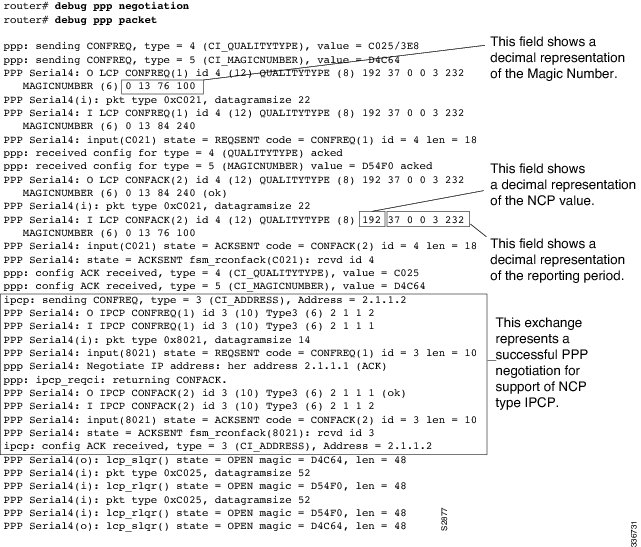

The following is sample output from the
debugpppnegotiation command when the remote side of the connection is unable to respond to LQM requests:
Router# debug ppp negotiation
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44B7010
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44C1488
The following is sample output when no response is detected for configuration requests (with both the
debugpppnegotiation and
debugppppacket commands enabled):
Router# debug ppp negotiation
Router# debug ppp packet
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44DFDC8
PPP Serial4: O LCP CONFREQ(1) id 14 (12) QUALITYTYPE (8) 192 37 0 0 3 232
MAGICNUMBER (6) 4 77 253 200
ppp: TIMEout: Time= 44E0980 State= 3
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44DFDC8
PPP Serial4: O LCP CONFREQ(1) id 15 (12) QUALITYTYPE (8) 192 37 0 0 3 232
MAGICNUMBER (6) 4 77 253 200
ppp: TIMEout: Time= 44E1828 State= 3
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44DFDC8
PPP Serial4: O LCP CONFREQ(1) id 16 (12) QUALITYTYPE (8) 192 37 0 0 3 232
MAGICNUMBER (6) 4 77 253 200
ppp: TIMEout: Time= 44E27C8 State= 3
ppp: sending CONFREQ, type = 4 (CI_QUALITYTYPE), value = C025/3E8
ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 44DFDC8
PPP Serial4: O LCP CONFREQ(1) id 17 (12) QUALITYTYPE (8) 192 37 0 0 3 232
MAGICNUMBER (6) 4 77 253 200
ppp: TIMEout: Time= 44E3768 State= 3
The following is sample output from the
debugppperrorcommand. These messages might appear when the Quality Protocol option is enabled on an interface that is already running PPP.
The following table describes the significant fields shown in the display.
Table 39 debug ppp error Field Descriptions
Field
Description
PPP
PPP debugging output.
Serial3(i)
Interface number associated with this debugging information; indicates that this is an input packet.
rlqr receive failure
Request to negotiate the Quality Protocol option is not accepted.
myrcvdiffp = 159
Number of packets received over the time period.
peerxmitdiffp = 41091
Number of packets sent by the remote node over this period.
myrcvdiffo = 2183
Number of octets received over this period.
peerxmitdiffo = 1714439
Number of octets sent by the remote node over this period.
threshold = 25
Maximum error percentage acceptable on this interface. This percentage is calculated by the threshold value entered in the
pppqualitynumber interface configuration command. A value of 100 -
number (100 minus
number) is the maximum error percentage. In this case, a
number of 75 was entered. This means that the local router must maintain a minimum 75 percent non-error percentage, or the PPP link will be considered down.
OutLQRs = 1
Local router’s current send LQR sequence number.
LastOutLQRs = 1
The last sequence number that the remote node side has seen from the local node.
The following is sample output from the
debugpppauthenticationcommand. Use this command to determine why an authentication fails.
Router# debug ppp authentication
Serial0: Unable to authenticate. No name received from peer
Serial0: Unable to validate CHAP response. USERNAME pioneer not found.
Serial0: Unable to validate CHAP response. No password defined for USERNAME pioneer
Serial0: Failed CHAP authentication with remote.
Remote message is Unknown name
Serial0: remote passed CHAP authentication.
Serial0: Passed CHAP authentication with remote.
Serial0: CHAP input code = 4 id = 3 len = 48
In general, these messages are self-explanatory. Fields that can show optional output are outlined in the following table.
Table 40 debug ppp authentication Field Descriptions
Field
Description
Serial0
Interface number associated with this debugging information and CHAP access session in question.
USERNAME pioneer not found.
The name
pioneer in this example is the name received in the CHAP response. The router looks up this name in the list of usernames that are configured for the router.
Remote message is Unknown name
The following messages can appear:
No name received to authenticate
Unknown name
No secret for given name
Short MD5 response received
MD compare failed
code = 4
Specific CHAP type packet detected. Possible values are as follows:
1--Challenge
2--Response
3--Success
4--Failure
id = 3
ID number per LCP packet format.
len = 48
Packet length without header.
The following shows sample output from the
debugppp command usingthecbcp keyword. This output depicts packet exchanges under normal PPP operation where the Cisco access server is waiting for the remote PC to respond to the MSCB request. The router also has
debugpppnegotiation and
servicetimestampsmsec commands enabled.
Router# debug ppp cbcp
Dec 17 00:48:11.302: As8 MCB: User mscb Callback Number - Client ANY
Dec 17 00:48:11.306: Async8 PPP: O MCB Request(1) id 1 len 9
Dec 17 00:48:11.310: Async8 MCB: O 1 1 0 9 2 5 0 1 0
Dec 17 00:48:11.314: As8 MCB: O Request Id 1 Callback Type Client-Num delay 0
Dec 17 00:48:13.342: As8 MCB: Timeout in state WAIT_RESPONSE
Dec 17 00:48:13.346: Async8 PPP: O MCB Request(1) id 2 len 9
Dec 17 00:48:13.346: Async8 MCB: O 1 2 0 9 2 5 0 1 0
Dec 17 00:48:13.350: As8 MCB: O Request Id 2 Callback Type Client-Num delay 0
Dec 17 00:48:15.370: As8 MCB: Timeout in state WAIT_RESPONSE
Dec 17 00:48:15.374: Async8 PPP: O MCB Request(1) id 3 len 9
Dec 17 00:48:15.374: Async8 MCB: O 1 3 0 9 2 5 0 1 0
Dec 17 00:48:15.378: As8 MCB: O Request Id 3 Callback Type Client-Num delay 0
Dec 17 00:48:17.398: As8 MCB: Timeout in state WAIT_RESPONSE
Dec 17 00:48:17.402: Async8 PPP: O MCB Request(1) id 4 len 9
Dec 17 00:48:17.406: Async8 MCB: O 1 4 0 9 2 5 0 1 0
Dec 17 00:48:17.406: As8 MCB: O Request Id 4 Callback Type Client-Num delay 0
Dec 17 00:48:19.426: As8 MCB: Timeout in state WAIT_RESPONSE
Dec 17 00:48:19.430: Async8 PPP: O MCB Request(1) id 5 len 9
Dec 17 00:48:19.430: Async8 MCB: O 1 5 0 9 2 5 0 1 0
Dec 17 00:48:19.434: As8 MCB: O Request Id 5 Callback Type Client-Num delay 0
Dec 17 00:48:21.454: As8 MCB: Timeout in state WAIT_RESPONSE
Dec 17 00:48:21.458: Async8 PPP: O MCB Request(1) id 6 len 9
Dec 17 00:48:21.462: Async8 MCB: O 1 6 0 9 2 5 0 1 0
Dec 17 00:48:21.462: As8 MCB: O Request Id 6 Callback Type Client-Num delay 0
Dec 17 00:48:23.482: As8 MCB: Timeout in state WAIT_RESPONSE
Dec 17 00:48:23.486: Async8 PPP: O MCB Request(1) id 7 len 9
Dec 17 00:48:23.490: Async8 MCB: O 1 7 0 9 2 5 0 1 0
Dec 17 00:48:23.490: As8 MCB: O Request Id 7 Callback Type Client-Num delay 0
Dec 17 00:48:25.510: As8 MCB: Timeout in state WAIT_RESPONSE
Dec 17 00:48:25.514: Async8 PPP: O MCB Request(1) id 8 len 9
Dec 17 00:48:25.514: Async8 MCB: O 1 8 0 9 2 5 0 1 0
Dec 17 00:48:25.518: As8 MCB: O Request Id 8 Callback Type Client-Num delay 0
Dec 17 00:48:26.242: As8 PPP: I pkt type 0xC029, datagramsize 18
Dec 17 00:48:26.246: Async8 PPP: I MCB Response(2) id 8 len 16
Dec 17 00:48:26.250: Async8 MCB: I 2 8 0 10 2 C C 1 32 34 39 32 36 31 33 0
Dec 17 00:48:26.254: As8 MCB: Received response
Dec 17 00:48:26.258: As8 MCB: Response CBK-Client-Num 2 12 12, addr 1-2492613
Dec 17 00:48:26.262: Async8 PPP: O MCB Ack(3) id 9 len 16
Dec 17 00:48:26.266: Async8 MCB: O 3 9 0 10 2 C C 1 32 34 39 32 36 31 33 0
Dec 17 00:48:26.270: As8 MCB: O Ack Id 9 Callback Type Client-Num delay 12
Dec 17 00:48:26.270: As8 MCB: Negotiated MCB with peer
Dec 17 00:48:26.390: As8 LCP: I TERMREQ [Open] id 4 len 8 (0x00000000)
Dec 17 00:48:26.390: As8 LCP: O TERMACK [Open] id 4 len 4
Dec 17 00:48:26.394: As8 MCB: Peer terminating the link
Dec 17 00:48:26.402: As8 MCB: Initiate Callback for mscb at 2492613 using Async
The following is sample output from the
debugpppcompression command with
servicetimestamps enabled and shows a typical PPP packet exchange between the router and Microsoft client where the MPPC header sequence numbers increment correctly:
The following table describes the significant fields shown in the display.
Table 41 debug ppp compression Field Descriptions
Field
Description
interface
Interface enabled with MPPC.
Decomp - hdr/
Decompression header and bit settings.
exp_cc#
Expected coherency count.
0x2003
Received sequence number.
0x0003
Expected sequence number.
The following shows sample output from
debugpppnegotiation and
debugppperror commands, which can be used to troubleshoot initial PPP negotiation and setup errors. This example shows a virtual interface (virtual interface 1) during normal PPP operation and CCP negotiation.
Router# debug ppp negotiation error
Vt1 PPP: Unsupported or un-negotiated protocol. Link arp
VPDN: Chap authentication succeeded for p5200
Vi1 PPP: Phase is DOWN, Setup
Vi1 VPDN: Virtual interface created for dinesh@cisco.com
Vi1 VPDN: Set to Async interface
Vi1 PPP: Phase is DOWN, Setup
Vi1 VPDN: Clone from Vtemplate 1 filterPPP=0 blocking
Vi1 CCP: Re-Syncing history using legacy method
%LINK-3-UPDOWN: Interface Virtual-Access1, changed state to up
Vi1 PPP: Treating connection as a dedicated line
Vi1 PPP: Phase is ESTABLISHING, Active Open
Vi1 LCP: O CONFREQ [Closed] id 1 len 25
Vi1 LCP: ACCM 0x000A0000 (0x0206000A0000)
Vi1 LCP: AuthProto CHAP (0x0305C22305)
Vi1 LCP: MagicNumber 0x000FB69F (0x0506000FB69F)
Vi1 LCP: PFC (0x0702)
Vi1 LCP: ACFC (0x0802)
Vi1 VPDN: Bind interface direction=2
Vi1 PPP: Treating connection as a dedicated line
Vi1 LCP: I FORCED CONFREQ len 21
Vi1 LCP: ACCM 0x000A0000 (0x0206000A0000)
Vi1 LCP: AuthProto CHAP (0x0305C22305)
Vi1 LCP: MagicNumber 0x12A5E4B5 (0x050612A5E4B5)
Vi1 LCP: PFC (0x0702)
Vi1 LCP: ACFC (0x0802)
Vi1 VPDN: PPP LCP accepted sent & rcv CONFACK
Vi1 PPP: Phase is AUTHENTICATING, by this end
Vi1 CHAP: O CHALLENGE id 1 len 27 from "l_4000"
Vi1 CHAP: I RESPONSE id 20 len 37 from "dinesh@cisco.com"
Vi1 CHAP: O SUCCESS id 20 len 4
Vi1 PPP: Phase is UP
Vi1 IPCP: O CONFREQ [Closed] id 1 len 10
Vi1 IPCP: Address 15.2.2.3 (0x03060F020203)
Vi1 CCP: O CONFREQ [Not negotiated] id 1 len 10
Vi1 CCP: MS-PPC supported bits 0x00000001 (0x120600000001)
Vi1 IPCP: I CONFREQ [REQsent] id 1 len 34
Vi1 IPCP: Address 0.0.0.0 (0x030600000000)
Vi1 IPCP: PrimaryDNS 0.0.0.0 (0x810600000000)
Vi1 IPCP: PrimaryWINS 0.0.0.0 (0x820600000000)
Vi1 IPCP: SecondaryDNS 0.0.0.0 (0x830600000000)
Vi1 IPCP: SecondaryWINS 0.0.0.0 (0x840600000000)
Vi1 IPCP: Using the default pool
Vi1 IPCP: Pool returned 11.2.2.5
Vi1 IPCP: O CONFREJ [REQsent] id 1 len 16
Vi1 IPCP: PrimaryWINS 0.0.0.0 (0x820600000000)
Vi1 IPCP: SecondaryWINS 0.0.0.0 (0x840600000000)
Vi1 CCP: I CONFREQ [REQsent] id 1 len 15
Vi1 CCP: MS-PPC supported bits 0x00000001 (0x120600000001)
Vi1 CCP: Stacker history 1 check mode EXTENDED (0x1105000104)
Vi1 CCP: Already accepted another CCP option, rejecting this STACKER
Vi1 CCP: O CONFREJ [REQsent] id 1 len 9
Vi1 CCP: Stacker history 1 check mode EXTENDED (0x1105000104)
Vi1 IPCP: I CONFACK [REQsent] id 1 len 10
Vi1 IPCP: Address 15.2.2.3 (0x03060F020203)
Vi1 CCP: I CONFACK [REQsent] id 1 len 10
Vi1 CCP: MS-PPC supported bits 0x00000001 (0x120600000001)
Vi1 CCP: I CONFREQ [ACKrcvd] id 2 len 10
Vi1 CCP: MS-PPC supported bits 0x00000001 (0x120600000001)
Vi1 CCP: O CONFACK [ACKrcvd] id 2 len 10
Vi1 CCP: MS-PPC supported bits 0x00000001 (0x120600000001)
Vi1 CCP: State is Open
Vi1 IPCP: I CONFREQ [ACKrcvd] id 2 len 22
Vi1 IPCP: Address 0.0.0.0 (0x030600000000)
Vi1 IPCP: PrimaryDNS 0.0.0.0 (0x810600000000)
Vi1 IPCP: SecondaryDNS 0.0.0.0 (0x830600000000)
Vi1 IPCP: O CONFNAK [ACKrcvd] id 2 len 22
Vi1 IPCP: Address 11.2.2.5 (0x03060B020205)
Vi1 IPCP: PrimaryDNS 171.69.1.148 (0x8106AB450194)
Vi1 IPCP: SecondaryDNS 171.69.2.132 (0x8306AB450284)
Vi1 IPCP: I CONFREQ [ACKrcvd] id 3 len 22
Vi1 IPCP: Address 11.2.2.5 (0x03060B020205)
Vi1 IPCP: PrimaryDNS 171.69.1.148 (0x8106AB450194)
Vi1 IPCP: SecondaryDNS 171.69.2.132 (0x8306AB450284)
Vi1 IPCP: O CONFACK [ACKrcvd] id 3 len 22
Vi1 IPCP: Address 11.2.2.5 (0x03060B020205)
Vi1 IPCP: PrimaryDNS 171.69.1.148 (0x8106AB450194)
Vi1 IPCP: SecondaryDNS 171.69.2.132 (0x8306AB450284)
Vi1 IPCP: State is Open
Vi1 IPCP: Install route to 11.2.2.5
debug ppp bap
To display general Bandwidth Allocation Control Protocol (BACP) transactions, use the
debugpppbap command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugpppbap
[ error | event | negotiation ]
nodebugpppbap
[ error | event | negotiation ]
Syntax Description
error
(Optional) Displays local errors.
event
(Optional) Displays information about protocol actions and transitions between action states (pending, waiting, idle) on the link.
negotiation
(Optional) Displays successive steps in negotiations between peers.
Command Modes
Privileged EXEC
Usage Guidelines
Do not use this command when memory is scarce or in very high traffic situations.
Examples
The following types of events generate the debugging messages displayed in the figures in this section:
A dial attempt failed.
A BACP group was created.
A BACP group was removed.
The precedence of the group changed.
Attempting to dial a number.
Received a BACP message.
Discarding a BACP message.
Received an unknown code.
Cannot find the appropriate BACP group on input.
Displaying the response type.
Incomplete mandatory options notification.
Invalid outgoing message type.
Unable to build an output message.
Sending a BACP message.
Details about the sent message (type of message, its identifier, the virtual access interface that sent it).
The following is sample output from the
debugpppbap command:
Router# debug ppp bap
BAP Virtual-Access1: group "laudrup" (2) (multilink) without precedence created
BAP laudrup: sending CallReq, id 2, len 38 on BRI3:1 to remote
BAP Virtual-Access1: received CallRsp, id 2, len 13
BAP laudrup: CallRsp, id 2, ACK
BAP laudrup: attempt1 to dial 19995776677 on BRI3
---> reason BAP - Multilink bundle overloaded
BAP laudrup: sending StatusInd, id 2, len 44 on Virtual-Access1 to remote
BAP Virtual-Access1: received StatusRsp, id 2, len 1
BAP laudrup: StatusRsp, id 2, ACK
The following table describes the significant fields shown in the display.
Table 42 debug ppp bap Field Descriptions
Field
Description
BAP Virtual-Access1:
Identifier of the virtual access interface in use.
group “laudrup”
Name of the BACP group.
sending CallReq
Action initiated; in this case, sending a call request.
on BRI3:1 to remote
Physical interface being used.
BAP laudrup: attempt1 to dial 19995776677 on BRI3
---> reason BAP - Multilink bundle overloaded
Call initiated, number being dialed, and physical interface being used.
Reason for initiating the BACP call.
BAP laudrup: sending StatusInd, id 2, len 44 on Virtual-Access1 to remote
Details about the sent message: It was a status indication message, had identifier 2, had a BACP datagram length 44, and was sent on virtual access interface 1. You can display information about the virtual access interface by using the
showinterfacesvirtual-access EXEC command. (The length shown at the end of each negotiated option includes the 2-byte type and length header.)
The
debugpppbapevent command might show state transitions and protocol actions, in addition to the basic
debugpppbap command.
The following is sample output from the
debugpppbapevent command:
The following is sample output from the
debugpppbapevent command:
Router# debug ppp bap event
Peer does not support a message type
No response to a particular request
No response to all request retransmissions
Not configured to initiate link addition
Expected action by peer has not occurred
Exceeded number of retries
No links available to call out
Unable to provide phone numbers for callback
Maximum number of links in the group
Minimum number of links in the group
Unable to process link addition at present
Unable to process link removal at present
Not configured/unable to initiate link removal
Link addition completed notification
Link addition failed notification
Determination of location of the group config
Link with specified discriminator not in group
Link removal failed
Call failure with status
Failed to dial specified number
Discarding retransmission
Unable to find received identifier
Received StatusInd when no call pending
Discarding message with no phone delta
Unable to send message in particular state
Received a zero identifier
Request has precedence
The error messages displayed might be added to the basic output when the
debugpppbaperror command is used. Because the errors are very rare, you might never see these messages.
Router# debug ppp bap error
Unable to find appropriate request for received response
Invalid message type of queue
Received request is not part of the group
Add link attempt failed to locate group
Remove link attempt failed to locate group
Unable to inform peer of link addition
Changing of precedence cannot locate group
Received short header/illegal length/short packet
Invalid configuration information length
Unable to NAK incomplete options
Unable to determine current number of links
No interface list to dial on
Attempt to send invalid data
Local link discriminator is not in group
Received response type is incorrect for identifier
The messages displayed might be added to the basic output when the
debugpppbapnegotiation command is used:
Router# debug ppp bap negotiation
BAP laudrup: adding link speed 64 kbps for type 0x1 len 5
BAP laudrup: adding reason "User initiated addition", len 25
BAP laudrup: CallRsp, id 4, ACK
BAP laudrup: link speed 64 kbps for types 0x1, len 5 (ACK)
BAP laudrup: phone number "1: 0 2: ", len 7 (ACK)
BAP laudrup: adding call status 0, action 0 len 4
BAP laudrup: adding 1 phone numbers "1: 0 2: " len 7
BAP laudrup: adding reason "Successfully added link", len 25
BAP laudrup: StatusRsp, id 4, ACK
Additional negotiation messages might also be displayed for the following:
Received BAP message
Sending message
Decode individual options for send/receive
Notification of invalid options
The following shows additional reasons for a particular BAP action that might be displayed in an “adding reason” line of the
debugpppbapnegotiation command output:
"Outgoing add request has precedence"
"Outgoing remove request has precedence"
"Unable to change request precedence"
"Unable to determine valid phone delta"
"Attempting to add link"
"Link addition is pending"
"Attempting to remove link"
"Link removal is pending"
"Precedence of peer marked CallReq for no action"
"Callback request rejected due to configuration"
"Call request rejected due to configuration"
"No links of specified type(s) available"
"Drop request disallowed due to configuration"
"Discriminator is invalid"
"No response to call requests"
"Successfully added link"
"Attempt to dial destination failed"
"No interfaces present to dial out"
"No dial string present to dial out"
"Mandatory options incomplete"
"Load has not exceeded threshold"
"Load is above threshold"
"Currently attempting to dial destination"
"No response to CallReq from race condition"
The following table describes the reasons for a BACP Negotiation Action.
Table 43 Explanation of Reasons for BACP Negotiation Action
Reason
Explanation
“Outgoing add request has precedence”
Received a CallRequest or CallbackRequest while we were waiting on a CallResponse or CallbackResponse to a sent request. We are the favored peer from the initial BACP negotiation, so we are issuing a NAK to our peer request.
“Outgoing remove request has precedence”
Received a LinkDropQueryRequest while waiting on a LinkDropQueryResponse to a sent request. We are the favored peer from the initial BACP negotiation, therefore we are issuing a NAK to our peer request.
“Unable to change request precedence”
Received a CallRequest, CallbackRequest, or LinkDropQueryRequest while waiting on a LinkDropQueryResponse to a sent request. Our peer is deemed to be the favored peer from the initial BACP negotiation and we were unable to change the status of our outgoing request in response to the favored request, so we are issuing a NAK. (This is an internal error and should never be seen.)
“Unable to determine valid phone delta”
Received a CallRequest from our peer but are unable to provide the required phone delta for the response, so we are issuing a NAK. (This is an internal error and should never be seen.)
“Attempting to add link”
Received a LinkDropQueryRequest while attempting to add a link; a NAK is issued.
“Link addition is pending”
Received a LinkDropQueryRequest, CallRequest, or CallbackRequest while attempting to add a link as the result of a previous operation; a NAK is issued in the response.
“Attempting to remove link”
Received a CallRequest or CallbackRequest while attempting to remove a link; a NAK is issued.
“Link removal is pending”
Received a CallRequest, CallbackRequest, or LinkDropQueryRequest while attempting to remove a link as the result of a previous operation; a NAK is issued in the response.
“Precedence of peer marked CallReq for no action”
Received an ACK to a previously unfavored CallRequest; we are issuing a CallStatusIndication to inform our peer that there will be no further action on our part as per this response.
“Callback request rejected due to configuration”
Received a CallbackRequest but we are configured not to accept them; a REJect is issued to our peer.
“Call request rejected due to configuration”
Received a CallRequest but we are configured not to accept them; a REJect is issued to our peer.
“No links of specified type(s) available”
We received a CallRequest but no links of the specified type and speed are available; a NAK is issued.
“Drop request disallowed due to configuration”
Received a LinkDropQueryRequest but we are configured not to accept them; a NAK is issued to our peer.
“Discriminator is invalid”
Received a LinkDropQueryRequest but the local link discriminator is not contained within the bundle; a NAK is issued.
“No response to call requests”
After no response to our CallRequest message, a CallStatusIndication is sent to the peer informing that no more action will be taken on behalf of this operation.
“Successfully added link”
Sent as part of the CallStatusIndication informing our peer that we successfully completed the addition of a link to the bundle as the result of the transmission of a CallRequest or the reception of a CallbackRequest.
“Attempt to dial destination failed”
Sent as part of the CallStatusIndication informing our peer that we failed in an attempt to add a link to the bundle as the result of the transmission of a CallRequest or the reception of a CallbackRequest. The retry field with the CallStatusIndication informs the peer of our intentions.
“No interfaces present to dial out”
There are no available interfaces to dial out on to attempt to add a link to the bundle, and we will not retry the dial attempt.
“No dial string present to dial out”
We do not have a dial string to dial out with to attempt to add a link to the bundle, and we are not going to retry the dial attempt. (This is an internal error and should never be seen.)
“Mandatory options incomplete”
Received a CallRequest, CallbackRequest, LinkDropQueryRequest, or CallStatusIndication and the mandatory options are not present, so a NAK is issued in the response. (A CallStatusResponse is an ACK, however).
“Load has not exceeded threshold”
Received a CallRequest or CallbackRequest but we are issuing a NAK in the response. We are monitoring the load of the bundle, and so we determine when links should be added to the bundle.
“Load is above threshold”
Received a LinkDropQueryRequest but we are issuing a NAK in the response. We are monitoring the load of the bundle, and so we determine when links should be removed from the bundle.
“Currently attempting to dial destination”
Received a CallbackRequest which is a retransmission of one that we previously ACK’d and are dialing the number suggested in the request. We are issuing an ACK because we did so previously, even though our peer never saw the previous response.
“No response to CallReq from race condition”
We issued a CallRequest but failed to receive a response, and we are issuing a CallStatusIndication to inform our peer of our intention not to proceed with the operation.
debug ppp ip address-save
To display debug information about the IPv4 Address Conservation in Dual Stack Environments feature such as authorization, authentication, and IPv4 address allocation messages on the broadband remote access server (BRAS), use the
debug ppp ip address-save command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debug ppp ip address-save
no debug ppp ip address-save
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
Cisco IOS XE Release 3.5S
This command was introduced.
Usage Guidelines
Use the
debug ppp ip address-save command to display authorization, authentication, and IPv4 address allocation messages on the BRAS. This command shows that the IPv4 Address Conservation in Dual Stack Environments feature has been enabled and displays the events that are triggered by enabling the feature. See the “Related Commands” section for
debug commands that should be used in conjunction with this command
Examples
The following is sample output from the
debug ppp ip address-save
command:
Router# debug ppp ip address-save
Vi2.1 IPCP AUTH: Adding password in AAA author request
Vi2.1 IPCP AUTH: Added password and AAA VSA [enable] in author request
Vi2.1 PPP: Added IPv4 address [10.1.1.25] to include in acct record
Vi2.1 PPP: Triggering interim acct request
Vi2.1 PPP: IPCP going down, resetting neg authorized flag
Vi2.1 PPP: Peer IPv4 address in author data = 10.1.1.25
Vi2.1 PPP: Removing IPv4 address from Accounting DB
Vi2.1 PPP: Triggering interim acct request
Vi2.1 PPP: IPCP went down, checking status of other NCPs
The output is self-explanatory.
Related Commands
Command
Description
debug ppp authentication
Displays authentication protocol messages, including CHAP packet exchanges and PAP exchanges.
debug ppp authorization
Displays information about authorization attributes received from the RADIUS server.
debug ppp negotiation
Displays PPP packets sent during PPP startup, where PPP options are negotiated.
debug radius
Displays accounting and authentication information and client/server interaction events on the RADIUS server.
ppp ip address-save aaa-acct-vsa
Enables IPv4 address conservation on the BRAS.
debug ppp multilink events
To display information about events affecting multilink groups established for Bandwidth Allocation Control Protocol (BACP), use thedebugpppmultilinkevents command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugpppmultilinkevents
nodebugpppmultilinkevents
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Caution
Do not use this command when memory is scarce or in very high traffic situations.
Examples
The following is sample output from the
debugpppmultilinkevents command:
Router# debug ppp multilink events
MLP laudrup: established BAP group 4 on Virtual-Access1, physical BRI3:1
MLP laudrup: removed BAP group 4
Other event messages include the following:
Unable to find bundle for BAP group identifier
Unable to find physical interface to start BAP
Unable to create BAP group
Attempt to start BACP when inactive or running
Attempt to start BACP on non-MLP interface
Link protocol has gone down, removing BAP group
Link protocol has gone down, BAP not running or present
The following table describes the significant fields shown in the display.
Table 44 debug ppp multilink events Field Descriptions
Field
Description
MLP laudrup
Name of the multilink group.
established BAP group 4
Internal identifier. The same identifiers are used in the
showpppbapgroup command output.
Virtual-Access1
Dynamic access interface number.
physical BRI3:1
Bundle was established from a call on this interface.
removed BAP group 4
When the bundle is removed, the associated BACP group (with its ID) is also removed.
debug ppp multilink fragments
To display information about individual multilink fragments and important multilink events, use the debugpppmultilinkfragments
command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugpppmultilinkfragments
nodebugpppmultilinkfragments
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Caution
The debugpppmultilinkfragments command has some memory overhead and should not be used when memory is scarce or in very high traffic situations.
Examples
The following is sample output from the debugpppmultilinkfragmentscommand when used with the ping EXEC command. The debug output indicates that a multilink PPP packet on interface BRI 0 (on the B channel) is an input (I) or output (O) packet. The output also identifies the sequence number of the packet and the size of the fragment.
Router# debug ppp multilink fragments
Router# ping 7.1.1.7
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 7.1.1.7, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 32/34/36 ms
Router#
2:00:28: MLP BRI0: B-Channel 1: O seq 80000000: size 58
2:00:28: MLP BRI0: B-Channel 2: O seq 40000001: size 59
2:00:28: MLP BRI0: B-Channel 2: I seq 40000001: size 59
2:00:28: MLP BRI0: B-Channel 1: I seq 80000000: size 58
2:00:28: MLP BRI0: B-Channel 1: O seq 80000002: size 58
2:00:28: MLP BRI0: B-Channel 2: O seq 40000003: size 59
2:00:28: MLP BRI0: B-Channel 2: I seq 40000003: size 59
2:00:28: MLP BRI0: B-Channel 1: I seq 80000002: size 58
2:00:28: MLP BRI0: B-Channel 1: O seq 80000004: size 58
2:00:28: MLP BRI0: B-Channel 2: O seq 40000005: size 59
2:00:28: MLP BRI0: B-Channel 2: I seq 40000005: size 59
2:00:28: MLP BRI0: B-Channel 1: I seq 80000004: size 58
2:00:28: MLP BRI0: B-Channel 1: O seq 80000006: size 58
2:00:28: MLP BRI0: B-Channel 2: O seq 40000007: size 59
2:00:28: MLP BRI0: B-Channel 2: I seq 40000007: size 59
2:00:28: MLP BRI0: B-Channel 1: I seq 80000006: size 58
2:00:28: MLP BRI0: B-Channel 1: O seq 80000008: size 58
2:00:28: MLP BRI0: B-Channel 2: O seq 40000009: size 59
2:00:28: MLP BRI0: B-Channel 2: I seq 40000009: size 59
2:00:28: MLP BRI0: B-Channel 1: I seq 80000008: size 58
debug ppp multilink negotiation
Note
Effective with release 11.3, the
debugpppmultilinknegotiation command is not available in Cisco IOS software.
To display information about events affecting multilink groups established controlled by Bandwidth Allocation Control Protocol (BACP), use thedebugpppmultilinknegotiation command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
debugpppmultilinknegotiation
nodebugpppmultilinknegotiation
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
11.3
This command was removed and is not available in Cisco IOS software.
Usage Guidelines
Caution
Do not use this command when memory is scarce or in very high traffic situations.
Examples
The following sample output shows Link Control Protocol (LCP) and Network Control Program (NCP) messages that might appear in
debugpppmultilinknegotiation command. These messages show information about PPP negotiations between the multilink peers.
Router# debug ppp multilink negotiation
ppp: sending CONFREQ, type = 23 (CI_LINK_DISCRIMINATOR), value = 0xF
PPP BRI3:1: received config for type = 23 (LINK_DISCRIMINATOR) value = 0xA acked
Router# debug ppp multilink negotiation
ppp: sending CONFREQ, type = 1 (CI_FAVORED_PEER), value = 0x647BD090
PPP Virtual-Access1: received CONFREQ, type 1, value = 0x382BBF5 (ACK)
PPP Virtual-Access1: BACP returning CONFACK
ppp: config ACK received, type = 1 (CI_FAVORED_PEER), value = 0x647BD090
PPP Virtual-Access1: BACP up
The following table describes the significant fields shown in the display.
Table 45 debug ppp multilink negotiation Field Descriptions
Field
Description
sending CONFREQ, type = 23 (CI_LINK_DISCRIMINATOR), value = 0xF
Sending a configuration request and the value of the link discriminator. Each peer assigns a discriminator value to identify a specific link. The values are significant to each peer individually but do not have to be shared.
PPP BRI3:1:
Physical interface being used.
CI_FAVORED_PEER
When the PPP NCP negotiation occurs over the first link in a bundle, the BACP peers use a Magic Number akin to that used by LCP to determine which peer should be favored when both implementations send a request at the same time. The peer that negotiated the higher number is deemed to be favored. That peer should issue a negative acknowledgment to its unfavored peer, which in turn should issue a positive acknowledgment, if applicable according to other link considerations.
PPP Virtual-Access1: BACP returning CONFACK
Returning acknowledgment that BACP is configured.
PPP Virtual-Access1: BACP up
Indicating that the BACP NCP is open.
debug ppp redundancy
To debug PPP synchronization on the networking device, use the debugpppredundancycommand in privileged EXEC mode. To disable the display of debugging output, use the no form of this command.
debugpppredundancy
[ detailed | event ]
nodebugpppredundancy
[ detailed | event ]
Syntax Description
detailed
(Optional) Displays detailed debug messages related to specified PPP redundancy events.
event
(Optional) Displays information about protocol actions and transitions between action states (pending, waiting, idle) on the link.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.0(22)S
This command was introduced on the Cisco 7500, 10000, and 12000 series Internet routers.
12.2(18)S
This command was integrated into Cisco IOS Release 12.2(18)S on
Cisco 7500 series routers.
12.2(20)S
Support was added for the Cisco 7304 router. The Cisco 7500 series router is not supported in Cisco IOS Release 12.2(20)S.
12.2(28)SB
This command was integrated into Cisco IOS Release 12.2(28)SB.
12.2(33)SRA
This command was integrated into Cisco IOS Release 12.2(33)SRA.
12.2(33)SXH
This command was integrated into Cisco IOS Release 12.2(33)SXH.
Examples
The following example displays detailed debug messages related to specified PPP redundancy events:
Router# debug ppp redundancy detailed
debug ppp unique address
To display debugging information about duplicate addresses received from RADIUS, use the debugpppuniqueaddresscommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugipv6policy
nodebugipv6policy
Syntax Description
This command has no arguments or keywords.
Command Default
Information about duplicate addresses received from RADIUS is not displayed.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
Cisco IOS XE Release 3.2S
This command was introduced.
Usage Guidelines
Thedebugppp unique address command enables you to view debugging information about duplicate addresses received from RADIUS.
Examples
The following example enables debugging output about duplicate addresses received from RADIUS:
Router# debug ppp unique address
debug pppatm
To enable debug reports for PPP over ATM (PPPoA) events, errors, and states, either globally or conditionally, on an interface or virtual circuit (VC), use the
debugpppatm command in privileged EXEC mode. To disable debugging output, use the
no form of this command.
(Optional) Specifies a particular ATM interface by interface number and optionally a subinterface number separated by a period.
vc [vpi/]vcivirtual-circuit-name
(Optional) Virtual circuit (VC) keyword followed by a virtual path identifier (VPI), virtual channel identifier (VCI), and VC name. A slash mark is required after the VPI.
Command Default
No default behavior or values
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(13)T
This command was introduced.
12.2(28)SB
This command was integrated into Cisco IOS Release 12.2(28)SB.
Usage Guidelines
Each specific PPPoA debug report must be requested on a separate command line; see the “Examples” section.
Examples
The following is example output of a PPPoA session with event, error, and state debug reports enabled on ATM interface 1/0.10:
The following table describes the significant fields shown in the display.
Table 46 debug pppatm Field Descriptions
Field
Description
Event
Reports PPPoA events for use by Cisco engineering technical assistance personnel.
State
Reports PPPoA states for use by Cisco engineering technical assistance personnel.
Related Commands
Command
Description
atmpppatmpassive
Places an ATM subinterface into passive mode.
showpppatmsummary
Displays PPPoA session counts.
debug pppatm redundancy
To debug PPP over ATM (PPPoA) redundancy events on a dual Route Processor High Availability (HA) system and display cluster control manager (CCM) events and messages, use the debugpppatmredundancycommand in privileged EXEC mode. To disable the display of debugging output, use the no form of this command.
(Optional) Specifies a particular ATM interface by interface number.
vc
(Optional) Specifies the virtual circuit (VC).
vpi/vci
(Optional) Virtual path identifier (VPI) and virtual channel identifier (VCI) value. The range is from 0 to 255.
vci
(Optional) VCI. The range is from 1 to 65535.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.2(31)SB2
This command was introduced.
Cisco IOS XE Release 3.3S
This command was modified. The interfaceatminterface-numberkeyword-argument pair,vckeyword, andvpi/vciandvciarguments were added.
Usage Guidelines
The CCM provides the capability to facilitate and synchronize session bring-up on the standby processor of a dual Route Processor HA system. Use the debugpppatmredundancy command to display CCM events and messages for PPPoA sessions on HA systems.
To create sessions on the standby processor with the same virtual-access (sub)interface as that on the active processor, base virtual-access interface creation on the standby processor is delayed until the first PPPoA session synchronizes to the standby processor. For each session, PPPoA synchronizes information elements such as virtual access (VAccess) descriptor, physical software for interface descriptor block (swidb) descriptor, switch handle, segment handle, and ATM virtual circuit’s (VC) virtual path identifier (VPI) and virtual channel identifier (VCI) numbers to the standby processor. The interfaceatmkeywords andinterface-number argument specify a particular ATM interface by interface number and thevckeyword specifies the VC.
Note
The debug pppatm redundancy command does not display output on the active processor during normal synchronization; that is, the command displays output on the active processor only during an error condition.
Note
This command is used only by Cisco engineers for internal debugging of CCM processes.
Examples
The following is sample output from the debug pppatm redundancy command from a Cisco 10000 series router active processor, along with sample output from theshowpppatmredundancy command from the standby processor. No field descriptions are provided because command output is used for Cisco internal debugging purposes only.
Router# debug pppatm redundancy
PPP over ATM redundancy debugging is on
Router-stby# show pppatm redundancy
0 : Session recreate requests from CCM
0 : Session up events invoked
0 : Sessions reaching PTA
0 : Sessions closed by CCM
0 : Session down events invoked
0 : Queued sessions waiting for base hwidb creation
0 : Sessions queued for VC up notification so far
0 : Sessions queued for VC encap change notification so far
0 : VC activation notifications received from ATM
0 : VC encap change notifications received from ATM
0 : Total queued sessions waiting for VC notification(Encap change+VC Activation)
Related Commands
Command
Description
debugpppatm
Enables debug reports for PPPoA events, errors, and states, either globally or conditionally, on an interface or VC.
debug pppoe
To display debugging information for PPP over Ethernet (PPPoE) sessions, use the
debugpppoecommand in privileged EXEC mode. To disable debugging output, use the
no form of this command.
Displays PPPoE protocol errors that prevent a session from being established, or displays errors that cause an established session to be closed.
events
Displays PPPoE protocol messages about events that are part of normal session establishment or shutdown.
packets
Displays each PPPoE protocol packet that is exchanged.
rmacremote-mac-address
(Optional) Remote MAC address. Debugging information for PPPoE sessions sourced from this address will be displayed.
interfacetypenumber
(Optional) Interface for which PPPoE session debugging information will be displayed.
vc
(Optional) Displays debugging information for PPPoE sessions for a specific permanent virtual circuit (PVC).
vpi/
(Optional) ATM network virtual path identifier (VPI) for the PVC. The
vpi value defaults to 0.
vci
(Optional) ATM network virtual channel identifier (VCI) for the PVC.
vc-name
(Optional) Name of the PVC.
vlanvlan-id
(Optional) IEEE 802.1Q VLAN identifier.
elog
Displays PPPoE error logs.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.2(13)T
This command was introduced. This command replaces the
debugvpdnpppoe-data,
debugvpdnpppoe-error,debugvpdnpppoe-events,anddebugvpdnpppoe-packetcommands available in previous Cisco IOS releases.
12.2(15)T
This command was modified to display debugging information on a per-MAC address, per-interface, and per-VC basis.
12.3(2)T
The
vlanvlan-id keyword and argument were added.
12.3(7)XI3
This command was integrated into Cisco IOS Release 12.3(7)XI3.
12.2(33)SB
This command was integrated into Cisco IOS Release 12.2(33)SB
12.2(28)SB
This command was integrated into Cisco IOS Release 12.2(28)SB.
12.2(33)SRC
This command was integrated into Cisco IOS Release 12.2(33)SRC.
Cisco IOS XE Release 2.1
This command was implemented on Cisco ASR 1000 series routers.
Examples
The following examples show sample output from thedebugpppoe command:
The following table describes the significant fields shown in the displays.
Table 47 debug pppoe Field Descriptions
Field
Description
PPPoE
PPPoE debug message header.
0:
PPPoE session ID.
I PADI
Incoming PPPoE Active Discovery Initiation packet.
R:
Remote MAC address.
L:
Local MAC address.
0/101
VPI VCI of the PVC.
ATM1/0.10
Interface type and number.
O PADO
Outgoing PPPoE Active Discovery Offer packet.
I PADR
Incoming PPPoE Active Discovery Request packet.
[3]
Unique user session ID. The same ID is used for identifying sessions across different applications such as PPPoE, PPP, Layer 2 Tunneling Protocol (L2TP), and Subscriber Service Switch (SSS). The same session ID appears in the output for the
showpppoesession,
showssssession, and
showvpdnsession commands.
PPPoE 3
PPPoE session ID.
Created
PPPoE session is created.
O PADS
Outgoing PPPoE Active Discovery Session-confirmation packet.
Connected PTA
PPPoE session is established.
Max session count(1) on mac(00b0.c2e9.c470) reached
PPPoE session is rejected because of per-MAC session limit.
Related Commands
Command
Description
encapsulationaal5autopppvirtual-template
Enables PPPoA/PPPoE autosense.
pppoeenable
Enables PPPoE sessions on an Ethernet interface or subinterface.
protocolpppoe(ATMVC)
Enables PPPoE sessions to be established on PVCs.
showpppoesession
Displays information about active PPPoE sessions.
showssssession
Displays Subscriber Service Switch session status.
showvpdnsession
Displays session information about L2TP, L2F protocol, and PPPoE tunnels in a VPDN.
debug pppoe redundancy
To debug PPP over Ethernet (PPPoE) redundancy events on a dual Route Processor High Availability (HA) system and display cluster control manager (CCM) events and messages, use the debugpppoeredundancycommand in privileged EXEC mode. To disable the display of debugging output, use the no form of this command.
debugpppoeredundancy
nodebugpppoeredundancy
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
12.2(31)SB2
This command was introduced.
12.2(33)SRC
This command was integrated into Cisco IOS Release 12.2(33)SRC.
Cisco IOS XE Release 3.3S
This command was integrated into Cisco IOS XE Release 3.3S.
Usage Guidelines
The CCM provides the capability to facilitate and synchronize session initiation on the standby processor of a dual Route Processor HA system. Use thedebugpppoeredundancy command to display CCM events and messages for PPPoE sessions.
Note
This command is used only by Cisco engineers for internal debugging of CCM processes.
Examples
The following is sample output from the debugpppoeredundancy command from a Cisco 10000 series router active processor. No field descriptions are provided because command output is used for Cisco internal debugging purposes only.
The following is sample output from the debugpppoeredundancy command from a Cisco 10000 series router standby processor:
Router# debug pppoe redundancy
Nov 22 17:21:11.448: PPPoE HA[0x82000008]: Recreating session: retrieving data
Nov 22 17:21:11.464: PPPoE HA[0x82000008] 9: Session ready to sync data
The following is sample output from the debugpppoeredundancy command from a Cisco 7600 series router active processor.
The following is sample output from the debugpppoeredundancy command from a Cisco 7600 series router standby processor:
Router-stby# debug pppoe redundancy
Dec 17 15:14:37.180: STDBY: PPPoE HA[0xE41B019B]: Recreating session: retrieving data
Dec 17 15:14:37.204: STDBY: PPPoE HA[0xE41B019B] 28039: Session ready to sync data
debug presence
To display debugging information about the presence service, use the debugpresencecommand in privileged EXEC mode. To disable debugging messages, use the no form of this command.
debugpresence
{ all | asnl | errors | event | info | timer | trace | xml }
nodebugpresence
{ all | asnl | errors | event | info | timer | trace | xml }
Syntax Description
all
Displays all presence debugging messages.
asnl
Displays trace event logs in the Application Subscribe Notify Layer (ASNL).
errors
Displays presence error messages.
event
Displays presence event messages.
info
Displays general information about presence service.
timer
Displays presence timer information.
trace
Displays a trace of all presence activities.
xml
Displays messages related to the eXtensible Markup Language (XML) parser for presence service.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.4(11)XJ
This command was introduced.
12.2SX
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
12.4(15)T
This command was integrated into Cisco IOS Release 12.4(15)T.
Examples
The following example shows output from thedebugpresenceasnl command:
Router# debug presence asnl
*Sep 4 07:15:24.295: //PRESENCE:[17]:/presence_get_sccp_status: line is closed
*Sep 4 07:15:24.295: //PRESENCE:[17]:/presence_handle_line_update: line status changes, send NOTIFY
*Sep 4 07:15:24.295: //PRESENCE:[17]:/presence_set_line_status: new line status [busy ]
*Sep 4 07:15:24.299: //PRESENCE:[17]:/presence_asnl_callback: type [5]
*Sep 4 07:15:24.299: //PRESENCE:[17]:/presence_asnl_callback: ASNL_RESP_NOTIFY_DONE
*Sep 4 07:15:24.299: //PRESENCE:[24]:/presence_get_sccp_status: line is closed
*Sep 4 07:15:24.299: //PRESENCE:[24]:/presence_handle_line_update: line status changes, send NOTIFY
*Sep 4 07:15:24.299: //PRESENCE:[24]:/presence_set_line_status: new line status [busy ]
*Sep 4 07:15:24.299: //PRESENCE:[24]:/presence_asnl_callback: type [5]
*Sep 4 07:15:24.299: //PRESENCE:[24]:/presence_asnl_callback: ASNL_RESP_NOTIFY_DONE
*Sep 4 07:15:24.299: //PRESENCE:[240]:/presence_get_sccp_status: line is closed
*Sep 4 07:15:24.299: //PRESENCE:[240]:/presence_handle_line_update: line status changes, send NOTIFY
*Sep 4 07:15:24.299: //PRESENCE:[240]:/presence_set_line_status: new line status [busy ]
*Sep 4 07:15:24.299: //PRESENCE:[766]:/presence_get_sccp_status: line is closed
*Sep 4 07:15:24.299: //PRESENCE:[766]:/presence_handle_line_update: line status changes, send NOTIFY
*Sep 4 07:15:24.299: //PRESENCE:[766]:/presence_set_line_status: new line status [busy ]
*Sep 4 07:15:24.359: //PRESENCE:[766]:/presence_asnl_callback: type [5]
*Sep 4 07:15:24.359: //PRESENCE:[766]:/presence_asnl_callback: ASNL_RESP_NOTIFY_DONE
*Sep 4 07:15:24.811: //PRESENCE:[240]:/presence_asnl_callback: type [5]
*Sep 4 07:15:24.811: //PRESENCE:[240]:/presence_asnl_callback: ASNL_RESP_NOTIFY_DONE
*Sep 4 07:15:26.719: //PRESENCE:[17]:/presence_get_sccp_status: line is open
*Sep 4 07:15:26.719: //PRESENCE:[17]:/presence_handle_line_update: line status changes, send NOTIFY
*Sep 4 07:15:26.719: //PRESENCE:[17]:/presence_set_line_status: new line status [idle ]
*Sep 4 07:15:26.719: //PRESENCE:[17]:/presence_asnl_callback: type [5]
*Sep 4 07:15:26.719: //PRESENCE:[17]:/presence_asnl_callback: ASNL_RESP_NOTIFY_DONE
*Sep 4 07:15:26.719: //PRESENCE:[24]:/presence_get_sccp_status: line is open
*Sep 4 07:15:26.719: //PRESENCE:[24]:/presence_handle_line_update: line status changes, send NOTIFY
*Sep 4 07:15:26.719: //PRESENCE:[24]:/presence_set_line_status: new line status [idle ]
*Sep 4 07:15:26.723: //PRESENCE:[24]:/presence_asnl_callback: type [5]
*Sep 4 07:15:26.723: //PRESENCE:[24]:/presence_asnl_callback: ASNL_RESP_NOTIFY_DONE
The following example shows output from thedebugpresenceeventcommand:
The following example shows output from thedebugpresenceinfocommand:
Router# debug presence info
*Sep 4 07:16:20.887: //PRESENCE:[17]:/presence_handle_line_update: get line status from ccvdbPtr
*Sep 4 07:16:20.887: //PRESENCE:[17]:/presence_get_sccp_status: dn_tag 2
*Sep 4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown element <presence>
*Sep 4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown element <dm:person>
*Sep 4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown element <status>
*Sep 4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown element <e:activities>
*Sep 4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown element <tuple>
*Sep 4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown element <status>
*Sep 4 07:16:20.887: //PRESENCE:[16]:/presence_start_element_handler: line 1: unknown element <e:activities>
*Sep 4 07:16:20.887: //PRESENCE:[0]:/presence_asnl_free_resp:
*Sep 4 07:16:20.887: //PRESENCE:[24]:/presence_handle_line_update: get line status from ccvdbPtr
*Sep 4 07:16:20.887: //PRESENCE:[24]:/presence_get_sccp_status: dn_tag 2
*Sep 4 07:16:20.891: //PRESENCE:[23]:/presence_start_element_handler: line 1: unknown element <presence>
The following example shows output from thedebugpresencetimercommand:
Router# debug presence timer
*Sep 4 07:16:41.271: //PRESENCE:[17]:/presence_asnl_notify_body_handler: expires time 3600
*Sep 4 07:16:41.271: //PRESENCE:[24]:/presence_asnl_notify_body_handler: expires time 3600
*Sep 4 07:16:41.271: //PRESENCE:[240]:/presence_asnl_notify_body_handler: expires time 607
*Sep 4 07:16:41.275: //PRESENCE:[766]:/presence_asnl_notify_body_handler: expires time 602
*Sep 4 07:16:43.331: //PRESENCE:[17]:/presence_asnl_notify_body_handler: expires time 3600
*Sep 4 07:16:43.331: //PRESENCE:[24]:/presence_asnl_notify_body_handler: expires time 3600
*Sep 4 07:16:43.331: //PRESENCE:[240]:/presence_asnl_notify_body_handler: expires time 605
*Sep 4 07:16:43.331: //PRESENCE:[766]:/presence_asnl_notify_body_handler: expires time 600
The following example shows output from thedebugpresencetracecommand:
Enables presence service on the router and enters presence configuration mode.
presenceenable
Allows the router to accept incoming presence requests.
showpresenceglobal
Displays configuration information about the presence service.
showpresencesubscription
Displays information about active presence subscriptions.
debug priority
To display priority queueing output, use the debugprioritycommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugpriority
nodebugpriority
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Examples
The following example shows how to enable priority queueing output:
Router# debug priority
Priority output queueing debugging is on
The following is sample output from the debugpriority command when the Frame Relay PVC Interface Priority Queueing (FR PIPQ) feature is configured on serial interface 0:
To enable debug messages for the Private Hosts feature, use the
debugprivate-hosts command in privileged EXEC mode.
debugprivate-hosts
{ all | events | acl | api }
Syntax Description
all
Enable debug messages for all Private Hosts errors and
events.
events
Enable debug messages for issues related to Private Hosts
events.
acl
Enable debug messages for issues and events related to
ACLs.
api
Enable debug messages for issues related to the application
programming interface.
Command Default
This command has no default settings.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2(33)SRB
This command was introduced.
Examples
The following example shows sample command output:
Router# debug private-hosts all
private-hosts events debugging is on
private-hosts api debugging is on
private-hosts acl debugging is on
Router#
Related Commands
Command
Description
debugfmprivate-hosts
Enables debug messages for the Private Hosts feature
manager.
debug proxy h323 statistics
To enable proxy RTP statistics, use the debugproxyh323statisticscommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugproxyh323statistics
nodebugproxyh323statistics
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Release
Modification
11.3(2)NA
This command was introduced.
Usage Guidelines
Enter theshowproxyh323detail-call EXEC command to see the statistics.
debug pvcd
To display the permanent virtual circuit (PVC) Discovery events and Interim Local Management Interface (ILMI) MIB traffic used when discovering PVCs, use the debugpvcdcommand in privileged EXEC mode. To disable debugging output, use the no form of this command.
debugpvcd
nodebugpvcd
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
This command is primarily used by Cisco technical support representatives.
Examples
The following is sample output from the debugpvcd command:
Router# debug pvcd
PVCD: PVCD enabled w/ Subif
PVCD(2/0): clearing event queue
PVCD: 2/0 Forgetting discovered PVCs...
PVCD: Removing all dynamic PVCs on 2/0
PVCD: Restoring MIXED PVCs w/ default parms on 2/0
PVCD: Marking static PVCs as UNKNWN on 2/0
PVCD: Marking static PVC 0/50 as UNKNWN on 2/0 ...
PVCD: Trying to discover PVCs on 2/0...
PVCD: pvcd_discoverPVCs
PVCD: pvcd_ping
PVCD: fPortEntry.5.0 = 2
PVCD: pvcd_getPeerVccTableSize
PVCD: fLayerEntry.5.0 = 13
PVCD:end allocating VccTable size 13
PVCD: pvcd_getPeerVccTable
PVCD:******* 2/0: getNext on fVccEntry = NULL TYPE/VALUE numFileds = 19 numVccs = 13
PVCD: Creating Dynamic PVC 0/33 on 2/0
PVCD(2/0): Before _update_inheritance() and _create_pvc() VC 0/33: DYNAMIC
PVCD: After _create_pvc() VC 0/33: DYNAMIC0/33 on 2/0 : UBR PCR = -1
PVCD: Creating Dynamic PVC 0/34 on 2/0
PVCD(2/0): Before _update_inheritance() and _create_pvc() VC 0/34: DYNAMIC
PVCD: After _create_pvc() VC 0/34: DYNAMIC0/34 on 2/0 : UBR PCR -1
PVCD: Creating Dynamic PVC 0/44 on 2/0
PVCD(2/0): Before _update_inheritance() and _create_pvc() VC 0/44: DYNAMIC
PVCD: After _create_pvc() VC 0/44: DYNAMIC0/44 on 2/0 : UBR PCR = -1
PVCD: PVC 0/50 with INHERITED_QOSTYPE
PVCD: _oi_state_change ( 0/50, 1 = ILMI_VC_UP )
PVCD: Creating Dynamic PVC 0/60 on 2/0
PVCD(2/0): Before _update_inheritance() and _create_pvc() VC 0/60: DYNAMIC
PVCD: After _create_pvc() VC 0/60: DYNAMIC0/60 on 2/0 : UBR PCR = -1
PVCD: Creating Dynamic PVC 0/80 on 2/0
PVCD(2/0): Before _update_inheritance() and _create_pvc() VC 0/80: DYNAMIC
PVCD: After _create_pvc() VC 0/80: DYNAMIC0/80 on 2/0 : UBR PCR = -1
PVCD: Creating Dynamic PVC 0/99 on 2/0
debug pvdm2dm
To view contents of packets flowing through PVDMII-xxDM digital modem devices, use the
debugpvdm2dm command in privileged EXEC mode. To disable debug activity, use the
no form of this command.
This command is supported in the Cisco IOS Release 12.2SX train. Support in a specific 12.2SX release of this train depends on your feature set, platform, and platform hardware.
Usage Guidelines
To debug the contents of modem packets for a specific modem, use the following command:
debugpvdm2dmpacketmodem<slot>/<port>
By removing the specific modem number at the end, one can enable packet debugging for all the modems available on the router:
The following command enables debugging of packets flowing through any PVDMII-xxDM device:
debugpvdm2dmpacketpvdm
The following command enables debugging of packets flowing through any PVDMII-xxDM device and any PVDMII-xxDM-based modem channel:
debugpvdm2dmpacket
To see what debug flags are set, and to view the contents of debugged packets, use the
showdebugging command.
Examples
The following example sets debugging for a specific modem. The following
showdebugging command displays the debug flag that is set, and gives a typical printout for one debugged packet:
Router# debug pvdm2dm packet modem 0/322
Router# show debugging
PVDM2 DM:
Modem 0/322 packet debugging is on
Router#
May 24 17:35:16.318: pvdm2_dm_tx_dsp_pak_common: bay 0, dsp 0 May 24 17:35:16.318: pvdm2_dm_dump_pak_hex: pak: 43E1F6FC size 8 May 24 17:35:16.318: 00 08 00 00 00 1C 00 00 May 24 17:35:16.322:
The following example sets debugging for all PVDMII-xxDM modems available on the router.
Router# debug pvdm2dm packet
Router# show debugging
PVDM2 DM:
Modem 0/322 packet debugging is on
Modem 0/323 packet debugging is on
Modem 0/324 packet debugging is on
.
.
.
Modem 0/355 packet debugging is on
Modem 0/356 packet debugging is on
Modem 0/357 packet debugging is on
Router#
The following example sets debugging for a particular PVDMII-xxDM device.
Router# debug pvdm2dm packet pvdm 0/0
Router# show debugging
PVDM2 DM:
PVDM2 0/0 packet debugging is on
Router#
The following example sets debugging for all PVDMII-xxDM devices in the router.
Router# debug pvdm2dm packet pvdm
Router# show debugging
PVDM2 DM:
PVDM2 0/0 packet debugging is on
PVDM2 0/1 packet debugging is on
PVDM2 0/2 packet debugging is on
Router#
In all of these examples, the output describing the debugged packets is similar to that of the first example, except that the packet contents will vary.
Related Commands
Command
Description
showdebugging
Displays information about the type of debugging enabled for your router.
debug pw-udp
To debug pseudowire User Datagram Protocol (UDP) virtual circuits (VCs), use the
debugpw-udpcommand in privileged EXEC mode.
debugpw-udp
{ errors | events | fsm }
Syntax Description
errors
Specifies pseudowire UDP errors.
events
Specifies pseudowire UDP events.
fsm
Specifies pseudowire UDP finite state machine (FSM).
Command Default
Debugging for pseudowire UDP VCs is not enabled.
Command Modes
Privileged EXEC (#)
Command History
Release
Modification
15.1(2)S
This command was introduced.
Usage Guidelines
To debug pseudowire UDP VCs, you must configure the
debugpw-udpcommand in conjunction with the following set of
debug commands before configuring Circuit Emulation Service over UDP (CESoUDP):
On both active and standby route processors (RPs):
debugxconnectevent
debugxconnecterror
debugacircuitevent
debugacircuiterror
debugacircuitcheckpoint
debugpw-udpcheckpoint
debugssmcmevents
debugssmcmerrors
debugssmsmerrors
debugssmsmevents
debugssserror
debugsssevent
debugsssfsm
debugcemacevent
debugcemacerror
debugcemhaevent
debugcemhaerror
On the Circuit Emulation over Packet (CeOP) line card:
debugssmcmevents
debugssmcmerrors
debugssmsmerrors
debugssmsmevents
For more information about each of these debug commands, see the Cisco IOS Debug Command Reference Guide.
Examples
The following example shows how to debug pseudowire UDP VCs on the active RP:
Router#
debug xconnect event
Xconnect author event debugging is on
Router#
debug xconnect error
Xconnect author errors debugging is on
Router#
debug acircuit event
Attachment Circuit events debugging is on
Router#
debug acircuit error
Attachment Circuit errors debugging is on
Router#
debug cem ac event
CEM AC Events debugging is on
Router#
debug cem ac error
CEM AC Error debugging is on
Router#
debug cem ha event
CEM redundancy events debugging is on
Router#
debug cem ha error
CEM redundancy error debugging is on
Router#
debug pw-udp event
PW UDP events debugging is on
Router#
debug pw-udp error
PW UDP errors debugging is on
Router#
debug pw-udp fsm
PW UDP fsm debugging is on
Router#
debug ssm cm events
SSM Connection Manager events debugging is on
Router#
debug ssm cm errors
SSM Connection Manager errors debugging is on
Router#
debug ssm sm errors
SSM Segment Handler Manager errors debugging is on
Router#
debug ssm sm events
SSM Segment Handler Manager events debugging is on
Router#
debug sss error
SSS Manager errors debugging is on
Router#
debug sss event
SSS Manager events debugging is on
Router#
debug sss fsm
SSS Manager fsm debugging is on
Router#
00:05:01: STDBY: CEMHA RF: CID 116, Seq 219, Event RF_EVENT_CLIENT_PROGRESSION, Op 7, State STANDBY COLD-BULK, Peer ACTIVE
00:05:01: STDBY: CEMHA CF: CF client 182, entity 0 received msg
00:05:01: STDBY: CEMHA CF: CF client 182, entity 0 received msg
00:05:01: STDBY: CEMHA CF: CF client 182, entity 0 received msg
00:05:01: STDBY: CEMHA CF: CF client 182, entity 0 received msg
00:05:01: STDBY: CEMHA CF: CF client 182, entity 0 received msg
00:05:01: STDBY: CEMHA CF: CF client 182, entity 0 recei
00:05:01: STDBY: CEMHA CF Received Interface Update event=0x10
00:05:01: STDBY: AC CESP[CE4/2/0]: Activated CEM group 0
00:05:01: STDBY: AC CESP[CE4/2/0]: Setup switching of ckt 0
00:05:01: STDBY: AC CESP ERROR[CE4/2/0]: (CEM4/2/0): Setup Switching 0 cannot proceed sw/seg: 0/0, Flag 10, SSM 0
00:05:01: STDBY: AC CESP ERROR[CE4/2/0]: CEM 0 Data switching setup failed
00:05:01: STDBY: CEMHA CF Received T1/E1 Update event=0x20
00:05:01: STDBY: CEMHA CF Received Interface Update event=0x10
00:05:01: STDBY: AC CESP[CE4/2/1]: Activated CEM group 0
00:05:01: STDBY: AC CESP[CE4/2/1]: Setup switching of ckt 0
00:05:01: STDBY: AC CESP ERROR[CE4/2/1]: (CEM4/2/1): Setup Switching 0 cannot proceed sw/seg: 0/0, Flag 10, SSM 0
00:05:01: STDBY: AC CESP ERROR[CE4/2/1]: CEM 0 Data switching setup failed
00:05:01: STDBY: CEMHA CF Received T1/E1 Update event=0x20
00:05:01: STDBY: CEMHA(CEM4/2/1):Decode received VC AC for evtype 8 cem_id = 0,
pw_state = 1, seg 3007, switch 2002, ac_wait_flags = 10 ,is_standby = NO, red_seg 0, red_switch 0
00:05:01: STDBY: CEMHA: cem_id0, before decode sw/segment: 0/0, seg_state = 2, red sw/segment: 0/0
00:05:01: STDBY: SSM SM ID LOCK: [CEM HA:id_lock_util_init:0] locker <ALL>: instance created for <SSM SM ID LOCK>
00:05:01: STDBY: SSM CM[12295]: reserve ID: Locking SSM ID
00:05:01: STDBY: SSM SM ID LOCK: [CEM HA:id_lock:12295] locker <SIP>: count 0 --> 1
00:05:01: STDBY: CEMHA CF Received Interface Update event=0x10
00:05:01: STDBY: AC CESP[CE4/2/1]: Activated CEM group 0
00:05:01: STDBY: CEMHA CF Received T1/E1 Update event=0x20
00:05:01: STDBY: CEMHA CF Received Interface Update event=0x10
00:05:01: STDBY: AC CESP[CE4/2/1]: Activated CEM group 0
00:05:01: STDBY: CEMHA CF Received T1/E1 Update event=0x20
00:05:01: STDBY: CEMHA CF: Received bulk sync complete - sending ack
00:05:01: STDBY: CEMHA: Create CEM Circuit verification Background process...
00:05:01: STDBY: SSM CM: reserve seg(12295) sw(8194) IDs
00:05:01: STDBY: CEMHA : CEM HA Background Process
00:05:02: STDBY: CEMHA: CF sync successfully completed
00:05:03: STDBY: XCL2 CID 119 Seq 224 Event RF_EVENT_CLIENT_PROGRESSION Op 7 State STANDBY COLD-BULK Peer ACTIVE
00:05:03: STDBY: PW UDP HA: HA Coexistence. Skip ISSU Negotiation on standby RP
00:05:06: STDBY: CEM HA: (CEM4/2/0) CEM 0x0 Platform chkpt data has
arrived for cktid=0
00:05:06: STDBY: CEM PW: Remove from WaitQ, ckt_type 19
00:05:06: STDBY: CEM HA: (CEM4/2/1) CEM 0x0 Platform chkpt data has
arrived for cktid=0
00:05:06: STDBY: CEM PW: Remove from WaitQ, ckt_type 19
00:05:06: STDBY: AC CESP[CE4/2/1]: Setup switching of ckt 0
00:05:06: STDBY: AC: [CE4/2/1, 0]: Setup switching
00:05:06: STDBY: AC: [CE4/2/1, 0]: Our AIE EF000002 Peer's AIE 2B000004 Peer's peer 00000000
00:05:06: STDBY: AC: [CE4/2/1, 0]: Using switch hdl 8194
00:05:06: STDBY: SSM CM[12295]: provision segment: standby RP received existing id from active RP
00:05:06: STDBY: AC: [CE4/2/1, 0]: Successfully setup switching API
00:05:06: STDBY: AC: [CE4/2/1, 0]: Allocated segment hdl 12295
00:05:06: STDBY: AC CESP[CE4/2/1]: CKT UP ID: 0
00:05:06: STDBY: AC CESP[CE4/2/1]: Send ACMGR NOTIF, ckt_type 19, ckt_id 0 UP
00:05:06: STDBY: AC: Update seg 12295 plane with circuit Up status
00:05:06: STDBY: SSM SH[12295]: X: alloc sbase 0x500386A0 hdl 3007
00:05:06: STDBY: SSM CM[12295]: [CESoPSN Basic] provision first allocated base now, reserved earlier
00:05:06: STDBY: SSM CM[12295]: CM FSM: st Idle, ev Prov seg->Down
00:05:06: STDBY: SSM SH[12295]: init segment base
00:05:06: STDBY: SSM SH[ADJ:CESoPSN Basic:12295]: init segment class
00:05:06: STDBY: SSM CM[ADJ:CESoPSN Basic:12295]: provision segment 1
00:05:06: STDBY: SSM SM[ADJ:CESoPSN Basic:12295]: Provision segment: Idle -> Prov
00:05:06: STDBY: SSM SM[ADJ:CESoPSN Basic:12295]: provision segment
00:05:06: STDBY: SSM CM[12295]: segment status update Up
00:05:06: STDBY: SSM CM[12295]: CM FSM: st Down, ev Upd seg->Down
00:05:06: STDBY: SSM CM[ADJ:CESoPSN Basic:12295]: update segment status
00:05:06: STDBY: SSM SM[ADJ:CESoPSN Basic:12295]: Update segment: no state change, Prov
00:05:06: STDBY: SSM ADJ[ADJ:CESoPSN Basic:CE4/2/1: Type L:12295]: update segment status: Up
00:05:06: STDBY: SSM ADJ[ADJ:CESoPSN Basic:CE4/2/1: Type L:12295]: ATM Async is supported
00:05:06: STDBY: SSM ADJ[ADJ:CESoPSN Basic:CE4/2/1: Type L:12295]: Platform requesting not to send unready: 1
00:05:06: STDBY: SSM ADJ[ADJ:CESoPSN Basic:CE4/2/1: Type L:12295]: circuit Up event
00:05:06: STDBY: SSM ADJ[ADJ:CESoPSN Basic:CE4/2/1: Type L:12295]: send segment ready
00:05:06: STDBY: SSM CM[12295]: [ADJ] shQ request send ready event
00:05:06: STDBY: ACMGR [CE4/2/1]: Receive <Circuit Status> msg
00:05:06: STDBY: ACMGR [CE4/2/1]: circuit up event, FSP state chg sip up to both up, action is peer p2p up, circuit remote up
00:05:06: STDBY: SSS MGR [uid:4]: Handling peer-to-peer event
00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: receive p2p msg type: circuit status
00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: Success to obtain circuit type 19 from AC Access IE
00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: event local ac up, state changed from provisioned to activating, action local_ac_up
00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: Waiting for vc checkpoint data
00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: Success to obtain circuit type 19 from AC Access IE
00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: event need checkpoint, state changed from activating to checkpoint wait, action clean_up_checkpoint_resource
00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: Cleanup Checkpoint Resources
00:05:06: STDBY: PW UDP MGR [10.1.1.153, 200]: local ac status is changed from none to UP
00:05:06: STDBY: SSM CM[12295]: SM msg event send ready event
00:05:06: STDBY: SSM SM[ADJ:CESoPSN Basic:12295]: segment ready
00:05:06: STDBY: SSM SM[ADJ:CESoPSN Basic:12295]: Found segment data: Prov -> Ready
00:05:07: STDBY: CEMHA RF: CID 116, Seq 219, Event RF_EVENT_CLIENT_PROGRESSION, Op 8, State STANDBY HOT, Peer ACTIVE
00:05:07: STDBY: XCL2 CID 119 Seq 224 Event RF_EVENT_CLIENT_PROGRESSION Op 8 State STANDBY HOT Peer ACTIVE
00:05:07: STDBY: PW UDP HA: HA Coexistence. Skip ISSU Negotiation on standby RP
Related Commands
Command
Description
encapsulation(pseudowire)
Specifies an encapsulation type for tunneling Layer 2 traffic over a pseudowire.
udpport
Configures the UDP port information on the xconnect class.
showpw-udpvc
Displays information about pseudowire UDP VCs.
debug pxf atom
To display debug messages relating to Parallel eXpress Forwarding (PXF) Any Transport over MPLS (AToM), use the debug pxf atom command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfatom
[ ac | mpls ]
nodebugpxfatom
[ ac | mpls ]
Syntax Description
ac
(Optional) Displays AToM information related to attachment circuit (AC) events.
mpls
(Optional) Displays AToM information related to MPLS Forwarding Infrastructure (MFI) events.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2S
This command was introduced.
Examples
The following example shows how to display PXF AToM AC events debug messages:
Router# debug pxf atom ac
PXF ATOM AC debugging is on
Related Commands
Command
Description
showmplsl2transport
Displays information about AToM virtual circuits (VCs) that have been enabled to route Layer 2 packets on a router, including platform-independent AToM status and capabilities of a particular interface.
showmplsl2transportvc
Displays information about AToM VCs that are enabled to route Layer 2 packets on a router.
showpxfcpuatom
Displays PXF AToM information for an interface or VCCI.
showpxfcpumplslabel
Displays PXF forwarding information for a label.
showpxfcpustatisticsatom
Displays PXF CPU AToM statistics.
debug pxf backwalks
To display debug messages relating to Parallel eXpress Forwarding (PXF) backwalk requests, use the debug pxf backwalks command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfbackwalks
nodebugpxfbackwalks
Syntax Description
This command has no arguments or keywords.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2S
This command was introduced.
Examples
The following example shows how to display PXF backwalk requests debug messages:
Router# debug pxf backwalks
PXF BACKWALK debugging is on
Related Commands
Command
Description
showpxfcpustatisticsbackwalk
Displays PXF CPU backwalk requests statistics.
debug pxf bba
To display debug messages relating to Parallel eXpress Forwarding (PXF) Broadband Access Aggregation (BBA) features, use the debug pxf bba command in privileged EXEC mode. To disable the debugging, use the no form of this command.
To display debug messages relating to Parallel eXpress Forwarding (PXF) Cisco Express Forwarding (CEF), use the debug pxf cef command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfcef
[ fibroot | rpf ]
nodebugpxfcef
[ fibroot | rpf ]
Syntax Description
fibroot
Displays PXF CEF Forwarding Information Base (FIB) root information.
The following example shows how to display PXF CEF debug messages:
Router# debug pxf cef
PXF CEF debugging is on
Related Commands
Command
Description
showipcef
Displays summary information about the FIB entries.
showpxfcpucef
Displays PXF CPU memory usage, CEF, and External Column Memory (XCM) information.
debug pxf dma
To display debug messages relating to Parallel eXpress Forwarding
(PXF) direct memory access (DMA) operations, use the debug pxf dma command in
privileged EXEC mode. To disable the debugging, use the no form of this
command.
debugpxfdma
nodebugpxfdma
Syntax Description
This command has no arguments or keywords.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(7)XI
This command was introduced.
12.2(31)SB
This command was integrated into Cisco IOS Release
12.2(31)SB.
Examples
The following example shows how to display PXF DMA ASIC debug
messages:
Displays the current state of the DMA buffers, error
counters, and registers on the PXF.
debug pxf iedge
To display debug messages relating to Parallel eXpress Forwarding (PXF) Intelligent Edge (iEdge) operations, use the debug pxf iedge command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfiedge [stats]
nodebugpxfiedge [stats]
Syntax Description
stats
(Optional) Includes PXF iEdge statistics in the output.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2S
This command was introduced.
Examples
The following example shows how to display PXF iEdge debug messages:
Router# debug pxf iedge
iEdge Feature Debug debugging is on
Related Commands
Command
Description
showpxfcpuiedge
Displays PXF iEdge information for an interface or policy.
debug pxf ipv6
To display debug messages relating to Parallel eXpress Forwarding (PXF) IPv6 provisioning, use the debug pxf ipv6 command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfipv6
[ acl | fib | hash ]
nodebugpxfipv6
[ acl | fib | hash ]
Syntax Description
acl
(Optional) Displays PXF IPv6 access control list (ACL) information.
fib
(Optional) Displays PXF Forwarding Information Base (FIB) information.
hash
(Optional) Displays PXF IPv6 hash information.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2S
This command was introduced.
Examples
The following example shows how to display PXF IPv6 ACL debug messages:
Router# debug pxf ipv6 acl
PXF IPV6 ACL debugging is on
Related Commands
Command
Description
showipv6interface
Displays IPv6 interface settings.
showipv6route
Displays IPv6 routing table contents.
showpxfcpuipv6
Displays PXF CPU IPv6 statistics.
debug pxf l2less-error
To display debug messages relating to Parallel eXpress Forwarding (PXF) Layer 2 Less (L2less) drop packet errors, use the debug pxf l2less-error command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfl2less-error
nodebugpxfl2less-error
Syntax Description
This command has no arguments or keywords.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(7)XI
This command was introduced.
Usage Guidelines
The Route Processor (RP) uses the L2less packet handler to handle tunneling encapsulated packets that do not have the original IP and Layer 2 information associated with them. The L2less handler takes the packet with a specific header, updates the statistics (interface packet and byte counts), and enqueues the packet to the IP input queue.
Examples
The following example shows how to display PXF L2less drop packet errors debug messages:
Router# debug pxf l2less-error
PXF l2less-error debugging is on
Related Commands
Command
Description
showpxfstatistics
Displays chassis-wide, summary PXF statistics.
debug pxf microcode
To display debug message relating to Parallel eXpress Forwarding (PXF) microcode operations, use the debug pxf microcode command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfmicrocode
nodebugpxfmicrocode
Syntax Description
This command has no arguments or keywords.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(7)XI
This command was introduced.
Examples
The following example shows how to display PXF microcode debug messages:
Router# debug pxf microcode
PXF microcode debugging is on
Related Commands
Command
Description
microcodereload
Reloads the Cisco IOS image from a line card on a Cisco router.
showpxfmicrocode
Displays identifying information for the microcode currently loaded on the PXF.
debug pxf mnode
To display debug messages relating to Parallel eXpress Forwarding (PXF) multiway node (mnode) operations, use the debug pxf mnode command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfmnode
nodebugpxfmnode
Syntax Description
This command has no arguments or keywords.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2S
This command was introduced.
Usage Guidelines
The mnodes are used in the multiway tree (Mtrie) library. Each mnode has a number of buckets that point to lower level mnodes or to multiway leaves (mleaves). The mleaves can be null leaves which indicate empty buckets.
Examples
The following example shows how to display PXF mnode debug messages:
Router# debug pxf mnode
PXF MNODE debugging is on
Related Commands
Command
Description
showpxfcpucef
Displays PXF CPU memory usage, Cisco Express Forwarding, and XCM information.
debug pxf mpls
To display debug messages relating to Parallel eXpress Forwarding (PXF) Multiprotocol Label Switching (MPLS) operations, use the debug pxf mpls command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfmpls
[ csc
{ event | stats } | lspv ]
nodebugpxfmpls
[ csc
{ event | stats } | lspv ]
Syntax Description
csc {event | stats}
(Optional) Displays PXF Cisco Signaling Controller (CSC) events and statistics.
lspv
Displays Link State Path Vector (LSPV) debug messages from the PXF MPLS Label Switched Path (LSP) Ping/Traceroute feature.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2S
This command was introduced.
Examples
The following example shows how to display PXF MPLS CSC statistics debug messages:
Router# debug pxf mpls csc stats
PXF MPLS CSC STATS debugging is on
Related Commands
Command
Description
pingmpls
Checks MPLS LSP connectivity.
showmplsinterfaces
Displays information about the interfaces that have been configured for label switching.
showpxfcpumpls
Displays PXF MPLS (FIB) entry information.
tracempls
Discovers MPLS LSP routes that packets will take when traveling to their destinations.
debug pxf mroute
To display debug messages relating to Parallel eXpress Forwarding (PXF) multicast route (mroute) operations, use the debug pxf mroute command in privileged EXEC mode. To disable the debugging, use the no form of this command.
The following example shows how to display PXF multicast distribution tree (MDT) debug messages:
Router# debug pxf mroute mdt
PXF mroute mdt creation debugging is on
Related Commands
Command
Description
clearipmroute
Deletes entries from the IP multicast routing table.
showipmroute
Displays the contents of the IP multicast routing table.
showpxfcpumroute
Displays PXF multicast routing information for a particular group or range of groups.
debug pxf multilink
To display debug messages relating to Parallel eXpress Forwarding (PXF) multilink operations, use the debug pxf multilink command in privileged EXEC mode. To disable the debugging, use the no form of this command.
The following example shows how to display PXF multilink ATM debug messages:
Router# debug pxf multilink atm
Router#
Related Commands
Command
Description
frame-relayfragment
Enables fragmentation of Frame Relay frames on a Frame Relay map class.
showpppmultilink
Displays bundle information for the MLP bundles.
showpxfstatistics
Displays chassis-wide, summary PXF statistics.
debug pxf netflow
To enable debugging of NetFlow Parallel eXpress Forwarding (PXF )operations, use the debug pxf netflow command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfnetflow
{ records | time }
nodebugpxfnetflow
{ records | time }
Syntax Description
records
Displays NetFlow PXF records information.
time
Displays NetFlow PXF time synchronization information.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(7)XI
This command was introduced.
Examples
The following example enables NetFlow PXF records debugging:
Router# debug pxf netflow records
PXF netflow records debugging is on
Router#
Related Commands
Command
Description
showpxfnetflow
Displays NetFlow PXF counters information.
debug pxf pbr
To display debug messages relating to Parallel eXpress Forwarding (PXF) policy-based routing (PBR), use the debug pxf pbr command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfpbr
[ sacl | trace ]
nodebugpxfpbr
[ sacl | trace ]
Syntax Description
sacl
(Optional) Displays PXF PBR super access control list (ACL) messages.
trace
(Optional) Displays PXF PBR trace information.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2S
This command was introduced.
Examples
The following example shows how to display PXF PBR trace debug messages:
Router# debug pxf pbr trace
PXF PBR Trace debugging is on
Related Commands
Command
Description
showpxfcpupbraction
Displays the PBR actions configured on the PXF for all PBR route maps.
debug pxf qos
To display debug messages relating to Parallel eXpress Forwarding (PXF) quality of service (QoS) operations, use the debug pxf qos command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfqos
[ ipc | trace ]
nodebugpxfqos
[ ipc | trace ]
Syntax Description
ipc
(Optional) Displays PXF QoS interprocess communication (IPC) information.
trace
(Optional) Displays PXF QoS trace information
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.2S
This command was introduced.
Examples
The following example shows how to display PXF QoS IPC debug messages:
Displays External Column Memory (XCM) contents related to a particular policy.
showpxfstatistics
Displays chassis-wide, summary PXF statistics.
debug pxf stats
To display debug messages relating to Parallel eXpress Forwarding (PXF) statistics collector events, use the debug pxf stats command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfstats
nodebugpxfstats
Syntax Description
This command has no arguments or keywords.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(7)XI
This command was introduced.
Examples
The following example shows how to display PXF statistics debug messages:
Router# debug pxf stats
PXF hardware statistics debugging is on
Related Commands
Command
Description
clearpxf
Clears PXF counters and statistics.
showpxfcpustatistics
Displays PXF CPU statistics.
showpxfstatistics
Displays chassis-wide, summary PXF statistics.
debug pxf subblocks
To display debug messages relating to Parallel eXpress Forwarding (PXF) bridged subinterfaces (encapsulation types), use the debug pxf subblocks command in privileged EXEC mode. To disable the debugging, use the no form of this command.
debugpxfsubblocks
nodebugpxfsubblocks
Syntax Description
This command has no arguments or keywords.
Command Default
Disabled (debugging is not enabled).
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(7)XI
This command was introduced.
Examples
The following example shows how to display PXF bridged subinterfaces (encapsulation type) debug messages:
Router# debug pxf subblocks
PXF hardware subblock debugging is on
Related Commands
Command
Description
showpxfcpustatistics
Displays PXF CPU statistics.
showpxfcpusubblocks
Displays PXF CPU statistics for bridged subinterfaces (encapsulation types).
debug pxf tbridge
To enable debugging of Parallel eXpress Forwarding (PXF) transparent bridging, use the debugpxftbridgecommand in privileged EXEC mode. To disable debugging for the PXF transparent bridge, use the no form of this command.
debugpxftbridge
nodebugpxftbridge
Syntax Description
This command has no arguments or keywords.
Command Default
Debugging is not enabled.
Command Modes
Privileged EXEC
Command History
Release
Modification
12.3(14)T
This command was introduced.
12.2(31)SB
This command was integrated into Cisco IOS Release 12.2(31)SB and implemented on the Cisco 10000 series router.
Examples
The following sample output from the debugpxftbridgecommand shows that the Bridge Group Virtual Interface (BVI) 100 has been removed from the Software Mac-address Filter (SMF) table:
Router# debug pxf tbridge
*Feb 8 18:39:04.710: rpmxf_tbridge_add_remove_bvi_from_smf: Deleting BVI entry 100 from SMF table.
*Feb 8 18:39:04.710: rpmxf_tbridge_add_remove_bvi_from_smf: BVI 100 ICM programming
*Feb 8 18:39:04.710: rpmxf_tbridge_add_remove_bvi_from_smf: Successfully removed SMF entry for bvi 100
*Feb 8 18:39:04.710: rpmxf_tbridge_add_remove_bvi_from_smf: Deleting BVI entry 100 from SMF table.
*Feb 8 18:39:04.710: rpmxf_tbridge_add_remove_bvi_from_smf: BVI 100 ICM programming
*Feb 8 18:39:04.710: rpmxf_tbridge_add_remove_bvi_from_smf: Successfully removed SMF entry for bvi 100
*Feb 8 18:39:05.178: %SYS-5-CONFIG_I: Configured from console by vty0
(CROI_MASTER_000A004B)
*Feb 8 18:39:06.710: %LINK-5-CHANGED: Interface BVI100, changed state to administratively down
*Feb 8 18:39:07.710:%LINEPROTO-5-UPDOWN: Line protocol on Interface BVI100, changed state to down
The following sample output from the debugpxftbridge command shows that BVI is configured and that the SMF entry has been updated:
Router# debug pxf tbridge
*Feb 8 18:39:16.398:
Note: A random mac address of 0000.0ceb.c0f8 has been chosen for BVI in bridge group 100 since there is no mac address associated with the selected interface.
*Feb 8 18:39:16.398: Ensure that this address is unique.
*Feb 8 18:39:16.398: rpmxf_tbridge_smf_update: SMF update for Switch1.1: BVI 100 Mac Address 0000.0ceb.c0f8
*Feb 8 18:39:16.398: rpmxf_tbridge_smf_update: BVI 100 ICM programming
*Feb 8 18:39:16.398: rpmxf_tbridge_smf_update: Successfully updated SMF entry for bvi 100
*Feb 8 18:39:16.398: rpmxf_tbridge_smf_update: SMF update for Switch1.1:
BVI 100 Mac Address 0000.0ceb.c0f8
*Feb 8 18:39:16.398: rpmxf_tbridge_smf_update: BVI 100 ICM programming
*Feb 8 18:39:16.398: rpmxf_tbridge_smf_update: Successfully updated SMF entry for bvi 100
*Feb 8 18:39:16.886: %SYS-5-CONFIG_I: Configured from console by vty0
(CROI_MASTER_000A004B)
*Feb 8 18:39:18.394: %LINK-3-UPDOWN: Interface BVI100, changed state to up
*Feb 8 18:39:19.394: %LINEPROTO-5-UPDOWN: Line protocol on Interface BVI100, changed state to up
Related Commands
Command
Description
showpxfcpustatistics
Displays PXF CPU statistics for a configured router.
showpxfcpusubblock
Displays PXF CPU subblocks for a bridged subinterface.
showpxfcputbridge
Displays PXF CPU statistics for transparent bridging.
