Introduction
The Cisco® Next Generation Enterprise WAN (NGEW) is a Cisco end-to-end architecture that provides foundation building blocks for next-generation enterprise networks. The hierarchical design provides the scalability required by large enterprises and can be extended and replicated throughout multiple regions and theaters. This consistency leads to ease of deployment, maintenance, and troubleshooting.
This guide will build upon the NGEW Deployment Guide and offer some best practice guidelines for configuring some of the features used in NGEW including combinations of Performance Routing (PfR) Target Discovery, Application Visibility and Control (AVC), and Wide Area Application Services (WAAS).
For the purposes of this guide, it is assumed the reader is familiar with the NGEW Regional WAN (RWAN) architecture. This guide also relies on the basic RWAN architecture shown in Figure 1 with most of the focus on the ultra-high-end and high-end branch offices. For more information about NGEW and the RWAN architecture, please refer to the Next Generation Enterprise WAN Deployment Guide.

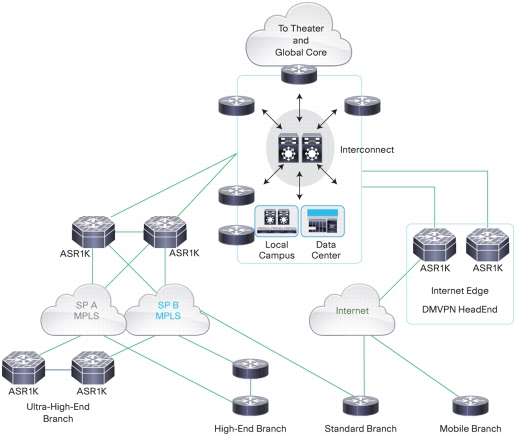

Figure 1. RWAN Architecture
The topology of the ultra-high-end and high-end branch-office routers as well as the aggregation routers is shown in Figure 2. The router naming convention also follows that shown in the figure.
Figure 2. Ultra-high-end and high-end branch RWAN
NGEW PfR Target Discovery
Performance Routing (PfR) Target Discovery offers an improvement in managing traffic across enterprise branch-office networks by automating the identification and configuration of IP Service Level Agreement (IP SLA) responders and optimizing the use of PfR active probes. PfR Target Discovery v1.0 allows master controller (MC) peering and uses Service Routing (SR) through EIGRP Service Advertisement Framework (SAF) to advertise, discover, and auto-configure IP SLA responders and associated destination IP prefixes, allowing for a more flexible, scalable solution.
For more information about PfR in NGEW, please refer to the PfR Supplemental Guide. For more information about PfR Target Discovery in general, please refer to the PfR Target Discovery Configuration Guide.
For the NGEW deployment, PfR Target Discovery can be used to reroute critical traffic such as voice and video through a less-congested link, while relegating less critical traffic to a secondary link, as seen in the sample configuration that follows.
Configuring PfR Target Discovery on Aggregation Routers at the Headend
Configurations for Aggregation Router AGG1
Step 1. Configure keychain for authentication.
Step 2. Configure PfR master control peering.
Step 3. Enable PfR master controller and border router function.
Step 4. Enable traffic learning.
Step 5. Create an IP prefix list of target prefixes for active probes or learn list.
Step 6. Configure PfR Target Discovery.
Step 7. Define the PfR policy map.
Step 8. Define the global policy to load balance the rest of the traffic.
Access control lists (ACLs) used in the global policy correspond to the following:
Configurations for Aggregation Router AGG2
Step 1. Configure keychain for authentication.
Step 2. Enable PfR Border Router functions on AGG2.
Configuring PfR Target Discovery on Branch-Office Routers
Configurations for Ultra-High-End Branch-Office Router BR1-A
Note: This same configuration can be used for high-end branch-office router BR2-A by replacing the ASR interface commands that follow with the corresponding Cisco Integrated Services Routers Generation 2 (ISR G2) interfaces.
Step 1. Configure keychain for authentication.
Step 2. Configure PfR master control peering.
Step 3. Enable PfR master controller and border router function.
Step 4. Enable traffic learning.
Step 5. Create an IP prefix list of target prefixes for active probes or learn list.
|
ip prefix-list ipfx seq 5 permit 10.105.8.0/24
ip prefix-list tgt seq 5 permit 10.105.10.1/32
ip prefix-list ipfx seq 10 permit 10.105.9.0/24
ip prefix-list tgt seq 10 permit 10.105.10.2/32
|
Step 6. Configure PfR Target Discovery.
Step 7. Define the PfR policy map.
Step 8. Define the global policy to load balance the rest of the traffic.
ACLs used in the global policy correspond to the following:
For more detailed information on QoS for video and other traffic, please refer to the Enterprise QoS Solution Design Guide.
Configurations for Ultra-High-End Branch-Office Router BR1-B
Note: This same configuration can be used for high-end branch-office router BR2-B by replacing the ASR interface commands that follow with the corresponding ISR G2 interfaces.
Step 1. Configure keychain for authentication.
Step 2. Enable PfR border router functions on BR1-B.
NGEW PfR with WAAS
PfR can be enabled with WAAS for routing and WAN optimization, but special consideration should be taken when enabling both features on ASRs.
When WAAS Web Cache Control Protocol (WCCP) sessions are established between the router and WAAS, tunnel interfaces are created as seen in the show tunnel groups command that follows.
Because PfR requires defining interfaces as "internal" or "external", you must add the tunnel interfaces created from the WCCP session establishments to the interface list under the PfR master controller configuration. These tunnel interfaces should be added as "internal" interfaces. The resulting configuration will look similar to the following (building on configurations from step 2 of "Configurations for Ultra-High-End Branch Router BR1-A" earlier in this document).
This manual interface addition is not required when configuring PfR and WAAS on ISR G2 branch-office routers.
NGEW PfR with AVC
One of the advantages of AVC is its next-generation Deep-Packet Inspection (DPI) technology, Network-Based Application Recognition 2 (NBAR2), which can identify more than 1000 application protocols. You can take advantage of the new NBAR2 applications with PfR by using NBAR2 or quality of service (QoS) on the ingress interface to mark the desired application traffic with differentiated services code point (DSCP) so that the application is learned through NBAR. This process is summarized in Figure 3.

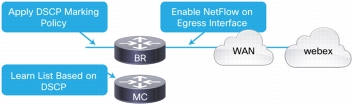

Figure 3. DSCP marking for application learning
The following sample configuration shows a service policy marking cloud traffic with DSCP AF41 being applied to the LAN interface.
Now set up a PfR policy to act upon the DSCP. Here, we create a PfR learn list based on the DSCP.
|
pfr master
learn
list seq 10 refname AF41_TRAFFIC
traffic-class access-list af41-acl
aggregation-type prefix-length 32
throughput
ip access-list extended af41-acl
permit tcp any any af41
|
The current caveat with this solution is that to track flow performance, PfR uses ingress NetFlow, which would happen before the QoS marks the traffic. The workaround here is to first remove NetFlow from the PfR border command, thereby disabling the ingress NetFlow enabled by default by PfR. Next, enable the egress NetFlow to learn the marked traffic by applying both ip flow ingress and ip flow egress on the WAN interface.
For a list of supported NBAR2 protocols, use the ip match protocol ? command or refer to the NBAR2 Protocol Library.
NGEW AVC with WAAS
With the NGEW architecture, you can take advantage of both AVC and WAAS WAN optimization. However, because WAN optimization occurs first, NBAR may not be able to properly see application traffic after WAAS is applied. The solution, explained in more detail as follows, is to use QoS without NBAR on the outbound interface, while enabling NBAR on the inbound or LAN interface only. Figure 4 summarizes this concept.

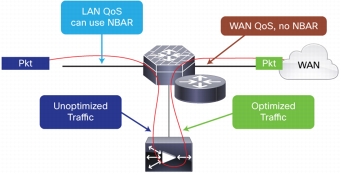

Figure 4. AVC and WAAS WAN optimization with QoS and NBAR
Start by configuring NBAR as usual.
Set the DSCP value for the traffic.
|
policy-map lan-remark
class cloud-collaboration-app
set dscp cs4
class enterprise-app
set dscp af41
class recreational-app
set dscp 0
class unwanted-app
drop
|
Apply NBAR to the LAN or inbound interface only. WAAS will preserve the DSCP markings.
On the outbound or egress interface, enable WAN QoS only, without NBAR.
