Currently Group Domain of Interpretation (GDOI) encryption is not supported for direct IPv6 data traffic. However, you can use GDOI encryption on IPv6 packets by applying the cryptography map on the physical interface with an IPv4 address and using IPv6 tunnels between the group members. IPv6 tunnels can be either 6to4 tunnels or multipoint generic routing encapsulation (mGRE) dynamic multipoint VPN (DMVPN) tunnels.
You can deploy a 6to4 tunnel with simple configuration; it is highly scalable to secure IPv6 traffic over an IPv4 network when compared with mGRE tunnels. 6to4 tunnels are not dependent on other protocols, so a 6to4 tunnel is the preferred solution.
GDOI Encryption on IPv6 Traffic Using mGRE DMVPN Tunnels
Basic hub-and-spoke topology with DMVPN for tunneling IPv6 packets in IPv4 GRE tunnels is used for GDOI encryption. Group Encrypted Transport VPN is used for securing all the IPv4 data, including the tunneled IPv6 packets, by applying the cryptography map on the physical interface.
DMVPN tunnels are dynamically created and a new spoke could be added in the future with no changes on the hub. When native IPv6 is supported by Group Encrypted Transport VPN, you can remove the DMVPN tunnel to make the migration easier.
Figure 1 shows the final packet under this solution. The blue portion gets encrypted by Group Encrypted Transport VPN.
Figure 1. Packet Encapsulation Using IPv6 mGRE DMVPN Tunnels

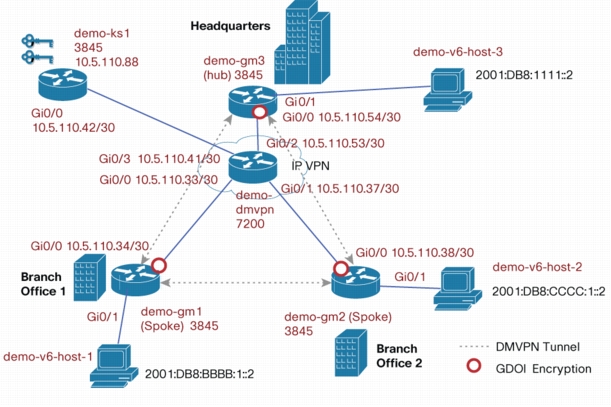

DMVPN Solution Test Setup Topology
Solution test setup consists of two DMVPN spoke routers, demo-gm1 and demo-gm2, located in branch offices and one DMVPN hub router, demo-gm3, located at headquarters. Demonstration setup also includes one key server, demo-ks1. The multicast rekey method is used. For the testing, "demo-dmvpn" simulates the IP VPN network. Cisco® 3845 Integrated Services Router platforms running the Cisco IOS® Software 12.4(22)T IOS image are used.
The Enhanced IGRP (EIGRP) routing protocol is used for DMVPN. Provider equipment uses the Border Gateway Protocol (BGP) routing protocol.
Configuring DMVPN for IPv6
The following explains how to configure DMVPN hub-and-spoke routers for IPv6. It covers only the necessary configuration for enabling DMVPN and IPv6. This configuration is a sample configuration; you should customize it to your correct corporate subnets and servers. Figure 2 shows the topology for testing. Corporate LAN v6 prefix: 2001:db8:1111::/64
• Spoke-side LAN v6 prefixes: 2001:db8:BBBB::/48 and 2001:db8:CCCC::/48
• DMVPN v6 tunnel prefix: 2001:db8:AAAA::/64
Figure 2. Topology Diagram for Using mGRE 6to4 Tunnels
Hub Router demo-gm3 Configuration
The configuration used in demo-gm3 follows:
hostname demo-gm3
!
ip dhcp pool demo
network 10.5.110.216 255.255.255.248
default-router 10.5.110.217
!
ip multicast-routing
ip igmp ssm-map enable
!!! Enable IPv6 unicast routing !!!
ipv6 unicast-routing
!
! IKE policy used for GETVPN
crypto isakmp policy 1
encr 3des
authentication pre-share
group 2
!
!!! Preshared Key (PSK) for the KS !!!
crypto isakmp key dGvPnPsK address 10.5.110.88
!
! GDOI group configuration
crypto gdoi group GETVPN-DEMO
identity number 1357924756
server address ipv4 10.5.110.88
!
! Crypto map for GDOI
crypto map demo-gdoi 1 gdoi
set group GETVPN-DEMO
!
interface GigabitEthernet0/0
description connected to demo_dmvpn
ip address 10.5.110.54 255.255.255.252
ip pim sparse-mode
crypto map demo-gdoi
!
!!! Enable IPv6 on upstream IF (connecting to corporate network) & IPv6 Host-3 !!!
interface GigabitEthernet0/1
no ip address
ip pim sparse-mode
no autostate
!!! Configure IPv6 address
ipv6 address 2001:DB8:1111::1/64
!!! Auto-generate a link-local address !!!
ipv6 enable
!!! Enable EIGRP on the interface !!!
ipv6 eigrp 6
!
! DMVPN mGRE tunnel configuration
interface Tunnel5
bandwidth 2000
ip address 64.0.0.1 255.255.255.0
no ip redirects
ip mtu 1400
ip pim nbma-mode
ip pim sparse-dense-mode
ip nhrp map multicast dynamic
ip nhrp network-id 100000
ip nhrp redirect
ip tcp adjust-mss 1360
no ip split-horizon eigrp 44
delay 2000
ipv6 address 2001:DB8:AAAA::1/64
ipv6 enable
ipv6 mtu 1400
ipv6 eigrp 6
!!! Summary address used in DMVPN Phase 3 !!!
no ipv6 split-horizon eigrp 6
ipv6 summary-address eigrp 6 2001:DB8:BBBB::/48 5
ipv6 summary-address eigrp 6 2001:DB8:CCCC::/48 5
ipv6 nhrp map multicast dynamic
ipv6 nhrp network-id 6000
ipv6 nhrp redirect
qos pre-classify
tunnel source GigabitEthernet0/0
tunnel mode gre multipoint
tunnel key 100000
!
interface Vlan10
ip address 10.5.110.217 255.255.255.248
ip pim sparse-mode
ip igmp join-group 239.192.1.190 source 10.5.110.88
no autostate
!
ipv6 router eigrp 6
no shutdown
!
router eigrp 44
redistribute static
network 10.5.110.216 0.0.0.7
network 64.0.0.0 0.0.0.255
no auto-summary
!
router bgp 400
no synchronization
bgp log-neighbor-changes
neighbor 10.5.110.53 remote-as 900
no auto-summary
! overlay routing
ip route 10.5.110.32 255.255.255.252 10.5.110.53
ip route 10.5.110.36 255.255.255.252 10.5.110.53
!
! SSM configuration needed for receiving rekeys via multicast
! 1 is the ACL number
ip pim ssm range 1
!
access-list 1 permit 239.192.0.0 0.0.255.255
Spoke Router demo-gm1 Configuration
The configuration used in demo-gm1 follows:
!
hostname demo-gm1
!
ip dhcp pool demo
network 10.5.110.200 255.255.255.248
default-router 10.5.110.201
!
ip multicast-routing
ip igmp ssm-map enable
!!! Enable IPv6 unicast routing !!!
ipv6 unicast-routing
! IKE policy
crypto isakmp policy 1
encr 3des
authentication pre-share
group 2
crypto isakmp key dGvPnPsK address 10.5.110.88 ! Pre-shared key
!
! GDOI group config
crypto gdoi group GETVPN-DEMO
identity number 1357924756
server address ipv4 10.5.110.88
!
! crypto map for GDOI
crypto map demo-gdoi 1 gdoi
set group GETVPN-DEMO
!
! DMVPN mGRE configuration
interface Tunnel10
bandwidth 2000
ip address 64.0.0.2 255.255.255.0
no ip redirects
ip mtu 1400
ip flow ingress
ip pim sparse-dense-mode
ip nhrp map multicast 10.5.110.54
ip nhrp map 64.0.0.1 10.5.110.54
ip nhrp network-id 100000
ip nhrp holdtime 300
ip nhrp nhs 64.0.0.1
ip nhrp shortcut
ip nhrp redirect
ip tcp adjust-mss 1360
delay 2000
!!! Tunnel IPv6 unicast address !!!
ipv6 address 2001:DB8:AAAA::2/64
ipv6 enable
ipv6 mtu 1400
ipv6 eigrp 6
!!! The NBMA address is IPv4 only !!!
ipv6 nhrp map multicast 10.5.110.54
ipv6 nhrp map 2001:DB8:AAAA::1/64 10.5.110.54
ipv6 nhrp network-id 6000
ipv6 nhrp nhs 2001:DB8:AAAA::1
ipv6 nhrp shortcut
ipv6 nhrp redirect
qos pre-classify
tunnel source GigabitEthernet0/0
tunnel mode gre multipoint
tunnel key 100000
!
interface GigabitEthernet0/0
description connected to demo_dmvpn
ip address 10.5.110.34 255.255.255.252
ip pim sparse-mode
crypto map demo-gdoi
!
interface GigabitEthernet0/1
description Connected to Host-1
no ip address
ip flow ingress
ip pim sparse-mode
ipv6 address 2001:DB8:BBBB:1::1/64
ipv6 enable
ipv6 eigrp 6
!
interface Vlan10
ip address 10.5.110.201 255.255.255.248
ip pim sparse-mode
ip igmp join-group 239.192.1.190 source 10.5.110.88
no autostate
!
ipv6 router eigrp 6
no shutdown
!
router eigrp 44
network 10.5.110.200 0.0.0.7
network 64.0.0.0 0.0.0.255
auto-summary
!
router bgp 200
no synchronization
bgp log-neighbor-changes
neighbor 10.5.110.33 remote-as 900
no auto-summary
!
! overlay routing for DMVPN tunnel
ip route 0.0.0.0 0.0.0.0 10.5.110.33
!
! SSM configuration to receive multicast rekeys
ip pim ssm range 1 ! 1 is ACL number
access-list 1 permit 239.192.0.0 0.0.255.255
Spoke Router demo-gm2 Configuration
The configuration used in demo-gm2 follows:
!
hostname demo-gm2
!
ip dhcp pool demo
network 10.5.110.208 255.255.255.248
default-router 10.5.110.209
!
ip multicast-routing
ip igmp ssm-map enable
!!! Enable IPv6 unicast routing !!!
ipv6 unicast-routing
! IKE policy
crypto isakmp policy 1
encr 3des
authentication pre-share
group 2
crypto isakmp key dGvPnPsK address 10.5.110.88 ! Pre-shared key
!
! GDOI group config
crypto gdoi group GETVPN-DEMO
identity number 1357924756
server address ipv4 10.5.110.88
!
! crypto map for GDOI
crypto map demo-gdoi 1 gdoi
set group GETVPN-DEMO
!
interface Tunnel10
bandwidth 2000
ip address 64.0.0.3 255.255.255.0
no ip redirects
ip mtu 1400
ip pim sparse-dense-mode
ip nhrp map multicast 10.5.110.54
ip nhrp map 64.0.0.1 10.5.110.54
ip nhrp network-id 100000
ip nhrp holdtime 300
ip nhrp nhs 64.0.0.1
ip nhrp shortcut
ip nhrp redirect
ip tcp adjust-mss 1360
delay 2000
!!! Tunnel IPv6 unicast address !!!
ipv6 address 2001:DB8:AAAA::3/64
ipv6 enable
ipv6 mtu 1400
ipv6 eigrp 6
!!! The NBMA address is IPv4 only !!!
ipv6 nhrp map multicast 10.5.110.54
ipv6 nhrp map 2001:DB8:AAAA::1/64 10.5.110.54
ipv6 nhrp network-id 6000
ipv6 nhrp nhs 2001:DB8:AAAA::1
ipv6 nhrp shortcut
ipv6 nhrp redirect
qos pre-classify
tunnel source GigabitEthernet0/0
tunnel mode gre multipoint
tunnel key 100000
!
interface GigabitEthernet0/0
description connected to demo_dmvpn
ip address 10.5.110.38 255.255.255.252
ip pim sparse-mode
crypto map demo-gdoi
!
interface GigabitEthernet0/1
description Connected to Host-2
no ip address
ip flow ingress
ip pim sparse-mode
ipv6 address 2001:DB8:CCCC:1::1/64
ipv6 enable
ipv6 eigrp 6
!
interface Vlan10
ip address 10.5.110.209 255.255.255.248
ip pim sparse-mode
ip igmp join-group 239.192.1.190 source 10.5.110.88
no autostate
!
ipv6 router eigrp 6
no shutdown
!
router eigrp 44
network 10.5.110.208 0.0.0.7
network 64.0.0.0 0.0.0.255
auto-summary
!
router bgp 300
no synchronization
bgp log-neighbor-changes
neighbor 10.5.110.37 remote-as 900
no auto-summary
!
! overlay routing for DMVPN tunnel
ip route 0.0.0.0 0.0.0.0 10.5.110.37
!
! SSM configuration to receive multicast rekeys
ip pim ssm range 1 ! 1 is ACL number
access-list 1 permit 239.192.0.0 0.0.255.255
Key Server demo-ks1 Configuration
The configuration used in demo-ks1 follows:
!
hostname demo-ks1
! IKE Policy
crypto isakmp policy 1
encr 3des
authentication pre-share
group 2
! Preshared keys
crypto isakmp key dGvPnPsK address 10.5.110.34
crypto isakmp key dGvPnPsK address 10.5.110.54
crypto isakmp key dGvPnPsK address 10.5.110.38
! Crypto GDOI attributes
crypto ipsec profile getvpn-profile
set security-association lifetime seconds 900 ! TEK lifetime
set transform-set aes128
!
crypto gdoi group GETVPN-DEMO
identity number 1357924756 ! group id
server local ! Key server
rekey algorithm aes 128 ! rekey algorithm
rekey lifetime seconds 28800 ! KEK lifetime
rekey authentication mypubkey rsa rekeyrsa ! rekey Authentication
rekey transport unicast ! unicast rekey method
sa ipsec 1 ! security association
profile getvpn-profile ! Crypto attribute selection
match address ipv4 sa-acl ! Encryption Policy
replay time window-size 5 ! Replay time window size
address ipv4 10.5.110.88 ! KS address
! KS address used for sending rekeys
interface Loopback0
ip address 10.5.110.88 255.255.255.255
!
interface GigabitEthernet0/0
description Connected to demo-dmvpn
ip address 10.5.110.42 255.255.255.252
!
router bgp 800
no synchronization
bgp log-neighbor-changes
network 10.5.110.40 mask 255.255.255.252
network 10.5.110.88 mask 255.255.255.255
neighbor 10.5.110.41 remote-as 900
no auto-summary
! GDOI Encryption policy
ip access-list extended sa-acl
deny udp any eq 848 any eq 848 ! GDOI in clear
deny tcp any any eq ssh ! Secure Shell control traffic in clear
deny tcp any eq ssh any ! Secure Shell control traffic in clear
deny esp any any ! Exclude ESP traffic (GRE+IPSec)
deny tcp any eq bgp any ! Exclude BGP
deny tcp any any eq bgp ! Exclude BGP
deny udp any eq isakmp any eq isakmp ! Exclude IKE control traffic
deny eigrp any any ! Exclude EIGRP control traffic
deny igmp any any ! Exclude IGMP
deny pim any 224.0.0.13 ! Exclude PIM control
deny ip any 224.0.0.0 0.0.255.255 ! Exclude link-layer control protocols
deny udp any any eq ntp ! Exclude NTP
deny udp any any eq snmp ! Exclude SNMP
deny udp any any eq syslog ! Exclude syslog
permit ip any any ! Encrypt everything else
!
ip pim ssm range 1 ! need for multicast rekey. 1 is ACL number.
!
ip access-list extended dgvpn-rekey-multicast-group
permit ip any host 239.192.1.190
!
access-list 1 permit 239.192.0.0 0.0.255.255
Network Router demo-dmvpn Configuration
The configuration used in demo-dmvpn follows:
hostname demo_dmvpn
!
ip multicast-routing
ip igmp ssm-map enable
!
interface GigabitEthernet0/0
description connected to GM1
ip address 10.5.110.33 255.255.255.252
ip pim sparse-mode
!
interface GigabitEthernet0/1
description connected to GM2
ip address 10.5.110.37 255.255.255.252
ip pim sparse-mode
!
interface GigabitEthernet0/2
description connected to GM3
ip address 10.5.110.53 255.255.255.252
ip pim sparse-mode
!
interface GigabitEthernet0/3
description connected to KS1
ip address 10.5.110.41 255.255.255.252
ip pim sparse-mode
!
router bgp 900
no synchronization
bgp log-neighbor-changes
network 10.5.110.32 mask 255.255.255.252
network 10.5.110.36 mask 255.255.255.252
network 10.5.110.40 mask 255.255.255.252
network 10.5.110.52 mask 255.255.255.252
neighbor 10.5.110.34 remote-as 200
neighbor 10.5.110.38 remote-as 300
neighbor 10.5.110.42 remote-as 800
neighbor 10.5.110.54 remote-as 400
no auto-summary
IPv6 Host demo-v6-host-1 Configuration
This host is connected behind the group member in branch-office 1. The configuration used in demo-v6-host-1 follows:
hostname demo-v6-host-1
!
ipv6 unicast-routing
!
interface GigabitEthernet0/0
description connected to demo-gm1
no ip address
ip pim sparse-mode
ipv6 address 2001:DB8:BBBB:1::2/64
ipv6 enable
ipv6 eigrp 6
!
ipv6 router eigrp 6
no shutdown
IPv6 Host demo-v6-host-2 Configuration
This host is connected behind the group member in branch-office 2. The configuration used in demo-v6-host-2 follows:
hostname demo-v6-host-2
!
ipv6 unicast-routing
!
interface GigabitEthernet0/0
description connected to demo-gm1
no ip address
ip pim sparse-mode
ipv6 address 2001:DB8:CCCC:1::2/64
ipv6 enable
ipv6 eigrp 6
!
ipv6 router eigrp 6
no shutdown
IPv6 Host demo-v6-host-3 Configuration
This host is connected behind the group member at headquarters. The configuration used in demo-v6-host-3 follows:
hostname demo-v6-host-3
!
ipv6 unicast-routing
!
interface GigabitEthernet0/0
description connected to demo-gm1
no ip address
ip pim sparse-mode
ipv6 address 2001:DB8:1111::2/64
ipv6 enable
ipv6 eigrp 6
!
ipv6 router eigrp 6
no shutdown
Verification of GDOI Encryption on IPv6 Traffic Using mGRE DMVPN Tunnels
Use the following configuration to verify mGRE DMVPN tunnel operation in the branch-office 1 router demo-gm1:
demo-gm1# show dmvpn
Legend: Attrb --> S - Static, D - Dynamic, I - Incomplete
N - NATed, L - Local, X - No Socket
# Ent --> Number of NHRP entries with same NBMA peer
NHS Status: E --> Expecting Replies, R --> Responding
UpDn Time --> Up or Down Time for a Tunnel
==========================================================================
Interface: Tunnel10, IPv4 NHRP Details
Type:Spoke, NHRP Peers:1,
# Ent Peer NBMA Addr Peer Tunnel Add State UpDn Tm Attrb
----- --------------- --------------- ----- -------- -----
1 10.5.110.54 64.0.0.1 UP 4d21h S
Interface: Tunnel10, IPv6 NHRP Details
Type:Spoke, Total NBMA Peers (v4/v6): 2
1.Peer NBMA Address: 10.5.110.54
Tunnel IPv6 Address: 2001:DB8:AAAA::1
IPv6 Target Network: 2001:DB8:AAAA::/64
# Ent: 1, Status: NHRP, UpDn Time: never, Cache Attrib: S
2.Peer NBMA Address: 10.5.110.38
Tunnel IPv6 Address: 2001:DB8:AAAA::3
IPv6 Target Network: 2001:DB8:AAAA::3/128
# Ent: 2, Status: UP, UpDn Time: 00:05:36, Cache Attrib: D
3.Peer NBMA Address: 10.5.110.38
Tunnel IPv6 Address: 2001:DB8:AAAA::3
IPv6 Target Network: 2001:DB8:CCCC:1::/64
# Ent: 0, Status: UP, UpDn Time: 00:05:36, Cache Attrib: D
Use the following configuration to verify mGRE DMVPN tunnel operation in the headquarters router demo-gm3:
demo-gm3# show dmvpn
Legend: Attrb --> S - Static, D - Dynamic, I - Incomplete
N - NATed, L - Local, X - No Socket
# Ent --> Number of NHRP entries with same NBMA peer
NHS Status: E --> Expecting Replies, R --> Responding
UpDn Time --> Up or Down Time for a Tunnel
==========================================================================
Interface: Tunnel5, IPv4 NHRP Details
Type:Hub, NHRP Peers:2,
# Ent Peer NBMA Addr Peer Tunnel Add State UpDn Tm Attrb
----- --------------- --------------- ----- -------- -----
1 10.5.110.34 64.0.0.2 UP 4d21h D
1 10.5.110.38 64.0.0.3 UP 1w0d D
Interface: Tunnel5, IPv6 NHRP Details
Type:Hub, Total NBMA Peers (v4/v6): 2
1.Peer NBMA Address: 10.5.110.34
Tunnel IPv6 Address: 2001:DB8:AAAA::2
IPv6 Target Network: 2001:DB8:AAAA::2/128
# Ent: 1, Status: UP, UpDn Time: 1w0d, Cache Attrib: D
2.Peer NBMA Address: 10.5.110.38
Tunnel IPv6 Address: 2001:DB8:AAAA::3
IPv6 Target Network: 2001:DB8:AAAA::3/128
# Ent: 1, Status: UP, UpDn Time: 2w3d, Cache Attrib: D
Use the following configuration to verify Internet Key Exchange (IKE) connection between the group member and the key system for receive rekeys:
demo-gm1#show crypto isakmp sa
IPv4 Crypto ISAKMP SA
dst src state conn-id status
239.192.1.190 10.5.110.88 GDOI_REKEY 1071 ACTIVE
10.5.110.88 10.5.110.34 GDOI_IDLE 1070 ACTIVE
Verify whether the group member is participating in Group Encrypted Transport VPN encryption by executing the following command-line interface (CLI) command:
demo-gm1#show crypto gdoi
GROUP INFORMATION
Group Name : GETVPN-DEMO
Group Identity : 1357924756
Rekeys received : 1602
IPSec SA Direction : Both
Active Group Server : 10.5.110.88
Group Server list : 10.5.110.88
Rekey Received(hh:mm:ss) : 00:00:54
Rekeys received
Cumulative : 1602
After registration : 1602
ACL Downloaded From KS 10.5.110.88:
access-list deny udp any port = 848 any port = 848
access-list deny tcp any any port = 23
access-list deny tcp any port = 23 any
access-list deny esp any any
access-list deny tcp any port = 179 any
access-list deny tcp any any port = 179
access-list deny udp any port = 500 any port = 500
access-list deny ospf any any
access-list deny eigrp any any
access-list deny igmp any any
access-list deny pim any any
access-list deny ip any 224.0.0.0 0.0.255.255
access-list deny udp any any port = 123
access-list deny udp any any port = 161
access-list deny udp any any port = 514
access-list permit ip any any
KEK POLICY:
Rekey Transport Type : Multicast
Lifetime (secs) : 27129
Encrypt Algorithm : AES
Key Size : 128
Sig Hash Algorithm : HMAC_AUTH_SHA
Sig Key Length (bits) : 1024
TEK POLICY for the current KS-Policy ACEs Downloaded:
GigabitEthernet0/0:
IPsec SA:
spi: 0x94095CF2(2483641586)
transform: esp-aes esp-sha-hmac
sa timing:remaining key lifetime (sec): (34)
Anti-Replay(Time Based) : 5 sec interval
IPsec SA:
spi: 0x1F07791F(520583455)
transform: esp-aes esp-sha-hmac
sa timing:remaining key lifetime (sec): (824)
Anti-Replay(Time Based) : 5 sec interval
Verify whether the group member is receiving rekeys from the key system after its registration using the following CLI command:
demo-gm1#show crypto gdoi gm rekey
Group GETVPN-DEMO (Multicast)
Number of Rekeys received (cumulative) : 3
Number of Rekeys received after registration : 3
Multicast destination address : 239.192.1.190
Rekey (KEK) SA information :
dst src conn-id my-cookie his-cookie
New : 239.192.1.190 10.5.110.89 1071 E7917829 C9BAD494
Current : 239.192.1.190 10.5.110.89 1071 E7917829 C9BAD494
Verify whether the IPv6 traffic between the host at branch-office 1 and the host at headquarters gets encrypted by Group Encrypted Transport VPN by using the following CLIs:
Check the number of packets encrypted in demo1-gm as follows:
demo-gm1#show crypto ipsec sa | incl encaps
#pkts encaps: 3329, #pkts encrypt: 3329, #pkts digest: 3329
From demo-v6-host-1 in branch-office 1, ping demo-v6-host-3 in headquarters:
demo-v6-host-1# ping ipv6 2001:DB8:1111::2 rep 1000
Check whether all the packets are encrypted in demo1-gm in branch-office 1:
demo-gm1#show crypto ipsec sa | incl encaps
#pkts encaps: 4329, #pkts encrypt: 4329, #pkts digest: 4329
Verify whether the IPv6 traffic between the host in branch-office 1 and the host in branch-office 2 gets encrypted by Group Encrypted Transport VPN by using the following CLIs:
Check the number of packets encrypted in demo1-gm as follows:
demo-gm1#show crypto ipsec sa | incl encaps
#pkts encaps: 10220, #pkts encrypt: 10220, #pkts digest: 10220
From demo-v6-host-1 in branch-office 1, ping demo-v6-host-2 in branch-office 2
demo-v6-host-1# ping ipv6 2001:DB8:CCCC:1::2 rep 1000
Check whether all the packets are encrypted in demo1-gm in branch-office 1:
demo-gm1#show crypto ipsec sa | incl encaps
#pkts encaps: 11220, #pkts encrypt: 11220, #pkts digest: 11220
GDOI Encryption on IPv6 Traffic Using 6to4 Tunnels
IP 6to4 tunneling encapsulates IPv6 packets in IPv4 tunnels where a portion of the IPv4 address represents a portion of the IPv6 address. Group Encrypted Transport VPN is used for securing all the IPv4 data, including the tunneled IPv6 packets, by applying the cryptography map on the physical interface. The IP 6to4 tunnel uses only the IP protocol. IP 6to4 tunnels are efficient and simple to configure.
Figure 3 shows the final packet under this solution. The blue portion gets encrypted by Group Encrypted Transport VPN.
Figure 3. Packet Encapsulation Using 6to4 Tunnels
Solution Test Setup Topology
Solution test setup consists of two group-member routers, demo-gm1 and demo-gm2, located in branch offices and another group-member router, demo-gm3, located at headquarters. Demonstration setup also includes one key server, demo-ks1. A multicast rekey method is used. For the testing, "demo-getvpn" simulates the network. Cisco 3845 platform routers running the Cisco IOS Software 12.4(22)T IOS image are used.
Benefits of 6to4 Tunnels
The benefits to the enterprise of using 6to4 tunnels follow:
• The end-user host configuration is simple-it requires minimal management overhead.
• The tunnel is automatic; no enterprise-specific configuration is required at the 6to4 relay site. 6to4 tunnels scale well.
• This solution accommodates dynamic IP addresses at the enterprise.
• The tunnel exists only for the duration of the session.
• A 6to4 tunnel requires only a one-time configuration at the Internet service provider (ISP), making the 6to4 relay service available simultaneously to many enterprises.
• 6to4 tunnels are simple and efficient. They use only the IP protocol, and are not dependent on other protocols such as Hot Standby Router Protocol (HSRP) and EIGRP, whereas mGRE tunnels for IPv6 depend on other protocols.
• IP 6to4 uses an inferred /48 prefix for a site, allowing the operator to allocate subnets with the next 16 bits. It in effect provides 64,000 subnets to a given site while providing 64 bits for the host within each subnet.
Limitations of 6to4 Tunnels
6to4 tunnel usage has the following limitations:
• Independently managed Network Address Translation (NAT) is not allowed along the path of the tunnel.
• You cannot easily implement multihoming.
• The 6to4 tunnel mechanism provides a /48 address block; no more addresses are available. All 6to4 tunnels prepend IPv4 addresses with the 2002: prefix.
• Because 6to4 tunnels are configured many-to-one and tunnel traffic can originate from multiple endpoints, 6to4 tunnels can provide only overall traffic information to the ISP.
• The underlying IPv4 address determines the enterprise 6to4 IPv6 address prefix, so the migration to native IPv6 requires renumbering the network.
• This solution is limited to static or BGP4+ routing.
Configuration of 6to4 Tunnels
The following explains how to configure 6to4 tunnels. Figure 4 shows the topology.
• Corporate LAN v6 prefix: 2001:db8:1111::/64
• Spoke-side LAN v6 prefixes: 2001:db8:BBBB::/48 and 2001:db8:CCCC::/48
• 6to4 tunnel prefix: 2002:XXXX:XXXX::/64, where XXXX:XXXX is the IPv4 IP address of the tunnel source in hex. For example, demo-gm1 uses 10.5.110.34 as the tunnel source; the address can be represented in hex as 0a.05.6e.22. This hex address is embedded as a prefix in the v6 address on the VPN gateway. In our example, the v6 address would be 2002:A05:6E22::1/64, where the protected v6 hosts are assigned addresses in the space provided by XXXX:XXXX::Z. The destination to a remote v6 host is inferred from the target host assigned address.
Figure 4. Topology Diagram for Using IP 6to4 Tunnels
The routing of v6 packets is quite simple. The packets are encapsulated in 6to4 headers and routed out of the platform. If the 6to4 packet encounters a Group Encrypted Transport VPN cryptography map on the egress interface, the platform encrypts the v4 packet where the v6 frame is simply payload.
Group Encrypted Transport VPN configuration used in group members and key systems are the same as the configuration given in the section "GDOI Encryption on IPv6 Traffic Using mGRE DMVPN Tunnels". The following example uses 6to4 tunnels instead of a mGRE tunnel. Unlike mGRE tunnels, EIGRP configuration is not needed for 6to4 tunnels.
The following configurations show [[correct?]] an example 6to4 tunnel interface and routing statements.
Headquarters Group Member Router (demo-gm3) Configuration
IP 6to4 tunnel configuration used in headquarters group-member demo-gm3 follows:
ipv6 unicast-routing
!
interface GigabitEthernet0/0
description connected to demo_getvpn
ip address 10.5.110.54 255.255.255.252
ip pim sparse-mode
crypto map demo-gdoi
!
interface GigabitEthernet0/1
description connected to the host
no ip address
ip pim sparse-mode
ipv6 address 2001:DB8:1111::1/64
ipv6 enable
!
interface Tunnel100
no ip address
no ip redirects
ipv6 address 2002:A05:6E36::1/16
tunnel source GigabitEthernet0/0
tunnel mode ipv6ip 6to4
!
router bgp 400
network 10.5.110.52 mask 255.255.255.252
neighbor 10.5.110.53 remote-as 900
no synchronization
bgp log-neighbor-changes
no auto-summary
!
address-family ipv6
neighbor 2001:DB8:1111::2 remote-as 1000
neighbor 2001:DB8:1111::2 activate
neighbor 2002:A05:6E22::1 remote-as 200
neighbor 2002:A05:6E22::1 activate
neighbor 2002:A05:6E26::1 remote-as 300
neighbor 2002:A05:6E26::1 activate
network 2001:DB8:1111::/64
exit-address-family
!
Branch-Office 1 Group-Member Router demo-gm1 Configuration
IP 6to4 tunnel configuration used in demo-gm1 follows:
ipv6 unicast-routing
!
interface GigabitEthernet0/0
description connected to demo_dmvpn
ip address 10.5.110.34 255.255.255.252
ip pim sparse-mode
crypto map demo-gdoi
!
interface GigabitEthernet0/1
description connected to the host
no ip address
ip pim sparse-mode
ipv6 address 2001:DB8:BBBB:1::1/64
ipv6 enable
!
interface Tunnel100
no ip address
no ip redirects
ipv6 address 2002:A05:6E22::1/16
tunnel source GigabitEthernet0/0
tunnel mode ipv6ip 6to4
!
router bgp 200
no synchronization
bgp log-neighbor-changes
network 10.5.110.32 mask 255.255.255.252
neighbor 10.5.110.33 remote-as 900
no auto-summary
!
address-family ipv6
neighbor 2001:DB8:BBBB:1::2 remote-as 100
neighbor 2001:DB8:BBBB:1::2 activate
neighbor 2002:A05:6E36::1 remote-as 400
neighbor 2002:A05:6E36::1 activate
network 2001:DB8:BBBB:1::/64
exit-address-family
!
Branch-Office 2 Group-Member Router demo-gm2 Configuration
IP 6to4 tunnel configuration used in demo-gm2 follows:
ipv6 unicast-routing
!
interface GigabitEthernet0/0
description connected to demo_dmvpn
ip address 10.5.110.38 255.255.255.252
ip pim sparse-mode
crypto map demo-gdoi
!
interface GigabitEthernet0/1
description connected to the host
no ip address
ip pim sparse-mode
ipv6 address 2001:DB8:CCCC:1::1/64
ipv6 enable
!
interface Tunnel100
no ip address
no ip redirects
ipv6 address 2002:A05:6E26::1/16
tunnel source GigabitEthernet0/0
tunnel mode ipv6ip 6to4
!
router bgp 300
no synchronization
bgp log-neighbor-changes
network 10.5.110.36 mask 255.255.255.252
neighbor 10.5.110.37 remote-as 900
no auto-summary
!
address-family ipv6
neighbor 2001:DB8:CCCC:1::2 remote-as 2000
neighbor 2001:DB8:CCCC:1::2 activate
neighbor 2002:A05:6E36::1 remote-as 400
neighbor 2002:A05:6E36::1 activate
network 2001:DB8:CCCC:1::/64
exit-address-family
IPv6 Host demo-v6-host-1 Configuration
This host is connected behind the group member in branch-office 1. The configuration used in demo-v6-host-1 follows:
hostname demo-v6-host-1
!
ipv6 unicast-routing
!
interface GigabitEthernet0/0
description connected to demo-gm1
no ip address
ip pim sparse-mode
ipv6 address 2001:DB8:BBBB:1::2/64
ipv6 enable
!
router bgp 100
no synchronization
bgp log-neighbor-changes
no auto-summary
!
address-family ipv6
neighbor 2001:DB8:BBBB:1::1 remote-as 200
neighbor 2001:DB8:BBBB:1::1 activate
network 2001:DB8:BBBB:1::/64
exit-address-family
! Default IPV6 route for return path
ipv6 route ::/0 2001:DB8:BBBB:1::1
IPv6 Host demo-v6-host-2 Configuration
This host is connected behind the group member in branch-office 2. The configuration used in demo-v6-host-2 follows:
hostname demo-v6-host-2
!
ipv6 unicast-routing
!
interface GigabitEthernet0/0
description connected to demo-gm1
no ip address
ip pim sparse-mode
ipv6 address 2001:DB8:CCCC:1::2/64
ipv6 enable
!
router bgp 2000
no synchronization
bgp log-neighbor-changes
no auto-summary
!
address-family ipv6
neighbor 2001:DB8:CCCC:1::1 remote-as 300
neighbor 2001:DB8:CCCC:1::1 activate
network 2001:DB8:CCCC:1::/64
exit-address-family
! Default IPV6 route for return path
ipv6 route ::/0 2001:DB8:CCCC:1::1
IPv6 Host demo-v6-host-3 Configuration
This host is connected behind the group member at headquarters. The configuration used in demo-v6-host-3 follows:
hostname demo-v6-host-3
!
ipv6 unicast-routing
!
interface GigabitEthernet0/0
description connected to demo-gm1
no ip address
ip pim sparse-mode
ipv6 address 2001:DB8:1111::2/64
ipv6 enable
!
router bgp 1000
bgp log-neighbor-changes
no auto-summary
no synchronization
exit-address-family
!
address-family ipv6
neighbor 2001:DB8:1111::1 remote-as 400
neighbor 2001:DB8:1111::1 activate
network 2001:DB8:1111::/64
exit-address-family
! Default IPV6 route for return path
ipv6 route ::/0 2001:DB8:1111::1
Verification of GDOI Encryption on IPv6 Traffic Using IP 6to4 Tunnels
Verify IP 6to4 tunnel operation in branch-office 1 router demo-gm1 by checking the tunnel interface information:
demo-gm1#show int Tunnel 100
Tunnel100 is up, line protocol is up
Hardware is Tunnel
MTU 17920 bytes, BW 100 Kbit/sec, DLY 50000 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation TUNNEL, loopback not set
Keepalive not set
Tunnel source 10.5.110.34 (FastEthernet1/1)
Tunnel protocol/transport IPv6 6to4
Tunnel TTL 255
Tunnel transport MTU 1480 bytes
Tunnel transmit bandwidth 8000 (kbps)
Tunnel receive bandwidth 8000 (kbps)
Last input 2d23h, output 2d23h, output hang never
Last clearing of "show interface" counters never
Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0
Queueing strategy: fifo
Output queue: 0/0 (size/max)
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
20663 packets input, 2745425 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
20993 packets output, 2172467 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 unknown protocol drops
0 output buffer failures, 0 output buffers swapped out
Verify IP 6to4 tunnel operation in branch-office 1 router demo-gm1 by checking connectivity:
demo-gm1#ping ipv6 2001:A05:6E36::1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2001:A05:6E36::1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 4/4/4 ms
demo-gm1#ping ipv6 2001:A05:6E26::1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 2001:A05:6E26::1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 0/2/4 ms
Verify IP 6to4 tunnel operation in branch-office 1 router demo-gm1 by checking the route to hosts located in other branch offices:
demo-gm1#show ipv6 route 2001:DB8:1111::2
Routing entry for 2001:DB8:1111::/64
Known via "static", distance 1, metric 0
Route count is 1/1, share count 0
Routing paths:
2001:A05:6E36::1
Last updated 3d00h ago
demo-gm1#show ipv6 route 2001:DB8:CCCC:1::2
Routing entry for 2001:DB8:CCCC:1::/64
Known via "static", distance 1, metric 0
Route count is 1/1, share count 0
Routing paths:
2001:A05:6E26::1
Last updated 3d00h ago
Verify whether the IPv6 traffic between the host in branch-office 1 and the host at headquarters gets encrypted by Group Encrypted Transport VPN by using the following CLIs:
Check the number of packets encrypted in demo1-gm as follows:
demo-gm1#show crypto ipsec sa | incl encaps
#pkts encaps: 49862, #pkts encrypt: 49862, #pkts digest: 49862
From demo-v6-host-1 in branch-office 1, ping demo-v6-host-3 at headquarters:
demo-v6-host-1# ping ipv6 2001:DB8:1111::2 rep 1000
Check whether all the packets are encrypted in demo1-gm in branch-office 1:
demo-gm1#show crypto ipsec sa | incl encaps
#pkts encaps: 50862, #pkts encrypt: 50862, #pkts digest: 50862
Verify whether the IPv6 traffic between the host in branch-office 1 and the host in branch-office 2 gets encrypted by Group Encrypted Transport VPN by using the following CLIs:
Check the number of packets encrypted in demo1-gm as follows:
demo-gm1#show crypto ipsec sa | incl encaps
#pkts encaps: 53068, #pkts encrypt: 53068, #pkts digest: 53068
From demo-v6-host-1 in branch-office 1, ping demo-v6-host-2 in branch-office 2:
demo-v6-host-1# ping ipv6 2001:DB8:CCCC:1::2 rep 1000
Check whether all the packets are encrypted in demo1-gm in branch-office 1:
demo-gm1#show crypto ipsec sa | incl encaps
#pkts encaps: 54068, #pkts encrypt: 54068, #pkts digest: 54068
