Cisco IOS GETVPN VRF-Aware GDOI GM Solution Deployment Guide [Group Encrypted Transport VPN]

Introduction to GETVPN

The Cisco IOS GETVPN is a tunnel-less VPN technology that provides end-to-end security for network traffic in a native mode and maintaining the fully meshed topology. It uses the core network's ability to route and replicate the packets between various sites within the enterprise. Cisco IOS GETVPN preserves the original source and destination IP addresses information in the header of the encrypted packet for optimal routing. Hence, it is largely suited for an enterprise running over a private IP-enabled network such as MPLS VPN, VPLS, or FR/ATM. It is also better suited to encrypt IP-based multicast and broadcast traffic which might traverse a satellite network or IP multicast enabled core.

Cisco IOS GET VPN uses the IETF's standard RFC-3547 Group Domain of Interpretation (GDOI) as the key management protocol and RFC-2406 for IPSec for encryption.

VRF-Aware GDOI Group Member (GM)

Virtual Routing and Forwarding (VRF) is a technology that allows multiple instances of a routing table to co-exist within the same router at the same time. In a normal GETVPN deployment, both data and control traffic (such as registration and re-key) use the same VRF. In a VRF-aware GDOI GM configuration, control traffic can be separated from data traffic using a separate VRF. The GM has the ability to route control traffic (registration & rekeys) through a VRF that is different from the VRF used for routing encrypted data traffic. Basically registration & rekeys are routed through one VRF and the policies downloaded are applied to a crypto-map applied in a different VRF. A service provider may assign the key management control traffic to a management VRF on a GM where separate designated VRF's are used to service individual customer's encrypted traffic. An enterprise could use it for departmental VPNs so they don't have to replicate the key server infrastructure for every department.

Purpose and Scope

This document provides basic deployment guidelines to enable Cisco IOS Group Encrypted Transport VPN (GETVPN) with VRF-Aware GDOI feature in an enterprise network. This document does not cover in-depth technical details about various features comprising Cisco IOS GETVPN. Please refer to the References section for additional documents.

Recommended Platforms and Images

Images based on Cisco IOS Software Release 15.0(1) M or above are required for group member routers while it is recommended for key server routers. The recommended image subset is `advipservicesk9 `for both the key server and the group member routers.

• Key server: Cisco 2800/3800 Series Integrated Service Routers, Cisco 7200 Series Routers, Cisco 7301 Routers

• Group member: 1800/2800/3800 Series Integrated Service Routers (ISR), Cisco 7200 Series Routers, Cisco 7301 Routers, and 1900/2900/3900 ISR-G2 platforms.

Deployment

A new CLI is introduced to configure the registration interface under the GDOI group. This registration interface is used to route the GDOI registrations through the VRF configured on that interface for this particular group and registration requests would be sourced with the IP address configured on the register address interface. After successful registration the IPSec policy will be applied to the interface where the crypto map is applied.

Example:

crypto gdoi group GET-GROUP1

identity number 1357924680

server address ipv4 10.32.178.23

server address ipv4 10.32.178.56

client registration interface FastEthernet0.3

Here the Group member will use `FastEthernet0.3' interface to register the group `GET-GROUP1' with configured Key Servers. The future registration and rekey will happen through this interface. If this interface cannot reach any of the configured Key servers, registration of the group will fail.

If client registration interface under a GDOI group is not configured, GM will use the either the specified local-address configured for the crypto map or the IP address associated with the interface where the crypto-map is applied. If client registration interface is not specified then, by default, the registration would happen through the default interface/VRF where the crypto map is applied and VRF-aware GDOI is inherently disabled.

Topology

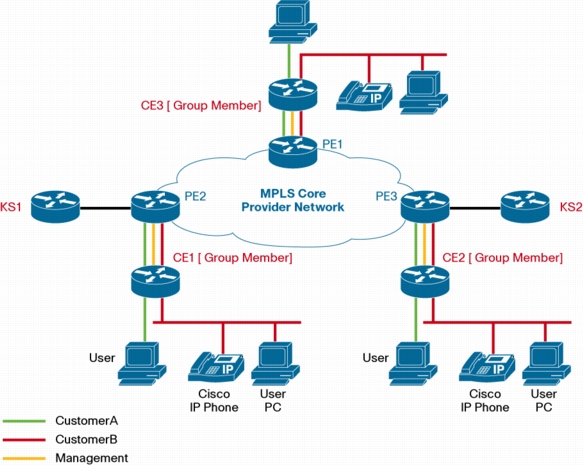

Figure 1. VRF-Aware GETVPN Topology

In this setup different crypto map applied to different interfaces, each interface is in a different VRF context namely CustomerA and CustomerB. All these groups are accessing the same key servers (coop) and these key servers are accessible through separate control traffic VRF named `management'.

Sample GM Configuration (For Unicast Rekey)

/!!!! Only the necessary commands required to enable VRF-Aware GETVPN are shown here. For more VRF details, refer the Full Configuration section!!!!/

crypto isakmp policy 1

encr aes

group 2

lifetime 300

crypto gdoi group GET-GROUP1

identity number 1357924680

server address ipv4 10.32.178.23

server address ipv4 10.32.178.56

client registration interface FastEthernet0.3

crypto gdoi group GET-GROUP2

identity number 4567

server address ipv4 10.32.178.23

server address ipv4 10.32.178.56

client registration interface FastEthernet0.3

crypto map getvpn-map1 1 gdoi

set group GET-GROUP1

crypto map getvpn-map2 1 gdoi

set group GET-GROUP2

interface FastEthernet0.1

encapsulation dot1Q 1

ip vrf forwarding CustomerA

ip address 10.32.178.98 255.255.255.252

duplex auto

speed auto

crypto map getvpn-map1

interface FastEthernet0.2

encapsulation dot1Q 10

ip vrf forwarding CustomerB

ip address 10.32.178.70 255.255.255.252

ip pim sparse-mode

crypto map getvpn-map2

interface FastEthernet0.3

encapsulation dot1Q 20

ip vrf forwarding management

ip address 10.32.178.109 255.255.255.252

Here the registration interface for both groups is the same. There is one registration through the interface FastEthernet0.3 for every group configured and associated with a crypto map. There are two registrations for the above example given. Note that there will be only one IKE SA established for these registrations.

For group GET-GROUP1 we have the registration interface as FastEthernet0.3, this would represent one Group Member. After successful registration, policies would be downloaded and associated with the crypto map on the interface FastEthernet0.1

For group GET-GROUP2 also has the registration interface as FastEthernet0.3, this would represent another GM. After successful registration, policies would be downloaded and associated with the crypto map on the interface FastEthernet0.2

If both registrations are successful with the first Key Server configured, then there would be only one IKE SA established for both the registrations to that key server.

Sample KS Configuration (For Unicast Rekey)

crypto isakmp policy 1

encr aes

group 2

crypto isakmp keepalive 15 periodic

crypto ipsec transform-set aes256 esp-aes 256 esp-sha-hmac

crypto ipsec profile profile1

set security-association lifetime seconds 900

set transform-set aes256

crypto ipsec profile profile2

set security-association lifetime seconds 900

set transform-set aes256

crypto gdoi group GET-GROUP1

identity number 1357924680

server local

rekey algorithm aes 256

rekey lifetime seconds 14400

rekey retransmit 10 number 3

rekey authentication mypubkey rsa rekeyA

rekey transport unicast

sa ipsec 1

profile profile1

match address ipv4 getA-acl

no replay

address ipv4 10.32.178.23

redundancy

local priority 50

peer address ipv4 10.32.178.56

peer address ipv4 10.32.178.57

crypto gdoi group GET-GROUP2

identity number 4567

server local

rekey algorithm aes 256

rekey lifetime seconds 14400

rekey retransmit 10 number 3

rekey authentication mypubkey rsa rekeyB

rekey transport unicast

sa ipsec 1

profile profile2

match address ipv4 getB-acl

no replay

address ipv4 10.32.178.23

redundancy

local priority 5

peer address ipv4 10.32.178.56

peer address ipv4 10.32.178.57

Verification

PING to the Key Server with client registration interface as source.

GM1#ping vrf management 10.32.178.56 source fastEthernet 0.3

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 10.32.178.56, timeout is 2 seconds:

Packet sent with a source address of 10.32.178.110

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/4 ms

Trace route to the Key Server

GM1#traceroute vrf management 10.32.178.56

Type escape sequence to abort.

Tracing the route to 10.32.178.56

1 10.32.178.109 [AS 65004] 0 msec 4 msec 0 msec

2 10.32.178.54 [AS 65004] 0 msec * 0 msec

GM1#

show crypto isakmp sa

This command displays the active ISAKMP sessions on the router and is common for standard IPSec and GEVPN. The output below is from a Group Member. The ISAKMP SAs with `GDOI_IDLE' status are created as result of GMs registration with KS. Registration SA is same for both GDOI groups as the GM uses the same interface for registration. The SA labeled "GDOI_REKEY" is used for rekey. There will be a separate REKEY SA for each group.

GM1#sh cry isa sa

IPv4 Crypto ISAKMP SA

dst src state conn-id status

10.32.178.109 10.32.178.23 GDOI_REKEY 2020 ACTIVE

10.32.178.23 10.32.178.109 GDOI_IDLE 2019 ACTIVE

10.32.178.109 10.32.178.23 GDOI_REKEY 2021 ACTIVE

IPv6 Crypto ISAKMP SA

GM1#

Show crypto gdoi

This command displays the all basic details about the GETVPN status. The output is different for Key Server and Group Member.

On Group Member:

The output shows the GM used the same VRF for registering both groups.

GM1#show crypto gdoi

GROUP INFORMATION

Group Name : GET-GROUP1

Group Identity : 1357924680

Rekeys received : 93

IPSec SA Direction : Both

Group Server list : 10.32.178.23

10.32.178.56

Group member : 10.32.178.109 vrf: management

Registration status : Registered

Registered with : 10.32.178.23

Re-registers in : 790 sec

Succeeded registration: 1

Attempted registration: 1

Last rekey from : 10.32.178.23

Last rekey seq num : 3

Unicast rekey received: 93

Rekey ACKs sent : 93

Rekey Rcvd(hh:mm:ss) : 00:01:01

Rekeys cumulative

Total received : 93

After latest register : 93

Rekey Acks sents : 93

ACL Downloaded From KS 10.32.178.23:

KEK POLICY:

Rekey Transport Type : Unicast

Lifetime (secs) : 12774

Encrypt Algorithm : AES

Key Size : 256

Sig Hash Algorithm : HMAC_AUTH_SHA

Sig Key Length (bits) : 1024

TEK POLICY for the current KS-Policy ACEs Downloaded:

FastEthernet0.1:

IPsec SA:

spi: 0xAA0BE09C(2852905116)

transform: esp-256-aes esp-sha-hmac

sa timing:remaining key lifetime (sec): (838)

Anti-Replay(Time Based) : 10 sec interval

Group Name : GET-GROUP2

Group Identity : 4567

Rekeys received : 93

IPSec SA Direction : Both

Group Server list : 10.32.178.23

10.32.178.56

Group member : 10.32.178.109 vrf: management

Registration status : Registered

Registered with : 10.32.178.23

Re-registers in : 206 sec

Succeeded registration: 1

Attempted registration: 1

Last rekey from : 10.32.178.23

Last rekey seq num : 4

Unicast rekey received: 93

Rekey ACKs sent : 93

Rekey Rcvd(hh:mm:ss) : 00:10:43

Rekeys cumulative

Total received : 93

After latest register : 93

Rekey Acks sents : 93

ACL Downloaded From KS 10.32.178.23:

KEK POLICY:

Rekey Transport Type : Unicast

Lifetime (secs) : 11550

Encrypt Algorithm : AES

Key Size : 256

Sig Hash Algorithm : HMAC_AUTH_SHA

Sig Key Length (bits) : 1024

TEK POLICY for the current KS-Policy ACEs Downloaded:

FastEthernet0.2:

IPsec SA:

spi: 0xE704734B(3875828555)

transform: esp-256-aes esp-sha-hmac

sa timing:remaining key lifetime (sec): (256)

Anti-Replay(Time Based) : 15 sec interval

GM1#

Best Practices

The GETVPN GM requires data plane traffic to enter and exit the same VRF in order for the crypto to be applied properly. VRF-lite means that all the traffic traversing in the particular VRF should be confined to the same VRF after route lookup. GET VPN with VRF-lite support does not address route leaking. Route leaking occurs when traffic enters one routing VRF context and is forwarded in a different VRF routing context. If route leaking is configured on the GM, packets originating in a different route context will be sent out in clear text from the VRF interface where the crypto map is applied.

Following scenarios are not supported:

• Traffic coming from non-VRF global interface to any VRF interface with GDOI crypto map.

• Traffic coming from one VRF and leaving another VRF interface with GDOI crypto map.

• If route leaking is required to make the traffic flow from an interface participating in global routing to another interface with VRF forwarding or vice-versa, the route leaking function must be applied on a router prior to reaching the Group Member router such that traffic entering and exiting the Group Member stays with in the same VRF before and after encryption. See GETVPN Design and Implementation guide at http://www.cisco.com/en/US/prod/collateral/vpndevc/ps6525/ps9370/ps7180/GETVPN_DIG_version_1_0_External.pdf.

Multicast Rekey Configuration

The following sections cover the configuration needs to be incorporated into the basic configuration for enabling multicast rekeying.

Key Server Configuration for Multicast Rekey

This is a sample incremental configuration needed to convert the GEVPN deployment from unicast to multicast rekey.

! Enable multi-cast routing

ip multi-cast routing

! Enable SSM mode

ip pim ssm range 1

! ACL list used in SSM range command

access-list 1 permit 239.192.1.190 0.0.0.0

interface GigabitEthernet0/1

ip pim sparse-mode

crypto gdoi group GDOI-GROUP1

server local

! Default rekey method is multicast

no rekey transport unicast

! Multicat group for re-keying. This is specified as a ACL

rekey address ipv4 getvpn-rekey-multicast-group

rekey retransmit 10 number 3

! Add these ACEs in GETVPN policy ACLs

ip access-list extended <acl name>

deny ip any 224.0.0.0 0.255.255.255

deny pim any host 224.0.0.13

ip access-list extended getvpn-rekey-multicast-group

permit ip any host 239.192.1.190

Group Member Configuration for Multicast Rekey

Following configuration need to be added to the GMs to receive multicast rekey. This can be used only if multicast routing is enabled on rest of the network. Below configuration uses SSM for multicast. The configuration may need to be changed according to the existing multicast mechanism deployed in the network.

ip multicast-routing

ip multicast-routing vrf management

! Enable SSM

ip igmp ssm-map enable

ip pim vrf management ssm range 1

! ACL used in ssm range command

access-list 1 permit 239.192.1.190 0.0.0.0

!At client registration interface

interface FastEthernet0.3

ip pim sparse-mode

! Join for each KS serving the group

ip igmp join-group 239.192.1.190 source <IP-Addr-of-KS-1>

ip igmp join-group 239.192.1.190 source <IP-Addr-of-KS-2>

...

Full Configuration

Group Member Configuration

service timestamps debug datetime msec

service timestamps log datetime msec

service password-encryption

hostname get-gm

boot-start-marker

boot system flash:c181x-advipservicesk9-mz.150-1.M

boot-end-marker

logging buffered 100000

enable secret 5 <removed>

enable password 7 <removed>

aaa new-model

aaa authentication login default local

aaa authorization exec default local

aaa session-id common

clock timezone PST -8

clock summer-time PST recurring

crypto pki trustpoint beta-ca

enrollment mode ra

enrollment url <removed>l

serial-number

fingerprint <removed>

revocation-check none

crypto pki certificate chain beta-ca

dot11 syslog

ip source-route

ip dhcp pool CustomerA

vrf CustomerA

network 10.32.176.152 255.255.255.248

domain-name a.com

default-router 10.32.176.153

netbios-name-server <removed>

option 150 ip <removed>

dns-server <removed>

ip dhcp pool CustomerB

vrf CustomerB

network 10.32.176.128 255.255.255.248

domain-name b.com

dns-server <removed>

option 150 ip <removed>

default-router 10.32.176.129

netbios-name-server <removed>

ip vrf CustomerA

rd 1:100

route-target export 1:100

route-target import 1:100

ip vrf CustomerB

rd 1:200

route-target export 1:200

route-target import 1:200

ip vrf management

rd 1:299

route-target export 1:299

route-target import 1:299

ip cef

no ip domain lookup

ip host beta-ca 10.34.250.101

ip name-server <removed>

ip multicast-routing

ip multicast-routing vrf CustomerA

ip multicast-routing vrf CustomerB

ip multicast-routing vrf management

no ip igmp ssm-map query dns

no ipv6 cef

multilink bundle-name authenticated

Group Encrypted Transport VPN
