Product Overview

The Cisco® Digital Media Player (DMP) Mount Kits are built for mounting Cisco Digital Media Players to Cisco Digital Signs and Cisco Cast displays. The mount kits support four different mounting features: wall mount, display mount (Figure 1), ceiling mount, and pole mount (Figure 2). Other features include a security locking option and clear airflow for ventilation.
The mount kits support the Cisco DMP 4305G, DMP 4310G and DMP 4400G models.

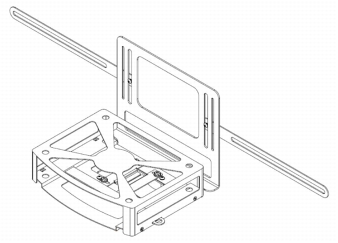

Figure 1. Display VESA mount illustration

Figure 2. Pole mount illustration

Table 1 lists the features and benefits of the Cisco DMP Mount Kits, and Table 2 gives specifications.

Table 1. Features and Benefits

Feature

Benefit

Cost-effective

Low cost and easy to use

Single vendor for end-to-end solution

Single source for complete Cisco Digital Signs and Cisco Cast deployments

Security

Built-in locking capability: DMPs securable with padlocks

Table 2. Product Specifications

Product

Specification

Cisco DMP 4305 Protective Case Mount, Series 1 (H x W x D)

1.65 x 7.41 x 5.335 in. (4.19 x 18.82 x 13.55 cm)

Cisco DMP 4400 Protective Case Mount, Series 1 (H x W x D)

2.58 x 10.48 x 8.31 in. (6.55 x 26.63 x 21.11 cm)

System Requirements

The Cisco DMP Mount Kits work only with Cisco DMPs.

Ordering Information

Table 3 gives ordering information for the mount kits.

Table 3. Ordering Information

Product Name

Part Number

DMP 4305 Protective Case Mount, Series 1

DMP-PRCASE-4305-S1

DMP 4400 Protective Case Mount, Series 1

DMP-PRCASE-4400-S1

Service and Support

The Cisco DMP Mount Kits are available with a 90-day warranty. No service or extended support for the mount kits is available.

For More Information

For more information about the Cisco Digital Media Player, visit http://www.cisco.com/go/dms or contact your local Cisco account representative.
