Cisco is introducing the Cisco Nexus® 2248PQ 10GE Fabric Extender platform as part of the Cisco Nexus 2000 Series Fabric Extenders. The Cisco Nexus 2248PQ builds on the success of the Cisco Nexus 2200 fabric extender platform, with greater port density and a lower oversubscription rate than the Cisco Nexus 2232PP 10GE Fabric Extender. It supports massively scalable 1 and 10 Gigabit Ethernet environments with fewer management points using the fabric extender architecture and enables transparent migration to 10 Gigabit Ethernet, virtual machine-aware unified fabric technologies. The new Cisco Nexus 2248PQ comes with forty-eight 1 and 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) host interfaces and four 40 Gigabit Ethernet Quad SFP+ (QSFP+) fabric interfaces to the parent Cisco Nexus switch (Figure 1).

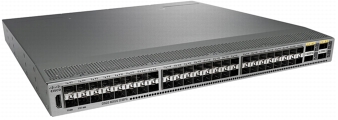

Figure 1. Cisco Nexus 2248PQ 10GE Fabric Extender
Table 1 summarizes the Cisco Nexus 2000 Series product line. Fabric extenders work in conjunction with a parent Cisco Nexus 5000, 6000, or 7000 Series Switch. Cisco Nexus 2000 Series Fabric Extenders can be mixed and matched with a parent switch to provide a variety of connectivity options.
Table 1. Cisco Nexus 2000 Series Specifications
Model
Specifications
Cisco Nexus 2224TP GE Fabric Extender
24 x 100/1000BASE-T host interfaces and 2 x 10 Gigabit Ethernet fabric interfaces (SFP+)
Cisco Nexus 2248TP GE Fabric Extender
48 x 100/1000BASE-T host interfaces and 4 x 10 Gigabit Ethernet fabric interfaces (SFP+)
Cisco Nexus 2248TP-E Fabric Extender
48 x 100/1000BASE-T host interfaces and 4 x 10 Gigabit Ethernet fabric interfaces (SFP+)
Cisco Nexus 2232PP 10GE Fabric Extender
32 x 1/10 Gigabit Ethernet and Fibre Channel over Ethernet (FCoE) host interfaces (SFP+) and 8 x 10 Gigabit Ethernet and FCoE fabric interfaces (SFP+)
Cisco Nexus 2232TM 10GE Fabric Extender
32 x 1/10GBASE-T host interfaces and modular uplinks (8 x 10 Gigabit Ethernet fabric interfaces [SFP+])
Cisco Nexus 2232TM-E 10GE Fabric Extender
32 x 1/10GBASE-T host interfaces and uplink module (8 x 10 Gigabit Ethernet fabric interfaces [SFP+])
Cisco Nexus 2248PQ 10GE Fabric Extender
48 x 1/10 Gigabit Ethernet and FCoE host interfaces (SFP+) and 4 x QSFP+ Gigabit Ethernet and FCoE fabric interfaces (QSFP+)
Cisco Nexus 2000 Series Distributed Modular System
The Cisco Nexus 2000 Series Fabric Extenders behave like remote I/O modules for a parent Cisco Nexus 5000, 6000, or 7000 Series Switch. The fabric extender is essentially an extension of the parent Cisco Nexus switch fabric, with the fabric extender and the parent Cisco Nexus switch together forming a distributed modular system.
The Cisco Nexus 2000 Series Fabric Extenders forward all traffic to the parent switch over 10 and 40 Gigabit Ethernet uplinks. Passing all traffic to the parent switch allows traffic to be shaped according to homogeneous policies established on the parent switch with a single point of management across more than 2000 1 Gigabit Ethernet ports and more than 1500 10 Gigabit Ethernet ports.
The distributed modular system architecture includes the following benefits:
• Architectural flexibility
• Feature/policy consistency across 2000+ ports
• Cost effective solution at scale with simplified cabling
• Single point of management resulting in simplified operations
• Optimized utilization of bandwidth
• Investment protection with feature inheritance from the parent switch
Cisco Nexus 2248PQ Features
The Cisco Nexus 2248PQ offers the following features:
• Forty-eight 10 Gigabit Ethernet fabric extender host interfaces in a compact one-rack-unit (1RU) form factor
• Four QSFP+ uplink network interfaces (16 x 10 Gigabit Ethernet)
• Connection to the Cisco Nexus 6000 Series and 5500 platform parent switches at first customer shipment
• Highly scalable distributed modular system with up to 1152 x 1 and 10 Gigabit Ethernet ports (24 fabric extenders per Cisco Nexus 6000 Series and 5500 platform switch)
• Operates as a remote I/O module, extending the switch fabric for Cisco Nexus 6000 Series and 5500 platform switches
• 160-Gbps fabric in each direction (320 Gbps full duplex)
• FCoE and IEEE Data Center Bridging (DCB) support
• 3:1 oversubscription rate
• Two additional 16-MB buffers
• Predictable low-latency cut-through switching
• In-Service Software Upgrade (ISSU)
• Support for host PortChannel and virtual PortChannel (vPC), with up to eight PortChannel members per PortChannel and no restriction on the number of PortChannels
• Excellent for 10 Gigabit Ethernet server and pass-through blade server connectivity
• Choice of port-side exhaust (front-to-back) cooling or port-side intake (reversed-airflow) cooling, compatible with data center hot-aisle and cold-aisle designs:
– With standard port-side exhaust (front-to-back cooling), all switch ports are at the rear of the unit in close proximity to server ports, aligned with the hot aisle
– With port-side intake (reversed airflow), ports are aligned with the cold aisle
• Choice of AC or DC power supply (the default configuration includes redundant dual power supplies)
• New coloring scheme on power supplies and fan trays to denote power supply and fan side in cold aisle (blue) and power supply and fan side in hot aisle (red)
• Individual independent hot-swappable fan trays (N+1 redundancy)
• Capability to be mixed with different types of Cisco Nexus 2000 Series Fabric Extenders for the same parent switch to support various types of connectivity
• Homogeneous policies across a large number of ports
• Zero-touch provisioning, including configuration and software upgrade operations
Availability
The Cisco Nexus 2248PQ is available for ordering today and is already shipping.
The minimum software recommended for the platform is Cisco® NX-OS Software Release 6.0(2)N1(1) for the Cisco Nexus 5000 and 6000 Series Switches.
Ordering Information
Table 2 provides ordering information for the Cisco Nexus 2248PQ 10GE Fabric Extender. The Cisco Nexus 2248PQ comes with two power supplies, four fan trays, and an accessory kit.
Table 2. Ordering Information

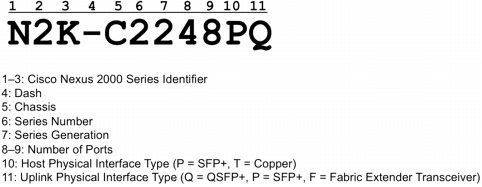

Part Number
Description
Cisco Nexus 2000 Series Chassis
N2K-C2248PQ
Cisco Nexus 2248PQ 10GE Fabric Extender, 2PS, 4 Fan Module, 48x1/10GE (req SFP/SFP+) + 4x40G QSFP+(req QSFP+), choice of airflow and power supply
Cisco Nexus 2000 Series plus Power Supply and Fan Pack
N2248PQ-FA-BUN
Cisco Nexus 2248PQ FEX, 2AC Power Supply, 4 Fan module (Std airflow, port side exhaust), spare
N2248PQ-FD-BUN
Cisco Nexus 2248PQ FEX, 2DC Power Supply, 4 Fan module (Std airflow, port side exhaust), spare
N2248PQ-BA-BUN
Cisco Nexus 2248PQ FEX, 2AC Power Supply, 4 Fan module (Reversed airflow, port side intake), spare
N2248PQ-BD-BUN
Cisco Nexus 2248PQ FEX, 2DC Power Supply, 4 Fan module (Reversed airflow, port side intake), spare
Fan Modules
NXA-FAN-30CFM-B(=)
Cisco Nexus 2248PQ FEX Fan module (Reversed airflow, port side intake; Color coding: Red), spare
NXA-FAN-30CFM-F(=)
Cisco Nexus 2248PQ FEX Fan module (Std airflow, port side exhaust; Color coding: Blue), spare
Power Supplies
N2200-PAC-400W(=)
Cisco Nexus 2200 AC Power supply (Std airflow, port side exhaust), spare
N2200-PAC-400W-B(=)
Cisco Nexus 2200 AC Power supply, Back-to-front airflow (Reversed airflow, port side intake), spare
N2200-PDC-400W(=)
Cisco Nexus 2200 DC Power supply (Std airflow, port side exhaust), spare
N2200-PDC-350W-B(=)
Cisco Nexus 2200 DC Power supply, Back-to-front airflow (Reversed airflow, port side intake), spare
1 Gigabit Ethernet Transceivers and Cables
GLC-T(=)
1000BASE-T SFP
GLC-SX-MM(=)
GE SFP, LC connector SX transceiver
GLC-LH-SM(=)
GE SFP, LC connector LX/LH transceiver
SFP-GE-T(=)
1000BASE-T SFP, Extended Temperature Range
SFP-GE-S(=)
GE SFP, LC connector SX transceiver, with Digital Optical Monitoring (DOM) and Extended Temperature Range
SFP-GE-L(=)
GE SFP, LC connector LX/LH transceiver, with Digital Optical Monitoring (DOM) and Extended Temperature Range
10 Gigabit Ethernet Transceivers and Cables
SFP-10G-SR(=)
10GBASE-SR SFP+ Module
SFP-10G-LR(=)
10GBASE-LR SFP+ Module
SFP-H10GB-CU1M(=)
10GBASE-CU SFP+ Passive Cable 1 Meter
SFP-H10GB-CU3M(=)
10GBASE-CU SFP+ Passive Cable 3 Meter
SFP-H10GB-CU5M(=)
10GBASE-CU SFP+ Passive Cable 5 Meter
SFP-H10GB-ACU7M(=)
10GBASE-CU SFP+ Active Cable 7 Meter
SFP-H10GB-ACU10M(=)
10GBASE-CU SFP+ Active Cable 10 Meter
40 Gigabit Ethernet Transceivers and Cables
QSFP-40G-SR4
40GBASE-SR4 QSFP+ module, (multi-mode fiber, MMF at 100m)
The Cisco Nexus 2248PQ 10GE Fabric Extender has a 1-year limited hardware warranty. The warranty includes hardware replacement with a 10-day turnaround from receipt of a return materials authorization (RMA).
Cisco Services
