Cisco® is pleased to announce Cisco IOS® Software for the new Cisco Catalyst® Express 520 Series switches. The new Cisco Catalyst Express 520 Series switch is a fixed-configuration, managed Ethernet switch that provides eight ports of 10/100 Power over Ethernet (PoE). The Cisco Catalyst Express 520 Series switch is designed for ease of deployment and ships with a predefined software configuration to work immediately with the Cisco Unified Communications 500 Series for Small Business. The Cisco Catalyst Express 520 Series switch can also be managed and configured using the Cisco Configuration Assistant.
This new Layer 2-managed Fast Ethernet PoE switch offers non-blocking, wire-speed performance, and provides a secure network foundation optimized for data, wireless, and voice-over-IP (VoIP) communications. (See Table 1.)

Table 1. Product Descriptions

Product Name (Part Number)

Description

Cisco Catalyst Express 520-8PC
(WS-CE520-8PC-K9)
• Eight 10/100 PoE ports for desktop, wireless, IP telephony, or closed-circuit TV camera connectivity
• One 10/100/1000BASE-T or Small Form-Factor Pluggable (SFP) ports for uplink connectivity

This product bulletin provides content and delivery information about Cisco IOS Software release 12.2(35)EX, which is the first Cisco IOS Software release that provides support for the Cisco Catalyst Express 520 Series switches. Cisco IOS Software Release 12.2(35)EX is an Early Deployment release, based on Cisco IOS Software Release 12.2(35)EXX.

Features in Cisco IOS Software Release 12.2(35)Ex

The Cisco Catalyst Express 520 Series switches are manageable through the GUI Device Manager or Cisco Configuration Assistant. Table 2 lists the features supported in Cisco IOS Software Release 12.2(35)EX, and Table 3 lists product specifications.

Table 2. Key Features

Feature

Description

Smartports (Preset Cisco Recommended Network Enhancements, Quality of Service [QoS], and Security)

Desktop

The port is configured for optimal desktop performance.

IP Phone and Desktop

Voice traffic is prioritized to help ensure clear voice conversation.

Router

The port is configured for optimal connection to a router or firewall for WAN connectivity.

Switch

The port is configured as an uplink port to a backbone switch for fast convergence.

Access Point

The port is configured for optimal connection to a wireless access point.

Server

Servers can be prioritized as trusted, critical, business, or standard.

Printer

The port is optimized so that printer traffic does not affect mission-critical and voice traffic.

Guest

Guests are allowed access to the Internet, but not to the company network.

Diagnostic

Customers can connect diagnostics devices to monitor traffic on other switches (configurable through Cisco Network Assistant only).

Other

Customers can configure the VLAN.

Security

Levels

Three security levels: low, medium, and high (configurable through Cisco Configuration Assistant only)

• Low-For business environments where there is limited guest access
• Medium-For business environments where security is important; only authorized devices are allowed on the company network
• High-For business environments where security is critical; only authorized devices and authenticated users are allowed on the company network

Multicast

High-bandwidth video traffic is optimized so that it does not impact other applications on the network.

Table 3. Product Specifications

Standard

Specification

Standards Supported
• IEEE 802.1d Spanning Tree Protocol
• IEEE 802.1p Class of service (CoS) classification
• IEEE 802.1q VLAN
• IEEE 802.1w Rapid Convergence Spanning Tree Protocol
• IEEE 802.1x Port Access Authentication
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• IEEE 802.3af Power over Ethernet
• IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-T
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3z 1000BASE-X
• IGMP (v1, v2, and v3) snooping
• Secure Sockets Layer (SSL)
• SNMPv3 (read-only)

Management (For Monitoring Only)
• BRIDGE-MIB
• ENTITY-MIB
• ETHERNET-MIB
• IF-MIB
• RFC1213-MIB (MIB II)
• RMON-MIB (statistics, history, alarms, and events groups only)
• CISCO-PRODUCTS-MIB
• CISCO-SYSLOG-MIB
• CISCO-ENVMON-MIB

Additional Resources

Software Download-Software Available May 2007
To download the Cisco Catalyst Express 520 Series Software, please click on Launch the IOS Upgrade Planner at: http://www.cisco.com/pcgi-bin/Software/Iosplanner/Planner-tool/iosplanner.cgi
Cisco Catalyst Express 520 Series product information is available at: http://www.cisco.com/go/catalystexpress520
Cisco Catalyst Express 520 Series Release Notes are at: http://www.cisco.com/univercd/cc/td/doc/product/lan/catex520/index.htm

Support

Cisco IOS Software Release 12.2(35)EX follows the standard Cisco support policy as indicated at: http://www.cisco.com/en/US/products/products_end-of-life_policy.html.

Software Image Migration Guide

Figure 1 displays Cisco IOS Software Release 12.2(35)EX functionality relative to the 12.2 and 12.2S releases. This diagram also identifies the recommended migration path for Cisco IOS Software Release 12.2(35)EX. Note that Release 12.2(35)EX is a special one-time "X" release with no planned maintenance releases. Thus, bugs that would have otherwise been fixed in a maintenance release will be fixed in the 12.2SE train and will be available in the 12.2(35)EXX release or a release based on 12.2SE. For more information about the Cisco IOS Software release process, refer to Product Bulletin No. 537.

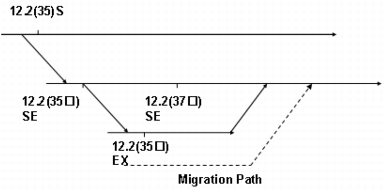

Figure 1. Cisco IOS Software Release 12.2S Train
