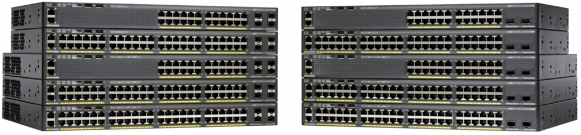

Cisco® Catalyst® 2960-X Series Switches are the next generation of the world's most widely deployed access switches. They enable intelligent services such as application visibility, Smart Operations, Layer 3 routing and deliver best-in-class energy efficiency with up to 80 percent energy savings. Designed for operational simplicity to lower TCO, this platform also offers investment protection with mixed stacking with existing Cisco Catalyst 2960-S and 2960-SF switches.
Cisco is introducing the Cisco Catalyst 2960-X series of stackable Gigabit Ethernet access switches, the game changing product to promote IT transformation:
• The Cisco Catalyst 2960-X models provide Layer 2 switching and have one fixed power-supply with an optional external redundant power supply. They provide 24 and 48 Gigabit Ethernet ports, with Power over Ethernet/Power over Ethernet Plus (PoE/PoE+) support and four Gigabit Ethernet SFP or two 10 Gigabit Ethernet Small Form-Factor Pluggable Plus (SFP+) uplinks.
• The Cisco Catalyst 2960-XR models offer all the features of the Cisco Catalyst 2960-X. In addition, they introduce Layer 3 routing functionality for the first time in the Cisco Catalyst 2960 Series. They also have two field-replaceable redundant power supply modules for power redundancy.
Primary Features and Benefits
• FlexStack-Plus with up to 80 GB of stack bandwidth and up to 8 members in a stack.
• Innovative energy saving hibernation modes that reduce energy consumption by up to 90% when the switch is not in use (nights, weekends).
• IEEE 802.3az EEE (Energy-Efficient Ethernet) enables dynamic power savings on all switch ports.
• Cisco EnergyWise services empowers IT teams to measure and manage the power consumed by devices connected to the network, providing measurable energy savings and reduced greenhouse gas emissions.
• Smart Install automatically downloads Cisco IOS® Software and configures the switches for zero-touch deployment.
• Auto Smart Ports automatically configures port settings (VLAN, security, QoS) based on device type (for example, IP phones, access points) for simplified configuration and rapid deployment.
• NetFlow Lite detects IP packet types and provides enhanced visibility into the network.
• Standards-based 802.1x enables port-based network access control. 802.1x monitor mode simplifies first-time 802.1 x deployments by allowing user traffic pass-through while monitoring the access. IT can then implement 802.1x in phases.
• IPv6 First Hop Security protects against IPv6 address theft and malicious attacks.
• One policy through integration with Cisco Identity Services Engine (ISE) simplifies policy management in our 2960-XR switches.
• One management through integration with Cisco Prime™ provides ease of use.
Ordering Information
Tables 1 and 2 provide ordering information for the new Cisco Catalyst 2960-X switches. Table 3 provides information about accessories for Cisco Catalyst 2960-X switches. Tables 4 and 5 provide information about redundant power supplies for the 2960-X switches. Table 6 provides information about power cords for Cisco Catalyst 2960-X switches.
Table 1. Cisco Catalyst 2960-X Switches Ordering Information
Part Number
10/100/1000 Ethernet Interfaces
Uplink Interfaces
Cisco IOS Software Feature Set
Available PoE Power
FlexStack-Plus Stacking
WS-C2960X-48FPD-L
48
2 SFP+
LAN Base
740W
Optional
WS-C2960X-48LPD-L
48
2 SFP+
LAN Base
370W
Optional
WS-C2960X-24PD-L
24
2 SFP+
LAN Base
370W
Optional
WS-C2960X-48TD-L
48
2 SFP+
LAN Base
-
Optional
WS-C2960X-24TD-L
24
2 SFP+
LAN Base
-
Optional
WS-C2960X-48FPS-L
48
4 SFP
LAN Base
740W
Optional
WS-C2960X-48LPS-L
48
4 SFP
LAN Base
370W
Optional
WS-C2960X-24PS-L
24
4 SFP
LAN Base
370W
Optional
WS-C2960X-24PSQ-L
24
2 SFP & 2 1000BASE-T
LAN Base
92W
No
WS-C2960X-48TS-L
48
4 SFP
LAN Base
-
Optional
WS-C2960X-24TS-L
24
4 SFP
LAN Base
-
Optional
WS-C2960X-48TS-LL
48
2 SFP
LAN Lite
-
No
WS-C2960X-24TS-LL
24
2 SFP
LAN Lite
-
No
Table 2. Cisco Catalyst 2960-XR Switches Ordering Information
Part Number
10/100/1000 Ethernet Interfaces
Uplink Interfaces
Cisco IOS Software Feature Set
Default AC Power Supply
Available PoE Power
FlexStack-Plus Stacking
WS-C2960XR-48FPD-I
48
2 SFP+
IP Lite
1025W
740W
Optional
WS-C2960XR-48LPD-I
48
2 SFP+
IP Lite
640W
370W
Optional
WS-C2960XR-24PD-I
24
2 SFP+
IP Lite
640W
370W
Optional
WS-C2960XR-48TD-I
48
2 SFP+
IP Lite
250W
-
Optional
WS-C2960XR-24TD-I
24
2 SFP+
IP Lite
250W
-
Optional
WS-C2960XR-48FPS-I
48
4 SFP
IP Lite
1025W
740W
Optional
WS-C2960XR-48LPS-I
48
4 SFP
IP Lite
640W
370W
Optional
WS-C2960XR-24PS-I
24
4 SFP
IP Lite
640W
370W
Optional
WS-C2960XR-48TS-I
48
4 SFP
IP Lite
250W
-
Optional
WS-C2960XR-24TS-I
24
4 SFP
IP Lite
250W
-
Optional
Table 3. Cisco Catalyst 2960-X and 2960-XR Accessories
Redundant FRU power supply and fan for all 740W PoE+ C2960-XR switches, provides 1025W AC power
PWR-C2-250WAC=
Spare FRU power supply and fan for all non-PoE C2960-XR switches, provides 250W AC power
PWR-C2-640WAC=
Spare FRU power supply and fan for all 370W PoE+ C2960-XR switches, provides 640W AC power
PWR-C2-1025WAC=
Spare FRU power supply and fan for all 740W PoE+ C2960-XR switches, provides 1025W AC power
1The first FRU power supply with integrated fan is configured automatically when the switch is ordered. The second redundant FRU power supply is an option while configuring the order.
Table 6. Power Cords for Cisco Catalyst 2960-X Product Family
Part Numbers
Description
CAB-16AWG-AC
AC Power cord, 16AWG
CAB-ACE
AC Power Cord (Europe), C13, CEE 7, 1.5M
CAB-L620P-C13-US
Power Cord, 250VAC, 15A, NEMA L6-20 to C13, US
CAB-ACI
AC Power Cord (Italy), C13, CEI 23-16, 2.5m
CAB-ACU
AC Power Cord (UK), C13, BS 1363, 2.5m
CAB-ACA
AC Power Cord (China/Australia), C13, AS 3112, 2.5m
CAB-ACS
AC Power Cord (Switzerland), C13, IEC 60884-1, 2.5m
CAB-ACR
AC Power Cord (Argentina), C13, EL 219 (IRAM 2073), 2.5m
CAB-ACC
CORD,PWR,CHINA,10A,IEC 320,C13 (APN=CS-PWR-CH)
CAB-JPN-12A
CABASY,POWER CORD,JAPAN 2P, PSE, 12A @125VAC
CAB-L620P-C13-JPN
Power Cord, 250VAC, 15A, NEMA L6-20 to C13, JAPAN
CAB-IND
Power cable for India
CAB-C15-ISR
Power cable for Israel
CAB-ACSA
Power cable for South Africa
CAB-AC15A-90L-US
15A AC Pwr Cord, left-angle (United States)
CAB-ACE-RA
Power Cord Europe, Right Angle
CAB-ACI-RA
Power Cord-Italian, Right Angle
CAB-ACU-RA
Power Cord UK, Right Angle
CAB-ACC-RA
Power Cord China, Right Angle
CAB-ACA-RA
Power Cord, Australian, Right Angle
CAB-ACS-RA
Power Cord for Switzerland, Right Angle
CAB-ACR-RA
Power Cord, Argentina, Right Angle
CAB-JPN-RA
Power Cord, Japan, Right Angle
CAB-C15-CBN
Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors
Table 7. Power Cords for Cisco Catalyst 2960-XR Product Family
Part Numbers
Description
CAB-3KX-AC
AC Power Cord for Catalyst 2960-XR (North America)
CAB-3KX-AC-AP
AC Power Cord for Catalyst 2960-XR (Australia)
CAB-3KX-AC-AR
AC Power Cord for Catalyst 2960-XR (Argentina)
CAB-3KX-AC-SW
AC Power Cord for Catalyst 2960-XR (Switzerland)
CAB-3KX-AC-UK
AC Power Cord for Catalyst 2960-XR (United Kingdom)
CAB-3KX-AC-JP
AC Power Cord for Catalyst 2960-XR (Japan)
CAB-3KX-AC-EU
AC Power Cord for Catalyst 2960-XR (Europe)
CAB-3KX-AC-IT
AC Power Cord for Catalyst 2960-XR (Italy)
CAB-3KX-AC-IN
AC Power Cord for Catalyst 2960-XR (India)
CAB-3KX-AC-CN
AC Power Cord for Catalyst 2960-XR (China)
CAB-3KX-AC-DN
AC Power Cord for Catalyst 2960-XR (Denmark)
CAB-3KX-AC-IS
AC Power Cord for Catalyst 2960-XR (Israel)
CAB-3KX-250VAC-JP
Japan 250V AC Power Cord
CAB-C15-CBN
Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors
CAB-ACBZ-10A
AC Power Cord (Brazil) 10A/250V BR-3-10 plug for <10A device
CAB-ACBZ-12A
AC Power Cord (Brazil) 12A/125V BR-3-20 plug for <12A device
Software Policy for Cisco Catalyst 2960-X Series Switches
Customers with Cisco Catalyst LAN Lite, LAN Base, and IP Lite software feature sets will be provided with maintenance updates and bug fixes designed to maintain the compliance of the software with published specifications, release notes, and industry standards as long as the original end user continues to own or use the product or up to one year from the end-of-sale date for this product, whichever occurs earlier.
Cisco Enhanced Limited Lifetime Hardware Warranty
The Cisco Catalyst 2960-X Series Switches come with an enhanced limited lifetime warranty (E-LLW) that includes next-business-day (NBD) delivery of replacement hardware where available and 90 days of 8x5 Cisco Technical Assistance Center (TAC) support.
Your formal warranty statement, including the warranty applicable to Cisco software, appears in the Cisco information packet that accompanies your Cisco product. We encourage you to review carefully the warranty statement shipped with your specific product before use.
Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.
For further information on warranty terms, visit http://www.cisco.com/go/warranty. Table 8 provides information about the E-LLW.
Table 8. E-LLW Details
Cisco E-LLW
Device covered
Applies to Cisco Catalyst 2960-X Series Switches.
Warranty duration
As long as the original customer owns the product.
EoL policy
In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the announcement of discontinuance.
Hardware replacement
Cisco or its service center will use commercially reasonable efforts to ship a replacement for NBD delivery, where available. Otherwise, a replacement will be shipped within 10 working days after receipt of the RMA request. Actual delivery times might vary depending on customer location.
Effective date
Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than 90 days after original shipment by Cisco).
TAC support
Cisco will provide during business hours, 8 hours per day, 5 days per week basic configuration, diagnosis, and troubleshooting of device-level problems for up to a 90-day period from the date of shipment of the originally purchased Cisco Catalyst 2960-X product. This support does not include solution or network-level support beyond the specific device under consideration.
Cisco.com access
Warranty allows guest access only to Cisco.com.
