This product bulletin details changes to the Cisco IOS® Software packaging for Cisco® 3800 Series routers. It introduces four new cross-platform feature sets in Cisco IOS Software releases 12.4 Mainline and 12.4T.
Note: This product bulletin covers the packaging of functions into feature sets. It does not cover individual new features. For information about new features in Cisco IOS Software releases 12.4 Mainline and 12.4T, refer to the Cisco IOS Software pages at Cisco.com.
OVERVIEW
The Cisco 2800 and 3800 integrated service routers were introduced exclusively on these eight new cross-platform feature sets. Similar to 12.3T, Cisco IOS Software releases 12.4 Mainline and 12.4T consist exclusively of the cross-platform feature.
Table 1. Type of Feature Sets by Release Train
Cisco IOS Software Release 12.3 Mainline
Cisco IOS Software Release 12.3T
Cisco IOS Software Releases 12.4 Mainline and 12.4T
Classic Feature Sets
Cross-platform feature sets
Cross-platform feature sets
Cross-platform feature sets
Special-purpose feature sets
Special-purpose feature sets
Special-purpose feature sets
In addition to the eight cross-platform feature sets that were released with Cisco IOS Software releases 12.3T and 12.3 Mainline, four additional cross-platform feature sets will be added starting with 12.4 Mainline and 12.4T. Derivatives of the existing eight feature sets, these four new feature sets were created to address router management capabilities. The new feature sets are described in Table 2.
Table 2. New Feature Sets for Cisco IOS Software Releases 12.4 and 12.4T
Image Name
Cisco IOS Software Release 12.3 and Prior
Image Name
Cisco IOS Software Release 12.4 and Forward
IP Base
New
IP Base
X
IP Base without Crypto
Renamed
Enterprise Base
New
Enterprise Base
X
Enterprise Base without Crypto
Renamed
IP Voice
New
IP Voice
X
IP Voice without Crypto
Renamed
Advanced Security
X
Advanced Security
X
SP Services
X
SP Services
X
Advanced IP Services
X
Advanced IP Services
X
Enterprise Services without Crypto
New
Enterprise Services
X
Enterprise Services
X
Advanced Enterprise Services
X
Advanced Enterprise Services
X
Note that there is a name change for the feature sets that previously had no cryptography technology, and this fact is now reflected in their titles. Going forward, the new feature sets that have cryptography technology will have the basic title without any cryptography designator.

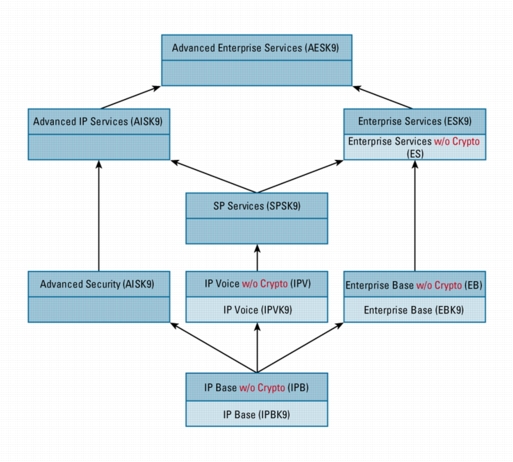

Figure 1. Reformation Feature Map
The remainder of this product bulletin provides details of feature set availability in Cisco IOS Software releases 12.4 Mainline and 12.4T.
CISCO IOS SOFTWARE RELEASE 12.4 MAINLINE
Overview of Available Feature Sets in Cisco IOS Software Release 12.4 Mainline
Table 3 lists the Cisco IOS Software Release 12.4 Mainline feature sets that are available for the Cisco 3800 Series routers.
Note that the flash memory recommendations are calculated without added management tools such as Cisco Security Device Manager (SDM).
Table 3. Cisco 3825-12.4M Feature Set Memory Recommendations
Cisco 3845 IOS ADVANCED ENTERPRISE SERVICES WITH SNA SWITCHING
c3845-adventerprisek9_sna-mz
64
256
S384AISK9
Cisco 3845 IOS ADVANCED IP SERVICES
c3845-advipservicesk9-mz
64
256
S384ASK9
Cisco 3845 IOS ADVANCED SECURITY
c3845-advsecurityk9-mz
64
256
S384EB
Cisco 3845 IOS ENTERPRISE BASE WITHOUT CRYPTO
c3845-entbase-mz
64
256
S384EBK9
Cisco 3845 IOS ENTERPRISE BASE
c3845-entbasek9-mz
64
256
S384ES
Cisco 3845 IOS ENTERPRISE SERVICES WITHOUT CRYPTO
c3845-entservices-mz
64
256
S384ESK9
Cisco 3845 IOS ENTERPRISE SERVICES
c3845-entservicesk9-mz
64
256
S384IPB
Cisco 3845 IOS IP BASE WITHOUT CRYPTO
c3845-ipbase-mz
64
256
S384IPBK9
Cisco 3845 IOS IP BASE
c3845-ipbasek9-mz
64
256
S384IPV
Cisco 3845 IOS IP VOICE WITHOUT CRYPTO
c3845-ipvoice-mz
64
256
S384IVS
Cisco 3845 IOS IP VOICE WITH INTEGRATED VOICE/VIDEO GATEKEEPER, IP-IP GATEWAY, TDM-IP GATEWAY
c3845-ipvoice_ivs-mz
64
256
S384IPVK9
Cisco 3845 IOS IP VOICE
c3845-ipvoicek9-mz
64
256
S384SPSK9
Cisco 3845 IOS SP SERVICES
c3845-spservicesk9-mz
64
256
Feature Area Map for Cisco IOS Software Release 12.4 Cross-Platform Feature Sets
The cross-platform feature sets are tailored to ease the choice of feature sets in a multiplatform environment. They were initially available for Cisco 1700, 2600XM, 3725, and 3745 series routers and the Cisco 2691 Multiservice Platform and are now also available for the Cisco 1800, 2800, and 3800 series routers. The cross-platform feature sets simplify the image selection process by providing similar functions across platform boundaries.
