This product bulletin describes the content and delivery information for Cisco® IOS® Software Release 12.3(8)YG. It should be used in conjunction with the Cisco IOS Software Release 12.3T product bulletin. Cisco IOS Software Release 12.3(8)YG is a short-lived, early deployment release that will migrate in the first release of Cisco IOS Software Release 12.4T. It supports the Cisco 830 Series routers (Cisco 831, Cisco 836, Cisco 837), Cisco SOHO90 Series routers (SOHO91, SOHO96, SOHO97), 1700 Series routers (Cisco 1701, Cisco 1711, Cisco 1712, Cisco 1721, Cisco 1751, Cisco 1751-V, and Cisco 1760), and Cisco 1800 Series (Cisco 1841).
In addition to the supported features described in this product bulletin, additional information is available in the release notes for Cisco IOS Software Release 12.3(8)YG.
Note: This product bulletin only lists features which are new to the respective routers.

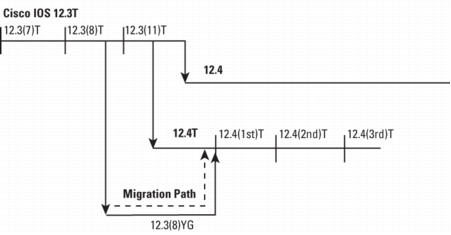

Customers should be prepared to upgrade using the migration path described in Figure 1.
Due to new developments in the DSLAM market regarding DSLAMs with Gigabit backhaul instead of the more traditional ATM backhaul, PPPoA and RFC1483 routed encapsulation normally used for higher end DSL services are no longer an option (unless in the rare case where termination of these services are supported in the DSLAM). Routing with bridged encapsulation allows the router to transmit and receive bridge encapsulated RFC1483 frames and route them to and from the internal network while allowing for QoS features to be applied as supported by the IOS feature sets.
Support of the DMZ Ethernet port as backup interface, supporting Static address, DHCP client or PPPoE client. Ethernet 2 interface can be enabled on Cisco 830 series and as such port 4 on the switch will be the physical representation of this port.
WIC-1SHDSL-V2 on Cisco 1841
• Cisco 1841-All feature sets
The WIC-1SHDSL-V2 interface card is supported on the Cisco 1721, 1751 and Cisco 1760 modular access routers since the 12.3(4)XG release which migrated into the 5fth release of 12.3T (i.e. 12.3(11)T). With this 12.3(8)YG release, the WIC-1SHDSL-V2 is now also supported on the Cisco 1841 integrated services router.
NEW FEATURES IN CISCO IOS SOFTWARE RELEASE 12.3(8)YG
Table 1 lists the features delivered in the Cisco IOS Software Release 12.3(8)YG.
Table 1. Cisco IOS Software Release 12.3(8)YG Features
Product Model
SOHO91
SOHO96
SOHO97
Cisco 827-4V
Cisco 828
Cisco 831
Cisco 836
Cisco 837
New Software Features
RBE client side encapsulation with QoS
-
X
X
-
-
-
X
X
DMZ Ethernet as backup interface
-
-
-
-
-
X
X
X
Product Model
Cisco 1701
Cisco 1711
Cisco 1712
Cisco 1721
1751/1751-V
Cisco 1760
Cisco 1841
New Software Features
RBE client side encapsulation with QoS
X
X
X
X
X
X
X
Product Model
Cisco 1701
Cisco 1711
Cisco 1712
Cisco 1721
1751/1751-V
Cisco 1760
Cisco 1841
New Hardware Features
WIC-1SHDSL-V2
-
-
-
-
-
-
X
Table 2. Image Product Numbers and Descriptions for the SOHO 90 and Cisco 830 Series
Product
Feature Set
RBE with QoS
Backup Ethernet WAN interface
831
c831-k9o3sy6-mz
No
Yes
c831-k9o3y6-mz
No
Yes
836
c836-k9o3s8y6-mz
Yes
Yes
c836-k9o3sy6-mz
Yes
Yes
c836-k9o3y6-mz
Yes
Yes
837
c837-k9o3sy6-mz
Yes
Yes
c837-k9o3y6-mz
Yes
Yes
SOHO91
soho91-k9oy6-mz
No
No
SOHO96
soho96-k9oy1-mz
Yes
No
SOHO97
soho97-k9oy1-mz
Yes
No
soho97-oy1-mz
Yes
No
Table 3. Image Product Numbers and Descriptions for the Cisco 1700 Access Router Series and Cisco 1800 Integrated Services Router Series (Modular)
Product
Feature Set
RBE w/QoS
17xx
c1700-y7-mz
Yes
c1700-sy7-mz
Yes
c1700-sv8y7-mz
Yes
c1700-k9o3sy7-mz
Yes
c1700-bk9no3r2sy7-mz
Yes
c1700-ipbase-mz
Yes
c1700-advsecurityk9-mz
Yes
c1700-spservicesk9-mz
Yes
c1700-advipservicesk9-mz
Yes
c1700-entservicesk9-mz
Yes
c1700-adventerprisek9-mz
Yes
1841
c1841-adventerprisek9-mz
Yes
c1841-advipservicesk9-
Yes
c1841-advsecurityk9-mz
Yes
c1841-entservicesk9-mz
Yes
c1841-ipbase-mz
Yes
c1841-spservicesk9-mz
Yes
c1841-broadband-mz
Yes
Table 4. Feature Sets and Ordering Information for Cisco IOS Software Release 12.3(8)YG for 830 Series and SOHO 90 Series
Cisco 830 and Cisco SOHO 90 Series Platforms
Recommended Memory
Product
Software Product Description
Image File Name
Part Number
Flash
DRAM
831
Cisco 831 Series IOS IP/FW 3DES
c831-k9o3y6-mz
S831CHK9-12308YG S831CHK9-12308YG=
12MB
48MB
831
Cisco 831 Series IOS IP/FW/PLUS 3DES
c831-k9o3sy6-mz
S831CHPK9-12308YG S831CHPK9-12308YG=
12MB
48MB
836
Cisco 836 Series IOS IP/FW 3DES
c836-k9o3y6-mz
S836CHK9-12308YG S836CHK9-12308YG=
12MB
48MB
836
Cisco 836 Series IOS IP/FW/PLUS 3DES
c836-k9o3sy6-mz
S836CHPK9-12308YG S836CHPK9-12308YG=
12MB
48MB
836
Cisco 836 Series IOS IP/FW/PLUS ISDN DIAL BKUP 3DES VPN
c836-k9o3s8y6-mz
S836CHSK9-12308YG S836CHSK9-12308YG=
12MB
48MB
837
Cisco 837 Series IOS IP/FW 3DES
c837-k9o3y6-mz
S837CHK9-12308YG S837CHK9-12308YG=
12MB
48MB
837
Cisco 837 Series IOS IP/FW/PLUS 3DES
c837-k9o3sy6-mz
S837CHPK9-12308YG S837CHPK9-12308YG=
12MB
48MB
SOHO 91
Cisco SoHo91 Series IOS IP/FW 3DES
soho91-k9oy6-mz
SSH91CHK9-12308YG SSH91CHK9-12308YG=
8MB
32MB
SOHO 96
Cisco SoHo96 Series IOS IP/FW 3DES
soho96-k9oy1-mz
SSH96CHK9-12308YG SSH96CHK9-12308YG=
8MB
32MB
SOHO 97
Cisco SoHo97 Series IOS IP/FW 3DES
soho97-k9oy1-mz
SSH97CHK9-12308YG SSH97CHK9-12308YG=
8MB
32MB
Table 5. Feature Sets and Ordering Information for Cisco IOS Software Release 12.3(8)YG for Cisco 1700 Access Router Series
Recommended Memory
Platform/Product
Software Product Description
Image File Name
Part Number
Flash
DRAM
Cisco 1700 Series Legacy Images
1721, 1751, 1751-V, 1760
Cisco 1700 Series IOS
IP/ADSL
c1700-y7-mz
S17C7-12308YG
S17C7-12308YG=
32 MB
64 MB
1721, 1751, 1751-V, 1760
Cisco 1700 Series IOS
IP/ADSL PLUS
c1700-sy7-mz
S17C7P-12308YG
32 MB
96 MB
1701, 1711, 1712, 1721, 1751, 1751-V, 1760
Cisco 1700 Series IOS
IP/ADSL/FW/IDS PLUS IPSEC 3DES
c1700-k9o3sy7-mz
S17C7HK9-12308YG
32 MB
96 MB
1701, 1711, 1712, 1721, 1751, 1751-V, 1760
Cisco 1700 Series IOS
IP/ADSL/IPX/AT/IBM/FWIDS PLUS IPSEC 3DES
c1700-bk9no3r2sy7-mz
S17Q7HK9-12308YG
32 MB
128 MB
1751, 1751-V, 1760
Cisco 1700 Series IOS
IP/ADSL/VOX PLUS
c1700-sv8y7-mz
S17C7V8P-12308YG
S17C7V8P-12308YG=
32 MB
128 MB
Cisco 1700 Series Cross-Platform Images
1701, 1721, 1751, 1751-V, 1760
Cisco 1700 Series IOS
IP Base
c1700-ipbase-mz
S17IPB-12308YG
S17IPB-12308YG=
32 MB
64 MB
1701, 1711, 1712, 1721, 1751, 1751-V, 1760
Cisco 1700 Series IOS
Advanced Security
c1700-advsecurityk9-mz
S17ASK9-12308YG
32 MB
96 MB
1760
Cisco 1700 Series IOS
Advanced IP Services
c1700-advipservicesk9-mz
S17AISK9-12308YG
32 MB
160 MB
1701, 1721, 1751, 1751-V, 1760
Cisco 1700 Series IOS
Enterprise Services
C1700-entservicesk9-mz
S17ESK9-12308YG
32 MB
128 MB
1701, 1721, 1751, 1751-V, 1760
Cisco 1700 Series IOS
SP Services
C1700-spservicesk9-mz
S17SPSK9-12308YG
32 MB
128 MB
1760
Cisco 1700 Series IOS Advanced Enterprise Services
c1700-adventerprisek9-mz
S17AESK9-12308YG
32 MB
160 MB
Table 6. Feature Sets and Ordering Information for Cisco IOS Software Release 12.3(8)YG for Cisco 1800 Integrated Services Router Series (modular)
Cisco 1800 Series (Modular) Cross-Platform Images
Recommended Memory
Product
Software Product Description
Image File Name
Part Number
Flash
DRAM
1841
Cisco 1841 IOS IP Base
c1841-ipbase-mz
S184IPB-12308YG
S184IPB-12308YG=
32 MB
128 MB
1841
Cisco 1841 IOS Broadband
c1841-broadband-mz
S184BB-12308YG
32 MB
128 MB
1841
Cisco 1841 IOS Advanced Security
c1841-advsecurityk9-mz
S184ASK9-12308YG
32 MB
128 MB
1841
Cisco 1841 IOS SP Services
C1841-spservicesk9-mz
S184SPSK9-12308YG
32 MB
128 MB
1841
Cisco 1841 IOS Advanced IP Services
C1841-advipservicesk9-mz
S184AISK9-12308YG
64 MB
192 MB
1841
Cisco 1841 IOS Enterprise Services
C1841-entservicesk9-mz
S184ESK9-12308YG
64 MB
192 MB
1841
Cisco 1841 IOS Advanced Enterprise Services
c1841-adventerprisek9-mz
S184AESK9-12308YG
64 MB
192 MB
DOWNLOAD INFORMATION
Customers can download Cisco IOS Software Release 12.3(8)YG from the http://www.cisco.com software image library.
