• Affordable, high-performance Gigabit Ethernet ports enable large files and multiple users
• Versatile device can function either as a wireless router, wireless bridge, or wireless repeater
• Wireless-N access point provides highly secure untethered connectivity
• IP Security (IPsec) site-to-site VPN helps enables secure connectivity for remote employees and multiple offices
• Built-in secure policy index (SPI) firewall, robust authentication, and access control safeguard sensitive business data
• Easy to set up and use with wizard-based configuration
In a dynamic business environment, your network needs to be more powerful, flexible, and accessible than ever. Your employees need the ability to stay connected to the people and services they need - inside and outside the office. And your network needs the agility to meet constantly changing business needs.

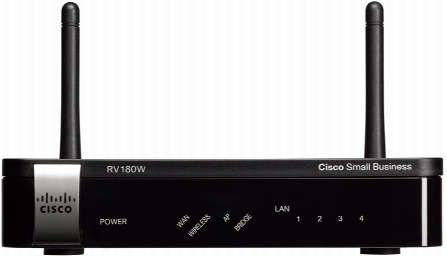

The Cisco RV180W Multifunction VPN Router delivers highly secure broadband connectivity, high-speed wireless networking, and remote access for multiple offices and remote workers. Built for maximum flexibility, it delivers a comprehensive combination of business-class features and ease of use in a scalable solution that is priced for small businesses.
The Cisco RV180W features a built-in 4-port Gigabit Ethernet managed switch that lets you connect network devices and transfer files and data at high speed, providing the power and performance you need to keep multiple employees productive. Intelligent quality of service (QoS) features let you prioritize network traffic to keep critical network applications like voice and video running at their best.
To provide untethered connectivity to employees throughout the office, the Cisco RV180W also includes support for wireless-N technology. This multifunction device can serve either as a wireless router, wireless access point, wireless bridge, or repeater, providing investment protection and flexibility when business needs change. You can get started using the RV180W in the way that best meets your needs, then change modes, and repurpose the solution as your business and network grow, resulting in maximum return on your technology investment.
For employees who need to connect from home, on the road, or from remote offices, the Cisco RV180W features integrated enterprise-class encryption and authentication, including support for IPsec and Point-to-Point Tunneling Protocol (PPTP) VPN client connections and IPsec gateway-to-gateway VPN tunnels. Advanced virtual network support lets you set up wireless guest access hotspots to provide highly secure connectivity to clients and visitors.
Easy to set up and use right out of the box, both solutions feature simple wizard-based configuration to get you up and running in minutes.
The Cisco RV180W VPN Router is a cost-effective way to provide business-class performance, security, and reliability your employees need today, with the flexibility to change as your business evolves.

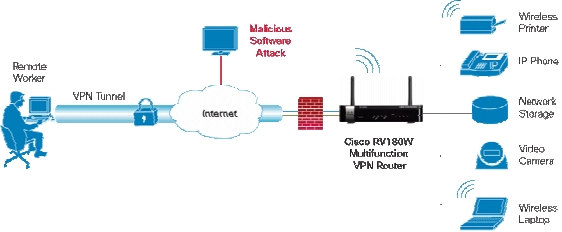

Figure 3. Typical Configuration for Cisco RV180W Multifunction VPN Router
Features

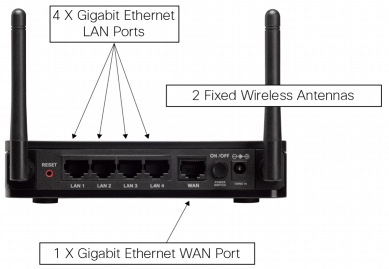

• Built-in 4-port Gigabit managed switch delivers faster data transfer for bandwidth-intensive applications
• Wireless-N (2.4 GHz) support provides enhanced wireless throughput and coverage
• Client bridge mode lets you expand your network by connecting your secure wireless connection to a second Ethernet network - without cabling and installation
• IPSec Virtual Private Network (VPN) tunneling support lets you extend highly secure network connectivity to remote offices and users using advanced encryption and authentication
• Sophisticated QoS prioritizes network traffic for demanding voice, video, and data applications
• Separate virtual network support helps enable secure guest access and helps safeguard sensitive data
-87 dBm at 11 Mbps, -71 dBm at 54 Mbps, -68 dBm at mcs15, HT20, -66 dBm at mcs15, HT40
Radio Frequency
Single-band, works on 2.4GHz
Wireless Domain Service (WDS)
Allows wireless signals to be repeated by up to 3 compatible devices
Operating Modes
Multifunction device-wireless router, access point mode with WDS, Point-to-Point Bridge mode with WDS, Point-Multi Point Bridge mode with WDS, Repeater mode with WDS
Active WLAN clients
Recommended 10 concurrent client (max 16) in wireless router mode; and 20 concurrent client (max32) in wireless Access Point mode
Multiple SSIDs
Supports multiple Service Set Identifiers (SSIDs), up to 4 separate virtual networks
Wireless VLAN map
Supports SSID to VLAN mapping with wireless client isolation
Cisco Limited Lifetime Warranty for Cisco Small Business Series Products
This Cisco Small Business product comes with limited lifetime hardware warranty for complete peace of mind. Product warranty terms and other information applicable to Cisco products are available at www.cisco.com/go/warranty.
Cisco Small Business Support Service
This optional service offers affordable, 3-year peace-of-mind coverage. This subscription-based, device-level service helps you protect your investment and derive maximum value from Cisco Small Business products. Delivered by Cisco and backed by your trusted partner, this comprehensive service includes software updates, extended access to the Cisco Small Business Support Center, and expedited hardware replacement, should it be required.
