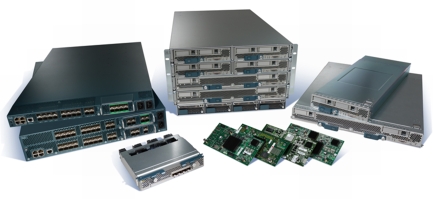

Cisco Unified Computing System Overview
The Cisco® Unified Computing System is a next-generation data center platform that unites compute, network, storage access, and virtualization into a cohesive system designed to reduce total cost of ownership (TCO) and increase business agility. The system integrates a low-latency, lossless 10 Gigabit Ethernet unified network fabric with enterprise-class, x86-architecture servers. The system is an integrated, scalable, multichassis platform in which all resources participate in a unified management domain.
Product Overview
The Cisco UCS 82598KR-CI 10 Gigabit Ethernet Adapter is a mezzanine card designed for use with Cisco UCS B-Series Blade Servers as part of the Cisco Unified Computing System (Figure 1). The adapter is based on the Intel 82598 10 Gigabit Ethernet controller, which is designed for efficient high-performance Ethernet transport.
Figure 1. Cisco UCS 82598KR-CI 10 Gigabit Ethernet Adapter
Features and Benefits
The Cisco UCS 82598KR-CI provides a solution for data center environments that need low-latency 10 Gigabit Ethernet transport capability. Designed specifically for the Cisco UCS blades, the adapter provides a dual-port connection to the midplane of the blade server chassis (Figure 2).
The Cisco UCS 82598KR-CI supports Intel Input/Output Acceleration Technology (I/OAT) as well as virtual queues for I/O virtualization. The adapter is energy efficient and can also help reduce CPU utilization by providing large segment offload (LSO) and TCP segmentation offload (TSO). The Cisco UCS 82598KR-CI uses Intel Virtual Machine Device Queue (VMDq) technology for the efficient routing of packets to the appropriate virtual machine.

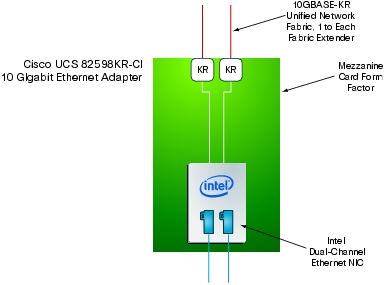

Figure 2. The Cisco UCS 82598KR-CI
Table 1 summarizes the features and benefits of the Cisco UCS 82598KR-CI.
Table 1. Features and Benefits
Platform Support and Compatibility
The Cisco UCS 82598KR-CI is designed specifically for Cisco UCS blades and works in a dedicated environment with Cisco UCS Manager.
Table 2 summarizes the specifications for the Cisco UCS 82598KR-CI.
Table 2. Product Specifications
System Requirements
The Cisco UCS 82598KR-CI is designed to be used only on Cisco UCS B-Series Blade Servers. Each Cisco UCS B200 M1 2-Socket Blade Server can support one mezzanine adapter, and each Cisco UCS B250 M1 2-Socket Extended Memory Blade Server can support two adapters. The adapters are not designed or intended for other purposes.
Warranty Information
Find warranty information at Cisco.com on the Product Warranties page.
Cisco Unified Computing Services
Using a unified view of data center resources, Cisco and our industry-leading partners deliver services that accelerate your transition to a unified computing architecture. Cisco Unified Computing Services help you quickly deploy your data center resources, simplify ongoing operations, and optimize your infrastructure to better meet your business needs. For more information about these and other Cisco Data Center Services, visit http://www.cisco.com/go/unifiedcomputingservices.
Why Cisco?
The Cisco Unified Computing System continues Cisco's long history of innovation in delivering integrated systems for improved business results based on industry standards and using the network as the platform. Recent examples include IP telephony, LAN switching, unified communications, and unified I/O. Cisco began the unified computing phase of our Data Center 3.0 strategy several years ago by assembling an experienced team from the computing and virtualization industries to augment our own networking and storage access expertise. As a result, Cisco delivered foundational technologies, including the Cisco Nexus™ Family, supporting unified fabric and server virtualization. The Cisco Unified Computing System completes this phase, delivering innovation in architecture, technology, partnerships, and services. Cisco is well-positioned to deliver this innovation by taking a systems approach to computing that unifies network intelligence and scalability with innovative ASICs, integrated management, and standard computing components.
For More Information
For more information about the Cisco UCS 82598KR-CI 10 Gigabit Ethernet Adapter, visit http://www.cisco.com/en/US/products/ps10265/index.html or contact your local Cisco representative.
