This document is intended for Cisco Prime™ Home customers who are integrating hardware and software for the optimal utilization of our proprietary Cisco Prime Home solution offering. These specifications are for reference only and are not to be considered a de facto standard, although they are highly recommended for optimal Cisco Prime Home continuity. The scalability indicated assumes normal operating conditions for the product.
Table 1 defines some technical terms used in this document.
Table 1. Technical Preface
Topic
Notes
Processors
Processor cores and RAM are interdependent on the chipset. Consult the vendor for specific requirements while maintaining the minimum Cisco Prime Home requirements given in this document.
RAM
Note the preferred RAM specifications for increased system integrity and maintain the optimal DIMM allocation, thus allowing for future upgrades or increases in RAM
High availability (HA) storage
The Cisco Prime Home solution supports both shared storage solutions as well as a concurrent-writes model. Note that provisions are needed for system configuration to support the HA solution, but this context is outside the scope of this document.
Cisco Prime Home Onsite Deployment Standards
Onsite Integration Standards
Cisco Advanced Services may be engaged to deploy Cisco Prime Home in our customers' environments. Prior to engagement the following standards will be confirmed:
• Customer agreement/understanding that every onsite integration engagement of Cisco Prime Home requires hardware in the following capacity:
– Preproduction (staging)
– Production
• Hardware minimum requirements confirmation
• Software minimum requirements confirmation
Operating System Standards
Cisco Prime Home 5.0 and later require the Red Hat Enterprise Linux 6.1 operating system.
Core Preproduction (Staging) Minimum Requirements
This recommended server configuration is capable of supporting up to 150,000 customer premises equipment (CPE) devices in a preproduction environment and requires a single Auto Configuration Server (ACS) and a single database server. The preproduction environment will be utilized for staging, development, and testing. This recommended configuration is not a specification for HA environments; HA minimum requirements are detailed in an additional section of this document.
ACS Server (Minimum Specifications)
• Processor (RAM dependent): 6 or 8 cores
• RAM (DIMMs): 16 GB
• Storage: 300 GB (fiber or fast disk), 10,000 RPM
Database Server (Minimum Specifications)
• Processor (RAM dependent): 6 or 8 cores
• RAM (DIMMs): 16 GB
• Storage: 300 GB (fiber or fast disk), 10,000 RPM
Core Production Minimum Requirements - Single Instance
This production-ready recommended server configuration is capable of supporting up to 375,000 CPE devices in a production environment and requires a single ACS server and a single database server. The production environment is intended for live environments and should not be used for development or test purposes. This recommended configuration is not a specification for HA environments; HA minimum requirements are detailed in an additional section of this document.
ACS Server (Minimum Specifications)
• Processor (RAM dependent): 6 or 8 cores
• RAM (DIMMs): 16 GB
• Storage: 300 GB (fiber or fast disk), 10,000 RPM
Database Server (Minimum Specifications)
• Processor (RAM dependent): 6 or 8 cores
• RAM (DIMMs): 32 GB, 48 GB preferred
• Storage: 300 GB (fiber or fast disk), 10,000 RPM
High Availability Minimum Requirements
High availability environments are utilized to offer optimal uptime in the event of a system failure as well as for systems maintenance. The Cisco Prime Home solution architecture requires the utilization of load balancers to help ensure distributed transactions on server instances. Below are the minimum requirements for HA environments in pre- and live production. High availability also provides additional capacity for handling an increased number of CPE devices.
Preproduction (Staging) Minimum Specifications - Up to 300,000 CPE Devices
Load Balancers
Quantity (minimum): 1
ACS Servers
Quantity: 2
• Processor: 6 or 8 cores
• RAM (DIMMs): 16 GB
• Storage: 300 GB (fiber or fast disk), 10,000 RPM
Database Servers
Quantity: 2
• Processor: 6 or 8 cores
• RAM (DIMMs): 32 GB, 48 GB preferred
• Storage: 500 GB (fiber or fast disk), 10,000 RPM
Production Minimum Specifications - Up to 750,000 CPE Devices
Storage Requirements
Unless otherwise noted, all storage must consist of 15,000 RPM SAS drives, running through an array controller with at least 1 GB of battery-backed, write-through cache. Either a local RAID controller or an external fibre channel Storage Area Network (SAN) may be used, but must conform to this specification. RAID level should be at least RAID 5 for ACS servers and RAID 6 for database servers; at least one hot spare should be available per system. Virtual machines should have direct access to SAN storage, rather than use virtualized storage.
CPU Recommendation
Cisco recommends AMD Opteron-based servers. Intel Xeon may also be used; hyperthreading does not count toward core requirements.
Load Balancers
Quantity: 2
Cisco recommends advanced hardware load balancers. Software-based solutions (for example, Citrix) should not be used.
• Load balancer requirements:
– HTTP transactions/second (TPS): 1000
– Maximum SSL TPS: 500
Cisco Prime Home Servers (Hardware)
Quantity: 2
• Processor: 8 (Intel)-12 (AMD) CPU cores at 2.5 GHz+
• RAM (DIMMs): 24 GB, 32+ GB preferred
• RAID controller with 1 GB battery-backed write-through cache
• Networking: 2 network interface cards (NICs):
– NIC 1: Dedicated external connectivity
– NIC 2: Dedicated intraserver connectivity
• Storage: 300 GB+; see the "Storage Requirements" section
Cisco Prime Home Servers (Virtual Machine)
Quantity: 2
• Processor: 8+ cores at 2.5 GHz+
• RAM (DIMMs): 24 GB, 32+ GB preferred
• Networking: 2 NICs:
– NIC 1: Dedicated external connectivity
– NIC 2: Dedicated intraserver connectivity
• Storage: 300 GB+; see the "Storage Requirements" section
Cisco Prime Home Database Servers (Hardware)
Quantity: 2
• Processor: 8 (Intel)-12 (AMD) CPU cores at 2.5 GHz+
• RAM (DIMMs): 24 GB, 32+ GB preferred
• RAID controller with 1 GB battery-backed write-through cache
• Networking: 2 NICs:
– NIC 1: Dedicated external connectivity
– NIC 2: Dedicated intraserver connectivity
• Storage: 500 GB+; see the "Storage Requirements" section
Cisco Prime Home Database Servers (Virtual Machine)
Cisco Prime Home database servers running in VMs are not recommended but are achievable. It should be noted that RAM, processor, and I/O requirements far exceed that of hardware deployments. Network Attached Storage (NAS) or SAN enclosures utilizing iSCSI are not feasible and will negate the option to deploy Cisco Prime Home database servers in VMs. Virtualized database servers must have direct access to attached SAN storage that meets our minimum storage requirements, not virtualized, iSCSI, or NAS storage.
Quantity: 2
• Processor allocation: 8+ cores at 2.5 GHz+
• RAM (DIMMs): 48 GB, 64 GB preferred
• Networking: 2 NICs:
– NIC 1: Dedicated external connectivity
– NIC 2: Dedicated intraserver connectivity
• Storage: 500 GB+ directly attached storage
Advanced Services: Content Filtering
Content Filtering Servers
Quantity: 2
• Processor: 8 (Intel)-12 (AMD) CPU cores at 2.0 GHz+
• RAM (DIMMs): 16 GB
• Networking: 2 NICs:
– NIC 1: Dedicated external connectivity
– NIC 2: Dedicated intraserver connectivity
• Storage: 300 GB:+; see the "Storage Requirements" section
Example of HA Topology
Figure 1 shows an example of high availability typology.

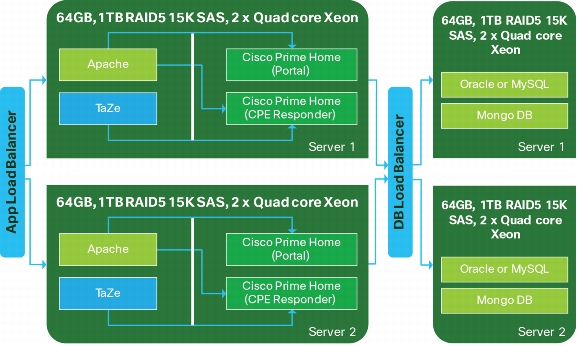

Figure 1. Example of HA Topology
