PB569037
Support for 8Gbps Fibre Channel Nexus 5000 Expansion Module

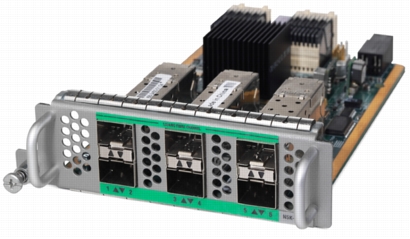

Figure 1. Cisco Nexus 5000 Series Expansion Module for 1/2/4/8-Gbps Fibre Channel Connectivity (Product Number N5K-M1060)
Cisco Nexus 5000 Series Generic Expansion Module Features
• Six 8-Gbps Fibre Channel-compatible ports are provided.
• Full 8Gbps line rate, non-oversubscribed.
• Port autonegotiates among 8-, 4-, 2- or 1-Gbps Fibre Channel.
New Software Features
• Enhancement to virtual PortChannel (vPC) function: Cisco NX-OS Software Release 4.1.3N1(1) introduced vPC technology on the Cisco Nexus 5000 Series platform. vPC allows formation of PortChannels across two Cisco Nexus 5000 Series and/or 2000 Series platforms. This capability allows formation of scalable Layer 2 topologies that do not depend on Spanning Tree Protocol for redundancy and loop avoidance and at the same time provides higher cross-sectional bandwidth by using all physical links that interconnect the devices, whether they be networking equipment, Cisco Nexus 2000 Series Fabric Extenders, or end host systems such as servers (Figure 2).
Cisco NX-OS 4.1(3)N2(1) enables addition and deletion of server interfaces in the event of any disruption on the vPC peer link interface.

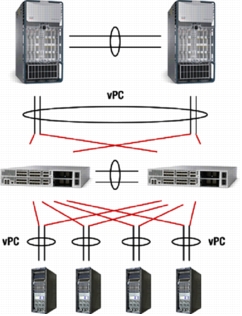

Figure 2. Sample VPC Topology
• Access control list (ACL) support on the management interface: Cisco NX-OS 4.1(3)N2(1) enables users to apply an ACL on the ethernet out-of-band management interface. This capability gives users greater flexibility: for instance, telnet and Secure Shell (SSH) sessions can be restricted on a per-port basis.
• Support for logging option with virtual route forwarding (VRF): In the previous release of Cisco NX-OS, users could obtain logging information only through the management VRF. Logging capability has been enhanced to allow users to use the default VRF instance for transmission of in-band logging system information.
• Authentication, authorization, and accounting (AAA) command authorization: The AAA authorization and authentication cache feature allows users to cache authorization and authentication responses for a configured set of users or service profiles. This feature also provides a failover mechanism so that if a network RADIUS or TACACS+ server is unable to provide authorization and authentication responses, network users and administrators can still access the network.
Cisco NX-OS 4.1(3)N2(1) will add native support for command authorization by a server outside the switch. Role-based access control (RBAC) will be added in a subsequent release.
