Cisco ASR 903 Series Router MIB Specifications
This chapter describes the Management Information Base (MIB) on the Cisco ASR 903 Series Aggregation Services Routers. It includes the following sections:
•
Cisco ASR 903 Series Router MIBs
•
Cisco ASR 903 Series Router MIBs
Each MIB description lists relevant constraints about the implementation of the MIB on the Cisco ASR 903 Series Router platform. Any objects not listed in the table are implemented as defined in the MIB. For detailed MIB descriptions, see the standard MIB.
Note
Cisco ASR 903 Series Router MIB Categories
The subsequent tables list the following categories of MIBs in the Cisco ASR 903 Series Router Image on the Cisco ASR 903 Series Router:
•
•
•
The MIB version string indicates the date and time that it was most recently modified. The format is YYMMDDHHMMZ or YYYYMMDDHHMMZ, where:
•
•
•
•
•
•
•
Note
Note
Supported and Verified MIBs
Table 3-1 lists the MIBs that are supported and verified on the Cisco ASR 903 Series Router in the following Cisco IOS XE software release. The table lists the MIBs, corresponding notification names, and applicable MIB versions.
Table 3-1 MIBs Supported and Verified on the Cisco ASR 903 Series Router
bgpEstablished
bgpBackwardTransition
9405050000Z
—
200207260000Z
cbgpFsmStateChange
cbgpBackwardTransition
cbgpPrefixThresholdExceeded
cbgpPrefixThresholdClear
201009300000Z
cbfDefineFileCompletion
200108220000Z
—
200605240000Z
—
200503210000Z
cefResourceFailure
cefPeerStateChange
cefPeerFIBStateChange
cefInconsistencyDetection
200601300000Z
—
200904240000Z
ccCopyCompletion
200403170000Z
ciscoConfigManEvent
ccmCLIRunningConfigChanged
ccmCTIDRolledOver
200608220000Z
cdcVFileCollectionError
cdcFileXferComplete
200210300530Z
cdot3OamThresholdEvent
cdot3OamNonThresholdEvent
200605310000Z
cEventMgrServerEvent
cEventMgrPolicyEvent
200611070000Z
cempMemBufferNotify
200812050000Z
ceAlarmAsserted
ceAlarmCleared
199907062150Z
—
200811240000Z
cefcModuleStatusChange
cefcPowerStatusChange
cefcFRUInserted
cefcFRURemoved
cefcUnrecognizedFRU
cefcFanTrayStatusChange
200810070000Z
entSensorThresholdNotification
200601010000Z
—
200505050930Z
ciscoFlashCopyCompletionTrap
ciscoFlashPartitioningCompletionTrap
ciscoFlashMiscOpCompletionTrap
ciscoFlashDeviceChangeTrap
ciscoFlashDeviceInsertedNotif
ciscoFlashDeviceRemovedNotif
ciscoFlashDeviceInsertedNotifRev1
ciscoFlashDeviceRemovedNotifRev1
201103160000Z
—
199710091700Z
ciiDatabaseOverload
ciiManualAddressDrops
ciiCorruptedLSPDetected
ciiAttemptToExceedMaxSequence
ciiIDLenMismatch
ciiMaxAreaAddressesMismatch
ciiOwnLSPPurge
ciiSequenceNumberSkip
ciiAuthenticationTypeFailure
ciiAuthenticationFailure
ciiVersionSkew
ciiAreaM
200508161200Z
—
201204080000Z
—
201204080000Z
—
200504191200Z
—
200209221200Z
cpwVcDown
cpwVcUp
200403171200Z
—
200302261200Z
—
200607210000Z
—
200311140000Z
—
200111080000Z
—
200710160000Z
—
199508150000Z
ciscoIpMRouteMissingHeartBeats
200804010000Z
—
200607040000Z
—
201202220000Z
—
201106160000Z
ciscoMvpnMvrfChange
200402231200Z
—
201010150000Z
—
200307180000Z
CISCO-OSPF-TRAP-MIB (draft-ietf-ospf-mib-update-05)
cospfIfConfigError
cospfVirtIfConfigError
cospfTxRetransmit
cospfVirtIfTxRetransmit
cospfOriginateLsa
cospfMaxAgeLsa
cospfNssaTranslatorStatusChange
cospfShamLinkStateChange
cospfShamLinksStateChange
cospfShamLinkNbrStateChange
cospfShamLinkConfigError
cospfShamLinkAuthFailure
cospfShamLinkRxBadPacket
cospfShamLinkTxRetransmit
200307180000Z
ciscoPimInterfaceUp
ciscoPimInterfaceDown
ciscoPimRPMappingChange
ciscoPimInvalidRegister
ciscoPimInvalidJoinPrune
200011020000Z
cpmCPURisingThreshold
cpmCPUFallingThreshold
201005060000Z
—
200505051930Z
—
201101280000Z
ciscoRFSwactNotif
ciscoRFProgressionNotif
ciscoRFIssuStateNotifRev1
200803180000Z
rttMonConnectionChangeNotification
rttMonTimeoutNotification
rttMonThresholdNotification
rttMonVerifyErrorNotification
rttMonNotification
rttMonLpdDiscoveryNotification
rttMonLpdGrpStatusNotification
201102210000Z
—
200503020000Z
ciscoSonetSectionStatusChange
ciscoSonetLineStatusChange
ciscoSonetPathStatusChange
200205220000Z
clogMessageGenerated
199508070000Z
dsx1LineStatusChange
9808011830Z
entConfigChange
200508100000Z
—
200212160000Z
entStateOperEnabled
entStateOperDisabled
200511220000Z
—
200010160000Z
—
200309190000Z
dot1agCfmFaultAlarm
200810150000Z
—
200810150000Z
linkDown
linkUp
9611031355Z
—
200009280000Z
—
200602010000Z
—
200602020000Z
—
200009220000Z
—
200406030000Z
mplsLdpInitSessionThresholdExceeded
mplsLdpPathVectorLimitMismatch
mplsLdpSessionUp
mplsLdpSessionDown
200406030000Z
mplsXCUp
mplsXCDown
200406030000Z
msdpEstablished
msdpBackwardTransition
9912160000Z
—
200011270000Z
—
9501201225Z
ospfIfStateChange
ospfVirtIfStateChange
ospfNbrStateChange
ospfVirtNbrStateChange
ospfIfConfigError
ospfVirtIfConfigError
ospfIfAuthFailure
ospfVirtIfAuthFailure
ospfIfRxBadPacket
ospfVirtIfRxBadPacket
ospfTxRetransmit
ospfVirtIfTxRetransmit
ospfOriginate
9501201225Z
pimNeighborLoss
200009280000Z
—
UNKNOWN
—
200010160000Z
—
9606111939Z
newFlow
lostFlow
9808251820Z
—
UNKNOWN
—
9901190000Z
—
9905041636Z
—
9808040000Z
—
9808040000Z
—
9808040000Z
—
9901200000Z
coldStart
warmStart
linkDown
linkUp
authenticationFailure
egpNeighborLoss
9511090000Z
—
UNKNOWN
—
9901200000Z
—
9810190000Z
—
200502180000Z
—
200505160000Z
—
200505200000Z
Supported and Unverified MIBs
Table 3-2 lists the MIBs that are supported and unverified on the Cisco ASR 903 Series Router in the following Cisco IOS XE software release. The table lists the MIBs, corresponding notification names, and applicable MIB versions.
Unsupported MIBs
Table 3-3 lists the MIBs that are unsupported and unverified on the Cisco ASR 903 Series Router in the following Cisco IOS XE software release.
ATM-MIB
The ATM-MIB (RFC 1695) contains the ATM and ATM adaptation layer 5 (AAL5) objects to manage logical and physical entities. It also provides the functionality to manage the relationship between logical and physical entities, such as ATM interfaces, virtual links, cross connects, and AAL5 entities and connections.
BGP4-MIB (RFC 1657)
The BGP4-MIB (RFC 1657) provides access to the implementation information for the Border Gateway Protocol (BGP). The MIB provides:
•
•
•
CISCO-AAL5-MIB
The CISCO-AAL5-MIB contains objects to manage performance statistics for ATM adaptation layer 5 (AAL5) virtual channel connections (VCCs). This MIB also contains information such as packets and octets that are received and transmitted on the VCC, which is missing in cAal5VccTable in RFC 1695.
CISCO-ATM-EXT-MIB
The CISCO-ATM-EXT-MIB contains extensions to the Cisco ATM that are used to manage ATM entities. This MIB provides additional AAL5 performance statistics for a virtual channel connection (VCC) on an ATM interface.
MIB Constraints
Table 3-4 lists the constraint that the Cisco ASR 903 Series Router places on the objects in the CISCO-ATM-EXT-MIB.
Note
CISCO-ATM-IF-MIB
The CISCO-ATM-IF-MIB provides the functionality required for an ATM interface configuration.
CISCO-ATM-PVC-MIB
The CISCO-ATM-PVC-MIB provides the functionality to configure a permanent virtual channel (PVC) on an ATM uplink card of a Catalyst 5000 device, and to bind that PVC to a virtual LAN (VLAN).
CISCO-ATM-PVCTRAP-EXTN-MIB
The CISCO-ATM-PVCTRAP-EXTN-MIB contains objects to extend the functionality of the ATM-MIB. This MIB provides additional notifications and traps for permanent virtual circuits (PVCs) on the Cisco ASR 903 Series Router. The CISCO-ATM-PVCTRAP-EXTN-MIB is supplemented by the CISCO-IETF-ATM2-PVCTRAP-MIB.
CISCO-BCP-MIB
The CISCO-BCP-MIB contains objects to manage the Bridge Control Protocol (RFC2878). This MIB is influenced by RFC1474.
CISCO-BGP4-MIB
The CISCO-BGP4-MIB provides access to information related to the implementation of the Border Gateway Protocol (BGP). The MIB provides:
•
•
•
CISCO-BGP-POLICY-ACCOUNTING-MIB
The CISCO-BGP-POLICY-ACCOUNTING-MIB contains BGP policy-based accounting information (such as ingress traffic on an interface), which can be used for billing purposes. The MIB provides support for BGP Policy Accounting, which enables you to classify IP traffic into different classes and to maintain statistics for each traffic class.
The MIB contains counts of the number of bytes and packets of each traffic type on each input interface. This information can be used to charge customers according to the route that their traffic travels.
CISCO-BULK-FILE-MIB
The CISCO-BULK-FILE-MIB contains objects to create and delete files of SNMP data for bulk-file transfer.
MIB Constraints
Table 3-5 lists the constraints that the router places on the objects in the CISCO-BULK-FILE-MIB.
CISCO-CALLHOME-MIB
The CISCO-CALLHOME-MIB contains objects to manage the Call Home feature within the Cisco Call Home architecture framework.
CISCO-CBP-TARGET-MIB
The CISCO-CBP-TARGET-MIB (common class-based policy) contains objects that provide a mapping of targets to which class-based features, such as QoS are applied. A target is a logical interface with which a class-based policy is associated.
MIB Constraints
The configuration objects in the CISCO-CBP-TARGET-MIB are read-only.
Table 3-6 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-CBP-TARGET-MIB.
CISCO-CDP-MIB
The CISCO-CDP-MIB contains objects to manage the Cisco Discovery Protocol (CDP) on the router.
MIB Constraints
Table 3-7 lists the constraints that the router places on the objects in the CISCO-CDP-MIB.
CISCO-CEF-MIB
The CISCO-CEF-MIB contains objects that manage Cisco Express Forwarding (CEF) technology. CEF is the key data plane forwarding path for Layer 3 IP switching technology. The CISCO-CEF-MIB monitors CEF operational data and provides notification when encountering errors in CEF, through SNMP.
MIB Constraints
Table 3-8 lists the constraints that the router places on the objects in the CISCO-CEF-MIB.
Table 3-8 CISCO-CEF-MIB Constraints
Read-only. This object is enabled by default.
Read-only.
Read-only.
Read-only.
Note
CISCO-CIRCUIT-INTERFACE-MIB
The CISCO-CIRCUIT-INTERFACE-MIB contains objects to configure the circuit description for an interface. The circuit description identifies circuits on interfaces, such as ATM and Frame Relay, and might be used, for example, to correlate performance statistics on the corresponding interfaces.
CISCO-CLASS-BASED-QOS-MIB
The CISCO-CLASS-BASED-QOS-MIB provides read access to quality of service (QoS) configuration information and statistics for Cisco platforms that support the modular QoS CLI.
To understand how to navigate the CISCO-CLASS-BASED-QOS-MIB tables, it is important to understand the relationship between the different QoS objects listed here:
•
•
•
•
•
The MIB uses the following indexes to identify QoS features and distinguish among instances of those features:
•
•
•
QoS MIB information is stored in:
•
•
Note
MIB Constraints
Table 3-9 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-CLASS-BASED-QOS-MIB.
CISCO-CONFIG-COPY-MIB
The CISCO-CONFIG-COPY-MIB contains objects to copy configuration files on the router. For example, the MIB enables the SNMP agent to copy:
•
•
•
CISCO-CONFIG-MAN-MIB
The CISCO-CONFIG-MAN-MIB contains objects to track and save changes to the router configuration. The MIB represents a model of the configuration data that exists elsewhere in the router and in peripheral devices. Its main purpose is to report changes to the running configuration through the SNMP notification ciscoConfigManEvent.
CISCO-CONTEXT-MAPPING-MIB
The CISCO-CONTEXT-MAPPING-MIB provides mapping tables that contain the information that a single SNMP agent sometimes needs to support multiple instances of the same MIB. In such cases, network management applications need to know the specific data/identifier values in each context. This is accomplished through the use of multiple SNMP contexts.
CISCO-DATA-COLLECTION-MIB
The CISCO-DATA-COLLECTION-MIB retrieves data periodically when the data displays as a set of discontinuous rows spread across multiple tables. This MIB facilitates data retrieval of tabular objects. This MIB can be used for performance and accounting purposes, where several row instances of a set of objects are polled over a period of time.
The MIB provides the user a way to specify which objects and which instances are required. In addition the MIB provides two ways in which this data can be retrieved.
MIB Constraints
Table 3-10 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-DATA-COLLECTION-MIB. Any MIB object not listed in this table is implemented as defined in the MIB.
CISCO-DOT3-OAM-MIB
The CISCO-DOT3-OAM-MIB contains objects that manage the new Ethernet Operations, Administration, and Maintenance (OAM) features introduced by the Ethernet in the first mile task force (IEEE 802.3ah).
MIB Constraints
Table 3-11 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-DOT3-OAM-MIB.
CISCO-EIGRP-MIB
The CISCO-EIGRP-MIB defines the tables that are closely aligned with how the router CLI for Enhanced Interior Gateway Protocol (EIGRP) displays information on EIGRP configurations.
CISCO-EMBEDDED-EVENT-MGR-MIB
The CISCO-EMBEDDED-EVENT-MGR-MIB provides descriptions and stores events generated by the Cisco Embedded Event Manager. The Cisco Embedded Event Manager detects hardware and software faults and other events such as OIR for the system.
CISCO-ENHANCED-MEMPOOL-MIB
The CISCO-ENHANCED-MEMPOOL-MIB contains objects to monitor memory pools on all of the physical entities on a managed system. It represents the different types of memory pools that may be present in a managed device. Memory use information is provided to users at three different intervals of time: 1 minute, 5 minutes, and 10 minutes. Memory pools can be categorized into two groups, predefined pools and dynamic pools. The following pool types are currently predefined:
•
•
•
•
•
•
Dynamic pools have a pool type value greater than any of the predefined types listed above. Only the processor pool is required to be supported by all devices. Support for other pool types is dependent on the device being managed.
MIB Constraints
The CISCO-ENHANCED-MEMPOOL-MIB is supported only in the Active RSP module. Table 3-12 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-ENHANCED-MEMPOOL-MIB.
CISCO-ENTITY-ALARM-MIB
The CISCO-ENTITY-ALARM-MIB enables the Cisco ASR 903 Series Router to monitor the alarms generated by system components, such as chassis, slots, modules, power supplies, fans, and ports.
CISCO-ENTITY-ALARM-MIB supports these modules:
•
•
•
•
All the other interface types are not supported for this release.
For more information on this MIB, see "Using MIBs."
MIB Constraints
Table 3-13 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-ENTITY-ALARM-MIB.
The ENTITY-MIB table, entPhysicalTable, identifies the physical system components in the router. The following list describes the table objects that describe the alarms for the CISCO-ENTITY-ALARM-MIB:
•
•
•
–
–
–
–
The syntax values are critical(1), major(2), minor(3), and info(4).
•
•
Table 3-14 lists the alarm descriptions and severity levels for the T1/E1 ports of the Cisco ASR 903 Series Router. The entries for T1/E1 ports mentioned in this table are always populated for ceAlarmDescrTable and ceAlarmDescrVendorType, irrespective of the presence or absence of ports.
Table 3-15 lists the alarm descriptions and severity levels for the Gigabit Ethernet (GE) ports of the Cisco ASR 903 Series Router.
Note
Table 3-16 lists the alarm descriptions and severity levels for the SFP Container of the Cisco ASR 903 Series Router.
Table 3-16 Alarms Supported for the SFP Container of the Cisco ASR 903 Series Router
SFP container
cevContainerSFP
Transceiver missing.
Table 3-17 lists the alarm descriptions and severity levels for the IMs of the Cisco ASR 903 Series Router.
Table 3-18 lists the alarm descriptions and severity levels for the Cisco ASR 903 Series Router sensors.
Note
Table 3-19 lists the alarm descriptions and severity levels for the IM containers of the Cisco ASR 903 Series Router.
Table 3-20 lists the alarm descriptions and severity levels for the Cisco ASR 903 Series Router USB ports.
Table 3-21 lists the alarm descriptions and severity levels for the RSP containers of the Cisco ASR 903 Series Router.
Table 3-22 lists the alarm descriptions and severity levels for the power supply bay of the Cisco ASR 903 Series Router.
Table 3-23 lists the alarm descriptions and severity levels for the RSPs of the Cisco ASR 903 Series Router.
Note
The vendor OID for the RSP Module is set to cevModuleUnknownCard for the following conditions:
•
•
•
Table 3-24 lists the alarm descriptions and severity levels for the unknown RSP modules of the Cisco ASR 903 Series Router.
Table 3-25 lists the alarm descriptions and severity levels for the power supply module of the Cisco ASR 903 Series Router.
Table 3-26 lists the alarms that the FanTray module of the Cisco ASR 903 Series Router supports.
Note
CISCO-ENTITY-EXT-MIB
The CISCO-ENTITY-EXT-MIB contains extensions for the processor modules listed in the ENTITY-MIB entPhysicalTable. A processor module is any physical entity that has a CPU, RAM, and NVRAM, and can load a boot image and save a configuration. The extensions in this MIB provide information, such as RAM and NVRAM sizes, configuration register settings, and bootload image name for each processor module.
MIB Constraints
Only the active RP processor is supported in Cisco ASR 903 Series Router. The standby RSP is not managed in this MIB.
Table 3-27 lists the constraints that the router places on the objects in the CISCO-ENTITY-EXT-MIB.
Table 3-27 CISCO-ENTITY-EXT-MIB Constraints
Read-only.
Read-only.
CISCO-ENTITY-FRU-CONTROL-MIB
The CISCO-ENTITY-FRU-CONTROL-MIB contains objects to configure and monitor the status of the field replaceable units (FRUs) on the Cisco ASR 903 Series Router listed in the ENTITY-MIB entPhysicalTable. A FRU is a hardware component (such as, a line card and module, fan, or power supply) that can be replaced on site.
MIB Constraints
Table 3-28 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-ENTITY-FRU-CONTROL-MIB.
CISCO-ENTITY-SENSOR-MIB
The CISCO-ENTITY-SENSOR-MIB contains objects that support the monitoring of sensors. The MIB is applicable to sensors present in various transceiver modules. This MIB allows to monitor sensor values and thresholds on sensors that are discovered by the ENTITY-MIB.
MIB Constraints
Table 3-29 lists the constraints that the Cisco ASR 903 Series Router places on the CISCO-ENTITY-SENSOR-MIB.
Note
MIB Usage Values for Cisco Transceivers
Table 3-30 lists CISCO-ENTITY-SENSOR-MIB sensor objects and their usage values for Cisco ASR 903 Series Router transceivers in the entSensorValueTable and entSensorThresholdTable.
Note
CISCO-ENTITY-VENDORTYPE-OID-MIB
The CISCO-ENTITY-VENDORTYPE-OID-MIB defines the object identifiers (OIDs) assigned to various Cisco ASR 903 Series Router components. The OIDs in this MIB are used as values for the entPhysicalVendorType field in the entPhysicalTable of the ENTITY MIB. Each OID uniquely identifies a type of physical entity:
•
•
•
•
•
CISCO-ERM-MIB
The CISCO-ERM-MIB contains objects to manage resources, such as CPU, memory, buffers and so on. The two important scenarios where the Embedded Resource Manager (ERM) framework is used are:
•
•
CISCO-ETHER-CFM-MIB
The CISCO-ETHER-CFM-MIB defines the managed objects and notifications for Ethernet Connectivity Fault Management (CFM) operation. CFM is an end-to-end per service instance for the Ethernet layer Operations, Administration and Management (OAM) protocol.
CISCO-ETHERLIKE-EXT-MIB
The CISCO-ETHERLIKE-EXT-MIB defines generic objects for the Ethernet-like network interfaces.
MIB Constraints
Table 3-31 lists the constraint that the Cisco ASR 903 Series Router places on the objects in the CISCO-ETHERLIKE-EXT-MIB.
CISCO-EVC-MIB
The CISCO-EVC-MIB defines the managed objects and notifications describing Ethernet Virtual Connections (EVCs).
MIB Constraints
Table 3-32 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-EVC-MIB.
CISCO-FLASH-MIB
The CISCO-FLASH-MIB contains objects to manage flash cards and flash-card operations.
MIB Constraints
Table 3-33 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-FLASH-MIB.
Note
Note
Note
CISCO-FTP-CLIENT-MIB
The CISCO-FTP-CLIENT-MIB contains objects to invoke File Transfer Protocol (FTP) operations for network management. This MIB has no known constraints and all objects are implemented as defined in the MIB.
CISCO-HSRP-EXT-MIB
The CISCO-HSRP-EXT-MIB provides an extension to the CISCO-HSRP-MIB which defines the Cisco Hot Standby Router Protocol (HSRP), which is defined in RFC 2281. The extensions cover assigning of secondary IP addresses and modifying an HSRP group's priority.
CISCO-HSRP-MIB
The CISCO-HSRP-MIB contains objects to configure and manage the Cisco Hot Standby Router Protocol (HSRP), which is defined in RFC 2281.
CISCO-IETF-ATM2-PVCTRAP-MIB
The CISCO-IETF-ATM2-PVCTRAP-MIB contains objects that supplement the ATM-MIB. This MIB implements the Virtual Channel Link (VCL) section of the IETF document "draft-ietf-atommib-atm2-11.txt," Section 9 ATM Related Trap Support.
CISCO-IETF-BFD-MIB
The CISCO-IETF-BFD-MIB contains objects to manage the Bidirectional Forwarding Detection (BFD) protocol. BFD detects faults in the bidirectional path between two forwarding engines, including interfaces, data links, and the forwarding engines themselves with potentially very low latency. It operates independently of media, data protocols, and routing protocols.
CISCO-IETF-DHCP-SERVER-MIB
The CISCO-IETF-DHCP-SERVER-MIB contains objects for the entities implementing the server side of the Bootstrap Protocol (BOOTP) and the DHCP for IP version 4 (IPv4). This MIB does not include support for updating Dynamic Domain Name System (DDNS) and DHCP failover protocol.
CISCO-IETF-DHCP-SERVER-EXT-MIB
The CISCO-IETF-DHCP-SERVER-EXT-MIB is an extension of the CISCO-IETF-DHCP-SERVER-MIB.
CISCO-IETF-ISIS-MIB
The CISCO-IETF-ISIS-MIB introduces network management support for the IS-IS routing protocol through the use of IS-IS MIB table entries, MIB objects, and MIB trap notification objects. A new CLI is added to enable SNMP notifications for the objects. Notifications are provided for errors and other significant event information for the IS-IS network.
CISCO-IETF-MPLS-ID-STD-03-MIB
The CISCO-IETF-MPLS-ID-STD-03-MIB contains object definitions for Multiprotocol Label Switching (MPLS) Traffic Engineering in transport networks.
MIB Constraints
Table 3-34 lists the constraints that the router places on the objects in the CISCO-IETF-MPLS-ID-STD-03-MIB.
CISCO-IETF-MPLS-TE-EXT-STD-03-MIB
The CISCO-IETF-MPLS-TE-EXT-STD-03-MIB contains generic object definitions for MPLS Traffic Engineering in transport networks.
MIB Constraints
Table 3-34 lists the constraints that the router places on the objects in the CISCO-IETF-MPLS-TE-EXT-STD-03-MIB.
CISCO-IETF-MPLS-TE-P2MP-STD-MIB
The CISCO-IETF-MPLS-TE-P2MP-STD-MIB contains objects to manage the point-to-multipoint Multiprotocol Label Switching Traffic Engineering (MPLS-TE) definitions.
CISCO-IETF-PPVPN-MPLS-VPN-MIB
The CISCO-IETF-PPVPN-MPLS-VPN-MIB is an extension of the MPLS-VPN-MIB. It contains a new notification, mplsNumVrfRouteMaxThreshCleared, which was added with MPLS-VPN-MIB-DRAFT-05.
CISCO-IETF-PW-ATM-MIB
The CISCO-IETF-PW-ATM-MIB contains managed object definitions for pseudowire (PW) emulation of ATM over packet-switched networks (PSNs).
MIB Constraints
Table 3-36 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-IETF-PW-ATM-MIB.
CISCO-IETF-PW-ENET-MIB
The CISCO-IETF-PW-ENET-MIB contains objects that describe the model for managing Ethernet point-to-point pseudowire services over a packet-switched network (PSN).
MIB Constraints
Table 3-37 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-IETF-PW-ENET-MIB.
Table 3-37 CISCO-IETF-PW-ENET-MIB Constraints
Not supported.
Not supported.
CISCO-IETF-PW-MIB
The CISCO-IETF-PW-MIB contains managed object definitions for pseudowire (PW) operations.
MIB Constraints
Table 3-38 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-IETF-PW-MIB.
CISCO-IETF-PW-MPLS-MIB
The CISCO-IETF-PW-MPLS-MIB contains objects that complement the CISCO-IETF-PW-MIB for PW operation over MPLS.
MIB Constraints
Table 3-39 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-IETF-PW-MPLS-MIB.
Table 3-39 CISCO-IETF-PW-MPLS-MIB Constraints
Not supported.
Not supported.
CISCO-IETF-PW-TDM-MIB
The CISCO-IETF-PW-TDM-MIB contains managed object definitions for encapsulating TDM (T1,E1, T3, E3, NxDS0) as pseudowires over packet-switching networks (PSNs).
CISCO-IF-EXTENSION-MIB
The CISCO-IF-EXTENSION-MIB contains objects that provide additional interface-related information that is not available in the IF-MIB (RFC 2863).
MIB Constraints
Table 3-40 lists constraints that the Cisco ASR 903 Series Router places on the object in the CISCO-IF-EXTENSION-MIB
CISCO-IGMP-FILTER-MIB
The CISCO_IGMP-FILTER-MIB provides a mechanism for users to configure the system to intercept Internet Group Management Protocol (IGMP) joins for IP Multicast groups identified in this MIB and only allow certain ports to join certain multicast groups.
CISCO-IMAGE-MIB
The CISCO-IMAGE-MIB contains objects that identify the capabilities and characteristics of the Cisco IOS XE image.
CISCO-IMAGE-LICENSE-MGMT-MIB
The CISCO-IMAGE-LICENSE-MGMT-MIB contains objects to manage the running image level of a Cisco device. The licensing mechanism provides flexibility to run a device on a chosen image level. This mechanism is referred to as image level licensing. Image level licensing leverages the universal image-based licensing solution.
CISCO-IP-STAT-MIB
The CISCO-IP-STAT-MIB contains objects to manage the collection and display of IP statistics, categorized by IP precedence and the MAC address associated with IP packets. To use the MIB to access additional IP statistics, the ip accounting mac-address and ip accounting precedence commands must be issued at the CLI.
CISCO-IPMROUTE-MIB
The CISCO-IPMROUTE-MIB contains objects to manage IP multicast routing on the router.
CISCO-IPSLA-ETHERNET-MIB
The CISCO-IPSLA-ETHERNET-MIB contains objects to manage IP SLA Auto-Ethernet-CFM operations and Ethernet Jitter statistics. IP SLA is a capability that utilizes active monitoring for network performance. It can be used for network troubleshooting, network assessment, and health monitoring. Ethernet Jitter is used to measure metrics, such as round-trip time (RTT), Jitter, frame loss, and one-way latency by sending multiple enhanced CFM frames at specified interval to a particular Maintenance End Point (MEP).
CISCO-LAG-MIB
The CISCO-LAG-MIB contains objects to manage link aggregation (LAG) on the router, as defined by IEEE Standard 802.3ad. The MIB contains link aggregation information that supplements to IEEE8023-LAG-MIB or is specific to Cisco products.
CISCO-L2-CONTROL-MIB
The CISCO-L2-CONTROL-MIB contains objects that provide a control feature for devices with Layer 2 functions, such as the VLAN MAC limit control.
CISCO-LICENSE-MGMT-MIB
The CISCO-LICENSE-MGMT-MIB contains objects to manage the licenses on the system. The licensing mechanism provides flexibility to enforce licensing for various features in the system.
CISCO-MAC-NOTIFICATION-MIB
The CISCO-MAC-NOTIFICATION-MIB is for configuration of the MAC notification feature. MAC notification is a mechanism to inform monitoring devices when there are MAC addresses learned or removed from the forwarding database of the monitored devices.
CISCO-MEMORY-POOL-MIB
The CISCO-MEMORY-POOL-MIB contains objects that represents the different types of memory pools that are present in a managed device. Memory pools are categorized into two groups:
•
•
CISCO-MPLS-LSR-EXT-STD-MIB
The CISCO-MPLS-LSR-EXT-STD-MIB contains generic object definitions for MPLS Label Switching Router (LSR) in transport networks.
MIB Constraints
Table 3-41 lists the constraints that the router places on the objects in the CISCO-MPLS-LSR-EXT-STD-MIB.
Table 3-41 CISCO-MPLS-LSR-EXT-STD-MIB Constraints
Read-only.
Not implemented.
CISCO-MPLS-TC-EXT-STD-MIB
The CISCO-MPLS-TC-EXT-STD-MIB contains textual conventions for MPLS based transport networks.
MIB Constraints
Table 3-41 lists the constraints that the router places on the objects in the CISCO-MPLS-TC-EXT-STD-MIB.
CISCO-MVPN-MIB
The CISCO-MVPN-MIB contains managed object definitions for the Cisco implementation of multicast in VPNs defined by the Internet draft, draft-rosen-vpn-mcast-05.txt.
The Multicast VPN MIB feature introduces the capability for Simple Network Management Protocol (SNMP) monitoring of a Multicast VPN (MVPN). Using the MVPN MIB, network administrators can access MVRF information from PE routers. This information can be accessed for VPN traffic across multiple CE sites in real time. SNMP operations can be performed to monitor the MVRFs on the PE routers, using the get and set commands. These commands are entered on the Network management system (NMS) workstation for which the SNMP has been implemented. The NMS workstations is also known as the SNMP manager.
Note
Note
For more information on this MIB, please access the following link: https://www.cisco.com/en/US/docs/ios/12_0s/feature/guide/mcvpnmib.html
CISCO-NETSYNC-MIB
The CISCO-NETSYNC-MIB contains objects to monitor network synchronization based on ITU-T G.781 clock selection.
CISCO-NHRP-EXT-MIB
The CISCO-NHRP-EXT-MIB module is an extension of the NHRP MIB. It defines notifications associated with critical events in the Next Hop Resolution Protocol (NHRP) as defined in RFC 2332.
CISCO-NTP-MIB
The CISCO-NTP-MIB contains objects to monitor a Network Time Protocol (NTP) server. NTP is used to synchronize timekeeping among a set of distributed time servers and clients. Primary time servers, which are synchronized to national time standards, are connected to widely accessible resources such as backbone gateways. These primary servers send timekeeping information to other time servers, and perform clock checking to eliminate timekeeping errors due to equipment or propagation failures.
CISCO-OSPF-MIB
The CISCO-OSPF-MIB contains objects for managing OSPF implementation. Most of the MIB definitions are based on the IETF draft draft-ietf-ospf-mib-update-05.txt and include support for OSPF sham link. The CISCO-OSPF-MIB is an extension to the OSPF-MIB defined in RFC 1850.
CISCO-OSPF-TRAP-MIB
The CISCO-OSPF-TRAP-MIB contains new and modified notification objects and events, which are defined in the latest version of the OSPF-MIB IETF (draft draftietf-ospf-mib-update-05.txt) in addition to support for the OSPF sham link.
CISCO-PIM-MIB
The CISCO-PIM-MIB defines Cisco-specific objects and variables for managing Protocol Independent Multicasts (PIMs) on the router. These MIB definitions are an extension of those in RFC 2934, which is the IETF PIM MIB.
CISCO-PING-MIB
The CISCO-PING-MIB contains objects to manage ping requests on the router.
CISCO-PROCESS-MIB
The CISCO-PROCESS-MIB displays memory and CPU usage on the router and describes active system processes. CPU utilization presents a status of how busy the system is. The numbers are a ratio of the current idle time over the longest idle time. (This information should be used only as an estimate.)
MIB Constraints
Table 3-43 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-PROCESS-MIB.
Table 3-43 CISCO-PROCESS-MIB Constraints
•
Read-only.
Not supported.
Not supported.
Note
CISCO-PROCESS-MIB Usage
The cpmCPUTotal5sec, cpmCPUTotal1min, and cpmCPUTotal5min objects have been deprecated and replaced by cpmCPUTotal5secRev, cpmCPUTotal1minRev, and cpmCPUTotal5minRev, respectively.
Note
Note
Note
Table 3-44 lists the support matrix for the CISCO-PROCESS-MIB cpmCPUTotalTable object.
Table 3-45 lists the support matrix for the CISCO-PROCESS-MIB cpmProcessTable and cpmProcessExtRevTable objects for RSP CPU.
Table 3-46 lists the support matrix for the CISCO-PROCESS-MIB cpmVirtualProcessTable object.
CISCO-PRODUCTS-MIB
The CISCO-PRODUCTS-MIB lists the object identifiers (OIDs) assigned to the Cisco hardware platforms.
CISCO-PTP-MIB
The CISCO-PTP-MIB supports the Precision Timing Protocol (PTP) feature on Cisco devices. The protocol enables heterogeneous systems that include clocks of various inherent precision, resolution, and stability to synchronize to a grandmaster clock.
CISCO-RF-MIB
The CISCO-RF-MIB provides configuration control and status information for the redundancy framework subsystem. The redundancy framework subsystem provides a mechanism for logical redundancy of the software functionality and is designed to support 1:1 redundancy for the processor cards.
CISCO-RESILIENT-ETHERNET-PROTOCOL-MIB
The CISCO-RESILIENT-ETHERNET-PROTOCOL-MIB defines objects required for managing Resilient Ethernet Protocol (REP). REP is a Cisco proprietary protocol that provides an alternative to Spanning Tree Protocol (STP). REP provides the functionality to control network loops, handle link failures, and improve convergence time.
CISCO-RTTMON-ICMP-MIB
The CISCO-RTTMON-ICMP-MIB is an extension to the CISCO-RTTMON-MIB for ICMP operations. The ICMP Jitter operation provides capability to measure metrics, such as RTT, Jitter, packet loss, and one-way latency by sending ICMP timestamp streams to destination devices.
CISCO-RTTMON-IP-EXT-MIB
The CISCO-RTTMON-IP-EXT-MIB provides extensions for the tables in CISCO-RTTMON-MIB to support IP layer extensions, specifically IPv6 addresses and other information related to IPv6 standards.
CISCO-RTTMON-MIB
The CISCO-RTTMON-MIB contains objects to monitor network performance. The MIB provides information about the response times of network resources and applications. Each conceptual round-trip time (RTT) control row in the MIB represents a single probe, which is used to determine an entity's response time. The probe defines an RTT operation to perform (for example, an FTP or HTTP get request), and the results indicate whether the operation succeeded or failed, and how long it took to complete.
If you plan to schedule an RTT operation, see Table 3-47 for information about rttMonScheduleAdminRttStartTime in the rttMonScheduleAdminTable.
Note
MIB Constraints
Table 3-47 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-RTTMON-MIB.
CISCO-RTTMON-RTP-MIB
The CISCO-RTTMON-RTP-MIB is an extension to the CISCO-RTTMON-MIB for Cisco IP SLA Real-Time Transport Protocol (RTP) operation. This operation provides the capability to measure voice quality metrics, such as RTT, Jitter, and Mean Opinion Score (MOS) by setting up RTP stream between two routers. In voice communications, particularly Internet telephony, MOS provides a numerical measure of the quality of human speech at the destination end of the circuit.
CISCO-SNMP-TARGET-EXT-MIB
The CISCO-SNMP-TARGET-EXT-MIB is an extension of the SNMP-TARGET-MIB specified in RFC2273.
CISCO-STP-EXTENSIONS-MIB
The CISCO-STP-EXTENSIONS-MIB contains objects to manage the Cisco extensions to the IEEE 802.1D Spanning Tree Protocol (STP).
Note

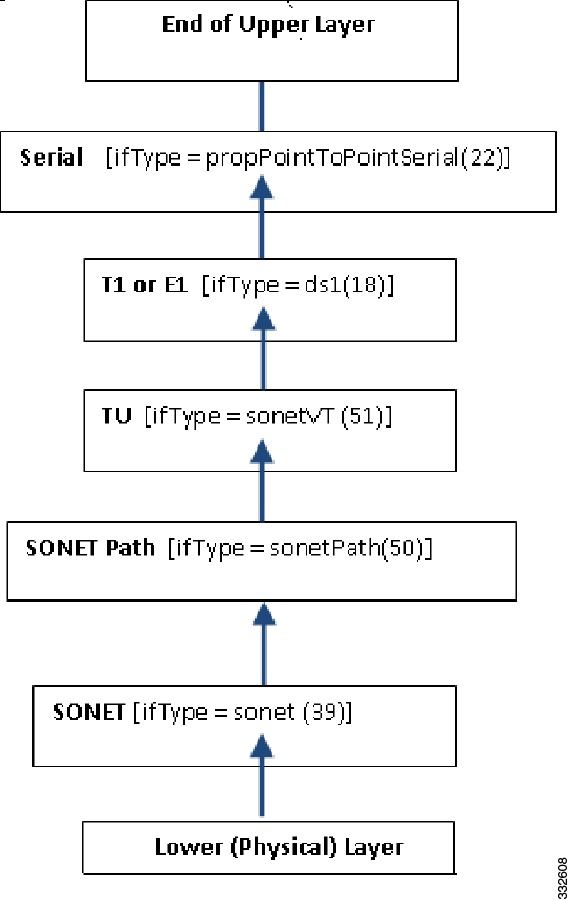

CISCO-SONET-MIB
The CISCO-SONET-MIB contains objects to describe SONET/SDH interfaces on the router. This MIB is an extension of the standard SONET-MIB (RFC 2558). The CISCO-SONET-MIB has objects that provide additional SONET-related information, which is not found in the SONET-MIB.
Note
MIB Constraints
Table 3-48 describes the constraints that the Cisco ASR 903 Series Router places on the objects in the CISCO-SONET-MIB.
Note
CISCO-SYSLOG-MIB
The CISCO-SYSLOG-MIB contains all system log messages generated by the Cisco IOS XE software. The MIB provides a way to access these system log messages through the SNMP. All Cisco IOS XE system log messages contain the message name and its severity, message text, the name of the entity generating the message, and an optional time stamp. The MIB also contains a history of system log messages and counts related to system log messages.
Note
Note
CISCO-TCP-MIB
The CISCO-TCP-MIB contains objects to manage the TCP on the router. This MIB is an extension to the IETF TCP MIB.
CISCO-VRF-MIB
The CISCO-VRF-MIB contains objects to manage and provision the network virtualization features. Virtual Routing and Forwarding (VRF ) is an extension of IP routing that provides multiple routing instances.
DS1-MIB (RFC 2495)
The DS1-MIB(RFC-2495) contains a description of the DS1, E1, DS2, and E2 interface objects.
MIB Constraints
Table 3-49 describes the constraints that the Cisco ASR 903 Series Router places on the objects in the DS1-MIB. For detailed definitions of the MIB objects, see the corresponding MIB.
ENTITY-MIB (RFC 4133)
The ENTITY-MIB (RFC 4133) allows functional component discovery. It is used to represent physical and logical entities (components) in the router and manages those entities. The current software release supports the RFC 4133 version of this MIB.
The following are the conformance groups contained in the ENTITY-MIB:
•
•
•
•
•
The following groups are added from RFC 4133:
•
•
The MIB table entPhysicalTable identifies the physical entities in the router. The entPhysicalTable contains a single row for the Cisco ASR 903 Series Router chassis and a row for each entity in the chassis. A physical entity may contain other entities. For example, an IM in IM Bay 0 with one A900-IMA8T-CU-IM in subslot 0/1 supports the following entities in this SNMP. Output for IMs, sensors on the subslot, and IM ports:
entPhysicalDescr.550 = 8-port Gigabit Ethernet Interface ModuleentPhysicalContainedIn.550 = 5entPhysicalDescr.551 = A900-IM8TentPhysicalContainedIn.551 = 550entPhysicalDescr.552 = A900-IM8TentPhysicalContainedIn.552 = 550entPhysicalDescr.553 = A900-IM8TentPhysicalContainedIn.553 = 550entPhysicalDescr.554 = A900-IM8TentPhysicalContainedIn.554 = 550entPhysicalDescr.555 = A900-IM8TentPhysicalContainedIn.555 = 550entPhysicalDescr.556 = A900-IM8TentPhysicalContainedIn.556 = 550entPhysicalDescr.557 = A900-IM8TentPhysicalContainedIn.557 = 550entPhysicalDescr.558 = A900-IM8TentPhysicalContainedIn.558 = 550entPhysicalDescr.567 = subslot 0/1 temperature Sensor 0entPhysicalContainedIn.567 = 550entPhysicalDescr.568 = subslot 0/1 temperature Sensor 1entPhysicalContainedIn.568 = 550entPhysicalDescr.569 = subslot 0/1 temperature Sensor 2entPhysicalContainedIn.569 = 550entPhysicalDescr.570 = subslot 0/1 temperature Sensor 3entPhysicalContainedIn.570 = 550entPhysicalDescr.571 = subslot 0/1 temperature Sensor 4entPhysicalContainedIn.571 = 550entPhysicalDescr.579 = subslot 0/1 voltage Sensor 0entPhysicalContainedIn.579 = 550entPhysicalDescr.580 = subslot 0/1 voltage Sensor 1entPhysicalContainedIn.580 = 550entPhysicalDescr.581 = subslot 0/1 voltage Sensor 2entPhysicalContainedIn.581 = 550entPhysicalDescr.582 = subslot 0/1 voltage Sensor 3entPhysicalContainedIn.582 = 550entPhysicalDescr.583 = subslot 0/1 voltage Sensor 4entPhysicalContainedIn.583 = 550entPhysicalDescr.584 = subslot 0/1 voltage Sensor 5entPhysicalContainedIn.584 = 550entPhysicalDescr.800 = 16 port T1/E1 IM
Note
For more information on the ENTITY-MIB, refer "Using MIBs."
For the Cisco ASR 903 Series Router platform, the entPhysicalParentRelPos values are populated with the slot numbers (except for the RP, and PEM slot numbers) provided in the external label.
Table 3-50 lists the mapping between external labels and entPhysicalParentRelPos values.
Table 3-51 lists the values of the affected MIB table objects in the Cisco ASR 903 Series Router:
Table 3-52 lists the fans supported on a Cisco ASR 903 Series Router.
Table 3-52 Fans Supported on a Cisco ASR 903 Series Router
12
MIB Constraints
Table 3-53 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the ENTITY-MIB.
Note
Note
ENTITY-SENSOR-MIB (RFC 3433)
The ENTITY-SENSOR-MIB (RFC 3433) contains objects that manage physical sensors, which are represented in the Entity-MIB with entPhysicalEntry and an entPhysicalClass value of sensor(8). The ENTITY-SENSOR-MIB contains a single table called the entPhySensorTable.
Note
ENTITY-STATE-MIB
The ENTITY-STATE-MIB defines objects to extend the functionality provided by the ENTITY-MIB. This MIB supports the entities having these entPhysicalClass values:
•
•
•
•
•
MIB Constraints
Table 3-54 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the ENTITY-STATE-MIB.
Note
ETHER-WIS (RFC 3637)
The ETHER-WIS (RFC 3637) MIB contains objects to manage application details for the Ethernet WAN Interface Sublayer (WIS).
MIB Constraints
Table 3-55 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the ETHER-WIS (RFC 3637) MIB.
Table 3-55 ETHER-WIS (RFC 3637) MIB Constraints
Not supported.
Not supported.
Not supported.
Note
Note
ETHERLIKE-MIB (RFC 3635)
The ETHERLIKE-MIB contains objects to manage Ethernet-like interfaces.
MIB Constraints
Table 3-56 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the ETHERLIKE-MIB. Any objects not listed in a table are implemented as defined in the MIB.
Table 3-56 ETHERLIKE-MIB Constraints
Not implemented.
Not implemented.
Not implemented.
Read-only.
EVENT-MIB (RFC 2981)
The EVENT-MIB (RFC 2981) contains objects to define event triggers and actions for network management purposes.
EXPRESSION-MIB
The EXPRESSION-MIB (RFC 2982) contains objects to define the expressions of MIB objects for network management purposes.
HC-ALARM-MIB
The HC-ALARM-MIB defines Remote Monitoring MIB extensions for High Capacity Alarms.
MIB Tables
Table 3-57 lists the tables in HC-ALARM-MIB.
Table 3-57 HC-ALARM-MIBTables
A list of entries for the configuration of high capacity alarms.
HC-RMON-MIB
The HC-RMON- MIB augments the original RMON MIB as specified in RFC 1757 and RFC 1513, and RMON2 MIB as specified in RFC 2021. It manages the remote monitoring device implementations.
IEEE8021-CFM-MIB
The IEEE8021-CFM-MIB is a Connectivity Fault Management (CFM) module for managing IEEE 802.1ag.
MIB Constraints
Table 3-56 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the IEEE8021-CFM-MIB.
Note
IEEE8021-CFM-V2-MIB
The IEEE8021-CFM-V2-MIB is a Connectivity Fault Management (CFM) version 2 module for managing IEEE 802.1ag.
Note
IEEE8023-LAG-MIB
The IEEE 8023-LAG-MIB is the Link Aggregation module for managing IEEE Std 802.3ad.
IF-MIB (RFC 2863)
The IF-MIB (RFC 2863) describes the attributes of physical and logical interfaces (network interface sublayers). The router supports the ifGeneralGroup of MIB objects for all layers (ifIndex, ifDescr, ifType, ifSpeed, ifPhysAddress, ifAdminStatus, ifOperStatus, ifLastChange, ifName, ifLinkUpDownTrapEnable, ifHighSpeed, and ifConnectorPresent).
One of the most commonly used identifiers in SNMP-based network management applications is the Interface Index (ifIndex) value. IfIndex is a unique identifying number associated with a physical or logical interface.
Note
Note
- Channel-group under c-11 mode in au-3
- Channel-group under c-12 mode in au-4
- CEM under c-12 mode in au-4
- CEM under c-11 mode in au-3
Note
Layering for A900-IMA4OS
On querying the ifStackStatus object, the CEM interface and the Channel group show the layers as illustrated in Figure 3-1 and Figure 3-2.

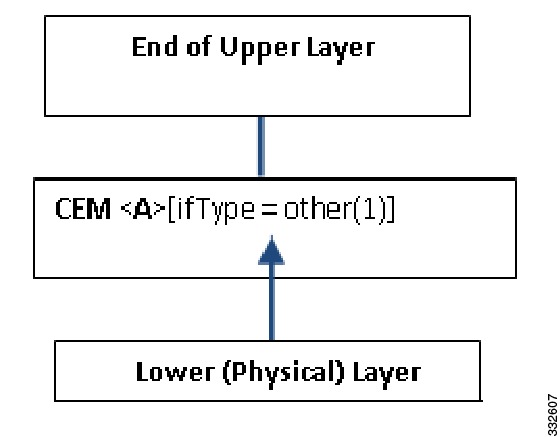

Figure 3-1 Layering Shown by the CEM Interface
Figure 3-2 Layering Shown by the Channel Group
MIB Constraints
Table 3-59 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the IF-MIB.
Table 3-59 IF-MIB Constraints
Not supported for ATM subinterfaces.
Read-only.
Read-only.
IGMP-STD-MIB (RFC 2933)
The IGMP-STD-MIB(RFC 2933) manages Internet Group Management Protocol (IGMP).
INT-SERV-GUARANTEED-MIB
The INT-SERV-GUARANTEED-MIB describes the guaranteed service of the Integrated Services Protocol.
INTEGRATED-SERVICES-MIB
The INTEGRATED-SERVICES-MIB contains objects to manage the Integrated Services Protocol.
IP-FORWARD-MIB (RFC 4292)
The IP-FORWARD-MIB (RFC 4292) contains objects to control the display of classless interdomain routing (CIDR) multipath IP Routes.
IP-MIB (RFC 4293)
The IP-MIB (RFC 4293) module contains objects for managing IP and Internet Control Message Protocol (ICMP) implementations, but not their management of IP routes.
MIB Constraints
Table 3-60 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the IP-MIB.
Table 3-60 IP-MIB Constraints
Not implemented.
Not implemented.
IPMROUTE-STD-MIB (RFC 2932)
The IPMROUTE-STD-MIB (RFC 2932) contains objects to manage IP multicast routing, but independent of the specific multicast routing protocol in use.
MIB Constraints
Table 3-61 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the IPMROUTE-STD-MIB.
MPLS-L3VPN-STD-MIB (RFC 4382)
The MPLS-L3VPN-STD-MIB contains managed object definitions for the Layer-3 Multiprotocol Label Switching Virtual Private Networks. This MIB is based on RFC 4382 specification.
MPLS-LDP-GENERIC-STD-MIB (RFC 3815)
The MPLS-LDP-GENERIC-STD-MIB (RFC 3815) contains managed object definitions for configuring and monitoring the Multiprotocol Label Switching Label Distribution Protocol (MPLS-LDP) and utilizing ethernet as the Layer 2 media.
MPLS-LDP-STD-MIB (RFC 3815)
The MPLS-LDP-STD-MIB (RFC 3815) contains managed object definitions for the Multiprotocol Label Switching (MPLS) and Label Distribution Protocol (LDP) document.
MPLS-LSR-STD-MIB (RFC 3813)
The MPLS-LSR-STD-MIB (RFC 3031) contains managed object definitions for the Multiprotocol Label Switching (MPLS) router.
MPLS-TE-STD-MIB
The MPLS-TE-STD-MIB contains managed object definitions for Multiprotocol Label Switching Traffic Engineering (MPLS-TE).
MPLS-VPN-MIB
The MPLS-VPN-MIB:
•
•
•
•
The MIB is based on Revision 05 of the IETF MPLS-VPN-MIB.
MIB Constraints
Table 3-62 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the MPLS-VPN-MIB.
MSDP-MIB
The MSDP-MIB contains objects to monitor the Multicast Source Discovery Protocol (MSDP). The MIB can be used with SNMPv3 to remotely monitor MSDP speakers.
For more information about this MIB, see its feature module description at the following URL:
http://www.cisco.com/en/US/docs/ios/12_1t/12_1t5/feature/guide/dt5msdp.html
NHRP-MIB
The Cisco NHRP MIB feature introduces support for the NHRP MIB, which helps to manage and monitor the Next Hop Resolution Protocol (NHRP) through the Simple Network Management Protocol (SNMP). Statistics can be collected and monitored through standards-based SNMP techniques (get operations) to query objects defined in the NHRP MIB. The NHRP MIB is VRF-aware and supports VRF-aware queries.
For more information about this MIB, refer:
MIB Constraints
Table 3-63 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the NHRP-MIB.
NOTIFICATION-LOG-MIB (RFC 3014)
The NOTIFICATION-LOG-MIB contains objects for logging SNMP notifications; that is, traps and informs types of notifications.
OSPF-MIB (RFC 1850)
The OSPF-MIB (RFC 1850) contains objects that describe the OSPF Version 2 Protocol. The RFC1253-MIB corresponds to the OSPF-MIB (Open Shortest Path First [OSPF] protocol).
OSPF-TRAP-MIB (RFC 1850)
The OSPF-TRAP-MIB (RFC 1850) contains objects that describe traps for the OSPF Version 2 Protocol.
PIM-MIB (RFC 2934)
The PIM-MIB (RFC 2934) contains objects to configure and manage Protocol Independent Multicast (PIM) on the router. The MIB is extracted from RFC 2934.
MIB Constraints
Table 3-64 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the PIM-MIB.
RFC1213-MIB
The RFC1213-MIB defines the second version of the Management Information Base (MIB-II) for use with network-management protocols in TCP-based internets. This RFC1213-MIB includes the following groups :
•
•
•
•
•
•
•
•
•
•
Note
RFC2982-MIB
The RFC2982-MIB defines expressions of MIB objects for management purposes.
RFC2006-MIB (MIP)
The RFC2006-MIB is the MIB module for the Mobile IP standard.
RMON-MIB (RFC 1757)
The RMON-MIB (RFC 1757) contains objects to remotely monitor devices in the network.
MIB Constraints
Only alarm and event groups are supported in Cisco ASR 903 Series Router.
RMON2-MIB (RFC 2021)
The RMON2-MIB contains objects to manage remote monitoring device implementations. This MIB module enhances the original RMON MIB as specified in RFC 2021.
RSVP-MIB
The RSVP-MIB contains objects to manage the Resource Reservation Protocol (RSVP).
SMON-MIB
The SMON-MIB contains objects to manage remote monitoring device implementations for switched networks. It identifies the source of the data that the associated function is configured to analyze. The textual convention extends the data source textual convention defined by RMON 2 to the following data source types:
•
•
•
SNMP-COMMUNITY-MIB (RFC 2576)
The SNMP-COMMUNITY-MIB (RFC 2576) contains objects that help support coexistence among SNMPv1, SNMPv2c, and SNMPv3.
SNMP-FRAMEWORK-MIB (RFC 2571)
The SNMP-FRAMEWORK-MIB (RFC 2571) contains objects that describe the SNMP management architecture. There are no constraints on this MIB.
SNMP-MPD-MIB (RFC 2572)
The SNMP-MPD-MIB (RFC 2572) contains objects for Message Processing and Dispatching (MPD).
SNMP-NOTIFICATION-MIB (RFC 2573)
The SNMP-NOTIFICATION-MIB (RFC 2573) contains managed objects for SNMPv3 notifications. The MIB also defines a set of filters that limit the number of notifications generated by a particular entity (snmpNotifyFilterProfileTable and snmpNotifyFilterTable).
Objects in the snmpNotifyTable are used to select entities in the SNMP-TARGET-MIB snmpTargetAddrTable and specify the types of SNMP notifications those entities are to receive.
SNMP-PROXY-MIB (RFC 2573)
The SNMP-PROXY-MIB (RFC 2573) contains managed objects to remotely configure the parameters used by an SNMP entity for proxy forwarding operations. The MIB contains a single table, snmpProxyTable, which defines the translations to use to forward messages between management targets.
SNMP-TARGET-MIB (RFC 2573)
The SNMP-TARGET-MIB (RFC 2573) contains objects to remotely configure the parameters used by an entity to generate SNMP notifications. The MIB defines the addresses of entities to send SNMP notifications to, and contains a list of tag values that are used to filter the notifications sent to these entities (see the SNMP-NOTIFICATION-MIB).
SNMP-USM-MIB (RFC 2574)
The SNMP-USM-MIB (RFC 2574) contains objects that describe the SNMP user-based security model.
SNMPv2-MIB (RFC 1907)
The SNMPv2-MIB (RFC 1907) contains objects to manage SNMPv2 entities. The SNMPv2-MIB contains the following mandatory object groups:
•
•
•
•
SNMPv2-SMI
The SNMPv2-SMI is based on RFC1902 and describes the management information structure for Simple Network Management Protocol version 2 (SNMPv2).
SNMP-VIEW-BASED-ACM-MIB (RFC 2575)
The SNMP-VIEW-BASED-ACM-MIB (RFC 2575) contains objects that describe the view-based access control model for SNMP.
To access the SNMP-VIEW-BASED-ACM-MIB, you must create an SNMPv3 user with access to a view that includes all of the information from the Internet subtree. For example:
Router(config)# snmp-server view abcview internet included
Router(config)# snmp-server group abcgroup v3 noauth read abcview write abcview notify abcview
Router(config)# snmp-server user abcuser abcgroup v3
Note
SONET-MIB (RFC 2558)
The SONET-MIB (RFC 2558) provides both the configuration and performance monitoring objects for the SONET interfaces.
MIB Constraints
Table 3-65 lists the constraints that the Cisco ASR 903 Series Router places on the objects in the SONET-MIB.
Note
TCP-MIB (RFC 4022)
The TCP-MIB (RFC 4022) contains objects to manage the Transmission Control Protocol (TCP) implementations on the router.
TUNNEL-MIB (RFC 4087)
The TUNNEL-MIB contains objects to manage IP Tunnels independent of the encapsulation scheme in use.
UDP-MIB (RFC 4113)
The UDP-MIB (RFC4113) contains objects to manage the User Datagram Protocol (UDP) on the router. There are no constraints.
VRRP-MIB
The VRRP-MIB contains objects to manage Virtual Router Redundancy Protocol (VRRP) routers.
