The Case for QoS in Medianet Campus Networks
The primary role of QoS in medianet campus networks is not to control latency or jitter (as it is in the WAN/VPN), but to manage packet loss. In GE/10GE campus networks, it takes only a few milliseconds of congestion to cause instantaneous buffer overruns resulting in packet drops. Medianet applications—particularly HD video applications—are extremely sensitive to packet drops, to the point where even 1 packet dropped in 10,000 is discernable by the end-user.
Classification, marking, policing, queuing, and congestion avoidance are therefore critical QoS functions that are optimally performed within the medianet campus network,
Four strategic QoS design principles that apply to campus QoS deployments include:
•
Always perform QoS in hardware rather than software when a choice exists.
•
•
•
Medianet Campus QoS Design Considerations
There are several considerations that impact QoS designs within the medianet campus:
•
•
•
•
•
•
•
•
Global Default QoS Setting
On some platforms QoS is globally disabled by default (such as the Cisco Catalyst 3650/3750 and 6500). A fundamental first step is to globally enable QoS on these platforms.
Trust States
A switch port that is set to trust will accept and preserve either Layer 2 or Layer 3 packet markings. There are four static trust states with which a switch port may be configured:
•
•
•
•
Conditional Trust
Trust may also be extended dynamically, provided a successful condition has been met. In Cisco medianet campus networks this condition is a successful Cisco Discovery Protocol (CDP) negotiation between the access switch and the endpoints. Endpoints that can be extended conditional trust by Cisco Catalyst switches include Cisco IP phones, Cisco TelePresence Systems, Cisco IP Surveillance Cameras, and Cisco Digital Media Players. Conditional trust operation is shown in Figure 1.

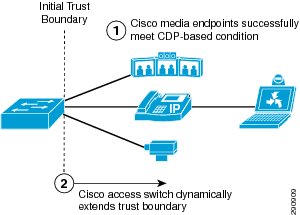

Figure 1 Conditional Trust Operation
Per-Port QoS
When a QoS policy is applied on a per-port basis, it is attached to a specific physical switch port and is active on all traffic received on that specific port (only). QoS policies are applied on a per-port basis by default. Figure 2 illustrates port-based QoS.
Figure 2 Port-Based QoS
Per-VLAN QoS
When a QoS policy is applied on a per-VLAN basis, it is attached to a logical VLAN interface and is active on all traffic received on all ports that are currently assigned to the VLAN. Figure 3 illustrates VLAN-based QoS.
Figure 3 VLAN-Based QoS
Per-Port/Per-VLAN QoS
When a QoS policy is applied on a Per-Port/Per-VLAN basis, it is attached to specific VLAN on a trunked port and is active on all traffic received from that specific VLAN from that specific trunked port (only). Figure 4 illustrates Per-Port/Per-VLAN-based QoS.

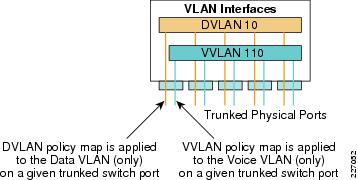

Figure 4 Per-Port-Per-VLAN-Based QoS
Ingress QoS Models
There are many options for an administrator to choose from for ingress QoS models, as shown in Figure 5.

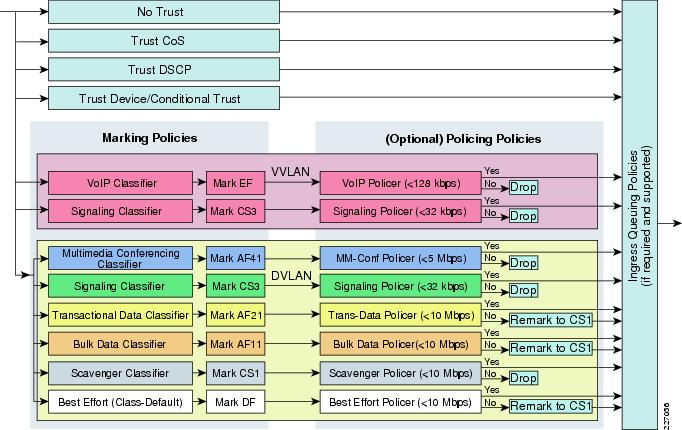

Figure 5 Ingress QoS Models
The three most utilized ingress QoS models for medianet campus networks are:
•
•
•
Combinations of these may be used at the same time
Egress QoS Models
Cisco Catalyst switches perform queuing in hardware and as such are limited to a fixed number of queues. The nomenclature used to describe these queuing structures is 1PxQyT, where:
•
•
•
No fewer than four hardware queues would be required to support medianet QoS policies in the campus; the following queues would be considered a minimum:
•
•
•
•
Additionally, the following bandwidth allocations are recommended for these queues:
•
•
•
Given these minimum queuing requirements and bandwidth recommendations, the following application classes can be mapped to the respective queues:
•
•
•
•
An egress queuing example based on these design considerations is shown in Figure 6.

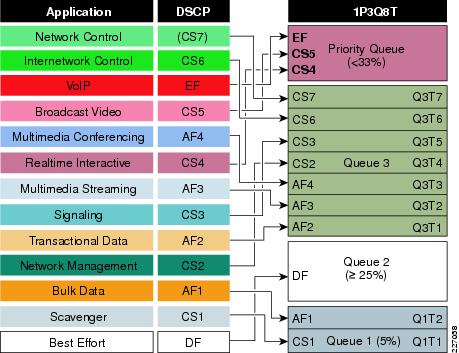

Figure 6 An Egress Queuing Example Model
EtherChannel QoS
On some platforms ingress QoS policies (such as DSCP trust) are applied on the logical Port-Channel interface; however, on all platforms egress QoS policies (such as
queuing policies) are always applied to the physical port-member interfaces.
QoS Roles in a Medianet Campus
Access edge switch ports have the most variation in QoS policy roles and these will vary depending on the type of endpoint to which these are connecting.
For all switch-to-switch links the only QoS policies that are required are DSCP-trust (on ingress) and queuing (on egress). QoS roles in a medianet campus network are shown in Figure 7.

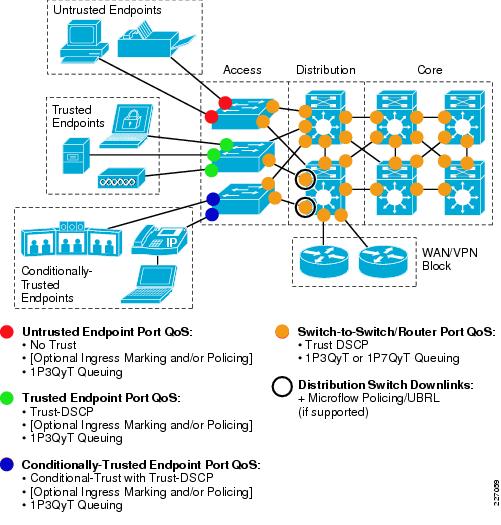

Figure 7 Medianet Campus Port QoS Roles
AutoQoS
On some Catalyst switching platforms Cisco has already updated and expanded the functionality of its AutoQoS feature to automatically provision QoS best practice designs for voice, IP-based video applications (such as IP Video Surveillance, Cisco TelePresence, conferencing applications, and streaming video applications), as well as for multiple types of data applications.
On these switch platforms, an administrator can automatically provision these best practice designs via a single interface-level command that corresponds to the endpoint to which the switch port is connecting.
For more details, see Medianet Campus QoS Design 4.0: :http://www.cisco.com/en/US/docs/solutions/Enterprise/WAN_and_MAN/QoS_SRND_40/QoSCampus_40.html.
