VSS-Enabled Campus Best Practice Configuration Example

---

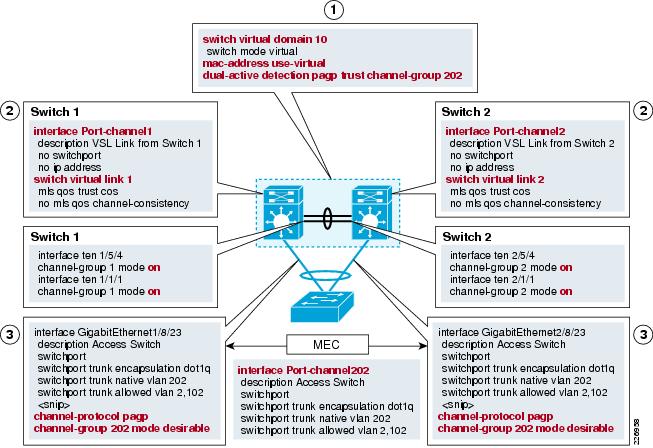

Figure A-1 illustrates the baseline best practice configuration required to set up basic VSS enabled network. The circle indicates the essential steps required to create the VSS systems from standalone. The red text highlights the important CLI information with VSS configuration. Comments are provided in blue italic font.

Figure A-1 Overall VSS-Enabled Campus Best Practice Configuration Summary

End-to-End Device Configurations

The end-to-end devices configuration is categorized into three major sections. Each section configuration contains specific CLI which is a required as part of best practice configuration and corresponding explanation.

•VSS and L2 Domain- Includes above base configuration as well as L2 domain configuration

•Access-layer- Sample L2 domain configuration

•L3 Domain - Includes global L3 configuration for VSS and core routers. Then separate section for specifics topologies (ECMP and MEC) for EIGRP and OSPF. In addition, the core devices configuration shown below are standalone router/devices.

VSS Specific

VSS Global Configuration

switch virtual domain 10 ! Must configure unique domain ID

 switch mode virtual

 switch 1 priority 110 ! Not needed, helps in operational mgmt

 switch 2 priority 100 ! Not needed, helps in operational mgmt

 dual-active exclude interface GigabitEthernet1/5/3 ! Connectivity to VSS during dual
active

mac-address use-virtual ! Required for consistent MAC address

dual-active detection pagp trust channel-group 202 ! Enhanced PAgP based dual active
detection

redundancy ! Default SSO Enabled

 main-cpu

  auto-sync running-config

 mode sso

Switch 1

interface Port-channel1 ! Unique port-channel number for SW 1

 description VSL Link from Switch 1

 no switchport

 no ip address

switch virtual link 1 ! Defines switch ID for SW 1

 mls qos trust cos

 no mls qos channel-consistency

interface ten 1/5/4

channel-group 1 mode on ! EC mode is ON - EtherChannel Managemeent Protocol off

interface ten 1/1/1

channel-group 1 mode on

Switch 2

interface Port-channel2 ! Unique port-channel number for SW 1

 description VSL Link from Switch 2

 no switchport

 no ip address

switch virtual link 2 ! Defines switch ID for SW 2

 mls qos trust cos

 no mls qos channel-consistency

interface ten 2/5/4

channel-group 2 mode on ! EC mode is ON - EtherChannel Managemeent Protocoloff

interface ten 2/1/1

channel-group 2 mode on

Layer-2 Domain

VSS

udld enable

vtp domain campus-test

vtp mode transparent

spanning-tree mode rapid-pvst

no spanning-tree optimize bpdu transmission

spanning-tree extend system-id

spanning-tree vlan 2-999 priority 24576 !  STP Root

port-channel load-balance src-dst-mixed-ip-port !  Enhanced hash algorithem

vlan 400 !  VLANs spanning multiple access-layer SWs

 name L2_ Spaned_VLAN _400

vlan 450

 name L2_ Spaned_VLAN _450

vlan 500

 name L2_ Spaned_VLAN _500

vlan 550

 name L2_ Spaned_VLAN _550

vlan 600

 name L2_ Spaned_VLAN _600

vlan 650

 name L2_Spaned_VLAN_650

vlan 900

 name NetMgmt_VLAN_900

vlan 999

 name Unused_Port_VLAN_999

vlan 2

 name cr7-3750-Stack-Data-VLAN

!

vlan 102

 name cr7-3750-Stack-Voice-VLAN

interface Vlan2 ! Sample VLAN interface configuration

 ip address 10.120.2.1 255.255.255.0

 no ip redirects

 no ip unreachables

 ip flow ingress

 ip pim sparse-mode

 logging event link-status

 hold-queue 150 in

 hold-queue 150 out

!

VSS—Multi-Chassis EtherChannel

PAgP

interface GigabitEthernet1/8/23  !  Interface on SW 1

 description Access Switch Facing Interface

 switchport

 switchport trunk encapsulation dot1q

 switchport trunk native vlan 202

switchport mode dynamic desirable ! Trunk mod dynamic and desirable

 switchport trunk allowed vlan 2,102,400,450,500,550,600,650,900 !  Only allow need VLANs
for a given trunk

logging event link-status !  Logging for link status

logging event trunk-status !  Logging for trunk status

logging event bundle-status !  Logging for port-channel status

 load-interval 30

 mls qos trust dscp

channel-protocol pagp

channel-group 202 mode desirable !  Define Port-channel, PAgP mode desirable

interface GigabitEthernet2/8/23  !  Interface on SW 2

 description Access Switch Facing Interface

 switchport

 switchport trunk encapsulation dot1q

 switchport trunk native vlan 202

switchport mode dynamic desirable

 switchport trunk allowed vlan 2,102,400,450,500,550,600,650,900

 logging event link-status

 logging event trunk-status

 logging event bundle-status

 load-interval 30

 mls qos trust dscp

 load-interval 30

channel-protocol pagp

channel-group 202 mode desirable

interface Port-channel202  !  Automatically created by defining at interfaces

 description Access Switch MEC

 switchport

 switchport trunk encapsulation dot1q

 switchport trunk native vlan 202

 switchport trunk allowed vlan 2,102,400,450,500,550,600,650,900

logging event link-status

logging event spanning-tree status ! STP logging enabled on port-channel

 load-interval 30

 mls qos trust dscp

 spanning-tree portfast ! Optional - helps during initialization

 hold-queue 2000 out

LACP

LACP Sample Configuration

interface GigabitEthernet1/8/23

 description Access Switch Facing Interface

 switchport

 switchport trunk encapsulation dot1q

 switchport trunk native vlan 202

switchport mode dynamic desirable

 switchport trunk allowed vlan 2,102,400,450,500,550,600,650,900

logging event link-status

logging event trunk-status

logging event bundle-status

 load-interval 30

 mls qos trust dscp

 channel-protocol lacp

 channel-group 202 mode active

 hold-queue 2000 out

interface GigabitEthernet2/8/23

 description Access Switch Facing Interface

 switchport

 switchport trunk encapsulation dot1q

 switchport trunk native vlan 202

switchport mode dynamic desirable

 switchport trunk allowed vlan 2,102,400,450,500,550,600,650,900

logging event link-status

logging event trunk-status

logging event bundle-status

 load-interval 30

 mls qos trust dscp

 channel-protocol lacp

 channel-group 202 mode active

 hold-queue 2000 out

interface Port-channel202 !  Automatically created by defining at interfaces

 description Access Switch MEC

 switchport

 switchport trunk encapsulation dot1q

 switchport trunk native vlan 202

 switchport trunk allowed vlan 2,102,400,450,500,550,600,650,900

logging event link-status

logging event spanning-tree status

 load-interval 30

 mls qos trust dscp

 spanning-tree portfast ! Optional - helps during initialization

 hold-queue 2000 out

Access-Layer Switch

Sample Configuration (Platform Specific Configuration Varies)

interface GigabitEthernet0/27

 description Uplink to VSS Switch Gig 1/8/24

 switchport trunk encapsulation dot1q

 switchport trunk native vlan 203

switchport mode dynamic desirable

 switchport trunk allowed vlan 3,103,400,450,500,550,600,650,900

 logging event link-status

 logging event trunk-status

 logging event bundle-status

 carrier-delay msec 0

 srr-queue bandwidth share 1 70 25 5

 srr-queue bandwidth shape  3  0  0  0

 priority-queue out

 mls qos trust dscp

channel-protocol pagp

channel-group 1 mode desirable

interface GigabitEthernet0/28

 description Uplink to VSS Switch Gig 2/8/24

 switchport trunk encapsulation dot1q

 switchport trunk native vlan 203

 switchport trunk allowed vlan 3,103,400,450,500,550,600,650,900

 switchport mode dynamic desirable

 logging event link-status

 logging event trunk-status

 logging event bundle-status

 carrier-delay msec 0

 srr-queue bandwidth share 1 70 25 5

 srr-queue bandwidth shape  3  0  0  0

 priority-queue out

 mls qos trust dscp

channel-protocol pagp

channel-group 1 mode desirable

interface Port-channel1 !  Automatically created by defining at interfaces

 description EC Uplink to VSS

 switchport trunk encapsulation dot1q

 switchport trunk native vlan 203

 switchport trunk allowed vlan 3,103,400,450,500,550,600,650,900

 switchport mode dynamic desirable

logging event link-status

logging event spanning-tree status

 carrier-delay msec 0

 spanning-tree portfast ! Optional - helps during initialization

Layer-3 Domain

The Layer 3 domain represents VSS interconnection to the core-layer. The core-layer devices configuration shown below are standalone router/switch.

Global Configuration

mls ip cef load-sharing <option> !  Apply Campus Best Practices

Multicast

VSS

ip multicast-routing

ip pim rp-address 10.122.100.1 GOOD-IPMC override !  RP mapping with filter

ip access-list standard GOOD-IPMC

 permit 224.0.1.39

 permit 224.0.1.40

 permit 239.192.240.0 0.0.3.255

 permit 239.192.248.0 0.0.3.255

Core 1 Standalone Router (No VSS)

Core RP ANYCAST - Primary

ip multicast-routing

interface Loopback0

 description MSDP PEER INT !  MSDP Loopback

 ip address 10.122.10.1 255.255.255.255

interface Loopback1

 description ANYCAST RP ADDRESS (PRIMARY) !  Anycast RP Primary

 ip address 10.122.100.1 255.255.255.255

interface Loopback2

 description Garbage-CAN RP

 ip address 2.2.2.2 255.255.255.255

interface Port-channel1 !  Core 1- Core2 L3 for MSDP

 description Channel to Peer Core Node

 dampening

 ip address 10.122.0.18 255.255.255.254

 ip pim sparse-mode

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

ip access-list standard GOOD-IPMC

 permit 224.0.1.39

 permit 224.0.1.40

 permit 239.192.240.0 0.0.3.255

 permit 239.192.248.0 0.0.3.255

ip msdp peer 10.122.10.2 connect -source Loopback0 ! MSDP Configuration

ip msdp description 10.122.10.2 ANYCAST-PEER-6k-core-2

ip msdp cache -sa-state

ip msdp originator-id Loopback0

Core 2 Standalone Router (No VSS)

ip multicast-routing

interface Loopback0

 description MSDP PEER INT

 ip address 10.122.10.2 255.255.255.255

interface Loopback1

 description ANYCAST RP ADDRESS

 ip address 10.122.100.1 255.255.255.255 ! Secondary ANYCAST RP

 delay 600

interface Loopback2

 description Garbage-CAN RP

 ip address 2.2.2.2 255.255.255.255

interface Port-channel1

 description Channel to Peer Core node

 dampening

 ip address 10.122.0.19 255.255.255.254

 ip pim sparse-mode

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

ip pim rp-address 10.122.100.1 GOOD-IPMC override

ip access-list standard GOOD-IPMC

 permit 224.0.1.39

 permit 224.0.1.40

 permit 239.192.240.0 0.0.3.255

 permit 239.192.248.0 0.0.3.255

ip msdp peer 10.122.10.1 connect-source Loopback0

ip msdp description 10.122.10.1 ANYCAST-PEER-6k-core-1

ip msdp cache-sa-state

ip msdp originator-id Loopback0

EIGRP MEC

VSS

router eigrp 100

 passive-interface default

 no passive-interface Port-channel200

 no passive-interface Port-channel201

 network 10.0.0.0

eigrp log-neighbor-warnings

eigrp log-neighbor-changes

 no auto-summary

 eigrp router-id 10.122.102.1

 eigrp event-log-size 3000

 nsf !  Enable NSF Capability

interface Port-channel200 !  Create L3 MEC Interface first

 description 20 Gig MEC to CORE-1 (cr2-6500-1 4/1-4/3)

 no switchport

 dampening

 ip address 10.122.0.26 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip summary-address eigrp 100 10.125.0.0 255.255.0.0 5 !  Summarization for Access-subnets

 ip summary-address eigrp 100 10.120.0.0 255.255.0.0 5

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

!

interface Port-channel201

 description 20 Gig to CORE-2 (cr2-6500-1 4/1-4/3)

 no switchport

 dampening

 ip address 10.122.0.21 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip summary-address eigrp 100 10.125.0.0 255.255.0.0 5

 ip summary-address eigrp 100 10.120.0.0 255.255.0.0 5

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

interface TenGigabitEthernet1/2/1

 description 10 GigE to Core 1

 no switchport

 no ip address

 logging event link-status

 logging event bundle-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 channel-protocol pagp

 channel-group 200 mode desirable

 hold-queue 2000 in

 hold-queue 2000 out

!

interface TenGigabitEthernet1/2/2

 description 10 GigE to Core 2

 no switchport

 no ip address

 logging event link-status

 logging event bundle-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 channel-protocol pagp

 channel-group 201 mode desirable

 hold-queue 2000 in

 hold-queue 2000 out

interface TenGigabitEthernet2/2/1

 description to core 1

 no switchport

 no ip address

 logging event link-status

 logging event bundle-status

 logging event spanning-tree status

 load-interval 30

 mls qos trust dscp

 channel-protocol pagp

 channel-group 200 mode desirable

 hold-queue 2000 in

 hold-queue 2000 out

interface TenGigabitEthernet2/2/2

 description 10 GigE to Core 2

 no switchport

 no ip address

 logging event link-status

 logging event bundle-status

 load-interval 30

 mls qos trust dscp

 channel-protocol pagp

 channel-group 201 mode desirable

 hold-queue 2000 in

 hold-queue 2000 out

Core 1 Standalone Router (No VSS)

router eigrp 100

 passive-interface default

 no passive-interface Port-channel1

 no passive-interface Port-channel20

 no passive-interface Port-channel221

 network 10.0.0.0

 no auto-summary

eigrp log-neighbor-warnings

eigrp log-neighbor-changes

eigrp event-log-size 3000

interface Port-channel20

 description 20 Gig MEC to VSS 1/2/1 2/2/1

 dampening

 ip address 10.122.0.27 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

Core 2 Standalone Router (No VSS)

router eigrp 100

 passive-interface default

 no passive-interface Port-channel1

 no passive-interface Port-channel20

 no passive-interface Port-channel221

 network 10.0.0.0

 no auto-summary

eigrp log-neighbor-warnings

eigrp log-neighbor-changes

eigrp event-log-size 3000

interface Port-channel21

 description 20 Gig to VSS 1/2/2-2/2/2

 dampening

 ip address 10.122.0.20 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

EIGRP ECMP

VSS

router eigrp 100

 passive-interface default

 no passive-interface TenGigabitEthernet1/2/1

 no passive-interface TenGigabitEthernet1/2/2

 no passive-interface TenGigabitEthernet2/2/1

 no passive-interface TenGigabitEthernet2/2/2

 network 10.0.0.0

 no auto-summary

 eigrp router-id 10.122.102.1

 eigrp log-neighbor-warnings

 eigrp log-neighbor-changes

 eigrp event-log-size 3000

 nsf !  Enable NSF Capability

interface TenGigabitEthernet1/2/1

 description 10 GigE to Core 1

 no switchport

 dampening

 ip address 10.122.0.26 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip summary-address eigrp 100 10.120.0.0 255.255.0.0 5

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

!

interface TenGigabitEthernet1/2/2

 description 10 GigE to Core 2

 no switchport

 dampening

 ip address 10.122.0.23 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip summary-address eigrp 100 10.120.0.0 255.255.0.0 5

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

interface TenGigabitEthernet2/2/1

 description to Core 1

 no switchport

 dampening

 ip address 10.122.0.32 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip summary-address eigrp 100 10.120.0.0 255.255.0.0 5

 logging event link-status

 load-interval 30

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

!

interface TenGigabitEthernet2/2/2

 description 10 GigE to Core 2

 no switchport

 dampening

 ip address 10.122.0.20 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip summary-address eigrp 100 10.120.0.0 255.255.0.0 5

 logging event link-status

 load-interval 30

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

Core 1 Standalone Router (No VSS)

router eigrp 100

 passive-interface default

 no passive-interface TenGigabitEthernet4/1

 no passive-interface TenGigabitEthernet4/3

 network 10.0.0.0

 no auto-summary

eigrp log-neighbor-warnings

eigrp log-neighbor-changes

eigrp event-log-size 3000

interface TenGigabitEthernet4/1

 description To VSS Ten1/2/1

 dampening

 ip address 10.122.0.27 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

interface TenGigabitEthernet4/3

 description To VSS Ten2/2/1

 dampening

 ip address 10.122.0.33 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 logging event link-status

 logging event bundle-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

Core 2 Standalone Router (No VSS)

router eigrp 100

 passive-interface default

 no passive-interface TenGigabitEthernet4/1

 no passive-interface TenGigabitEthernet4/3

 network 10.0.0.0

 no auto-summary

eigrp log-neighbor-warnings

eigrp log-neighbor-changes

eigrp event-log-size 3000

interface TenGigabitEthernet4/1

 description To VSS Ten 1/2/2

 dampening

 ip address 10.122.0.22 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

interface TenGigabitEthernet4/3

 description To VSS Ten 2/2/2

 dampening

 ip address 10.122.0.21 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

OSPF MEC

VSS

router ospf 100

 router-id 10.122.0.235

 log-adjacency-changes detail

 auto-cost reference-bandwidth 20000 !  Optional

 nsf !  Enable NSF Capability

 area 120 stub no-summary

 area 120 range 10.120.0.0 255.255.0.0 cost 10

 area 120 range 10.125.0.0 255.255.0.0 cost 10

 passive-interface default

 no passive-interface Port-channel200

 no passive-interface Port-channel201

 network 10.120.0.0 0.0.255.255 area 120

 network 10.122.0.0 0.0.255.255 area 0

 network 10.125.0.0 0.0.255.255 area 120

interface Port-channel200

 description 20 Gig MEC to VSS (cr2-6500-1 4/1-4/3)

 no switchport

 dampening

 ip address 10.122.0.26 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip ospf network point-to-point

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

!

interface Port-channel201

 description 20 Gig to VSS (cr2-6500-1 4/1-4/3)

 no switchport

 dampening

 ip address 10.122.0.21 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip ospf network point-to-point

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

Core 1 Standalone Router No VSS)

router ospf 100

 router-id 10.254.254.7

 log-adjacency-changes detail ! Helps in NSF Restart Activities

 auto-cost reference-bandwidth 20000 !  Optional

 passive-interface default

 no passive-interface Port-channel1

 no passive-interface Port-channel20

 network 10.122.0.0 0.0.255.255 area 0

interface Port-channel20

 description 20 Gig MEC to VSS 1/2/1 2/2/1

 dampening

 ip address 10.122.0.27 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip ospf network point-to-point

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

Core 2 Standalone Router (No VSS)

router ospf 100

 router-id 10.254.254.7

 log-adjacency-changes detail

 auto-cost reference-bandwidth 20000 !  Optional

 passive-interface default

 no passive-interface Port-channel1

 no passive-interface Port-channel20

 network 10.122.0.0 0.0.255.255 area 0

interface Port-channel21

 description 20 Gig to VSS 1/2/2-2/2/2

 dampening

 ip address 10.122.0.20 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip ospf network point-to-point

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

OSPF ECMP

VSS

router ospf 100

 router-id 10.122.0.235

 log-adjacency-changes detail

 auto-cost reference-bandwidth 20000 !  Optional

 nsf !  Enable NSF Capability

 area 120 stub no-summary

 area 120 range 10.120.0.0 255.255.0.0 cost 10

 area 120 range 10.125.0.0 255.255.0.0 cost 10

 passive-interface default

 no passive-interface TenGigabitEthernet1/2/1

 no passive-interface TenGigabitEthernet1/2/2

 no passive-interface TenGigabitEthernet2/2/1

 no passive-interface TenGigabitEthernet2/2/2

 network 10.120.0.0 0.0.255.255 area 120

 network 10.122.0.0 0.0.255.255 area 0

 network 10.125.0.0 0.0.255.255 area 120

interface TenGigabitEthernet1/2/1

 description 10 GigE to Core 1

 no switchport

 dampening

 ip address 10.122.0.26 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip ospf network point-to-point

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

!

interface TenGigabitEthernet1/2/2

 description 10 GigE to Core 2

 no switchport

 dampening

 ip address 10.122.0.23 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip ospf network point-to-point

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

!

interface TenGigabitEthernet2/2/1

 description to Core 1

 no switchport

 dampening

 ip address 10.122.0.32 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip ospf network point-to-point

 logging event link-status

 load-interval 30

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

!

interface TenGigabitEthernet2/2/2

 description 10 GigE to Core 2

 no switchport

 dampening

 ip address 10.122.0.20 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip ospf network point-to-point

 logging event link-status

 load-interval 30

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

Core 1 Standalone Router (No VSS)

router ospf 100

 router-id 10.254.254.7

 log-adjacency-changes detail

 auto-cost reference-bandwidth 20000 !  Optional

 passive-interface default

 no passive-interface GigabitEthernet2/5

 no passive-interface TenGigabitEthernet4/1

 no passive-interface TenGigabitEthernet4/3

 no passive-interface Port-channel1

 network 10.122.0.0 0.0.255.255 area 0

interface TenGigabitEthernet4/1

 description To VSS Ten1/2/1

 dampening

 ip address 10.122.0.27 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip ospf network point-to-point

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

!

!

interface TenGigabitEthernet4/3

 description To VSS Ten2/2/1

 dampening

 ip address 10.122.0.33 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip ospf network point-to-point

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

Core 2 Standalone Router (No VSS)

router ospf 100

 router-id 10.254.254.7

 log-adjacency-changes detail

 auto-cost reference-bandwidth 20000 !  Optional

 passive-interface default

 no passive-interface GigabitEthernet2/5

 no passive-interface TenGigabitEthernet4/1

 no passive-interface TenGigabitEthernet4/3

 no passive-interface Port-channel1

 network 10.122.0.0 0.0.255.255 area 0

interface TenGigabitEthernet4/1

 description To VSS Ten 1/2/2

 dampening

 ip address 10.122.0.22 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip ospf network point-to-point

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out

!

!

interface TenGigabitEthernet4/3

 description To VSS Ten 2/2/2

 dampening

 ip address 10.122.0.21 255.255.255.254

 ip flow ingress

 ip pim sparse-mode

 ip ospf network point-to-point

 logging event link-status

 load-interval 30

 carrier-delay msec 0

 mls qos trust dscp

 hold-queue 2000 in

 hold-queue 2000 out
