Release Notes for Cisco ASDM, Version 6.3(x)

April 2011

This document contains release information for Cisco ASDM Version 6.3(1) through 6.3(5) on Cisco ASA 5500 series adaptive security appliances.

This document includes the following sections:

•Important Notes

•ASDM Client Operating System and Browser Requirements

•Supported Platforms

•New Features

•Upgrading the Software

•Unsupported CommandsS

•Open Caveats in Version 6.3

•Resolved Caveats

•End-User License Agreement

•Related Documentation

•Obtaining Documentation and Submitting a Service Request

Note Before you upgrade to ASA Version 8.3, be sure to see the Cisco ASA 5500 Migration Guide for Version 8.3. The following major changes require configuration migration:

•NAT redesign.

•Real IP addresses in access rules instead of mapped addresses.

•Named network objects and service objects.

Important Notes

•If your system runs ASDM Version 6.3.1 or higher and you want to use ASDM to upgrade either the ASA or ASDM image using the Tools > Check for ASA/ASDM Updates menu option, then ASDM might prompt twice for your Cisco.com credentials.

•Maximum configuration size—ASDM supports up to a maximum of a 512 KB configuration. If you exceed this amount, you may experience performance issues.

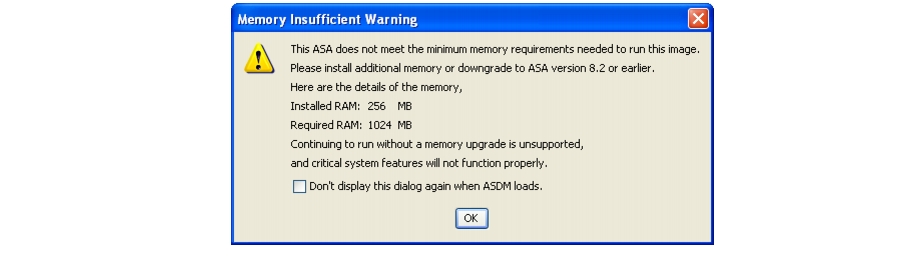

•Memory requirements—To run Version 8.3 in a production environment, you need to upgrade the memory on the Cisco ASA 5505, 5510, 5520, or 5540. See the ASA release notes for more information. If you do not install a memory upgrade, you receive the following message upon logging in:

.

ASDM Client Operating System and Browser Requirements

Table 1 lists the supported and recommended client operating systems and Java for ASDM.

Table 1 Operating System and Browser Requirements

Operating System

Browser

Sun Java SE Plug-in¹

Internet Explorer

Firefox²

Safari

Microsoft Windows (English and Japanese):

•7

•Vista

•2003 Server

•XP

6.0 or later

1.5 or later

No support

•5.0 (1.5.0)

•6.0

Apple Macintosh OS X:

•10.6

•10.5

•10.4

No support

1.5 or later

2.0 or later

•5.0 (1.5.0)

•6.0

Red Hat Enterprise Linux 5 (GNOME or KDE):

•Desktop

•Desktop with Workstation

N/A

1.5 or later

N/A

•5.0 (1.5.0)

•6.0

¹Obtain Sun Java from http://www.java.com/en/download/manual.jsp.

²ASDM requires an SSL connection from the browser to the adaptive security appliance. By default, Firefox does not support base encryption (DES) for SSL and therefore requires the adaptive security appliance to have a strong encryption (3DES/AES) license. As a workaround, you can enable the security.ssl3.dhe_dss_des_sha setting in Firefox. See http://kb.mozillazine.org/About:config to learn how to change hidden configuration preferences.

Supported Platforms

See Cisco ASA 5500 Series Hardware and Software Compatibility for the minimum supported version of ASDM for each ASA and SSM version.

Note ASDM 6.2(1) and later is not supported on the PIX platforms. The last ASDM version supported on the PIX is 6.1(5).

Although ASDM 6.3 supports many ASA versions, the ASDM 6.3 documentation and online help only include features for ASA 8.3. For older ASA versions, you might find that using the ASDM 6.3 documentation is inaccurate for your older feature set. Instead, refer to the ASDM guide in which support for your platform version was added (to see when support was added, see Cisco ASA 5500 Series and PIX 500 Series Security Appliance Hardware and Software Compatibility for the minimum supported version of ASDM for each ASA version; this version is the one where support was added). Although the specific information about the ASDM GUI might be inaccurate in that guide, the platform feature set is documented correctly.

New Features

This section includes the following topics:

•New Features in ASDM 6.3(5)/8.2(4.4)

•New Features in ASDM 6.3(5)/8.2(4.1)

•New Features in ASDM 6.3(4)/ASA 8.2(3.9)

•New Features in ASDM 6.3(3) and 6.3(4)/ASA 8.2(3)

•New Features in ASDM 6.3(2)/ASA 8.3(2)

•New Features in ASDM 6.3(1)/ASA 8.3(1)

New Features in ASDM 6.3(5)/8.2(4.4)

Released: March 4, 2011

Table 2 lists the new features for ASA Version 8.2(4.4)/ASDM Version 6.3(5).

Note We recommend that you upgrade to a Cisco.com-posted interim release only if you have a specific problem that it resolves. If you decide to run an interim release in a production environment, keep in mind that only targeted testing is performed on interim releases. Interim releases are fully supported by Cisco TAC and will remain on the download site only until the next maintenance release is available. If you choose to run an interim release, we strongly encourage you to upgrade to a fully-tested maintenance or feature release when it becomes available. We will document interim release features at the time of the next maintenance or feature release. For a list of resolved caveats for each interim release, see the Cisco ASA Interim Release Notes available on the Cisco.com software download site.

Table 2 New Features for ASA Version 8.2(4.4)/ASDM Version 6.3(5)

Feature

Description

Hardware Features

Support for the IPS SSP-10, -20, -40, and -60 for the ASA 5585-X

We introduced support for the IPS SSP-10, -20, -40, and -60 for the ASA 5585-X. You can only install the IPS SSP with a matching-level SSP; for example, SSP-10 and IPS SSP-10.

Remote Access Features

Clientless SSL VPN support for Outlook Web Access 2010

By default, Clientless SSL VPN now provides content transformation (rewriting) support for Outlook Web Access (OWA) 2010 traffic.

We did not modify any screens.

New Features in ASDM 6.3(5)/8.2(4.1)

Released: January 18, 2011

Table 3 lists the new features for ASA Version 8.2(4.1)/ASDM Version 6.3(5).

Note We recommend that you upgrade to a Cisco.com-posted interim release only if you have a specific problem that it resolves. If you decide to run an interim release in a production environment, keep in mind that only targeted testing is performed on interim releases. Interim releases are fully supported by Cisco TAC and will remain on the download site only until the next maintenance release is available. If you choose to run an interim release, we strongly encourage you to upgrade to a fully-tested maintenance or feature release when it becomes available. We will document interim release features at the time of the next maintenance or feature release. For a list of resolved caveats for each interim release, see the Cisco ASA Interim Release Notes available on the Cisco.com software download site.

Table 3 New Features for ASA Version 8.2(4.1)/ASDM Version 6.3(5)

Feature

Description

Remote Access Features

SSL SHA-2 digital signature

This release supports the use of SHA-2 compliant signature algorithms to authenticate SSL VPN connections that use digital certificates. Our support for SHA-2 includes all three hash sizes: SHA-256, SHA-384, and SHA-512. SHA-2 requires AnyConnect 2.5.1 or later (2.5.2 or later recommended). This release does not support SHA-2 for other uses or products. This feature does not involve configuration changes. Caution: To support failover of SHA-2 connections, the standby ASA must be running the same image. To support this feature, we added the Signature Algorithm field to the show crypto ca certificate command to identify the digest algorithm used when generating the signature.

New Features in ASDM 6.3(4)/ASA 8.2(3.9)

Released: November 2, 2010

Table 4 lists the new features for ASA interim Version 8.2(3.9)/ASDM Version 6.3(4).

Note We recommend that you upgrade to a Cisco.com-posted interim release only if you have a specific problem that it resolves. If you decide to run an interim release in a production environment, keep in mind that only targeted testing is performed on interim releases. Interim releases are fully supported by Cisco TAC and will remain on the download site only until the next maintenance release is available. If you choose to run an interim release, we strongly encourage you to upgrade to a fully-tested maintenance or feature release when it becomes available. We will document interim release features at the time of the next maintenance or feature release. For a list of resolved caveats for each interim release, see the Cisco ASA Interim Release Notes available on the Cisco.com software download site.

Table 4 New Features for ASA Version 8.2(3.9)/ASDM Version 6.3(4)

Feature

Description

Remote Access Features

SSL SHA-2 digital signature

This release supports the use of SHA-2 compliant signature algorithms to authenticate SSL VPN connections that use digital certificates. Our support for SHA-2 includes all three hash sizes: SHA-256, SHA-384, and SHA-512. SHA-2 requires AnyConnect 2.5.1 or later (2.5.2 or later recommended). This release does not support SHA-2 for other uses or products. This feature does not involve configuration changes. Caution: To support failover of SHA-2 connections, the standby ASA must be running the same image. To support this feature, we added the Signature Algorithm field to the show crypto ca certificate command to identify the digest algorithm used when generating the signature.

New Features in ASDM 6.3(3) and 6.3(4)/ASA 8.2(3)

Released: August 9, 2010

Table 5 Table 5 lists the new features for ASA Version 8.2(3)/ASDM Version 6.3(3)/6.3(4).

Note ASDM 6.3(4) does not include any new features; it includes a caveat fix required for support of the ASA 5585-X.

Table 5 New Features for ASA Version 8.2(3)/ASDM Version 6.3(3) and 6.3(4)

Feature

Description

Hardware Features

Support for the Cisco ASA 5585-X with SSP-20 and SSP-60

Support for the ASA 5585-X with Security Services Processor (SSP)-20 and -60 was introduced.

Note The ASA 5585-X is not supported in Version 8.3(x).

The ASA 5585-X requires ASDM 6.3(4).

Remote Access Features

2048-bit RSA certificate and Diffie-Hellman Group 5 (DH5) performance improvement

(ASA 5510, ASA 5520, ASA 5540, and ASA 5550 only) We strongly recommend that you enable hardware processing instead of software for large modulus operations such as 2048-bit certificates and DH5 keys. If you continue to use software processing for large keys, you could experience significant performance degradation due to slow session establishment for IPsec and SSL VPN connections. We recommend that you initially enable hardware processing during a low-use or maintenance period to minimize a temporary packet loss that can occur during the transition of processing from software to hardware.

Note For the ASA 5540 and ASA 5550 using SSL VPN, in specific load conditions, you may want to continue to use software processing for large keys. If VPN sessions are added very slowly and the ASA runs at capacity, then the negative impact to data throughput is larger than the positive impact for session establishment.

Note The ASA 5580/5585-X platforms already integrate this capability; therefore, crypto engine commands are not applicable on these platforms.

The following commands were introduced or modified: crypto engine large-mod-accel, clear configure crypto engine, show running-config crypto engine, and show running-config crypto.

In ASDM, use the Command Line Interface tool to enter the crypto engine large-mod-accel command.

Also available in Version 8.3(2).

Microsoft Internet Explorer proxy lockdown control

Enabling this feature hides the Connections tab in Microsoft Internet Explorer for the duration of an AnyConnect VPN session. Disabling the feature leaves the display of the Connections tab unchanged; the default setting for the tab can be shown or hidden, depending on the user registry settings.

The following command was introduced: msie-proxy lockdown.

In ASDM, use the Command Line Interface tool to enter this command.

Trusted Network Detection Pause and Resume

This feature enables the AnyConnect client to retain its session information and cookie so that it can seamlessly restore connectivity after the user leaves the office, as long as the session does not exceed the idle timer setting. This feature requires an AnyConnect release that supports TND pause and resume.

New Features in ASDM 6.3(2)/ASA 8.3(2)

Released: August 2, 2010

Table 6 lists the new features for ASA Version 8.3(2)/ASDM Version 6.3(2).

Table 6 New Features for ASA Version 8.3(2)/ASDM Version 6.3(2)

Feature

Description

Monitoring Features

Enhanced logging and connection blocking

When you configure a syslog server to use TCP, and the syslog server is unavailable, the adaptive security appliance blocks new connections that generate syslog messages until the server becomes available again (for example, VPN, firewall, and cut-through-proxy connections). This feature has been enhanced to also block new connections when the logging queue on the adaptive security appliance is full; connections resume when the logging queue is cleared.

This feature was added for compliance with Common Criteria EAL4+. Unless required, we recommend allowing new connections when syslog messages cannot be sent. To allow new connections, configure the syslog server to use UDP or check the Allow user traffic to pass when TCP syslog server is down check box on the Configuration > Device Management > Logging > Syslog Servers pane.

The following syslog messages were introduced: 414005, 414006, 414007, and 414008

No ASDM screens were modified.

Syslog message filtering and sorting

Support has been added for the following:

•Syslog message filtering based on multiple text strings that correspond to various columns

•Creation of custom filters

•Column sorting of messages. For detailed information, see the Cisco Security Appliance Configuration Guide using ASDM.

The following screens were modified:

Monitoring > Logging > Real-Time Log Viewer > View
Monitoring > Logging > Log Buffer Viewer > View

This feature interoperates with all ASA versions.

Clearing syslog messages for the CSC SSM

Support for clearing syslog messages has been added in the Latest CSC Security Events pane.

The following screen was modified: Home > Content Security.

This feature interoperates with all ASA versions.

Remote Access Features

2048-bit RSA certificate and Diffie-Hellman Group 5 (DH5) performance improvement

(ASA 5510, ASA 5520, ASA 5540, and ASA 5550 only) We strongly recommend that you enable hardware processing instead of software for large modulus operations such as 2048-bit certificates and DH5 keys. If you continue to use software processing for large keys, you could experience significant performance degradation due to slow session establishment for IPsec and SSL VPN connections. We recommend that you initially enable hardware processing during a low-use or maintenance period to minimize a temporary packet loss that can occur during the transition of processing from software to hardware.

Note For the ASA 5540 and ASA 5550 using SSL VPN, in specific load conditions, you may want to continue to use software processing for large keys. If VPN sessions are added very slowly and the ASA runs at capacity, then the negative impact to data throughput is larger than the positive impact for session establishment.

The following commands were introduced or modified: crypto engine large-mod-accel, clear configure crypto engine, show running-config crypto engine, and show running-config crypto.

In ASDM, use the Command Line Interface tool to enter the crypto engine large-mod-accel command.

Also available in Version 8.2(3).

Microsoft Internet Explorer proxy lockdown control

Enabling this feature hides the Connections tab in Microsoft Internet Explorer for the duration of an AnyConnect VPN session. Disabling the feature leaves the display of the Connections tab unchanged; the default setting for the tab can be shown or hidden, depending on the user registry settings.

The following command was introduced: msie-proxy lockdown.

In ASDM, use the Command Line Interface tool to enter this command.

Also available in Version 8.2(3).

Secondary password enhancement

You can now configure SSL VPN support for a common secondary password for all authentications or use the primary password as the secondary password.

The following screen was modified: Configuration > Remote Access VPN > Clientless SSL Access > Connection Profiles > Add/Edit Clientless SSL VPN Connection Profile > Advanced > Secondary Authentication.

General Features

No Payload Encryption image for export

For export to some countries, payload encryption cannot be enabled on the Cisco ASA 5500 series. For version 8.3(2), you can now install a No Payload Encryption image (asa832-npe-k8.bin) on the following models:

•ASA 5505

•ASA 5510

•ASA 5520

•ASA 5540

•ASA 5550

Features that are disabled in the No Payload Encryption image include:

•Unified Communications.

•Strong encryption for VPN (DES encryption is still available for VPN).

•VPN load balancing (note that the GUI is still present; the feature will not function, however).

•Downloading of the dynamic database for the Botnet Traffic Filer (Static black and whitelists are still supported. Note that the GUI is still present; the feature will not function, however.).

•Management protocols requiring strong encryption, including SSL, SSHv2, and SNMPv3. You can, however, use SSL or SNMPv3 using base encryption (DES). Also, SSHv1 and SNMPv1 and v2 are still available.

If you attempt to install a Strong Encryption (3DES/AES) license, you see the following warning:

WARNING: Strong encryption types have been disabled in this image; the VPN-3DES-AES license option has been ignored.

New Features in ASDM 6.3(1)/ASA 8.3(1)

Released: March 8, 2010

Table 7 lists the new features for ASA Version 8.3(1)/ASDM Version 6.3(1).

Table 7 New Features for ASA Version 8.3(1)/ASDM Version 6.3(1)

Feature

Description

Remote Access Features

Smart Tunnel Enhancements

Logoff enhancement—Smart tunnel can now be logged off when all browser windows have been closed (parent affinity), or you can right click the notification icon in the system tray and confirm log out.

Tunnel Policy—An administrator can dictate which connections go through the VPN gateway and which do not. An end user can browse the Internet directly while accessing company internal resources with smart tunnel if the administrator chooses.

Simplified configuration of which applications to tunnel—When a smart tunnel is required, a user no longer needs to configure a list of processes that can access smart tunnel and in turn access certain web pages. An "enable smart tunnel" check box for either a bookmark or standalone application allows for an easier configuration process.

Group policy home page—Using a check box in ASDM, administrators can now specify their home page in group policy in order to connect via smart tunnel.

The following screen was modified: Configuration > Remote Access VPN > AAA/Local Users > Local Users > Edit > VPN Policy > Clientless SSL VPN.

Newly Supported Platforms for Browser-based VPN

Release 8.3(1) provides browser-based (clientless) VPN access from the following newly supported platforms:

•Windows 7 x86 (32-bit) and x64 (64-bit) via Internet Explorer 8.x and Firefox 3.x

•Windows Vista x64 via Internet Explorer 7.x/8.x, or Firefox 3.x.

•Windows XP x64 via Internet Explorer 6.x/7.x/8.x and Firefox 3.x

•Mac OS 10.6.x 32- and 64-bit via Safari 4.x and Firefox 3.x.

Firefox 2.x is likely to work, although we no longer test it.

Release 8.3(1) introduces browser-based support for 64-bit applications on Mac OS 10.5.

Release 8.3(1) now supports smart tunnel access on all 32-bit and 64-bit Windows OSs supported for browser-based VPN access, Mac OS 10.5 running on an Intel processor only, and Mac OS 10.6.x. The adaptive security appliance does not support port forwarding on 64-bit OSs.

Browser-based VPN access does not support Web Folders on Windows 7, Vista, and Internet Explorer 8.

An ActiveX version of the RDP plug-in is not available for 64-bit browsers.

Note Windows 2000 and Mac OS X 10.4 are no longer supported for browser-based access.

IPv6 support for IKEv1 LAN-to-LAN VPN connections

For LAN-to-LAN connections using mixed IPv4 and IPv6 addressing, or all IPv6 addressing, the adaptive security appliance supports VPN tunnels if both peers are Cisco ASA 5500 series adaptive security appliances, and if both inside networks have matching addressing schemes (both IPv4 or both IPv6).

Specifically, the following topologies are supported when both peers are Cisco ASA 5500 series adaptive security appliances:

•The adaptive security appliances have IPv4 inside networks and the outside network is IPv6 (IPv4 addresses on the inside interfaces and IPv6 addresses on the outside interfaces).

•The adaptive security appliances have IPv6 inside networks and the outside network is IPv4 (IPv6 addresses on the inside interface and IPv4 addresses on the outside interfaces).

•The adaptive security appliances have IPv6 inside networks and the outside network is IPv6 (IPv6 addresses on the inside and outside interfaces).

Note The defect CSCtd38078 currently prevents the Cisco ASA 5500 series from connecting to a Cisco IOS device as the peer device of a LAN-to-LAN connection.

The following screens were modified or introduced:

Wizards > IPsec VPN Wizard, Configuration > Site-to-Site VPN > Connection Profiles
Configuration > Site-to-Site VPN > Connection Profiles > Basic > Add IPsec Site-to-Site Connection Profile
Configuration > Site-to-Site VPN > Group Policies
Configuration > Site-to-Site VPN > Group Policies > Edit Internal Group Policy
Configuration > Site-to-Site VPN > Advanced > Crypto Maps
Configuration > Site-to-Site VPN > Advanced > Crypto Maps > Add > Create IPsec Rule
Configuration > Site-to-Site VPN > Advanced > ACL Manager

Plug-in for AnyConnect Profile Editor

The AnyConnect Profile Editor is a convenient GUI-based configuration tool you can use to configure the AnyConnect 2.5 or later client profile, an XML file containing settings that control client features. Previously, you could only change profile settings manually by editing the XML tags in the profile file. The AnyConnect Profile Editor is a plug-in binary file named anyconnectprof.sgz packaged with the ASDM image and installed in the root directory of disk0:/ in the flash memory on the adaptive security appliance. This design allows you to update the editor to be compatible with new AnyConnect features available in new client releases.

SSL VPN Portal Customization Editor

You can rebrand and customize the screens presented to clientless SSL VPN users using the new Edit Customization Object window in ASDM. You can customize the logon, portal and logout screens, including corporate logos, text messages, and the general layout. Previously, the customization feature was embedded in the adaptive security appliance software image. Moving it to ASDM provides greater usability for this feature and future enhancements.

The following screen was modified: Configuration > Remote Access VPN > Clientless SSL VPN Access > Portal > Customization.

Usability Improvements for Remote Access VPN

ASDM provides a step-by-step guide to configuring Clientless SSL VPN, AnyConnect SSL VPN Remote Access, or IPsec Remote Access using the ASDM Assistant. The ASDM Assistant is more comprehensive than the VPN wizards, which are designed only to get you up and running.

The following screen was modified: Configuration > Remote Access VPN > Introduction > ASDM Assistant.

Firewall Features

Interface-Independent Access Policies

You can now configure access rules that are applied globally, as well as access rules that are applied to an interface. If the configuration specifies both a global access policy and interface-specific access policies, the interface-specific policies are evaluated before the global policy.

The following screen was modified: Configuration > Firewall > Access Rules.

Network and Service Objects

You can now create named network objects that you can use in place of a host, a subnet, or a range of IP addresses in your configuration and named service objects that you can use in place of a protocol and port in your configuration. You can then change the object definition in one place, without having to change any other part of your configuration. This release introduces support for network and service objects in the following features:

•NAT

•Access rules

•Network object groups

Note ASDM used network objects internally in previous releases; this feature introduces platform support for network objects.

The following screens were modified or introduced:

Configuration > Firewall > Objects > Network Objects/Groups, Configuration > Firewall > Objects > Service Objects/Groups
Configuration > Firewall > NAT Rules, Configuration > Firewall > Access Rules

Object-group Expansion Rule Reduction

Significantly reduces the network object-group expansion while maintaining a satisfactory level of packet classification performance.

The following screen was modified: Configuration > Firewall > Access Rules > Advanced.

NAT Simplification

The NAT configuration was completely redesigned to allow greater flexibility and ease of use. You can now configure NAT using auto NAT, where you configure NAT as part of the attributes of a network object, and manual NAT, where you can configure more advanced NAT options.

The following screens were modified or introduced:

Configuration > Firewall > Objects > Network Objects/Group
Configuration > Firewall > NAT Rules

Use of Real IP addresses in access lists instead of translated addresses

When using NAT, mapped addresses are no longer required in an access list for many features. You should always use the real, untranslated addresses when configuring these features. Using the real address means that if the NAT configuration changes, you do not need to change the access lists.

The following features that use access lists now use real IP addresses. These features are automatically migrated to use real IP addresses when you upgrade to 8.3, unless otherwise noted.

•Access rules

• Service policy rules

•Botnet Traffic Filter

•AAA rules

•WCCP redirect.

Note WCCP is not automatically migrated when you upgrade to 8.3.

Threat Detection Enhancements

You can now customize the number of rate intervals for which advanced statistics are collected. The default number of rates was changed from 3 to 1. For basic statistics, advanced statistics, and scanning threat detection, the memory usage was improved.

The following screen was modified: Configuration > Firewall > Threat Detection.

Unified Communication Features

SCCP v19 support

The IP phone support in the Cisco Phone Proxy feature was enhanced to include support for version 19 of the SCCP protocol on the list of supported IP phones.

Cisco Intercompany Media Engine Proxy

Cisco Intercompany Media Engine (UC-IME) enables companies to interconnect on-demand, over the Internet with advanced features made available by VoIP technologies. Cisco Intercompany Media Engine allows for business-to-business federation between Cisco Unified Communications Manager clusters in different enterprises by utilizing peer-to-peer, security, and SIP protocols to create dynamic SIP trunks between businesses. A collection of enterprises work together to end up looking like one large business with inter-cluster trunks between them.

The following screens were modified or introduced:

Wizards > Unified Communications Wizard > Cisco Intercompany Media Engine Proxy
Configuration > Firewall > Unified Communications, and then click UC-IME Proxy
Configuration > Firewall > Service Policy Rules > Add/Edit Service Policy Rule > Rule Actions > Select SIP Inspection Map

SIP Inspection Support for IME

SIP inspection has been enhance to support the new Cisco Intercompany Media Engine (UC-IME) Proxy.

The following screen was modified: Configuration > Firewall > Service Policy Rules > Add/Edit Service Policy Rule > Rule Actions > Select SIP Inspection Map.

Unified Communication Wizard

The Unified Communications wizard guides you through the complete configuration and automatically configures required aspects for the following proxies: Cisco Mobility Advantage Proxy, Cisco Presence Federation Proxy, Cisco Intercompany Media Engine proxy. Additionally, the Unified Communications wizard automatically configures other required aspects of the proxies.

The following screens were modified:

Wizards > Unified Communications Wizard
Configuration > Firewall > Unified Communications

Enhanced Navigation for Unified Communication Features

The Unified Communications proxy features, such as the Phone Proxy, TLS Proxy, CTL File, and CTL Provider pages, are moved from under the Objects category in the left Navigation panel. to the new Unified Communications category. In addition, this new category contains pages for the new Unified Communications wizard and the UC-IME Proxy page.

This feature interoperates with all ASA versions.

The following screen was modified: Configuration > Device Setup > Interfaces > Add/Edit Interface > General.

Routing Features

Route map support

ASDM has added enhanced support for static and dynamic routes.

The following screen was modified: Configuration > Device Setup > Routing > Route Maps.

This feature interoperates with all ASA versions.

Monitoring Features

Time Stamps for Access List Hit Counts

Displays the timestamp, along with the hash value and hit count, for a specified access list.

The following screen was modified: Configuration > Firewall > Access Rules. (The timestamp appears when you hover the mouse over a cell in the Hits column.)

High Performance Monitoring for ASDM

You can now enable high performance monitoring for ASDM to show the top 200 hosts connected through the adaptive security appliance. Each entry of a host contains the IP address of the host and the number of connections initiated by the host, and is updated every 120 seconds.

The following screen was introduced: Home > Firewall Dashboard > Top 200 Hosts.

Licensing Features

Non-identical failover licenses

Failover licenses no longer need to be identical on each unit. The license used for both units is the combined license from the primary and secondary units.

Note For the ASA 5505 and 5510 adaptive security appliances, both units require the Security Plus license; the Base license does not support failover, so you cannot enable failover on a standby unit that only has the Base license.

The following screen was modified: Configuration > Device Management > Licensing > Activation Key.

Stackable time-based licenses

Time-based licenses are now stackable. In many cases, you might need to renew your time-based license and have a seamless transition from the old license to the new one. For features that are only available with a time-based license, it is especially important that the license not expire before you can apply the new license. The adaptive security appliance allows you to stack time-based licenses so you do not have to worry about the license expiring or about losing time on your licenses because you installed the new one early. For licenses with numerical tiers, stacking is only supported for licenses with the same capacity, for example, two 1000-session SSL VPN licenses. You can view the state of the licenses at Configuration > Device Management > Licensing > Activation Key.

Intercompany Media Engine License

The IME license was introduced.

Multiple time-based licenses active at the same time

You can now install multiple time-based licenses, and have one license per feature active at a time.

The following screen was modified: Configuration > Device Management > Licensing > Activation Key.

Discrete activation and deactivation of time-based licenses.

You can now activate or deactivate time-based licenses using a command.

The following command was modified: activation-key [activate | deactivate].

The following screen was modified: Configuration > Device Management > Licensing > Activation Key.

General Features

Master Passphrase

The master passphrase feature allows you to securely store plain text passwords in encrypted format. It provides a master key that is used to universally encrypt or mask all passwords, without changing any functionality. The Backup/Restore feature supports the master passphrase.

The following screens were introduced:

Configuration > Device Management > Advanced > Master Passphrase
Configuration > Device Management > Device Administration > Master Passphrase

ASDM Features

Upgrade Software from Cisco.com Wizard

The Upgrade Software from Cisco.com wizard has changed to allow you to automatically upgrade ASDM and the adaptive security appliance to more current versions. Note that this feature is only available in single mode and, in multiple context mode, in the System execution space. It is not available in a context.

The following screen was modified: Tools > Check for ASA/ASDM Updates.

This feature interoperates with all ASA versions.

Backup/Restore Enhancements

The Backup Configurations pane was re-ordered and re-grouped so you can choose the files you want to backup more easily. A Backup Progress pane was added allowing you to visually measure the progress of the backup. And you will see significant performance improvement when using backup or restore.

The following screen was modified: Tools > Backup Configurations or Tools > Restore Configurations.

This feature interoperates with all ASA versions.

Upgrading the Software

Note Before you upgrade, be sure to see the Cisco ASA 5500 Migration Guide for Version 8.3. The following major changes require configuration migration:

•NAT redesign.

•Real IP addresses in access rules instead of mapped addresses.

•Named network objects and service objects.

The Cisco ASA 5500 Migration Guide for Version 8.3 also describes how to downgrade.

This section describes how to upgrade to the latest version, and includes the following topics:

•Viewing Your Current Version

•Upgrading the Operating System and ASDM Images

Note For CLI procedures, see the ASA release notes.

Viewing Your Current Version

The software version appears on the ASDM home page; view the home page to verify the software version of your adaptive security appliance.

Upgrading the Operating System and ASDM Images

This section describes how to install the ASDM and operating system (OS) images.

We recommend that you upgrade the ASDM image before the OS image. ASDM is backward compatible, so you can upgrade the OS using the new ASDM; however you cannot use an old ASDM image with a new OS.

Note If the adaptive security appliance is running version 8.0 or later, then you can upgrade to the latest version of ASDM (and disconnect and reconnect to start running it) before upgrading the OS.

If the adaptive security appliance is running a version earlier than 8.0, then use the already installed version of ASDM to upgrade both the OS and ASDM to the latest versions, and then reload.

This section includes the following topics:

•Upgrading Using ASDM 6.2 or Earlier

•Upgrading Using ASDM 6.3 or Later

Upgrading Using ASDM 6.2 or Earlier

Detailed Steps

Step 1 From the Tools menu, choose Tools > Upgrade Software from Cisco.com.

In multiple context mode, access this menu from the System.

The Upgrade Software from Cisco.com Wizard appears.

Note If you are running ASDM Version 5.2 or lower, then the Upgrade Software from Cisco.com Wizard is not available. You can download the software from the following URL:

http://www.cisco.com/cisco/software/navigator.html

Then use Tools > Upgrade Software.

Step 2 Click Next.

The Authentication screen appears.

Step 3 Enter your Cisco.com username and password, and click Next.

The Image Selection screen appears.

Step 4 Check the Upgrade the ASA version check box and the Upgrade the ASDM version check box to specify the most current images to which you want to upgrade, and click Next.

The Selected Images screen appears.

Step 5 Verify that the image file you have selected is the correct one, and then click Next to start the upgrade.

The wizard indicates that the upgrade will take a few minutes. You can then view the status of the upgrade as it progresses.

The Results screen appears. This screen provides additional details, such as whether the upgrade failed or whether you want to save the configuration and reload the ASA.

If you upgraded the ASA version and the upgrade succeeded, an option to save the configuration and reload the ASA appears.

Step 6 Click Yes.

For the upgrade versions to take effect, you must save the configuration, reload the ASA, and restart ASDM.

Step 7 Click Finish to exit the wizard when the upgrade is finished.

Upgrading Using ASDM 6.3 or Later

Detailed Steps

Step 1 Choose Tools > Check for ASA/ASDM Updates.

In multiple context mode, access this menu from the System.

The Cisco.com Authentication dialog box appears.

Step 2 Enter your assigned Cisco.com username and the Cisco.com password, and then click Login.

The Cisco.com Upgrade Wizard appears.

Step 3 Complete the upgrade wizard.

Step 4 For the upgrade versions to take effect, check the Save configuration and reload device now check box to restart the adaptive security appliance and restart ASDM.

Step 5 Click Finish to exit the wizard and save the configuration changes that you made.

Unsupported Commands

ASDM supports almost all commands available for the adaptive adaptive security appliance, but ASDM ignores some commands in an existing configuration. Most of these commands can remain in your configuration; see Tools > Show Commands Ignored by ASDM on Device for more information.

This section includes the following topics:

•Ignored and View-Only Commands

•Effects of Unsupported Commands

•Discontinuous Subnet Masks Not Supported

•Interactive User Commands Not Supported by the ASDM CLI Tool

Ignored and View-Only Commands

Table 8 lists commands that ASDM supports in the configuration when added through the CLI, but that cannot be added or edited in ASDM. If ASDM ignores the command, it does not appear in the ASDM GUI at all. If the command is view-only, then it appears in the GUI, but you cannot edit it.
Table 8 List of Unsupported Commands
Unsupported Commands

ASDM Behavior

capture

Ignored.

coredump

Ignored. This can be configured only using the CLI.

crypto engine large-mod-accel¹

Ignored.

dhcp-server (tunnel-group name general-attributes)

ASDM only allows one setting for all DHCP servers.

eject

Unsupported.

established

Ignored.

failover timeout

Ignored.

ipv6 nd prefix

Unsupported.

pager

Ignored.

pim accept-register route-map

Ignored. You can configure only the list option using ASDM.

prefix-list

Ignored if not used in an OSPF area.
service-policy global
Ignored if it uses a match access-list class. For example:
access-list myacl line 1 extended permit ip
any any
class-map mycm
match access-list mycl
policy-map mypm
class mycm
inspect ftp
service-policy mypm global
set metric

Ignored.

sysopt nodnsalias

Ignored.

sysopt uauth allow-http-cache

Ignored.

terminal

Ignored.
¹ASA 8.3(2) and above.
Effects of Unsupported Commands

If ASDM loads an existing running configuration and finds other unsupported commands, ASDM operation is unaffected. To view the unsupported commands, choose Tools > Show Commands Ignored by ASDM on Device.

Discontinuous Subnet Masks Not Supported

ASDM does not support discontinuous subnet masks such as 255.255.0.255. For example, you cannot use the following:
ip address inside 192.168.2.1 255.255.0.255
Interactive User Commands Not Supported by the ASDM CLI Tool

The ASDM CLI tool does not support interactive user commands. If you enter a CLI command that requires interactive confirmation, ASDM prompts you to enter "[yes/no]" but does not recognize your input. ASDM then times out waiting for your response.

For example:

1. Choose Tools > Command Line Interface.

2. Enter the crypto key generate rsa command.

ASDM generates the default 1024-bit RSA key.

3. Enter the crypto key generate rsa command again.

Instead of regenerating the RSA keys by overwriting the previous one, ASDM displays the following error:
Do you really want to replace them? [yes/no]:WARNING: You already have RSA
ke0000000000000$A key
Input line must be less than 16 characters in length.
%Please answer 'yes' or 'no'.
Do you really want to replace them [yes/no]:
%ERROR: Timed out waiting for a response.
ERROR: Failed to create new RSA keys names <Default-RSA-key>
Workaround:

•You can configure most commands that require user interaction by means of the ASDM panes.

•For CLI commands that have a noconfirm option, use this option when entering the CLI command. For example:
crypto key generate rsa noconfirm
Open Caveats in Version 6.3

This section contains open caveats in the latest maintenance release.

If you are running an older release, and you need to determine the open caveats for your release, then add the caveats in this section to the resolved caveats from later releases. For example, if you are running Release 6.3(1), then you need to add the caveats in this section to the resolved caveats from 6.3(2)and later to determine the complete list of open caveats.

If you are a registered Cisco.com user, view more information about each caveat using the Bug Toolkit at the following website:

http://tools.cisco.com/Support/BugToolKit/

Table 9 Open Caveats in Version 6.3

Caveat ID

Description

CSCtb07337

Preview window shows wild characters under logon page/language

CSCtb19950

Route-map deletion: Requires a pop-up window when route-map is attached

CSCtd05274

Standby unit console will show all the object XML file when editing obj

CSCte28894

ASDM: WebVPN Help Customization needs to have templates for export

CSCte51943

Cannot expand some dialog boxes in Linux

CSCte72290

ASDM: Navigation Panel being removed causes confusion

CSCte72582

ASDM Prompts for Certificate Authorization and Fails to Contact ASA

CSCte75929

ASDM: Upgrade from CCO wizard experiences ghosting on a Macintosh

CSCte91390

Public Server should support "--Any--" for Public Interface

CSCte95652

ASDM OLH: Smart Tunnels is a broken link

CSCtf08847

Timeout issues when using IPS Setup Wizard

CSCtf12814

Nothing happens when no protocol specified with protocol type specified

CSCtf13860

Need a confirmation dialog when downgrading

CSCtf15050

The PREVIEW Window doesn't show preview customized GUI

CSCtf19237

Object NAT: Edit NAT rule is not enabling service in Advance tab

CSCtf19793

Custom Panes Help incorrectly redirects to Device Management

CSCtf22576

Unable to delete nested object groups (nested to the maximum level )

CSCtf23225

HAS Wizard stops after changing peer to multi mode for A/A failover

CSCtf25281

exporting ID cert as PEM sends wrong CLI and shouldn't require password

CSCtf26239

Custom Panes Help button pop up wrong online help information

CSCtf26413

ASDM sends useless cmds with master passphrase if empty red intf exists

CSCtf26476

Route Map -> Edit -> help leads to page not found

CSCtf33370

ASDM control for cert export are inaccurate + need info popup

CSCtf33394

ASDM backup does not save ldap-login-password to startup-config

CSCtf49339

Support upgrade from internal development images to CCO release images

CSCtf52510

When Adding A New Client Profile, The Group Policy Dropdown Is Invisible

CSCtf61639

asdm_launcher.sh does not run. Unable to launch ASDM demo.

CSCtf75441

ASDM sending wrong CLI to enable ASDM cert auth

CSCtf79571

Sending incorrect WEBVPN customization commands to ASA

CSCtf81226

AC Profile Editor: Disable Cert Selection option is not clear

CSCtf87384

ASDM presenting blank Auth dialog after apparent idle timeout + exceptio

CSCtg39274

ASDM: revert webcontent is treated as config mode command

CSCtg50910

Client Software Update panel: Cells are squished together

CSCtg61562

Create subinterface of a Redundant interface

CSCtg74308

ASDM 6.3 adds additional information to exported certificate

CSCtg79827

ASDM Help should provide more details on anyconnect firewall

CSCtg90925

LDAP Attribute Map configuration commands rejected

CSCth29238

Files in File Manager dialog are not sorted

CSCth33868

Secondary auth panel behavior change due to CSCte84210..Help change

CSCth36518

ASDM 6.3.1 failing to backup SSL Certificates

CSCth40911

Upgrade from Cisco.com wizard does not list interim releases

CSCth46155

Syslog filter is wiped out after all messages are shown

CSCth46318

Syslog filter: filtering by time reverses the order of syslogs

CSCth55569

ASDM 6.3 : Smart tunnel all application needs option for Mac platform

CSCth60280

ASDM:Management Access-Certificate intf only shows inside and outside

CSCth62685

ASDM 6.3.1 gives error when used with ASA 8.2 or lower

CSCth70445

Firewall Mode display incorrect info

CSCth70451

Syslog filter: adding IP range freezes for a few seconds

CSCti03490

Update ASDM splash screen and startup page for Spyker

CSCti04733

ASDM 6.3: No error while adding Crypto CA server DB users with '+' in SN

CSCti06336

Preview windows shows more plugins on ASDM 6.3.1 for webvpn

CSCti09087

ASDM: ASDM running on Spyker fails to connect on IPS links

CSCti16853

Upgrade popup hidden

Resolved Caveats

This section includes the following topics:

•Resolved Caveats for Software Version 6.3(5)

•Resolved Caveats for Software Version 6.3(4)

•Resolved Caveats for Software Version 6.3(3)

•Resolved Caveats for Software Version 6.3(2)

•Resolved Caveats for Software Version 6.3(1)

Resolved Caveats for Software Version 6.3(5)

The caveats listed in Table 10 were resolved in software Version 6.3(5). If you are a registered Cisco.com user, view more information about each caveat using the Bug Toolkit at the following website:

http://tools.cisco.com/Support/BugToolKit/

Table 10 Resolved Caveats in Version 6.3(5)

Caveat ID

Description

CSCtg99616

Network Object Lookup by IP Address Does Not Work.

CSCth39120

Memory insufficient warning appearing on ASA 8.2.

CSCti44774

Missing rdp2-hlp.inc in help customization CSCti58620 ASDM: Restricting LOCAL user IDs from connecting via SSH/Telnet/ASDM.

CSCti58646

ASDM: LOCAL user ID edit screen mentions the command syntax incorrectly.

CSCti65286

ASDM failing to load locked up at 77% with 6.3.3 CSCti71030 ASDM 6.3(3) and 6.3(3.50) not able to configure NetFlow.

CSCti73603

Unable to import .vbs scripts through the ASDM.

CSCti74532

Hitcount not shown with optimization on.

CSCti74889

Environmental output has left and right reversed for Power Supply slots.

CSCti82411

Object NAT parsed as ip address.

CSCti84093

Unable to select AnyConnect module if package does not have DART module.

CSCti95692

Can't filter by port string in Edit window of Destination Port.

CSCti96426

More Option isn't displayed with Edit Internal Group Policy in ASDM.

CSCtj07636

ASDM filter sslvpn sessions by IP address hangs the GUI.

CSCtj28588

Can't switch to another device due to an exception.

CSCtj54779

Parse error exception in java console.

CSCtj56897

Jumbo frame reservation checkbox is not shown in the Interfaces panel.

CSCtj84217

Existing Filter Rules are invisible while editing - RIP->Filter Rules.

Resolved Caveats for Software Version 6.3(4)

The caveats listed in Table 11 were resolved in software Version 6.3(4). If you are a registered Cisco.com user, view more information about each caveat using the Bug Toolkit at the following website:

http://tools.cisco.com/Support/BugToolKit/

Table 11 Resolved Caveats in Version 6.3(4)

Caveat ID

Description

CSCti63196

ASDM did not get a response from the ASA

Resolved Caveats for Software Version 6.3(3)

The caveats listed in Table 12 were resolved in software Version 6.3(3). If you are a registered Cisco.com user, view more information about each caveat using the Bug Toolkit at the following website:

http://tools.cisco.com/Support/BugToolKit/

Table 12 Resolved Caveats in Version 6.3(3)

Caveat ID

Description

CSCsy43876

IPv6 : Display v6 prefix-length on Edit Network object

CSCtc11885

ASDM-Nat : Unable to add the service groups in the nat cfg

CSCtc53304

With a large config, ASDM takes a long time to change config windows

CSCtd90414

NAT diagram messy display with long names

CSCtd91840

UDP port range is shown incorrectly while add/edit service policy rules

CSCte95392

NAT: ASDM should generate error message on EDIT object used in NAT

CSCtf03898

Unable to add network object through NAT config window

CSCtf07819

ASDM:NAT:Egress traffic, address not correctly captured in diagram

CSCtf65657

Config->FW->NatRules RIght Side Object Mgt "Where Used" not working.

CSCtf98735

Remove button not enabled - Edit regular expression class map

CSCtg47907

Home Page: environment status is UNKNOWN for all ASA-5585 models

CSCtg50875

ASDM launcher fails to switch between ASAs

CSCth08396

ASDM Defined User Roles Setup gets error in multi-context mode

CSCth12953

Unable to edit site-to-site vpn connection profile with network object.

CSCth24721

HAS wizard displays clear text failover key in commands preview window

CSCth24734

HAS wizard can close compatibility checking wait window and proceed

CSCth26129

Unexpected "Unapplied Change" window pop-up when clicking Refresh icon

CSCth34271

Upgrade from CCO wizard forces to upgrade the ASA image

CSCth38473

CCO Upgrade: after checking for upgrades can't switch to another device

CSCth39253

Deleting any access rule always deletes the first one

CSCth49102

Packet Tracer: when errors are shown, the tracer window disappears

CSCth53088

Implement NPE changes in ASDM

CSCth53605

ASDM HA Wizard checks for identical license under ASA 8.3 code

CSCth57526

ASDM 6.3: Migration from 8.0 to 8.3 names CLI conversion showing names

CSCth62064

ASDM ACL error "duplicate element found" while editing static policy nat

CSCth70502

Port syslog filter changes from asdm_6_3_2 to asdm_6_3

CSCth75473

File transfer not working on ASDM with MAC OS X

CSCth87660

ASDM takes very long time to show network object table

CSCti03151

ASA reporting of PSTEMP and PSFAN changed to show both slots

Resolved Caveats for Software Version 6.3(2)

The caveats listed in Table 13 were resolved in software Version 6.3(2). If you are a registered Cisco.com user, view more information about each caveat using the Bug Toolkit at the following website:

http://tools.cisco.com/Support/BugToolKit/

Table 13 Resolved Caveats in Version 6.3(2)

Caveat ID

Description

CSCtb08697

Refactor ICME references in the code to IME

CSCtd64607

"HA and scalability Wizard" show wrong Switch port in page 3/6

CSCtd72956

UC TLS Proxy: Exception when click on Edit or Delete

CSCtd79324

IME Wiz:updating acl,c-map,p-map,uc conf not requird if public prt chang

CSCte58118

For policy NAT mapped address, options are incorrect

CSCte83924

ASDM: Include the filename extension in the script name (i.e .bat)

CSCte84210

ASDM: Support to config the secondary password CLI

CSCte87383

Connection Profile Customization should be named Login and Logout Page

CSCtf03652

Smart Call Home should be allowed to configure mail server priority

CSCtf11495

ASDM AC Profile Editor: Indefinite XML validation when adding a profile

CSCtf11521

ASDM AC Profile Editor: Group Policy drop down arrow missing

CSCtf11667

ASDM AC Profile Editor: New profiles can be added with same name

CSCtf11752

ASDM AC Profile Editor: Inconsistent import profile behavior

CSCtf11811

ASDM AC Profile Editor: Incorrect device path can be displayed in export

CSCtf11944

ASDM AC Profile Editor: Unable to remove group policy

CSCtf20578

ASDM 6.3: Invalid values accepted for RTP min-max port with global MTA

CSCtf20814

ASDM HAS wizard waiting time is too short for A/A failover configuration

CSCtf23277

WebVPN http-proxy PAC configuration does not display

CSCtf25968

ASDM CUMA generate wrong outside nat command

CSCtf26441

ASDM: AC Profile Editor - Infinite refresh duration when in prof. editor

CSCtf28333

CUMA wizard should allow outside NAT to map clients to inside IP address

CSCtf29954

Warning window pops up when we try to backup configuration

CSCtf32083

Object NAT: Displaying blank if static translated addr as interface.

CSCtf35115

Public Server: ASA Rejects CLI on "Edit Public Server"

CSCtf48627

UC Wizard, CUP/CUMA: Changing FQDN is not reflected in CSR

CSCtf49621

Webcontents do not show up in ASDM

CSCtf62623

ASDM java exception when loading config with svc routing-filtering-ignor

CSCtf65929

UC Wizard, UC-IME:remote-side cert exchange diagrams are wrong

CSCtf69505

Load balancing node doesn't show up on the 5510

CSCtf71056

"Name" disappears when modify Network Object Netmask in ASDM

CSCtf75958

Non-existing "How do I?" topic shows up in the ASDM Assistant search

CSCtf77014

ASDM can not apply service-object with "destination", prior to ASA8.3

CSCtf78470

ASDM sending dhcp-server tunnel-group CLI even when not changed

CSCtf80760

ASA and ASDM is not showing the proper version of loaded ASDM image.

CSCtf81076

AnyConnect profile editor - cannot edit profile - schema errors

CSCtf87386

ASDM: Portal customization shows CLI commands in the field

CSCtf96607

Error thrown after visiting Portal page of DfltGrpPolicy for clientless

CSCtf97774

AC Profile Client can not handle spaces in group name

CSCtf98888

group-policy setting not being saved - Client Profile to Download

CSCtg29415

JPN: Better to come up an error message right after DBCS users are added

CSCtg39652

n/a on all interface line, link and kbps

CSCtg42135

ASDM displays Botnet Filter is not configured after screen is refreshed

CSCtg48351

UC Wizard, Mobility/Federation: add warning to install cert on server

CSCtg48463

UC Wizard: "inside" is hardcoded for pnone proxy

CSCtg56494

ASDM 6.3.1 - editing access-list object groups can cause UI to lock up

CSCtg66779

VPN-session-monitoring, 1st session loses 2nd data line after Refresh

CSCtg75448

ASDM public server names lost in upgrade from 8.x to 8.3

CSCtg76211

ASDM restore hanging at 98% - doesn't allow user to close dialog

CSCtg97262

Exception in Home Panel Resources

CSCth00579

IPv6 : ASA rejects "Enforce EUI-64 Null" command

CSCth03470

Implement sorting for the ASDM syslog viewers.

CSCth09715

Log viewer display incorrect if interface name contains a ':'

CSCth20780

ASDM does not show custom portals under group policy

CSCth26928

Jumbo frame feature is not available in single mode

CSCth32160

Update CCO Update wizard to recognize ASA 8.3.2/ASDM 6.3.2 releases

CSCth34271

Upgrade from CCO wizard forces to upgrade the ASA image

CSCth39253

Deleting any access rule always deletes the first one

CSCth46136

Syslog filtering: can't filter by a port string, only by port number

CSCth46203

Syslog filter: can't clear the filter dialog

CSCth53605

ASDM HA Wizard checks for identical license under ASA 8.3 code

CSCth63669

Syslog filter: not clear how to exclude IP address/range

CSCth68233

Syslog filter: add info icons for each field to show expected format

CSCth75698

ASDM syslogs:Clear Filter button doesn't clear the filter rules

CSCti03471

Update ASDM splash screen for 6.3.2

Resolved Caveats for Software Version 6.3(1)

The caveats listed in Table 14 were resolved in software Version 6.3(1). If you are a registered Cisco.com user, view more information about each caveat using the Bug Toolkit at the following website:

http://tools.cisco.com/Support/BugToolKit/

Table 14 Resolved Caveats in Version 6.3(1)

Caveat ID

Description

CSCsu90066

Capability to Backup/Restore config/start-up configs

CSCsy47949

ASDM backup config - does not properly back up pre-shared key for TG

CSCsy60117

Unable to configure shun hosts in scanning threat detection

CSCsz34305

ASDM backup does not save ldap-login-password when exporting config

CSCta60218

ASDM: rewrite panel doesn't update screen after adding a rule

CSCta83701

VPN Peers licensing information is not shown on the Home page

CSCta83741

Tunnel Group authent CLI for Hide username from end user rejected by ASA

CSCtb11934

security scroll bar in DCERPC inspect maps not function properly

CSCtb12190

options in FTP Match Criterion does not match CLI

CSCtb53472

system resource usage: memory status bar chart does not work correctly

CSCtb70513

ASDM doesn't send cert chain Connection Profile change for IPv6 profile

CSCtb70615

VPN ASDM Assistant needs rework--better order flow and description

CSCtb89486

Smart tunnel list edit gives wrong CLI when inherit is select

CSCtb89646

DAP: Remove the error for 128 characters with combined URL lists

CSCtb98266

Site-to-site VPN: Cannot Add local/remote network to conn profile.

CSCtc01651

Class-map type inspect rtsp command is recognized by ASDM

CSCtc03470

DAP: Port-Forward Unchanged setting needs to gray out Add button

CSCtc13448

Redundant intf not deleted properly

CSCtc20263

Site-to-Site Wizard: entering invalid IP address creates bad tunn group.

CSCtc20331

Edit conn profile for L2L: Switch between v4 and v6 should clear nets

CSCtc20462

ASDM should not allow configuring no authorization + author required

CSCtc20820

L2L conn profile: the wrong ACL command sent when switch btw v4/v6.

CSCtc25081

Monitoring > VPN Sessions > Detail: Missing IPv6 ACL Tab.

CSCtc25382

IPsec Wizard - step 5: Local/remote nets do not correlate with net type.

CSCtc28937

IPsec Rules: bidirectional conn types should allow IPv4/IPv6 mixed peers

CSCtc53143

Erroneous warning when adding interface in System mode

CSCtc55353

Clicking cancel on Intrusion Prevention tab causes exception

CSCtc68210

Java exception when editing an originate only/ans only crypto map.

CSCtd01568

Site-to-site conn profile: Toggling network types only works once.

CSCtd35353

Failover status panel on homepage not working properly for A/A failover

CSCtd47400

ASDM: ACL Priority not saved in DAP

CSCtd64345

Unable to add more than one network object in an object group at a time.

CSCtd79439

Editing smart tunnel application failed

CSCtd82905

Long pre-shared key is truncated in the summary page of IPsec Wizard

CSCtd88278

Mac users unable to edit or view some fields in local CA Server options

CSCtd90392

IPv6 access rule will not allow ICMP6 service

CSCtd92261

Switching to another device throws an exception

CSCte04433

ASDM: Needs to gray out use LOCAL auth if Cert auth is being used

CSCte17617

Apply button causes exception when changing signature's configuration

CSCte36135

ASDM: SSHv2 plugin should be removed as an option

CSCte55748

ASDM: Incorrectly shows SVC compression as being enabled

CSCte58123

SVC Image Order modification not refreshed in ASDM

CSCte62006

ASDM ignores crypto maps with ipv6-local-address

CSCte70327

Failed to assign clientless sslvpn bookmark list with smart tunnel

CSCte83654

ASDM: AnyConnect Customization scripts facility

CSCte83873

ASDM: OnDisconnect script import fails for AnyConnect

CSCtf20814

ASDM HAS wizard waiting time is too short for A/A failover configuration

CSCtf21045

With Java 6, Update 18, IDM does not load due to heap size check

End-User License Agreement

For information on the end-user license agreement, go to:

https://www.cisco.com/en/US/docs/general/warranty/English/EU1KEN_.html

Related Documentation

For additional information on ASDM or its platforms, see Navigating the Cisco ASA 5500 Series Documentation:

http://www.cisco.com/en/US/docs/security/asa/roadmap/asaroadmap.html

Note Although ASDM 6.3 supports many ASA versions, the ASDM 6.3 documentation and online help only include features for ASA 8.3. For older ASA versions, you might find that using the ASDM 6.3 documentation is inaccurate for your older feature set. Instead, refer to the ASDM guide in which support for your platform version was added (to see when support was added, see Cisco ASA 5500 Series and PIX 500 Series Security Appliance Hardware and Software Compatibility for the minimum supported version of ASDM for each ASA version; this version is the one where support was added). Although the specific information about the ASDM GUI might be inaccurate in that guide, the platform feature set is documented correctly.

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What's New in Cisco Product Documentation as an RSS feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service. Cisco currently supports RSS Version 2.0.

This document is to be used in conjunction with the documents listed in the "Related Documentation" section.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.

©2011 Cisco Systems, Inc. All rights reserved.

Cisco Adaptive Security Device Manager

Release Notes for Cisco ASDM, 6.3(x)

Hierarchical Navigation

Downloads

Table Of Contents

Release Notes for Cisco ASDM, Version 6.3(x)

Important Notes

ASDM Client Operating System and Browser Requirements

Supported Platforms

New Features

New Features in ASDM 6.3(5)/8.2(4.4)

New Features in ASDM 6.3(5)/8.2(4.1)

New Features in ASDM 6.3(4)/ASA 8.2(3.9)

New Features in ASDM 6.3(3) and 6.3(4)/ASA 8.2(3)

New Features in ASDM 6.3(2)/ASA 8.3(2)

New Features in ASDM 6.3(1)/ASA 8.3(1)

Upgrading the Software

Viewing Your Current Version

Upgrading the Operating System and ASDM Images

Upgrading Using ASDM 6.2 or Earlier

Detailed Steps

Upgrading Using ASDM 6.3 or Later

Detailed Steps

Unsupported Commands

Ignored and View-Only Commands

Effects of Unsupported Commands

Discontinuous Subnet Masks Not Supported

Interactive User Commands Not Supported by the ASDM CLI Tool

Open Caveats in Version 6.3

Resolved Caveats

Resolved Caveats for Software Version 6.3(5)

Resolved Caveats for Software Version 6.3(4)

Resolved Caveats for Software Version 6.3(3)

Resolved Caveats for Software Version 6.3(2)

Resolved Caveats for Software Version 6.3(1)

End-User License Agreement

Related Documentation

Obtaining Documentation and Submitting a Service Request

This document is to be used in conjunction with the documents listed in the "Related Documentation" section.

©2011 Cisco Systems, Inc. All rights reserved.

Programs

Programs

Programs

Programs
