Guide for Cisco PIX 6.2 and 6.3 Users Upgrading to Cisco PIX Software Version 7.0 - Upgrade Procedure [Cisco ASA 5500-X Series Next-Generation Firewalls]

If you are upgrading from a PIX 515 or a PIX 535 with PDM already installed, you must upgrade from monitor mode. See the instructions in the "Upgrading in Monitor Mode" section.

If you attempt to upgrade using the instructions in the "Basic Upgrade from PIX Version 6.3 to Security Appliance Version 7.0" section, you will receive the following output:

Insufficient flash space available for this request:

Size info:request:5025848 current:1966136 delta:3059712 free:1310720

Image not installed

Several prerequisites are required before upgrading to PIX Security appliance Version 7.0, covered in the following sections:

•Minimum Hardware Requirements

•Minimum Software Requirements

•Minimum Memory Requirements

•Client PC Operating System and Browser Requirements

•Minimum Connectivity Requirements

Minimum Hardware Requirements

The PIX Security appliance Version 7.0 software runs on the PIX 515/515E, PIX 525, and PIX 535 platforms. PIX Security appliance Version 7.0 is not currently supported on PIX 501 or PIX 506/506E hardware.

Minimum Software Requirements

The minimum software version required before performing an upgrade to PIX Security appliance Version 7.0 is PIX Version 6.2. If you are running a PIX release before PIX Version 6.2, you must first upgrade to PIX Version 6.2 or PIX Version 6.3 before you can begin the upgrade to PIX Security appliance Version 7.0.

Note We recommend backing up your images, and configurations before performing the upgrade.

To upgrade your PIX software image, go to the following website:

http://www.cisco.com/cisco/software/navigator.html

Minimum Memory Requirements

If you are a PIX 515 or PIX 515E user with a PIX Version 6.3, you will need to upgrade your memory before performing an upgrade to PIX Security appliance Version 7.0. PIX Security appliance Version 7.0 requires at least 64 MB of RAM for Restricted (R) licenses and 128 MB of RAM for Unrestricted (UR) and Failover (FO) licenses (see Table 1).

Table 2 lists the minimum memory requirements for PIX 525 and PIX 535.

Table 1 Minimum Memory Requirements for PIX 515/515E
PIX Version 6.3 Platform License	Current Memory (MB)	Desired Upgrade Platform License	Part Number	Required Memory (MB)
R	32	—	PIX-515-MEM-32= Download software from cisco.com or purchase PIX-SW-UPGRADE=	64
R	64	—	Download software from cisco.com or purchase PIX-SW-UPGRADE=	64
R	32	UR	PIX-515-SW-R-UR= Remove your existing 32 MB memory module (DIMM) and replace it with two new 64 MB modules to achieve a total of 128 MB	128
R	64	UR	PIX-515-SW-R-UR= Remove your two existing 32 MB memory modules and replace with two new 64 MB modules to achieve a total of 128 MB	128
UR	64	—	PIX-515-MEM-128= Download software from cisco.com or purchase PIX-SW-UPGRADE=	128
UR	128	—	Download software from cisco.com or purchase PIX-SW-UPGRADE=	128
FO	64	—	PIX-515-MEM-128= Download software from cisco.com or purchase PIX-SW-UPGRADE=	128
FO	128	—	Download software from cisco.com or purchase PIX-SW-UPGRADE=	128
FO	64	UR	PIX-515-SW-FO-UR=	128
FO	128	UR	PIX-515-SW-FO-UR=	128
R	64	UR	PIX-515-SW-R-UR=	128
FO	128	UR	PIX-515-SW-FO-UR=	128
FO	128	U	PIX-515-SW-FO-R=	64

The PIX 515 and PIX 515E memory upgrades do not require a BIOS update.

Note The minimum Flash memory requirement is 16 MB.

Table 2 lists the minimum memory requirements for PIX 525 and PIX 535.

Table 2 PIX 525 and PIX 535 Minimum Memory Requirements
Model	Minimum RAM
Cisco PIX 525 security appliance	128 MB on Restricted models
Cisco PIX 525 security appliance	256 MB on Unrestricted, Failover, and Failover Active/Active models
Cisco PIX 535 security appliance	512 MB on Restricted models
Cisco PIX 535 security appliance	1024 MB on Unrestricted, Failover, and Failover Active/Active models

Client PC Operating System and Browser Requirements

Table 3 lists the supported and recommended platforms for ASDM Version 5.0.

Table 3 Operating System and Browser Requirements
	Operating System	Browser	Other Requirements
Windows¹	Windows 2000 (Service Pack 4) or Windows XP operating systems	Internet Explorer 6.0 with Java Plug-in 1.4.2 or 1.5.0 Note HTTP 1.1—Settings for Internet Options > Advanced > HTTP 1.1 should use HTTP 1.1 for both proxy and non-proxy connections. Netscape 7.1/7.2 with Java Plug-in 1.4.2 or 1.5.0	SSL Encryption Settings—All available encryption options are enabled for SSL in the browser preferences.
Sun Solaris	Sun Solaris 8 or 9 running CDE window manager	Mozilla 1.7.3 with Java Plug-in 1.4.2 or 1.5.0
Linux	Red Hat Linux 9.0 or Red Hat Linux WS, Version 3 running GNOME or KDE	Mozilla 1.7.3 with Java Plug-in 1.4.2 or 1.5.0

¹ASDM is not supported on Windows 3.1, 95, 98, ME or Windows NT4.

Minimum Connectivity Requirements

The minimum connectivity requirements to perform an upgrade to PIX Security appliance Version 7.0 are as follows:

•A PC or server connected to any network port of the PIX and running TFTP software. (Your PC or server can be connected to the PIX using a switch or a crossover cable.)

•A DB-9 connector, and rollover cable, and a console connectivity program, such as HyperTerminal or another Terminal Emulation, to talk to the PIX.

Upgrade Procedure

This section includes the following topics:

•Basic Upgrade Procedure

•Upgrading in Monitor Mode

•Upgrade Examples

Important Notes

•If you are upgrading from a PIX 515 or a PIX 535 with PDM already installed, you must upgrade from monitor mode. See the instructions in the "Upgrading in Monitor Mode" section.

•The PIX Version 6.3 image on a PIX 515 or PIX 535 only accesses the first 8 MB of Flash memory, instead of the entire 16 MB of Flash. If the PIX Security appliance Version 7.0 image in combination with the Flash memory contents exceeds the 8 MB limit, following error message may result: Insufficient flash space available for this request. The solution is to load the image from monitor mode. See the "Upgrading in Monitor Mode" section.

•The PDM image in Flash memory is not automatically copied to the new filesystem. For information about installing ASDM (which replaces PDM on Version 7.0), see the ASDM Release Notes.

•To avoid installation failures, make sure that you have read the "Prerequisites to Upgrading" section before proceeding.

•See the "Upgrade Examples" section for configuration examples. These will be useful to review before you start your upgrade procedure.

Caution

If you share the Stateful Failover update link with a link for regular traffic such as your inside interface, you must change your configuration before upgrading. Please do not upgrade until you have corrected your configuration, as this is not a supported configuration and PIX Security appliance Version 7.0 treats the LAN failover and Stateful Failover update interfaces as special interfaces.

If you upgrade to PIX Security appliance Version 7.0 with a configuration that shares an interface for both regular traffic and the Stateful Failover updates, configuration related to the regular traffic interface will be lost after the upgrade. The lost configuration may prevent you from connecting to the security appliance over the network.

Basic Upgrade Procedure

Note The automatic conversion of commands results in a change in your configuration. You should save your configuration after you upgrade, and review the changed configuration lines. Until you do so, the software will convert the old configuration automatically every time you read the configuration.

To upgrade using the commands available in PIX Version 6.3, perform the following steps:

Step 1 Enter the login command to log in to the PIX console.

Example:

pix> login

Step 2 Enter your username and password at the prompts.

Username:

Password:

Step 3 Enter the enable command to enter privileged mode and begin the upgrade procedure.

Example:

pix> enable

Step 4 Enter your password at the prompt.

Password:

You are now in privileged mode.

Step 5 Enter the ping <ip address> command to confirm access to the selected TFTP server.

Example:

pix> ping 192.168.2.200

Note Replace 192.168.2.200 with your TFTP server IP address.

Step 6 Enter the write net <ip address> <filename> command to save the current working configuration to the TFTP server.

Example:

pix> write net 192.168.2.200:63config.txt

Note Replace 63config.txt with a filename of your choice.

Step 7 Enter the configure terminal (config t) command to change from privilege mode to configuration mode.

pix# configure terminal

Step 8 Enter the copy tftp flash:image command to copy the PIX Security appliance Version 7.0 image from the TFTP server to the PIX Flash filesystem in configuration mode.

pix(config)# copy tftp flash:image

Note There is no: (colon) after tftp.

Step 9 Enter the name or IP address of the TFTP server.

Address or name of remote host [0.0.0.0]? 192.168.2.200

Note Replace 192.168.2.200 with your TFTP server IP address.

Step 10 Enter the PIX Security appliance Version 7.0 image name.

Source file name [cdisk]? pix704.bin

Step 11 Enter yes to copy the PIX Security appliance Version 7.0 image from the TFTP server to the security appliance running configuration.

copying tftp://192.168.2.200/pix704.bin to flash:image

[yes|no|again]? yes

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

...

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Received 5087232 bytes

Erasing current image

Writing 4833336 bytes of image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

...

!!!!!!!!!!!!!!

Image installed

Step 12 Enter the reload command to reboot the system. At the `Proceed with reload?' prompt, press Enter to confirm the command.

pix# reload

Proceed with reload? [confirm]

Rebooting..

CISCO SYSTEMS PIX FIREWALL

Embedded BIOS Version 4.3.207 01/02/02 16:12:22.73

Compiled by xxxxxx

...

Note The PIX Security appliance Version 7.0 includes the same operational characteristics as PIX Version 6.3, such as licensing (as described by the PIX Version 6.3 activation key), IP addresses, access lists, access groups, VPN configurations, passwords, and preshared keys.

Step 13 and Step 14 are necessary only if you have configured authentication. If authentication is not enabled, skip to Step 15.

Step 13 Enter the login command to log in to the security appliance console.

pix> login

Step 14 Enter your username and password at the prompts.

Username:

Password:

Step 15 Enter the enable command to enter privileged mode and begin the upgrade procedure.

pix> enable

Step 16 Enter your password at the prompt.

Password:

You are now in privileged mode.

Step 17 Enter the show running | grep boot command to display configuration information.

pix# show running | grep boot

boot system flash:/<filename>

Note The correct <filename> is the name of the image on Flash.

•If the command line is correct, enter the write memory command to retain this configuration.

pix# write memory

...

•If the command line is incorrect:

a. Enter the configure terminal command to enter configuration mode.

b. Enter the no boot system flash:<image>.bin command.

c. Enter the correct command line.

d. Enter the exit command.

e. Enter write memory command to retain this configuration.

f. To load the PIX Security appliance Version 7.0 image from monitor mode, perform the following steps:

–Reload the PIX Security appliance Version 7.0 image.

–At the "Use BREAK or ESC to interrupt Flash boot" prompt, click ESC to enter monitor mode.

Proceed with reload? [confirm] [Press the enter key]

Rebooting....

Cisco Secure PIX Firewall BIOS (4.0) #0:Thu Mar 2 22:59:20 PST 2000

Platform PIX-515

Flash=i28F640J5 @ 0x300

Use BREAK or ESC to interrupt flash boot.

Use SPACE to begin flash boot immediately.

Flash boot interrupted.

0:i8255X @ PCI(bus:0 dev:13 irq:10)

1:i8255X @ PCI(bus:0 dev:14 irq:7 )

2:i8255X @ PCI(bus:1 dev:0 irq:11)

3:i8255X @ PCI(bus:1 dev:1 irq:11)

4:i8255X @ PCI(bus:1 dev:2 irq:11)

5:i8255X @ PCI(bus:1 dev:3 irq:11)

Using 1:i82559 @ PCI(bus:0 dev:14 irq:7 ), MAC:0050.54ff.efc7

Use ? for help.

monitor>

–Enter the interface # command at the prompt, where # is the interface number.

Note Specify the correct interface number in place of # to indicate which interface to use to connect to the TFTP server.

monitor> interface 1

0:i8255X @ PCI(bus:0 dev:13 irq:10)

1:i8255X @ PCI(bus:0 dev:14 irq:7 )

2:i8255X @ PCI(bus:1 dev:0 irq:11)

3:i8255X @ PCI(bus:1 dev:1 irq:11)

4:i8255X @ PCI(bus:1 dev:2 irq:11)

5:i8255X @ PCI(bus:1 dev:3 irq:11)

Using 0:i82559 @ PCI(bus:0 dev:13 irq:10), MAC:0050.54ff.efc6

Step 18 Enter the reload command to complete the upgrade process. Click Enter to confirm correct booting of the security appliance and the new image at the prompt.

pix# reload

Proceed with reload? [confirm]

Rebooting..

CISCO SYSTEMS PIX FIREWALL

Embedded BIOS Version 4.3.207 01/02/02 16:12:22.73

Compiled by xxxxxx

...

This completes the procedure to upgrade from PIX Version 6.3 to PIX Security appliance Version 7.0.

Upgrading in Monitor Mode

This section includes instructions for upgrading to PIX Security appliance Version 7.0 in monitor mode.

Examples of existing PIX Version 6.3 configurations can be found at the "Upgrade Examples" section. Review these before you start your upgrade procedure.

Important Notes

•Use of the PIX Version 6.3 npdisk utility, such as password recovery, will corrupt the PIX Security appliance Version 7.0 image and will require that you restart your system from monitor mode, and could cause you to lose your previous configuration, security kernel, and key information.

•If you are upgrading from an existing PIX 515 or a PIX 535 with PDM installed, you must upgrade from monitor mode.

•You can only upgrade the PIX 535 in monitor mode from an FE card in a slot connected to a 32-bit bus, otherwise an error message results. Effectively, you can only upgrade the PIX 535 from bus 2 using interfaces from slots 4 though 8.

•To avoid installation failures, make sure that you have read the "Prerequisites to Upgrading" section before proceeding.

Procedure

Perform the following steps to upgrade procedure in monitor mode:

Step 1 To load the PIX Security appliance Version 7.0 image from monitor mode, perform the following steps:

a. Reload the image.

b. At the "Use BREAK or ESC to interrupt Flash boot" prompt, click ESC to enter monitor mode.

Proceed with reload? [confirm] [Press the enter key]

Rebooting....

Cisco Secure PIX Firewall BIOS (4.0) #0:Thu Mar 2 22:59:20 PST 2000

Platform PIX-515

Flash=i28F640J5 @ 0x300

Use BREAK or ESC to interrupt flash boot.

Use SPACE to begin flash boot immediately.

Flash boot interrupted.

0:i8255X @ PCI(bus:0 dev:13 irq:10)

1:i8255X @ PCI(bus:0 dev:14 irq:7 )

2:i8255X @ PCI(bus:1 dev:0 irq:11)

3:i8255X @ PCI(bus:1 dev:1 irq:11)

4:i8255X @ PCI(bus:1 dev:2 irq:11)

5:i8255X @ PCI(bus:1 dev:3 irq:11)

Using 1:i82559 @ PCI(bus:0 dev:14 irq:7 ), MAC:0050.54ff.efc7

Use ? for help.

monitor>

c. Enter the interface # command at the prompt, where # is the interface number.

Note Specify the correct interface number in place of # to indicate which interface to use to connect to the TFTP server.

monitor> interface 1

0:i8255X @ PCI(bus:0 dev:13 irq:10)

1:i8255X @ PCI(bus:0 dev:14 irq:7 )

2:i8255X @ PCI(bus:1 dev:0 irq:11)

3:i8255X @ PCI(bus:1 dev:1 irq:11)

4:i8255X @ PCI(bus:1 dev:2 irq:11)

5:i8255X @ PCI(bus:1 dev:3 irq:11)

Using 0:i82559 @ PCI(bus:0 dev:13 irq:10), MAC:0050.54ff.efc6

d. Enter the address <ip address> command using the e0 interface IP address.

monitor> address 20.0.0.10

address 20.0.0.10

e. Enter the server <ip address> command, using the TFTP server IP address.

monitor> server 20.0.0.101

server 20.0.0.101

f. Enter the ping <ip address> command using the TFTP server IP address to verify that it can be reached.

monitor> ping 20.0.0.101

Sending 5, 100-byte 0xc56 ICMP Echoes to 20.0.0.101, timeout is 4 sec

!!!!!

Success rate is 100 percent (5/5)

g. Enter the optional gateway <ip> command to specify the default gateway address if the TFTP server is not on the directly connected network segment.

h. Enter the file <filename for the 7.0 image> command, using the PIX Security appliance Version 7.0 filename.

monitor> file pix704.bin

file pix704.bin

monitor> tftp

pix704.bin@20.0.0.101......................................

..............................................................

i. After the image has been copied, wait for the normal prompt to return. (This may take 3 minutes on a PIX 525 to as much as 10 minutes on a PIX 515E.)

The preceding step loads the security appliance image into RAM, starts its execution, saves the old configuration in the Flash filesystem, and converts the running configuration to the new CLI structure, but does not save the converted configuration to Flash.

j. Check your converted configuration for errors, addresses, and access control lists.

Step 2 To save the PIX Security appliance Version 7.0 image to Flash from global configuration mode, perform the following steps:

a. Copy the PIX Security appliance Version 7.0 image from the TFTP server using the following commands. (This requires you to configure an IP address on the security appliance interface that connects to the TFTP server.)

PIX(config)#interface ethernet 0

PIX(config-if)# ip address 20.0.0.10 255.255.255.0

copy tftp [:[[//location] [/tftp_pathname]]] flash[:[image | pdm]]

PIX(config)# copy tftp://20.0.0.101/pix704.bin flash:

The following set of TFTP prompts results from the preceding command:

Address or name of remote host [20.0.0.101]?

Source filename [pix704.bin]?

Destination filename [pix704.bin]?

Note Multiple lines referring to invalid Flash blocks will be printed while the Flash is reformatted, which is normal.

Your PIX Version 6.3 configuration will be saved as downgrade.cfg in PIX Security appliance Version 7.0.

b. Enter the show flash command to confirm that the image was copied to the Flash.

PIX(config)#show flash

Directory of flash:/

-rw- 2024 05:31:23 Apr 23 2004 downgrade.cfg

-rw- 4644864 06:13:53 Apr 22 2004 pix704.bin

c. Enter the new boot system flash:/ command to boot from the new image.

PIX(config)#boot system flash:/

For example:

boot system flash:pix704.bin

d. Enter the write memory command to update the Flash configuration file.

PIX(config)#write memory

e. Enter the show version command to confirm that the image has been upgraded.

PIX(config)#show version

Note Use the show startup-config errors command to see the errors that occurred while reading the configuration from Flash memory.

To display output from the upgrade, see "Upgrade Examples" section.

Upgrade Examples

To upgrade your PIX Version 6.3 software to PIX Security appliance Version 7.0, perform the steps in the "Upgrade Procedure" section. Seven output configuration scenarios are included in this section. Each scenario includes the assumptions used, a before upgrade configuration example, an upgrade configuration example, and an after upgrade configuration example.

•Basic Upgrade from PIX Version 6.3 to Security Appliance Version 7.0

•Upgrading to a VPN Client with Remote Access

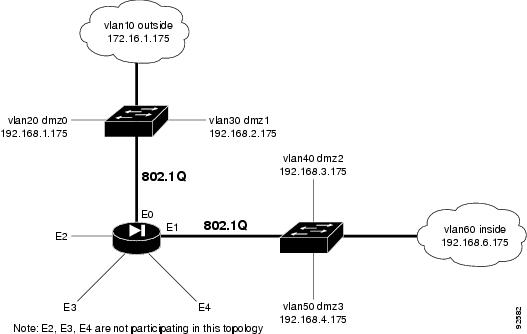

•Upgrading to Security Appliance Version 7.0 Using VLAN

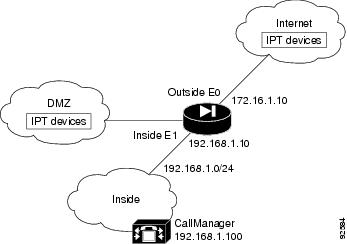

•Upgrading to Security Appliance Version 7.0 with Voice Over IP

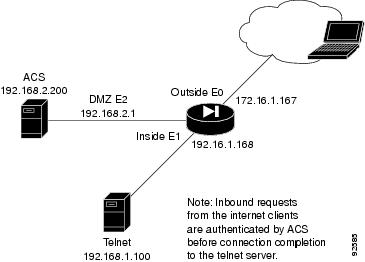

•Upgrading to Security Appliance Version 7.0 with Authentication

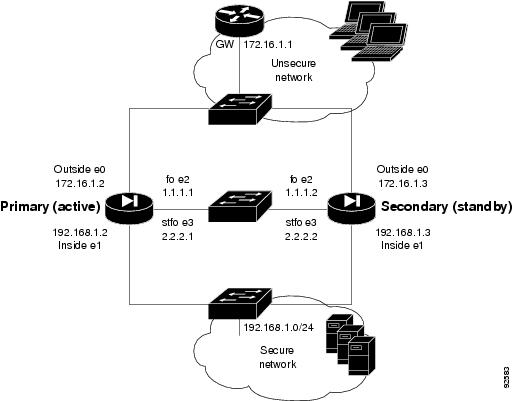

•Upgrading to Security Appliance Version 7.0 with Active/Standby Failover

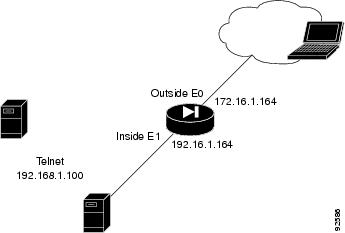

•Upgrading to Security Appliance Version 7.0 with Conduits

Note Occasionally the upgrade from PIX Version 6.3 to PIX Security appliance Version 7.0 will produce warning and system messages related to the change in command syntax. These messages are normal.

The show run command is interchangeable with the write terminal command in the following examples.

Basic Upgrade from PIX Version 6.3 to Security Appliance Version 7.0

Assumptions

When performing a basic upgrade from PIX Version 6.3 to PIX Security appliance Version 7.0, this configuration example assumes the following (see Figure 1):

•All inside hosts have outside access via a global pool

•DHCP provides address information to a small number of inside hosts

•The HTTP server is accessible from the inside and outside interfaces for management

•ICMP is permitted across the security appliance to enable network connectivity testing

•Telnet is permitted from outside sources to a specific inside host

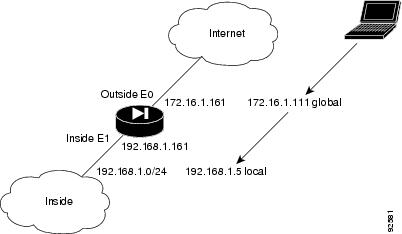

Figure 1 Sample Basic Upgrade Configuration

Before Upgrade

The following is sample output from the show run command from your current PIX Version 6.3 configuration before upgrading to PIX Security appliance Version 7.0:

Migration1(config)# show run

: Saved

PIX Version 6.3(4)

interface ethernet0 100full

interface ethernet1 100full

interface ethernet2 auto shutdown

interface ethernet3 auto shutdown

interface ethernet4 auto shutdown

interface ethernet5 auto shutdown

nameif ethernet0 outside security0

nameif ethernet1 inside security100

nameif ethernet2 dmz security50

nameif ethernet3 intf3 security6

nameif ethernet4 intf4 security8

nameif ethernet5 intf5 security10

enable password 8Ry2YjIyt7RRXU24 encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname Migration1

domain-name ciscopix.com

fixup protocol dns maximum-length 512

fixup protocol ftp 21

fixup protocol h323 h225 1720

fixup protocol h323 ras 1718-1719

fixup protocol http 80

fixup protocol rsh 514

fixup protocol rtsp 554

fixup protocol sip 5060

fixup protocol sip udp 5060

fixup protocol skinny 2000

fixup protocol smtp 25

fixup protocol sqlnet 1521

fixup protocol tftp 69

names

name 172.16.1.75 Linux

access-list 101 permit icmp any any

access-list 101 permit tcp any host 172.16.1.160 eq telnet

pager lines 24

logging on

logging trap informational

logging host inside 192.168.1.99

icmp permit any outside

icmp permit any inside

mtu outside 1500

mtu inside 1500

mtu dmz 1500

mtu intf3 1500

mtu intf4 1500

mtu intf5 1500

ip address outside 172.16.1.161 255.255.255.0

ip address inside 192.168.1.161 255.255.255.0

no ip address dmz

no ip address intf3

no ip address intf4

no ip address intf5

ip audit info action alarm

ip audit attack action alarm

no failover

failover timeout 0:00:00

failover poll 15

no failover ip address outside

no failover ip address inside

no failover ip address dmz

no failover ip address intf3

no failover ip address intf4

no failover ip address intf5

pdm location 192.168.1.99 255.255.255.255 inside

pdm history enable

arp timeout 14400

global (outside) 1 172.16.1.210-172.16.1.212

nat (inside) 1 0.0.0.0 0.0.0.0 0 0

static (inside,outside) 172.16.1.160 192.168.1.100 netmask 255.255.255.255 0 0

access-group 101 in interface outside

route outside 0.0.0.0 0.0.0.0 172.16.1.1 1

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 rpc 0:10:00 h225 1:00:00

timeout h323 0:05:00 mgcp 0:05:00 sip 0:30:00 sip_media 0:02:00

timeout uauth 0:05:00 absolute

aaa-server TACACS+ protocol tacacs+

aaa-server TACACS+ max-failed-attempts 3

aaa-server TACACS+ deadtime 10

aaa-server RADIUS protocol radius

aaa-server RADIUS max-failed-attempts 3

aaa-server RADIUS deadtime 10

aaa-server LOCAL protocol local

http server enable

http 0.0.0.0 0.0.0.0 outside

http 0.0.0.0 0.0.0.0 inside

no snmp-server location

no snmp-server contact

snmp-server community public

no snmp-server enable traps

floodguard enable

telnet 192.168.1.0 255.255.255.0 inside

telnet timeout 5

ssh timeout 5

console timeout 0

dhcpd address 192.168.1.100-192.168.1.102 inside

dhcpd lease 3600

dhcpd ping_timeout 750

dhcpd enable inside

terminal width 80

Cryptochecksum:513c9e266857650270411a7f884e68f7

: end

Upgrade

Enter the copy tftp://<ip address>/pix704.bin.<image>flash:image command to upgrade to the new image.

The following output reflects the upgrade procedure from your current PIX Version 6.3 configuration to PIX Security appliance Version 7.0:

Migration1# copy tftp://192.168.1.161/cdisk.7.0(4) flash:image

copying tftp://192.168.1.100/cdisk.7.0(4) to flash:image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!

Received 5124096 bytes

Erasing current image

Writing 5062712 bytes of image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Image installed

Migration1# reload

Proceed with reload? [confirm]

Rebooting..

CISCO SYSTEMS PIX FIREWALL

Embedded BIOS Version 4.3.207 01/02/02 16:12:22.73

Compiled by xxxxxx

64 MB RAM

PCI Device Table.

Bus Dev Func VendID DevID Class              Irq

 00  00  00   8086   7192  Host Bridge

 00  07  00   8086   7110  ISA Bridge

 00  07  01   8086   7111  IDE Controller

 00  07  02   8086   7112  Serial Bus         9

 00  07  03   8086   7113  PCI Bridge

 00  0D  00   8086   1209  Ethernet           11

 00  0E  00   8086   1209  Ethernet           10

 00  11  00   14E4   5823  Co-Processor       11

 00  13  00   8086   B154  PCI-to-PCI Bridge

 01  04  00   8086   1229  Ethernet           11

 01  05  00   8086   1229  Ethernet           10

 01  06  00   8086   1229  Ethernet           9

 01  07  00   8086   1229  Ethernet           5

Cisco Secure PIX Firewall BIOS (4.2) #0: Mon Dec 31 08:34:35 PST 2001

Platform PIX-515E

System Flash=E28F128J3 @ 0xfff00000

Use BREAK or ESC to interrupt flash boot.

Use SPACE to begin flash boot immediately.

Reading 5059072 bytes of image from flash.

##########################################################################################
##########################################################################################
##########################################################################################
##########################################################################################
##########################################################################################
######

64MB RAM

Total NICs found: 6

mcwa i82559 Ethernet at irq 11  MAC: 0011.937e.0650

mcwa i82559 Ethernet at irq 10  MAC: 0011.937e.064f

mcwa i82559 Ethernet at irq 11  MAC: 000d.88ee.dfa0

mcwa i82559 Ethernet at irq 10  MAC: 000d.88ee.dfa1

mcwa i82559 Ethernet at irq  9  MAC: 000d.88ee.dfa2

mcwa i82559 Ethernet at irq  5  MAC: 000d.88ee.dfa3

BIOS Flash=am29f400b @ 0xd8000

Old file system detected. Attempting to save data in flash

Initializing flashfs...

flashfs[7]: Checking block 0...block number was (-14264)

flashfs[7]: erasing block 0...done.

flashfs[7]: Checking block 1...block number was (12668)

flashfs[7]: erasing block 1...done.

flashfs[7]: Checking block 2...block number was (15104)

flashfs[7]: erasing block 2...done.

flashfs[7]: Checking block 3...block number was (-18577)

flashfs[7]: erasing block 3...done.

flashfs[7]: Checking block 4...block number was (11973)

flashfs[7]: erasing block 4...done.

flashfs[7]: Checking block 5...block number was (-4656)

flashfs[7]: erasing block 5...done.

flashfs[7]: Checking block 6...block number was (-24944)

flashfs[7]: erasing block 6...done.

flashfs[7]: Checking block 7...block number was (23499)

flashfs[7]: erasing block 7...done.

flashfs[7]: Checking block 8...block number was (7137)

flashfs[7]: erasing block 8...done.

flashfs[7]: Checking block 9...block number was (20831)

flashfs[7]: erasing block 9...done.

flashfs[7]: Checking block 10...block number was (6185)

flashfs[7]: erasing block 10...done.

flashfs[7]: Checking block 11...block number was (25501)

flashfs[7]: erasing block 11...done.

flashfs[7]: Checking block 12...block number was (-5607)

flashfs[7]: erasing block 12...done.

flashfs[7]: Checking block 13...block number was (27450)

flashfs[7]: erasing block 13...done.

flashfs[7]: Checking block 14...block number was (-6772)

flashfs[7]: erasing block 14...done.

flashfs[7]: Checking block 15...block number was (-10286)

flashfs[7]: erasing block 15...done.

flashfs[7]: Checking block 16...block number was (2597)

flashfs[7]: erasing block 16...done.

flashfs[7]: Checking block 17...block number was (30610)

flashfs[7]: erasing block 17...done.

flashfs[7]: Checking block 18...block number was (20305)

flashfs[7]: erasing block 18...done.

flashfs[7]: Checking block 19...block number was (-29480)

flashfs[7]: erasing block 19...done.

flashfs[7]: Checking block 20...block number was (3742)

flashfs[7]: erasing block 20...done.

flashfs[7]: Checking block 21...block number was (10580)

flashfs[7]: erasing block 21...done.

flashfs[7]: Checking block 22...block number was (-2896)

flashfs[7]: erasing block 22...done.

flashfs[7]: Checking block 23...block number was (-812)

flashfs[7]: erasing block 23...done.

flashfs[7]: Checking block 24...block number was (23019)

flashfs[7]: erasing block 24...done.

flashfs[7]: Checking block 25...block number was (-32643)

flashfs[7]: erasing block 25...done.

flashfs[7]: Checking block 26...block number was (25350)

flashfs[7]: erasing block 26...done.

flashfs[7]: Checking block 27...block number was (-4434)

flashfs[7]: erasing block 27...done.

flashfs[7]: Checking block 28...block number was (-25787)

flashfs[7]: erasing block 28...done.

flashfs[7]: Checking block 29...block number was (8591)

flashfs[7]: erasing block 29...done.

flashfs[7]: Checking block 30...block number was (-25606)

flashfs[7]: erasing block 30...done.

flashfs[7]: Checking block 31...block number was (-26665)

flashfs[7]: erasing block 31...done.

flashfs[7]: Checking block 32...block number was (12429)

flashfs[7]: erasing block 32...done.

flashfs[7]: Checking block 33...block number was (18421)

flashfs[7]: erasing block 33...done.

flashfs[7]: Checking block 34...block number was (29655)

flashfs[7]: erasing block 34...done.

flashfs[7]: Checking block 35...block number was (-5147)

flashfs[7]: erasing block 35...done.

flashfs[7]: Checking block 36...block number was (21867)

flashfs[7]: erasing block 36...done.

flashfs[7]: Checking block 37...block number was (29271)

flashfs[7]: erasing block 37...done.

flashfs[7]: Checking block 125...block number was (0)

flashfs[7]: erasing block 125...done.

flashfs[7]: relinked orphaned file into the fs as "/lost+found/00011".

flashfs[7]: relinked orphaned directory into the fs as "/lost+found/00008".

flashfs[7]: relinked orphaned directory into the fs as "/lost+found/00002".

flashfs[7]: 220 files, 8 directories

flashfs[7]: 0 orphaned files, 0 orphaned directories

flashfs[7]: Total bytes: 16128000

flashfs[7]: Bytes used: 7895040

flashfs[7]: Bytes available: 8232960

flashfs[7]: flashfs fsck took 53 seconds.

flashfs[7]: Initialization complete.

Saving the configuration

Saving a copy of old configuration as downgrade.cfg

Saved the activation key from the flash image

Saved the default firewall mode (single) to flash

Saving image file as image.bin

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Upgrade process complete

Need to burn loader....

Erasing sector 0...[OK]

Burning sector 0...[OK]

Licensed features for this platform:

Maximum Physical Interfaces : 6

Maximum VLANs               : 25

Inside Hosts                : Unlimited

Failover                    : Active/Active

VPN-DES                     : Enabled

VPN-3DES-AES                : Enabled

Cut-through Proxy           : Enabled

Guards                      : Enabled

URL Filtering               : Enabled

Security Contexts           : 2

GTP/GPRS                    : Disabled

VPN Peers                   : Unlimited

This platform has an Unrestricted (UR) license.

Encryption hardware device : VAC+ (Crypto5823 revision 0x1)

  --------------------------------------------------------------------------

                                 .            .

                                 |            |

                                |||          |||

                              .|| ||.      .|| ||.

                           .:||| | |||:..:||| | |||:.

                            C i s c o  S y s t e m s

  --------------------------------------------------------------------------

Cisco PIX Security Appliance Software Version 7.0(4)

  ****************************** Warning *******************************

  This product contains cryptographic features and is

  subject to United States and local country laws

  governing, import, export, transfer, and use.

  Delivery of Cisco cryptographic products does not

  imply third-party authority to import, export,

  distribute, or use encryption. Importers, exporters,

  distributors and users are responsible for compliance

  with U.S. and local country laws. By using this

  product you agree to comply with applicable laws and

  regulations. If you are unable to comply with U.S.

  and local laws, return the enclosed items immediately.

  A summary of U.S. laws governing Cisco cryptographic

  products may be found at:

  http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

  If you require further assistance please contact us by

  sending email to export@cisco.com.

  ******************************* Warning *******************************

Copyright (c) 1996-2005 by Cisco Systems, Inc.

                Restricted Rights Legend

Use, duplication, or disclosure by the Government is

subject to restrictions as set forth in subparagraph

(c) of the Commercial Computer Software - Restricted

Rights clause at FAR sec. 52.227-19 and subparagraph

(c) (1) (ii) of the Rights in Technical Data and Computer

Software clause at DFARS sec. 252.227-7013.

                Cisco Systems, Inc.

                170 West Tasman Drive

                San Jose, California 95134-1706

Cryptochecksum(unchanged): 513c9e26 68576502 70411a7f 884e68f7

INFO: converting 'fixup protocol dns maximum-length 512' to MPF commands

INFO: converting 'fixup protocol ftp 21' to MPF commands

INFO: converting 'fixup protocol h323_h225 1720' to MPF commands

INFO: converting 'fixup protocol h323_ras 1718-1719' to MPF commands

INFO: converting 'fixup protocol http 80' to MPF commands

INFO: converting 'fixup protocol netbios 137-138' to MPF commands

INFO: converting 'fixup protocol rsh 514' to MPF commands

INFO: converting 'fixup protocol rtsp 554' to MPF commands

INFO: converting 'fixup protocol sip 5060' to MPF commands

INFO: converting 'fixup protocol skinny 2000' to MPF commands

INFO: converting 'fixup protocol smtp 25' to MPF commands

INFO: converting 'fixup protocol sqlnet 1521' to MPF commands

INFO: converting 'fixup protocol sunrpc_udp 111' to MPF commands

INFO: converting 'fixup protocol tftp 69' to MPF commands

INFO: converting 'fixup protocol sip udp 5060' to MPF commands

INFO: converting 'fixup protocol xdmcp 177' to MPF commands

Type help or '?' for a list of available commands.

After Upgrade

After performing the PIX Security appliance Version 7.0 upgrade, enter the enable command to enter configuration mode, then enter your password, and finally enter the show run command. The output is as follows:

Migration1> enable

Password:

Migration1(config)# show run

: Saved

PIX Version 7.0(4)

names

name 172.16.1.75 Linux

interface Ethernet0

 speed 100

 duplex full

 nameif outside

 security-level 0

 ip address 172.16.1.161 255.255.255.0

interface Ethernet1

 speed 100

 duplex full

 nameif inside

 security-level 100

 ip address 192.168.1.161 255.255.255.0

interface Ethernet2

 shutdown

 nameif dmz

 security-level 50

 no ip address

interface Ethernet3

 shutdown

 nameif intf3

 security-level 6

 no ip address

interface Ethernet4

 shutdown

 nameif intf4

 security-level 8

 no ip address

interface Ethernet5

 shutdown

 nameif intf5

 security-level 10

 no ip address

enable password 8Ry2YjIyt7RRXU24 encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname Migration1

domain-name ciscopix.com

boot system flash:/image.bin

ftp mode passive

access-list 101 extended permit icmp any any

access-list 101 extended permit tcp any host 172.16.1.160 eq telnet

pager lines 24

logging enable

logging trap informational

logging host inside 192.168.1.99

mtu outside 1500

mtu inside 1500

mtu dmz 1500

mtu intf3 1500

mtu intf4 1500

mtu intf5 1500

no failover

monitor-interface outside

monitor-interface inside

monitor-interface dmz

monitor-interface intf3

monitor-interface intf4

monitor-interface intf5

icmp permit any outside

icmp permit any inside

asdm history enable

arp timeout 14400

nat-control

global (outside) 1 172.16.1.210-172.16.1.212

nat (inside) 1 0.0.0.0 0.0.0.0

static (inside,outside) 172.16.1.160 192.168.1.100 netmask 255.255.255.255

access-group 101 in interface outside

route outside 0.0.0.0 0.0.0.0 172.16.1.1 1

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02 sunrpc 0:10:00 h323
0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00 sip 0:30:00 sip_media 0:02:00

timeout uauth 0:05:00 absolute

aaa-server TACACS+ protocol tacacs+

aaa-server RADIUS protocol radius

http server enable

http 0.0.0.0 0.0.0.0 outside

http 0.0.0.0 0.0.0.0 inside

no snmp-server location

no snmp-server contact

snmp-server community public

snmp-server enable traps snmp

no sysopt connection permit-ipsec

telnet 192.168.1.0 255.255.255.0 inside

telnet timeout 5

ssh timeout 5

ssh version 1

console timeout 0

dhcpd address 192.168.1.100-192.168.1.102 inside

dhcpd lease 3600

dhcpd ping_timeout 750

dhcpd enable inside

class-map inspection_default

 match default-inspection-traffic

policy-map global_policy

class inspection_default

  inspect dns maximum-length 512

  inspect ftp

  inspect h323 h225

  inspect h323 ras

  inspect http

  inspect netbios

  inspect rsh

  inspect rtsp

  inspect skinny

  inspect esmtp

  inspect sqlnet

  inspect sunrpc

  inspect tftp

  inspect sip

  inspect xdmcp

service-policy global_policy global

Cryptochecksum:513c9e266857650270411a7f884e68f7

: end

Migration1#

Upgrading to a VPN Client with Remote Access

Assumptions

When performing an upgrade to a VPN client with remote access, this configuration example assumes the following (see Figure 2):

•The PIX 515E functions as a headend device; incoming remote VPN clients terminate at the PIX 515E

•Authentication of the VPN client (not the user) connection is performed through preshared keys

•User authentication is performed using a Windows username and password

•Client addresses are between 3.3.3.0 and 3.3.3.254; use the ip pool command to find the correct IP address

•PDM is enabled from the inside network

Figure 2 Sample VPN Client Configuration

Before Upgrade

The following is sample output from the show run command from your current PIX Version 6.3 configuration before upgrading to PIX Security appliance Version 7.0:

vpnra# show run

: Saved

PIX Version 6.3(4)

interface ethernet0 auto

interface ethernet1 auto

interface ethernet2 100full

interface ethernet3 100full

interface ethernet4 100full

interface ethernet5 auto shutdown

nameif ethernet0 outside security0

nameif ethernet1 inside security100

nameif ethernet2 intf2 security4

nameif ethernet3 intf3 security6

nameif ethernet4 intf4 security8

nameif ethernet5 intf5 security10

enable password 8Ry2YjIyt7RRXU24 encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname vpnra

domain-name migration.com

fixup protocol dns maximum-length 512

fixup protocol ftp 21

fixup protocol h323 h225 1720

fixup protocol h323 ras 1718-1719

fixup protocol http 80

fixup protocol ils 389

fixup protocol rsh 514

fixup protocol rtsp 554

fixup protocol sip 5060

fixup protocol sip udp 5060

fixup protocol skinny 2000

fixup protocol smtp 25

fixup protocol sqlnet 1521

fixup protocol tftp 69

names

access-list nat0 permit ip any 3.3.3.0 255.255.255.0

pager lines 24

logging on

logging buffered debugging

icmp permit any outside

mtu outside 1500

mtu inside 1500

mtu intf2 1500

mtu intf3 1500

mtu intf4 1500

mtu intf5 1500

ip address outside 172.16.1.164 255.255.255.0

ip address inside 192.168.1.164 255.255.255.0

no ip address intf2

no ip address intf3

no ip address intf4

no ip address intf5

ip audit info action alarm

ip audit attack action alarm

ip local pool migratepool 3.3.3.1-3.3.3.254

no failover

failover timeout 0:00:00

failover poll 15

no failover ip address outside

no failover ip address inside

no failover ip address intf2

no failover ip address intf3

no failover ip address intf4

no failover ip address intf5

pdm location 192.168.3.0 255.255.255.0 outside

pdm history enable

arp timeout 14400

global (outside) 1 interface

nat (inside) 0 access-list nat0

nat (inside) 1 0.0.0.0 0.0.0.0 0 0

route outside 0.0.0.0 0.0.0.0 172.16.1.100 1

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 rpc 0:10:00 h225 1:00:00

timeout h323 0:05:00 mgcp 0:05:00 sip 0:30:00 sip_media 0:02:00

timeout uauth 0:05:00 absolute

aaa-server TACACS+ protocol tacacs+

aaa-server TACACS+ max-failed-attempts 3

aaa-server TACACS+ deadtime 10

aaa-server RADIUS protocol radius

aaa-server RADIUS max-failed-attempts 3

aaa-server RADIUS deadtime 10

aaa-server LOCAL protocol local

http server enable

http 0.0.0.0 0.0.0.0 inside

no snmp-server location

no snmp-server contact

snmp-server community public

no snmp-server enable traps

floodguard enable

sysopt connection permit-ipsec

crypto ipsec transform-set ESP-3DES-MD5 esp-3des esp-md5-hmac

crypto dynamic-map outside_dyn_map 20 set transform-set ESP-3DES-MD5

crypto map ForRA 20 ipsec-isakmp dynamic outside_dyn_map

crypto map ForRA interface outside

isakmp enable outside

isakmp policy 30 authentication pre-share

isakmp policy 30 encryption 3des

isakmp policy 30 hash md5

isakmp policy 30 group 2

isakmp policy 30 lifetime 86400

vpngroup migration address-pool migratepool

vpngroup migration idle-time 1800

vpngroup migration password ********

telnet timeout 5

ssh timeout 5

console timeout 0

terminal width 80

Cryptochecksum:4a5e923ecb2353471603a82ee2f4df47

: end

Upgrade

Enter the copy tftp://<ip address>/pix704.bin.<image>flash:image command to upgrade to the new image. The following output reflects the upgrade procedure from your current PIX Version 6.3 configuration to PIX Security appliance Version 7.0:

vpnra# copy tftp://192.168.1.100/cdisk.7.0(4) flash:image

copying tftp://192.168.1.100/cdisk.7.0(4) to flash:image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Received 5124096 bytes

Erasing current image

Writing 5062712 bytes of image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Image installed

Enter the reload command to begin using the new PIX Security appliance Version 7.0 image, then press Enter at the next prompt to confirm the reload command.

vpnra# reload

Proceed with reload? [confirm]

Rebooting...

CISCO SYSTEMS PIX FIREWALL

Embedded BIOS Version 4.3.207 01/02/02 16:12:22.73

Compiled by xxxxxx

64 MB RAM

PCI Device Table.

Bus Dev Func VendID DevID Class              Irq

 00  00  00   8086   7192  Host Bridge

 00  07  00   8086   7110  ISA Bridge

 00  07  01   8086   7111  IDE Controller

 00  07  02   8086   7112  Serial Bus         9

 00  07  03   8086   7113  PCI Bridge

 00  0D  00   8086   1209  Ethernet           11

 00  0E  00   8086   1209  Ethernet           10

 00  11  00   14E4   5823  Co-Processor       11

 00  13  00   8086   B154  PCI-to-PCI Bridge

 01  04  00   8086   1229  Ethernet           11

 01  05  00   8086   1229  Ethernet           10

 01  06  00   8086   1229  Ethernet           9

 01  07  00   8086   1229  Ethernet           5

Cisco Secure PIX Firewall BIOS (4.2) #0: Mon Dec 31 08:34:35 PST 2001

Platform PIX-515E

System Flash=E28F128J3 @ 0xfff00000

Use BREAK or ESC to interrupt flash boot.

Use SPACE to begin flash boot immediately.

Reading 5059072 bytes of image from flash.

################################################################################

################################################################################

################################################################################

################################################################################

################################################################################

########################################################

64MB RAM

Total NICs found: 6

mcwa i82559 Ethernet at irq 11  MAC: 0011.937e.0650

mcwa i82559 Ethernet at irq 10  MAC: 0011.937e.064f

mcwa i82559 Ethernet at irq 11  MAC: 000d.88ee.dfa0

mcwa i82559 Ethernet at irq 10  MAC: 000d.88ee.dfa1

mcwa i82559 Ethernet at irq  9  MAC: 000d.88ee.dfa2

mcwa i82559 Ethernet at irq  5  MAC: 000d.88ee.dfa3

BIOS Flash=am29f400b @ 0xd8000

Old file system detected. Attempting to save data in flash

Initializing flashfs...

flashfs[7]: Checking block 0...block number was (-14264)

flashfs[7]: erasing block 0...done.

flashfs[7]: Checking block 1...block number was (12668)

flashfs[7]: erasing block 1...done.

flashfs[7]: Checking block 2...block number was (15104)

flashfs[7]: erasing block 2...done.

flashfs[7]: Checking block 3...block number was (-18577)

flashfs[7]: erasing block 3...done.

flashfs[7]: Checking block 4...block number was (11973)

flashfs[7]: erasing block 4...done.

flashfs[7]: Checking block 5...block number was (-4656)

flashfs[7]: erasing block 5...done.

flashfs[7]: Checking block 6...block number was (-24944)

flashfs[7]: erasing block 6...done.

flashfs[7]: Checking block 7...block number was (23499)

flashfs[7]: erasing block 7...done.

flashfs[7]: Checking block 8...block number was (7137)

flashfs[7]: erasing block 8...done.

flashfs[7]: Checking block 9...block number was (20831)

flashfs[7]: erasing block 9...done.

flashfs[7]: Checking block 10...block number was (6185)

flashfs[7]: erasing block 10...done.

flashfs[7]: Checking block 11...block number was (25501)

flashfs[7]: erasing block 11...done.

flashfs[7]: Checking block 12...block number was (-5607)

flashfs[7]: erasing block 12...done.

flashfs[7]: Checking block 13...block number was (27450)

flashfs[7]: erasing block 13...done.

flashfs[7]: Checking block 14...block number was (-6772)

flashfs[7]: erasing block 14...done.

flashfs[7]: Checking block 15...block number was (-10286)

flashfs[7]: erasing block 15...done.

flashfs[7]: Checking block 16...block number was (2597)

flashfs[7]: erasing block 16...done.

flashfs[7]: Checking block 17...block number was (30610)

flashfs[7]: erasing block 17...done.

flashfs[7]: Checking block 18...block number was (20305)

flashfs[7]: erasing block 18...done.

flashfs[7]: Checking block 19...block number was (-29480)

flashfs[7]: erasing block 19...done.

flashfs[7]: Checking block 20...block number was (3742)

flashfs[7]: erasing block 20...done.

flashfs[7]: Checking block 21...block number was (10580)

flashfs[7]: erasing block 21...done.

flashfs[7]: Checking block 22...block number was (-2896)

flashfs[7]: erasing block 22...done.

flashfs[7]: Checking block 23...block number was (-812)

flashfs[7]: erasing block 23...done.

flashfs[7]: Checking block 24...block number was (23019)

flashfs[7]: erasing block 24...done.

flashfs[7]: Checking block 25...block number was (-32643)

flashfs[7]: erasing block 25...done.

flashfs[7]: Checking block 26...block number was (25350)

flashfs[7]: erasing block 26...done.

flashfs[7]: Checking block 27...block number was (-4434)

flashfs[7]: erasing block 27...done.

flashfs[7]: Checking block 28...block number was (-25787)

flashfs[7]: erasing block 28...done.

flashfs[7]: Checking block 29...block number was (8591)

flashfs[7]: erasing block 29...done.

flashfs[7]: Checking block 30...block number was (-25606)

flashfs[7]: erasing block 30...done.

flashfs[7]: Checking block 31...block number was (-26665)

flashfs[7]: erasing block 31...done.

flashfs[7]: Checking block 32...block number was (12429)

flashfs[7]: erasing block 32...done.

flashfs[7]: Checking block 33...block number was (18421)

flashfs[7]: erasing block 33...done.

flashfs[7]: Checking block 34...block number was (29655)

flashfs[7]: erasing block 34...done.

flashfs[7]: Checking block 35...block number was (-5147)

flashfs[7]: erasing block 35...done.

flashfs[7]: Checking block 36...block number was (21867)

flashfs[7]: erasing block 36...done.

flashfs[7]: Checking block 37...block number was (29271)

flashfs[7]: erasing block 37...done.

flashfs[7]: Checking block 125...block number was (0)

flashfs[7]: erasing block 125...done.

flashfs[7]: relinked orphaned file into the fs as "/lost+found/00238".

flashfs[7]: 229 files, 11 directories

flashfs[7]: 0 orphaned files, 0 orphaned directories

flashfs[7]: Total bytes: 16128000

flashfs[7]: Bytes used: 8273920

flashfs[7]: Bytes available: 7854080

flashfs[7]: flashfs fsck took 53 seconds.

flashfs[7]: Initialization complete.

Saving the configuration

Saving a copy of old configuration as downgrade.cfg

Saved the activation key from the flash image

Saved the default firewall mode (single) to flash

Saving image file as image.bin

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Upgrade process complete

Need to burn loader....

Erasing sector 0...[OK]

Burning sector 0...[OK]

Licensed features for this platform:

Maximum Physical Interfaces : 6

Maximum VLANs               : 25

Inside Hosts                : Unlimited

Failover                    : Active/Active

VPN-DES                     : Enabled

VPN-3DES-AES                : Enabled

Cut-through Proxy           : Enabled

Guards                      : Enabled

URL Filtering               : Enabled

Security Contexts           : 2

GTP/GPRS                    : Disabled

VPN Peers                   : Unlimited

This platform has an Unrestricted (UR) license.

Encryption hardware device : VAC+ (Crypto5823 revision 0x1)

  --------------------------------------------------------------------------

                                 .            .

                                 |            |

                                |||          |||

                              .|| ||.      .|| ||.

                           .:||| | |||:..:||| | |||:.

                            C i s c o  S y s t e m s

  --------------------------------------------------------------------------

Cisco PIX Security Appliance Software Version 7.0(4)

  ****************************** Warning *******************************

  This product contains cryptographic features and is

  subject to United States and local country laws

  governing, import, export, transfer, and use.

  Delivery of Cisco cryptographic products does not

  imply third-party authority to import, export,

  distribute, or use encryption. Importers, exporters,

  distributors and users are responsible for compliance

  with U.S. and local country laws. By using this

  product you agree to comply with applicable laws and

  regulations. If you are unable to comply with U.S.

  and local laws, return the enclosed items immediately.

  A summary of U.S. laws governing Cisco cryptographic

  products may be found at:

  http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

  If you require further assistance please contact us by

  sending email to export@cisco.com.

  ******************************* Warning *******************************

Copyright (c) 1996-2005 by Cisco Systems, Inc.

                Restricted Rights Legend

Use, duplication, or disclosure by the Government is

subject to restrictions as set forth in subparagraph

(c) of the Commercial Computer Software - Restricted

Rights clause at FAR sec. 52.227-19 and subparagraph

(c) (1) (ii) of the Rights in Technical Data and Computer

Software clause at DFARS sec. 252.227-7013.

                Cisco Systems, Inc.

                170 West Tasman Drive

                San Jose, California 95134-1706

Cryptochecksum(unchanged): 4a5e923e cb235347 1603a82e e2f4df47

INFO: converting 'fixup protocol dns maximum-length 512' to MPF commands

INFO: converting 'fixup protocol ftp 21' to MPF commands

INFO: converting 'fixup protocol h323_h225 1720' to MPF commands

INFO: converting 'fixup protocol h323_ras 1718-1719' to MPF commands

INFO: converting 'fixup protocol http 80' to MPF commands

INFO: converting 'fixup protocol ils 389' to MPF commands

INFO: converting 'fixup protocol netbios 137-138' to MPF commands

INFO: converting 'fixup protocol rsh 514' to MPF commands

INFO: converting 'fixup protocol rtsp 554' to MPF commands

INFO: converting 'fixup protocol sip 5060' to MPF commands

INFO: converting 'fixup protocol skinny 2000' to MPF commands

INFO: converting 'fixup protocol smtp 25' to MPF commands

INFO: converting 'fixup protocol sqlnet 1521' to MPF commands

INFO: converting 'fixup protocol sunrpc_udp 111' to MPF commands

INFO: converting 'fixup protocol tftp 69' to MPF commands

INFO: converting 'fixup protocol sip udp 5060' to MPF commands

INFO: converting 'fixup protocol xdmcp 177' to MPF commands

Type help or '?' for a list of available commands.

San Jose, California 95134-1706

After Upgrade

Output from the PIX Security appliance Version 7.0 image upgrade includes the assumptions in "Before Upgrade" section, with the following changes:

•Interface information is now grouped

•The vpngroup command has been replaced by the group-policy and tunnel-group commands

•The default ISAKMP policy is now listed as policy number 65535, as shown in the following example:

PIX Version 6.3 syntax:

Default protection suite

        encryption algorithm:   DES - Data Encryption Standard (56 bit keys).

        hash algorithm:         Secure Hash Standard

        authentication method:  Rivest-Shamir-Adleman Signature

        Diffie-Hellman group:   #1 (768 bit)

        lifetime:               86400 seconds, no volume limit

The PIX Security appliance Version 7.0 syntax:

isakmp policy 65535 authentication pre-share

isakmp policy 65535 encryption 3des

isakmp policy 65535 hash sha

isakmp policy 65535 group 2

isakmp policy 65535 lifetime 86400

vpnra> enable

Password:

vpnra# show run

: Saved

PIX Version 7.0(4)

names

interface Ethernet0

 nameif outside

 security-level 0

 ip address 172.16.1.164 255.255.255.0

interface Ethernet1

 nameif inside

 security-level 100

 ip address 192.168.1.164 255.255.255.0

interface Ethernet2

 speed 100

 duplex full

 nameif intf2

 security-level 4

 no ip address

interface Ethernet3

 speed 100

 duplex full

 nameif intf3

 security-level 6

 no ip address

interface Ethernet4

 speed 100

 duplex full

 nameif intf4

 security-level 8

 no ip address

interface Ethernet5

 shutdown

 nameif intf5

 security-level 10

 no ip address

enable password 8Ry2YjIyt7RRXU24 encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname vpnra

domain-name migration.com

boot system flash:/image.bin

ftp mode passive

access-list nat0 extended permit ip any 3.3.3.0 255.255.255.0

pager lines 24

logging enable

logging buffered debugging

mtu outside 1500

mtu inside 1500

mtu intf2 1500

mtu intf3 1500

mtu intf4 1500

mtu intf5 1500

ip local pool migratepool 3.3.3.1-3.3.3.254

no failover

monitor-interface outside

monitor-interface inside

monitor-interface intf2

monitor-interface intf3

monitor-interface intf4

monitor-interface intf5

icmp permit any outside

asdm history enable

arp timeout 14400

nat-control

global (outside) 1 interface

nat (inside) 0 access-list nat0

nat (inside) 1 0.0.0.0 0.0.0.0

route outside 0.0.0.0 0.0.0.0 172.16.1.100 1

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02 sunrpc 0:10:00

h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00 sip 0:30:00 sip_media 0:02:00

timeout uauth 0:05:00 absolute

aaa-server TACACS+ protocol tacacs+

aaa-server RADIUS protocol radius

group-policy migration internal

group-policy migration attributes

 vpn-idle-timeout 30

http server enable

http 0.0.0.0 0.0.0.0 inside

no snmp-server location

no snmp-server contact

snmp-server community public

snmp-server enable traps snmp

crypto ipsec transform-set ESP-3DES-MD5 esp-3des esp-md5-hmac

crypto dynamic-map outside_dyn_map 20 set transform-set ESP-3DES-MD5

crypto map ForRA 20 ipsec-isakmp dynamic outside_dyn_map

crypto map ForRA interface outside

isakmp enable outside

isakmp policy 30 authentication pre-share

isakmp policy 30 encryption 3des

isakmp policy 30 hash md5

isakmp policy 30 group 2

isakmp policy 30 lifetime 86400

isakmp policy 65535 authentication pre-share

isakmp policy 65535 encryption 3des

isakmp policy 65535 hash sha

isakmp policy 65535 group 2

isakmp policy 65535 lifetime 86400

telnet timeout 5

ssh timeout 5

ssh version 1

console timeout 0

tunnel-group migration type ipsec-ra

tunnel-group migration general-attributes

 address-pool migratepool

 default-group-policy migration

tunnel-group migration ipsec-attributes

 pre-shared-key *

class-map inspection_default

 match default-inspection-traffic

policy-map global_policy

 class inspection_default

  inspect dns maximum-length 512

  inspect ftp

  inspect h323 h225

  inspect h323 ras

  inspect http

  inspect ils

  inspect netbios

  inspect rsh

  inspect rtsp

  inspect skinny

  inspect esmtp

  inspect sqlnet

  inspect sunrpc

  inspect tftp

  inspect sip

  inspect xdmcp

service-policy global_policy global

Cryptochecksum:4a5e923ecb2353471603a82ee2f4df47

: end

vpnra#

Upgrading to Security Appliance Version 7.0 Using VLAN

Assumptions

When performing an upgrade to PIX Security appliance Version 7.0 using VLAN, this configuration example assumes the following (see Figure 3):

•VLANs are enabled; 6 interfaces in total, 3 each on two trunk interfaces are outside; dmz0, dmz1, dmz2, dmz3 are inside

•Fixup protocols for rsh and sqlnet are turned off

•Logging at the debugging level is buffered

•Hosts on interface inside can originate connections through interface outside

•A server on interface dmz2 is available on interface outside

•Ethernet0 is an 802.1q trunk to a switch

•Ethernet1 is an 802.1a trunk to a switch

•Ethernet2 is non-trunk connection to a server farm

Figure 3 Sample VLAN Configuration

Before Upgrade

The following is sample output from the show run command from your current PIX Version 6.3 configuration before upgrading to PIX Security appliance Version 7.0:

PixVlan# show run

: Saved

PIX Version 6.3(4)

interface ethernet0 100full

interface ethernet0 vlan10 physical

interface ethernet0 vlan20 logical

interface ethernet0 vlan30 logical

interface ethernet1 100full

interface ethernet1 vlan40 physical

interface ethernet1 vlan50 logical

interface ethernet1 vlan60 logical

interface ethernet2 100full

interface ethernet3 100full

interface ethernet4 100full

interface ethernet5 auto shutdown

interface ethernet6 auto shutdown

interface ethernet7 auto shutdown

nameif ethernet0 outside security0

nameif ethernet1 dmz2 security40

nameif ethernet2 intf2 security4

nameif ethernet3 intf3 security6

nameif ethernet4 intf4 security8

nameif ethernet5 intf5 security10

nameif ethernet6 intf6 security12

nameif ethernet7 intf7 security14

nameif vlan20 dmz0 security20

nameif vlan30 dmz1 security30

nameif vlan50 dmz3 security50

nameif vlan60 inside security100

enable password 2KFQnbNIdI.2KYOU encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname PixVlan

fixup protocol dns maximum-length 512

fixup protocol ftp 21

fixup protocol h323 h225 1720

fixup protocol h323 ras 1718-1719

fixup protocol http 80

no fixup protocol rsh 514

fixup protocol rtsp 554

fixup protocol sip 5060

fixup protocol sip udp 5060

fixup protocol skinny 2000

fixup protocol smtp 25

no fixup protocol sqlnet 1521

fixup protocol tftp 69

names

access-list 1 permit ip any host 172.16.1.144

pager lines 24

logging on

logging buffered debugging

mtu outside 1500

mtu dmz2 1500

mtu intf2 1500

mtu intf3 1500

mtu intf4 1500

mtu intf5 1500

mtu intf6 1500

mtu intf7 1500

ip address outside 172.16.1.175 255.255.255.0

ip address dmz2 192.168.3.175 255.255.255.0

ip address intf2 10.1.1.1 255.255.255.0

no ip address intf3

no ip address intf4

no ip address intf5

no ip address intf6

no ip address intf7

ip address dmz0 192.168.1.175 255.255.255.0

ip address dmz1 192.168.2.175 255.255.255.0

ip address dmz3 192.168.4.175 255.255.255.0

ip address inside 192.168.6.175 255.255.255.0

ip audit info action alarm

ip audit attack action alarm

no failover

failover timeout 0:00:00

failover poll 15

no failover ip address outside

no failover ip address dmz2

no failover ip address intf2

no failover ip address intf3

no failover ip address intf4

no failover ip address intf5

no failover ip address intf6

no failover ip address intf7

no failover ip address dmz0

no failover ip address dmz1

no failover ip address dmz3

no failover ip address inside

pdm history enable

arp timeout 14400

global (outside) 1 172.16.1.101-172.16.1.110

nat (inside) 1 0.0.0.0 0.0.0.0 0 0

static (dmz2,outside) 172.16.1.144 192.168.3.144 netmask 255.255.255.255 0 0

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 rpc 0:10:00 h225 1:00:00

timeout h323 0:05:00 mgcp 0:05:00 sip 0:30:00 sip_media 0:02:00

timeout uauth 0:05:00 absolute

aaa-server TACACS+ protocol tacacs+

aaa-server TACACS+ max-failed-attempts 3

aaa-server TACACS+ deadtime 10

aaa-server RADIUS protocol radius

aaa-server RADIUS max-failed-attempts 3

aaa-server RADIUS deadtime 10

aaa-server LOCAL protocol local

http server enable

http 192.168.4.0 255.255.255.0 dmz3

no snmp-server location

no snmp-server contact

snmp-server community public

no snmp-server enable traps

floodguard enable

telnet timeout 5

ssh timeout 5

console timeout 0

terminal width 80

Cryptochecksum:8931adafa47b3649c5954e72212043a1

: end

Upgrade

PixVlan# copy tftp://10.1.1.100/cdisk.7.0(4) flash:image

copying tftp://10.1.1.100/cdisk.7.0(4) to flash:image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Received 5124096 bytes

Erasing current image

Writing 5062712 bytes of image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Image installed

Enter the reload command to begin using the new PIX Security appliance Version 7.0 image, then press Enter at the next prompt to confirm the reload command.

PixVlan# reload

Proceed with reload? [confirm]

Rebooting..

Wait.....

PCI Device Table.

Bus Dev Func VendID DevID Class              Irq

 00  00  00   8086   7192  Host Bridge

 00  07  00   8086   7110  ISA Bridge

 00  07  01   8086   7111  IDE Controller

 00  07  02   8086   7112  Serial Bus         9

 00  07  03   8086   7113  PCI Bridge

 00  0B  00   1011   0026  PCI-to-PCI Bridge

 00  0D  00   8086   1209  Ethernet           11

 00  0E  00   8086   1209  Ethernet           10

 00  11  00   8086   1229  Ethernet           11

 00  13  00   8086   1229  Ethernet           5

 01  00  00   8086   1229  Ethernet           11

 01  01  00   8086   1229  Ethernet           104.3

 01  02  00   8086   1229  Ethernet           9

 01  03  00   8086   1229  Ethernet           5

Initializing Intel Boot Agent Version 2.2

Initializing Intel Boot Agent Version 2.2ram..

Press Ctrl+S to enter into the Setup Program..

+------------------------------------------------------------------------------+

|          System BIOS Configuration, (C) 2000 General Software, Inc.          |

+---------------------------------------+--------------------------------------+

| System CPU           : Pentium III    | Low Memory           : 638KB         |

| Coprocessor          : Enabled        | Extended Memory      : 255MB         |

| Embedded BIOS Date   : 08/25/00       | Serial Ports 1-2     : 03F8 02F8     |

+---------------------------------------+--------------------------------------+

Cisco Secure PIX Firewall BIOS (4.2) #1: Fri Mar 23 04:10:24 PST 2001

Platform PIX-525

System Flash=E28F128J3 @ 0xfff00000

Use BREAK or ESC to interrupt flash boot.

Use SPACE to begin flash boot immediately.

Reading 5059072 bytes of image from flash.

################################################################################

################################################################################

################################################################################

################################################################################

################################################################################

########################################################

256MB RAM

Total NICs found: 8

mcwa i82559 Ethernet at irq 11  MAC: 0002.b945.b6d2

mcwa i82559 Ethernet at irq 10  MAC: 0002.b945.b6d1

mcwa i82559 Ethernet at irq 11  MAC: 0002.b308.7273

mcwa i82559 Ethernet at irq  5  MAC: 0002.b304.1a35

mcwa i82558 Ethernet at irq 11  MAC: 00e0.b600.d47a

mcwa i82558 Ethernet at irq 10  MAC: 00e0.b600.d479

mcwa i82558 Ethernet at irq  9  MAC: 00e0.b600.d478

mcwa i82558 Ethernet at irq  5  MAC: 00e0.b600.d477

BIOS Flash=e28f400b5t @ 0xd8000

Old file system detected. Attempting to save data in flash

Initializing flashfs...

flashfs[7]: Checking block 0...block number was (-14264)

flashfs[7]: erasing block 0...done.

flashfs[7]: Checking block 1...block number was (12668)

flashfs[7]: erasing block 1...done.

flashfs[7]: Checking block 2...block number was (15104)

flashfs[7]: erasing block 2...done.

flashfs[7]: Checking block 3...block number was (-18577)

flashfs[7]: erasing block 3...done.

flashfs[7]: Checking block 4...block number was (11973)

flashfs[7]: erasing block 4...done.

flashfs[7]: Checking block 5...block number was (-4656)

flashfs[7]: erasing block 5...done.

flashfs[7]: Checking block 6...block number was (-24944)

flashfs[7]: erasing block 6...done.

flashfs[7]: Checking block 7...block number was (23499)

flashfs[7]: erasing block 7...done.

flashfs[7]: Checking block 8...block number was (7137)

flashfs[7]: erasing block 8...done.

flashfs[7]: Checking block 9...block number was (20831)

flashfs[7]: erasing block 9...done.

flashfs[7]: Checking block 10...block number was (6185)

flashfs[7]: erasing block 10...done.

flashfs[7]: Checking block 11...block number was (25501)

flashfs[7]: erasing block 11...done.

flashfs[7]: Checking block 12...block number was (-5607)

flashfs[7]: erasing block 12...done.

flashfs[7]: Checking block 13...block number was (27450)

flashfs[7]: erasing block 13...done.

flashfs[7]: Checking block 14...block number was (-6772)

flashfs[7]: erasing block 14...done.

flashfs[7]: Checking block 15...block number was (-10286)

flashfs[7]: erasing block 15...done.

flashfs[7]: Checking block 16...block number was (2597)

flashfs[7]: erasing block 16...done.

flashfs[7]: Checking block 17...block number was (30610)

flashfs[7]: erasing block 17...done.

flashfs[7]: Checking block 18...block number was (20305)

flashfs[7]: erasing block 18...done.

flashfs[7]: Checking block 19...block number was (-29480)

flashfs[7]: erasing block 19...done.

flashfs[7]: Checking block 20...block number was (3742)

flashfs[7]: erasing block 20...done.

flashfs[7]: Checking block 21...block number was (10580)

flashfs[7]: erasing block 21...done.

flashfs[7]: Checking block 22...block number was (-2896)

flashfs[7]: erasing block 22...done.

flashfs[7]: Checking block 23...block number was (-812)

flashfs[7]: erasing block 23...done.

flashfs[7]: Checking block 24...block number was (23019)

flashfs[7]: erasing block 24...done.

flashfs[7]: Checking block 25...block number was (-32643)

flashfs[7]: erasing block 25...done.

flashfs[7]: Checking block 26...block number was (25350)

flashfs[7]: erasing block 26...done.

flashfs[7]: Checking block 27...block number was (-4434)

flashfs[7]: erasing block 27...done.

flashfs[7]: Checking block 28...block number was (-25787)

flashfs[7]: erasing block 28...done.

flashfs[7]: Checking block 29...block number was (8591)

flashfs[7]: erasing block 29...done.

flashfs[7]: Checking block 30...block number was (-25606)

flashfs[7]: erasing block 30...done.

flashfs[7]: Checking block 31...block number was (-26665)

flashfs[7]: erasing block 31...done.

flashfs[7]: Checking block 32...block number was (12429)

flashfs[7]: erasing block 32...done.

flashfs[7]: Checking block 33...block number was (18421)

flashfs[7]: erasing block 33...done.

flashfs[7]: Checking block 34...block number was (29655)

flashfs[7]: erasing block 34...done.

flashfs[7]: Checking block 35...block number was (-5147)

flashfs[7]: erasing block 35...done.

flashfs[7]: Checking block 36...block number was (21867)

flashfs[7]: erasing block 36...done.

flashfs[7]: Checking block 37...block number was (29271)

flashfs[7]: erasing block 37...done.

flashfs[7]: Checking block 38...block number was (0)

flashfs[7]: erasing block 38...done.

flashfs[7]: Checking block 125...block number was (0)

flashfs[7]: erasing block 125...done.

flashfs[7]: inconsistent sector list, fileid 8, parent_fileid 0

flashfs[7]: 8 files, 3 directories

flashfs[7]: 0 orphaned files, 0 orphaned directories

flashfs[7]: Total bytes: 16128000

flashfs[7]: Bytes used: 9728

flashfs[7]: Bytes available: 16118272

flashfs[7]: flashfs fsck took 80 seconds.

flashfs[7]: Initialization complete.

Saving the datafile

Saving a copy of old datafile for downgrade

Saving the configuration

Saving a copy of old configuration as downgrade.cfg

Saved the activation key from the flash image

Saved the default firewall mode (single) to flash

Saving image file as image.bin

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Upgrade process complete

Need to burn loader....

Erasing sector 0...[OK]

Burning sector 0...[OK]

Licensed features for this platform:

Maximum Physical Interfaces : 10

Maximum VLANs               : 100

Inside Hosts                : Unlimited

Failover                    : Active/Active

VPN-DES                     : Enabled

VPN-3DES-AES                : Enabled

Cut-through Proxy           : Enabled

Guards                      : Enabled

URL Filtering               : Enabled

Security Contexts           : 2

GTP/GPRS                    : Disabled

VPN Peers                   : Unlimited

This platform has an Unrestricted (UR) license.

  --------------------------------------------------------------------------

                                 .            .

                                 |            |

                                |||          |||

                              .|| ||.      .|| ||.

                           .:||| | |||:..:||| | |||:.

                            C i s c o  S y s t e m s

  --------------------------------------------------------------------------

Cisco PIX Security Appliance Software Version 7.0(4)

  ****************************** Warning *******************************

  This product contains cryptographic features and is

  subject to United States and local country laws

  governing, import, export, transfer, and use.

  Delivery of Cisco cryptographic products does not

  imply third-party authority to import, export,

  distribute, or use encryption. Importers, exporters,

  distributors and users are responsible for compliance

  with U.S. and local country laws. By using this

  product you agree to comply with applicable laws and

  regulations. If you are unable to comply with U.S.

  and local laws, return the enclosed items immediately.

  A summary of U.S. laws governing Cisco cryptographic

  products may be found at:

  http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

  If you require further assistance please contact us by

  sending email to export@cisco.com.

  ******************************* Warning *******************************

Copyright (c) 1996-2005 by Cisco Systems, Inc.

                Restricted Rights Legend

Use, duplication, or disclosure by the Government is

subject to restrictions as set forth in subparagraph

(c) of the Commercial Computer Software - Restricted

Rights clause at FAR sec. 52.227-19 and subparagraph

(c) (1) (ii) of the Rights in Technical Data and Computer

Software clause at DFARS sec. 252.227-7013.

                Cisco Systems, Inc.

                170 West Tasman Drive

                San Jose, California 95134-1706

Cryptochecksum(unchanged): 8931adaf a47b3649 c5954e72 212043a1

INFO: converting 'fixup protocol dns maximum-length 512' to MPF commands

INFO: converting 'fixup protocol ftp 21' to MPF commands

INFO: converting 'fixup protocol h323_h225 1720' to MPF commands

INFO: converting 'fixup protocol h323_ras 1718-1719' to MPF commands

INFO: converting 'fixup protocol http 80' to MPF commands

INFO: converting 'fixup protocol netbios 137-138' to MPF commands

INFO: converting 'fixup protocol rtsp 554' to MPF commands

INFO: converting 'fixup protocol sip 5060' to MPF commands

INFO: converting 'fixup protocol skinny 2000' to MPF commands

INFO: converting 'fixup protocol smtp 25' to MPF commands

INFO: converting 'fixup protocol sunrpc_udp 111' to MPF commands

INFO: converting 'fixup protocol tftp 69' to MPF commands

INFO: converting 'fixup protocol sip udp 5060' to MPF commands

INFO: converting 'fixup protocol xdmcp 177' to MPF commands

Type help or '?' for a list of available commands.

After Upgrade

Output from the PIX Security appliance Version 7.0 image upgrade includes the assumptions in "Before Upgrade" section, with the following changes:

•Interface information is now grouped

•VLAN information appears as a subinterface of the trunk interface

•Fragment information appears for each VLAN

•Inspect statements are not present for rsh and sqlnet

•Connectivity established by the PIX Version 6.3(3) configuration is unchanged

PixVlan> enable

Password:

PixVlan# show run

: Saved

PIX Version 7.0(4)

names

interface Ethernet0

 speed 100

 duplex full

 no nameif

 no security-level

 no ip address

interface Ethernet0.10

 vlan 10

 nameif outside

 security-level 0

 ip address 172.16.1.175 255.255.255.0

interface Ethernet0.20

 vlan 20

 nameif dmz0

 security-level 20

 ip address 192.168.1.175 255.255.255.0

interface Ethernet0.30

 vlan 30

 nameif dmz1

 security-level 30

 ip address 192.168.2.175 255.255.255.0

interface Ethernet1

 speed 100

 duplex full

 no nameif

 no security-level

 no ip address

interface Ethernet1.40

 vlan 40

 nameif dmz2

 security-level 40

 ip address 192.168.3.175 255.255.255.0

interface Ethernet1.50

 vlan 50

 nameif dmz3

 security-level 50

 ip address 192.168.4.175 255.255.255.0

interface Ethernet1.60

 vlan 60

 nameif inside

 security-level 100

 ip address 192.168.6.175 255.255.255.0

interface Ethernet2

 speed 100

 duplex full

 nameif intf2

 security-level 4

 no ip address

interface Ethernet3

 speed 100

 duplex full

 nameif intf3

 security-level 6

 no ip address

interface Ethernet4

 speed 100

 duplex full

 nameif intf4

 security-level 8

 no ip address

interface Ethernet5

 shutdown

 nameif intf5

 security-level 10

 no ip address

interface Ethernet6

 shutdown

 nameif intf6

 security-level 12

 no ip address

interface Ethernet7

 shutdown

 nameif intf7

 security-level 14

 no ip address

enable password 2KFQnbNIdI.2KYOU encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname PixVlan

boot system flash:/image.bin

ftp mode passive

access-list 1 extended permit ip any host 172.16.1.144

pager lines 24

logging enable

logging buffered debugging

mtu outside 1500

mtu dmz2 1500

mtu intf2 1500

mtu intf3 1500

mtu intf4 1500

mtu intf5 1500

mtu intf6 1500

mtu intf7 1500

mtu dmz0 1500

mtu inside 1500

mtu dmz3 1500

mtu dmz1 1500

no failover

monitor-interface intf2

monitor-interface intf3

monitor-interface intf4

monitor-interface intf5

monitor-interface intf6

monitor-interface intf7

asdm history enable

arp timeout 14400

nat-control

global (outside) 1 172.16.1.101-172.16.1.110

nat (inside) 1 0.0.0.0 0.0.0.0

static (dmz2,outside) 172.16.1.144 192.168.3.144 netmask 255.255.255.255

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02 sunrpc 0:10:00

 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00 sip 0:30:00 sip_media 0

:02:00

timeout uauth 0:05:00 absolute

aaa-server TACACS+ protocol tacacs+

aaa-server RADIUS protocol radius

http server enable

http 192.168.4.0 255.255.255.0 dmz3

no snmp-server location

no snmp-server contact

snmp-server community public

snmp-server enable traps snmp

no sysopt connection permit-ipsec

telnet timeout 5

ssh timeout 5

ssh version 1

console timeout 0

class-map inspection_default

 match default-inspection-traffic

policy-map global_policy

 class inspection_default

  inspect dns maximum-length 512

  inspect ftp

  inspect h323 h225

  inspect h323 ras

  inspect http

  inspect netbios

  inspect rtsp

  inspect skinny

  inspect esmtp

  inspect sunrpc

  inspect tftp

  inspect sip

  inspect xdmcp

service-policy global_policy global

Cryptochecksum:8931adafa47b3649c5954e72212043a1

: end

PixVlan#

Upgrading to Security Appliance Version 7.0 with Voice Over IP

Assumptions

When performing an upgrade to PIX Security appliance Version 7.0 using Voice over IP, this configuration example assumes the following (see Figure 4):

•IP phones can be located on any interface (inside, outside, dmz)

•The CallManager is located on the inside interface

•NAT is in use, to handle the addressing

•Fixup SKINNY / 2000 is handling dynamic call traffic

Figure 4 Sample Voice over IP Configuration

Before Upgrade

The following is sample output from the show run command from your current PIX Version 6.3 configuration before upgrading to PIX Security appliance Version 7.0:

Migration# show run

: Saved

 PIX Version 6.3(4)

 interface ethernet0 100full

 interface ethernet1 100full

 interface ethernet2 auto shutdown

 interface ethernet3 auto shutdown

 interface ethernet4 auto shutdown

 interface ethernet5 auto shutdown

 nameif ethernet0 outside security0

 nameif ethernet1 inside security100

 nameif ethernet2 dmz security50

 nameif ethernet3 intf3 security6

 nameif ethernet4 intf4 security8

 nameif ethernet5 intf5 security10

 enable password 8Ry2YjIyt7RRXU24 encrypted

 passwd 2KFQnbNIdI.2KYOU encrypted

 hostname VoipDhcp

 domain-name ciscopix.com

 fixup protocol dns maximum-length 512

 fixup protocol ftp 21

 fixup protocol h323 h225 1720

 fixup protocol h323 ras 1718-1719

 fixup protocol http 80

 <--- More --->

 fixup protocol rsh 514

 fixup protocol rtsp 554

 fixup protocol sip 5060

 fixup protocol sip udp 5060

 fixup protocol skinny 2000

 fixup protocol smtp 25

 fixup protocol sqlnet 1521

 fixup protocol tftp 69

 names

 name 172.16.1.75 Linux

 access-list outside permit udp any host 172.16.1.100 eq tftp

 access-list outside permit tcp any host 172.16.1.100 eq 2000

 access-list dmz permit udp any host 192.168.2.100 eq tftp

 access-list dmz permit tcp any host 192.168.2.100 eq 2000

 pager lines 24

 logging on

 logging trap informational

 logging host inside 192.168.1.99

 icmp permit any outside

 icmp permit any inside

 mtu outside 1500

 mtu inside 1500

 mtu dmz 1500

 mtu intf3 1500

 <--- More --->

 mtu intf4 1500

 mtu intf5 1500

 ip address outside 172.16.1.10 255.255.255.0

 ip address inside 192.168.1.10 255.255.255.0

 ip address dmz 192.168.2.10 255.255.255.0

 no ip address intf3

 no ip address intf4

 no ip address intf5

 ip audit info action alarm

 ip audit attack action alarm

 no failover

 failover timeout 0:00:00

 failover poll 15

 no failover ip address outside

 no failover ip address inside

 no failover ip address dmz

 no failover ip address intf3

 no failover ip address intf4

 no failover ip address intf5

 pdm location 192.168.1.99 255.255.255.255 inside

 pdm history enable

 arp timeout 14400

 global (outside) 1 172.16.1.101-172.16.1.200

 global (dmz) 1 192.168.2.101-192.168.2.200

 <--- More --->

 nat (inside) 1 0.0.0.0 0.0.0.0 0 0

 static (inside,dmz) 192.16.1.100 192.168.1.100 netmask 255.255.255.255 0 0

 static (inside,outside) 172.16.1.100 192.168.1.100 netmask 255.255.255.255 0 0

 access-group outside in interface outside

 access-group dmz in interface dmz

 route outside 0.0.0.0 0.0.0.0 172.16.1.1 1

 timeout xlate 3:00:00

 timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 rpc 0:10:00 h225 1:00:00

 timeout h323 0:05:00 mgcp 0:05:00 sip 0:30:00 sip_media 0:02:00

 timeout uauth 0:05:00 absolute

 aaa-server TACACS+ protocol tacacs+

 aaa-server TACACS+ max-failed-attempts 3

 aaa-server TACACS+ deadtime 10

 aaa-server RADIUS protocol radius

 aaa-server RADIUS max-failed-attempts 3

 aaa-server RADIUS deadtime 10

 aaa-server LOCAL protocol local

 http server enable

 http 0.0.0.0 0.0.0.0 outside

 http 0.0.0.0 0.0.0.0 inside

 no snmp-server location

 no snmp-server contact

 snmp-server community public

 no snmp-server enable traps

 <--- More --->

 floodguard enable

 telnet 192.168.1.0 255.255.255.0 inside

 telnet timeout 5

 ssh timeout 5

 console timeout 0

 dhcpd address 192.168.1.100-192.168.1.102 inside

 dhcpd lease 3600

 dhcpd ping_timeout 750

 dhcpd enable inside

 terminal width 80

 Cryptochecksum:a02cd774d0d9c6a3c5f706afc763aee1

 : end

Upgrade

 VoipDhcp# copy tftp://192.168.1.100/cdisk.7.0(4) flash:image

 copying tftp://192.168.1.100/cdisk.7.0(4) to flash:image


!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!

 Received 5124096 bytes

 Erasing current image

 Writing 5062712 bytes of image


!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

 Image installed

Enter the reload command to begin using the new PIX Security appliance Version 7.0 image, then press Enter at the next prompt to confirm the reload command.

VoipDhcp# reload

 Proceed with reload? [confirm]

Rebooting..ÿ

 CISCO SYSTEMS PIX FIREWALL

 Embedded BIOS Version 4.3.207 01/02/02 16:12:22.73

 Compiled by xxxxxx

 64 MB RAM

 PCI Device Table.

 Bus Dev Func VendID DevID Class              Irq

  00  00  00   8086   7192  Host Bridge

  00  07  00   8086   7110  ISA Bridge

  00  07  01   8086   7111  IDE Controller

  00  07  02   8086   7112  Serial Bus         9

  00  07  03   8086   7113  PCI Bridge

  00  0D  00   8086   1209  Ethernet           11

  00  0E  00   8086   1209  Ethernet           10

  00  11  00   14E4   5823  Co-Processor       11

  00  13  00   8086   B154  PCI-to-PCI Bridge

  01  04  00   8086   1229  Ethernet           11

  01  05  00   8086   1229  Ethernet           10

  01  06  00   8086   1229  Ethernet           9

  01  07  00   8086   1229  Ethernet           5

Cisco Secure PIX Firewall BIOS (4.2) #0: Mon Dec 31 08:34:35 PST 2001

Platform PIX-515E

System Flash=E28F128J3 @ 0xfff00000

Use BREAK or ESC to interrupt flash boot.

Use SPACE to begin flash boot immediately.

Flash boot in 10 seconds.           9 seconds.

 Reading 5059072 bytes of image from flash.

##########################################################################################
##########################################################################################
##########################################################################################
##########################################################################################
##########################################################################################
######

64MB RAM

Total NICs found: 6

mcwa i82559 Ethernet at irq 11  MAC: 0011.937e.0650

mcwa i82559 Ethernet at irq 10  MAC: 0011.937e.064f

mcwa i82559 Ethernet at irq 11  MAC: 000d.88ee.dfa0

mcwa i82559 Ethernet at irq 10  MAC: 000d.88ee.dfa1

mcwa i82559 Ethernet at irq  9  MAC: 000d.88ee.dfa2

mcwa i82559 Ethernet at irq  5  MAC: 000d.88ee.dfa3

BIOS Flash=am29f400b @ 0xd8000

Old file system detected. Attempting to save data in flash

Initializing flashfs...

flashfs[7]: Checking block 0...block number was (-14264)

flashfs[7]: erasing block 0...done.

flashfs[7]: Checking block 1...block number was (12668)

flashfs[7]: erasing block 1...done.

flashfs[7]: Checking block 2...block number was (15104)

flashfs[7]: erasing block 2...done.

flashfs[7]: Checking block 3...block number was (-18577)

flashfs[7]: erasing block 3...done.

flashfs[7]: Checking block 4...block number was (11973)

flashfs[7]: erasing block 4...done.

flashfs[7]: Checking block 5...block number was (-4656)

flashfs[7]: erasing block 5...done.

flashfs[7]: Checking block 6...block number was (-24944)

flashfs[7]: erasing block 6...done.

flashfs[7]: Checking block 7...block number was (23499)

flashfs[7]: erasing block 7...done.

flashfs[7]: Checking block 8...block number was (7137)

flashfs[7]: erasing block 8...done.

flashfs[7]: Checking block 9...block number was (20831)

flashfs[7]: erasing block 9...done.

flashfs[7]: Checking block 10...block number was (6185)

flashfs[7]: erasing block 10...done.

flashfs[7]: Checking block 11...block number was (25501)

flashfs[7]: erasing block 11...done.

flashfs[7]: Checking block 12...block number was (-5607)

flashfs[7]: erasing block 12...done.

flashfs[7]: Checking block 13...block number was (27450)

flashfs[7]: erasing block 13...done.

flashfs[7]: Checking block 14...block number was (-6772)

flashfs[7]: erasing block 14...done.

flashfs[7]: Checking block 15...block number was (-10286)

flashfs[7]: erasing block 15...done.

flashfs[7]: Checking block 16...block number was (2597)

flashfs[7]: erasing block 16...done.

flashfs[7]: Checking block 17...block number was (30610)

flashfs[7]: erasing block 17...done.

flashfs[7]: Checking block 18...block number was (20305)

flashfs[7]: erasing block 18...done.

flashfs[7]: Checking block 19...block number was (-29480)

flashfs[7]: erasing block 19...done.

flashfs[7]: Checking block 20...block number was (3742)

flashfs[7]: erasing block 20...done.

flashfs[7]: Checking block 21...block number was (10580)

flashfs[7]: erasing block 21...done.

flashfs[7]: Checking block 22...block number was (-2896)

flashfs[7]: erasing block 22...done.

flashfs[7]: Checking block 23...block number was (-812)

flashfs[7]: erasing block 23...done.

flashfs[7]: Checking block 24...block number was (23019)

flashfs[7]: erasing block 24...done.

flashfs[7]: Checking block 25...block number was (-32643)

flashfs[7]: erasing block 25...done.

flashfs[7]: Checking block 26...block number was (25350)

flashfs[7]: erasing block 26...done.

flashfs[7]: Checking block 27...block number was (-4434)

flashfs[7]: erasing block 27...done.

flashfs[7]: Checking block 28...block number was (-25787)

flashfs[7]: erasing block 28...done.

flashfs[7]: Checking block 29...block number was (8591)

flashfs[7]: erasing block 29...done.

flashfs[7]: Checking block 30...block number was (-25606)

flashfs[7]: erasing block 30...done.

flashfs[7]: Checking block 31...block number was (-26665)

flashfs[7]: erasing block 31...done.

flashfs[7]: Checking block 32...block number was (12429)

flashfs[7]: erasing block 32...done.

flashfs[7]: Checking block 33...block number was (18421)

flashfs[7]: erasing block 33...done.

flashfs[7]: Checking block 34...block number was (29655)

flashfs[7]: erasing block 34...done.

flashfs[7]: Checking block 35...block number was (-5147)

flashfs[7]: erasing block 35...done.

flashfs[7]: Checking block 36...block number was (21867)

flashfs[7]: erasing block 36...done.

flashfs[7]: Checking block 37...block number was (29271)

flashfs[7]: erasing block 37...done.

flashfs[7]: Checking block 125...block number was (0)

flashfs[7]: erasing block 125...done.

flashfs[7]: inconsistent sector list, fileid 238, parent_fileid 0

flashfs[7]: 230 files, 11 directories

flashfs[7]: 0 orphaned files, 0 orphaned directories

flashfs[7]: Total bytes: 16128000

flashfs[7]: Bytes used: 8067584

flashfs[7]: Bytes available: 8060416

flashfs[7]: flashfs fsck took 53 seconds.

flashfs[7]: Initialization complete.

Saving the configuration

Saving a copy of old configuration as downgrade.cfg

Saved the activation key from the flash image

Saved the default firewall mode (single) to flash

Saving image file as image.bin

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Upgrade process complete

Need to burn loader....

Erasing sector 0...[OK]

Burning sector 0...[OK]

Licensed features for this platform:

Maximum Physical Interfaces : 6

Maximum VLANs               : 25

Inside Hosts                : Unlimited

Failover                    : Active/Active

VPN-DES                     : Enabled

VPN-3DES-AES                : Enabled

Cut-through Proxy           : Enabled

Guards                      : Enabled

URL Filtering               : Enabled

Security Contexts           : 2

GTP/GPRS                    : Disabled

VPN Peers                   : Unlimited

This platform has an Unrestricted (UR) license.

Encryption hardware device : VAC+ (Crypto5823 revision 0x1)

  --------------------------------------------------------------------------

                                 .            .

                                 |            |

                                |||          |||

                              .|| ||.      .|| ||.

                           .:||| | |||:..:||| | |||:.

                            C i s c o  S y s t e m s

  --------------------------------------------------------------------------

Cisco PIX Security Appliance Software Version 7.0(4)

  ****************************** Warning *******************************

  This product contains cryptographic features and is

  subject to United States and local country laws

  governing, import, export, transfer, and use.

  Delivery of Cisco cryptographic products does not

  imply third-party authority to import, export,

  distribute, or use encryption. Importers, exporters,

  distributors and users are responsible for compliance

  with U.S. and local country laws. By using this

  product you agree to comply with applicable laws and

  regulations. If you are unable to comply with U.S.

  and local laws, return the enclosed items immediately.

  A summary of U.S. laws governing Cisco cryptographic

  products may be found at:

  http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

  If you require further assistance please contact us by

  sending email to export@cisco.com.

  ******************************* Warning *******************************

Copyright (c) 1996-2005 by Cisco Systems, Inc.

                Restricted Rights Legend

Use, duplication, or disclosure by the Government is

subject to restrictions as set forth in subparagraph

(c) of the Commercial Computer Software - Restricted

Rights clause at FAR sec. 52.227-19 and subparagraph

(c) (1) (ii) of the Rights in Technical Data and Computer

Software clause at DFARS sec. 252.227-7013.

                Cisco Systems, Inc.

                170 West Tasman Drive

                San Jose, California 95134-1706

Cryptochecksum(unchanged): a02cd774 d0d9c6a3 c5f706af c763aee1

INFO: converting 'fixup protocol dns maximum-length 512' to MPF commands

INFO: converting 'fixup protocol ftp 21' to MPF commands

INFO: converting 'fixup protocol h323_h225 1720' to MPF commands

INFO: converting 'fixup protocol h323_ras 1718-1719' to MPF commands

INFO: converting 'fixup protocol http 80' to MPF commands

INFO: converting 'fixup protocol netbios 137-138' to MPF commands

INFO: converting 'fixup protocol rsh 514' to MPF commands

INFO: converting 'fixup protocol rtsp 554' to MPF commands

INFO: converting 'fixup protocol sip 5060' to MPF commands

INFO: converting 'fixup protocol skinny 2000' to MPF commands

INFO: converting 'fixup protocol smtp 25' to MPF commands

INFO: converting 'fixup protocol sqlnet 1521' to MPF commands

INFO: converting 'fixup protocol sunrpc_udp 111' to MPF commands

INFO: converting 'fixup protocol tftp 69' to MPF commands

INFO: converting 'fixup protocol sip udp 5060' to MPF commands

INFO: converting 'fixup protocol xdmcp 177' to MPF commands

Type help or '?' for a list of available commands.

After Upgrade

VoipDhcp> enable

Password:

VoipDhcp# show run

 : Saved

 PIX Version 7.0(4)

 names

 name 172.16.1.75 Linux

 interface Ethernet0

  speed 100

  duplex full

  nameif outside

  security-level 0

  ip address 172.16.1.10 255.255.255.0

 interface Ethernet1

  speed 100

  duplex full

  nameif inside

  security-level 100

  ip address 192.168.1.10 255.255.255.0

 interface Ethernet2

  shutdown

  nameif dmz

  security-level 50

  ip address 192.168.2.10 255.255.255.0

 <--- More --->

 interface Ethernet3

  shutdown

  nameif intf3

  security-level 6

  no ip address

 interface Ethernet4

  shutdown

  nameif intf4

  security-level 8

  no ip address

 interface Ethernet5

  shutdown

  nameif intf5

  security-level 10

  no ip address

 enable password 8Ry2YjIyt7RRXU24 encrypted

 passwd 2KFQnbNIdI.2KYOU encrypted

 hostname VoipDhcp

 domain-name ciscopix.com

 boot system flash:/image.bin

 <--- More --->

 ftp mode passive

 access-list outside extended permit udp any host 172.16.1.100 eq tftp

 access-list outside extended permit tcp any host 172.16.1.100 eq 2000

 access-list dmz extended permit udp any host 192.168.2.100 eq tftp

 access-list dmz extended permit tcp any host 192.168.2.100 eq 2000

 pager lines 24

 logging enable

 logging trap informational

 logging host inside 192.168.1.99

 mtu outside 1500

 mtu inside 1500

 mtu dmz 1500

 mtu intf3 1500

 mtu intf4 1500

 mtu intf5 1500

 no failover

 monitor-interface outside

 monitor-interface inside

 monitor-interface dmz

 monitor-interface intf3

 monitor-interface intf4

 monitor-interface intf5

 icmp permit any outside

 icmp permit any inside

 <--- More --->

 asdm history enable

 arp timeout 14400

 nat-control

 global (outside) 1 172.16.1.101-172.16.1.200

 global (dmz) 1 192.168.2.101-192.168.2.200

 nat (inside) 1 0.0.0.0 0.0.0.0

 static (inside,dmz) 192.16.1.100 192.168.1.100 netmask 255.255.255.255

 static (inside,outside) 172.16.1.100 192.168.1.100 netmask 255.255.255.255

 access-group outside in interface outside

 access-group dmz in interface dmz

 route outside 0.0.0.0 0.0.0.0 172.16.1.1 1

 timeout xlate 3:00:00

 timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02 sunrpc 0:10:00 h323
0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00 sip 0:30:00 sip_media 0:02:00

 timeout uauth 0:05:00 absolute

 aaa-server TACACS+ protocol tacacs+

 aaa-server RADIUS protocol radius

 http server enable

 http 0.0.0.0 0.0.0.0 outside

 http 0.0.0.0 0.0.0.0 inside

 no snmp-server location

 no snmp-server contact

 snmp-server community public

 snmp-server enable traps snmp

 no sysopt connection permit-ipsec

 <--- More --->

 telnet 192.168.1.0 255.255.255.0 inside

 telnet timeout 5

 ssh timeout 5

 ssh version 1

 console timeout 0

 dhcpd address 192.168.1.100-192.168.1.102 inside

 dhcpd lease 3600

 dhcpd ping_timeout 750

 dhcpd enable inside

 class-map inspection_default

  match default-inspection-traffic

 policy-map global_policy

  class inspection_default

   inspect dns maximum-length 512

   inspect ftp

   inspect h323 h225

   inspect h323 ras

   inspect http

   inspect netbios

   inspect rsh

   inspect rtsp

 <--- More --->

   inspect skinny

   inspect esmtp

   inspect sqlnet

   inspect sunrpc

   inspect tftp

   inspect sip

   inspect xdmcp

 service-policy global_policy global

 Cryptochecksum:a02cd774d0d9c6a3c5f706afc763aee1

 : end

 VoipDhcp#

Upgrading to Security Appliance Version 7.0 with Authentication

Assumptions

When performing an upgrade to PIX Security appliance Version 7.0 with authentication, this configuration example assumes the following (see Figure 5):

•PIX with 3 interfaces

•Static inbound interfaces with a local and/or external AAA server

•No NAT

•Several ACLs with a logging option

Figure 5 Sample Authentication Configuration

Before Upgrade

The following is sample output from the show run command from your current PIX Version 6.3 configuration before upgrading to PIX Security appliance Version 7.0:

auth# show run

: Saved

PIX Version 6.3(4)

interface ethernet0 auto

interface ethernet1 auto

interface ethernet2 auto

interface ethernet3 100full shutdown

interface ethernet4 100full shutdown

interface ethernet5 auto shutdown

nameif ethernet0 outside security0

nameif ethernet1 inside security100

nameif ethernet2 dmz security20

nameif ethernet3 intf3 security6

nameif ethernet4 intf4 security8

nameif ethernet5 intf5 security10

enable password 8Ry2YjIyt7RRXU24 encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname auth

fixup protocol dns maximum-length 512

fixup protocol ftp 21

fixup protocol h323 h225 1720

fixup protocol h323 ras 1718-1719

fixup protocol http 80

fixup protocol rsh 514

fixup protocol rtsp 554

fixup protocol sip 5060

fixup protocol sip udp 5060

fixup protocol skinny 2000

fixup protocol smtp 25

fixup protocol sqlnet 1521

fixup protocol tftp 69

names

access-list 110 permit ip any host 172.16.1.168 log 7 interval 1

pager lines 24

mtu outside 1500

mtu inside 1500

mtu dmz 1500

mtu intf3 1500

mtu intf4 1500

mtu intf5 1500

ip address outside 172.16.1.167 255.255.255.0

ip address inside 192.168.1.167 255.255.255.0

ip address dmz 192.168.2.1 255.255.255.0

no ip address intf3

no ip address intf4

no ip address intf5

ip audit info action alarm

ip audit attack action alarm

no failover

failover timeout 0:00:00

failover poll 15

no failover ip address outside

no failover ip address inside

no failover ip address dmz

no failover ip address intf3

no failover ip address intf4

no failover ip address intf5

pdm history enable

arp timeout 14400

global (outside) 1 interface

nat (inside) 1 0.0.0.0 0.0.0.0 0 0

static (inside,outside) 172.16.1.168 192.168.1.100 netmask 255.255.255.255 0 0

access-group 110 in interface outside

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 rpc 0:10:00 h225 1:00:00

timeout h323 0:05:00 mgcp 0:05:00 sip 0:30:00 sip_media 0:02:00

timeout uauth 0:05:00 absolute

aaa-server TACACS+ protocol tacacs+

aaa-server TACACS+ max-failed-attempts 3

aaa-server TACACS+ deadtime 10

aaa-server RADIUS protocol radius

aaa-server RADIUS max-failed-attempts 3

aaa-server RADIUS deadtime 10

aaa-server LOCAL protocol local

aaa-server acs32 protocol tacacs+

aaa-server acs32 max-failed-attempts 3

aaa-server acs32 deadtime 10

aaa-server acs32 (dmz) host 192.168.2.200 cisco123 timeout 5

aaa authentication include telnet outside 192.168.1.100 255.255.255.255 0.0.0.0

0.0.0.0 acs32

no snmp-server location

no snmp-server contact

snmp-server community public

no snmp-server enable traps

floodguard enable

telnet timeout 5

ssh timeout 5

console timeout 0

username cisco password tLgC3MrTDBA//0RQ encrypted privilege 15

terminal width 80

Cryptochecksum:2c91baf69c09453693157eb911aa842e

: end

Upgrade

auth# copy tftp://192.168.1.100/cdisk.7.0(4) flash:image

copying tftp://192.168.1.100/cdisk.7.0(4) to flash:image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Received 5124096 bytes

Erasing current image

Writing 5062712 bytes of image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Image installed

Enter the reload command to begin using the new PIX Security appliance Version 7.0 image, then press Enter at the next prompt to confirm the reload command.

auth# reload

Proceed with reload? [confirm]

Rebooting..ÿ

CISCO SYSTEMS PIX FIREWALL

Embedded BIOS Version 4.3.207 01/02/02 16:12:22.73

Compiled by xxxxxx

64 MB RAM

PCI Device Table.

Bus Dev Func VendID DevID Class              Irq

 00  00  00   8086   7192  Host Bridge

 00  07  00   8086   7110  ISA Bridge

 00  07  01   8086   7111  IDE Controller

 00  07  02   8086   7112  Serial Bus         9

 00  07  03   8086   7113  PCI Bridge

 00  0D  00   8086   1209  Ethernet           11

 00  0E  00   8086   1209  Ethernet           10

 00  11  00   14E4   5823  Co-Processor       11

 00  13  00   8086   B154  PCI-to-PCI Bridge

 01  04  00   8086   1229  Ethernet           11

 01  05  00   8086   1229  Ethernet           10

 01  06  00   8086   1229  Ethernet           9

 01  07  00   8086   1229  Ethernet           5

Cisco Secure PIX Firewall BIOS (4.2) #0: Mon Dec 31 08:34:35 PST 2001

Platform PIX-515E

System Flash=E28F128J3 @ 0xfff00000

Use BREAK or ESC to interrupt flash boot.

Use SPACE to begin flash boot immediately.

Reading 5059072 bytes of image from flash.

################################################################################

################################################################################

################################################################################

################################################################################

################################################################################

########################################################

64MB RAM

Total NICs found: 6

mcwa i82559 Ethernet at irq 11  MAC: 0011.937e.0650

mcwa i82559 Ethernet at irq 10  MAC: 0011.937e.064f

mcwa i82559 Ethernet at irq 11  MAC: 000d.88ee.dfa0

mcwa i82559 Ethernet at irq 10  MAC: 000d.88ee.dfa1

mcwa i82559 Ethernet at irq  9  MAC: 000d.88ee.dfa2

mcwa i82559 Ethernet at irq  5  MAC: 000d.88ee.dfa3

BIOS Flash=am29f400b @ 0xd8000

Old file system detected. Attempting to save data in flash

Initializing flashfs...

flashfs[7]: Checking block 0...block number was (-14264)

flashfs[7]: erasing block 0...done.

flashfs[7]: Checking block 1...block number was (12668)

flashfs[7]: erasing block 1...done.

flashfs[7]: Checking block 2...block number was (15104)

flashfs[7]: erasing block 2...done.

flashfs[7]: Checking block 3...block number was (-18577)

flashfs[7]: erasing block 3...done.

flashfs[7]: Checking block 4...block number was (11973)

flashfs[7]: erasing block 4...done.

flashfs[7]: Checking block 5...block number was (-4656)

flashfs[7]: erasing block 5...done.

flashfs[7]: Checking block 6...block number was (-24944)

flashfs[7]: erasing block 6...done.

flashfs[7]: Checking block 7...block number was (23499)

flashfs[7]: erasing block 7...done.

flashfs[7]: Checking block 8...block number was (7137)

flashfs[7]: erasing block 8...done.

flashfs[7]: Checking block 9...block number was (20831)

flashfs[7]: erasing block 9...done.

flashfs[7]: Checking block 10...block number was (6185)

flashfs[7]: erasing block 10...done.

flashfs[7]: Checking block 11...block number was (25501)

flashfs[7]: erasing block 11...done.

flashfs[7]: Checking block 12...block number was (-5607)

flashfs[7]: erasing block 12...done.

flashfs[7]: Checking block 13...block number was (27450)

flashfs[7]: erasing block 13...done.

flashfs[7]: Checking block 14...block number was (-6772)

flashfs[7]: erasing block 14...done.

flashfs[7]: Checking block 15...block number was (-10286)

flashfs[7]: erasing block 15...done.

flashfs[7]: Checking block 16...block number was (2597)

flashfs[7]: erasing block 16...done.

flashfs[7]: Checking block 17...block number was (30610)

flashfs[7]: erasing block 17...done.

flashfs[7]: Checking block 18...block number was (20305)

flashfs[7]: erasing block 18...done.

flashfs[7]: Checking block 19...block number was (-29480)

flashfs[7]: erasing block 19...done.

flashfs[7]: Checking block 20...block number was (3742)

flashfs[7]: erasing block 20...done.

flashfs[7]: Checking block 21...block number was (10580)

flashfs[7]: erasing block 21...done.

flashfs[7]: Checking block 22...block number was (-2896)

flashfs[7]: erasing block 22...done.

flashfs[7]: Checking block 23...block number was (-812)

flashfs[7]: erasing block 23...done.

flashfs[7]: Checking block 24...block number was (23019)

flashfs[7]: erasing block 24...done.

flashfs[7]: Checking block 25...block number was (-32643)

flashfs[7]: erasing block 25...done.

flashfs[7]: Checking block 26...block number was (25350)

flashfs[7]: erasing block 26...done.

flashfs[7]: Checking block 27...block number was (-4434)

flashfs[7]: erasing block 27...done.

flashfs[7]: Checking block 28...block number was (-25787)

flashfs[7]: erasing block 28...done.

flashfs[7]: Checking block 29...block number was (8591)

flashfs[7]: erasing block 29...done.

flashfs[7]: Checking block 30...block number was (-25606)

flashfs[7]: erasing block 30...done.

flashfs[7]: Checking block 31...block number was (-26665)

flashfs[7]: erasing block 31...done.

flashfs[7]: Checking block 32...block number was (12429)

flashfs[7]: erasing block 32...done.

flashfs[7]: Checking block 33...block number was (18421)

flashfs[7]: erasing block 33...done.

flashfs[7]: Checking block 34...block number was (29655)

flashfs[7]: erasing block 34...done.

flashfs[7]: Checking block 35...block number was (-5147)

flashfs[7]: erasing block 35...done.

flashfs[7]: Checking block 36...block number was (21867)

flashfs[7]: erasing block 36...done.

flashfs[7]: Checking block 37...block number was (29271)

flashfs[7]: erasing block 37...done.

flashfs[7]: Checking block 125...block number was (0)

flashfs[7]: erasing block 125...done.

flashfs[7]: inconsistent sector list, fileid 240, parent_fileid 0

flashfs[7]: 231 files, 11 directories

flashfs[7]: 0 orphaned files, 0 orphaned directories

flashfs[7]: Total bytes: 16128000

flashfs[7]: Bytes used: 8274944

flashfs[7]: Bytes available: 7853056

flashfs[7]: flashfs fsck took 53 seconds.

flashfs[7]: Initialization complete.

Saving the configuration

Saving a copy of old configuration as downgrade.cfg

Saved the activation key from the flash image

Saved the default firewall mode (single) to flash

Saving image file as image.bin

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Upgrade process complete

Need to burn loader....

Erasing sector 0...[OK]

Burning sector 0...[OK]

Licensed features for this platform:

Maximum Physical Interfaces : 6

Maximum VLANs               : 25

Inside Hosts                : Unlimited

Failover                    : Active/Active

VPN-DES                     : Enabled

VPN-3DES-AES                : Enabled

Cut-through Proxy           : Enabled

Guards                      : Enabled

URL Filtering               : Enabled

Security Contexts           : 2

GTP/GPRS                    : Disabled

VPN Peers                   : Unlimited

This platform has an Unrestricted (UR) license.

Encryption hardware device : VAC+ (Crypto5823 revision 0x1)

  --------------------------------------------------------------------------

                                 .            .

                                 |            |

                                |||          |||

                              .|| ||.      .|| ||.

                           .:||| | |||:..:||| | |||:.

                            C i s c o  S y s t e m s

  --------------------------------------------------------------------------

Cisco PIX Security Appliance Software Version 7.0(4)

  ****************************** Warning *******************************

  This product contains cryptographic features and is

  subject to United States and local country laws

  governing, import, export, transfer, and use.

  Delivery of Cisco cryptographic products does not

  imply third-party authority to import, export,

  distribute, or use encryption. Importers, exporters,

  distributors and users are responsible for compliance

  with U.S. and local country laws. By using this

  product you agree to comply with applicable laws and

  regulations. If you are unable to comply with U.S.

  and local laws, return the enclosed items immediately.

  A summary of U.S. laws governing Cisco cryptographic

  products may be found at:

  http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

  If you require further assistance please contact us by

  sending email to export@cisco.com.

  ******************************* Warning *******************************

Copyright (c) 1996-2005 by Cisco Systems, Inc.

                Restricted Rights Legend

Use, duplication, or disclosure by the Government is

subject to restrictions as set forth in subparagraph

(c) of the Commercial Computer Software - Restricted

Rights clause at FAR sec. 52.227-19 and subparagraph

(c) (1) (ii) of the Rights in Technical Data and Computer

Software clause at DFARS sec. 252.227-7013.

                Cisco Systems, Inc.

                170 West Tasman Drive

                San Jose, California 95134-1706

Cryptochecksum(unchanged): 2c91baf6 9c094536 93157eb9 11aa842e

INFO: converting 'fixup protocol dns maximum-length 512' to MPF commands

INFO: converting 'fixup protocol ftp 21' to MPF commands

INFO: converting 'fixup protocol h323_h225 1720' to MPF commands

INFO: converting 'fixup protocol h323_ras 1718-1719' to MPF commands

INFO: converting 'fixup protocol http 80' to MPF commands

INFO: converting 'fixup protocol netbios 137-138' to MPF commands

INFO: converting 'fixup protocol rsh 514' to MPF commands

INFO: converting 'fixup protocol rtsp 554' to MPF commands

INFO: converting 'fixup protocol sip 5060' to MPF commands

INFO: converting 'fixup protocol skinny 2000' to MPF commands

INFO: converting 'fixup protocol smtp 25' to MPF commands

INFO: converting 'fixup protocol sqlnet 1521' to MPF commands

INFO: converting 'fixup protocol sunrpc_udp 111' to MPF commands

INFO: converting 'fixup protocol tftp 69' to MPF commands

INFO: converting 'fixup protocol sip udp 5060' to MPF commands

INFO: converting 'fixup protocol xdmcp 177' to MPF commands

Type help or '?' for a list of available commands.

After Upgrade

auth> enable

Password:

auth# show run

: Saved

PIX Version 7.0(4)

names

interface Ethernet0

 nameif outside

 security-level 0

 ip address 172.16.1.167 255.255.255.0

interface Ethernet1

 nameif inside

 security-level 100

 ip address 192.168.1.167 255.255.255.0

interface Ethernet2

 nameif dmz

 security-level 20

 ip address 192.168.2.1 255.255.255.0

interface Ethernet3

 speed 100

 duplex full

 shutdown

 nameif intf3

 security-level 6

 no ip address

interface Ethernet4

 speed 100

 duplex full

 shutdown

 nameif intf4

 security-level 8

 no ip address

interface Ethernet5

 shutdown

 nameif intf5

 security-level 10

 no ip address

enable password 8Ry2YjIyt7RRXU24 encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname auth

boot system flash:/image.bin

ftp mode passive

access-list 110 extended permit ip any host 172.16.1.168 log debugging interval

pager lines 24

mtu outside 1500

mtu inside 1500

mtu dmz 1500

mtu intf3 1500

mtu intf4 1500

mtu intf5 1500

no failover

monitor-interface outside

monitor-interface inside

monitor-interface dmz

monitor-interface intf3

monitor-interface intf4

monitor-interface intf5

asdm history enable

arp timeout 14400

nat-control

global (outside) 1 interface

nat (inside) 1 0.0.0.0 0.0.0.0

static (inside,outside) 172.16.1.168 192.168.1.100 netmask 255.255.255.255

access-group 110 in interface outside

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02 sunrpc 0:10:00

 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00 sip 0:30:00 sip_media 0

:02:00

timeout uauth 0:05:00 absolute

aaa-server TACACS+ protocol tacacs+

aaa-server RADIUS protocol radius

aaa-server acs32 protocol tacacs+

aaa-server acs32 (dmz) host 192.168.2.200

 timeout 5

 key cisco123

username cisco password tLgC3MrTDBA//0RQ encrypted privilege 15

aaa authentication include telnet outside 192.168.1.100 255.255.255.255 0.0.0.0 0.0.0.0
acs32

no snmp-server location

no snmp-server contact

snmp-server community public

snmp-server enable traps snmp

no sysopt connection permit-ipsec

telnet timeout 5

ssh timeout 5

ssh version 1

console timeout 0

class-map inspection_default

 match default-inspection-traffic

policy-map global_policy

 class inspection_default

  inspect dns maximum-length 512

  inspect ftp

  inspect h323 h225

  inspect h323 ras

  inspect http

  inspect netbios

  inspect rsh

  inspect rtsp

  inspect skinny

  inspect esmtp

  inspect sqlnet

  inspect sunrpc

  inspect tftp

  inspect sip

  inspect xdmcp

service-policy global_policy global

Cryptochecksum:2c91baf69c09453693157eb911aa842e

: end

auth#

Upgrading to Security Appliance Version 7.0 with Active/Standby Failover

Assumptions

When performing an upgrade to PIX Security appliance Version 7.0 with Active/Standby Failover, this configuration example assumes the following (see Figure 6):

•Two PIX 525 units (4 interfaces each)

•LAN-based and Stateful Failover

•A failover configuration that has completed initialization and is ready for end user configuration (on the primary)

Note The PIX Security appliance Version 7.0 supports use of a crossover or a serial cable for Active/Active failover configurations.

Figure 6 Sample Active/Standby Failover Configuration

Overview

An overview of the upgrade procedure to PIX with an Active/Standby failover configuration follows:

•With a running failover security appliance configuration, log on to the Active PIX Version 6.3

–Copy TFTP to Flash memory

–Reboot

–Enter either the show version or show run command to display the configuration

•The Standby PIX takes over at reboot; the Active PIX is unavailable

•The Active PIX reboots, converts to the Standby PIX, and restarts; the Standby PIX is still processing traffic

•Log on to the Standby PIX

–Copy TFTP to Flash memory

–Reboot (all connections are dropped)

–Enter either the show version or show run command to display the configuration

•The Active PIX takes over at reboot of the Standby PIX; this is not a failover because each PIX unit is running a different Cisco IOS software release

•The Standby PIX reboots, converts to the Active PIX, and restarts:

–The Standby PIX synchronizes with the Active PIX, reestablishing the failover configuration

Alternatively, you can power down the Standby PIX at the same time that you reboot the Active PIX. Then, restart the Standby PIX after the Active PIX begins passing traffic, and perform the upgrade to PIX Security appliance Version 7.0. Preload each PIX, using the copy tftp command, then reload the Active PIX. When the Active PIX is almost up, reload the Standby PIX. This minimizes down time.

Upgrading the Active PIX

Enter the show run command to display output from your current PIX Version 6.3 configuration on your Active PIX device before upgrading the device to PIX Security appliance Version 7.0. Output from the PIX Version 6.3 configuration follows:

failover# show run

: Saved

PIX Version 6.3(4)

interface ethernet0 100full

interface ethernet1 100full

interface ethernet2 100full

interface ethernet3 100full

interface ethernet4 auto shutdown

interface ethernet5 auto shutdown

nameif ethernet0 outside security0

nameif ethernet1 inside security100

nameif ethernet2 fo security10

nameif ethernet3 stfo security15

nameif ethernet4 intf4 security8

nameif ethernet5 intf5 security10

enable password 8Ry2YjIyt7RRXU24 encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname failover

fixup protocol dns maximum-length 512

fixup protocol ftp 21

fixup protocol h323 h225 1720

fixup protocol h323 ras 1718-1719

fixup protocol http 80

fixup protocol ils 389

fixup protocol rsh 514

fixup protocol rtsp 554

fixup protocol sip 5060

fixup protocol sip udp 5060

fixup protocol skinny 2000

fixup protocol smtp 25

fixup protocol sqlnet 1521

fixup protocol tftp 69

names

pager lines 24

mtu outside 1500

mtu inside 1500

mtu fo 1500

mtu stfo 1500

mtu intf4 1500

mtu intf5 1500

ip address outside 172.16.1.2 255.255.255.0

ip address inside 192.168.1.2 255.255.255.0

ip address fo 1.1.1.1 255.255.255.0

ip address stfo 2.2.2.1 255.255.255.0

no ip address intf4

no ip address intf5

ip audit info action alarm

ip audit attack action alarm

failover

failover timeout 0:00:00

failover poll 15

failover ip address outside 172.16.1.3

failover ip address inside 192.168.1.3

failover ip address fo 1.1.1.2

failover ip address stfo 2.2.2.2

no failover ip address intf4

no failover ip address intf5

failover link stfo

failover lan unit primary

failover lan interface fo

failover lan key ********

failover lan enable

pdm history enable

arp timeout 14400

global (outside) 1 interface

nat (inside) 1 0.0.0.0 0.0.0.0 0 0

route outside 0.0.0.0 0.0.0.0 172.16.1.1 1

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 rpc 0:10:00 h225 1:00:00

timeout h323 0:05:00 mgcp 0:05:00 sip 0:30:00 sip_media 0:02:00

timeout uauth 0:05:00 absolute

aaa-server TACACS+ protocol tacacs+

aaa-server TACACS+ max-failed-attempts 3

aaa-server TACACS+ deadtime 10

aaa-server RADIUS protocol radius

aaa-server RADIUS max-failed-attempts 3

aaa-server RADIUS deadtime 10

aaa-server LOCAL protocol local

no snmp-server location

no snmp-server contact

snmp-server community public

no snmp-server enable traps

floodguard enable

telnet timeout 5

ssh timeout 5

console timeout 0

terminal width 80

Cryptochecksum:75b1c49e64e3bef7d24326f49b428776

: end

Enter the show failover (sho fail) command to show the failover operational statistics.

failover# show failover

Failover On

Serial Failover Cable status: My side not connected

Reconnect timeout 0:00:00

Poll frequency 15 seconds

Last Failover at: 15:02:59 UTC Sun Mar 6 2005

        This host: Primary - Active

                Active time: 285 (sec)

                Interface outside (172.16.1.2): Normal

                Interface inside (192.168.1.2): Normal

                Interface stfo (2.2.2.1): Normal

                Interface intf4 (0.0.0.0): Link Down (Shutdown)

                Interface intf5 (0.0.0.0): Link Down (Shutdown)

        Other host: Secondary - Standby

                Active time: 0 (sec)

                Interface outside (172.16.1.3): Normal

                Interface inside (192.168.1.3): Normal

                Interface stfo (2.2.2.2): Normal

                Interface intf4 (0.0.0.0): Link Down (Shutdown)

                Interface intf5 (0.0.0.0): Link Down (Shutdown)

Stateful Failover Logical Update Statistics

        Link : stfo

        Stateful Obj    xmit       xerr       rcv        rerr

        General         32         0          31         0

        sys cmd         30         0          31         0

        up time         2          0          0          0

        xlate           0          0          0          0

        tcp conn        0          0          0          0

        udp conn        0          0          0          0

        ARP tbl         0          0          0          0

        RIP Tbl         0          0          0          0

        Logical Update Queue Information

                        Cur     Max     Total

        Recv Q:         0       1       33

        Xmit Q:         0       1       34

LAN-based Failover is Active

        interface fo (1.1.1.1): Normal, peer (1.1.1.2): Normal

Enter the copy tftp://<ip address>/pix704.bin.<image>flash:image command to upgrade to the new image on the Active PIX device. The following output reflects the upgrade procedure from your current PIX Version 6.3 configuration to PIX Security appliance Version 7.0:

failover# copy tftp://192.168.1.100/cdisk.7.0(4) flash:image

copying tftp://192.168.1.100/cdisk.7.0(4) to flash:image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Received 5124096 bytes

Erasing current image

Writing 5062712 bytes of image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Image installed

Enter the reload command to begin using the new PIX Security appliance Version 7.0 image on the Active PIX device, then press Enter at the next prompt to confirm the reload command.

failover# reload

Proceed with reload? [confirm]

Rebooting..ÿ

CISCO SYSTEMS PIX FIREWALL

Embedded BIOS Version 4.3.207 01/02/02 16:12:22.73

Compiled by xxxxxx

64 MB RAM

PCI Device Table.

Bus Dev Func VendID DevID Class              Irq

 00  00  00   8086   7192  Host Bridge

 00  07  00   8086   7110  ISA Bridge

 00  07  01   8086   7111  IDE Controller

 00  07  02   8086   7112  Serial Bus         9

 00  07  03   8086   7113  PCI Bridge

 00  0D  00   8086   1209  Ethernet           11

 00  0E  00   8086   1209  Ethernet           10

 00  11  00   14E4   5823  Co-Processor       11

 00  13  00   8086   B154  PCI-to-PCI Bridge

 01  04  00   8086   1229  Ethernet           11

 01  05  00   8086   1229  Ethernet           10

 01  06  00   8086   1229  Ethernet           9

 01  07  00   8086   1229  Ethernet           5

Cisco Secure PIX Firewall BIOS (4.2) #0: Mon Dec 31 08:34:35 PST 2001

Platform PIX-515E

System Flash=E28F128J3 @ 0xfff00000

Use BREAK or ESC to interrupt flash boot.

Use SPACE to begin flash boot immediately.

Reading 5059072 bytes of image from flash.

################################################################################

################################################################################

################################################################################

################################################################################

################################################################################

########################################################

64MB RAM

Total NICs found: 6

mcwa i82559 Ethernet at irq 11  MAC: 0011.937e.0650

mcwa i82559 Ethernet at irq 10  MAC: 0011.937e.064f

mcwa i82559 Ethernet at irq 11  MAC: 000d.88ee.dfa0

mcwa i82559 Ethernet at irq 10  MAC: 000d.88ee.dfa1

mcwa i82559 Ethernet at irq  9  MAC: 000d.88ee.dfa2

mcwa i82559 Ethernet at irq  5  MAC: 000d.88ee.dfa3

BIOS Flash=am29f400b @ 0xd8000

Old file system detected. Attempting to save data in flash

Initializing flashfs...

flashfs[7]: Checking block 0...block number was (-14264)

flashfs[7]: erasing block 0...done.

flashfs[7]: Checking block 1...block number was (12668)

flashfs[7]: erasing block 1...done.

flashfs[7]: Checking block 2...block number was (15104)

flashfs[7]: erasing block 2...done.

flashfs[7]: Checking block 3...block number was (-18577)

flashfs[7]: erasing block 3...done.

flashfs[7]: Checking block 4...block number was (11973)

flashfs[7]: erasing block 4...done.

flashfs[7]: Checking block 5...block number was (-4656)

flashfs[7]: erasing block 5...done.

flashfs[7]: Checking block 6...block number was (-24944)

flashfs[7]: erasing block 6...done.

flashfs[7]: Checking block 7...block number was (23499)

flashfs[7]: erasing block 7...done.

flashfs[7]: Checking block 8...block number was (7137)

flashfs[7]: erasing block 8...done.

flashfs[7]: Checking block 9...block number was (20831)

flashfs[7]: erasing block 9...done.

flashfs[7]: Checking block 10...block number was (6185)

flashfs[7]: erasing block 10...done.

flashfs[7]: Checking block 11...block number was (25501)

flashfs[7]: erasing block 11...done.

flashfs[7]: Checking block 12...block number was (-5607)

flashfs[7]: erasing block 12...done.

flashfs[7]: Checking block 13...block number was (27450)

flashfs[7]: erasing block 13...done.

flashfs[7]: Checking block 14...block number was (-6772)

flashfs[7]: erasing block 14...done.

flashfs[7]: Checking block 15...block number was (-10286)

flashfs[7]: erasing block 15...done.

flashfs[7]: Checking block 16...block number was (2597)

flashfs[7]: erasing block 16...done.

flashfs[7]: Checking block 17...block number was (30610)

flashfs[7]: erasing block 17...done.

flashfs[7]: Checking block 18...block number was (20305)

flashfs[7]: erasing block 18...done.

flashfs[7]: Checking block 19...block number was (-29480)

flashfs[7]: erasing block 19...done.

flashfs[7]: Checking block 20...block number was (3742)

flashfs[7]: erasing block 20...done.

flashfs[7]: Checking block 21...block number was (10580)

flashfs[7]: erasing block 21...done.

flashfs[7]: Checking block 22...block number was (-2896)

flashfs[7]: erasing block 22...done.

flashfs[7]: Checking block 23...block number was (-812)

flashfs[7]: erasing block 23...done.

flashfs[7]: Checking block 24...block number was (23019)

flashfs[7]: erasing block 24...done.

flashfs[7]: Checking block 25...block number was (-32643)

flashfs[7]: erasing block 25...done.

flashfs[7]: Checking block 26...block number was (25350)

flashfs[7]: erasing block 26...done.

flashfs[7]: Checking block 27...block number was (-4434)

flashfs[7]: erasing block 27...done.

flashfs[7]: Checking block 28...block number was (-25787)

flashfs[7]: erasing block 28...done.

flashfs[7]: Checking block 29...block number was (8591)

flashfs[7]: erasing block 29...done.

flashfs[7]: Checking block 30...block number was (-25606)

flashfs[7]: erasing block 30...done.

flashfs[7]: Checking block 31...block number was (-26665)

flashfs[7]: erasing block 31...done.

flashfs[7]: Checking block 32...block number was (12429)

flashfs[7]: erasing block 32...done.

flashfs[7]: Checking block 33...block number was (18421)

flashfs[7]: erasing block 33...done.

flashfs[7]: Checking block 34...block number was (29655)

flashfs[7]: erasing block 34...done.

flashfs[7]: Checking block 35...block number was (-5147)

flashfs[7]: erasing block 35...done.

flashfs[7]: Checking block 36...block number was (21867)

flashfs[7]: erasing block 36...done.

flashfs[7]: Checking block 37...block number was (29271)

flashfs[7]: erasing block 37...done.

flashfs[7]: Checking block 125...block number was (0)

flashfs[7]: erasing block 125...done.

flashfs[7]: relinked orphaned file into the fs as "/lost+found/00240".

flashfs[7]: 230 files, 11 directories

flashfs[7]: 0 orphaned files, 0 orphaned directories

flashfs[7]: Total bytes: 16128000

flashfs[7]: Bytes used: 8482304

flashfs[7]: Bytes available: 7645696

flashfs[7]: flashfs fsck took 53 seconds.

flashfs[7]: Initialization complete.

Saving the configuration

Saving a copy of old configuration as downgrade.cfg

Saved the activation key from the flash image

Saved the default firewall mode (single) to flash

Saving image file as image.bin

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Upgrade process complete

Need to burn loader....

Erasing sector 0...[OK]

Burning sector 0...[OK]

Licensed features for this platform:

Maximum Physical Interfaces : 6

Maximum VLANs               : 25

Inside Hosts                : Unlimited

Failover                    : Active/Active

VPN-DES                     : Enabled

VPN-3DES-AES                : Enabled

Cut-through Proxy           : Enabled

Guards                      : Enabled

URL Filtering               : Enabled

Security Contexts           : 2

GTP/GPRS                    : Disabled

VPN Peers                   : Unlimited

This platform has an Unrestricted (UR) license.

Encryption hardware device : VAC+ (Crypto5823 revision 0x1)

  --------------------------------------------------------------------------

                                 .            .

                                 |            |

                                |||          |||

                              .|| ||.      .|| ||.

                           .:||| | |||:..:||| | |||:.

                            C i s c o  S y s t e m s

  --------------------------------------------------------------------------

Cisco PIX Security Appliance Software Version 7.0(4)

  ****************************** Warning *******************************

  This product contains cryptographic features and is

  subject to United States and local country laws

  governing, import, export, transfer, and use.

  Delivery of Cisco cryptographic products does not

  imply third-party authority to import, export,

  distribute, or use encryption. Importers, exporters,

  distributors and users are responsible for compliance

  with U.S. and local country laws. By using this

  product you agree to comply with applicable laws and

  regulations. If you are unable to comply with U.S.

  and local laws, return the enclosed items immediately.

  A summary of U.S. laws governing Cisco cryptographic

  products may be found at:

  http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

  If you require further assistance please contact us by

  sending email to export@cisco.com.

  ******************************* Warning *******************************

Copyright (c) 1996-2005 by Cisco Systems, Inc.

                Restricted Rights Legend

Use, duplication, or disclosure by the Government is

subject to restrictions as set forth in subparagraph

(c) of the Commercial Computer Software - Restricted

Rights clause at FAR sec. 52.227-19 and subparagraph

(c) (1) (ii) of the Rights in Technical Data and Computer

Software clause at DFARS sec. 252.227-7013.

                Cisco Systems, Inc.

                170 West Tasman Drive

                San Jose, California 95134-1706

Cryptochecksum(unchanged): 75b1c49e 64e3bef7 d24326f4 9b428776

INFO: converting 'fixup protocol dns maximum-length 512' to MPF commands

INFO: converting 'fixup protocol ftp 21' to MPF commands

INFO: converting 'fixup protocol h323_h225 1720' to MPF commands

INFO: converting 'fixup protocol h323_ras 1718-1719' to MPF commands

INFO: converting 'fixup protocol http 80' to MPF commands

INFO: converting 'fixup protocol ils 389' to MPF commands

INFO: converting 'fixup protocol netbios 137-138' to MPF commands

INFO: converting 'fixup protocol rsh 514' to MPF commands

INFO: converting 'fixup protocol rtsp 554' to MPF commands

INFO: converting 'fixup protocol sip 5060' to MPF commands

INFO: converting 'fixup protocol skinny 2000' to MPF commands

INFO: converting 'fixup protocol smtp 25' to MPF commands

INFO: converting 'fixup protocol sqlnet 1521' to MPF commands

INFO: converting 'fixup protocol sunrpc_udp 111' to MPF commands

INFO: converting 'fixup protocol tftp 69' to MPF commands

INFO: converting 'fixup protocol sip udp 5060' to MPF commands

INFO: converting 'fixup protocol xdmcp 177' to MPF commands

Type help or '?' for a list of available commands.

Enter the show run (sho run) command to display output from the failover command on the Active PIX.

failover> enable

Password:

failover# show run

: Saved

::

PIX Version 7.0(4)

names

interface Ethernet0

 speed 100

 duplex full

 nameif outside

 security-level 0

 ip address 172.16.1.2 255.255.255.0 standby 172.16.1.3

interface Ethernet1

 speed 100

 duplex full

 nameif inside

 security-level 100

 ip address 192.168.1.2 255.255.255.0 standby 192.168.1.3

interface Ethernet2

 description LAN Failover Interface

 speed 100

 duplex full

interface Ethernet3

 description STATE Failover Interface

 speed 100

 duplex full

interface Ethernet4

 shutdown

 nameif intf4

 security-level 8

 no ip address

interface Ethernet5

 shutdown

 nameif intf5

 security-level 10

 no ip address

enable password 8Ry2YjIyt7RRXU24 encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname failover

boot system flash:/image.bin

ftp mode passive

pager lines 24

mtu outside 1500

mtu inside 1500

mtu intf4 1500

mtu intf5 1500

no failover

failover lan unit primary

failover lan interface fo Ethernet2

failover lan enable

failover key *****

failover link stfo Ethernet3

failover interface ip fo 1.1.1.1 255.255.255.0 standby 1.1.1.2

failover interface ip stfo 2.2.2.1 255.255.255.0 standby 2.2.2.2

monitor-interface outside

monitor-interface inside

monitor-interface intf4

monitor-interface intf5

asdm history enable

arp timeout 14400

nat-control

global (outside) 1 interface

nat (inside) 1 0.0.0.0 0.0.0.0

route outside 0.0.0.0 0.0.0.0 172.16.1.1 1

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02 sunrpc 0:10:00

 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00 sip 0:30:00 sip_media 0

:02:00

timeout uauth 0:05:00 absolute

aaa-server TACACS+ protocol tacacs+

aaa-server RADIUS protocol radius

no snmp-server location

no snmp-server contact

snmp-server community public

snmp-server enable traps snmp

no sysopt connection permit-ipsec

telnet timeout 5

ssh timeout 5

ssh version 1

console timeout 0

class-map inspection_default

 match default-inspection-traffic

policy-map global_policy

 class inspection_default

  inspect dns maximum-length 512

  inspect ftp

  inspect h323 h225

  inspect h323 ras

  inspect http

  inspect ils

  inspect netbios

  inspect rsh

  inspect rtsp

  inspect skinny

  inspect esmtp

  inspect sqlnet

  inspect sunrpc

  inspect tftp

  inspect sip

  inspect xdmcp

service-policy global_policy global

Cryptochecksum:75b1c49e64e3bef7d24326f49b428776

: end

Note Failover is off after the upgrade.

Upgrading the Standby PIX

Note The Active PIX is not detected and is considered failed by the Standby PIX.

Enter the show run command to display output from your current PIX Version 6.3 configuration on your Standby PIX device before upgrading the device to PIX Security appliance Version 7.0. Output from the PIX Version 6.3 configuration follows:

failover# show run

: Saved

failover# sho run

: Saved

PIX Version 6.3(4)

interface ethernet0 100full

interface ethernet1 100full

interface ethernet2 100full

interface ethernet3 100full

interface ethernet4 auto shutdown

interface ethernet5 auto shutdown

nameif ethernet0 outside security0

nameif ethernet1 inside security100

nameif ethernet2 fo security10

nameif ethernet3 stfo security15

nameif ethernet4 intf4 security8

nameif ethernet5 intf5 security10

enable password 8Ry2YjIyt7RRXU24 encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname failover

fixup protocol dns maximum-length 512

fixup protocol ftp 21

fixup protocol h323 h225 1720

fixup protocol h323 ras 1718-1719

fixup protocol http 80

fixup protocol ils 389

fixup protocol rsh 514

fixup protocol rtsp 554

fixup protocol sip 5060

fixup protocol sip udp 5060

fixup protocol skinny 2000

fixup protocol smtp 25

fixup protocol sqlnet 1521

fixup protocol tftp 69

names

pager lines 24

mtu outside 1500

mtu inside 1500

mtu fo 1500

mtu stfo 1500

mtu intf4 1500

mtu intf5 1500

ip address outside 172.16.1.2 255.255.255.0

ip address inside 192.168.1.2 255.255.255.0

ip address fo 1.1.1.1 255.255.255.0

ip address stfo 2.2.2.1 255.255.255.0

no ip address intf4

no ip address intf5

ip audit info action alarm

ip audit attack action alarm

failover

failover timeout 0:00:00

failover poll 15

failover ip address outside 172.16.1.3

failover ip address inside 192.168.1.3

failover ip address fo 1.1.1.2

failover ip address stfo 2.2.2.2

no failover ip address intf4

no failover ip address intf5

failover link stfo

failover lan unit secondary

failover lan interface fo

failover lan key ********

failover lan enable

pdm history enable

arp timeout 14400

global (outside) 1 interface

nat (inside) 1 0.0.0.0 0.0.0.0 0 0

route outside 0.0.0.0 0.0.0.0 172.16.1.1 1

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 rpc 0:10:00 h225 1:00:00

timeout h323 0:05:00 mgcp 0:05:00 sip 0:30:00 sip_media 0:02:00

timeout uauth 0:05:00 absolute

aaa-server TACACS+ protocol tacacs+

aaa-server TACACS+ max-failed-attempts 3

aaa-server TACACS+ deadtime 10

aaa-server RADIUS protocol radius

aaa-server RADIUS max-failed-attempts 3

aaa-server RADIUS deadtime 10

aaa-server LOCAL protocol local

no snmp-server location

no snmp-server contact

snmp-server community public

no snmp-server enable traps

floodguard enable

telnet timeout 5

ssh timeout 5

console timeout 0

terminal width 80

Cryptochecksum:6d45052a7f1c3d68dd10fa95a152eaa7

: end

Enter the show failover (sho fail) command to show the failover operational statistics for the Standby PIX.

failover# show failover

Failover On

Serial Failover Cable status: My side not connected

Reconnect timeout 0:00:00

Poll frequency 15 seconds

Last Failover at: 15:21:09 UTC Sun Mar 6 2005

        This host: Secondary - Active

                Active time: 300 (sec)

                Interface outside (172.16.1.2): Normal (Waiting)

                Interface inside (192.168.1.2): Normal (Waiting)

                Interface stfo (2.2.2.1): Normal (Waiting)

                Interface intf4 (0.0.0.0): Link Down (Shutdown)

                Interface intf5 (0.0.0.0): Link Down (Shutdown)

        Other host: Primary - Standby (Failed)

                Active time: 405 (sec)

                Interface outside (172.16.1.3): Unknown

                Interface inside (192.168.1.3): Unknown

                Interface stfo (2.2.2.2): Unknown

                Interface intf4 (0.0.0.0): Unknown (Shutdown)

                Interface intf5 (0.0.0.0): Unknown (Shutdown)

Stateful Failover Logical Update Statistics

        Link : stfo

        Stateful Obj    xmit       xerr       rcv        rerr

        General         50         0          50         0

        sys cmd         50         0          48         0

        up time         0          0          2          0

        xlate           0          0          0          0

        tcp conn        0          0          0          0

        udp conn        0          0          0          0

        ARP tbl         0          0          0          0

        RIP Tbl         0          0          0          0

        Logical Update Queue Information

                        Cur     Max     Total

        Recv Q:         0       1       50

        Xmit Q:         0       1       50

LAN-based Failover is Active

        interface fo (1.1.1.2): Normal, peer (1.1.1.1): Unknown

Enter the copy tftp://<ip address>/pix704.bin.<image>flash:image command to upgrade to the new image on the Standby PIX. The following output reflects the upgrade procedure from your current PIX Version 6.3 configuration to PIX Security appliance Version 7.0:

failover# copy tftp://192.168.1.100/cdisk.7.0(4) flash:image

copying tftp://192.168.1.100/cdisk.7.0(4) to flash:image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Received 5124096 bytes

Erasing current image

Writing 5062712 bytes of image

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Image installed

Enter the reload command to begin using the new PIX Security appliance Version 7.0 image, then press Enter at the next prompt to confirm the reload command.

failover# reload

Proceed with reload? [confirm]

Rebooting..ÿ

CISCO SYSTEMS PIX FIREWALL

Embedded BIOS Version 4.3.207 01/02/02 16:12:22.73

Compiled by xxxxxx

64 MB RAM

PCI Device Table.

Bus Dev Func VendID DevID Class              Irq

 00  00  00   8086   7192  Host Bridge

 00  07  00   8086   7110  ISA Bridge

 00  07  01   8086   7111  IDE Controller

 00  07  02   8086   7112  Serial Bus         9

 00  07  03   8086   7113  PCI Bridge

 00  0D  00   8086   1209  Ethernet           11

 00  0E  00   8086   1209  Ethernet           10

 00  11  00   14E4   5823  Co-Processor       11

 00  13  00   8086   B154  PCI-to-PCI Bridge

 01  04  00   8086   1229  Ethernet           11

 01  05  00   8086   1229  Ethernet           10

 01  06  00   8086   1229  Ethernet           9

 01  07  00   8086   1229  Ethernet           5

Cisco Secure PIX Firewall BIOS (4.2) #0: Mon Dec 31 08:34:35 PST 2001

Platform PIX-515E

System Flash=E28F128J3 @ 0xfff00000

Use BREAK or ESC to interrupt flash boot.

Use SPACE to begin flash boot immediately.

Reading 5059072 bytes of image from flash.

################################################################################

################################################################################

################################################################################

################################################################################

################################################################################

########################################################

64MB RAM

Total NICs found: 6

mcwa i82559 Ethernet at irq 11  MAC: 0011.937e.0604

mcwa i82559 Ethernet at irq 10  MAC: 0011.937e.0603

mcwa i82559 Ethernet at irq 11  MAC: 000d.88ee.e1c4

mcwa i82559 Ethernet at irq 10  MAC: 000d.88ee.e1c5

mcwa i82559 Ethernet at irq  9  MAC: 000d.88ee.e1c6

mcwa i82559 Ethernet at irq  5  MAC: 000d.88ee.e1c7

BIOS Flash=am29f400b @ 0xd8000

Old file system detected. Attempting to save data in flash

Initializing flashfs...

flashfs[7]: Checking block 0...block number was (-14264)

flashfs[7]: erasing block 0...done.

flashfs[7]: Checking block 1...block number was (12668)

flashfs[7]: erasing block 1...done.

flashfs[7]: Checking block 2...block number was (15104)

flashfs[7]: erasing block 2...done.

flashfs[7]: Checking block 3...block number was (-18577)

flashfs[7]: erasing block 3...done.

flashfs[7]: Checking block 4...block number was (11973)

flashfs[7]: erasing block 4...done.

flashfs[7]: Checking block 5...block number was (-4656)

flashfs[7]: erasing block 5...done.

flashfs[7]: Checking block 6...block number was (-24944)

flashfs[7]: erasing block 6...done.

flashfs[7]: Checking block 7...block number was (23499)

flashfs[7]: erasing block 7...done.

flashfs[7]: Checking block 8...block number was (7137)

flashfs[7]: erasing block 8...done.

flashfs[7]: Checking block 9...block number was (20831)

flashfs[7]: erasing block 9...done.

flashfs[7]: Checking block 10...block number was (6185)

flashfs[7]: erasing block 10...done.

flashfs[7]: Checking block 11...block number was (25501)

flashfs[7]: erasing block 11...done.

flashfs[7]: Checking block 12...block number was (-5607)

flashfs[7]: erasing block 12...done.

flashfs[7]: Checking block 13...block number was (27450)

flashfs[7]: erasing block 13...done.

flashfs[7]: Checking block 14...block number was (-6772)

flashfs[7]: erasing block 14...done.

flashfs[7]: Checking block 15...block number was (-10286)

flashfs[7]: erasing block 15...done.

flashfs[7]: Checking block 16...block number was (2597)

flashfs[7]: erasing block 16...done.

flashfs[7]: Checking block 17...block number was (30610)

flashfs[7]: erasing block 17...done.

flashfs[7]: Checking block 18...block number was (20305)

flashfs[7]: erasing block 18...done.

flashfs[7]: Checking block 19...block number was (-29480)

flashfs[7]: erasing block 19...done.

flashfs[7]: Checking block 20...block number was (3742)

flashfs[7]: erasing block 20...done.

flashfs[7]: Checking block 21...block number was (10580)

flashfs[7]: erasing block 21...done.

flashfs[7]: Checking block 22...block number was (-2896)

flashfs[7]: erasing block 22...done.

flashfs[7]: Checking block 23...block number was (-812)

flashfs[7]: erasing block 23...done.

flashfs[7]: Checking block 24...block number was (23019)

flashfs[7]: erasing block 24...done.

flashfs[7]: Checking block 25...block number was (-32643)

flashfs[7]: erasing block 25...done.

flashfs[7]: Checking block 26...block number was (25350)

flashfs[7]: erasing block 26...done.

flashfs[7]: Checking block 27...block number was (-4434)

flashfs[7]: erasing block 27...done.

flashfs[7]: Checking block 28...block number was (-25787)

flashfs[7]: erasing block 28...done.

flashfs[7]: Checking block 29...block number was (8591)

flashfs[7]: erasing block 29...done.

flashfs[7]: Checking block 30...block number was (-25606)

flashfs[7]: erasing block 30...done.

flashfs[7]: Checking block 31...block number was (-26665)

flashfs[7]: erasing block 31...done.

flashfs[7]: Checking block 32...block number was (12429)

flashfs[7]: erasing block 32...done.

flashfs[7]: Checking block 33...block number was (18421)

flashfs[7]: erasing block 33...done.

flashfs[7]: Checking block 34...block number was (29655)

flashfs[7]: erasing block 34...done.

flashfs[7]: Checking block 35...block number was (-5147)

flashfs[7]: erasing block 35...done.

flashfs[7]: Checking block 36...block number was (21867)

flashfs[7]: erasing block 36...done.

flashfs[7]: Checking block 37...block number was (29271)

flashfs[7]: erasing block 37...done.

flashfs[7]: Checking block 125...block number was (0)

flashfs[7]: erasing block 125...done.

flashfs[7]: relinked orphaned file into the fs as "/lost+found/00013".

flashfs[7]: relinked orphaned directory into the fs as "/lost+found/00008".

flashfs[7]: relinked orphaned directory into the fs as "/lost+found/00006".

flashfs[7]: 18 files, 7 directories

flashfs[7]: 0 orphaned files, 0 orphaned directories

flashfs[7]: Total bytes: 16128000

flashfs[7]: Bytes used: 2384896

flashfs[7]: Bytes available: 13743104

flashfs[7]: flashfs fsck took 45 seconds.

flashfs[7]: Initialization complete.

Saving the configuration

Saving a copy of old configuration as downgrade.cfg

Saved the activation key from the flash image

Saved the default firewall mode (single) to flash

Saving image file as image.bin

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Upgrade process complete

Need to burn loader....

Erasing sector 0...[OK]

Burning sector 0...[OK]

Licensed features for this platform:

Maximum Physical Interfaces : 6

Maximum VLANs               : 25

Inside Hosts                : Unlimited

Failover                    : Active/Active

VPN-DES                     : Enabled

VPN-3DES-AES                : Enabled

Cut-through Proxy           : Enabled

Guards                      : Enabled

URL Filtering               : Enabled

Security Contexts           : 2

GTP/GPRS                    : Disabled

VPN Peers                   : Unlimited

This platform has an Unrestricted (UR) license.

Encryption hardware device : VAC+ (Crypto5823 revision 0x1)

  --------------------------------------------------------------------------

                                 .            .

                                 |            |

                                |||          |||

                              .|| ||.      .|| ||.

                           .:||| | |||:..:||| | |||:.

                            C i s c o  S y s t e m s

  --------------------------------------------------------------------------

Cisco PIX Security Appliance Software Version 7.0(4)

  ****************************** Warning *******************************

  This product contains cryptographic features and is

  subject to United States and local country laws

  governing, import, export, transfer, and use.

  Delivery of Cisco cryptographic products does not

  imply third-party authority to import, export,

  distribute, or use encryption. Importers, exporters,

  distributors and users are responsible for compliance

  with U.S. and local country laws. By using this

  product you agree to comply with applicable laws and

  regulations. If you are unable to comply with U.S.

  and local laws, return the enclosed items immediately.

  A summary of U.S. laws governing Cisco cryptographic

  products may be found at:

  http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

  If you require further assistance please contact us by

  sending email to export@cisco.com.

  ******************************* Warning *******************************

Copyright (c) 1996-2005 by Cisco Systems, Inc.

                Restricted Rights Legend

Use, duplication, or disclosure by the Government is

subject to restrictions as set forth in subparagraph

(c) of the Commercial Computer Software - Restricted

Rights clause at FAR sec. 52.227-19 and subparagraph

(c) (1) (ii) of the Rights in Technical Data and Computer

Software clause at DFARS sec. 252.227-7013.

                Cisco Systems, Inc.

                170 West Tasman Drive

                San Jose, California 95134-1706

Cryptochecksum(unchanged): 6d45052a 7f1c3d68 dd10fa95 a152eaa7

INFO: converting 'fixup protocol dns maximum-length 512' to MPF commands

INFO: converting 'fixup protocol ftp 21' to MPF commands

INFO: converting 'fixup protocol h323_h225 1720' to MPF commands

INFO: converting 'fixup protocol h323_ras 1718-1719' to MPF commands

INFO: converting 'fixup protocol http 80' to MPF commands

INFO: converting 'fixup protocol ils 389' to MPF commands

INFO: converting 'fixup protocol netbios 137-138' to MPF commands

INFO: converting 'fixup protocol rsh 514' to MPF commands

INFO: converting 'fixup protocol rtsp 554' to MPF commands

INFO: converting 'fixup protocol sip 5060' to MPF commands

INFO: converting 'fixup protocol skinny 2000' to MPF commands

INFO: converting 'fixup protocol smtp 25' to MPF commands

INFO: converting 'fixup protocol sqlnet 1521' to MPF commands

INFO: converting 'fixup protocol sunrpc_udp 111' to MPF commands

INFO: converting 'fixup protocol tftp 69' to MPF commands

INFO: converting 'fixup protocol sip udp 5060' to MPF commands

INFO: converting 'fixup protocol xdmcp 177' to MPF commands

Type help or '?' for a list of available commands.

After performing the PIX Security appliance Version 7.0 upgrade on the Standby PIX, enter the enable command to enter configuration mode, then enter your password, and finally enter the show run (sho run) command. The output is as follows:

failover> enable

Password:

failover# show run

: Saved

PIX Version 7.0(4)

names

interface Ethernet0

 speed 100

 duplex full

 nameif outside

 security-level 0

 ip address 172.16.1.2 255.255.255.0 standby 172.16.1.3

interface Ethernet1

 speed 100

 duplex full

 nameif inside

 security-level 100

 ip address 192.168.1.2 255.255.255.0 standby 192.168.1.3

interface Ethernet2

 description LAN Failover Interface

 speed 100

 duplex full

interface Ethernet3

 description STATE Failover Interface

 speed 100

 duplex full

interface Ethernet4

 shutdown

 nameif intf4

 security-level 8

 no ip address

interface Ethernet5

 shutdown

 nameif intf5

 security-level 10

 no ip address

enable password 8Ry2YjIyt7RRXU24 encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

hostname failover

boot system flash:/image.bin

ftp mode passive

pager lines 24

mtu outside 1500

mtu inside 1500

mtu intf4 1500

mtu intf5 1500

no failover

failover lan unit secondary

failover lan interface fo Ethernet2

failover lan enable

failover key *****

failover link stfo Ethernet3

failover interface ip fo 1.1.1.1 255.255.255.0 standby 1.1.1.2

failover interface ip stfo 2.2.2.1 255.255.255.0 standby 2.2.2.2

monitor-interface outside

monitor-interface inside

monitor-interface intf4

monitor-interface intf5

asdm history enable

arp timeout 14400

nat-control

global (outside) 1 interface

nat (inside) 1 0.0.0.0 0.0.0.0

route outside 0.0.0.0 0.0.0.0 172.16.1.1 1

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02 sunrpc 0:10:00

 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00 sip 0:30:00 sip_media 0

:02:00

timeout uauth 0:05:00 absolute

aaa-server TACACS+ protocol tacacs+

aaa-server RADIUS protocol radius

no snmp-server location

no snmp-server contact

snmp-server community public

snmp-server enable traps snmp

no sysopt connection permit-ipsec

telnet timeout 5

ssh timeout 5

ssh version 1

console timeout 0

class-map inspection_default

 match default-inspection-traffic

policy-map global_policy

 class inspection_default

  inspect dns maximum-length 512

  inspect ftp

  inspect h323 h225

  inspect h323 ras

  inspect http

  inspect ils

  inspect netbios

  inspect rsh

  inspect rtsp

  inspect skinny

  inspect esmtp

  inspect sqlnet

  inspect sunrpc

  inspect tftp

  inspect sip

  inspect xdmcp

service-policy global_policy global

Cryptochecksum:6d45052a7f1c3d68dd10fa95a152eaa7

: end

Note This completes the PIX Security appliance Version 7.0 upgrade on the Standby PIX. Failover is off after the reboot.

Connecting to the Active PIX

Enter the show failover (sho fail) command to confirm failover on the Active PIX.

failover# show failover

Failover Off

Cable status: My side not connected

Failover unit Primary

Failover LAN Interface: fo Ethernet2 (up)

Unit Poll frequency 15 seconds, holdtime 45 seconds

Interface Poll frequency 15 seconds

Interface Policy 1

Monitored Interfaces 4 of 250 maximum

Enable failover on the Active PIX by entering the configure terminal (conf t) command; next enter the failover command; then enter the exit command; and finally enter the show failover (sho failover) command, as follows:

failover# configure terminal

failover(config)# failover

failover(config)# exit

failover# show failover

Failover On

Cable status: N/A - LAN-based failover enabled

Failover unit Primary

Failover LAN Interface: fo Ethernet2 (up)

Unit Poll frequency 15 seconds, holdtime 45 seconds

Interface Poll frequency 15 seconds

Interface Policy 1

Monitored Interfaces 4 of 250 maximum

Last Failover at: 15:22:22 UTC Mar 6 2005

        This host: Primary - Negotiation

                Active time: 0 (sec)

                Interface outside (172.16.1.2): No Link (Waiting)

                Interface inside (192.168.1.2): No Link (Waiting)

                Interface intf4 (0.0.0.0): Link Down (Waiting)

                Interface intf5 (0.0.0.0): Link Down (Waiting)

        Other host: Primary - Not Detected

                Active time: 0 (sec)

                Interface outside (172.16.1.3): Unknown (Waiting)

                Interface inside (192.168.1.3): Unknown (Waiting)

                Interface intf4 (0.0.0.0): Unknown (Waiting)

                Interface intf5 (0.0.0.0): Unknown (Waiting)

Stateful Failover Logical Update Statistics

        Link : stfo Ethernet3 (up)

        Stateful Obj    xmit       xerr       rcv        rerr

        General         0          0          0          0

        sys cmd         0          0          0          0

        up time         0          0          0          0

        RPC services    0          0          0          0

        TCP conn        0          0          0          0

        UDP conn        0          0          0          0

        ARP tbl         0          0          0          0

        Xlate_Timeout   0          0          0          0

        VPN IKE upd     0          0          0          0

        VPN IPSEC upd   0          0          0          0

        VPN CTCP upd    0          0          0          0

        VPN SDI upd     0          0          0          0

        VPN DHCP upd    0          0          0          0

        Logical Update Queue Information

                        Cur     Max     Total

        Recv Q:         0       0       0

        Xmit Q:         0       0       0

failover#

Connecting to the Standby PIX

To enter the connection to the Standby PIX device, enter the show failover (sho fail) command, as follows:

failover(config)# show failover

Failover Off

Cable status: My side not connected

Failover unit Secondary

Failover LAN Interface: fo Ethernet2 (up)

Unit Poll frequency 15 seconds, holdtime 45 seconds

Interface Poll frequency 15 seconds

Interface Policy 1

Monitored Interfaces 4 of 250 maximum

Enable failover on the Standby PIX device by entering the failover command, as follows:

failover(config)# failover

        Detected an Active mate

Beginning configuration replication from mate.

Enter the show failover (sho fail) command, as follows:

failover(config)# show failover

Failover On

Cable status: N/A - LAN-based failover enabled

Failover unit Secondary

Failover End configuration replication from mate.

LAN Interface: fo Ethernet2 (up)

Unit Poll frequency 15 seconds, holdtime 45 seconds

Interface Poll frequency 15 seconds

Interface Policy 1

Monitored Interfaces 4 of 250 maximum

Last Failover at: 15:33:17 UTC Mar 6 2005

        This host: Secondary - Sync Config

                Active time: 210 (sec)

                Interface outside (172.16.1.3): Normal (Waiting)

                Interface inside (192.168.1.3): Normal (Waiting)

                Interface intf4 (0.0.0.0): Link Down (Waiting)

                Interface intf5 (0.0.0.0): Link Down (Waiting)

        Other host: Primary - Active

                Active time: 75 (sec)

                Interface outside (172.16.1.2): Unknown (Waiting)

                Interface inside (192.168.1.2): Unknown (Waiting)

                Interface intf4 (0.0.0.0): Unknown (Waiting)

                Interface intf5 (0.0.0.0): Unknown (Waiting)

Stateful Failover Logical Update Statistics

        Link : stfo Ethernet3 (up)

        Stateful Obj    xmit       xerr       rcv        rerr

        General         0          0          0          0

        sys cmd         2          0          2          0

        up time         0          0          0          0

        RPC services    0          0          0          0

        TCP conn        0          0          0          0

        UDP conn        0          0          0          0

        ARP tbl         0          0          1          0

        Xlate_Timeout   0          0          0          0

        VPN IKE upd     0          0          0          0

        VPN IPSEC upd   0          0          0          0

        VPN CTCP upd    0          0          0          0

        VPN SDI upd     0          0          0          0

        VPN DHCP upd    0          0          0          0

        Logical Update Queue Information

                        Cur     Max     Total

        Recv Q:         0       1       12

        Xmit Q:         0       1       2

This completes the upgrade procedure on a failover PIX.

Upgrading to Security Appliance Version 7.0 with Conduits

Note Conduit and outbound statements must be converted to access control list (access-list) commands before performing an upgrade to PIX Security appliance Version 7.0. See the "Conduits and Outbounds" section before proceeding. Failure to do so will output errors.

The configuration example in the "After Upgrade" section displays missing conduit and outbound statements, which have been converted to access control lists.

Assumptions

When performing an upgrade to PIX Security appliance Version 7.0 from PIX Version 6.3 with conduit commands, this configuration example assumes the following (see Figure 7):

•Inside users on any network can create outbound commands to the Internet

•A web server is located on the inside interface at 192.168.1.5, accessed via conduit and static commands for web services

•An email server on the inside interface at 172.16.1.49, accessed via conduit commands, which only accepts connections from 209.165.201.2

•ICMP messages can freely flow across the PIX via a conduit command

Figure 7 Sample Conduits Configuration

Before Upgrade

The following is sample output from the show run command from your current PIX Version 6.3 configuration before upgrading to PIX Security appliance Version 7.0:

failover# show run

: Saved

 PIX Version 6.3(4)

 interface ethernet0 100full

 interface ethernet1 100full

 interface ethernet2 auto shutdown

 interface ethernet3 auto shutdown

 interface ethernet4 auto shutdown

 interface ethernet5 auto shutdown

 nameif ethernet0 outside security0

 nameif ethernet1 inside security100

 nameif ethernet2 dmz security50

 nameif ethernet3 intf3 security6

 nameif ethernet4 intf4 security8

 nameif ethernet5 intf5 security10

 enable password 8Ry2YjIyt7RRXU24 encrypted

 passwd 2KFQnbNIdI.2KYOU encrypted

 hostname Conduit

 domain-name ciscopix.com

 fixup protocol dns maximum-length 512

 fixup protocol ftp 21

 fixup protocol h323 h225 1720

 fixup protocol h323 ras 1718-1719

 fixup protocol http 80

 fixup protocol rsh 514

 fixup protocol rtsp 554

 fixup protocol sip 5060

 fixup protocol sip udp 5060

 fixup protocol skinny 2000

 fixup protocol smtp 25

 fixup protocol sqlnet 1521

 fixup protocol tftp 69

 names

 name 172.16.1.75 Linux

 no pager

 logging on

 logging trap informational

 logging host inside 192.168.1.99

 icmp permit any outside

 icmp permit any inside

 mtu outside 1500

 mtu inside 1500

 mtu dmz 1500

 mtu intf3 1500

 mtu intf4 1500

 mtu intf5 1500

 ip address outside 172.16.1.161 255.255.255.0

 ip address inside 192.168.1.161 255.255.255.0

 no ip address dmz

 no ip address intf3

 no ip address intf4

 no ip address intf5

 ip audit info action alarm

 ip audit attack action alarm

 no failover

 failover timeout 0:00:00

 failover poll 15

 no failover ip address outside

 no failover ip address inside

 no failover ip address dmz

 no failover ip address intf3

 no failover ip address intf4

 no failover ip address intf5

 pdm location 192.168.1.99 255.255.255.255 inside

 pdm history enable

 arp timeout 14400

 global (outside) 1 172.16.1.210-172.16.1.212

 nat (inside) 1 0.0.0.0 0.0.0.0 0 0

 static (inside,outside) 172.16.1.111 192.168.1.5 netmask 255.255.255.255 0 0

 conduit permit icmp any any

 conduit permit tcp host 172.16.1.111 eq www any

 conduit permit tcp host 172.16.1.49 eq smtp host 209.165.201.2

 route outside 0.0.0.0 0.0.0.0 172.16.1.1 1

 timeout xlate 3:00:00

 timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 rpc 0:10:00 h225 1:00:00

 timeout h323 0:05:00 mgcp 0:05:00 sip 0:30:00 sip_media 0:02:00

 timeout uauth 0:05:00 absolute

 aaa-server TACACS+ protocol tacacs+

 aaa-server TACACS+ max-failed-attempts 3

 aaa-server TACACS+ deadtime 10

 aaa-server RADIUS protocol radius

 aaa-server RADIUS max-failed-attempts 3

 aaa-server RADIUS deadtime 10

 aaa-server LOCAL protocol local

 http server enable

 http 0.0.0.0 0.0.0.0 outside

 http 0.0.0.0 0.0.0.0 inside

 no snmp-server location

 no snmp-server contact

 snmp-server community public

 no snmp-server enable traps

 floodguard enable

 telnet 192.168.1.0 255.255.255.0 inside

 telnet timeout 5

 ssh timeout 5

 console timeout 0

 dhcpd address 192.168.1.100-192.168.1.102 inside

 dhcpd lease 3600

 dhcpd ping_timeout 750

 dhcpd enable inside

 terminal width 80

 Cryptochecksum:629e8fc8b6e635161c253178e5d91814

 : end

Upgrade

Conduit# copy tftp://192.168.1.100/cdisk.7.0(4) flash:image

copying tftp://192.168.1.100/cdisk.7.0(4) to flash:image


!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!

 Received 5124096 bytes

 Erasing current image

 Writing 5062712 bytes of image


!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

 Image installed

Enter the reload command to begin using the new PIX Security appliance Version 7.0 image, then press Enter at the next prompt to confirm the reload command.

Conduit# reload

Proceed with reload? [confirm]

Rebooting..ÿ

 CISCO SYSTEMS PIX FIREWALL

 Embedded BIOS Version 4.3.207 01/02/02 16:12:22.73

 Compiled by xxxxxx

 64 MB RAM

 PCI Device Table.

 Bus Dev Func VendID DevID Class              Irq

  00  00  00   8086   7192  Host Bridge

  00  07  00   8086   7110  ISA Bridge

  00  07  01   8086   7111  IDE Controller

  00  07  02   8086   7112  Serial Bus         9

  00  07  03   8086   7113  PCI Bridge

  00  0D  00   8086   1209  Ethernet           11

  00  0E  00   8086   1209  Ethernet           10

  00  11  00   14E4   5823  Co-Processor       11

  00  13  00   8086   B154  PCI-to-PCI Bridge

  01  04  00   8086   1229  Ethernet           11

  01  05  00   8086   1229  Ethernet           10

  01  06  00   8086   1229  Ethernet           9

  01  07  00   8086   1229  Ethernet           5

Cisco Secure PIX Firewall BIOS (4.2) #0: Mon Dec 31 08:34:35 PST 2001

Platform PIX-515E

System Flash=E28F128J3 @ 0xfff00000

Use BREAK or ESC to interrupt flash boot.

Use SPACE to begin flash boot immediately.

Flash boot in 10 seconds.           9 seconds.          8 seconds.

 Reading 5059072 bytes of image from flash.

##########################################################################################
##########################################################################################
##########################################################################################
##########################################################################################
##########################################################################################
######

64MB RAM

Total NICs found: 6

mcwa i82559 Ethernet at irq 11  MAC: 0011.937e.0650

mcwa i82559 Ethernet at irq 10  MAC: 0011.937e.064f

mcwa i82559 Ethernet at irq 11  MAC: 000d.88ee.dfa0

mcwa i82559 Ethernet at irq 10  MAC: 000d.88ee.dfa1

mcwa i82559 Ethernet at irq  9  MAC: 000d.88ee.dfa2

mcwa i82559 Ethernet at irq  5  MAC: 000d.88ee.dfa3

BIOS Flash=am29f400b @ 0xd8000

Old file system detected. Attempting to save data in flash

Initializing flashfs...

flashfs[7]: Checking block 0...block number was (-14264)

flashfs[7]: erasing block 0...done.

flashfs[7]: Checking block 1...block number was (12668)

flashfs[7]: erasing block 1...done.

flashfs[7]: Checking block 2...block number was (15104)

flashfs[7]: erasing block 2...done.

flashfs[7]: Checking block 3...block number was (-18577)

flashfs[7]: erasing block 3...done.

flashfs[7]: Checking block 4...block number was (11973)

flashfs[7]: erasing block 4...done.

flashfs[7]: Checking block 5...block number was (-4656)

flashfs[7]: erasing block 5...done.

flashfs[7]: Checking block 6...block number was (-24944)

flashfs[7]: erasing block 6...done.

flashfs[7]: Checking block 7...block number was (23499)

flashfs[7]: erasing block 7...done.

flashfs[7]: Checking block 8...block number was (7137)

flashfs[7]: erasing block 8...done.

flashfs[7]: Checking block 9...block number was (20831)

flashfs[7]: erasing block 9...done.

flashfs[7]: Checking block 10...block number was (6185)

flashfs[7]: erasing block 10...done.

flashfs[7]: Checking block 11...block number was (25501)

flashfs[7]: erasing block 11...done.

flashfs[7]: Checking block 12...block number was (-5607)

flashfs[7]: erasing block 12...done.

flashfs[7]: Checking block 13...block number was (27450)

flashfs[7]: erasing block 13...done.

flashfs[7]: Checking block 14...block number was (-6772)

flashfs[7]: erasing block 14...done.

flashfs[7]: Checking block 15...block number was (-10286)

flashfs[7]: erasing block 15...done.

flashfs[7]: Checking block 16...block number was (2597)

flashfs[7]: erasing block 16...done.

flashfs[7]: Checking block 17...block number was (30610)

flashfs[7]: erasing block 17...done.

flashfs[7]: Checking block 18...block number was (20305)

flashfs[7]: erasing block 18...done.

flashfs[7]: Checking block 19...block number was (-29480)

flashfs[7]: erasing block 19...done.

flashfs[7]: Checking block 20...block number was (3742)

flashfs[7]: erasing block 20...done.

flashfs[7]: Checking block 21...block number was (10580)

flashfs[7]: erasing block 21...done.

flashfs[7]: Checking block 22...block number was (-2896)

flashfs[7]: erasing block 22...done.

flashfs[7]: Checking block 23...block number was (-812)

flashfs[7]: erasing block 23...done.

flashfs[7]: Checking block 24...block number was (23019)

flashfs[7]: erasing block 24...done.

flashfs[7]: Checking block 25...block number was (-32643)

flashfs[7]: erasing block 25...done.

flashfs[7]: Checking block 26...block number was (25350)

flashfs[7]: erasing block 26...done.

flashfs[7]: Checking block 27...block number was (-4434)

flashfs[7]: erasing block 27...done.

flashfs[7]: Checking block 28...block number was (-25787)

flashfs[7]: erasing block 28...done.

flashfs[7]: Checking block 29...block number was (8591)

flashfs[7]: erasing block 29...done.

flashfs[7]: Checking block 30...block number was (-25606)

flashfs[7]: erasing block 30...done.

flashfs[7]: Checking block 31...block number was (-26665)

flashfs[7]: erasing block 31...done.

flashfs[7]: Checking block 32...block number was (12429)

flashfs[7]: erasing block 32...done.

flashfs[7]: Checking block 33...block number was (18421)

flashfs[7]: erasing block 33...done.

flashfs[7]: Checking block 34...block number was (29655)

flashfs[7]: erasing block 34...done.

flashfs[7]: Checking block 35...block number was (-5147)

flashfs[7]: erasing block 35...done.

flashfs[7]: Checking block 36...block number was (21867)

flashfs[7]: erasing block 36...done.

flashfs[7]: Checking block 37...block number was (29271)

flashfs[7]: erasing block 37...done.

flashfs[7]: Checking block 125...block number was (0)

flashfs[7]: erasing block 125...done.

flashfs[7]: relinked orphaned file into the fs as "/lost+found/00233".

flashfs[7]: relinked orphaned directory into the fs as "/lost+found/00229".

flashfs[7]: 224 files, 9 directories

flashfs[7]: 0 orphaned files, 0 orphaned directories

flashfs[7]: Total bytes: 16128000

flashfs[7]: Bytes used: 8061952

flashfs[7]: Bytes available: 8066048

flashfs[7]: flashfs fsck took 53 seconds.

flashfs[7]: Initialization complete.

Saving the configuration

Saving a copy of old configuration as downgrade.cfg

Saved the activation key from the flash image

Saved the default firewall mode (single) to flash

Saving image file as image.bin

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Upgrade process complete

Need to burn loader....

Erasing sector 0...[OK]

Burning sector 0...[OK]

Licensed features for this platform:

Maximum Physical Interfaces : 6

Maximum VLANs               : 25

Inside Hosts                : Unlimited

Failover                    : Active/Active

VPN-DES                     : Enabled

VPN-3DES-AES                : Enabled

Cut-through Proxy           : Enabled

Guards                      : Enabled

URL Filtering               : Enabled

Security Contexts           : 2

GTP/GPRS                    : Disabled

VPN Peers                   : Unlimited

This platform has an Unrestricted (UR) license.

Encryption hardware device : VAC+ (Crypto5823 revision 0x1)

  --------------------------------------------------------------------------

                                 .            .

                                 |            |

                                |||          |||

                              .|| ||.      .|| ||.

                           .:||| | |||:..:||| | |||:.

                            C i s c o  S y s t e m s

  --------------------------------------------------------------------------

Cisco PIX Security Appliance Software Version 7.0(4)

  ****************************** Warning *******************************

  This product contains cryptographic features and is

  subject to United States and local country laws

  governing, import, export, transfer, and use.

  Delivery of Cisco cryptographic products does not

  imply third-party authority to import, export,

  distribute, or use encryption. Importers, exporters,

  distributors and users are responsible for compliance

  with U.S. and local country laws. By using this

  product you agree to comply with applicable laws and

  regulations. If you are unable to comply with U.S.

  and local laws, return the enclosed items immediately.

  A summary of U.S. laws governing Cisco cryptographic

  products may be found at:

  http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

  If you require further assistance please contact us by

  sending email to export@cisco.com.

  ******************************* Warning *******************************

Copyright (c) 1996-2005 by Cisco Systems, Inc.

                Restricted Rights Legend

Use, duplication, or disclosure by the Government is

subject to restrictions as set forth in subparagraph

(c) of the Commercial Computer Software - Restricted

Rights clause at FAR sec. 52.227-19 and subparagraph

(c) (1) (ii) of the Rights in Technical Data and Computer

Software clause at DFARS sec. 252.227-7013.

                Cisco Systems, Inc.

                170 West Tasman Drive

                San Jose, California 95134-1706

Cryptochecksum(unchanged): 629e8fc8 b6e63516 1c253178 e5d91814

INFO: converting 'fixup protocol dns maximum-length 512' to MPF commands

INFO: converting 'fixup protocol ftp 21' to MPF commands

INFO: converting 'fixup protocol h323_h225 1720' to MPF commands

INFO: converting 'fixup protocol h323_ras 1718-1719' to MPF commands

INFO: converting 'fixup protocol http 80' to MPF commands

INFO: converting 'fixup protocol netbios 137-138' to MPF commands

INFO: converting 'fixup protocol rsh 514' to MPF commands

INFO: converting 'fixup protocol rtsp 554' to MPF commands

INFO: converting 'fixup protocol sip 5060' to MPF commands

INFO: converting 'fixup protocol skinny 2000' to MPF commands

INFO: converting 'fixup protocol smtp 25' to MPF commands

INFO: converting 'fixup protocol sqlnet 1521' to MPF commands

INFO: converting 'fixup protocol sunrpc_udp 111' to MPF commands

INFO: converting 'fixup protocol tftp 69' to MPF commands

INFO: converting 'fixup protocol sip udp 5060' to MPF commands

INFO: converting 'fixup protocol xdmcp 177' to MPF commands

Type help or '?' for a list of available commands.

After Upgrade

Note The configuration example in this section displays missing conduit and outbound statements; they have been converted to access control lists.

Conduit> enable

Password:

Conduit# show run

: Saved

 PIX Version 7.0(4)

 names

 name 172.16.1.75 Linux

 interface Ethernet0

  speed 100

  duplex full

  nameif outside

  security-level 0

  ip address 172.16.1.161 255.255.255.0

 interface Ethernet1

  speed 100

  duplex full

  nameif inside

  security-level 100

  ip address 192.168.1.161 255.255.255.0

 interface Ethernet2

  shutdown

  nameif dmz

  security-level 50

  no ip address

 interface Ethernet3

  shutdown

  nameif intf3

  security-level 6

  no ip address

 interface Ethernet4

  shutdown

  nameif intf4

  security-level 8

  no ip address

 interface Ethernet5

  shutdown

  nameif intf5

  security-level 10

  no ip address

 enable password 8Ry2YjIyt7RRXU24 encrypted

 passwd 2KFQnbNIdI.2KYOU encrypted

 hostname Conduit

 domain-name ciscopix.com

 boot system flash:/image.bin

 ftp mode passive

 no pager

 logging enable

 logging trap informational

 logging host inside 192.168.1.99

 mtu outside 1500

 mtu inside 1500

 mtu dmz 1500

 mtu intf3 1500

 mtu intf4 1500

 mtu intf5 1500

 no failover

 monitor-interface outside

 monitor-interface inside

 monitor-interface dmz

 monitor-interface intf3

 monitor-interface intf4

 monitor-interface intf5

 icmp permit any outside

 icmp permit any inside

 asdm history enable

 arp timeout 14400

 nat-control

 global (outside) 1 172.16.1.210-172.16.1.212

 nat (inside) 1 0.0.0.0 0.0.0.0

 static (inside,outside) 172.16.1.111 192.168.1.5 netmask 255.255.255.255

 route outside 0.0.0.0 0.0.0.0 172.16.1.1 1

 timeout xlate 3:00:00

 timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02 sunrpc 0:10:00 h323
0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00 sip 0:30:00 sip_media 0:02:00

 timeout uauth 0:05:00 absolute

 aaa-server TACACS+ protocol tacacs+

 aaa-server RADIUS protocol radius

 http server enable

 http 0.0.0.0 0.0.0.0 outside

 http 0.0.0.0 0.0.0.0 inside

 no snmp-server location

 no snmp-server contact

 snmp-server community public

 snmp-server enable traps snmp

 no sysopt connection permit-ipsec

 telnet 192.168.1.0 255.255.255.0 inside

 telnet timeout 5

 ssh timeout 5

 ssh version 1

 console timeout 0

 dhcpd address 192.168.1.100-192.168.1.102 inside

 dhcpd lease 3600

 dhcpd ping_timeout 750

 dhcpd enable inside

 class-map inspection_default

  match default-inspection-traffic

 policy-map global_policy

  class inspection_default

   inspect dns maximum-length 512

   inspect ftp

   inspect h323 h225

   inspect h323 ras

   inspect http

   inspect netbios

   inspect rsh

   inspect rtsp

   inspect skinny

   inspect esmtp

   inspect sqlnet

   inspect sunrpc

   inspect tftp

   inspect sip

   inspect xdmcp

 service-policy global_policy global

 Cryptochecksum:629e8fc8b6e635161c253178e5d91814

 : end

Conduit#

Table Of Contents

Upgrading

Prerequisites to Upgrading

Minimum Hardware Requirements

Minimum Software Requirements

Minimum Memory Requirements

Client PC Operating System and Browser Requirements

Minimum Connectivity Requirements

Upgrade Procedure

Important Notes

Basic Upgrade Procedure

Upgrading in Monitor Mode

Important Notes

Procedure

Upgrade Examples

Basic Upgrade from PIX Version 6.3 to Security Appliance Version 7.0

Assumptions

Before Upgrade

Upgrade

After Upgrade

Upgrading to a VPN Client with Remote Access

Assumptions

Before Upgrade

Upgrade

After Upgrade

Upgrading to Security Appliance Version 7.0 Using VLAN

Assumptions

Before Upgrade

Upgrade

After Upgrade

Upgrading to Security Appliance Version 7.0 with Voice Over IP

Assumptions

Before Upgrade

Upgrade

After Upgrade

Upgrading to Security Appliance Version 7.0 with Authentication

Assumptions

Before Upgrade

Upgrade

After Upgrade

Upgrading to Security Appliance Version 7.0 with Active/Standby Failover

Assumptions

Overview

Upgrading the Active PIX

Upgrading the Standby PIX

Connecting to the Active PIX

Connecting to the Standby PIX

Upgrading to Security Appliance Version 7.0 with Conduits

Assumptions

Before Upgrade

Upgrade

After Upgrade
