Cisco 2691 Modular Access Router FIPS 140-2 Non-Proprietary Security Policy
Introduction
This is the non-proprietary Cryptographic Module Security Policy for the Cisco 2691 router. This security policy describes how the Cisco 2691 router meets the security requirements of FIPS 140-2, and how to operate the Cisco 2691 router in a secure FIPS 140-2 mode. This policy was prepared as part of the Level 2 FIPS 140-2 certification of the Cisco 2691 router.
FIPS 140-2 (Federal Information Processing Standards Publication 140-2 - Security Requirements for Cryptographic Modules) details the U.S. Government requirements for cryptographic modules. More information about the FIPS 140-2 standard and validation program is available on the NIST website at http://csrc.nist.gov/cryptval/.
This document contains the following sections:
•
Secure Operation of the Cisco 2691 Router
•
•
References
This document deals only with operations and capabilities of the Cisco 2691 router in the technical terms of a FIPS 140-2 cryptographic module security policy. More information is available on the Cisco 2691 router and the entire Cisco 2600 series from the following sources:
•
http://www.cisco.com/en/US/products/hw/routers/ps259/index.html
•
•
Terminology
In this document, the Cisco 2691 router is referred to as the router, the module, or the system.
Document Organization
The Security Policy document is part of the complete FIPS 140-2 Submission Package. In addition to this document, the complete Submission Package contains:
•
•
•
•
This document provides an overview of the Cisco 2691 router and explains the secure configuration and operation of the module. This introduction section is followed by Section 2, which details the general features and functionality of the Cisco 2691 router. Section 3 specifically addresses the required configuration for the FIPS-mode of operation.
With the exception of this Non-Proprietary Security Policy, the FIPS 140-2 Certification Submission Documentation is Cisco-proprietary and is releasable only under appropriate non-disclosure agreements. For access to these documents, please contact Cisco Systems.
The Cisco 2691 Router
Branch office networking requirements are dramatically evolving, driven by web and e-commerce applications to enhance productivity and merging the voice and data infrastructure to reduce costs. The Cisco 2691 modular multi-service router offers versatility, integration, and security to branch offices. With over 100 Network Modules and WAN Interface Cards (WICs), the modular architecture of the Cisco router easily allows interfaces to be upgraded to accommodate network expansion. The Cisco 2691 provides a scalable, secure, manageable remote access server that meets FIPS 140-2 Level 2 requirements. This section describes the general features and functionality provided by the Cisco 2691 router.
Note
The Cisco 2691 Cryptographic Module
Figure 1 The Cisco 2691 Router
The cryptographic boundary is defined as encompassing the "top," "front," "left," "right," and "bottom" surfaces of the case; all portions of the "backplane" of the case which are not designed to accommodate a WIC or Network Module; and the inverse of the three-dimensional space within the case that would be occupied by an installed WIC or Network Module. The cryptographic boundary includes the connection apparatus between the WIC or Network Module and the motherboard/daughterboard that hosts the WIC or Network Module, but the boundary does not include the WIC or Network Module itself. In other words, the cryptographic boundary encompasses all hardware components within the case of the device except any installed modular WICs or Network Modules. All of the functionality discussed in this document is provided by components within this cryptographic boundary.
Cisco IOS features such as tunneling, data encryption, and termination of Remote Access WANs via IPSec, Layer 2 Forwarding (L2F) and Layer 2 Tunneling Protocols (L2TP) make the Cisco 2600 an ideal platform for building virtual private networks or outsourced dial solutions. Cisco 2600 series' RISC-based processor provides the power needed for the dynamic requirements of the remote branch office, achieving wire speed Ethernet to Ethernet routing with up to 70 thousand packets per second (Kpps) throughput capacity.
Module Interfaces
The interfaces for the router are located on the rear panel as shown in Figure 2.

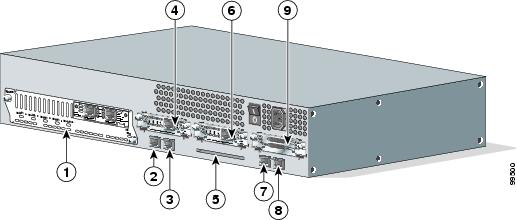

Figure 2 Cisco 2691 Physical Interfaces
The Cisco 2691 router features console and auxiliary ports, dual fixed LAN interfaces, a Network Module slot, two Cisco WAN interface card (WIC) slots, and a Compact Flash slot.
LAN support includes single and dual Ethernet options; 10/100 Mbps auto-sensing Ethernet; mixed Token-Ring and Ethernet; and single Token Ring chassis versions. WAN interface cards support a variety of serial, ISDN BRI, and integrated CSU/DSU options for primary and backup WAN connectivity, while available Network Modules support multi-service voice/data/fax integration, departmental dial concentration, and high-density serial options. The AIM slot supports integration of advanced services such as hardware-assisted data compression and encryption. All Cisco 2600 series routers include an auxiliary port supporting 115Kbps Dial-On-Demand Routing, ideal for back-up WAN connectivity.
When a Network Module is inserted, it fits into an adapter called the Network Module expansion bus. The expansion bus interacts with the PCI bridge in the same way that the fixed LAN ports do; therefore, no critical security parameters pass through the Network Module (just as they don't pass through the LAN ports). Network modules do not perform any cryptographic functions.
WICs are similar to Network Modules in that they greatly increase the router's flexibility. A WIC is inserted into one of two slots, which are located above the fixed LAN ports. WICs interface directly with the processor. They do not interface with the cryptographic card; therefore no security parameters will pass through them. WICs cannot perform cryptographic functions; they only serve as a data input and data output physical interface.
The physical interfaces include a power plug for the power supply and a power switch. The router has two Fast Ethernet (10/100 RJ-45) connectors for data transfers in and out. The module also has two other RJ-45 connectors on the back panel for a console terminal for local system access and an auxiliary port for remote system access or dial backup using a modem. The 10/100Base-T LAN ports have Link/Activity, 10/100Mbps, and half/full duplex LEDs. Figure 3 shows the LEDs located on the rear panel with descriptions detailed in Table 1:

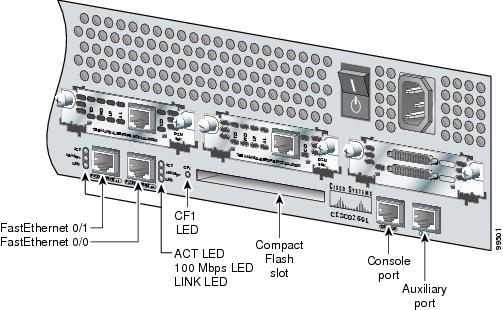

Figure 3 Cisco 2691 Rear Panel LEDs
Figure 4 shows the front panel LEDs, which provide overall status of the router's operation. The front panel displays whether or not the router is booted, if the redundant power is (successfully) attached and operational, and overall activity/link status.
Figure 4 Cisco 2691 Front Panel LEDs
Table 2 provides more detailed information conveyed by the LEDs on the front panel of the router:
All of these physical interfaces are separated into the logical interfaces from FIPS 140-2 as described in Table 3:
Authentication is role-based. There are two main roles in the router that operators may assume: the Crypto Officer role and the User role. The administrator of the router assumes the Crypto Officer role in order to configure and maintain the router using Crypto Officer services, while the Users exercise only the basic User services. The module supports RADIUS and TACACS+ for authentication. A complete description of all the management and configuration capabilities of the Cisco 2691 Router can be found in the Performing Basic System Management manual and in the online help for the router.
Crypto Officer Services
During initial configuration of the router, the Crypto Officer password (the "enable" password) is defined. A Crypto Officer may assign permission to access the Crypto Officer role to additional accounts, thereby creating additional Crypto Officers.
The Crypto Officer role is responsible for the configuration and maintenance of the router. The Crypto Officer services consist of the following:
•
•
•
•
•
•
•
User Services
A User enters the system by accessing the console port with a terminal program. The Cisco IOS prompts the User for their password. If the password is correct, the User is allowed entry to the Cisco IOS executive program. The services available to the User role consist of the following:
•
•
•
•
Physical Security
The router is entirely encased by a thick steel chassis. The rear of the unit provides 1 Network Module slot, 3 WIC slots, on-board LAN connectors, Console/Auxiliary connectors, Compact Flash slot, the power cable connection and a power switch. The top portion of the chassis may be removed to allow access to the motherboard, memory, and expansion slots.
Once the router has been configured in to meet FIPS 140-2 Level 2 requirements, the router cannot be accessed without signs of tampering. To seal the system, apply serialized tamper-evidence labels as follows:
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
The labels completely cure within five minutes.

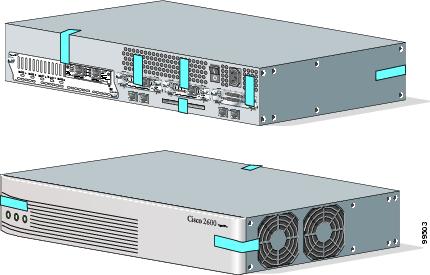

Figure 5 Tamper Evidence Label Placement
The tamper evidence seals are produced from a special thin gauge vinyl with self-adhesive backing. Any attempt to open the router, remove Network Modules or WIC cards, or the front faceplate will damage the tamper evidence seals or the painted surface and metal of the module cover. Since the tamper evidence seals have non-repeated serial numbers, they may be inspected for damage and compared against the applied serial numbers to verify that the module has not been tampered. Tamper evidence seals can also be inspected for signs of tampering, which include the following: curled corners, bubbling, crinkling, rips, tears, and slices. The word "Opened" may appear if the label was peeled back.
Cryptographic Key Management
The router securely administers both cryptographic keys and other critical security parameters such as passwords. The tamper evidence seals provide physical protection for all keys. Keys are also password protected and can be zeroized by the Crypto Officer. Keys are exchanged manually and entered electronically via manual key exchange or Internet Key Exchange (IKE).
The module contains a cryptographic accelerator card, which provides AES (128-bit), DES (56-bit), and 3DES (168-bit) IPSec encryption at up to 90Mbps (3DES, 96Mbps DES), MD5 and SHA-1 hashing, and has hardware support for DH and RSA key generation.
The module supports the following keys (critical security parameters):
•
•
•
•
•
•
The module supports DES, 3DES, SHA-1, MD-5, MD-4, SHA-1 HMAC, MD5 HMAC, Diffie-Hellman, RSA (for digital signatures and encryption), and AES cryptographic algorithms. The MD-5, MD-5 HMAC, MD-4, and RSA encryption algorithms are disabled when operating in FIPS mode.
The module supports three types of key management schemes:
•
•
–
–
•
The module supports commercially available methods of key establishment, including Diffie-Hellman and IKE. See the Configuring IPSec Network Security document, Submission Document 7A, and the Internet Key Exchange Security Protocol Commands, Submission Document 7B.
All pre-shared keys are associated with a password of the role that created the keys. The Crypto Officer needs to be authenticated to store keys. All Diffie-Hellman (DH) keys agreed upon for individual tunnels are directly associated with that specific tunnel only via the IKE protocol.
Key Zeroization:
Each key can be zeroized by sending the "no" command prior to the key function commands. This will zeroize each key from the DRAM, which is a running configuration. The Crypto Officer must copy the running configuration (DRAM) to the start-up configuration (NVRAM) in order to completely zeroize the keys. Additionally, the Crypto Officer can zeroize all operator passwords by overwriting them with spaces or by deleting the operators' access.
"Clear Crypto IPSec SA" will zeroize the DES session key (which is derived using the Diffie-Hellman key agreement technique) from the DRAM. This session key is only available in the DRAM; therefore this command will completely zeroize this key. The following command will zeroize the manual keys from the DRAM:
•
•
•
•
The DRAM running configuration must be copied to the start-up configuration in NVRAM in order to completely zeroize the keys.
The following commands will zeroize the pre-shared keys from the DRAM:
•
•
The DRAM running configuration must be copied to the start-up configuration in NVRAM in order to completely zeroize the keys.
Self-Tests
In order to prevent any secure data being released, it is important to test the cryptographic components of a security module to insure all components are functioning correctly. The router includes an array of self-tests that are run during startup and periodically during operations.
If any of these self-tests fail, the router will transition into an error state. Within the error state, all secure data transmission is halted and the router outputs status information indicating the failure.
Power Up Tests
The self-test run at power-up includes a cryptographic known answer tests (KAT) on the FIPS-approved cryptographic algorithms (AES, DES, 3DES), on the message digest (SHA-1) and on the Diffie-Hellman algorithm. Also performed at startup are a software integrity test using an EDC, and a set of Statistical Random Number Generator (RNG) tests.
Conditional Tests
The following tests are also run periodically or conditionally: a Bypass Mode test performed conditionally prior to executing IPSec, and the continuous random number generator test.
Secure Operation of the Cisco 2691 Router
The Cisco 2691 router meets all the Level 2 requirements for FIPS 140-2. Follow the setting instructions provided below to place the module in FIPS mode. Operating this router without maintaining the following settings will remove the module from the FIPS approved mode of operation.
Initial Setup
•
•
•
System Initialization and Configuration
•
•
config-register 0x0101•
enable secret <PASSWORD>•
line con 0password <PASSWORD>login local•
•
IPSec Requirements and Cryptographic Algorithms
•
•
–
–
–
–
–
•
–
–
–
Protocols
SNMP v3 over a secure IPSec tunnel may be employed for authenticated, secure SNMP gets and sets. Since SNMP v2C uses community strings for authentication, only gets are allowed under SNMP v2C.
Remote Access
•
•
