RFC 1213

---

Evolution of RFC 1213

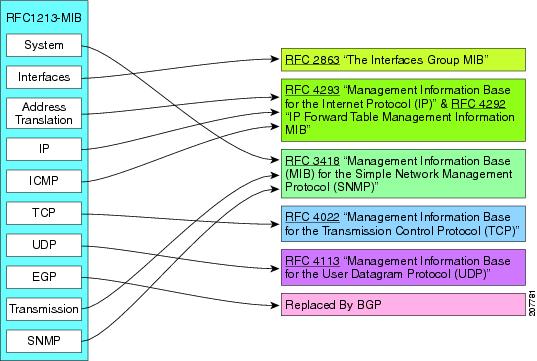

Figure C-1 describes the evolution of various groups in RFC 1213. It shows where the information provided by each group in RFC 1213 is available now.

Figure C-1 RFC 1213 Evolution

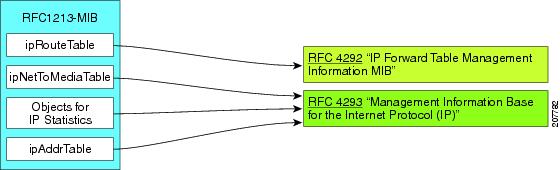

Evolution of IP Group in RFC 1213

Figure C-2 expands the evolution of IP group. It shows the evolution of each table in the group:

•ipRouteTable was replaced by RFC 4292.

•ipNetToMediaTable was replaced by ipNetToPhysicalTable in RFC 4293.

•ipAddrTable was replaced by RFC 4293.

Figure C-2 Evolution of IP Group in RFC 1213
