MPLS TE—Tunnel-Based Admission Control

First Published: January 7, 2008
Last Updated: February 26, 2010

The MPLS TE—Tunnel-Based Admission Control (TBAC) feature enables classic Resource Reservation Protocol (RSVP) unicast reservations that are traveling across a Multiprotocol Label Switching traffic engineering (MPLS TE) core to be aggregated over an MPLS TE tunnel.

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest feature information and caveats, see the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the "Feature Information for MPLS TE—Tunnel-Based Admission Control" section.

Use Cisco Feature Navigator to find information about platform support and Cisco IOS XE software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

Contents

•Prerequisites for MPLS TE—Tunnel-Based Admission Control

•Restrictions for MPLS TE—Tunnel-Based Admission Control

•Information About MPLS TE—Tunnel-Based Admission Control

•How to Configure MPLS TE—Tunnel-Based Admission Control

•Configuration Examples for MPLS TE—Tunnel-Based Admission Control

•Additional References

•Feature Information for MPLS TE—Tunnel-Based Admission Control

•Glossary

Prerequisites for MPLS TE—Tunnel-Based Admission Control

•You must configure an MPLS TE tunnel in the network.

•You must configure RSVP on one or more interfaces on at least two neighboring routers that share a link within the network.

Restrictions for MPLS TE—Tunnel-Based Admission Control

•Only IPv4 unicast RSVP flows are supported.

•Primary, one-hop tunnels are not supported. The TE tunnel cannot be a member of a class-based tunnel selection (CBTS) bundle.

•Multitopology Routing (MTR) is not supported.

•Only preestablished aggregates are supported. They can be configured statically or dynamically using command-line interface (CLI) commands.

Information About MPLS TE—Tunnel-Based Admission Control

To use the MPLS TE—TBAC feature, you should understand the following concepts:

•Feature Overview of MPLS TE—Tunnel-Based Admission Control

•Benefits of MPLS TE—Tunnel-Based Admission Control

Feature Overview of MPLS TE—Tunnel-Based Admission Control

TBAC aggregates reservations from multiple, classic RSVP sessions over different forms of tunneling technologies that include MPLS TE tunnels, which act as aggregate reservations in the core. Figure 1 gives an overview of TBAC.

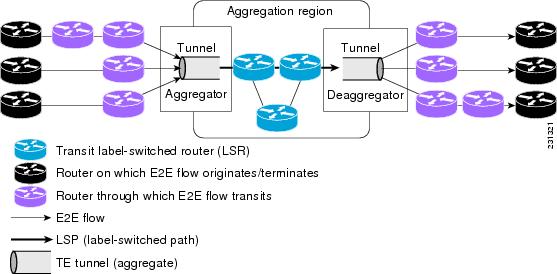

Figure 1 TBAC Overview

Figure 1 shows three RSVP end-to-end (E2E) flows that originate at routers on the far left, and terminate on routers at the far right. These flows are classic RSVP unicast flows, meaning that RSVP is maintaining a state for each flow. There is nothing special about these flows, except that along their path, these flows encounter an MPLS-TE core, where there is a desire to avoid creating a per-flow RSVP state.

When the E2E flows reach the edge of the MPLS-TE core, they are aggregated onto a TE tunnel. This means that when transiting through the MPLS-TE core, their state is represented by a single state; the TE tunnel is within the aggregation region, and their packets are forwarded (label-switched) by the TE tunnel. For example, if 100 E2E flows traverse the same aggregator and deaggregator, rather than creating 100 RSVP states (PATH and RESV messages) within the aggregation region, a single RSVP-TE state is created, that of the aggregate, which is the TE tunnel, to allocate and maintain the resources used by the 100 E2E flows. In particular, the bandwidth consumed by E2E flows within the core is allocated and maintained in aggregate by the TE tunnel. The bandwidth of each E2E flow is normally admitted into the TE tunnel at the headend, just as any E2E flow's bandwidth is admitted onto an outbound link in the absence of aggregation.

Benefits of MPLS TE—Tunnel-Based Admission Control

To understand the benefits of TBAC, you should be familiar with how Call Admission Control (CAC) works for RSVP and Quality of Service (QoS).

Cost Effective

Real-time traffic is very sensitive to loss and delay. CAC avoids QoS degradation for real-time traffic because CAC ensures that the accepted load always matches the current network capacity. As a result, you do not have to overprovision the network to compensate for absolute worst peak traffic or for reduced capacity in case of failure.

Improved Accuracy

CAC uses RSVP signaling, which follows the same path as the real-time flow, and routers make a CAC decision at every hop. This ensures that the CAC decision is very accurate and dynamically adjusts to the current conditions such as a reroute or an additional link. Also, RSVP provides an explicit CAC response (admitted or rejected) to the application, so that the application can react appropriately and fast; for example, sending a busy signal for a voice call, rerouting the voice call on an alternate VoIP route, or displaying a message for video on demand.

RSVP and MPLS TE Combined

TBAC allows you to combine the benefits of RSVP with those of MPLS TE. Specifically, you can use MPLS TE inside the network to ensure that the transported traffic can take advantage of Fast Reroute protection (50-millisecond restoration), Constraint Based Routing (CBR), and aggregate bandwidth reservation.

Seamless Deployment

TBAC allows you to deploy IPv4 RSVP without any impact on the MPLS part of the network because IPv4 RSVP is effectively tunneled inside MPLS TE tunnels that operate unchanged as per regular RSVP TE. No upgrade or additional protocol is needed in the MPLS core.

Enhanced Scaling Capability

TBAC aggregates multiple IPv4 RSVP reservations ingressing from the same MPLS TE headend router into a single MPLS TE tunnel and egressing from the same MPLS TE tailend router.

How to Configure MPLS TE—Tunnel-Based Admission Control

This section contains the following procedures:

•Enabling RSVP QoS (required)

•Enabling MPLS TE (required)

•Configuring an MPLS TE Tunnel Interface (required)

•Configuring RSVP Bandwidth on an MPLS TE Tunnel Interface (required)

•Verifying the TBAC Configuration (optional)

Enabling RSVP QoS

Perform this task to enable RSVP QoS globally on a router.

SUMMARY STEPS

1. enable

2. configure terminal

3. ip rsvp qos

4. end

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

ip rsvp qos

Example:

Router(config)# ip rsvp qos

Enables RSVP QoS globally on a router.

Step 4

end

Example:

Router(config)# end

(Optional) Returns to privileged EXEC mode.

Enabling MPLS TE

Perform this task to enable MPLS TE. This task enables MPLS TE globally on a router that is running RSVP QoS.

SUMMARY STEPS

1. enable

2. configure terminal

3. mpls traffic-eng tunnels

4. end

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

mpls traffic-eng tunnels

Example:

Router(config)# mpls traffic-eng tunnels

Enables MPLS TE globally on a router.

Step 4

end

Example:

Router(config)# end

(Optional) Returns to privileged EXEC mode.

Configuring an MPLS TE Tunnel Interface

Prerequisites

You must configure an MPLS-TE tunnel in your network before you can proceed. For detailed information, see the "MPLS Traffic Engineering (TE)—Automatic Bandwidth Adjustment for TE Tunnels" module.

SUMMARY STEPS

1. enable

2. configure terminal

3. interface tunnel number

4. end

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

interface tunnel number

Example:

Router(config)# interface tunnel 1

Specifies a tunnel interface and enters interface configuration mode.

Step 4

end

Example:

Router(config-if)# end

(Optional) Returns to privileged EXEC mode.

Configuring RSVP Bandwidth on an MPLS TE Tunnel Interface

Perform this task to configure RSVP bandwidth on the MPLS TE tunnel interface that you are using for the aggregation.

SUMMARY STEPS

1. enable

2. configure terminal

3. interface tunnel number

4. ip rsvp bandwidth [interface-kbps] [single-flow-kbps]

5. end

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal

Example:

Router# configure terminal

Enters global configuration mode.

Step 3

interface tunnel number

Example:

Router(config)# interface tunnel 1

Specifies a tunnel interface and enters interface configuration mode.

Step 4

ip rsvp bandwidth [interface-kbps] [single-flow-kbps]

Example:

Router(config-if)# ip rsvp bandwidth 7500

Enables RSVP bandwidth on an interface.

•The optional interface-kbps and single-flow-kbps arguments specify the amount of bandwidth that can be allocated by RSVP flows or to a single flow, respectively. Values are from 1 to 10000000.

Note You must enter a value for the interface-kbps argument on a tunnel interface.

Step 5

end

Example:

Router(config-if)# end

(Optional) Returns to privileged EXEC mode.

Verifying the TBAC Configuration

Note You can use the following show commands in user EXEC or privileged EXEC mode, in any order.

SUMMARY STEPS

1. enable

2. show ip rsvp

3. show ip rsvp reservation [detail] [filter [destination {ip-address | hostname}] [dst-port port-number] [source {ip-address | hostname}] [src-port port-number]]

4. show ip rsvp sender [detail] [filter [destination ip-address | hostname] [dst-port port-number] [source ip-address | hostname] [src-port port-number]]

5. show mpls traffic-eng link-management bandwidth-allocation [summary] [interface-type interface-number]

6. exit

DETAILED STEPS


Command or Action
Purpose

Step 1

enable

Example:

Router> enable

(Optional) Enables privileged EXEC mode.

•Enter your password if prompted.

Note Omit this step if you are using the show commands in user EXEC mode.

Step 2

show ip rsvp
Example:
Router# show ip rsvp

Displays specific information for RSVP categories.

Step 3

show ip rsvp reservation [detail] [filter
[destination {ip-address | hostname}]
[dst-port port-number] [source {ip-address |
hostname}] [src-port port-number]]
Example:
Router# show ip rsvp reservation detail

Displays RSVP-related receiver information currently in the database.

Step 4

show ip rsvp sender [detail] [filter
[destination ip-address | hostname] [dst-port
port-number] [source ip-address | hostname]
[src-port port-number]]
Example:
Router# show ip rsvp sender detail

Displays RSVP PATH-related sender information currently in the database.

Step 5

show mpls traffic-eng link-management
bandwidth-allocation [summary] [interface-type
interface-number]
Example:
Router# show mpls traffic-eng link-management
bandwidth-allocation

Displays current local link information.

Step 6

exit

Example:

Router# exit

(Optional) Exits privileged EXEC mode and returns to user EXEC mode.

Configuration Examples for MPLS TE—Tunnel-Based Admission Control

This section provides the following configuration examples for TBAC:

•Example: Configuring TBAC

•Example: Configuring RSVP Local Policy on a Tunnel Interface

•Example: Verifying the TBAC Configuration

Example: Configuring TBAC

Note You must have an MPLS TE tunnel already configured in your network. For detailed information, see the "MPLS Traffic Engineering (TE)—Automatic Bandwidth Adjustment for TE Tunnels" module.

The following example enables RSVP and MPLS TE globally on a router and then configures a tunnel interface and bandwidth of 7500 kbps on the tunnel interface traversed by the RSVP flows:

Router# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Router(config)# ip rsvp qos

Router(config)# mpls traffic-eng tunnels

Router(config)# interface tunnel 1

Router(config-if)# ip rsvp bandwidth 7500

Router(config-if)# end

Example: Configuring RSVP Local Policy on a Tunnel Interface

The following example configures an RSVP default local policy on a tunnel interface:

Router# configure terminal

Enter configuration commands, one per line.  End with CNTL/Z.

Router(config)# interface tunnel 1

Router(config-if)# ip rsvp policy local default

Router(config-rsvp-local-if-policy)# max bandwidth single 10

Router(config-rsvp-local-if-policy)# forward all

Router(config-rsvp-local-if-policy)# end

Example: Verifying the TBAC Configuration

Figure 2 shows a network in which TBAC is configured.

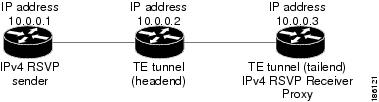

Figure 2 Sample TBAC Network

The following example verifies that RSVP and MPLS TE are enabled and coexist on the headend router (10.0.0.2 in Figure 2):

Router# show ip rsvp


RSVP: enabled (on 3 interface(s))

  RSVP QoS enabled <-------

  MPLS/TE signalling enabled <------


Signalling:

   Refresh interval (msec): 30000

   Refresh misses: 4

.

.

.

The following example verifies that RSVP and MPLS TE are enabled and coexist on the tailend router (10.0.0.3 in Figure 2):

Router# show ip rsvp


RSVP: enabled (on 3 interface(s))

  RSVP QoS enabled <-------

  MPLS/TE signalling enabled <------


Signalling:

   Refresh interval (msec): 30000

   Refresh misses: 4

.

.

.

The following examples verify that an IPv4 flow is traveling through a TE tunnel (a label-switched path [LSP]) on the headend router (10.0.0.2 in Figure 2):

Router# show ip rsvp sender


To              From          Pro DPort Sport Prev Hop       I/F      BPS

10.0.0.3        10.0.0.1      UDP 2     2     10.0.0.1       Et0/0    10K <-- IPv4 flow

10.0.0.3        10.0.0.2      0   1     11    none           none     100K <-- TE tunnel

Router# show ip rsvp reservation


To            From        Pro DPort Sport Next Hop     I/F    Fi Serv BPS

10.0.0.3      10.0.0.1    UDP 2     2     10.0.0.3     Tu1    SE RATE 10K <-- IPv4 flow

10.0.0.3      10.0.0.2    0   1     11    10.1.0.2     Et1/0  SE LOAD 100K <-- TE tunnel

The following examples verify that an IPv4 flow is traveling through a TE tunnel (LSP) on the tailend router (10.0.0.3 in Figure 2):

Router# show ip rsvp sender


To              From          Pro DPort Sport Prev Hop       I/F      BPS

10.0.0.3        10.0.0.1      UDP 2     2     10.0.0.2       Et1/0    10K <-- IPv4 flow

10.0.0.3        10.0.0.2      0   1     11    10.1.0.1       Et1/0    100K <-- TE tunnel

Router# show ip rsvp reservation


To            From          Pro DPort Sport Next Hop   I/F    Fi Serv BPS

10.0.0.3      10.0.0.1      UDP 2     2     none       none   SE RATE 10K <-- IPv4 flow

10.0.0.3      10.0.0.2      0   1     11    none       none   SE LOAD 100K <-- TE tunnel

The following examples display detailed information about the IPv4 flow and the TE tunnel (LSP) on the headend router (10.0.0.2 in Figure 2):

Router# show ip rsvp sender detail


PATH: <----------------------------------------------- IPv4 flow information begins here.

  Destination 10.0.0.3, Protocol_Id 17, Don't Police , DstPort 2

  Sender address: 10.0.0.1, port: 2

  Path refreshes:

    arriving: from PHOP 10.0.0.10 on Et0/0 every 30000 msecs. Timeout in 189 sec

  Traffic params - Rate: 10K bits/sec, Max. burst: 10K bytes

    Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes

  Path ID handle: 02000412.

  Incoming policy: Accepted. Policy source(s): Default

  Status:

  Output on Tunnel1, out of band. Policy status: Forwarding. Handle: 0800040E <--- TE
tunnel verified

    Policy source(s): Default

  Path FLR: Never repaired


PATH: <------------------------------------------------ TE tunnel information begins here.

  Tun Dest:   10.0.0.3  Tun ID: 1  Ext Tun ID: 10.0.0.2

  Tun Sender: 10.0.0.2  LSP ID: 11

  Path refreshes:

    sent:     to   NHOP 10.1.0.2 on GigabitEthernet1/0/0

   .

   .

   .

Router# show ip rsvp reservation detail


RSVP Reservation. Destination is 10.0.0.3, Source is 10.0.0.1,<--- IPv4 flow information
begins here.

  Protocol is UDP, Destination port is 2, Source port is 2

  Next Hop: 10.0.0.3 on Tunnel1, out of band <-------------------- TE tunnel verified

  Reservation Style is Shared-Explicit, QoS Service is Guaranteed-Rate

   .

   .

   .


Reservation: <--------------------------------------- TE Tunnel information begins here.

  Tun Dest:   10.0.0.3  Tun ID: 1  Ext Tun ID: 10.0.0.2

  Tun Sender: 10.0.0.2  LSP ID: 11

  Next Hop: 10.1.0.2 on GigabitEthernet1/0/0

  Label: 0 (outgoing)

  Reservation Style is Shared-Explicit, QoS Service is Controlled-Load

   .

   .

   .

Router# show ip rsvp installed detail

RSVP: GigabitEthernet0/0/0 has no installed reservations

RSVP: GigabitEthernet1/0/0 has the following installed reservations

RSVP Reservation. Destination is 10.0.0.3. Source is 10.0.0.2,

  Protocol is 0  , Destination port is 1, Source port is 11

  Traffic Control ID handle: 03000405

  Created: 04:46:55 EST Fri Oct 26 2007 <------ IPv4 flow information

  Admitted flowspec:

    Reserved bandwidth: 100K bits/sec, Maximum burst: 1K bytes, Peak rate: 100K bits/sec

    Min Policed Unit: 0 bytes, Max Pkt Size: 1500 bytes

  Resource provider for this flow: None

   .

   .

   .


RSVP: Tunnel1 has the following installed reservations <------ TE tunnel verified

RSVP Reservation. Destination is 10.0.0.3. Source is 10.0.0.1,

  Protocol is UDP, Destination port is 2, Source port is 2

  Traffic Control ID handle: 01000415

  Created: 04:57:07 EST Fri Oct 26 2007 <----- IPv4 flow information

  Admitted flowspec:

    Reserved bandwidth: 10K bits/sec, Maximum burst: 10K bytes, Peak rate: 10K bits/sec

    Min Policed Unit: 0 bytes, Max Pkt Size: 0 bytes

  Resource provider for this flow: None

   .

   .

   .

Router# show ip rsvp interface detail

 Et0/0:

   RSVP: Enabled

   Interface State: Up

   Bandwidth:

     Curr allocated: 0 bits/sec

     Max. allowed (total): 3M bits/sec

     Max. allowed (per flow): 3M bits/sec

   .

   .

   .


 Et1/0:

   RSVP: Enabled

   Interface State: Up

   Bandwidth:

     Curr allocated: 0 bits/sec

     Max. allowed (total): 3M bits/sec

     Max. allowed (per flow): 3M bits/sec

   .

   .

   .


Tu1: <--------------------------------- TE tunnel information begins here.

   RSVP: Enabled

   RSVP aggregation over MPLS TE: Enabled

   Interface State: Up

   Bandwidth:

     Curr allocated: 20K bits/sec

     Max. allowed (total): 3M bits/sec

     Max. allowed (per flow): 3M bits/sec

   .

   .

   .

The following examples display detailed information about the IPv4 flow and the TE tunnel (LSP) on the tailend router (10.0.0.3 in Figure 2):

Router# show ip rsvp sender detail


PATH: <----------------------------------------------- IPv4 flow information begins here.

  Destination 10.0.0.3, Protocol_Id 17, Don't Police , DstPort 2

  Sender address: 10.0.0.1, port: 2

  Path refreshes:

    arriving: from PHOP 10.0.0.2 on Et1/0 every 30000 msecs, out of band. Timeout in 188
sec

  Traffic params - Rate: 10K bits/sec, Max. burst: 10K bytes

    Min Policed Unit: 0 bytes, Max Pkt Size 2147483647 bytes

   .

   .

   .


PATH: <------------------------------------------------ TE tunnel information begins here.

  Tun Dest:   10.0.0.3  Tun ID: 1  Ext Tun ID: 10.0.0.2

  Tun Sender: 10.0.0.2  LSP ID: 11

  Path refreshes:

    arriving: from PHOP 10.1.0.1 on Et1/0 every 30000 msecs. Timeout in 202 sec

   .

   .

   .

Router# show ip rsvp reservation detail

RSVP Reservation. Destination is 10.0.0.3, Source is 10.0.0.1, <--- IPv4 flow information
begins here.

  Protocol is UDP, Destination port is 2, Source port is 2

  Next Hop: none

  Reservation Style is Shared-Explicit, QoS Service is Guaranteed-Rate

   .

   .

   .

Reservation: <--------------------------------------- TE tunnel information begins here.

  Tun Dest:   10.0.0.3  Tun ID: 1  Ext Tun ID: 10.0.0.2

  Tun Sender: 10.0.0.2  LSP ID: 11

  Next Hop: none

  Label: 1 (outgoing)

  Reservation Style is Shared-Explicit, QoS Service is Controlled-Load

   .

   .

   .

Router# show ip rsvp request detail

RSVP Reservation. Destination is 10.0.0.3, Source is 10.0.0.1,

  Protocol is UDP, Destination port is 2, Source port is 2

  Prev Hop: 10.0.0.2 on GigabitEthernet1/0/0, out of band <-------------- TE tunnel
verified

  Reservation Style is Shared-Explicit, QoS Service is Guaranteed-Rate

  Average Bitrate is 10K bits/sec, Maximum Burst is 10K bytes

   .

   .

   .

Request: <------------------------------------ TE tunnel information begins here.

  Tun Dest:   10.0.0.3  Tun ID: 1  Ext Tun ID: 10.0.0.2

  Tun Sender: 10.0.0.2  LSP ID: 11

  Prev Hop: 10.1.0.1 on GigabitEthernet1/0/0

  Label: 0 (incoming)

  Reservation Style is Shared-Explicit, QoS Service is Controlled-Load

   .

   .

   .

Example: Verifying the RSVP Local Policy Configuration

The following example verifies that a default local policy has been configured on tunnel interface 1:

Router# show run interface tunnnel 1


Building configuration...

Current configuration : 419 bytes

!

interface Tunnel1

 bandwidth 3000

 ip unnumbered Loopback0

 tunnel destination 10.0.0.3

 tunnel mode mpls traffic-eng

 tunnel mpls traffic-eng autoroute announce

 tunnel mpls traffic-eng priority 1 1

 tunnel mpls traffic-eng bandwidth 100

 tunnel mpls traffic-eng path-option 1 dynamic

 tunnel mpls traffic-eng fast-reroute

 ip rsvp policy local default <---------------- Local policy information begins here.

  max bandwidth single 10

  forward all

 ip rsvp bandwidth 3000

end

The following example provides additional information about the default local policy configured on
tunnel interface 1:


Router# show ip rsvp policy local detail


Tunnel1:

  Default policy:

    Preemption Scope: Unrestricted.

    Local Override:   Disabled.

    Fast ReRoute:     Accept.

    Handle:           BC000413.

                           Accept               Forward

    Path:                  Yes                  Yes

    Resv:                  Yes                  Yes

    PathError:             Yes                  Yes

    ResvError:             Yes                  Yes

                           Setup Priority       Hold Priority

    TE:                    N/A                  N/A

    Non-TE:                N/A                  N/A

                           Current              Limit

    Senders:               0                    N/A

    Receivers:             1                    N/A

    Conversations:         1                    N/A

    Group bandwidth (bps): 10K                  N/A

    Per-flow b/w (bps):    N/A                  10K


Generic policy settings:

    Default policy: Accept all

    Preemption:     Disabled

Additional References

The following sections provide references related to the MPLS TE Tunnel-Based Admission Control feature.

Related Documents

Related Topic
Document Title

Cisco IOS commands

Cisco IOS Master Commands List, All Releases

RSVP commands: complete command syntax, command mode, command history, defaults, usage guidelines, and examples

Cisco IOS Quality of Service Solutions Command Reference

QoS features including signaling, classification, and congestion management

"Quality of Service Overview" module

MPLS tunnels

"MPLS Traffic Engineering (TE)—Automatic Bandwidth Adjustment for TE Tunnels" module


Standards

Standard
Title

No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature.

—


MIBs

MIB
MIBs Link

No new or modified MIBs are supported by this feature, and support for existing MIBs has not been modified by this feature.

To locate and download MIBs for selected platforms, software releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs


RFCs

RFC
Title

RFC 2205

Resource ReSerVation Protocol (RSVP)—Version 1 Functional Specification

RFC 2209

Resource ReSerVation Protocol (RSVP)—Version 1 Message Processing Rules

RFC 3175

Aggregation of RSVP for IPv4 and IPv6 Reservations

RFC 3209

RSVP-TE: Extensions to RSVP for LSP Tunnels

RFC 4804

Aggregation of Resource ReSerVation Protocol (RSVP) Reservations over MPLS TE/DS-TE Tunnels


Technical Assistance

Description
Link

The Cisco Support and Documentation website provides online resources to download documentation, software, and tools. Use these resources to install and configure the software and to troubleshoot and resolve technical issues with Cisco products and technologies. Access to most tools on the Cisco Support and Documentation website requires a Cisco.com user ID and password.

http://www.cisco.com/cisco/web/support/index.html


Feature Information for MPLS TE—Tunnel-Based Admission Control

Table 1 lists the release history for this feature.

Use Cisco Feature Navigator to find information about platform support and software image support. Cisco Feature Navigator enables you to determine which software images support a specific software release, feature set, or platform. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

Note Table 1 lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature.

Table 1 Feature Information for MPLS TE—Tunnel-Based Admission Control (TBAC)

Feature Name
Releases
Feature Information

MPLS TE Tunnel-Based Admission Control

Cisco IOS XE Release 2.6

The MPLS TE—Tunnel-Based Admission Control feature enables classic Resource Reservation Protocol (RSVP) unicast reservations that are traveling across an MPLS TE core to be aggregated over an MPLS TE tunnel. The following commands were introduced or modified: ip rsvp qos, show ip rsvp, show ip rsvp reservation, show ip rsvp sender, show mpls traffic-eng link-management bandwidth-allocation.


Glossary

admission control—The process by which an RSVP reservation is accepted or rejected on the basis of end-to-end available network resources.

aggregate—An RSVP flow that represents multiple E2E flows; for example, an MPLS-TE tunnel may be an aggregate for many E2E flows.

aggregation region—An area where E2E flows are represented by aggregate flows, with aggregators and deaggregators at the edge; for example, an MPLS-TE core, where TE tunnels are aggregates for E2E flows. An aggregation region contains a connected set of nodes that are capable of performing RSVP aggregation.

aggregator—The router that processes the E2E PATH message as it enters the aggregation region. This router is also called the TE tunnel headend router; it forwards the message from an exterior interface to an interior interface.

bandwidth—The difference between the highest and lowest frequencies available for network signals. The term is also used to describe the rated throughput capacity of a given network medium or protocol.

deaggregator—The router that processes the E2E PATH message as it leaves the aggregation region. This router is also called the TE tunnel tailend router; it forwards the message from an interior interface to an exterior interface.

E2E—end-to-end. An RSVP flow that crosses an aggregation region and whose state is represented in aggregate within this region; for example, a classic RSVP unicast flow that crosses an MPLS-TE core.

LSP—label switched path. A configured connection between two routers in which label switching is used to carry the packets. The purpose of an LSP is to carry data packets.

MPLS—Multiprotocol Label Switching. Packet-forwarding technology, used in the network core, that applies data link layer labels to tell switching nodes how to forward data, resulting in faster and more scalable forwarding than network layer routing normally can do.

QoS—quality of service. A measure of performance for a transmission system that reflects its transmission quality and service availability.

RSVP—Resource Reservation Protocol. A protocol that supports the reservation of resources across an IP network. Applications that run on IP end systems can use RSVP to indicate to other nodes the nature (bandwidth, jitter, maximum burst, and so on) of the packet streams that they want to receive.

state—Information that a router must maintain about each LSP. The information is used for rerouting tunnels.

TE—traffic engineering. The techniques and processes that are used to cause routed traffic to travel through the network on a path other than the one that would have been chosen if standard routing methods had been used.

tunnel—Secure communications path between two peers, such as two routers.

Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1005R)

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

© 2008-2010 Cisco Systems, Inc. All rights reserved.
